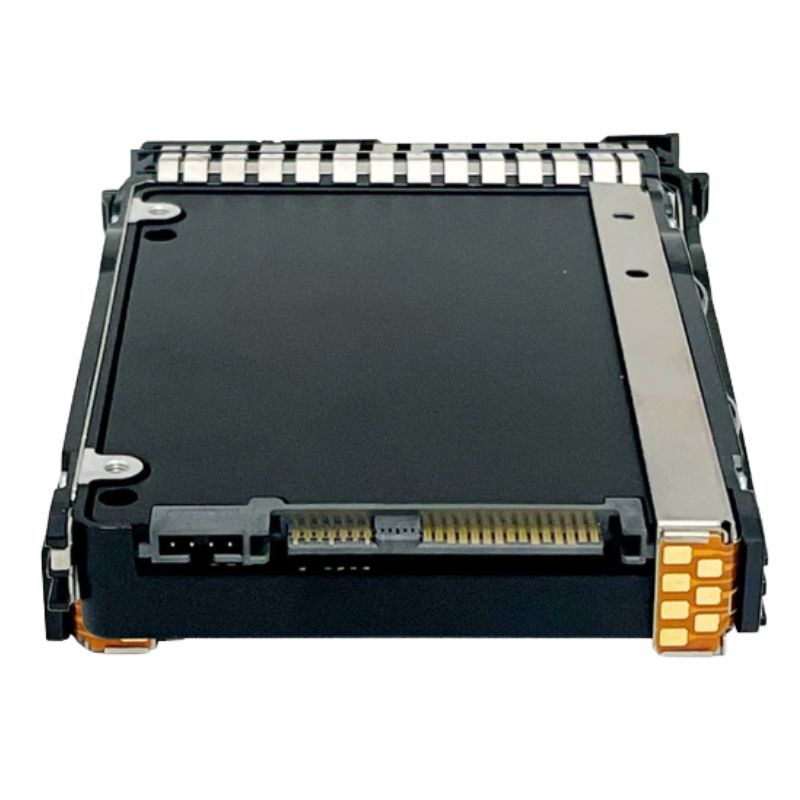

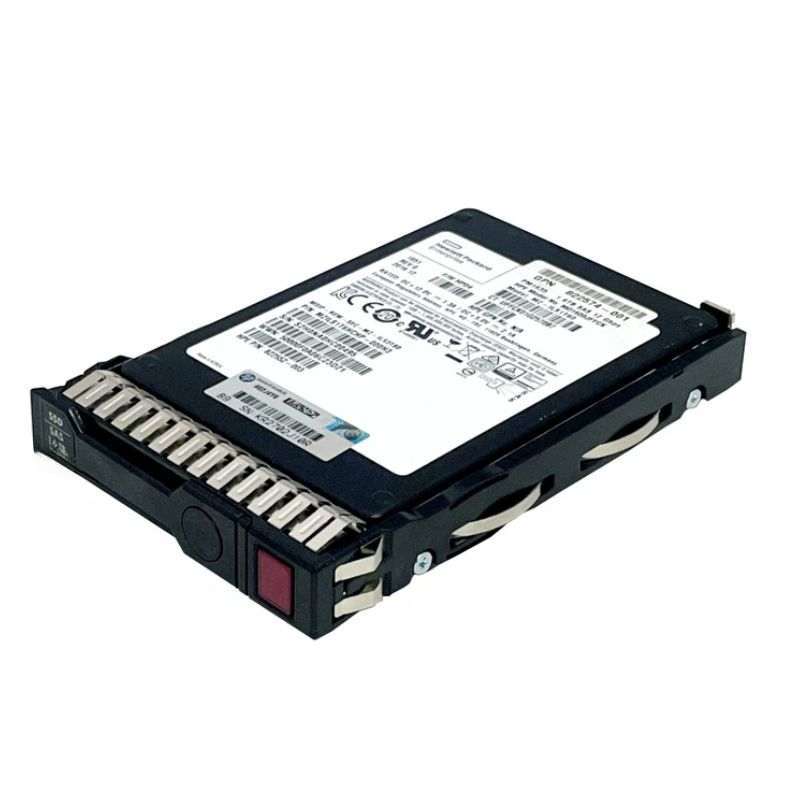

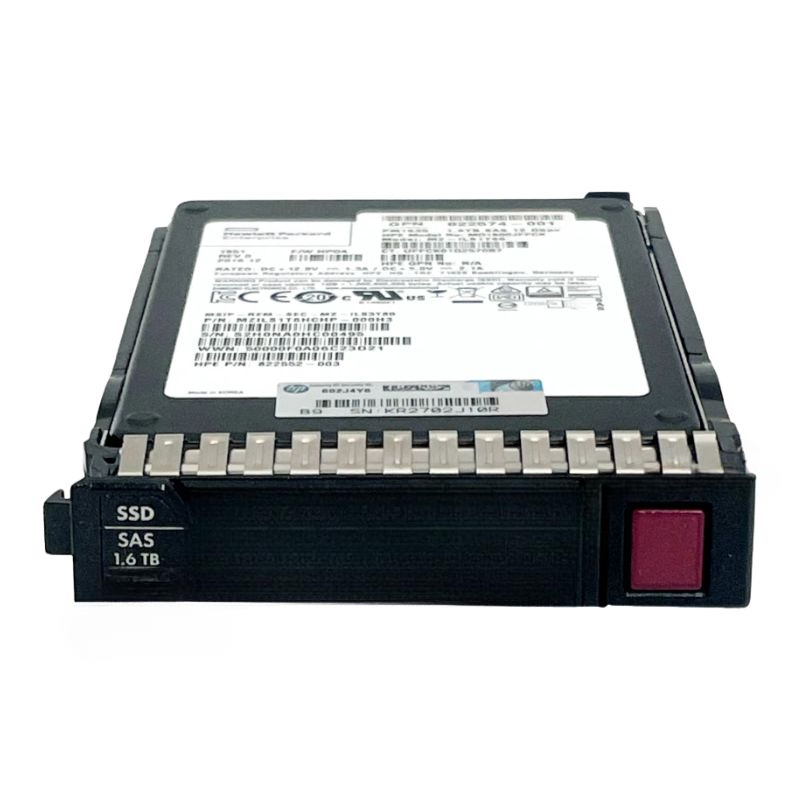

HPE P09092-X21 1.6TB SAS 12GBPS Smart Carrier MLC Mixed Use SSD

Detailed Product Information

General Specifications

• Manufacturer: HPE
• Part Number: P09092-X21
• Device Type: Solid State Drive (SSD)
• SSD Interface: SAS-12GBPS
• SKU: P09092-X21
• Spare Part Number: P09924-001

Technical Features

• Storage Capacity: 1.6 TB
• Form Factor: 2.5 Inch SFF
• Bytes per Sector: 512
• Workload Type: Mixed Use (MU)
• Flash Memory Type: Multi-Level Cell (MLC)
• Hot Plug Capability: Yes
• Carrier Type: Smart Carrier (SC)
• Firmware Features: Digitally Signed Firmware (DS)
• Included Accessories: HPE SmartDrive Carrier
• Drive Height: 15 mm

Performance Metrics

Data Transfer Rates

• External Drive Transfer Rate: 12 GB/sec
• Lifetime Writes: 8,500 TB
• Endurance (DWPD): 3.0 (Drive Writes Per Day)

Throughput Capabilities

• Maximum Sequential Read Throughput: 1,095 MB/s
• Maximum Sequential Write Throughput: 1,045 MB/s

Input/Output Operations

• Average Random Read Latency: 100 µs (4KiB, Q=1)
• Average Random Write Latency: 33 µs (4KiB, Q=1)
• Random Read IOPS: 130,000 (4KiB, Q=16)
• Random Write IOPS: 123,000 (4KiB, Q=16)
• Max Random Read IOPS: 210,000 @ Q32 (4KiB)
• Max Random Write IOPS: 124,000 @ Q16 (4KiB)

Power Consumption

• Idle Power Consumption: 3.00 Watts
• Power During Random Read: 6.30 Watts
• Power During Random Write: 6.30 Watts
• Power During Sequential Read: 5.39 Watts
• Power During Sequential Write: 9.24 Watts
• Power During Random R/W: 6.30 Watts
• Maximum Power Consumption: 9.24 Watts

Physical Dimensions and Weight

• Height: 0.63 Inch
• Width: 3.10 Inch
• Depth: 5.45 Inch
• Weight: 1.50 lbs

Compatibility Information

Supported HPE ProLiant BL Series

• BL460c Gen10 (2.5 Inch)

Supported HPE ProLiant DL Series

• DL325 Gen10 (2.5 Inch)
• DL325 Gen10 Entry (2.5 Inch)
• DL325 Gen10 Performance (2.5 Inch)
• DL325 Gen10 SMB Solution (2.5 Inch)
• DL360 Gen9 (2.5 Inch)
• DL385 Gen10 High-Performance (2.5 Inch)
• DL385 Gen10 Performance (2.5 Inch)
• DL385 Gen10 Solution (2.5 Inch)
• DL560 Gen10 (2.5 Inch)
• DL560 Gen10 Base (2.5 Inch)
• DL560 Gen10 Entry (2.5 Inch)
• DL560 Gen10 Performance (2.5 Inch)
• DL580 Gen10 (2.5 Inch)
• DL580 Gen10 Base (2.5 Inch)
• DL580 Gen10 Entry (2.5 Inch)
• DL580 Gen10 Performance (2.5 Inch)

Supported HPE ProLiant ML Series

• ML110 Gen10 (2.5 Inch)
• ML110 Gen10 Entry (2.5 Inch)
• ML110 Gen10 Performance (2.5 Inch)
• ML110 Gen10 Solution (2.5 Inch)
• ML30 Gen10 (2.5 Inch)
• ML30 Gen10 Entry (2.5 Inch)
• ML30 Gen10 Performance (2.5 Inch)
• ML30 Gen10 Solution (2.5 Inch)
• ML30 Gen9 (2.5 Inch)
• ML30 Gen9 Base (2.5 Inch)
• ML30 Gen9 Entry (2.5 Inch)
• ML30 Gen9 Performance (2.5 Inch)
• ML30 Gen9 Solution (2.5 Inch)

Supported HPE ProLiant XL Series

• XL190r Gen10 (2.5 Inch)
• XL230k Gen10 Compute Tray (2.5 Inch)
• XL270d Gen10 (2.5 Inch)

Supported HPE Synergy

• Synergy 480 Gen10 Base Compute Module (2.5 Inch)
• Synergy 480 Gen10 Compute Module (2.5 Inch)
• Synergy 480 Gen10 Entry Compute Module (2.5 Inch)
• Synergy 480 Gen10 Performance Compute Module (2.5 Inch)
• Synergy 480 Gen10 Premium Backplane Compute Module (2.5 Inch)
• Synergy 480 Gen10 Standard Backplane Compute Module (2.5 Inch)
• Synergy 480 Gen10 W/O Drives Compute Module (2.5 Inch)

Capacity: 1.6TB

The Power of Massive Storage

When it comes to data storage, having enough capacity is crucial. With the HPE P09092-X21 SSD offering an impressive capacity of 1.6TB, users can rest assured that they have ample space to store their valuable data. Whether it's large files, databases, or multimedia content, this SSD can handle it all without compromising on performance.

Uninterrupted Workflows

The 1.6TB capacity of the HPE P09092-X21 SSD ensures that users can work seamlessly without worrying about running out of storage space. This is especially important for professionals who deal with large amounts of data on a daily basis, such as content creators, video editors, and data analysts. With this SSD, they can focus on their work without interruptions or the need to constantly transfer files to external storage devices.

Enhanced Productivity

Having a high-capacity SSD like the HPE P09092-X21 allows users to keep all their files and applications in one place. This eliminates the need for multiple drives or constantly switching between different storage devices. With everything easily accessible, users can save time and improve their productivity by quickly accessing the data they need.

Future-Proofing Your Storage Needs

As technology continues to advance at a rapid pace, the demand for storage capacity is only expected to increase. By investing in a 1.6TB SSD like the HPE P09092-X21, users can future-proof their storage needs and ensure that they have enough space for their growing data requirements. This means avoiding the hassle and expense of upgrading or adding additional storage in the near future.

Interface: SAS

Reliable and Efficient Data Transfer

The SAS (Serial Attached SCSI) interface of the HPE P09092-X21 SSD offers several benefits to users, including reliable and efficient data transfer. SAS provides a high level of data integrity, ensuring that information is transferred accurately and without errors. This is critical for businesses and individuals who rely on their storage devices for mission-critical data and applications.

Fast and Responsive Performance

SAS is known for its fast data transfer speeds, allowing users to experience quick and responsive performance when accessing and transferring files. With the HPE P09092-X21 SSD's SAS interface, users can enjoy reduced latency and improved overall system responsiveness. This is particularly important for applications that require high-speed data processing, such as database management systems and virtualization environments.

Scalability and Compatibility

The SAS interface offers excellent scalability, allowing users to connect multiple drives in a daisy-chain configuration. This means that as storage needs grow, additional drives can be easily added without disrupting the existing setup. Furthermore, SAS is compatible with a wide range of devices, making it a versatile choice for both enterprise and personal use.

Enterprise-Grade Reliability

SAS is commonly used in enterprise environments due to its robustness and reliability. The HPE P09092-X21 SSD with SAS interface is designed to withstand heavy workloads and provide consistent performance even under demanding conditions. This makes it an ideal choice for businesses that require high levels of reliability and uptime.

Data Transfer Rate: 12GBPS

Lightning-Fast Data Transfer

The HPE P09092-X21 SSD boasts an impressive data transfer rate of 12Gbps. This means that users can experience lightning-fast transfer speeds when moving files or accessing data stored on the drive. Whether it's large multimedia files or complex databases, the high data transfer rate ensures that tasks are completed quickly and efficiently.

Reduced Downtime and Increased Productivity

The 12Gbps data transfer rate of the HPE P09092-X21 SSD significantly reduces downtime and increases productivity. With faster data transfers, users can spend less time waiting for files to load or transfer, and more time focusing on their work. This is particularly beneficial for businesses that rely on time-sensitive operations or require real-time data processing.

Seamless Multitasking

The high data transfer rate of the HPE P09092-X21 SSD enables seamless multitasking, allowing users to work on multiple tasks simultaneously without experiencing performance bottlenecks. Whether it's running resource-intensive applications, virtual machines, or multitasking between different projects, this SSD can handle it all with ease.

Improved System Responsiveness

By leveraging the 12Gbps data transfer rate of the HPE P09092-X21 SSD, users can experience improved system responsiveness. This means that applications load faster, files open instantly, and overall system performance is snappy and smooth. Whether it's gaming, multimedia editing, or professional software usage, the increased data transfer rate ensures a seamless user experience.

Technology: MLC

Enhanced Endurance

The HPE P09092-X21 SSD utilizes MLC (Multi-Level Cell) technology, which offers enhanced endurance compared to other types of NAND flash memory. MLC flash cells can store multiple bits of information, increasing the overall storage density and prolonging the lifespan of the drive. This ensures that the SSD can handle continuous read and write operations without degrading performance over time.

Cost-Effective Storage Solution

MLC technology strikes a balance between cost and performance, making it an attractive choice for users who require high-capacity storage without breaking the bank. The HPE P09092-X21 SSD with MLC technology offers a cost-effective storage solution that delivers excellent performance and reliability, making it suitable for a wide range of applications.

Superior Data Retention

MLC technology provides superior data retention compared to other NAND flash memory types. This means that data stored on the HPE P09092-X21 SSD remains intact even when the drive is not powered for an extended period. This is particularly important for archival purposes or when storing critical data that may not be accessed frequently.

Optimized Performance

The HPE P09092-X21 SSD's MLC technology ensures optimized performance, allowing users to experience faster read and write speeds. This is especially beneficial for applications that require high-speed data processing, such as database management systems, virtualization environments, and content creation tools. With MLC technology, users can rely on consistent performance and smooth operation.

Use Case: Mixed Use

Versatility for Various Workloads

The HPE P09092-X21 SSD is designed to handle mixed workloads with ease. Whether it's running databases, virtual machines, or content creation applications, this SSD can deliver reliable performance across a wide range of use cases. Its ability to handle both read-intensive and write-intensive workloads makes it suitable for diverse applications and scenarios.

Improved Efficiency and Responsiveness

With mixed use capabilities, the HPE P09092-X21 SSD offers improved efficiency and system responsiveness. Users can expect faster application load times, reduced latency, and improved overall system performance. This is particularly important for businesses that rely on time-sensitive operations or require real-time data processing.

Seamless Transition from HDDs

For users transitioning from traditional hard disk drives (HDDs) to SSDs, the HPE P09092-X21 with mixed use capabilities offers a seamless upgrade path. Its versatility and ability to handle various workloads make it an ideal choice for users looking to improve their storage performance without compromising on capacity or reliability.

Cost-Effective Storage Solution

The HPE P09092-X21 SSD's mixed use capabilities provide a cost-effective storage solution for users who require a balance between performance and capacity. By offering a combination of read and write capabilities, this SSD eliminates the need for separate drives for different types of workloads, resulting in cost savings and simplified storage management.

Form Factor: Smart Carrier

Effortless Installation and Maintenance

The Smart Carrier form factor of the HPE P09092-X21 SSD simplifies the installation and maintenance process. The drive comes with a specially designed carrier that allows for easy insertion and removal from compatible servers or storage systems. This means that users can quickly upgrade or replace their storage devices without the need for specialized tools or technical expertise.

Enhanced Drive Protection

The Smart Carrier design provides enhanced protection for the HPE P09092-X21 SSD. The carrier is specifically engineered to safeguard the drive against physical damage, such as shocks and vibrations, that can occur during transportation or while in operation. This ensures the longevity and reliability of the drive, even in demanding environments.

Hot-Swap Capability

The Smart Carrier form factor enables hot-swapping of the HPE P09092-X21 SSD, allowing users to replace or upgrade drives without powering down the server or storage system. This eliminates downtime and ensures uninterrupted operation, making it an ideal choice for mission-critical applications that require high availability.

Space-Saving Design

The compact size of the Smart Carrier form factor enables efficient use of space within server racks or storage enclosures. This is especially important for data centers and enterprise environments where space is often limited. With the HPE P09092-X21 SSD's Smart Carrier design, users can maximize their storage capacity without sacrificing valuable rack space.
