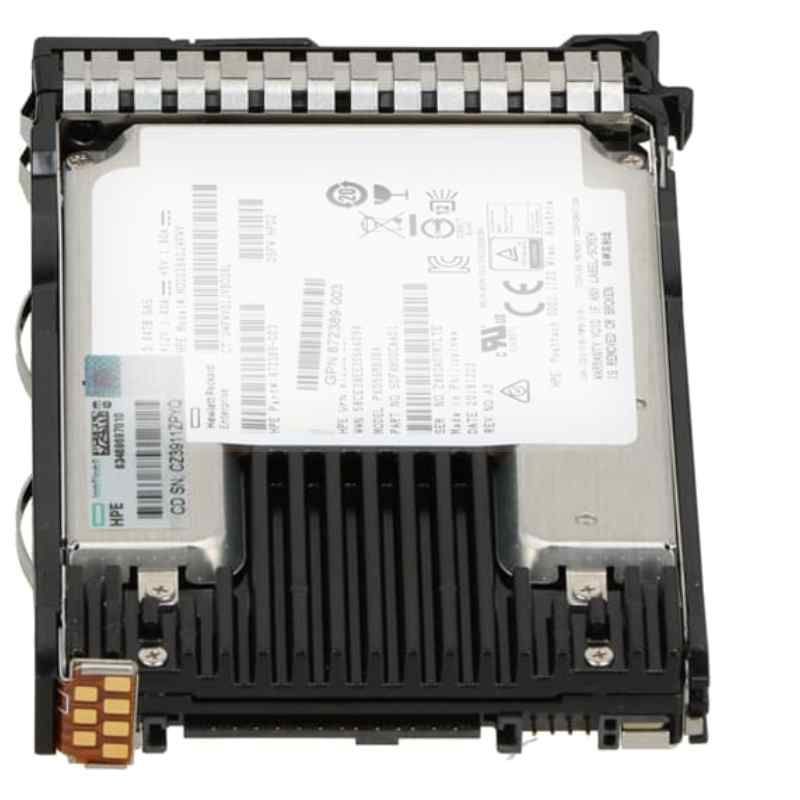

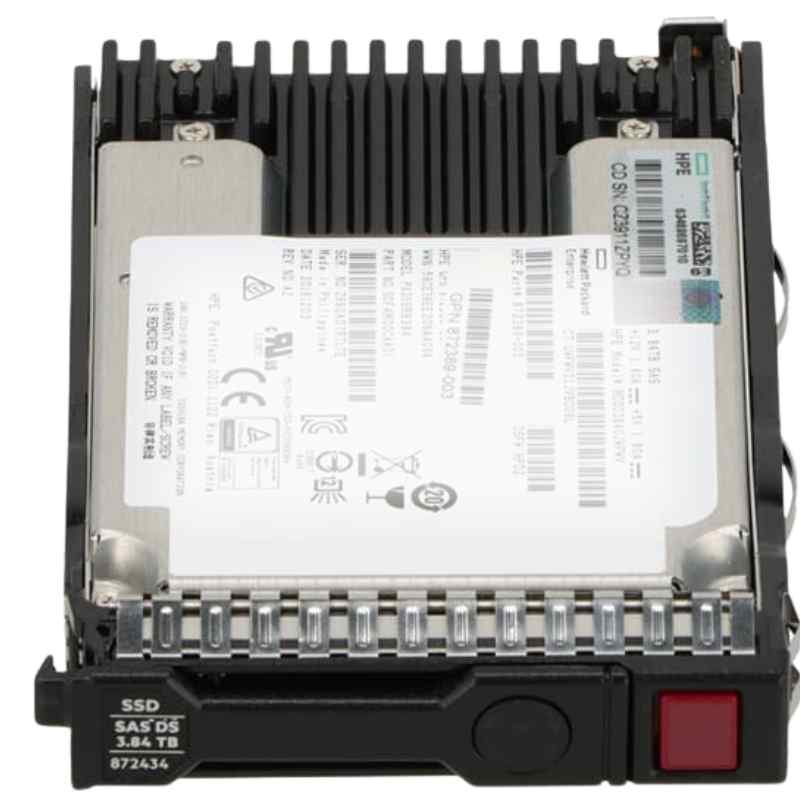

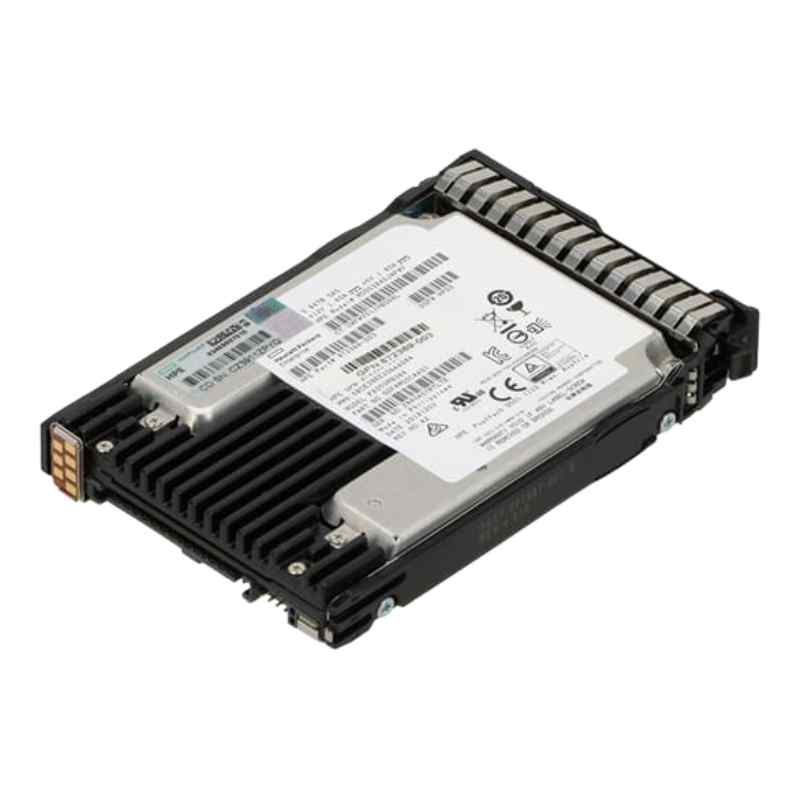

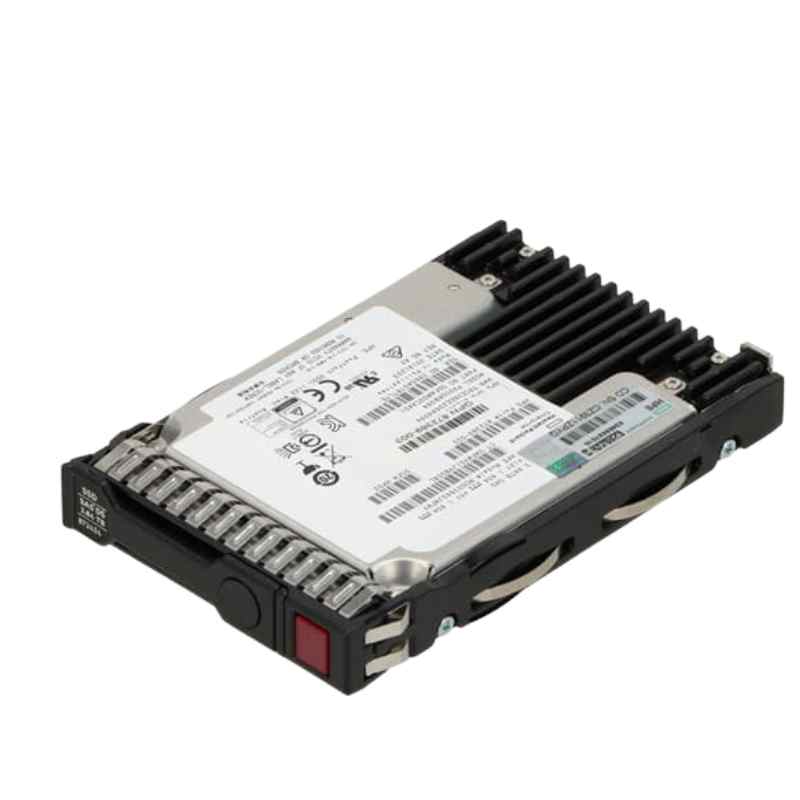

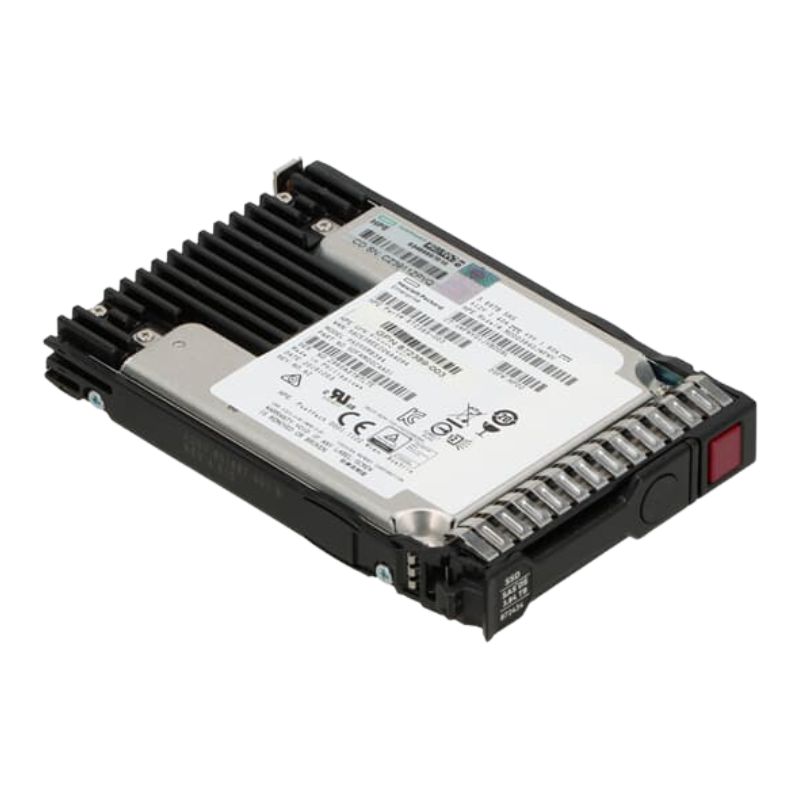

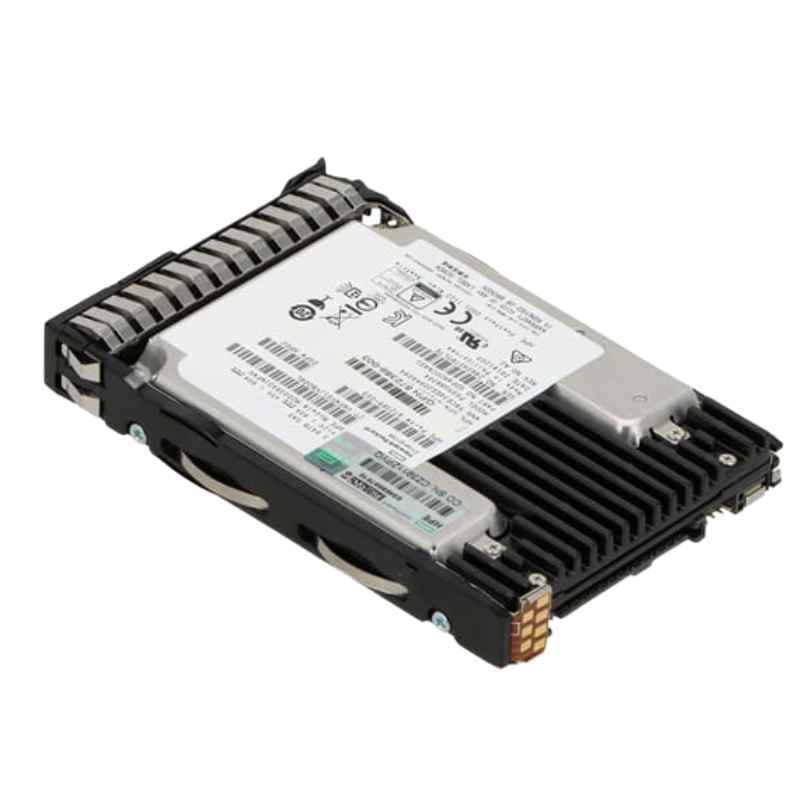

HPE P10462-H21 3.84TB 3.5" LFF TLC SAS 12G Mixed Use Hot Plug SSD

P10462-H21
Hover on image to enlarge

Brief Overview of P10462-H21

HPE P10462-H21 3.84TB 3.5inch LFF TLC SAS 12GBPS Mixed Use Hot Plug SSD. Excellent Refurbished with 6-Month Replacement Warranty

QR Code of HPE P10462-H21 3.84TB 3.5" LFF TLC SAS 12G Mixed Use Hot Plug SSD
$2,072.25
$1,354.49
You save: $717.76 (35%)
Ask a question
+
Quote

Additional 7% discount at checkout

SKU/MPNP10462-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Specifications

Key Features

  • Part Number: P10462-H21
  • Type: Solid State Drive - Hot-Swap
  • Storage Capacity: 3.8 TB
  • Form Factor: 3.5-inch LFF
  • Connection Interface: SAS 12Gbps
  • NAND Flash Technology: Triple-level cell (TLC)
  • Port Configuration: Single Port
  • Hot Plug Capability: Yes
  • Carrier Type: Low Profile Converter (LPC)
  • Workload Classification: Mixed Use
  • Included Accessories: HPE Low Profile Converter (LPC)
  • Special Features: Digitally Signed Firmware, HPE Value SAS
  • Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
  • Height: 15.00 mm

Performance Metrics

Write Specifications

  • 30-Day Write Capability: 21,000
  • Endurance (DWPD): 3 (Drive Writes Per Day)
  • Drive Transfer Rate: 12 Gb/sec
  • Max Sequential Reads: 810 MiB/s
  • Max Sequential Writes: 635 MiB/s

IOPS Performance

  • Random Read IOPS (4KiB, Q=16): 103,000
  • Max Random Read IOPS (4KiB): 155,000 @ Q32
  • Random Write IOPS (4KiB, Q=16): 52,000
  • Max Random Write IOPS (4KiB): 52,000 @ Q4

Latency

  • Random Read Average Latency: 140 µSec (4KiB, Q1)
  • Random Write Average Latency: 35 µSec (4KiB, Q1)

Expansion & Connectivity

  • SAS Interfaces: 1 x 12 Gb/s
  • Compatible Drive Bay: 3.5" LFF

Power Consumption Details

  • Idle Consumption: 4.34 Watts
  • Random Read Power: 5.05 Watts
  • Random Write Power: 5.05 Watts
  • Sequential Read Power: 6.98 Watts
  • Sequential Write Power: 7.26 Watts
  • Random Read/Write Power: 7.26 Watts
  • Maximum Power Usage: 7.26 Watts

Dimensions & Weight

  • Height: 5.74 inches (14.58 cm)
  • Width: 10.00 inches (21.92 cm)
  • Depth: 14.58 inches (25.40 cm)
  • Weight: 3.00 lbs (1.36 kg)

Compliance & Standards

  • Regulatory Compliance: WEEE

Compatibility Overview

Compatible Systems

  • HPE Apollo Series: 4200 Gen9 (3.5 inch), 4200 Gen9 for Google (3.5 inch)
  • HPE ProLiant DL Series: DL325 Gen10 Plus (3.5 inch)

Capacity: 3.84TB

Enhanced Storage Space

Efficient Data Management

Improved Performance

The HPE P10462-H21 SSD offers a substantial capacity of 3.84TB, providing users with enhanced storage space for their data-intensive applications and workloads. With this large capacity, users can store significant data without worrying about running out of storage space. Whether storing large media files, running complex databases, or managing virtual machines, the 3.84TB capacity ensures that users have ample space to accommodate their needs.

One key benefit of such a high capacity is the ability to efficiently manage data. With more storage space available, users can organize their files and data in a structured manner, allowing for easier retrieval and management. This is particularly important for businesses that deal with a large volume of data regularly. The 3.84TB capacity ensures that users have the flexibility to store and access their data efficiently, resulting in improved productivity and streamlined operations.

In addition to efficient data management, the increased storage capacity also contributes to improved performance. With more storage space available, the SSD can distribute the workload across a larger number of cells, reducing the strain on individual cells and improving overall performance. This translates into faster read and write speeds, allowing for quicker data access and transfer. Users can experience reduced latency and enhanced performance, especially when dealing with resource-intensive applications or demanding workloads.

Scalability and Future-Proofing

Room for Growth

Cost-Effective Solution

The 3.84TB capacity of the HPE P10462-H21 SSD offers users scalability and future-proofing capabilities. As data requirements continue to grow, having a high-capacity SSD ensures that users have room for expansion without the need for frequent upgrades or replacements. This scalability is particularly valuable for businesses that anticipate an increase in data storage needs in the future.

Furthermore, the large capacity of the SSD can help businesses save costs in the long run. By investing in a higher capacity SSD upfront, users can avoid the need for additional storage devices or upgrades shortly. This reduces the overall cost of ownership and provides a cost-effective solution for businesses looking to optimize their storage infrastructure.

Form Factor: 3.5inch LFF

Optimal Space Utilization

Compatibility

Easy Integration

The HPE P10462-H21 SSD features a 3.5-inch LFF (Large Form Factor) design, which offers several benefits to users in terms of space utilization and compatibility. The 3.5-inch form factor is commonly used in server environments and provides optimal space utilization within the server chassis.

By utilizing the 3.5-inch form factor, users can maximize the storage density within their server racks or enclosures. This is particularly advantageous for data centers or businesses that have limited physical space but require high-capacity storage solutions. The 3.5-inch LFF design allows for efficient use of available space, enabling users to store a larger amount of data within a smaller footprint.

In addition to space utilization, the 3.5-inch form factor offers compatibility benefits. The HPE P10462-H21 SSD is designed to fit into standard 3.5-inch drive bays, ensuring seamless integration with existing server infrastructures. Users can easily install and replace the SSD without the need for any additional modifications or adjustments to their server systems.

Reliability and Durability

Enhanced Cooling

Reduced Risk of Failure

The 3.5-inch LFF form factor also contributes to the reliability and durability of the HPE P10462-H21 SSD. The larger form factor allows for enhanced cooling capabilities, as there is more surface area available for heat dissipation. This helps to prevent overheating and ensures that the SSD operates within optimal temperature ranges, reducing the risk of performance degradation or failure.

Furthermore, the 3.5-inch form factor provides increased stability and robustness to the SSD. The larger size allows for a more rigid construction, making it less susceptible to physical shocks or vibrations. This improves the overall durability of the SSD and enhances its ability to withstand harsh operating conditions. Users can have peace of mind knowing that their data is stored on a reliable and resilient storage solution.

Technology: TLC

Enhanced Performance

Higher Density

Efficient Data Storage

The HPE P10462-H21 SSD utilizes Triple-Level Cell (TLC) technology, which offers several benefits in terms of performance and data storage efficiency. TLC technology allows for higher-density storage, enabling more data to be stored within each cell of the SSD.

With higher-density storage, users can benefit from increased capacity without compromising on performance. The TLC technology employed in the HPE P10462-H21 SSD enables it to store more bits per cell compared to traditional Single-Level Cell (SLC) or Multi-Level Cell (MLC) technologies. This translates into higher overall storage capacity and improved data transfer rates.

In addition to higher-density storage, TLC technology also contributes to efficient data storage. The HPE P10462-H21 SSD employs advanced error correction techniques and wear-leveling algorithms to ensure the integrity and longevity of stored data. This results in improved reliability and reduced data loss, providing users with a secure and efficient storage solution.

Cost-Effectiveness

Affordable Solution

Lower Total Cost of Ownership

Another advantage of TLC technology is its cost-effectiveness. Compared to SLC or MLC technologies, TLC offers a more affordable solution without compromising on performance or reliability. The higher density storage achieved with TLC technology allows for lower production costs, making the HPE P10462-H21 SSD a cost-effective choice for users.

Furthermore, the lower production costs associated with TLC technology translate into a lower total cost of ownership for users. By investing in an SSD that utilizes TLC technology, users can achieve a higher capacity at a more affordable price point. This cost-effectiveness makes the HPE P10462-H21 SSD an attractive option for businesses looking to optimize their storage infrastructure without breaking the bank.

Interface: SAS 12GBPS

High-Speed Data Transfer

Improved Performance

Reduced Latency

The HPE P10462-H21 SSD features a SAS (Serial Attached SCSI) 12Gbps interface, which offers high-speed data transfer capabilities. The SAS interface provides faster data transfer rates compared to traditional SATA interfaces, enabling users to experience improved performance and reduced latency.

With a SAS 12Gbps interface, the HPE P10462-H21 SSD can handle large amounts of data more efficiently. Whether it's reading or writing data, the high-speed interface ensures that information is transferred quickly and seamlessly. This is particularly beneficial for users who deal with data-intensive applications or workloads that require fast and reliable data access.

In addition to improved performance, the SAS 12Gbps interface also offers enhanced scalability. The higher data transfer rates allow for the SSD to handle increasing amounts of data without experiencing bottlenecks or performance degradation. This scalability ensures that the SSD can keep up with growing data demands, providing users with a future-proof storage solution.

Reliability and Redundancy

Data Protection

High Availability

The SAS 12Gbps interface provides enhanced reliability and redundancy features, making the HPE P10462-H21 SSD a robust storage solution. The SAS interface supports advanced features such as error detection and correction, ensuring the integrity and accuracy of stored data.

Furthermore, the SAS interface allows for hot-plug capabilities, enabling users to replace or upgrade the SSD without having to power down the server or interrupt ongoing operations. This hot plug feature ensures high availability and minimizes downtime, making it an important consideration for businesses that require continuous access to their data.

Use: Mixed Use

Versatility

Adaptable to Various Workloads

Optimized Performance

The HPE P10462-H21 SSD is designed for mixed-use, offering versatility and adaptability to various workloads. Whether it's handling read-intensive or write-intensive applications, the mixed-use SSD can effectively meet the demands of different workloads without compromising on performance.

The mixed-use capability allows the SSD to deliver optimized performance across a wide range of applications. Users can benefit from consistent and reliable performance, regardless of the workload type or intensity. This versatility makes the HPE P10462-H21 SSD suitable for diverse environments, from data centers to enterprise servers.

Cost-Effective Solution

Reduced Total Cost of Ownership

Efficient Resource Allocation

With its mixed-use capability, the HPE P10462-H21 SSD offers a cost-effective solution for businesses. The SSD can handle a variety of workloads, eliminating the need for separate storage devices for different workload types. This consolidation of storage resources results in a reduced total cost of ownership.

In addition to cost savings, the mixed-use capability also allows for efficient resource allocation. The SSD intelligently distributes resources based on workload requirements, ensuring that each application receives the necessary resources for optimal performance. This efficient resource allocation translates into improved productivity and minimized resource wastage.

Hot Plug: 1

Flexibility and Convenience

Non-Disruptive Upgrades

Easy Maintenance

The HPE P10462-H21 SSD features hot-plug capabilities, providing users with flexibility and convenience when it comes to upgrades and maintenance. The hot plug feature allows users to add or remove the SSD without shutting down the system, minimizing downtime and ensuring uninterrupted operations.

With hot-plug capabilities, users can easily upgrade their storage infrastructure or perform maintenance tasks without disrupting critical operations. This is particularly valuable in environments where continuous access to data is essential, such as data centers or enterprise servers. Users can save time and effort by avoiding system shutdowns and experiencing seamless upgrades or maintenance procedures.

The hot plug feature also simplifies the replacement of faulty or aging SSDs. Users can quickly remove a defective SSD and replace it with a new one, reducing the time and effort required for troubleshooting or repair. This ease of maintenance contributes to improved system uptime and overall reliability.
