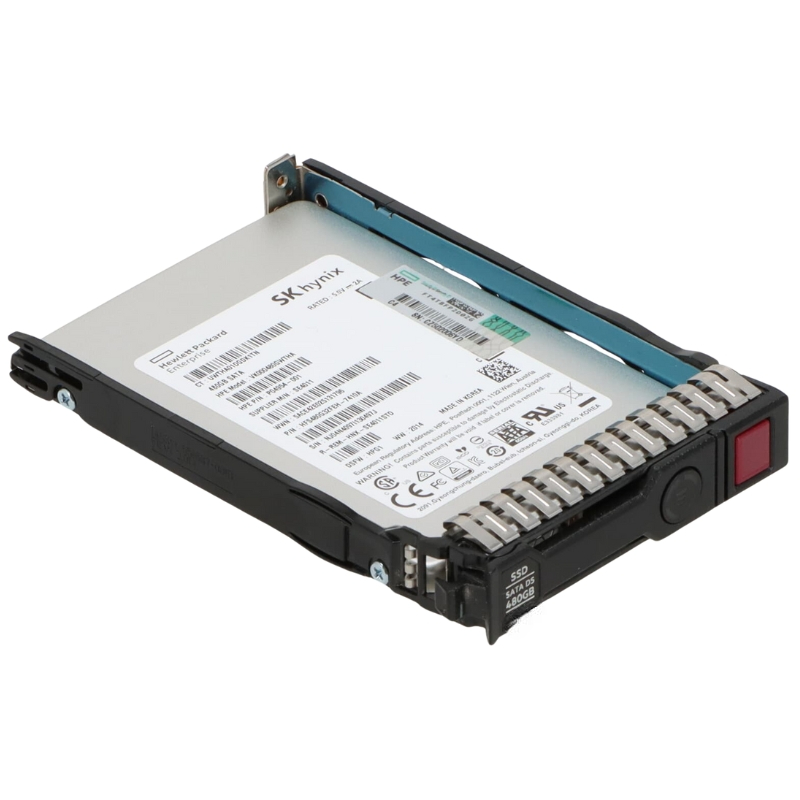

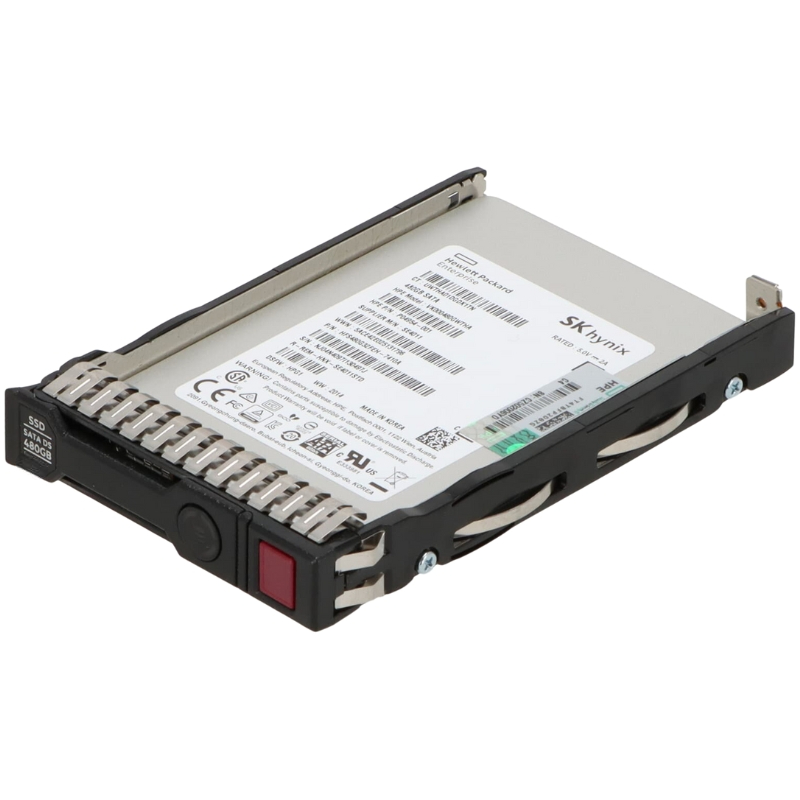

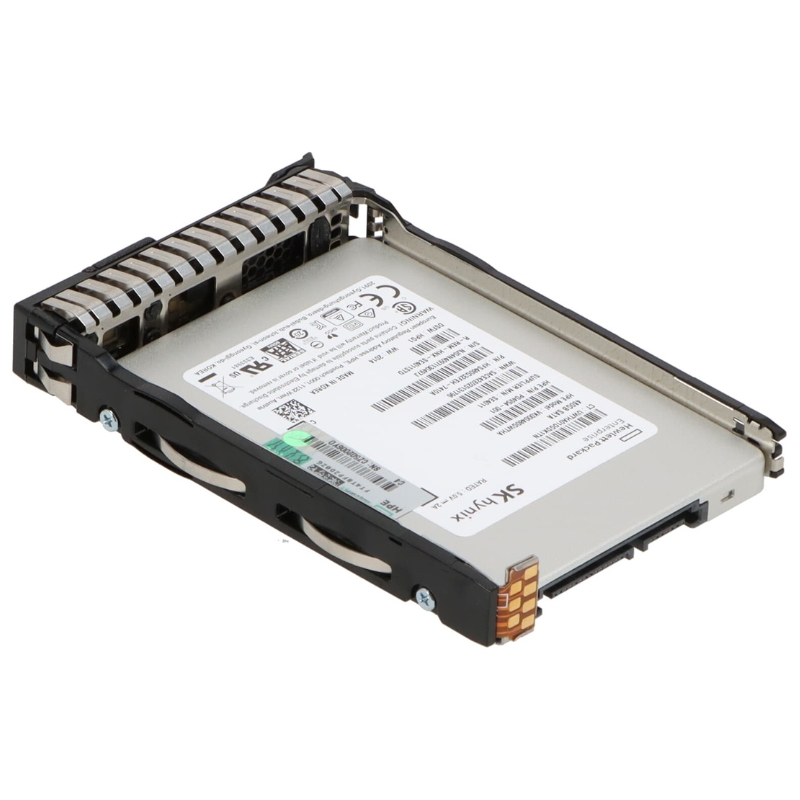

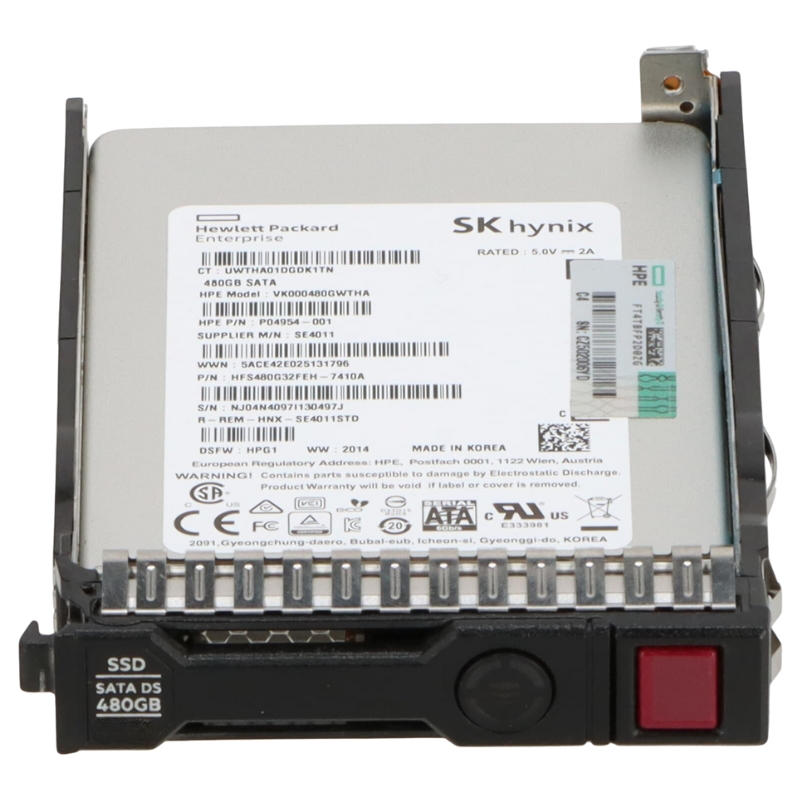

HPE P19896-B21 480GB SATA 6GBPS Hot-Swap SSD

P19896-B21
Hover on image to enlarge

Brief Overview of P19896-B21

HPE 480GB SATA 6GBPS Hot-Swap SSD P19896-B21. Excellent Refurbished with 6-Month Replacement Warranty
QR Code of HPE P19896-B21 480GB SATA 6GBPS Hot-Swap SSD
$4,117.50
$2,540.00
You save: $1,577.50 (38%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP19896-B21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Overview of the Solid State Drive

General Specifications

  • Part Number: P19896-B21
  • Device Category: Hot-Swap Solid State Drive
  • Storage Capacity: 480 GB
  • Form Factor: 2.5-inch SFF
  • Interface Type: SATA 6Gbps
  • Plug Compatibility: Hot Pluggable
  • NAND Flash Technology: Triple-Level Cell (TLC)
  • Connectivity: Single Port
  • Carrier Design: Smart Carrier M.2
  • Workload Classification: Read Intensive
  • Key Feature: Digitally Signed Firmware
  • Included with: HPE Smart Carrier M.2
  • Supported Platforms: HPE Mainstream Compute Platforms

Performance Metrics

  • 30-Day Write Total: 1324
  • Endurance (DWPD): 1.50
  • External Transfer Rate: 600 MBps
  • Max Sequential Read Throughput: 510 MiB/s
  • Max Sequential Write Throughput: 400 MiB/s
  • Random Read Average Latency: 125 µSec (4KiB, Q1)
  • Random Write Average Latency: 37 µSec (4KiB, Q1)
  • Random Read IOPS: 65,000 (4KiB, Q=16)
  • Random Write IOPS: 38,000 (4KiB, Q=16)
  • Max Random Read IOPS: 76,000 @ Q64 (4KiB)
  • Max Random Write IOPS: 39,500 @ Q256 (4KiB)

Expansion and Connectivity

Interface Compatibility

  • SATA Interface: 1 x SATA 6 Gb/s
  • Compatible Drive Bays: M.2 or 2.5" (with included adapter)

Power Efficiency

  • Idle Consumption: 1.03 Watts
  • Random Read Power: 1.23 Watts
  • Random Write Power: 1.23 Watts
  • Sequential Read Power: 1.89 Watts
  • Sequential Write Power: 2.50 Watts
  • Combined Random Read/Write: 1.23 Watts
  • Maximum Power Draw: 2.50 Watts

Dimensions and Weight

  • Height: 1.48 inches (3.76 cm)
  • Width: 4.25 inches (10.80 cm)
  • Depth: 6.25 inches (15.88 cm)
  • Weight: 1.10 lbs (0.50 kg)

Compatibility Details

Supported HPE ProLiant Series

  • BL Series: BL460c Gen10
  • DL Series: DL325 Gen10 Plus, DL360 Gen10, DL380 Gen10, and others (2.5-inch compatible)

Supported HPE Synergy Models

  • 480 Gen10 Base Compute Module
  • 480 Gen10 Performance Compute Module
  • 660 Gen10 Compute Module and others (2.5-inch compatible)

Capacity

The HPE P19896-B21 SSD offers a storage capacity of 480GB, making it an ideal choice for users who require ample space to store their data and applications. This substantial capacity allows users to store a large number of files, including documents, photos, videos, and more. Whether you are a professional who needs to store extensive multimedia content or a casual user with a collection of personal files, this SSD provides enough space to accommodate your needs.

Enhanced Performance

The 480GB capacity of the HPE P19896-B21 SSD ensures that you can enjoy enhanced performance while working with large files or running resource-intensive applications. With ample storage space, you can store and access your files quickly and efficiently.

Seamless Multitasking

If you are someone who frequently multitasks, the 480GB capacity allows you to switch between various applications seamlessly. You can run multiple programs simultaneously without worrying about running out of storage space. This feature is particularly beneficial for professionals who work on complex projects that require the use of multiple software applications simultaneously.

Ample Room for Future Growth

The 480GB capacity not only caters to your current storage needs but also provides room for future growth. As technology continues to advance and file sizes increase, having additional storage space ensures that you can adapt to these changes without the need for frequent upgrades or replacements. Therefore, investing in the HPE P19896-B21 SSD with its 480GB capacity is a smart choice for long-term usability and convenience.

Interface

The HPE P19896-B21 SSD features a SATA interface, offering users a reliable and efficient means of transferring data between their drive and other devices. SATA, which stands for Serial Advanced Technology Attachment, is a widely used interface in the storage industry.

Compatibility

One of the key benefits of the SATA interface is its compatibility with a wide range of devices, including desktop computers, laptops, and servers. Whether you are upgrading an existing system or building a new one, the SATA interface ensures that you can seamlessly integrate the HPE P19896-B21 SSD into your setup without compatibility issues.

Simplified Installation

The SATA interface simplifies the installation process, making it easier for users to set up their SSD. With a straightforward connection mechanism, you can quickly connect the drive to your system, reducing the time and effort required for installation.

High Data Transfer Speeds

SATA offers high data transfer speeds, allowing users to enjoy fast and efficient performance when transferring files to and from the HPE P19896-B21 SSD. This ensures that you can access your data quickly and efficiently, enhancing productivity and reducing waiting times.

Data Transfer Rate

The HPE P19896-B21 SSD boasts a data transfer rate of 6Gbps, providing users with swift and seamless data transfer capabilities.

Improved Workflow Efficiency

The 6Gbps data transfer rate significantly improves workflow efficiency. Whether you are transferring large files or performing intensive data backups, the high transfer speed ensures that your tasks are completed in a fraction of the time compared to slower drives. This is particularly beneficial for businesses that rely on quick data transfers to maintain productivity and meet deadlines.

Faster Boot Times

The high data transfer rate of 6Gbps enables faster boot times for your system. With reduced startup times, you can quickly get to work or enjoy your multimedia content without unnecessary delays. This feature is especially valuable for those who value efficiency and want to optimize their overall computing experience.

Seamless Multimedia Playback

For users who frequently work with high-definition multimedia content, the 6Gbps data transfer rate ensures smooth and uninterrupted playback. Whether you are editing videos, rendering animations, or enjoying immersive gaming experiences, the HPE P19896-B21 SSD ensures that data is read and transferred quickly, eliminating any lag or stuttering.

Hot Swap

The HPE P19896-B21 SSD supports hot swap functionality, allowing users to replace or add drives without shutting down their system.

Minimal Downtime

The hot swap feature minimizes downtime during drive maintenance or upgrades. Instead of shutting down the entire system, users can simply replace or add drives while the system continues to operate. This is particularly advantageous for businesses that rely on continuous uptime and cannot afford interruptions in their operations.

Flexibility and Scalability

The hot swap capability provides flexibility and scalability for storage systems. Users can easily add or remove drives as needed, allowing for seamless expansion or reconfiguration of storage capacity without disrupting ongoing operations. This feature is especially beneficial for businesses with fluctuating storage requirements or those that anticipate future growth.

Simplified Maintenance

The hot swap functionality simplifies drive maintenance tasks. Instead of navigating complex procedures to replace a faulty drive or perform routine maintenance, users can easily swap out drives without any technical expertise. This reduces the risk of errors during drive replacements and lowers the overall maintenance effort required.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
