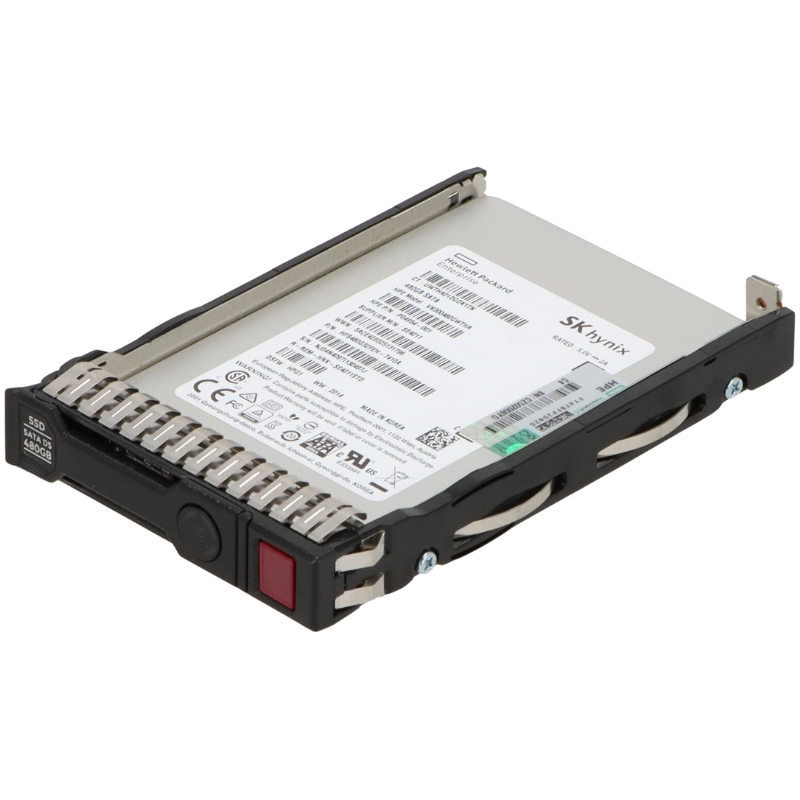

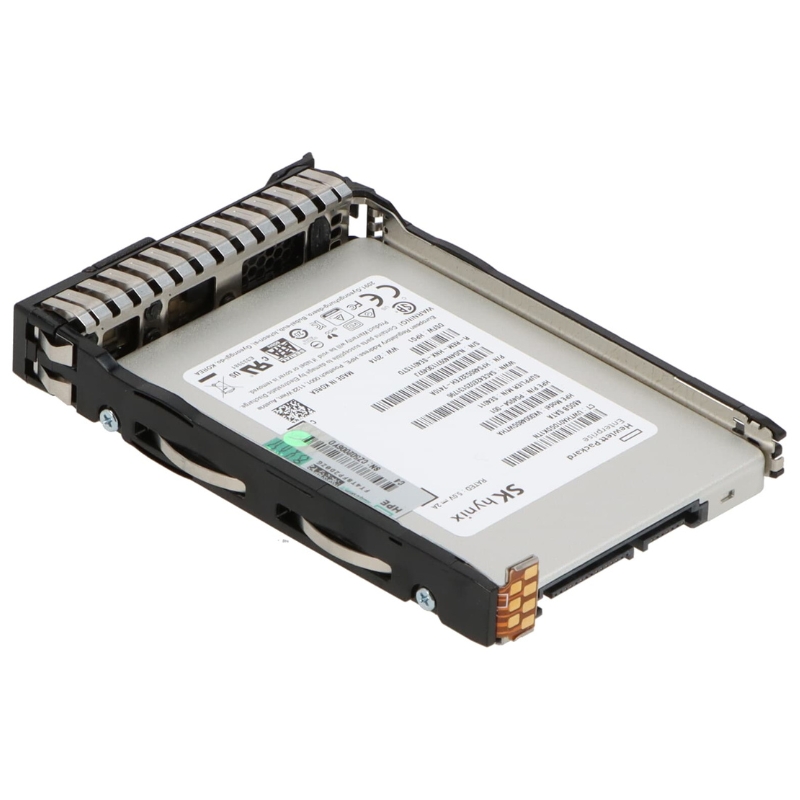

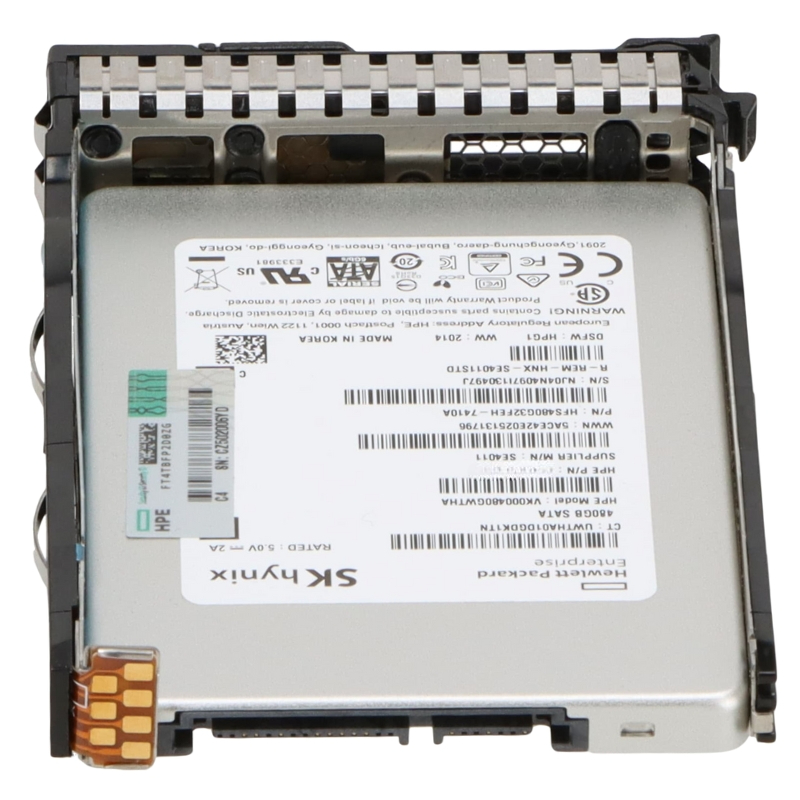

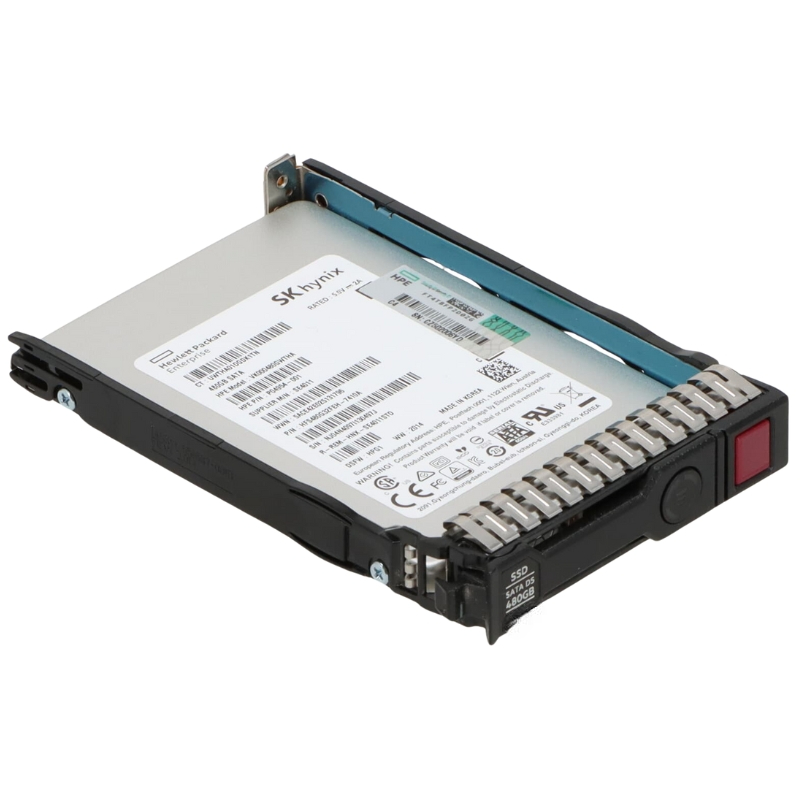

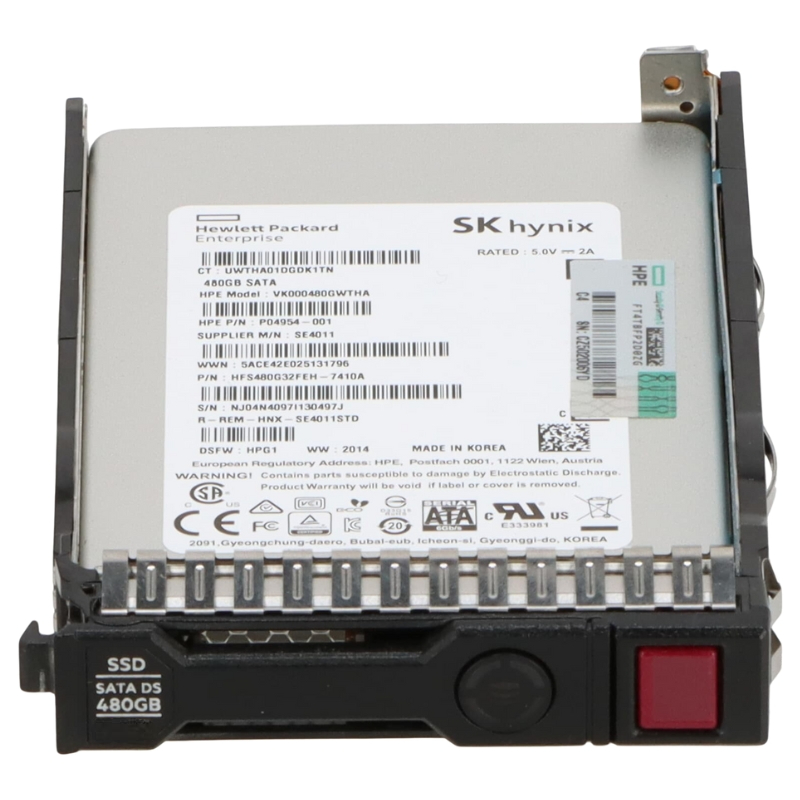

HPE P19896-H21 480GB SATA-6GBPS Intensive Smart Carrier SSD

P19896-H21
Hover on image to enlarge

Brief Overview of P19896-H21

Intensive Smart Carrier SSD HPE P19896-H21 480GB SATA-6GBPS. Excellent Refurbished with 6-Month Replacement Warranty
QR Code of HPE P19896-H21 480GB SATA-6GBPS Intensive Smart Carrier SSD
$4,117.50
$2,540.00
You save: $1,577.50 (38%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP19896-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Overview of the Solid State Drive

General Specifications

  • Part Number: P19896-H21
  • Device Type: Hot-Swap Solid State Drive
  • Capacity: 480 GB
  • Form Factor: 2.5 inch SFF
  • Interface: SATA 6Gbps
  • Plug Type: Hot Pluggable
  • NAND Flash Memory Type: Triple-Level Cell (TLC)
  • Connectivity: Single Port
  • Carrier Type: Smart Carrier M.2
  • Workload Type: Read Intensive
  • Features: Digitally Signed Firmware
  • Bundled With: HPE Smart Carrier M.2
  • Supported Platforms: HPE Mainstream Compute Platforms

Performance Metrics

Drive Endurance and Throughput

  • Writes Over 30 Days: 1324
  • Endurance (DWPD): 1.50
  • Drive Transfer Rate: 600 MBps (external)
  • Max Sequential Read Throughput: 510 MiB/s
  • Max Sequential Write Throughput: 400 MiB/s
  • Random Read Average Latency: 125 µSec (4KiB, Q1)
  • Random Write Average Latency: 37 µSec (4KiB, Q1)

Input/Output Operations Per Second (IOPS)

  • Random Read IOPS: 65000 (4KiB, Q=16)
  • Random Write IOPS: 38000 (4KiB, Q=16)
  • Max Random Read IOPS: 76000 @ Q64 (4KiB)
  • Max Random Write IOPS: 39500 @ Q256 (4KiB)

Connectivity Options

Interface Compatibility

  • Interface: 1 x SATA 6 Gb/s
  • Compatible Bay: M.2 or 2.5" (with included bay adapter)

Power Consumption

  • Idle Consumption: 1.03 Watts
  • Random Read Consumption: 1.23 Watts
  • Random Write Consumption: 1.23 Watts
  • Sequential Read Consumption: 1.89 Watts
  • Sequential Write Consumption: 2.50 Watts
  • Random Read/Write Consumption: 1.23 Watts
  • Max Power Consumption: 2.50 Watts

Dimensions and Weight

  • Height: 1.48 inches (3.76 cm)
  • Width: 4.25 inches (10.80 cm)
  • Depth: 6.25 inches (15.88 cm)
  • Weight: 1.10 lbs (0.50 kg)

Compatibility Information

Supported HPE ProLiant Models

  • BL Series: BL460c Gen10 (2.5 inch)
  • DL Series:
    • DL325 Gen10 Plus (2.5 inch)
    • DL360 Gen10 (2.5 inch)
    • DL380 Gen10 (2.5 inch)
    • DL560 Gen10 (2.5 inch)
    • DL580 Gen10 (2.5 inch)

Supported HPE Synergy Models

  • 480 Gen10 Base Compute Module (2.5 inch)
  • 480 Gen10 Compute Module (2.5 inch)
  • 660 Gen10 Compute Module (2.5 inch)

Capacity: 480GB

Ample Storage for Your Growing Needs

When it comes to storage, having enough space to accommodate your growing data needs is essential. With a capacity of 480GB, the HPE P19896-H21 SSD provides ample storage for your files, applications, and databases. Whether you are a small business owner, a creative professional, or a home user, this SSD offers enough room to store your important data without worrying about running out of space.

Uninterrupted Workflows

The 480GB capacity ensures that you can work without interruptions. It allows you to store large files and run resource-intensive applications without experiencing any slowdowns or performance issues. Whether you are editing high-resolution videos, working with complex datasets, or running virtual machines, this SSD can handle the workload with ease.

Quick Access to Data

The larger capacity translates into quicker access to your data. Retrieving and opening files becomes faster, which enhances your productivity and efficiency. Whether you are searching for specific documents, accessing frequently used applications, or transferring files between different folders, the 480GB capacity ensures that you can do so swiftly and effortlessly.

Future-Proof Storage Solution

As technology continues to advance rapidly, the demand for storage capacity increases as well. By opting for the HPE P19896-H21 SSD with its 480GB capacity, you are future-proofing your storage needs. You won't have to worry about upgrading or replacing your SSD anytime soon, as it provides a generous amount of storage that can accommodate your needs for years to come.

Compatibility with Various Devices

The 480GB capacity of this SSD makes it compatible with a wide range of devices. Whether you want to upgrade your laptop, desktop computer, or external storage enclosure, this SSD can seamlessly integrate into your existing setup. It offers versatility and flexibility, allowing you to use it across multiple devices without any compatibility issues.

Reliable and Durable Storage

Reliability and durability are crucial when it comes to storage devices. The HPE P19896-H21 SSD not only provides ample storage but also ensures the safety of your data. With its robust design and high-quality components, this SSD offers long-term reliability. You can trust it to store your important files and data without the risk of data loss or corruption.

Interface: SATA-6GBPS

High-Speed Data Transfer

The SATA-6GBPS interface of the HPE P19896-H21 SSD enables high-speed data transfer between the SSD and your device. With a maximum transfer rate of 6 gigabits per second, this interface ensures that you can quickly move large files, backup data, or access stored information without any delays. Whether you are a gamer, a content creator, or a business professional, the SATA-6GBPS interface provides the speed you need.

Improved System Performance

The fast data transfer rate offered by the SATA-6GBPS interface contributes to improved system performance. By reducing data transfer bottlenecks, it allows your system to run more efficiently and smoothly. You will experience faster boot times, shorter application loading times, and overall snappier performance. Whether you are multitasking or running resource-intensive applications, this interface ensures that your system can keep up with your demands.

Seamless Upgrades

The SATA-6GBPS interface is widely supported by various devices and systems. This makes it easy to upgrade your existing storage solution to the HPE P19896-H21 SSD without compatibility issues. Whether you want to replace your traditional hard drive or upgrade from a slower SSD, the SATA-6GBPS interface ensures a seamless transition. You can enjoy the benefits of faster data transfer and improved performance without any hassle.

Backward Compatibility

The SATA-6GBPS interface is backward compatible with previous versions of SATA, such as SATA 3GBPS and SATA 1.5GBPS. This means that you can use the HPE P19896-H21 SSD with older devices and systems that support these interfaces. Whether you have an older laptop or a desktop computer, you can still benefit from the high-speed data transfer and improved performance offered by this SSD.

Efficient Power Management

The SATA-6GBPS interface incorporates efficient power management features. It allows the SSD to optimize power consumption, resulting in better energy efficiency. This not only helps to prolong battery life in laptops and mobile devices but also reduces the overall power consumption of your system. With this interface, you can enjoy fast data transfer speeds while keeping your energy usage in check.

Wide Adoption in the Industry

The SATA-6GBPS interface has gained widespread adoption in the industry. It is supported by a wide range of manufacturers, making it a standard for storage connectivity. This ensures that you have access to a vast selection of compatible devices and accessories. Whether you need to connect your SSD to a motherboard, an external enclosure, or a docking station, the SATA-6GBPS interface offers compatibility and convenience.

Features: Intensive Smart Carrier

Enhanced Drive Monitoring

The Intensive Smart Carrier feature of the HPE P19896-H21 SSD provides enhanced drive monitoring capabilities. It allows you to monitor the health and performance of your SSD in real-time, ensuring that you can detect any potential issues before they escalate. The Intensive Smart Carrier provides vital information such as temperature, wear level, and remaining lifespan of the SSD, enabling proactive maintenance and preventing unexpected failures.

Optimized Data Protection

In addition to monitoring, the Intensive Smart Carrier feature also enhances data protection. It incorporates advanced error correction and error handling mechanisms to ensure the integrity of your stored data. With this feature, your SSD can detect and correct errors on the fly, minimizing the risk of data corruption or loss. This adds an extra layer of protection to your valuable files and ensures their long-term reliability.

Improved Drive Efficiency

The Intensive Smart Carrier feature optimizes drive efficiency by implementing intelligent algorithms that manage internal operations. This results in improved performance and responsiveness of the SSD. Whether you are performing read or write operations, accessing random or sequential data, or running multiple tasks simultaneously, the Intensive Smart Carrier ensures that your SSD operates at its peak efficiency.

Easy Firmware Updates

The Intensive Smart Carrier feature simplifies firmware updates for your SSD. Firmware updates are essential for maintaining optimal performance and compatibility with the latest technologies. With this feature, you can easily download and apply firmware updates without the need for complex procedures or additional tools. Keeping your SSD up to date has never been easier, ensuring that you can benefit from the latest improvements and features.

Longer Lifespan

The Intensive Smart Carrier feature contributes to a longer lifespan for your SSD. By monitoring drive health, optimizing operations, and providing error correction mechanisms, it helps to prevent premature wear and prolong the life of your SSD. This means that you can enjoy reliable and high-performance storage for an extended period, reducing the need for frequent replacements or upgrades.

Effortless Maintenance

The Intensive Smart Carrier feature simplifies maintenance tasks for your SSD. It provides a user-friendly interface that allows you to easily access drive information, perform diagnostics, and manage settings. Whether you are a tech-savvy enthusiast or a casual user, the Intensive Smart Carrier ensures that you can effortlessly maintain and optimize your SSD without the need for specialized knowledge or tools.

In summary, the HPE P19896-H21 SSD with its 480GB capacity offers ample storage for your growing needs, ensuring uninterrupted workflows and quick access to data. The SATA-6GBPS interface provides high-speed data transfer, improved system performance, and seamless upgrades. The Intensive Smart Carrier feature enhances drive monitoring, data protection, efficiency, and lifespan, while also simplifying firmware updates and maintenance tasks. With these features, the HPE P19896-H21 SSD delivers a reliable and efficient storage solution for users across various industries and applications.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
