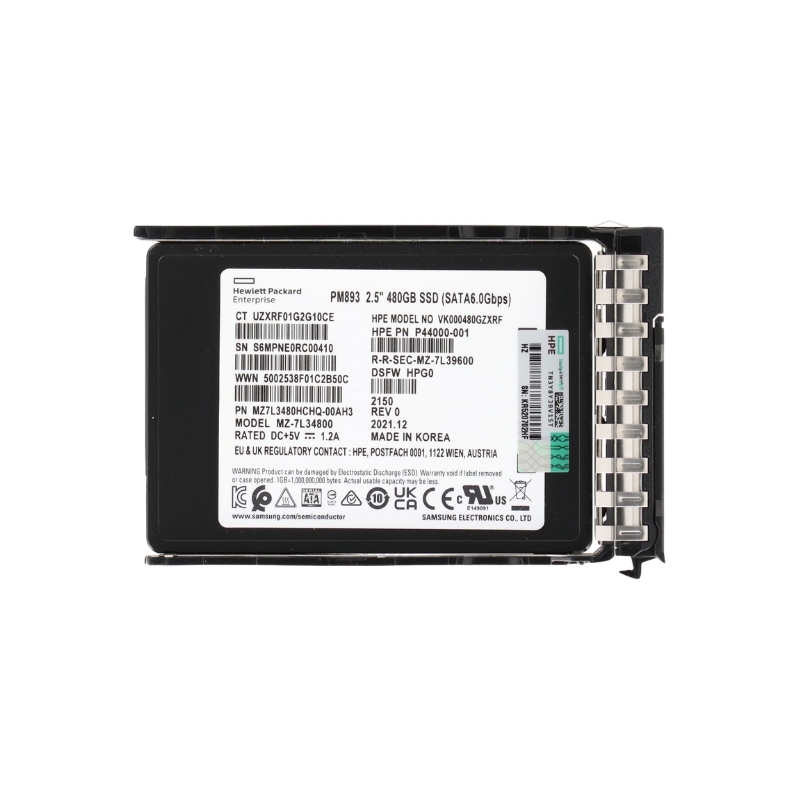

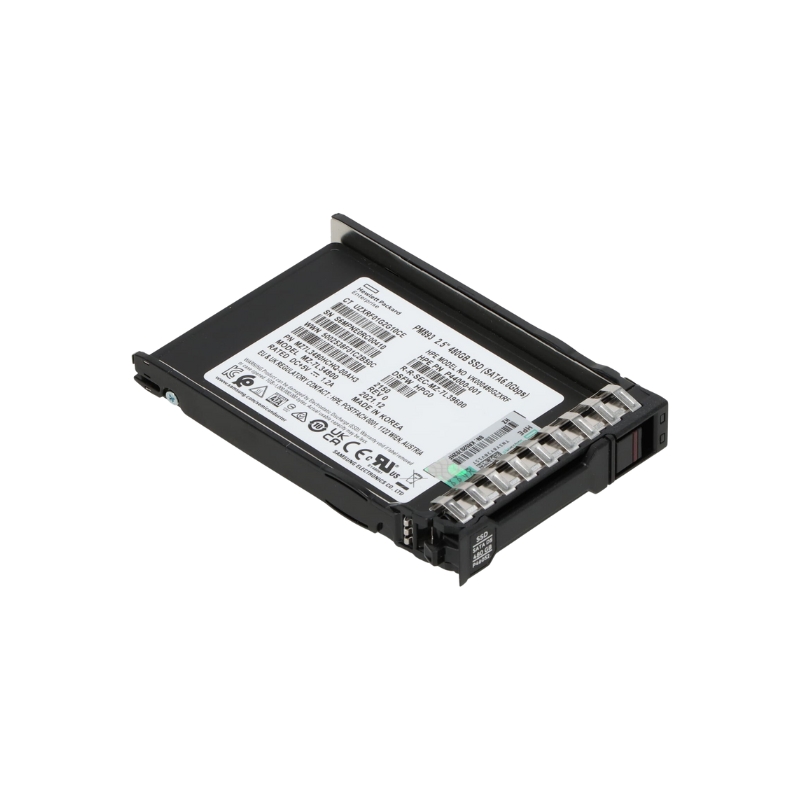

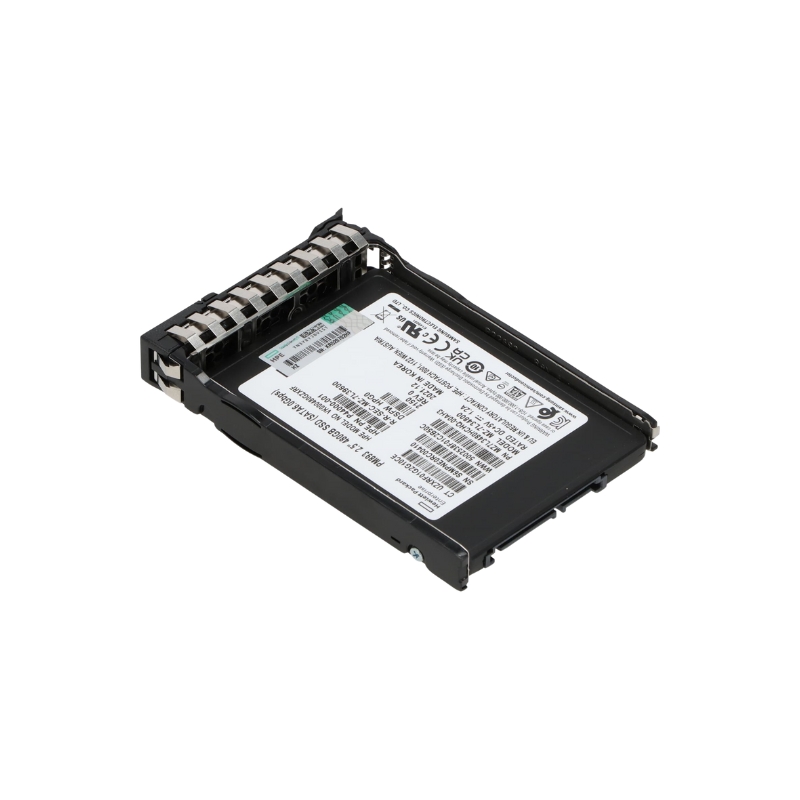

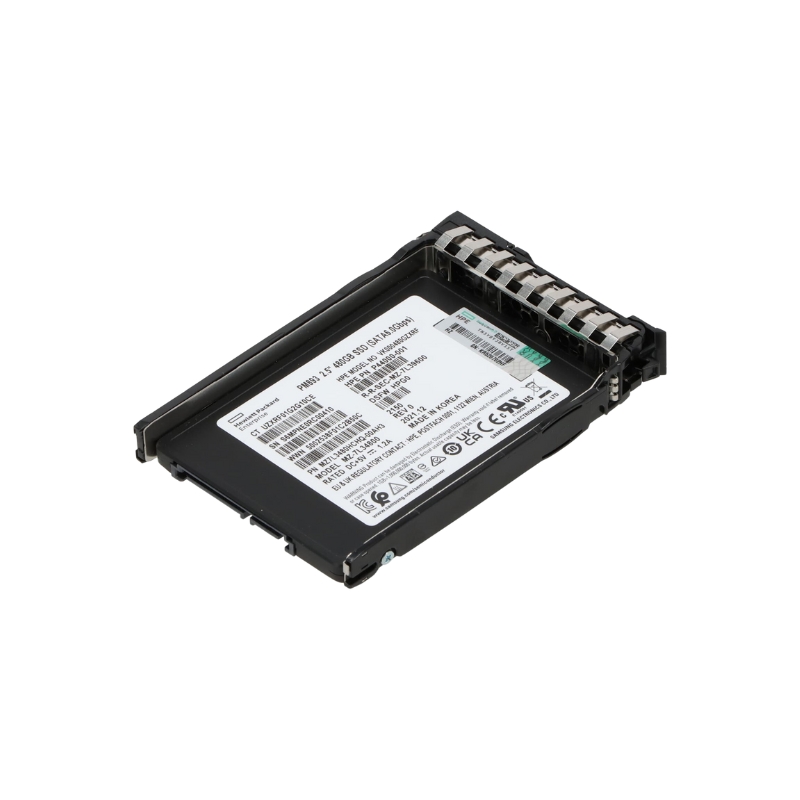

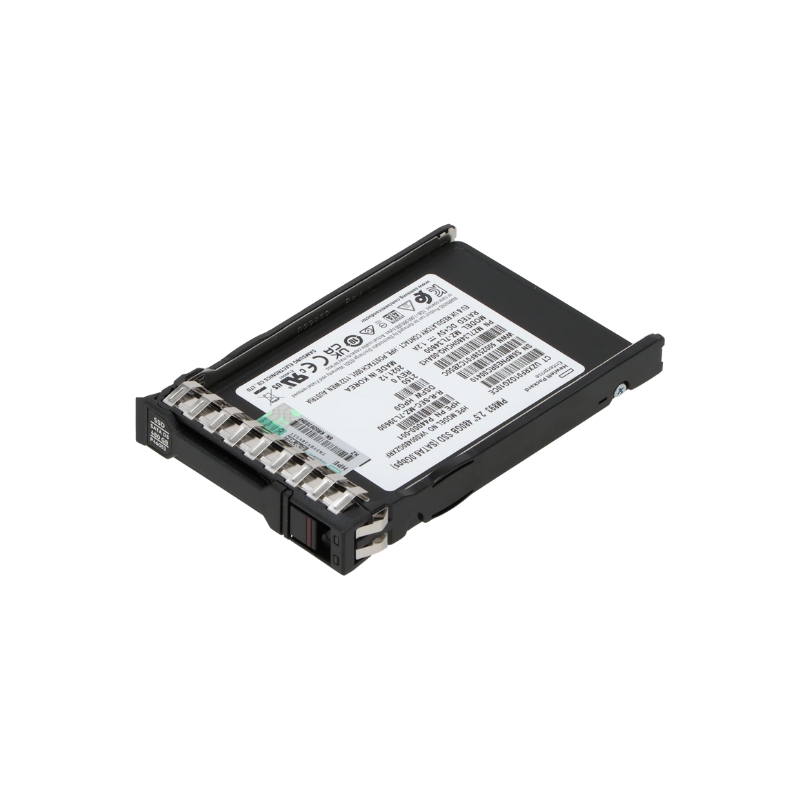

HPE P19974-H21 Intensive Smart Carrier 480GB SATA-6GBPS SSD

Product Details for HPE P19974-H21 480GB 3.5in DS SATA-6G LPC Read Intensive G10 SSD

General Information

• Manufacturer: HPE
• Model Number: P19974-H21
• Drive Type: Solid State Drive (SSD)
• Interface: SATA 6Gbps

Technical Specifications

Storage Capacity and Configuration

• Capacity: 480GB
• Form Factor: 3.5-inch LFF
• Flash Memory Type: Triple-Level Cell (TLC)
• Hot-Swap Capability: Hot Pluggable
• Single-Port Design: Designed with a Single Port
• Low Profile Converter: Compatible with Low Profile Converter (LPC)

Usage and Platform Compatibility

• Workload Type: Optimized for Read-Intensive Applications
• Platform Supported: HPE ProLiant Rack, Tower, BladeSystem, and Synergy Servers

Performance Characteristics

Endurance and Speed

• Endurance (Drive Writes Per Day): 1.50 DWPD
• Drive Transfer Rate: 6 Gbps
• Max Sequential Read Speed: 510 MiB/s
• Max Sequential Write Speed: 395 MiB/s

Latency and IOPS Performance

• Average Read Latency: 125 µs (4KiB, Q1)
• Average Write Latency: 38 µs (4KiB, Q1)
• Max Random Read IOPS: 75,000 IOPS (4KiB, Q256)
• Max Random Write IOPS: 40,000 IOPS (4KiB, Q4)

Connectivity and Expansion

• Interface Type: SATA 6 Gb/s
• Compatible Bay Size: 3.5-inch Large Form Factor (LFF)

Power Efficiency

Power Consumption Details

• Idle Power: 1.16 W
• Random Read Power Usage: 1.45 W
• Random Write Power Usage: 1.45 W
• Max Power Consumption: 2.61 W

Physical Dimensions and Weight

• Height: 5.50 inches (13.97 cm)
• Width: 5.75 inches (14.61 cm)
• Depth: 8.75 inches (22.23 cm)
• Weight: 3 lbs (1.36 kg)

Supported Systems and Compatibility

HPE Nimble Storage Solutions

• Compatible with HPE Nimble Storage dHCI Medium Solution alongside HPE ProLiant DL325 Gen10 Plus

HPE ProLiant DL Series Compatibility

• Supported Models: DL160 Gen10, DL180 Gen10, DL20 Gen10, DL325 Gen10 Plus, DL345 Gen10 Plus, DL360 Gen10 Plus, DL380 Gen10 Plus, DL385 Gen10 Plus

HPE ProLiant ML Series Compatibility

• Supported Models: ML110 Gen10, ML30 Gen10, ML350 Gen10 with configurations including Base, Entry, Performance, and Special Server Editions

Capacity

The HPE Intensive Smart Carrier HPE P19974-H21 SSD comes with an impressive capacity of 480GB. This high storage capacity is essential for users who require ample space to store their data, documents, and multimedia files.

Increased Storage Space

The 480GB capacity of this SSD provides users with a significant amount of storage space. It allows for storing a large number of files, including high-resolution images, videos, and complex software applications. With such ample space, users can keep all their important data in one place without worrying about running out of storage.

Efficient Data Management

Having a 480GB capacity also enables users to effectively manage their data. With this much space, users can create separate folders for different types of files, making it easier to locate and access specific data whenever needed. It eliminates the hassle of sifting through cluttered folders or external storage devices to find a particular file.

Seamless Multitasking

The generous storage capacity of the HPE P19974-H21 SSD allows users to multitask efficiently without any performance lags. They can run multiple applications simultaneously, switch between tasks effortlessly, and enjoy a smooth computing experience. Whether it's editing large multimedia projects or running resource-intensive software, the 480GB capacity ensures that users have enough space to handle their workload.

Future-Proofing

Another significant advantage of the 480GB capacity is future-proofing. As technology advances and file sizes continue to increase, having a substantial storage capacity ensures that users will be able to accommodate the growing demands of their data. It provides peace of mind, knowing that there is enough room to expand and adapt to future needs without having to invest in additional storage solutions.

Interface

The HPE Intensive Smart Carrier HPE P19974-H21 SSD features a SATA-6GBPS interface. This interface plays a crucial role in ensuring optimal performance, data transfer speeds, and compatibility with various devices.

Fast Data Transfer Speeds

The SATA-6GBPS interface offers blazing-fast data transfer speeds, allowing users to quickly move files between the SSD and other devices. With this interface, users can experience significantly reduced waiting times during file transfers, ensuring that their workflow remains uninterrupted and efficient.

Improved System Performance

By utilizing the SATA-6GBPS interface, the HPE P19974-H21 SSD enhances the overall system performance. It enables faster boot times, quicker application launches, and seamless multitasking. Users can enjoy a responsive computing experience without any noticeable delays or performance bottlenecks.

Wide Compatibility

The SATA-6GBPS interface is widely supported by various devices, making the HPE P19974-H21 SSD compatible with a wide range of systems. Whether it's a desktop computer, laptop, or server, users can rely on this SSD to seamlessly integrate into their existing setup without any compatibility issues. It provides flexibility and ease of use for users who may need to transfer the SSD between different devices.

Enhanced Gaming Experience

Gamers can also benefit from the SATA-6GBPS interface as it allows for faster game installations and loading times. With reduced loading screens and improved data access speeds, gamers can dive into their favorite games more quickly and enjoy a smoother gaming experience overall.

In conclusion, the HPE Intensive Smart Carrier HPE P19974-H21 SSD offers a significant capacity of 480GB, ensuring ample storage space for users' data and files. This capacity allows for efficient data management, seamless multitasking, and future-proofing. Additionally, the SATA-6GBPS interface further enhances the SSD's performance by providing fast data transfer speeds, improved system performance, wide compatibility, and an enhanced gaming experience. With its impressive capacity and interface, the HPE P19974-H21 SSD is a reliable storage solution for users who require high-performance and efficient data storage.
