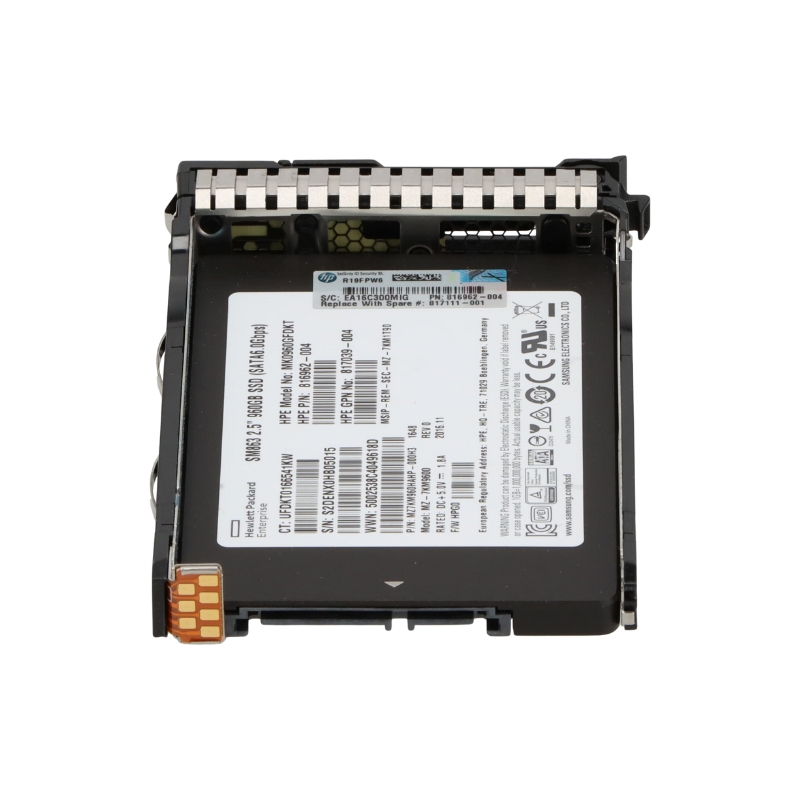

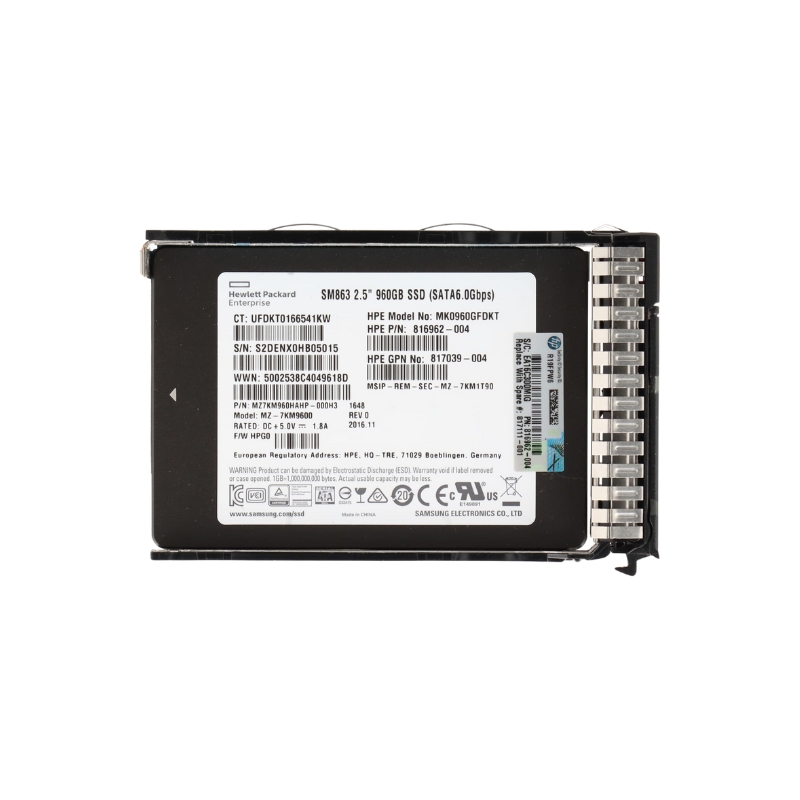

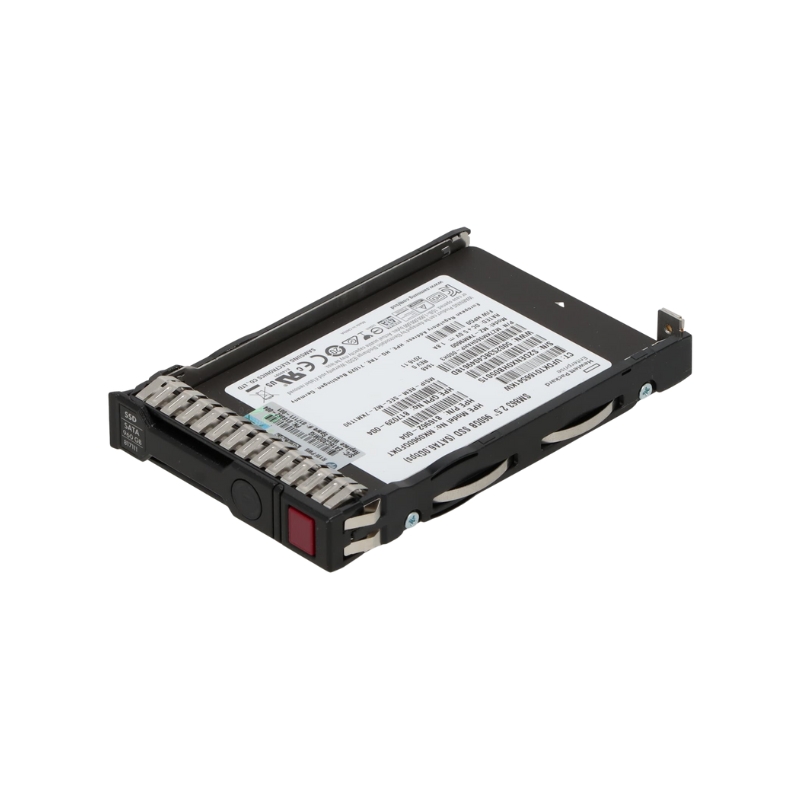

HPE P19980-B21 SATA 960GB SSD 6GBPS TLC Triple Level Cell Mixed Use

Overview of the HPE P19980-B21 960GB SSD

The HPE P19980-B21 960GB 3.5-inch Low Profile Converter (LPC) SATA SSD, designed for Gen9 and Gen10 HPE systems, brings high-performance storage with mixed-use capacity, ideal for both read- and write-intensive applications.

General Specifications

• Manufacturer: HPE
• Model Number: P19980-B21
• Device Type: Solid State Drive (SSD)
• Interface: SATA 6Gbps

Storage Capacity and Structure

• Capacity: 960GB
• Form Factor: 3.5-inch Large Form Factor (LFF)
• Memory Type: Triple-level cell (TLC) NAND
• Connector: Single-port, Hot-pluggable
• Housing Type: Low Profile Converter (LPC)
• Workload Suitability: Mixed-use applications

Supported Platforms

This SSD is compatible with HPE ProLiant Rack, Tower, BladeSystem Servers, and Synergy platforms.

Performance Metrics

Drive Endurance

• Drive Writes Per Day (DWPD): 5
• 30-Day Write Limit: 8760 TB

Transfer Rates and Latency

• External Transfer Rate: 6 Gb/sec
• Random Read IOPS: 67,000 (4KiB, Q=16)
• Max Random Read IOPS: 75,000 (4KiB, Q=256)
• Random Write IOPS: 52,000 (4KiB, Q=16)
• Max Sequential Read Throughput: 520 MiB/s
• Max Sequential Write Throughput: 490 MiB/s
• Read Latency (4KiB, Q=1): 125 microseconds
• Write Latency (4KiB, Q=1): 37 microseconds

Connectivity and Compatibility

• Interface: 1 x SAS 6Gbps
• Compatible Bay Size: 3.5" LFF

Power Consumption

• Idle: 1.17 Watts
• Random Read: 1.47 Watts
• Random Write: 1.47 Watts
• Sequential Read: 2.29 Watts
• Sequential Write: 2.97 Watts
• Max Power Consumption: 2.97 Watts

Physical Specifications

• Height: 5.50 inches (13.97 cm)
• Width: 5.75 inches (14.61 cm)
• Depth: 8.75 inches (22.23 cm)
• Weight: 3 lbs (1.36 kg)

Compatibility with HPE Systems

HPE ProLiant DL Series

• DL160 Gen10 (3.5-inch)
• DL180 Gen10 (3.5-inch)
• DL20 Gen10 (3.5-inch)
• DL325 Gen10 & Gen10 Plus (3.5-inch)
• DL385 Gen10 Plus (3.5-inch)

HPE ProLiant ML Series

• ML30 Gen10 (3.5-inch)
• ML350 Gen10 series (3.5-inch), including Base, High Performance, SMB, and Special Server models

Distinct Features

• Firmware Security: Digitally signed firmware (DS) to ensure data integrity
• Compatibility: Certified for use with HPE ProLiant and Synergy servers

Interface: SATA 6Gbps

The HPE P19980-B21 SSD is equipped with the SATA 6Gbps interface, which offers significant benefits and importance for users. SATA, or Serial ATA, is a popular interface used for connecting storage devices such as hard drives and solid-state drives (SSDs) to a computer system. The 6Gbps speed refers to the maximum data transfer rate supported by this interface.

Improved Data Transfer Speeds

One of the key advantages of the SATA 6Gbps interface is its faster data transfer speeds compared to previous generations. With a maximum transfer rate of 6Gbps, this interface enables quick and efficient data communication between the SSD and the computer system. This results in faster response times and improved overall system performance.

Seamless Compatibility

Another benefit of the SATA interface is its widespread compatibility with various systems and devices. SATA has become a standard interface in modern computers, making it easy to connect the HPE P19980-B21 SSD to a wide range of desktops, laptops, and servers. This compatibility ensures that users can easily integrate the SSD into their existing systems without any compatibility issues.

Plug-and-Play Installation

The SATA 6Gbps interface offers a plug-and-play installation process, making it incredibly user-friendly. Users can simply connect the HPE P19980-B21 SSD to their system using a SATA cable and power connector, without the need for any additional drivers or software. This simplifies the installation process and allows users to quickly start benefiting from the increased storage performance.

Backward Compatibility

One important aspect of the SATA interface is its backward compatibility with previous generations. The SATA 6Gbps interface is fully compatible with devices that support lower SATA versions, such as SATA 3Gbps or SATA 1.5Gbps. This means that even if users have older systems or devices, they can still utilize the HPE P19980-B21 SSD without any issues, albeit at the lower transfer rates supported by the older SATA versions.

Cost-Effective Solution

SATA interfaces, including SATA 6Gbps, are widely available and cost-effective compared to other high-speed interfaces like PCIe. This makes the HPE P19980-B21 SSD an affordable storage solution for users who require fast and reliable performance without breaking the bank. The SATA interface provides a balance between performance and cost, making it a popular choice for a wide range of applications.

Conclusion

The SATA 6Gbps interface featured in the HPE P19980-B21 SSD offers significant benefits for users in terms of improved data transfer speeds, seamless compatibility, and plug-and-play installation. Its backward compatibility and cost-effectiveness further enhance its value proposition. Whether you are a professional requiring high-speed storage or a home user looking to upgrade your system, the SATA 6Gbps interface ensures that the HPE P19980-B21 SSD delivers exceptional performance and reliability.

Capacity: 960GB

The HPE P19980-B21 SSD boasts an impressive capacity of 960GB, offering users ample space to store their data and applications. The capacity of an SSD is a crucial factor to consider when selecting a storage solution, and the 960GB capacity of this drive brings numerous benefits and importance to users.

Ample Storage Space

With a capacity of 960GB, the HPE P19980-B21 SSD provides users with a significant amount of storage space. This capacity is ideal for users who work with large files, multimedia content, or require extensive storage for their applications and software. Whether you are a creative professional, a data analyst, or a gamer, the 960GB capacity ensures that you can store all your important files without worrying about running out of space.

Enhanced Performance

In addition to ample storage space, the 960GB capacity also contributes to enhanced performance. SSDs utilize flash memory technology, which allows for faster data access and retrieval compared to traditional hard drives. With more storage capacity available, the HPE P19980-B21 SSD can efficiently manage larger volumes of data, resulting in improved read and write speeds. This translates to faster file transfers, quicker application loading times, and overall improved system performance.

Flexibility and Scalability

The 960GB capacity offers users the flexibility to store a wide range of data and applications on their HPE P19980-B21 SSD. Whether you need to store high-resolution videos, complex databases, or virtual machines, this sizable capacity ensures that you have the necessary space to meet your requirements. Furthermore, the scalability of SSD technology allows users to easily expand their storage by adding additional drives if needed.

Reduced Need for External Storage

With 960GB of storage capacity available on the HPE P19980-B21 SSD, users can significantly reduce their reliance on external storage solutions. External hard drives or cloud storage services may still be useful for backups or sharing files, but having a large capacity SSD eliminates the need to constantly juggle files between different storage mediums. This convenience allows users to have all their important data readily accessible on their primary storage device.

Improved Workflow Efficiency

The increased storage capacity provided by the 960GB SSD allows users to organize their files and applications more efficiently. With ample space available, users can create separate folders for different projects, applications, or media types, making it easier to locate and access specific files. This improved organization translates into enhanced workflow efficiency, saving users valuable time and effort when working on complex projects or managing multiple tasks simultaneously.

Conclusion

The 960GB capacity of the HPE P19980-B21 SSD offers users ample storage space, enhanced performance, flexibility, and scalability. With reduced reliance on external storage and improved workflow efficiency, this capacity ensures that users have the necessary space to store their data and applications without compromising speed or performance. Whether you are a professional with demanding storage needs or a casual user requiring a reliable and spacious storage solution, the 960GB capacity of this SSD delivers exceptional performance and convenience.

Technology: Triple Level Cell (TLC)

The HPE P19980-B21 SSD utilizes Triple Level Cell (TLC) technology, which brings significant benefits and importance for users in terms of performance, reliability, and cost-effectiveness. TLC is a type of NAND flash memory technology used in SSDs that allows for higher storage capacity at a lower cost compared to other memory types.

Increased Storage Density

One of the key advantages of TLC technology is its increased storage density. TLC NAND flash memory can store three bits of data per cell, compared to Single Level Cell (SLC) or Multi-Level Cell (MLC) technologies that store one or two bits per cell respectively. This higher density allows for larger storage capacities in SSDs without significantly increasing the physical size of the drive.

Lower Cost per Gigabyte

TLC technology offers a lower cost per gigabyte compared to SLC or MLC technologies. By storing three bits of data per cell, TLC SSDs can provide higher storage capacities at a more affordable price point. This makes the HPE P19980-B21 SSD an attractive option for users who require large storage capacities without breaking the bank.

Efficient Power Consumption

TLC SSDs are known for their efficient power consumption compared to other memory types. The inherent design of TLC technology allows for lower voltage requirements, resulting in reduced power consumption and extended battery life for mobile devices. Additionally, the efficient power usage of TLC SSDs helps in reducing heat generation, which contributes to improved system stability and reliability.

High Performance

Despite being cost-effective and power-efficient, TLC technology doesn't compromise on performance. The HPE P19980-B21 SSD combines TLC technology with advanced controller algorithms and firmware optimization to deliver high-speed read and write operations. This ensures that users can enjoy fast data access, quick application loading times, and overall responsive system performance.

Endurance and Reliability

While TLC SSDs typically have lower endurance compared to SLC or MLC SSDs, advancements in technology have significantly improved their reliability. The HPE P19980-B21 SSD incorporates error correction algorithms, wear leveling, and other features to enhance its endurance and prolong its lifespan. With proper usage and maintenance, this SSD can provide reliable performance for a wide range of applications and use cases.

Conclusion

The Triple Level Cell (TLC) technology featured in the HPE P19980-B21 SSD brings numerous benefits to users in terms of increased storage density, lower cost per gigabyte, efficient power consumption, high performance, endurance, and reliability. This technology allows for large storage capacities at an affordable price point without compromising on speed or reliability. Whether you are a professional requiring cost-effective storage solutions or a home user seeking reliable and efficient performance, the TLC technology in this SSD ensures that you can enjoy fast and reliable storage for your data and applications.

Use: Mixed Use

The HPE P19980-B21 SSD is optimized for mixed use, making it an ideal storage solution for a wide range of applications and workloads. Mixed use SSDs are designed to handle a combination of read and write operations, making them suitable for both heavy workloads and everyday usage scenarios. This section explores the benefits and importance of mixed use SSDs, highlighting why the HPE P19980-B21 SSD is an excellent choice for users seeking versatile performance.

Versatility in Workloads

Mixed use SSDs offer versatility in handling different types of workloads. They are designed to provide reliable performance across a range of usage scenarios, from demanding enterprise applications to regular desktop usage. Whether you are running database servers, virtual machines, or simply using your computer for daily tasks, the HPE P19980-B21 SSD can efficiently handle the varying workloads without compromising on performance or reliability.

Optimized Performance

The mixed use design of the HPE P19980-B21 SSD ensures optimized performance for both read and write operations. This means that regardless of the type of task you are performing, such as opening large files, editing videos, or launching applications, this SSD delivers consistent and responsive performance. The optimized performance ensures that your system remains fast and efficient even under heavy workloads.

Enhanced Endurance

Mixed use SSDs are known for their improved endurance compared to purely read or write optimized SSDs. The HPE P19980-B21 SSD incorporates advanced firmware and wear leveling algorithms to prolong its lifespan and withstand heavy usage. This enhanced endurance is particularly beneficial for users who regularly perform write-intensive tasks, such as content creators, database administrators, or gamers who regularly install and update large games.

Reduced Total Cost of Ownership (TCO)

The mixed use design of the HPE P19980-B21 SSD contributes to a reduced total cost of ownership (TCO) compared to using separate SSDs for different workloads. By having a single SSD that can handle both read and write operations effectively, users can avoid the need to invest in multiple drives or constantly juggle files between different storage mediums. This simplifies storage management and reduces overall costs associated with maintaining multiple storage devices.

Improved System Efficiency

Using a mixed use SSD like the HPE P19980-B21 improves system efficiency by reducing latency and enhancing overall system responsiveness. With optimized performance for both read and write operations, users can experience faster boot times, quicker file transfers, and improved application loading times. This improved efficiency translates into increased productivity and a smoother user experience.

Conclusion

The mixed use capability of the HPE P19980-B21 SSD offers versatility, optimized performance, enhanced endurance, reduced total cost of ownership, and improved system efficiency. Whether you are a professional handling demanding workloads or a home user seeking versatile storage performance, this SSD ensures that your data and applications are handled effectively and reliably. With the ability to handle a combination of read and write operations efficiently, the HPE P19980-B21 SSD is an excellent choice for users who require versatile and dependable storage solutions.
