P49029-B21 HPE 960GB DS SSD SAS 24GBPS Read Intensive

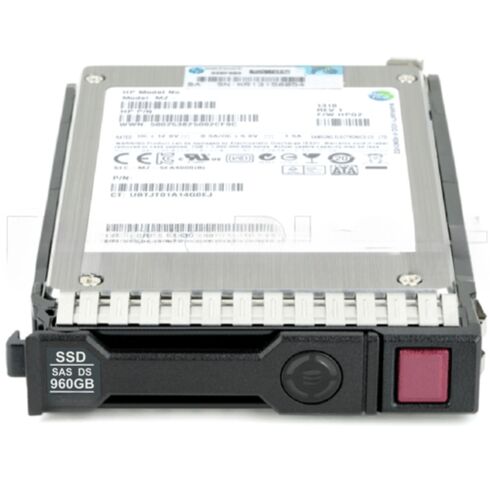

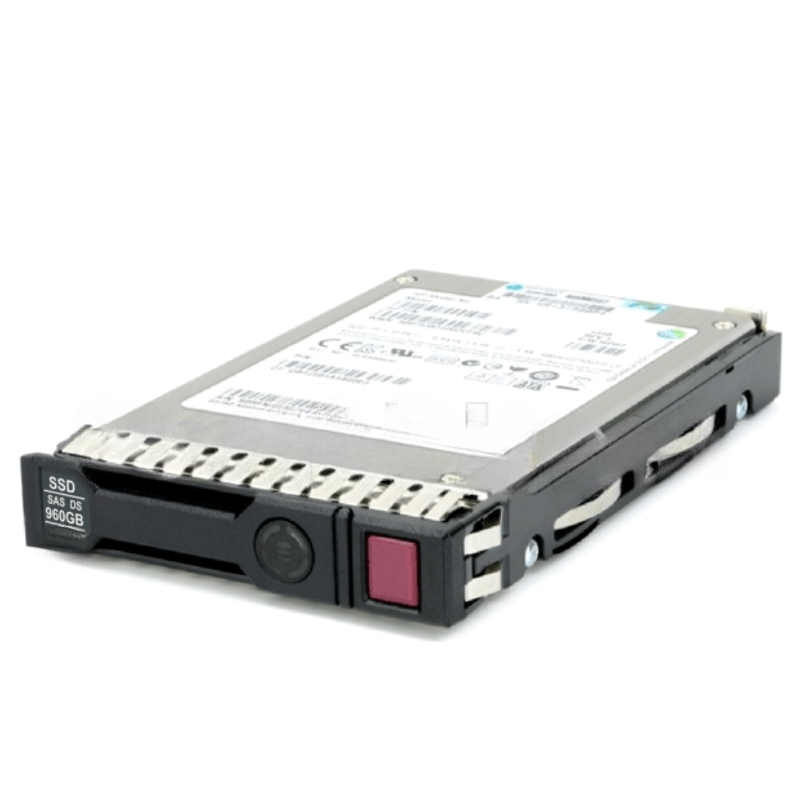

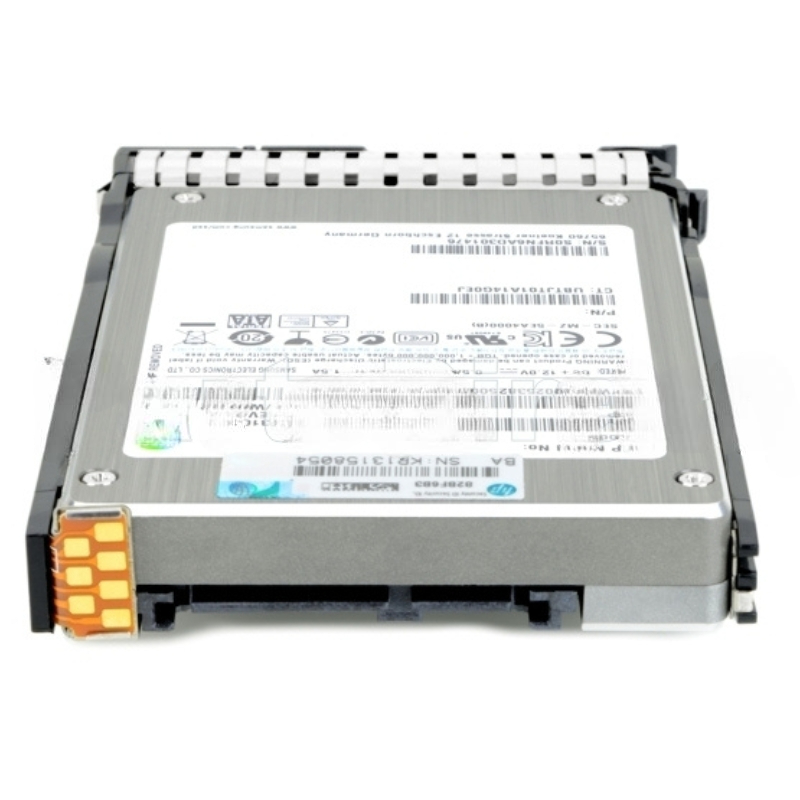

HPE P49029-B21 960GB SAS 24GBPS Read Intensive SSD

The exceptional performance and reliability of the HPE P49029-B21 a high-speed 960GB SAS SSD engineered for demanding enterprise environments requiring consistent read performance and robust data integrity.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model Code: P49029-B21
• Replacement Component ID: P49733-001
• Hardware Category: Solid State Drive

Technical Specifications and Physical Attributes

Storage Capacity and Physical Dimensions

• Total Memory: 960 Gigabytes
• Physical Size: 2.5-inch Small Form Factor (SFF)
• Component Height: 15.00 mm (0.60 inch)

Interface and Data Transfer Capabilities

• Host Interface: SAS 24Gbps
• Data Pathway: Dual Port connectivity
• Insertion Capability: Hot Pluggable design
• Flash Memory Technology: Triple-level cell (TLC)

Enterprise Features and Workload Management

• Optimized Workload: Read Intensive applications
• Firmware Security: Digitally Signed Firmware (DS)
• Mounting Bracket: Includes HPE Basic Carrier (BC)
• Usage Profile: Multi-Vendor Data Center environments

Performance Metrics and Speed Characteristics

Endurance and Longevity Specifications

• 30-Day Write Capacity: 1712 Terabytes
• Drive Writes Per Day (DWPD): 1

Data Transfer Velocity

• Interface Speed: 24 Gigabits per second
• Maximum Sequential Read: 2030 MiB/s
• Maximum Sequential Write: 1280 MiB/s

Input/Output Operations and Response Times

• Random Read IOPS (4KiB, Q=16): 155,000
• Random Write IOPS (4KiB, Q=16): 65,000
• Peak Random Read IOPS: 17,400 @ Queue Depth 64
• Peak Random Write IOPS: 65,000 @ Queue Depth 4
• Random Read Latency: 90 microseconds
• Random Write Latency: 26 microseconds

Power Requirements and Energy Consumption

Operational Power Draw

• Inactive State: 6.19 Watts
• Random Read/Write Operations: 7.81 Watts
• Sequential Read Activity: 8.42 Watts
• Sequential Write Activity: 10.34 Watts
• Maximum Power Consumption: 10.34 Watts

Hardware Integration and Supported Systems

Compatible Server Platforms

This storage solution is specifically validated for use with numerous HPE server families, ensuring optimal performance and compatibility.

HPE ProLiant DL Series Server Compatibility

• DL20 Gen10 Plus platforms (2.5inch configurations)
• DL325 Gen10 Plus V2 series (2.5inch configurations)
• DL345 Gen10 Plus models (2.5inch configurations)
• DL360 Gen10 Plus systems (2.5inch configurations)
• DL365 Gen10 Plus servers (2.5inch configurations)
• DL380 Gen10 Plus solutions (2.5inch configurations)
• DL385 Gen10 Plus V2 platforms (2.5inch configurations)

Additional Supported Infrastructure

• HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)
• HPE Synergy compute modules
• HPE BladeSystem architectures

Expansion and Connectivity Options

• Host Interface: 1 x SAS 24 Gb/s
• Compatible Enclosure Bay: 2.5-inch SFF

HPE P49029-B21 960GB SAS 24GBPS Multi Vendor DS BC Read Intensive SSD Overview

The HPE P49029-B21 960GB SAS 24GBPS Multi Vendor DS BC Read Intensive 2.5-inch SSD is designed for enterprise-grade storage environments where high reliability, consistent performance, and cost-efficiency are critical. Leveraging 24Gbps SAS interfaces, this SSD provides ultra-fast data transfer rates, enabling large-scale applications, databases, and virtualized environments to operate with minimal latency. Built to support mixed-vendor compatibility, it integrates seamlessly into HPE servers, storage arrays, and data center infrastructures, ensuring scalable performance without compromising on data integrity.

Advanced SAS 24GBPS Interface for High-Speed Data Transfer

The HPE P49029-B21 SSD utilizes the latest SAS 24GBPS interface technology, providing significantly faster data transfer compared to standard SAS drives. This high-speed interface ensures that read-intensive operations, including analytics, content delivery, and virtualization workloads, can be executed efficiently. With the ability to handle large amounts of simultaneous data requests, the SAS 24GBPS interface reduces bottlenecks, delivering smoother performance for enterprise applications.

Multi-Vendor DS BC Compatibility

One of the standout features of this SSD is its multi-vendor DS BC support, which allows integration with multiple storage systems from different manufacturers. This ensures maximum flexibility for IT administrators who need to deploy storage solutions in heterogeneous environments. Multi-vendor compatibility enhances the ease of migration, minimizes compatibility issues, and optimizes overall system performance, providing businesses with an adaptable and future-proof storage solution.

Read-Intensive Performance Optimization

Optimized specifically for read-intensive workloads, the HPE P49029-B21 SSD delivers consistent performance in applications that demand frequent read operations. Workloads such as database queries, reporting, content streaming, and backup solutions benefit from predictable IOPS and low latency. The drive is engineered to maintain peak performance over time, ensuring high availability for mission-critical applications and reducing the risk of system slowdowns during peak usage periods.

Enterprise-Grade NAND Technology

Equipped with high-quality NAND flash, the HPE P49029-B21 SSD guarantees durability and reliability even under continuous operation. The NAND architecture is optimized for read-intensive use cases, providing extended endurance and stable performance across thousands of read cycles. This makes it an ideal choice for enterprises seeking cost-effective storage solutions without compromising on data security or drive longevity.

2.5-Inch Form Factor for Flexible Deployment

The compact 2.5-inch form factor of this SSD makes it suitable for a variety of server and storage chassis configurations. Its hot-pluggable design allows administrators to replace or upgrade drives without shutting down systems, minimizing downtime and maintaining business continuity. This flexibility is crucial in dynamic data center environments where scalability and service availability are top priorities.

High Capacity Storage for Modern Data Centers

With a 960GB storage capacity, the HPE P49029-B21 SSD supports large-scale data storage needs while maintaining high performance. It is designed to accommodate applications that require rapid access to substantial volumes of data, such as virtualization infrastructures, enterprise databases, and analytics platforms. By providing ample capacity in a small footprint, this SSD reduces the total number of drives needed, simplifying management and lowering operational costs.

Data Reliability and Error Management

Data integrity is a fundamental consideration for any enterprise storage solution. The HPE P49029-B21 SSD incorporates advanced error correction and data protection mechanisms to ensure reliable operation under demanding workloads. Features like end-to-end data path protection, power-loss protection, and advanced ECC (Error Correction Code) enable the drive to prevent data corruption, minimize downtime, and enhance overall system resilience.

Energy Efficiency and Low Power Consumption

Designed with energy efficiency in mind, this read-intensive SSD consumes less power compared to traditional spinning hard drives while delivering superior performance. Reduced power consumption not only lowers operational costs but also contributes to environmentally sustainable data center operations. This makes the HPE P49029-B21 an ideal solution for organizations seeking high-performance storage with a smaller energy footprint.

Integration with HPE Server and Storage Ecosystems

The HPE P49029-B21 SSD is fully compatible with HPE ProLiant servers, HPE Synergy systems, and HPE storage arrays. Its seamless integration ensures optimized performance through HPE Smart Array controllers and HPE OneView management tools. IT administrators benefit from simplified provisioning, monitoring, and maintenance, reducing administrative overhead while maximizing system uptime and reliability.

Enhanced Endurance and Lifecycle Management

The endurance of the HPE P49029-B21 SSD is optimized for read-intensive operations, providing long operational life even under continuous enterprise workloads. Lifecycle management features, including wear-leveling algorithms and predictive failure monitoring, enable proactive maintenance and reduce the likelihood of unexpected failures. This ensures predictable performance and protects critical data across the storage infrastructure.

Scalability for Growing Enterprise Needs

As enterprises expand, their storage requirements grow. The HPE P49029-B21 SSD offers a scalable solution, allowing organizations to increase storage capacity without disrupting existing infrastructure. Its compact design, multi-vendor compatibility, and enterprise-grade performance make it a versatile choice for future-proofing data centers while supporting evolving business demands.

Security Features and Data Protection

Data security is a critical aspect of enterprise storage. The HPE P49029-B21 SSD incorporates robust security measures to protect sensitive information. Advanced encryption capabilities, secure erase functionality, and adherence to industry-standard protocols help safeguard data against unauthorized access and potential breaches. These features make it a reliable solution for regulated industries, including finance, healthcare, and government sectors.

Optimized for Enterprise Applications

The HPE P49029-B21 SSD is engineered to support a wide range of enterprise applications, including online transaction processing, data warehousing, analytics, and high-performance computing. Its predictable performance and high reliability ensure minimal downtime, allowing businesses to maintain continuous operations and deliver consistent service levels to customers and end-users.

Future-Proof Storage Investment

Investing in the HPE P49029-B21 SSD provides organizations with a future-proof storage solution. Its high-speed SAS interface, multi-vendor support, and enterprise-grade reliability ensure that the drive remains a valuable asset as IT infrastructure evolves. Businesses can confidently scale their storage capacity, integrate with new server technologies, and meet growing performance demands without frequent hardware replacements.
