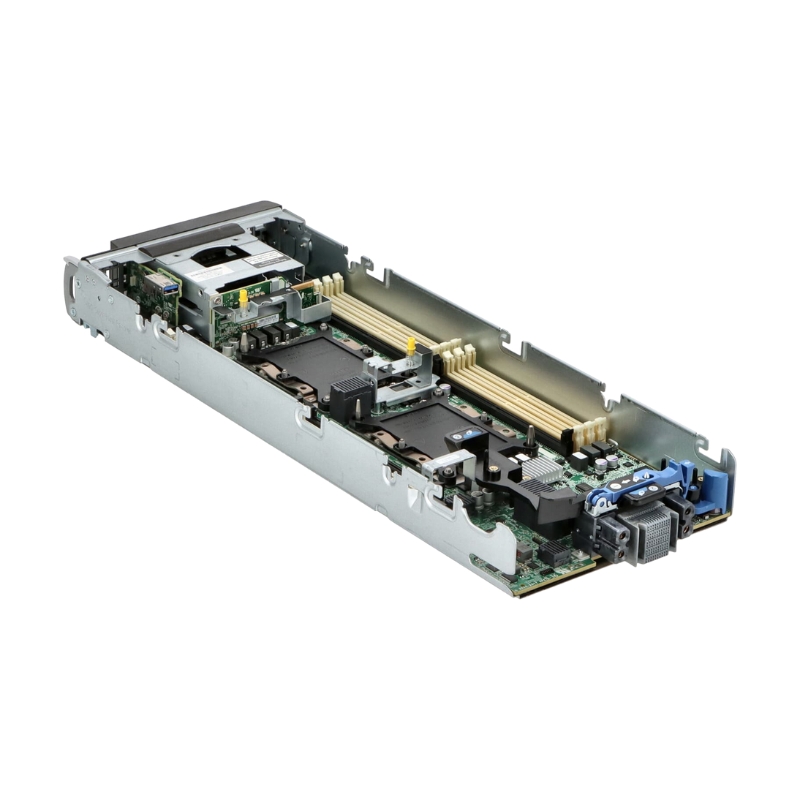

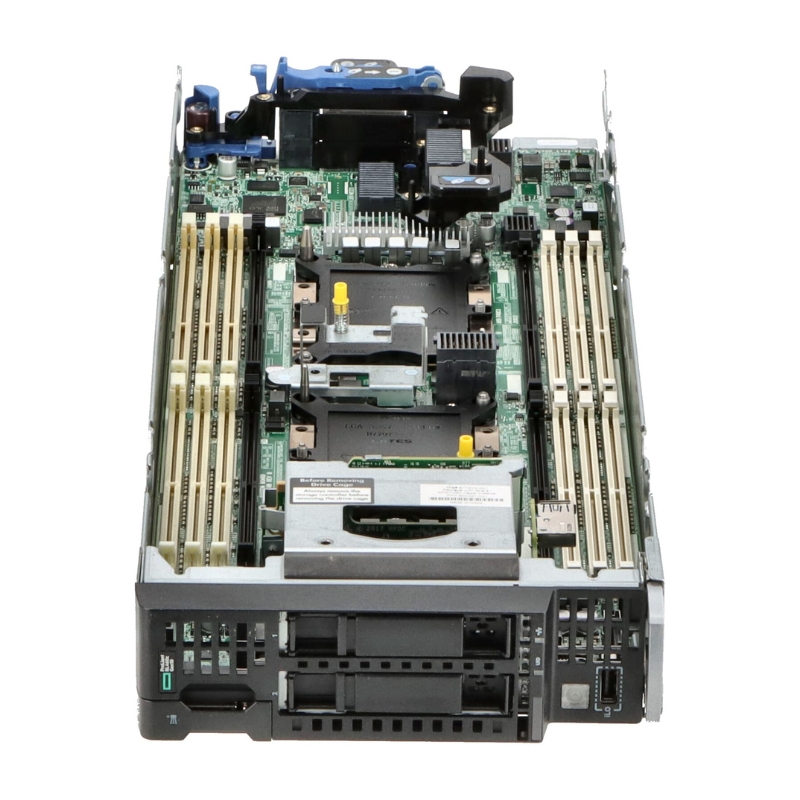

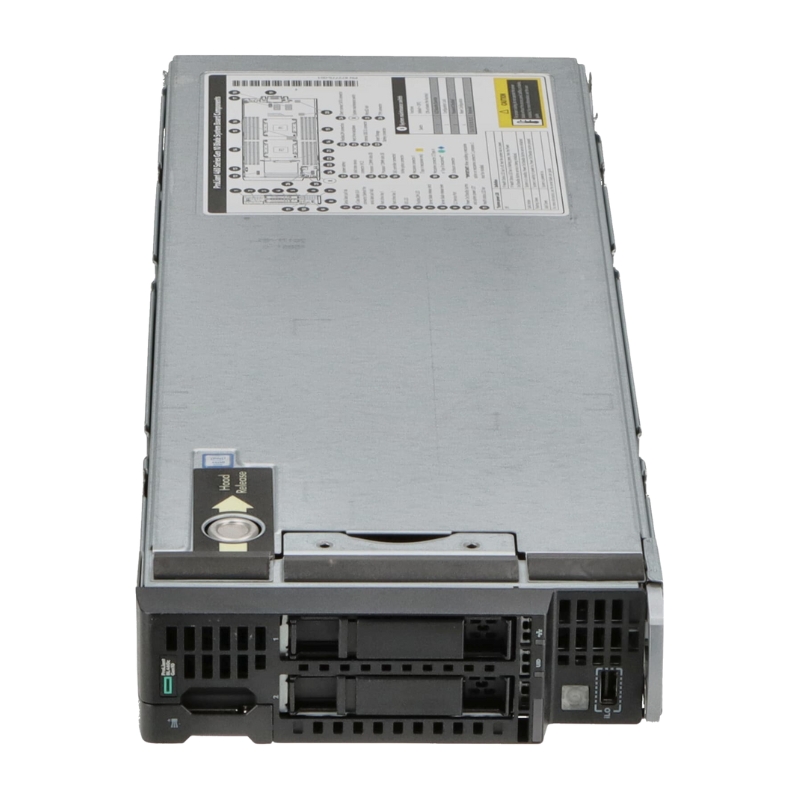

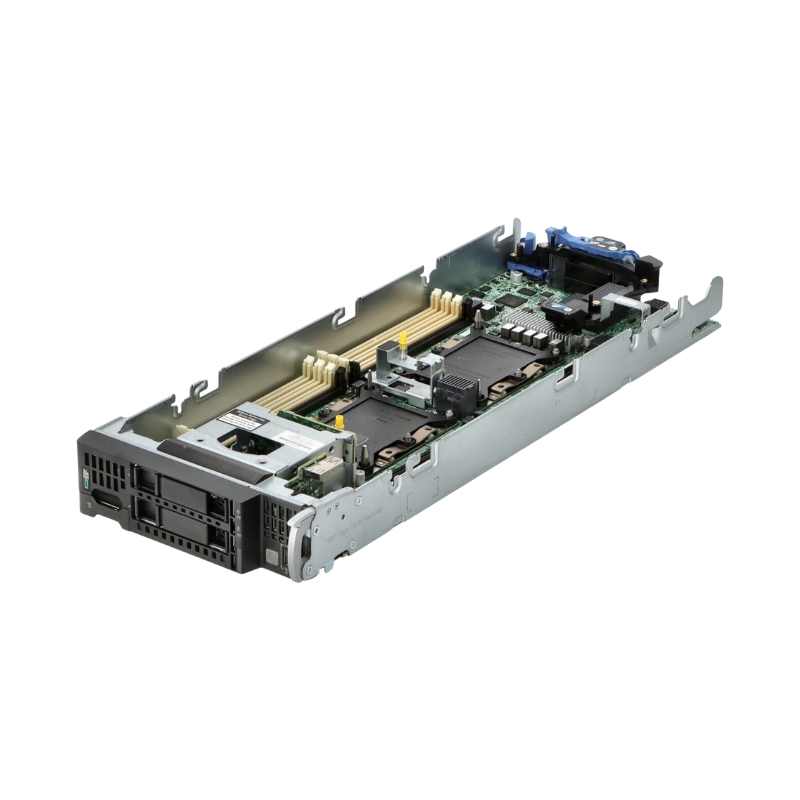

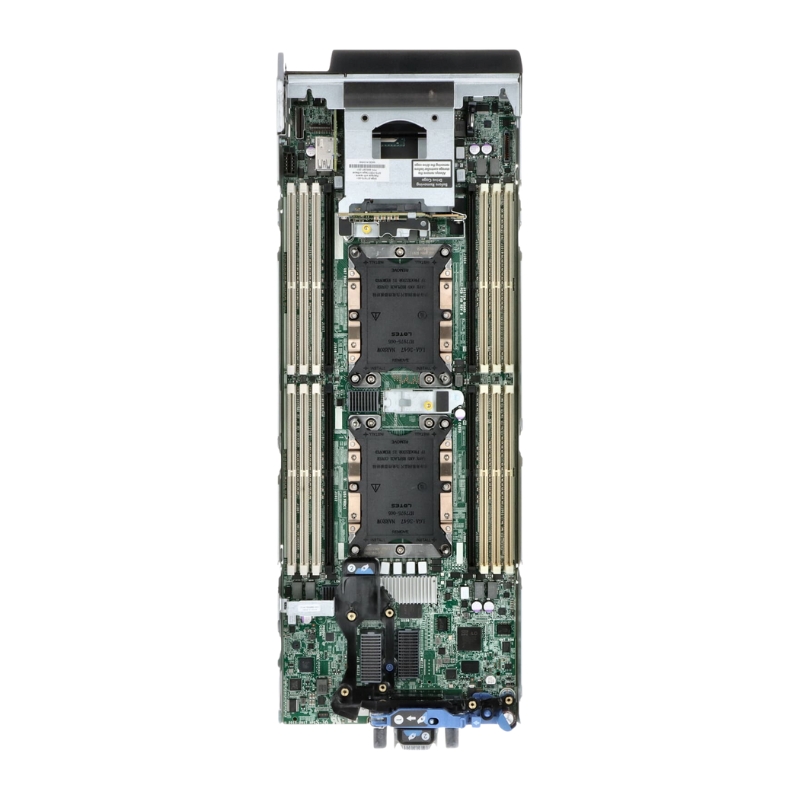

HPE ProLiant BL460C G7 10 Gigabit Ethernet Blade Server 637391-B21

Ethernet: 10 Gigabit Speed for Faster and More Efficient Networking

The HPE Proliant BL460C G7 Blade Server is equipped with a powerful Ethernet feature that offers a blazing-fast speed of 10 Gigabit. This high-speed connectivity ensures that your server can handle heavy network traffic without any bottlenecks or slowdowns. Whether you are running data-intensive applications or transferring large files, the 10 Gigabit Ethernet ensures smooth and uninterrupted network performance.

Main Information of Proliant BL460C

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 637391-B21
• Product Name: Proliant Bl460c G7 - 2 Way Blade Server

Processor & Chipset

• Processor: Intel Xeon E5649, 2.53 GHz
• Maximum Turbo Speed: 2.93 GHz
• Number of Cores: 6-core
• CPU Quantity: 1 (Upgradeable to 2)
• 64-bit Computing: Yes
• CPU Socket Type: LGA1366

Chipset Details

• Chipset: Intel 5520
• Key Features: Hyper-threading Technology, Intel Turbo Boost Technology

Cache Memory

• Cache Type: L3 Cache
• Installed Cache Size: 12 MB
• Cache Per Processor: 12 MB

Memory Configuration

• Installed Memory: 6 GB
• Maximum Memory Capacity: 192 GB

Memory Technology

• Type: DDR3 SDRAM - Advanced ECC
• Effective Memory Speed: 1333 MHz
• Rated Memory Speed: 1333 MHz
• Memory Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Memory Slots: 12 (Total) / 9 (Empty)

Supported RAM Configurations

• Supported RAM:
  • PC3-8500 - 384 GB Registered - ECC
  • PC3-10600 - 48 GB Unbuffered - ECC
  • PC3-10600 - 192 GB Registered - ECC

Storage & Optical Drives

• Hard Drive: None
• Optical Drive: None

Storage Controller

• Controller Type: Integrated RAID - PCIe 2.0 x4
• Interface Types: SATA 3 Gb/s, SAS 6 Gb/s
• Controller Name: Smart Array P410i/zm
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
• Buffer Size: ZM

Display & Graphics

• Graphics Processor: Matrox MGA G200

Networking Features

• Network Type: Integrated
• Interface Type: PCI Express 2.0 x8
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP NC553i
• Data Link Protocols: Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management Protocols: SNMP, IPMI 2.0
• Remote Management Controller: Integrated Lights-Out 3
• Additional Features: Wake On LAN (WOL)
• Compliant Standards: IEEE 802.1q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ap

Expansion & Connectivity

• Total Bays: 2 (Hot-swap 2.5 SFF)
• Free Bays: 2

Expansion Slots

• CPU Slots: 2 (1 Free)
• DIMM Slots: 12 (9 Free)
• SD Card Slot: 1 (Free)

Interfaces & Ports

• HP iLO Port: 1
• LAN Ports: 2 x 10 Gigabit Ethernet

Miscellaneous Features

• Security Features: Administrator Password, Power-on Password, Quicklock
• Compliance Standards: ACPI 2.0, WEEE

Dimensions & Weight

• Width: 2.2 in
• Depth: 20.1 in
• Height: 7.2 in
• Weight: 11.46 lbs

Improved Data Transfer Speed

With 10 Gigabit Ethernet, you can experience significantly faster data transfer speeds compared to traditional Gigabit Ethernet. This means that you can quickly send and receive data across your network, enabling faster backup and restore operations, quicker file transfers, and seamless access to centralized storage. The increased speed of the Ethernet feature translates into improved productivity and reduced wait times for users.

Enhanced Virtualization Performance

In virtualized environments, where multiple virtual machines are running simultaneously, the 10 Gigabit Ethernet provides a significant performance boost. It allows for efficient communication between virtual machines, enabling faster migration of VMs and improved overall virtualization performance. This ensures that your server can handle the demands of virtualized workloads without any performance degradation.

Support for Bandwidth-Intensive Applications

Modern applications often require high bandwidth to function optimally. Whether you are running media streaming services, video conferencing platforms, or other bandwidth-intensive applications, the 10 Gigabit Ethernet ensures smooth and uninterrupted performance. It eliminates network congestion and enables multiple users to access bandwidth-intensive applications simultaneously without compromising on speed or quality.

Future-Proof Networking Solution

The 10 Gigabit Ethernet offered by the HPE Proliant BL460C G7 Blade Server is a future-proof networking solution. As technology advances and network demands continue to grow, having a server with 10 Gigabit Ethernet ensures that your infrastructure can handle the increasing bandwidth requirements. It provides scalability and flexibility, allowing you to adapt to future networking needs without the need for costly upgrades or replacements.

Processor: 2 Ways for Enhanced Performance and Scalability

The HPE Proliant BL460C G7 Blade Server is powered by a robust 2-way processor architecture. This means that the server can accommodate two processors, offering enhanced performance and scalability for demanding workloads. Whether you are running resource-intensive applications or handling multiple virtual machines, the 2-way processor architecture ensures that your server can handle the workload efficiently.

Increased Processing Power

The 2-way processor architecture provides increased processing power compared to single-processor systems. With two processors working in tandem, the server can execute tasks in parallel, resulting in faster data processing and improved overall performance. This is particularly beneficial for applications that require intensive computational power, such as scientific simulations, complex data analysis, or high-performance computing.

Improved Workload Management

By distributing the workload across two processors, the 2-way architecture enables better workload management. It allows for efficient allocation of resources, ensuring that each processor handles its share of tasks without overburdening a single processor. This results in improved system responsiveness, reduced latency, and enhanced user experience even under heavy workloads.

Scalability for Future Growth

The 2-way processor architecture offers scalability, allowing you to easily expand your server's processing power as your needs grow. With two empty processor sockets available, you have the flexibility to add additional processors whenever required. This ensures that your server can accommodate increasing workloads and adapt to the changing demands of your business without the need for a complete hardware replacement.

Cost-Effective Solution

The 2-way processor architecture provides a cost-effective solution for organizations that require high-performance computing. Instead of investing in expensive single-processor systems, the BL460C G7 Blade Server allows you to achieve comparable performance at a fraction of the cost. It enables you to maximize the utilization of your server resources while keeping your infrastructure costs in check.

Part Number: 637391-B21

The HPE Proliant BL460C G7 Blade Server comes with a unique part number - 637391-B21. This part number plays a crucial role in identifying and ordering the right server for your specific requirements. It ensures that you receive the exact model and configuration that you need, avoiding any confusion or compatibility issues.

Accurate Model Identification

The part number, 637391-B21, helps in accurately identifying the specific model of the BL460C G7 Blade Server. With numerous server models available in the market, having a unique part number simplifies the ordering process and ensures that you receive the correct server variant with all the desired features and specifications.

Compatibility Assurance

By using the part number, you can be confident that the server you are ordering is compatible with your existing infrastructure. The part number contains crucial information about the server's compatibility with various components such as memory modules, storage options, and expansion cards. This ensures that you can seamlessly integrate the BL460C G7 Blade Server into your existing environment without any compatibility issues.

Simplified Ordering Process

The part number serves as a reference for ordering the BL460C G7 Blade Server. When communicating with vendors or suppliers, providing the part number ensures that there is no confusion regarding the server model you require. It streamlines the ordering process, saving time and effort by eliminating any potential errors or misunderstandings.

Ease of Replacement and Upgrades

With the part number, replacing or upgrading components of your BL460C G7 Blade Server becomes hassle-free. When ordering replacement parts or upgrades, using the part number ensures that you receive the correct components that are compatible with your server model. This eliminates any guesswork and ensures that your replacements or upgrades fit seamlessly into your server infrastructure.
