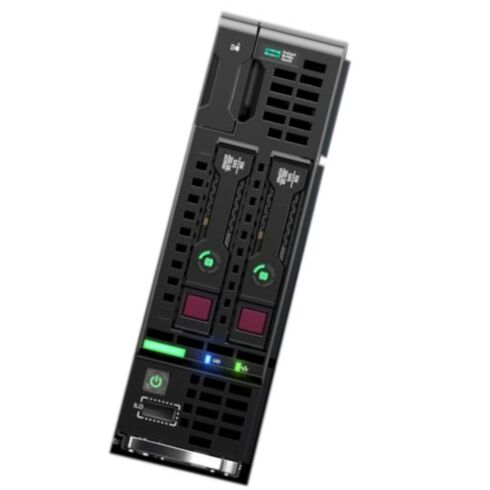

HPE Proliant BL460c G9 64GB DDR4 SDRAM Blade Server 727030-B21

RAM

The HPE BL460c G9 Blade Server is equipped with an impressive 64GB DDR4 SDRAM, which sets it apart from other servers in its class. This high-performance RAM is a crucial component that greatly enhances the server's capabilities and overall performance.

Product Overview

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Model Number: 727030-B21
• Product Name: Proliant Bl460c G9 - Blade Server (Performance Model)

Processor & Chipset Specifications

Processor Information

• Processor Type: Intel Xeon E5-2660v3 at 2.6 GHz
• Max Turbo Frequency: 3.3 GHz
• QuickPath Interconnect Speed: 9.60 GT/s
• Number of Cores: 10-core
• Installed Processors: 2
• Max Supported Processors: 2
• 64-bit Computing: Supported
• Socket Compatibility: FCLGA2011-v3
• Chipset Type: Intel C610 Series
• CPU Upgradeability: Yes
• Main Features: Hyper-Threading, Intel Turbo Boost 2, Intel Smart Cache

Cache Memory

• Type: Smart Cache
• Installed Size: L3 Cache - 50 MB
• Cache Per Processor: 25 MB

Memory Specifications

Installed and Maximum Memory

• Installed Memory Size: 64 GB
• Maximum Supported Memory: 512 GB

Memory Technology

• Type: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2133 MHz
• Rated Memory Speed: 2133 MHz
• Memory Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Memory Slots: 16 total, 12 available
• Features: Registered, Online Spare, Low-voltage, HP SmartMemory
• Configuration: 4 x 16 GB
• Supported RAM: Up to 512 GB Registered Advanced ECC, 2 TB Load-Reduced Advanced ECC

Storage Details

Hard Drives & Optical Drives

• Hard Drive: Not Included
• Optical Drive: Not Included

Storage Controllers

• Controller Name: Smart Array P244br
• Buffer Size: 1 GB
• Disk Drive Interfaces: 12 Gb/s SAS, 6 Gb/s SATA
• Cache Memory Speed: DDR3 MHz, 72-bit Wide Bus, up to 4.2 GB/s Bandwidth
• Server Interface: x8 5G PCIe 3.0, 8 GB/s Bandwidth
• SAS Speed: x8 12G SAS, 9.6 GB/s Bandwidth
• Cache Memory: 72-bit 1 GB ECC Protected
• SAS Port Link Rate: 12 Gb/s per Physical Link
• Logical Drives Supported: Up to 64
• Maximum Volume Capacity: 2.4 TB (2 x 1.2 TB SAS/SATA 2.5” MDL HDD)
• RAID Support: RAID 0, RAID 1, RAID 10

Graphics and Networking

Graphics

• Graphics Controller: Integrated Matrox G200eh

Networking

• Network Type: Plug-in Card
• Interface (Bus) Type: FlexibleLOM
• Ethernet Ports: 2 x 20 Gigabit Ethernet
• Ethernet Controller: HP FlexFabric 650FLB
• Data Link Protocols: Fibre Channel over Ethernet (FCoE), 20 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE)
• Remote Management Protocols: SNMP, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WoL)
• Compliant Standards: IEEE 802.1Q, IEEE 802.1P, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AB (LLDP), IEEE 802.3ap, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg

Expansion and Connectivity

Expansion Bays

• Total Expansion Bays: 2 (hot-swappable 2.5” SFF)
• Available Bays: 2 free

Expansion Slots

• Total Expansion Slots: 18
• Available Expansion Slots: 12 free DIMM, 0 free CPU, 2 x16 Mode, 1 microSDHC (internal), 1 FlexibleLOM

Interfaces and Ports

• HP iLO Port: 1
• USB 3.0 Port: 1 (internal)
• LAN Ports: 2 x 20 Gigabit Ethernet

Miscellaneous Features

• Security Features: Administrator Password, Power-on Password, Serial Port I/O Control, USB Port Control, QuickLock
• Compliance Standards: ACPI 2.0, FIPS 140-2 Level 2, AES, WEEE, ASHRAE

Physical Dimensions

• Width: 2.2 inches
• Depth: 20.4 inches
• Height: 7.1 inches
• Weight: 10.5 lbs

Improved Performance

The 64GB DDR4 SDRAM provides a significant boost in performance compared to older generation RAM modules. With its increased memory capacity and faster data transfer rates, the server can handle more demanding workloads and process data at a much faster rate. This results in improved overall performance and responsiveness, ensuring that users can run resource-intensive applications without any lag or slowdown.

Enhanced Multitasking

With 64GB of RAM, the HPE BL460c G9 Blade Server can effortlessly handle multiple tasks simultaneously. This is particularly beneficial for businesses that rely heavily on virtualization or run multiple applications concurrently. The ample memory allows for seamless multitasking, ensuring that users can efficiently manage their workloads and maximize productivity.

Scalability

In addition to its impressive capacity, the DDR4 SDRAM on the HPE BL460c G9 Blade Server is also highly scalable. This means that businesses can easily expand the server's memory capacity in the future as their needs grow. Whether it's due to increasing workloads or expanding virtualization environments, the ability to upgrade the RAM ensures that the server remains capable of handling evolving demands.

Reliability

The HPE BL460c G9 Blade Server's 64GB DDR4 SDRAM offers exceptional reliability and stability. The DDR4 technology itself is known for its higher data integrity and error correction capabilities compared to its predecessors. This ensures that critical data remains intact and reduces the risk of system crashes or data corruption. With reliable RAM, businesses can have peace of mind knowing that their server is built to withstand heavy workloads and maintain consistent performance.

Power Efficiency

Despite its impressive performance capabilities, the 64GB DDR4 SDRAM on the HPE BL460c G9 Blade Server is designed to be power-efficient. The DDR4 technology utilizes lower voltage levels, resulting in reduced power consumption compared to older RAM modules. This not only helps businesses save on energy costs but also contributes to a greener and more sustainable IT infrastructure.

Adapter

Another standout feature of the HPE BL460c G9 Blade Server is its Smart Array adapter. This adapter plays a crucial role in managing and optimizing storage performance, making it an essential component for users seeking reliable and efficient storage solutions.

Optimized Storage Performance

The Smart Array adapter on the HPE BL460c G9 Blade Server ensures optimized storage performance by providing advanced RAID (Redundant Array of Independent Disks) capabilities. With RAID support, businesses can configure multiple drives to work together, improving data redundancy, reliability, and overall performance. This is especially important for mission-critical applications that require high availability and fault tolerance.

Flexible Storage Configuration

The Smart Array adapter offers flexible storage configuration options, allowing businesses to customize their storage setup according to their specific requirements. Whether it's configuring RAID levels, hot-swapping drives, or implementing data protection mechanisms, the adapter provides the necessary tools for creating a tailored storage solution that aligns with the organization's needs.

Data Protection

Data protection is a top priority for businesses, and the Smart Array adapter helps ensure the integrity and security of critical data. By implementing RAID technology, the adapter offers various data protection mechanisms such as mirroring (RAID 1), striping with parity (RAID 5), or a combination of both (RAID 10). These features protect against data loss in case of disk failures, minimizing downtime and potential financial losses.

Improved Storage Efficiency

The Smart Array adapter on the HPE BL460c G9 Blade Server also enhances storage efficiency by optimizing data access and reducing latency. With its intelligent caching algorithms and read/write optimization techniques, the adapter delivers faster and more efficient storage operations. This translates to improved application performance and better overall user experience.

Product Number

The HPE BL460c G9 Blade Server is identified by its unique product number, 727030-B21. This alphanumeric code holds significant importance for users as it helps ensure compatibility, facilitates support, and simplifies the procurement process.

Compatibility Assurance

The product number, 727030-B21, serves as a reliable identifier for the HPE BL460c G9 Blade Server model. This ensures that users can easily verify compatibility with their existing infrastructure or specific requirements. By referencing the product number, businesses can be confident that they are purchasing the correct server model that meets their needs without any compatibility issues.

Easier Support and Maintenance

When it comes to support and maintenance, having a unique product number like 727030-B21 simplifies communication with the manufacturer or service provider. Users can easily reference the product number when seeking technical assistance, ordering spare parts, or requesting warranty services. This streamlines the support process and reduces potential delays in resolving any issues that may arise.

Streamlined Procurement Process

For businesses looking to procure the HPE BL460c G9 Blade Server, the product number plays a crucial role in streamlining the procurement process. By providing the product number to vendors or resellers, organizations can ensure accurate ordering and avoid any confusion or mistakes. This saves time and effort for both the buyer and the seller, ensuring a smooth and efficient procurement experience.

Product Differentiation

In a market flooded with various server models and configurations, the product number helps differentiate the HPE BL460c G9 Blade Server from its competitors. By having a unique identifier like 727030-B21, businesses can easily identify and compare the server's specific features, capabilities, and pricing. This allows them to make informed decisions and choose the server that best fits their requirements and budget.

Future Scalability

The product number also plays a role in future scalability and expansion plans. When businesses need to expand their server infrastructure or upgrade their existing equipment, having a unique product number simplifies the process of identifying compatible models or configurations. This ensures seamless integration and compatibility with existing systems, making future upgrades and expansions more efficient and cost-effective.
