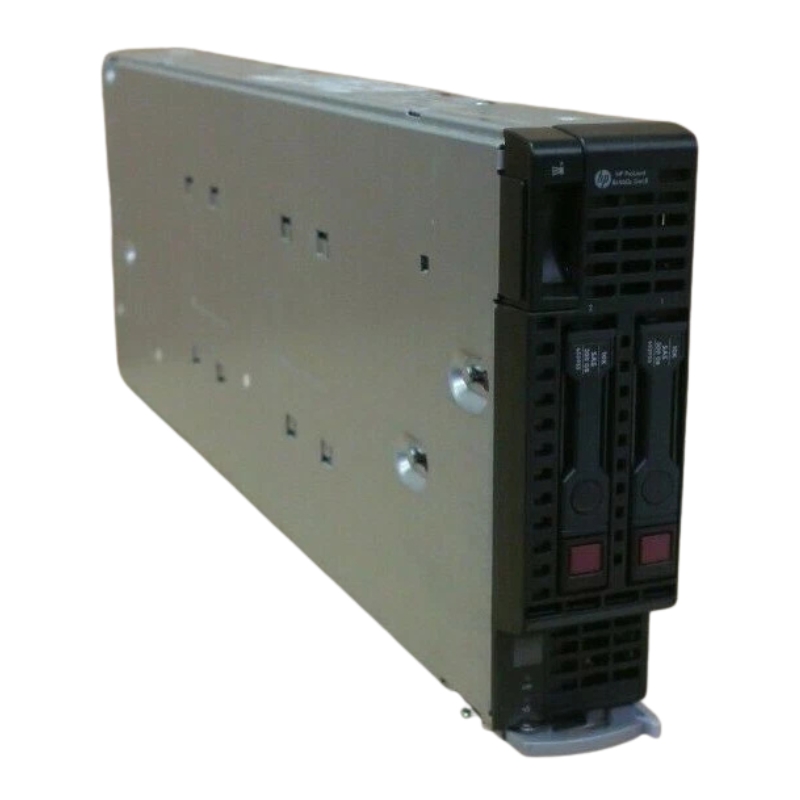

HPE Proliant BL460c Gen9 Xeon 12 Core 2.3GHz 128GB DDR4 Server 727031-B21

Processor

The HPE Proliant Bl460c Gen9 Server is powered by an impressive Xeon 12 Core 2.3GHz processor, which sets it apart from its competitors. This feature plays a crucial role in enhancing the server's performance and efficiency, making it an ideal choice for businesses of all sizes.

General Details

• Brand: Hewlett Packard Enterprise
• Part Number: 727031-B21
• Product Name: HP Proliant BL460c Gen9 Blade Server (Performance Model)

Processor & Chipset

Central Processing Unit (CPU)

• Processor: Intel Xeon E5-2670v3 at 2.3 GHz
• Max Turbo Frequency: 3.1 GHz
• Cores: 12 cores per CPU
• Quantity: 2 CPUs
• Socket Type: FCLGA2011-v3

Key Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2.0
• Intel Smart Cache

Cache Memory

• Cache Type: Smart Cache
• Installed Size: 60 MB L3 Cache
• Cache Per Processor: 30 MB

Memory Specifications

Installed Memory

• Base Size: 128 GB
• Maximum Size: 512 GB

Memory Technology

• Type: DDR4 SDRAM - Advanced ECC
• Effective Speed: 2133 MHz
• Form Factor: DIMM 288-pin
• Slots: 16 total, 12 empty

Supported Configurations

• 4 x 32 GB modules
• 512 GB Registered - Advanced ECC
• 2 TB Load-reduced - Advanced ECC

Storage Information

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Name: Smart Array P244br
• Cache Size: 1 GB
• Interface: X8 5G PCIe 3.0
• SAS Speed: X8 12G SAS
• Cache Memory: 72-bit 1 GB ECC Protected Cache
• Supported Logical Drives: Up to 64
• Maximum Volume Capacity: 2.4 TB (2 x 1.2 TB SAS/SATA 2.5” HDD)
• RAID Support: RAID 0, RAID 1, RAID 10

Display & Graphics

• Graphics Controller: Integrated Matrox G200eh

Networking & Communication

• Network Card Type: Plug-in Card
• Interface Type: FlexibleLOM
• Ethernet Ports: 2 x 20 Gigabit Ethernet
• Ethernet Controller: HP FlexFabric 650FLB
• Protocols: FCoE, 20 Gigabit Ethernet, RoCE
• Remote Management: SNMP, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4

Expansion & Connectivity

Expansion Bays

• Total: 2 hot-swap 2.5” SFF
• Available: 2

Expansion Slots

• CPU Slots: 2 total, 0 available
• DIMM Slots: 16 total, 12 available
• MicroSDHC Card Slot: 1 total, 1 available
• FlexibleLOM Slot: 1 total, 0 available

Interfaces & Ports

• HP iLO: 1
• USB 3.0: 1 Internal
• LAN Ports: 2 x 20 Gigabit Ethernet

Miscellaneous Features

• Administrator Password Protection
• Power-on Password
• Serial Port I/O Control
• USB Port Control
• Quicklock Security

Standards Compliance

• ACPI 2.0
• FIPS 140-2 Level 2
• AES
• WEEE
• ASHRAE

Dimensions & Weight

• Width: 2.2 inches
• Depth: 20.4 inches
• Height: 7.1 inches
• Weight: 10.5 lbs

Improved Processing Power

With 12 cores and a clock speed of 2.3GHz, this Xeon processor provides exceptional processing power. It allows the server to handle complex tasks and calculations with ease, ensuring smooth and efficient operation even under heavy workloads. This is particularly beneficial for businesses that rely on their servers to process large amounts of data or run resource-intensive applications.

Enhanced Multi-Thread Performance

The Xeon 12 Core 2.3GHz processor also excels in multi-threaded performance. It supports simultaneous multi-threading (SMT) technology, which enables each core to handle multiple threads simultaneously. This capability significantly improves the server's ability to multitask and handle concurrent workloads, resulting in improved overall system responsiveness.

Optimized Virtualization Performance

Virtualization has become increasingly important for modern businesses, allowing them to efficiently utilize their server resources and streamline operations. The Xeon 12 Core 2.3GHz processor is designed with virtualization in mind, offering advanced features such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These technologies enhance the server's virtualization capabilities, enabling smooth and efficient virtual machine deployment and management.

Energy Efficiency

In addition to its impressive performance capabilities, the Xeon 12 Core 2.3GHz processor is also energy-efficient. It incorporates advanced power management features that dynamically adjust power consumption based on workload demands, ensuring optimal energy efficiency without compromising performance. This not only reduces operational costs but also contributes to a greener IT infrastructure.

Scalability and Future-Proofing

The HPE Proliant Bl460c Gen9 Server's Xeon 12 Core 2.3GHz processor offers scalability and future-proofing for businesses. With 12 cores, the server can handle increasing workloads and accommodate the growth of your business, providing room for expansion without the need for significant hardware upgrades. This scalability ensures that the server can meet your evolving needs, making it a valuable long-term investment.

RAM

Another standout feature of the HPE Proliant Bl460c Gen9 Server is its impressive 128GB DDR4 RAM. This high-capacity memory module plays a crucial role in enhancing the server's performance, responsiveness, and overall efficiency.

Improved System Responsiveness

With 128GB of DDR4 RAM, the server can store and quickly access vast amounts of data. This results in improved system responsiveness, allowing users to execute tasks and run applications with minimal delay. Whether you are running resource-intensive applications or handling large datasets, the ample RAM capacity ensures smooth operation and enhances user experience.

Enhanced Multitasking Abilities

The large RAM capacity of 128GB also allows the server to handle multiple tasks simultaneously without performance degradation. This is particularly beneficial for businesses that require their servers to handle a multitude of concurrent workloads or run virtual machines. The ample RAM ensures that each task or virtual machine has sufficient memory resources, preventing bottlenecks and ensuring efficient multitasking capabilities.

Optimized Performance for Memory-Intensive Applications

Many modern applications, such as databases or data analytics software, rely heavily on memory access for optimal performance. The 128GB DDR4 RAM in the HPE Proliant Bl460c Gen9 Server provides the necessary memory capacity to support memory-intensive applications, ensuring they can run smoothly and efficiently. This feature is especially crucial for businesses that deal with large datasets or perform complex data analysis.

Future-Proofing and Scalability

The 128GB DDR4 RAM in the server also offers future-proofing and scalability. As businesses grow and their workload requirements increase, having sufficient memory capacity becomes essential. The server's high-capacity RAM allows for expansion without the need for immediate upgrades, ensuring that it can accommodate the evolving needs of your business.

Reliability and Data Integrity

In addition to its impressive capacity, the DDR4 RAM in the HPE Proliant Bl460c Gen9 Server also offers enhanced reliability and data integrity. It incorporates error-correcting code (ECC) technology, which detects and corrects memory errors on the fly. This helps prevent data corruption or system crashes due to memory-related issues, ensuring the integrity of critical data and providing peace of mind to users.

Part Number

The HPE Proliant Bl460c Gen9 Server is identified by its unique part number, 727031-B21. This part number plays a significant role in identifying and sourcing the correct server model, components, and accessories. Understanding the importance of the part number ensures a seamless procurement process and helps businesses make informed decisions.

Accurate Identification and Compatibility

The part number, 727031-B21, serves as a unique identifier for the HPE Proliant Bl460c Gen9 Server model. It allows businesses and IT professionals to accurately identify the specific server variant they require. This is particularly important when sourcing components or accessories for maintenance or expansion purposes. Using the correct part number ensures compatibility between the server and any additional components or upgrades, preventing compatibility issues and potential downtime.

Efficient Procurement Process

The part number also streamlines the procurement process for businesses. When ordering or requesting quotes, providing the accurate part number ensures that vendors or suppliers can quickly and accurately understand the requested product. This helps expedite the procurement process, reducing lead times and minimizing delays in acquiring or replacing servers.

Clear Documentation and Support

The part number, 727031-B21, is used in official documentation, support resources, and online forums related to the HPE Proliant Bl460c Gen9 Server. This makes it easier for users to find relevant information, troubleshooting guides, and community support specific to their server model. The clear association between the part number and a wealth of resources ensures that users can access the information they need to maximize the server's performance, troubleshoot issues effectively, and make informed decisions regarding upgrades or maintenance.

Warranty and Service Coverage

The part number is also crucial when it comes to warranty and service coverage. By providing the correct part number, businesses can ensure that their server is covered under the manufacturer's warranty. In case of hardware failures or issues, having the accurate part number simplifies the warranty claim process, enabling businesses to receive timely support and replacement of faulty components.

Managing Inventory and Asset Tracking

For businesses with multiple servers or a large IT infrastructure, accurate inventory management and asset tracking are essential. The unique part number associated with each HPE Proliant Bl460c Gen9 Server allows for easy identification and tracking of assets. This simplifies inventory management processes, enables efficient asset allocation, and ensures accurate record-keeping for maintenance purposes or future upgrades.

In conclusion, the HPE Proliant Bl460c Gen9 Server offers impressive features that cater to the needs of modern businesses. The Xeon 12 Core 2.3GHz processor enhances processing power, multitasking abilities, and virtualization performance. The 128GB DDR4 RAM improves system responsiveness, multitasking capabilities, and supports memory-intensive applications. The part number, 727031-B21, facilitates accurate identification, compatibility, streamlined procurement, and access to support resources. By understanding the benefits and importance of these features, businesses can make informed decisions and leverage the server's capabilities for improved performance, efficiency, and scalability.
