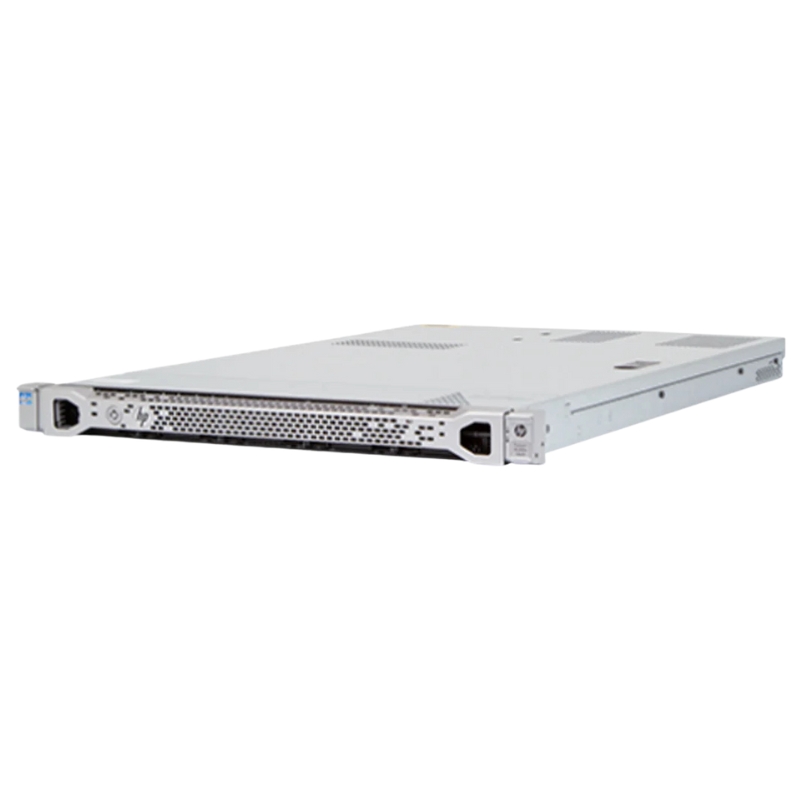

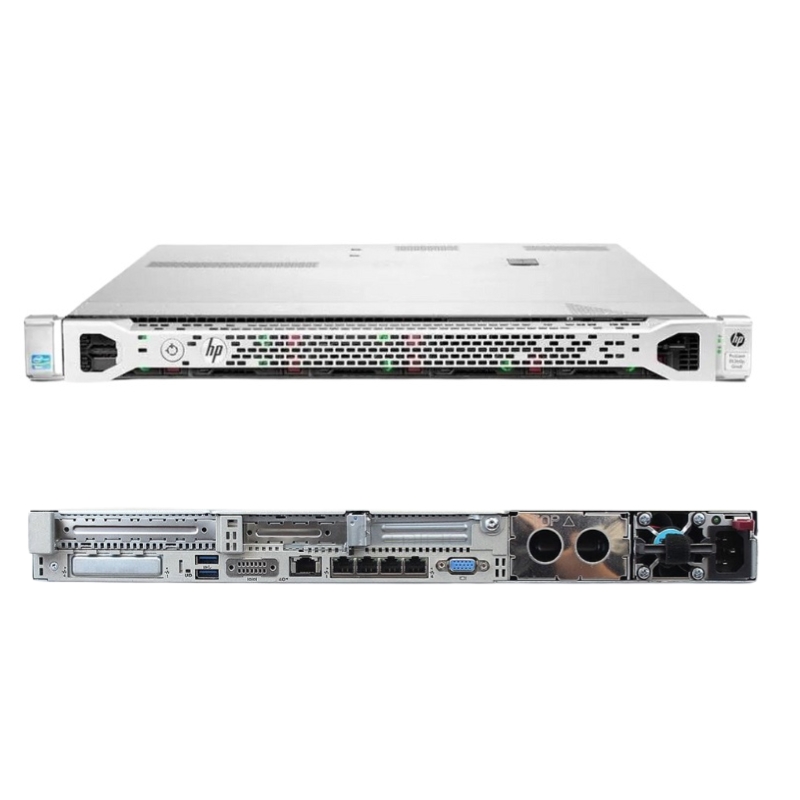

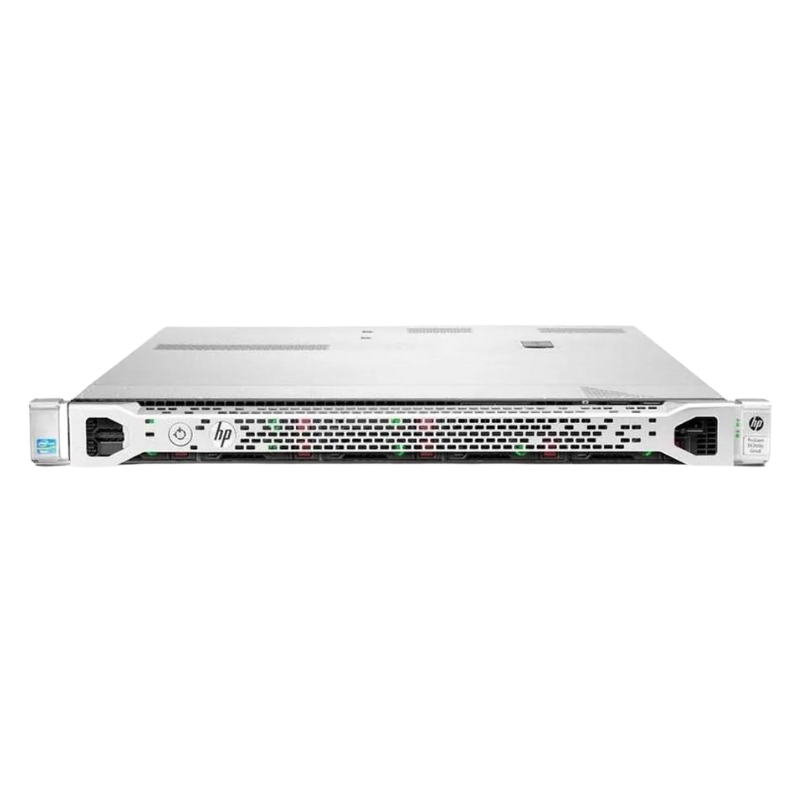

HPE Proliant DL120 G9 CTO Intel Xeon E5-V3 1U Rack Server 777426-B21.

CPU

The HPE Proliant DL120 G9 CTO Rack Server is equipped with an Intel Xeon E5-V3 processor, a powerful and efficient CPU that offers exceptional performance for a wide range of applications. The Intel Xeon E5-V3 series is designed to deliver high-speed processing, improved energy efficiency, and advanced security features.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 777426-B21
• Product Name: Proliant DL120 Gen9 - 1U Rack Server (CTO Model)

Processor & Chipset

Processor Details

• Processor Type: Intel Xeon E5-v3
• 64-bit Computing: Yes
• Compatible Processor Socket: FCLGA2011-3
• Maximum Supported Processors: 1
• Chipset Type: Intel C610 Series

Cache Memory

• Cache Memory Type: Smart Cache

Memory

Memory Specifications

• Installed Size: 0 GB / Up to 256 GB
• Memory Technology: DDR4 SDRAM PC4-17000R (DDR4-1600)
• Form Factor: DIMM 288-pin
• Total Memory Slots: 8 (total) / 8 (empty)
• Supported RAM: Up to 128 GB Registered, 256 GB Load-Reduced

Storage

• Hard Drive: None
• Optical Drive: None

Storage Controllers

Controller Specifications

• Storage Controller: Smart Array B140i
• Buffer Size: None
• Disk Drive Support: Up to 6 Gb/s SATA
• Connectors: 10 Internal SATA Connectors
• Server Interface: X4 PCIe 2.0
• SATA Speed: 6 Gb/s
• Logical Drives Supported: Up to 8 Logical Volumes (with 6 Physical Drives)
• Host Memory Addressing: 64-bit, Supports greater than 4 GB Server Memory Space
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Graphics Controllers

• Graphics Type: Integrated
• Graphics Processor: Matrox G200eh2
• Video Interfaces: VGA

Network & Communication

Network Features

• Interface Type: PCI Express 2.0 X2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP NC361i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion & Connectivity

Expansion Bays

• Total Expansion Bays: 8 (all free) - Hot-swappable 2.5 SFF

Expansion Slots

• Total Slots: 8
• CPU Slot: 1 (free)
• DIMM Slots: 8 (free)
• PCIe 3.0 x16 Slot: 1 (low-profile, free)
• PCIe 3.0 x8 Slot: 1 (low-profile, free)
• PCIe 3.0 x8 Slot: 1 (half-length, full-height, free)
• MicroSD Card Slot: 1 (internal, free)

Interfaces & Ports

• LAN Ports: 2 x Gigabit Ethernet
• VGA Port: 1
• USB Ports: 1 x USB 2.0 (front), 2 x USB 3.0 (rear), 1 x USB 3.0 (internal)

Miscellaneous

Included Accessories

• HP Thumbscrew Ears

Features

• Administrator Password
• Power-on Password
• UEFI BIOS

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• ASHRAE
• CNS 13438

Pricing & Dimensions

Pricing Type

• CTO (Configure To Order)

Dimensions & Weight

• Depth: 23.9 inches
• Width: 17.1 inches
• Height: 1.7 inches
• Weight: 19.8 lbs

Enhanced Performance

The Intel Xeon E5-V3 processor boasts multiple cores and threads, allowing for simultaneous execution of multiple tasks. This enables the server to handle heavy workloads and complex computations with ease. Whether you're running resource-intensive applications or virtualization workloads, the CPU's enhanced performance ensures smooth and uninterrupted operation.

Improved Energy Efficiency

Energy efficiency is a crucial consideration for any server deployment. The Intel Xeon E5-V3 processor has been engineered to optimize power consumption while maintaining high performance levels. With advanced power management features, the CPU intelligently adjusts its power usage based on workload demands, resulting in reduced energy costs and a smaller carbon footprint.

Advanced Security Features

In today's digital landscape, data security is of utmost importance. The Intel Xeon E5-V3 processor includes advanced security features that help protect sensitive information from unauthorized access. Features like Intel Trusted Execution Technology (TXT) provide hardware-based security capabilities, ensuring that data stored and processed on the server remains protected from potential threats.

Intel Virtualization Technology (VT-x)

One notable feature of the Intel Xeon E5-V3 processor is its support for Intel Virtualization Technology (VT-x). This technology enhances server virtualization by improving performance, reliability, and flexibility. With VT-x, you can create and manage multiple virtual machines on a single physical server, allowing for efficient resource utilization and cost savings.

Intel Turbo Boost Technology

The Intel Xeon E5-V3 processor also incorporates Intel Turbo Boost Technology, which dynamically increases the CPU's clock speed when needed. This feature provides an extra burst of performance for demanding tasks, ensuring that your server can handle peak workloads without compromising overall performance.

Increased Productivity

With the powerful Intel Xeon E5-V3 processor, the HPE Proliant DL120 G9 CTO Rack Server enables you to maximize productivity. The CPU's exceptional performance and responsiveness ensure faster data processing, reduced latency, and quicker application response times. This translates into improved efficiency and a smoother user experience, allowing your business to achieve more in less time.

Part Number

The HPE Proliant DL120 G9 CTO Rack Server features a part number of 777426-B21. This unique identifier plays a crucial role in identifying and ordering the correct server model and components.

Easier Identification

With a specific part number like 777426-B21, it becomes much easier to identify the exact server model and its associated components. When contacting technical support or purchasing additional components for your server, providing the part number ensures that you receive accurate assistance or the correct products without any confusion.

Compatibility Assurance

The part number serves as an assurance of compatibility between various components and the server itself. Each part number is assigned to a specific server model and has been extensively tested by the manufacturer to ensure seamless integration and optimal performance. By using the correct part number, you can avoid compatibility issues and ensure that all components work together flawlessly.

Quick Ordering Process

When it comes to adding or replacing components in your server, having the part number on hand simplifies the ordering process. Instead of searching through extensive product catalogs or contacting sales representatives, you can quickly locate the desired components by referencing the part number. This saves time and allows for swift procurement of necessary parts.

Efficient Maintenance and Upgrades

By having a part number associated with your server model, maintenance and upgrades become more efficient. When performing routine maintenance or upgrading specific components, knowing the part number ensures that you are using the correct replacement parts. This reduces the risk of compatibility issues and potential downtime, allowing your server to remain operational and perform optimally.

Streamlined Documentation

The part number also aids in accessing relevant documentation for your server model. Whether you're seeking user manuals, technical specifications, or firmware updates, searching by part number enables you to locate the specific documentation related to your server. This ensures that you have access to accurate and up-to-date information, facilitating smooth operations and troubleshooting processes.

RAM

The HPE Proliant DL120 G9 CTO Rack Server comes with "No RAM," which means it does not include any pre-installed memory modules. While this may initially seem like a drawback, it actually provides users with flexibility and customization options when it comes to memory configuration.

Flexible Memory Configuration

By not including pre-installed RAM, the server allows users to choose the exact type and quantity of memory that best suits their specific requirements. This flexibility is essential as different workloads may demand varying amounts of memory. Whether you need to run memory-intensive applications or virtual machines, the "No RAM" feature enables you to tailor your server's memory configuration to achieve optimal performance.

Cost Savings

The absence of pre-installed RAM can result in cost savings for users. Instead of paying for unnecessary memory modules that might not align with your workload demands, you have the freedom to select the exact amount of RAM required. This eliminates the need to purchase additional memory that may go unused, allowing you to allocate your budget more efficiently.

Future Expandability

As technology advances and your workload demands grow, the ability to expand your server's memory becomes crucial. The "No RAM" feature provides you with the opportunity to add memory modules as needed, ensuring that your server can adapt to changing requirements. This scalability allows for future-proofing your infrastructure and extending the lifespan of your server investment.

Memory Performance Optimization

Selecting the appropriate RAM modules for your server enables you to optimize memory performance. You can choose memory modules with specific speeds, capacities, and latency characteristics that align with the demands of your applications. This customization ensures that your server operates at peak efficiency and minimizes bottlenecks related to memory access.

Ease of Replacement and Troubleshooting

The absence of pre-installed RAM simplifies the process of replacing or troubleshooting memory-related issues. If you encounter a faulty memory module, you can easily remove and replace it without worrying about compatibility issues with pre-installed modules. This ease of maintenance reduces downtime and allows for quick resolution of memory-related problems.

Storage Controller

The HPE Proliant DL120 G9 CTO Rack Server is equipped with the Smart Array B140I Without FBWC storage controller. This storage controller offers several benefits and plays a crucial role in managing and optimizing storage operations.

Efficient Storage Management

The Smart Array B140I Without FBWC storage controller provides efficient storage management capabilities. It allows you to configure and manage various RAID levels, including RAID 0, RAID 1, RAID 5, and RAID 10. These RAID levels offer different data protection mechanisms, allowing you to select the appropriate level based on your data redundancy requirements.

Improved Data Integrity

Data integrity is a critical concern for any server environment. The Smart Array B140I Without FBWC storage controller ensures data integrity by employing advanced error detection and correction mechanisms. It utilizes techniques like parity checking and checksums to identify and correct data errors, minimizing the risk of data corruption or loss.

Enhanced Performance

The storage controller's advanced features contribute to improved performance. By using RAID technology, the controller allows for data striping across multiple drives, resulting in faster read and write speeds. This enhanced performance is particularly beneficial for applications that require high-speed data access, such as databases or file servers.

Scalability and Flexibility

The Smart Array B140I Without FBWC storage controller offers scalability and flexibility in managing storage capacity. It supports various drive types, including SAS, SATA, and SSD, allowing you to choose the most suitable drives for your specific requirements. Additionally, the controller enables you to add or replace drives without disrupting operations, ensuring uninterrupted access to your data.

Improved Fault Tolerance

With its RAID capabilities, the storage controller enhances fault tolerance by providing redundancy and data protection. If a drive fails, the controller automatically switches to a redundant drive, preventing data loss and minimizing downtime. This fault tolerance feature ensures that your critical data remains accessible even in the event of a drive failure.

Network Adapter

The HPE Proliant DL120 G9 CTO Rack Server is equipped with a 1GB 2-PORT 361I Ethernet Adapter as its network adapter. This essential component facilitates network connectivity and plays a vital role in ensuring smooth data transmission.

High-Speed Network Connectivity

The 1GB 2-PORT 361I Ethernet Adapter offers high-speed network connectivity, enabling fast and reliable data transfer between your server and other network devices. With its Gigabit Ethernet capabilities, the adapter supports data rates of up to 1 Gbps, ensuring efficient communication and minimizing network bottlenecks.

Enhanced Network Performance

The network adapter's advanced features contribute to improved network performance. It supports features like TCP/IP Offloading, which offloads certain network processing tasks from the server's CPU to the adapter itself. This offloading reduces CPU utilization and improves overall network performance by freeing up system resources.

Network Flexibility

The 1GB 2-PORT 361I Ethernet Adapter provides network flexibility by supporting various networking protocols and standards. It is compatible with industry-standard Ethernet protocols like TCP/IP, UDP, and ICMP, ensuring seamless integration into existing network infrastructures. This compatibility allows for easy deployment and integration with other network devices.

Virtualization Support

For virtualized environments, the network adapter offers support for virtualization technologies like VMware Virtual Machine Queue (VMQ) and Microsoft Virtual Machine Queue (VMQ). These technologies offload network processing tasks to individual virtual machine instances, improving overall virtualization performance and reducing latency.

Reliable Network Connectivity

Reliability is crucial when it comes to network connectivity. The 1GB 2-PORT 361I Ethernet Adapter ensures reliable connectivity by incorporating features like Link Aggregation Control Protocol (LACP) and failover support. These features provide redundancy and fault tolerance, allowing for uninterrupted network connectivity even in the event of a link failure.

Drive Bays

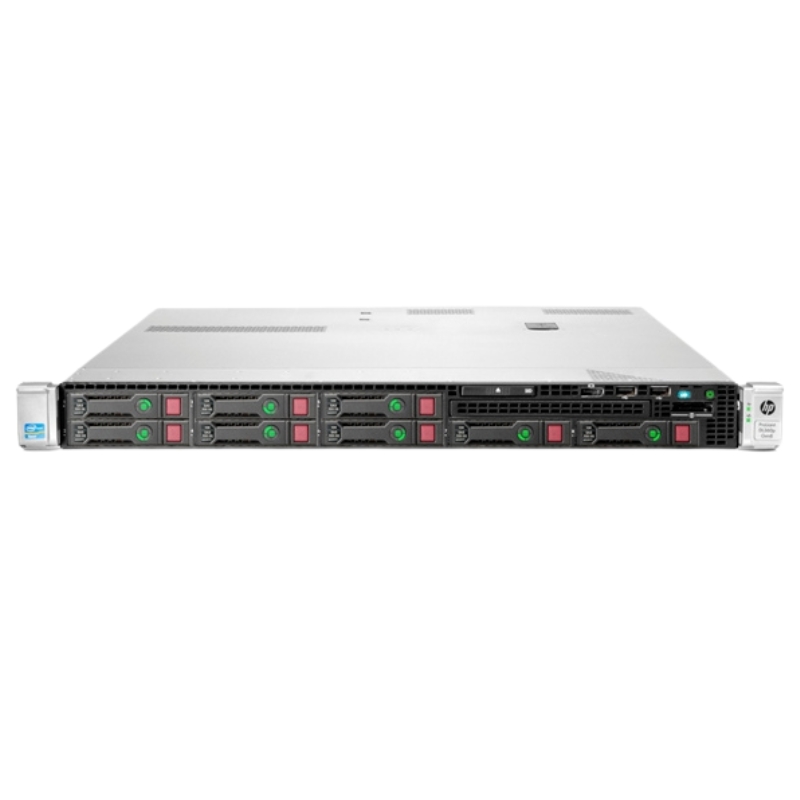

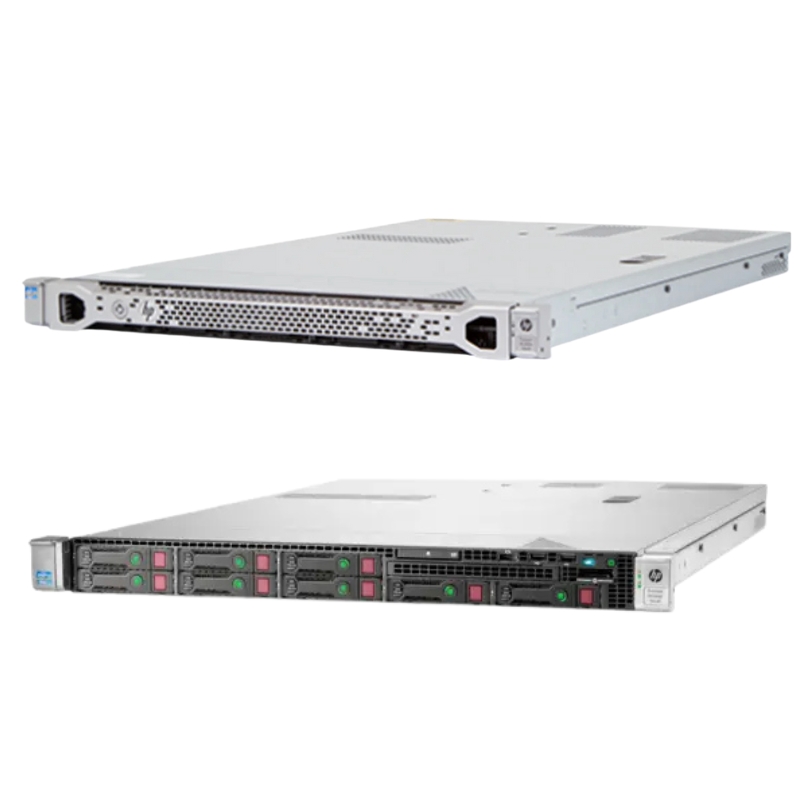

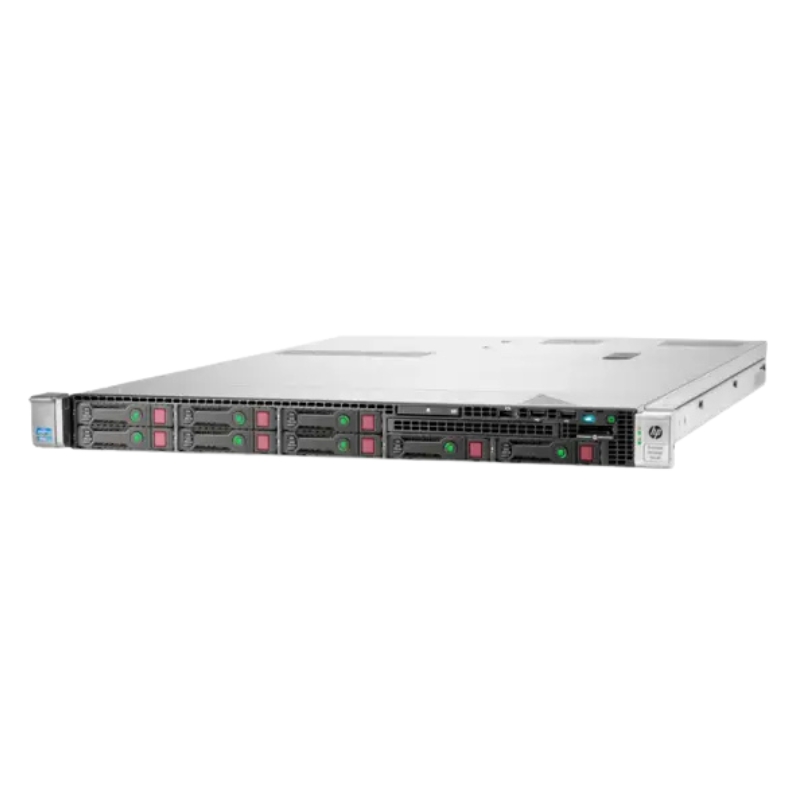

The HPE Proliant DL120 G9 CTO Rack Server is equipped with 8SFF Hot Plug drive bays. These drive bays offer several benefits and are essential for managing storage capacity efficiently.

Increased Storage Capacity

The 8SFF Hot Plug drive bays provide ample storage capacity, allowing you to accommodate a large number of hard drives or solid-state drives (SSDs). This increased storage capacity is particularly beneficial for businesses that deal with large amounts of data, such as media organizations or data centers. With the ability to install multiple drives, you can store and manage vast amounts of data within a single server.

Hot Plug Capability

The Hot Plug feature of the drive bays allows for easy installation and removal of drives without the need to power down the server. This hot swappable capability eliminates the need for server downtime during drive replacements or upgrades, ensuring uninterrupted access to your data. Hot Plug functionality enhances server availability and simplifies maintenance procedures.

Improved Storage Flexibility

The 8SFF Hot Plug drive bays offer storage flexibility by supporting a variety of drive types. You can install SAS, SATA, or SSD drives based on your specific requirements and performance needs. This flexibility allows you to customize your storage configuration to achieve optimal performance and scalability.

RAID Configuration Options

The drive bays' ability to accommodate multiple drives enables RAID configurations, which enhance data protection and performance. You can configure RAID levels like RAID 0, RAID 1, RAID 5, or RAID 10, depending on your desired balance between data redundancy and performance. RAID configurations ensure that your data remains safe and accessible even in the event of drive failures.

Easy Drive Maintenance

The Hot Plug drive bays simplify drive maintenance procedures. If a drive fails or needs replacement, you can easily remove it from the hot swappable bay without affecting other drives or disrupting server operations. This ease of maintenance reduces downtime and allows for efficient troubleshooting and replacement processes.

Form Factor

The HPE Proliant DL120 G9 CTO Rack Server features a 1U form factor. This compact design offers several benefits and is ideal for environments where space is limited.

Space Efficiency

The 1U form factor is specifically designed to maximize space efficiency. With its compact size, the server takes up minimal rack space, allowing for optimal utilization of data center or server room real estate. This is particularly advantageous in environments with limited space, as it allows for higher server density and more efficient use of available resources.

Scalability

Despite its small size, the 1U form factor does not compromise on scalability. The HPE Proliant DL120 G9 CTO Rack Server supports multiple drive bays, expansion slots, and memory modules, ensuring that you can scale your infrastructure to meet evolving business needs. This scalability allows your server to grow alongside your organization without requiring additional physical space.

Easy Rack Mounting

The 1U form factor is designed for easy rack mounting. The server's dimensions align with industry-standard rack specifications, making it compatible with various rack cabinets and enclosures. This compatibility simplifies the installation process and ensures that the server can be securely mounted within a standard rack environment.

Improved Airflow and Cooling

The compact nature of the 1U form factor contributes to improved airflow and cooling efficiency. With less physical space to cool, the server's internal components can benefit from more focused cooling mechanisms. This helps maintain optimal operating temperatures and prevents overheating, ensuring reliable and uninterrupted server performance.

Ease of Cable Management

The 1U form factor promotes efficient cable management within the server rack. With limited physical space, there are fewer cables to manage and organize, reducing clutter and simplifying cable routing. This streamlined cable management not only improves aesthetics but also enhances airflow and facilitates easier maintenance and troubleshooting processes.
