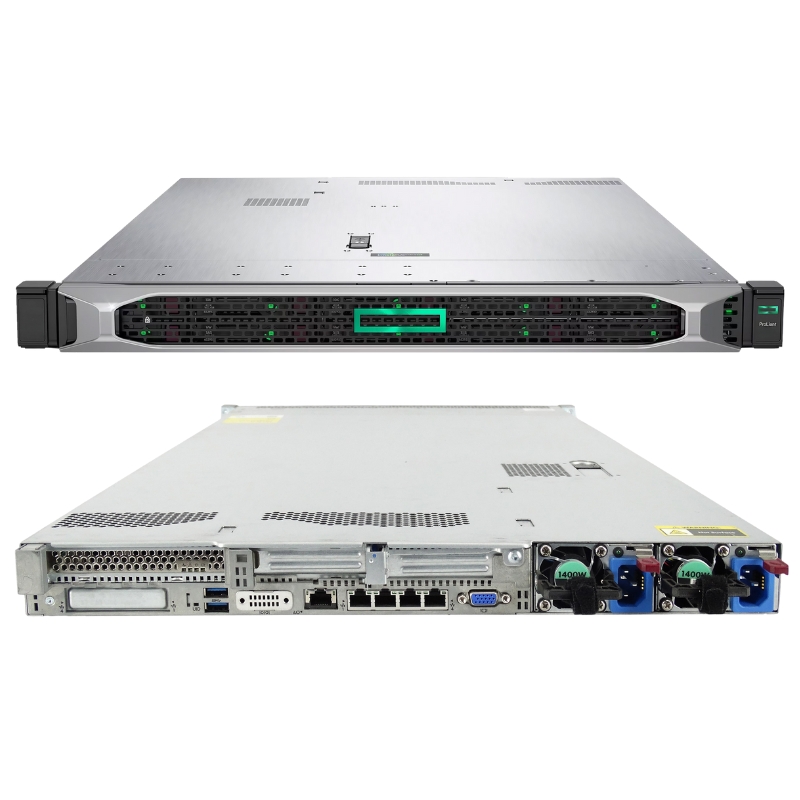

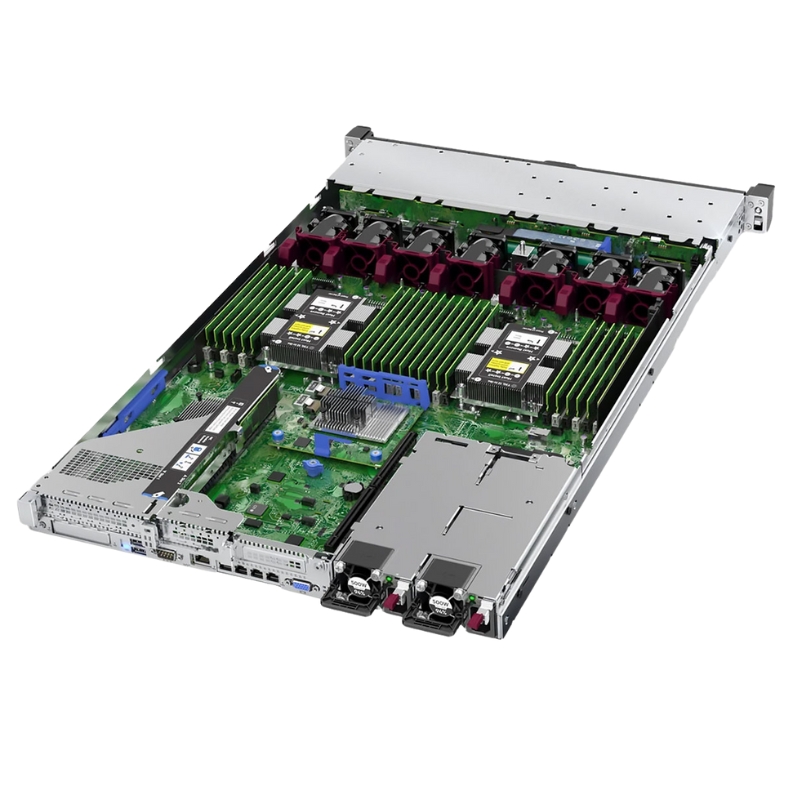

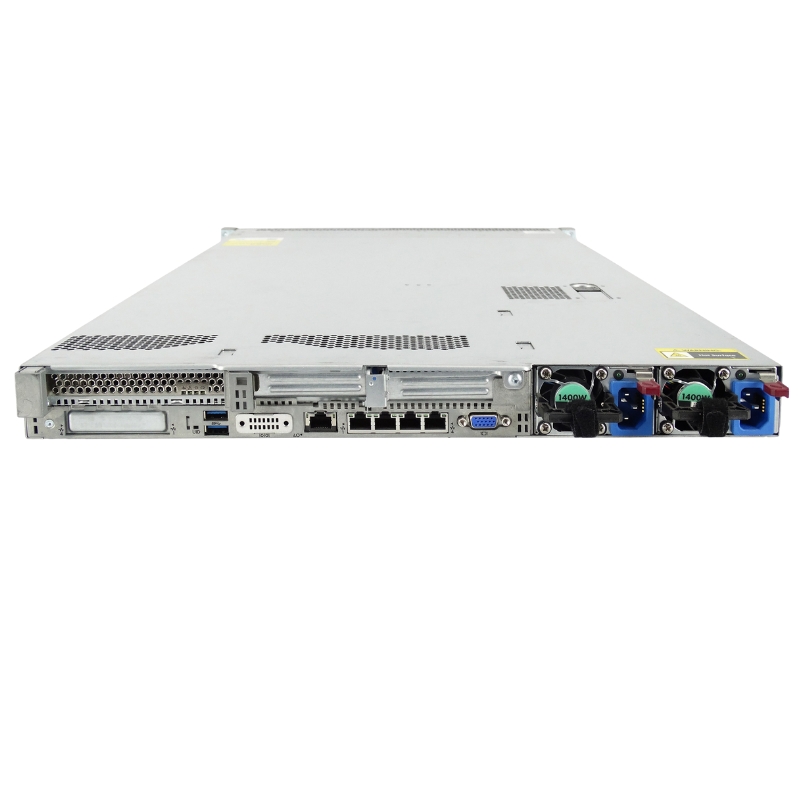

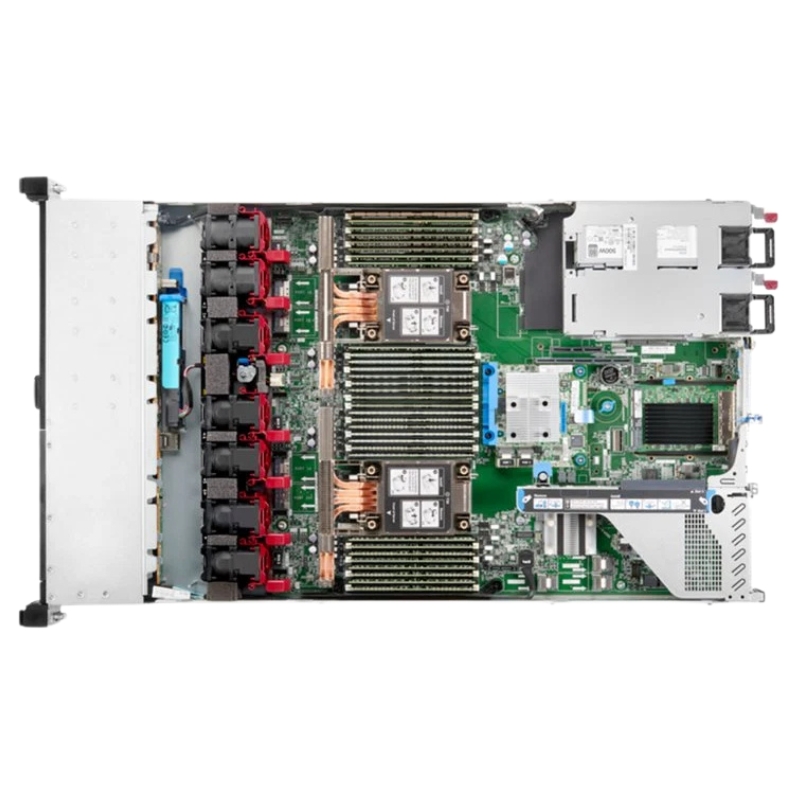

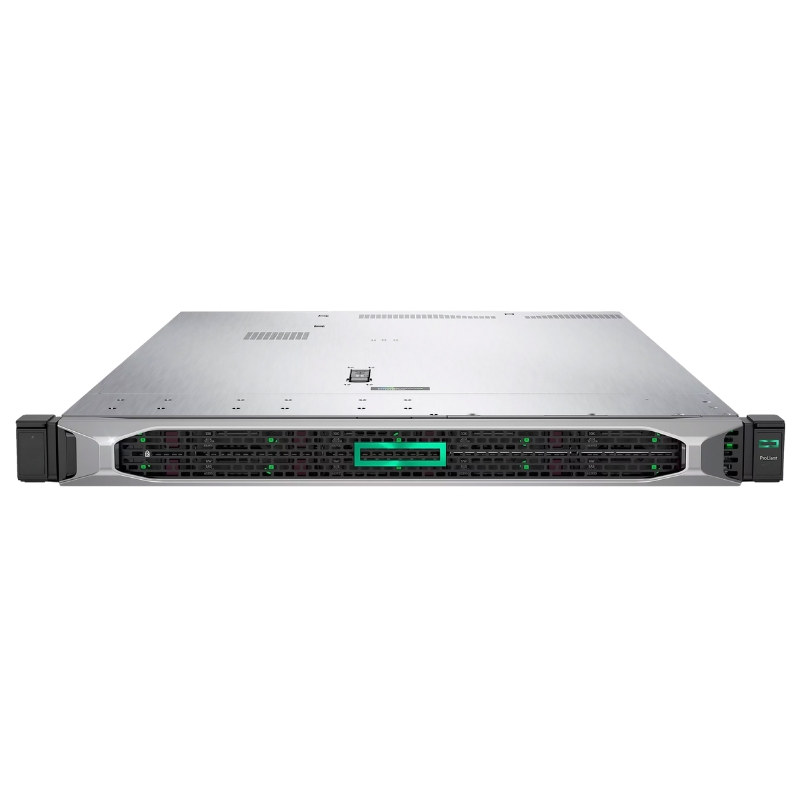

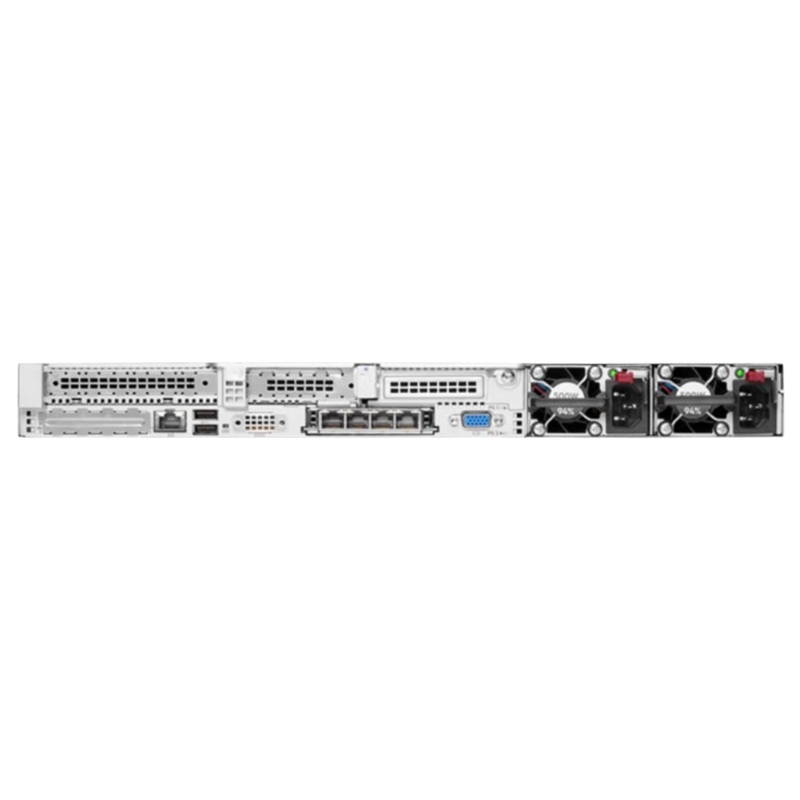

HPE Proliant DL160 Gen10 4208 Server P19560-B21

RAM: 16GB

The HPE Proliant DL160 Gen10 4208 Server comes equipped with a powerful 16GB RAM, providing users with enhanced performance and efficiency. In this section, we will explore the benefits and importance of this feature in detail.

Product Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P19560-B21
• Product Name: HPE Proliant DL160 Gen10 4208 2.1GHz 8-Core 1P 16GB-R 8SFF 500W PS Server (Pre-configured Model)

Processor and Chipset

CPU Specifications

• Processor: 2nd Gen Intel Xeon Silver 4208
• Clock Speed: 2.1 GHz
• Max Turbo Speed: 3.2 GHz
• Cores: 8-core
• CPU Quantity: 1 (upgradable to 2)
• Socket Type: FCLGA3647
• Chipset: Intel C621
• Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: 11 MB L3 Cache
• Cache Per Processor: 11 MB

Memory Configuration

Memory Details

• Installed Size: 16 GB (expandable up to 1 TB)
• Memory Type: DDR4 SDRAM with Advanced ECC
• Effective Speed: 2400 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Available Slots: 16 (15 empty)
• Features: Registered, Online Spare Memory, HPE SmartMemory, 6-channel Memory Architecture
• Configuration: 1 x 16 GB

Storage Capabilities

Drives and Controllers

• Hard Drive: None
• Optical Drive: None
• Storage Controller: HPE Smart Array S100i
• Controller Type: SATA - PCIe 3.0 x4
• Channel Quantity: 14
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Graphics and Display

Video Interfaces

• Interface: VGA

Networking and Communication

Network Interfaces

• Ethernet Ports: 2 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0
• Management Controller: Integrated Lights-Out 5
• Additional Features: Wake on LAN (WoL), PXE Support

Expansion and Connectivity

Expansion Bays

• Total Bays: 8 (all free) x Hot-Swap 2.5" SFF

Expansion Slots

• MicroSD Card Slot: 1 (free)
• PCIe 3.0 x8 Slot: 1 (free, low-profile)
• PCIe 3.0 x16 Slot: 1 (free, half-length, full-height)

Interfaces and Ports

• VGA Port: 1
• Gigabit Ethernet Ports: 2
• HPE iLO Port: 1
• HPE iLO RJ-45 Port: 1
• USB 3.0 Ports: 4 (1 front, 2 rear, 1 internal)

Miscellaneous Information

Included Accessories

• CPU Standard Heatsink
• HP Easy Install Rail Kit
• 3 x System Fans

Compliance Standards

• WEEE
• ASHRAE Class A4
• ASHRAE Class A3
• ACPI 6.1

Power Specifications

Power Supply Details

• Type: Hot-plug Power Supply
• Redundancy: Optional (1+1 with optional power supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Width: 17.1 inches
• Depth: 24.2 inches
• Height: 1.7 inches
• Weight: 24.18 lbs

Improved Performance

The 16GB RAM of the HPE Proliant DL160 Gen10 4208 Server plays a crucial role in improving overall system performance. With a larger RAM capacity, the server can handle more data and processes simultaneously, resulting in faster response times and reduced latency. This is especially important for businesses that rely heavily on data processing and analysis, as it allows for seamless multitasking and efficient resource management.

Optimized Virtualization

Virtualization has become an essential component of modern IT infrastructure, enabling businesses to maximize their hardware resources and streamline operations. The 16GB RAM of the DL160 Gen10 4208 Server ensures smooth virtualization performance by providing sufficient memory for running multiple virtual machines simultaneously. This allows businesses to consolidate their server infrastructure, saving both space and energy while maintaining high levels of performance.

Enhanced Workload Management

With a 16GB RAM capacity, the HPE Proliant DL160 Gen10 4208 Server can efficiently handle heavy workloads without compromising on performance. Whether it's running resource-intensive applications or managing large databases, the ample memory ensures that the server can handle demanding tasks with ease. This is particularly beneficial for businesses that deal with data-intensive operations, such as scientific research, financial analysis, or media processing.

Reduced Downtime

By having a robust 16GB RAM configuration, the DL160 Gen10 4208 Server reduces the risk of system crashes and downtime. Insufficient memory can lead to performance bottlenecks and system instability, causing disruptions in business operations. With ample RAM, the server can efficiently handle peak workloads and prevent memory-related issues, resulting in increased uptime and improved reliability.

Future-Proofing

Investing in a server with a generous 16GB RAM capacity ensures future-proofing for businesses. As software and applications become more resource-intensive over time, having sufficient memory becomes increasingly crucial. By opting for a server with a higher RAM capacity, businesses can adapt to evolving technology requirements without the need for immediate hardware upgrades. This not only saves costs in the long run but also provides a scalable solution that can accommodate future growth.

Drive Bays: 8SFF

The HPE Proliant DL160 Gen10 4208 Server is equipped with eight Small Form Factor (8SFF) drive bays, offering users a versatile storage solution. In this section, we will explore the benefits and importance of this feature in detail.

Flexible Storage Options

The eight 8SFF drive bays of the DL160 Gen10 4208 Server provide users with flexible storage options to meet their specific needs. These drive bays can accommodate smaller form factor drives, allowing for higher storage density within the server chassis. Whether businesses require high-capacity hard drives or fast-performing solid-state drives (SSDs), the 8SFF drive bays offer the flexibility to choose the right storage solution for their unique requirements.

Increased Data Accessibility

The 8SFF drive bays enable businesses to easily access their data when needed. With multiple drive bays available, IT administrators can configure the server to support various storage configurations, such as RAID arrays or hot-swappable drives. This enhances data accessibility, making it easier to retrieve and manage critical information, ultimately improving business productivity and efficiency.

Improved Data Redundancy

Redundancy is crucial for businesses that rely heavily on data availability and continuity. The 8SFF drive bays of the DL160 Gen10 4208 Server allow for the implementation of RAID technology, which provides data redundancy by mirroring or striping data across multiple drives. This protects against data loss in the event of a drive failure, ensuring that critical business information remains intact and accessible.

Scalability for Growing Storage Needs

The DL160 Gen10 4208 Server's 8SFF drive bays offer scalability for businesses with growing storage needs. As data requirements increase over time, additional drives can be easily added to the empty drive bays, allowing for seamless expansion without the need for significant hardware changes. This flexibility ensures that businesses can adapt to changing storage demands without disrupting their operations.

Space Optimization

The small form factor design of the 8SFF drive bays helps optimize space within the server chassis. By utilizing smaller drives, businesses can maximize the available storage capacity without sacrificing valuable rack space. This is particularly beneficial for organizations with limited server room real estate or those looking to consolidate their infrastructure while maintaining sufficient storage capabilities.

Power Supply: 500W

The HPE Proliant DL160 Gen10 4208 Server features a 500W power supply, providing reliable and efficient power delivery to support its performance and functionality. In this section, we will explore the benefits and importance of this feature in detail.

Stable Power Delivery

The 500W power supply ensures stable and consistent power delivery to the DL160 Gen10 4208 Server, preventing voltage fluctuations and power surges that could potentially damage the hardware components. This reliability is crucial for businesses that rely heavily on their server infrastructure to maintain uninterrupted operations. With a stable power supply, businesses can minimize the risk of system failures and downtime, ensuring continuous productivity and customer satisfaction.

Energy Efficiency

The 500W power supply of the DL160 Gen10 4208 Server is designed with energy efficiency in mind. It meets various industry standards, such as 80 PLUS certification, which indicates that the power supply operates at high efficiency levels. This not only reduces energy consumption but also lowers electricity costs for businesses in the long run. Additionally, an energy-efficient power supply contributes to environmental sustainability by minimizing carbon footprint.

Redundancy and Failover Protection

The DL160 Gen10 4208 Server's 500W power supply offers redundancy and failover protection to ensure uninterrupted operations. The server is typically equipped with redundant power supplies, allowing for seamless switching in case one power supply fails. This redundancy feature ensures that the server remains powered even during power supply failures or maintenance activities, minimizing downtime and maximizing business continuity.

Quiet Operation

Despite its robust power delivery capabilities, the 500W power supply is designed to operate quietly. This is particularly important for businesses that have noise-sensitive environments, such as small offices or studios. The quiet operation of the power supply ensures a comfortable working environment without compromising on performance or reliability.

Future-Proofing

The 500W power supply of the DL160 Gen10 4208 Server offers future-proofing for businesses by providing sufficient power capacity for potential hardware upgrades or expansions. As businesses grow and their computing needs increase, additional components or higher-performing hardware may be required. The 500W power supply ensures that the server has the necessary power headroom to accommodate these changes, eliminating the need for immediate power supply upgrades.

Part Number: P19560-B21

The HPE Proliant DL160 Gen10 4208 Server is identified by its unique part number, P19560-B21. In this section, we will explore the benefits and importance of this feature for users.

Product Identification and Compatibility

The part number, P19560-B21, serves as a unique identifier for the DL160 Gen10 4208 Server. It helps differentiate this specific model from other server configurations, making it easier for users to identify and procure the correct product. Additionally, the part number ensures compatibility with associated accessories, spare parts, and software updates specifically designed for the DL160 Gen10 4208 Server.

Efficient Service and Support

The part number plays a crucial role in efficient service and support for the DL160 Gen10 4208 Server. When users contact technical support or service providers, providing the correct part number helps expedite troubleshooting and ensures that the right resources are allocated to resolve any issues. This reduces downtime and enhances customer satisfaction by minimizing delays in receiving necessary assistance.

Product Documentation and Resources

The part number is a key reference point for accessing product documentation and resources related to the DL160 Gen10 4208 Server. By referencing the part number, users can easily locate user manuals, technical specifications, firmware updates, and other relevant information. This enables users to leverage the full potential of the server while ensuring proper configuration and maintenance.

Compatibility with Software Applications

Software applications often require specific hardware configurations to ensure optimal performance and compatibility. The part number, P19560-B21, ensures compatibility with software applications that are specifically designed to work seamlessly with the DL160 Gen10 4208 Server. This compatibility eliminates potential compatibility issues, ensuring a smooth integration of the server into existing IT infrastructure.

Streamlined Procurement

Procuring the DL160 Gen10 4208 Server is made easier with the part number, P19560-B21. By providing the part number to vendors or resellers, businesses can ensure that they are purchasing the exact model they require. This eliminates any confusion or potential mistakes during the procurement process, improving efficiency and accuracy in acquiring the server.
