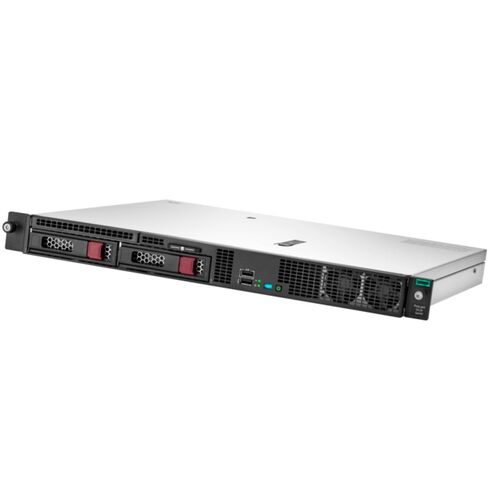

HPE Proliant DL20 Gen10 E-2224 1P 8GB-U S100I Server P17078-B21

Processor

The HPE Proliant DL20 Gen10 Server is equipped with an impressive processor, the E-2224. This processor offers exceptional performance and power efficiency, making it a crucial component for users looking to maximize their server capabilities.

General Information

Manufacturer Details

• Company: Hewlett Packard Enterprise
• Part Number: P17078-B21
• Product Name: Proliant DL20 Gen10 - 1U Rack Mountable Server (Entry Model)

Processor & Chipset

Central Processing Unit (CPU)

• Processor: Intel Xeon E-2224, 3.4 GHz
• Maximum Turbo Speed: 4.6 GHz
• Core Count: 4 Cores
• CPU Quantity: 1
• Maximum CPU Capacity: 1
• CPU Upgradability: Yes
• Main Features: Intel Turbo Boost Technology 2.0
• Socket Type: FCLGA1151
• Chipset: Intel C242

Cache Memory

Installed Cache

• L3 Cache Size: 8 MB
• Cache Per Processor: 8 MB

Memory

Memory Configuration

• Installed Memory Size: 8 GB, upgradable to 64 GB
• Memory Technology: DDR4 SDRAM with ECC
• Effective Memory Speed: 2666 MHz
• Memory Specification: PC4-21333
• Form Factor: DIMM 288-pin
• Total Memory Slots: 4
• Available Slots: 3
• Memory Configuration Example: 1 x 8 GB

Storage

Drive Options

• Hard Drive: None
• Optical Drive: None

Storage Controllers

Controller Specifications

• Controller Type: 1 x SATA - PCIe 3.0 x4
• Interface: SATA 6 Gb/s
• Controller Model: HPE Smart Array S100i
• Channel Quantity: 14
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Display & Graphics Controllers

Graphics Details

• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

Network Interfaces

• Bus Type: PCI Express x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HPE 332i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Bays and Slots

• External Bays: 1 x 5.25" (Free)
• Internal Bays: 2 x 3.5" LFF (Free)
• PCIe Slots:
  • 1 x PCIe 3.0 x16 - Full-length, Full-height (x16 Mode)
  • 1 x PCIe 3.0 x8 - Low-profile (x8 Mode)

Interfaces

• 1 x VGA
• 1 x Gigabit Ethernet
• 1 x Gigabit Ethernet / HP iLO
• 5 x USB 3.0 (2 Front, 2 Rear, 1 Internal)

Miscellaneous

Compliance Standards

• AES
• FIPS 140-2
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• ACPI 6.1
• Redfish API
• UEFI

Power Description

Power Supply

• Type: Power Supply
• Installed Quantity: 1
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 290 Watts

Dimensions & Weight

Physical Specifications

• Width: 17.1 inches
• Depth: 15 inches
• Height: 1.7 inches
• Weight: 17.37 lbs

Improved Performance

The E-2224 processor delivers enhanced performance compared to its predecessors. With a base frequency of 3.4GHz and a maximum turbo frequency of 4.6GHz, it can handle demanding workloads with ease. Whether you're running intensive applications or performing complex calculations, this processor ensures smooth and efficient operations.

Increased Productivity

The high-performance capabilities of the E-2224 processor translate into increased productivity for users. Tasks that used to take hours can now be completed in a fraction of the time. This enables businesses to streamline their operations, improve efficiency, and ultimately achieve better results.

Smooth Multitasking

With the E-2224 processor, multitasking becomes a breeze. Its four cores and eight threads allow for seamless execution of multiple tasks simultaneously. Whether you're running multiple virtual machines or handling heavy database workloads, this processor ensures that each task gets the necessary resources without any performance degradation.

Memory

The HPE Proliant DL20 Gen10 Server comes equipped with 8GB of memory. This generous amount of memory provides numerous benefits for users, allowing them to handle demanding workloads efficiently and effectively.

Improved Performance

Having ample memory is crucial for achieving optimal server performance. The 8GB of memory in the DL20 Gen10 Server ensures that there are sufficient resources available to handle data-intensive tasks without any slowdowns or bottlenecks. This means faster response times and smoother operations for users.

Enhanced Virtualization

Virtualization has become a key aspect of modern server environments. With 8GB of memory, the DL20 Gen10 Server can support multiple virtual machines simultaneously. This enables businesses to consolidate their infrastructure, reduce costs, and improve resource utilization. Whether you're running a small business or a large enterprise, the ability to virtualize efficiently is essential.

Future-Proofing

Investing in a server with 8GB of memory ensures that you have room to grow. As your business expands and workloads become more demanding, having extra memory allows you to scale up without the need for immediate hardware upgrades. This future-proofs your investment and provides flexibility for adapting to changing business needs.

Storage

The DL20 Gen10 Server is equipped with the 2LFF-NHP storage feature, offering users ample storage capacity and enhanced flexibility for their data storage requirements.

High Storage Capacity

The 2LFF-NHP storage feature provides the DL20 Gen10 Server with the capability to accommodate up to two Large Form Factor (LFF) hot-plug hard drives. This allows users to store large amounts of data without worrying about running out of space. Whether you're storing critical business data or multimedia files, this server has the capacity to meet your storage needs.

Improved Data Accessibility

The hot-plug capability of the 2LFF-NHP storage feature enables users to easily add or remove hard drives without shutting down the server. This makes maintenance and upgrades hassle-free, ensuring that your data remains accessible at all times. Whether you need to expand your storage capacity or replace a faulty drive, the hot-plug feature simplifies the process and minimizes downtime.

Flexible Storage Configuration

The 2LFF-NHP storage feature offers flexibility in configuring your storage setup. You can choose to configure the two LFF bays as RAID 0 for maximum performance or RAID 1 for data redundancy. This allows you to tailor your storage configuration to your specific needs, ensuring optimal data protection and performance.

Power Supply

The DL20 Gen10 Server is equipped with a 290W power supply, providing reliable and efficient power delivery. This feature is of utmost importance for users, ensuring uninterrupted server operation and minimizing energy consumption.

Reliable Power Delivery

The 290W power supply in the DL20 Gen10 Server ensures a stable and consistent power supply, even under heavy workloads. This eliminates the risk of unexpected shutdowns or system failures, providing peace of mind for users who rely on continuous server availability. Whether you're running critical applications or handling important business data, a reliable power supply is essential for uninterrupted operations.

Energy Efficiency

In addition to its reliability, the 290W power supply is designed with energy efficiency in mind. It meets high-efficiency standards, reducing energy consumption and operating costs. This not only benefits the environment but also helps businesses save on their electricity bills. With rising energy costs and increasing environmental concerns, an energy-efficient power supply is a valuable feature for any server.

Scalability

The 290W power supply provides ample headroom for future expansion. As your business grows and you add more components to your server, having a power supply with sufficient capacity ensures that you won't encounter any power-related issues. This scalability allows you to upgrade your server without worrying about power limitations, providing flexibility and room for future expansion.

Part Number

The DL20 Gen10 Server's part number is P17078-B21. While it may seem like a simple identifier, this feature holds significant importance for users when it comes to compatibility, support, and sourcing of spare parts.

Compatibility Assurance

The part number, P17078-B21, is crucial for ensuring compatibility with other components and accessories. When expanding or upgrading your server, it's essential to have the correct part number to ensure that the new components are compatible with your existing system. Using the correct part number eliminates the risk of compatibility issues and ensures seamless integration.

Efficient Support and Maintenance

The part number plays a vital role in obtaining support and maintenance services for your server. When contacting technical support or seeking spare parts, providing the part number allows for quick identification of your specific server model. This streamlines the troubleshooting and resolution process, minimizing downtime and ensuring efficient support.

Easier Sourcing of Spare Parts

Having the part number readily available simplifies the process of sourcing spare parts when needed. Whether you require a replacement component or want to expand your server's capabilities, knowing the part number allows you to easily find and purchase the correct parts. This saves time, eliminates guesswork, and ensures that you receive genuine, compatible parts for your DL20 Gen10 Server.

In conclusion, the HPE Proliant DL20 Gen10 Server offers exceptional features that cater to the needs of users who require high-performance computing capabilities. With its powerful processor (E-2224), ample memory (8GB), flexible storage options (2LFF-NHP), reliable power supply (290W), and identifiable part number (P17078-B21), this server provides a reliable and efficient solution for various business applications. Whether you're running critical workloads, virtualized environments, or data-intensive applications, the DL20 Gen10 Server delivers the performance, scalability, and reliability required to meet your business needs.
