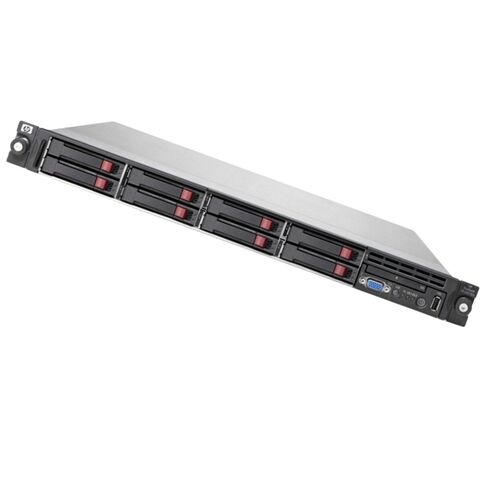

HPE Proliant DL360 G6 4SFF-2.4 GHz, P410i 504635-001

Processor

The HPE Proliant DL360 G6 1u Rack Server is equipped with a powerful processor that ensures optimal performance and efficiency for users. With a clock speed of 2.4 GHz, this processor delivers exceptional processing power to handle demanding workloads and applications.

Manufacturer Details of Proliant DL360

• Brand: Hewlett Packard Enterprise (HPE)
• Part Number: 504635-001
• Product Name: Proliant DL360 G6 – 2-way 1U Rack Server (Base Model)

Processor and Chipset

• Processor: Intel Xeon E5530, 2.4 GHz (max turbo 2.66 GHz)
• Cores: Quad-core (up to 2 CPUs supported)
• Architecture: 64-bit computing
• Chipset: Intel 5520
• Front Side Bus Speed: 1066 MHz

Cache Memory

• Type: L3 Cache
• Installed Size: 8 MB per processor

Memory Configuration

• Installed Memory: 6 GB (expandable up to 192 GB)
• Memory Type: DDR3 SDRAM, Advanced ECC
• Memory Speed: 1066 MHz, rated at 1333 MHz
• Compliance: PC3-10600
• Slots Available: 18 DIMM slots (15 free)

Storage Options

• Hard Drive: Not included
• Optical Drive: None

Storage Controller

• Controller Type: Plug-in card, PCIe x4
• Interface: SATA 1.5 Gb/s, SAS
• Model: Smart Array P410i with 256MB BBWC
• RAID Levels Supported: 0, 1, 5, 10, 50

Display and Graphics

• Graphics Type: Integrated
• GPU: ATI ES1000
• Video Memory: 32 MB
• Video Output: VGA

Networking & Communication

• Networking: Integrated Gigabit Ethernet (2 ports)
• Controller: HP NC382i
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 2 (iLO 2)
• Features: Wake-on-LAN (WoL), ACPI support
• Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.1q, 802.1p, 802.3ad (LACP)

Expansion Capabilities

• External Bays: 1 x 5.25" slim line (free)
• Hot-Swap Bays: 4 x 2.5" SFF (free)
• Expansion Slots: 18 DIMM slots (15 free), 2 CPU slots (1 free)
• PCIe Slots: 1 x PCIe x8 (low-profile), 1 x PCIe x16 (full-length, full-height)

Interfaces and Ports

• PS/2 Ports: 1 for keyboard, 1 for mouse
• Serial Port: 1
• VGA Port: 1
• LAN Ports: 2 Gigabit Ethernet
• HP iLO Port: 1

Security Features

• Passwords: Administrator, Power-on, Keyboard
• Locking Features: Disk configuration lock, QuickLock, Diskette I/O control
• Serial I/O Control: Yes

Power and Energy

• Power Supply Type: Hot-plug
• Redundancy: Optional (1+1 scheme with extra power supply)
• Input Voltage: AC 120/230V (50/60 Hz)
• Power Output: 460W
• Energy Efficiency: 80 Plus Gold certified

Dimensions & Weight

• Width: 16.8 inches
• Depth: 27.2 inches
• Height: 1.7 inches
• Weight: 31.97 lbs

Enhanced Performance

The 2.4 GHz clock speed of the processor allows for faster data processing and execution of tasks. This results in improved performance, enabling users to run resource-intensive applications smoothly without experiencing lag or delays. Whether you are running virtualization software, databases, or high-performance computing applications, the processor's speed ensures quick response times and efficient operations.

Increased Productivity

The high clock speed of the processor translates to increased productivity for users. With faster data processing capabilities, tasks can be completed more quickly, reducing overall processing time. This is particularly beneficial for businesses that rely on time-sensitive operations or require real-time data processing. The processor's speed enables users to handle complex calculations and data analysis efficiently, supporting enhanced productivity and improved workflow.

Better Multitasking

The 2.4 GHz clock speed allows the processor to handle multiple tasks simultaneously without compromising performance. Users can run multiple applications and processes concurrently, enabling efficient multitasking capabilities. Whether you need to run multiple virtual machines, perform data backups, or handle heavy workloads, the processor's speed ensures smooth multitasking without slowdowns or bottlenecks.

Storage

One of the standout features of the HPE Proliant DL360 G6 1u Rack Server is its storage capacity and flexibility. With support for up to 4SFF (Small Form Factor) drives, this server provides ample storage space for your data-intensive applications and workloads.

Expanded Storage Capacity

The 4SFF drive support allows users to install multiple hard drives in a compact form factor, maximizing storage capacity within the server. This is particularly important for businesses and organizations that generate and store large amounts of data. The ability to accommodate multiple drives enables users to store and access vast amounts of data, ensuring that critical information is readily available when needed.

Improved Data Redundancy

The inclusion of multiple drives in the server allows for the implementation of RAID (Redundant Array of Independent Disks) configurations. RAID provides data redundancy, protecting against drive failures and minimizing the risk of data loss. By utilizing RAID, users can configure their storage system to mirror data across multiple drives, ensuring that if one drive fails, the data remains accessible and intact on another drive.

Flexible Storage Options

The 4SFF drive support offers flexibility in terms of storage options. Users can choose different drive types, including solid-state drives (SSDs) or traditional hard disk drives (HDDs), depending on their specific requirements. SSDs offer faster read/write speeds and improved performance, ideal for applications that demand quick data access. On the other hand, HDDs provide higher storage capacity at a lower cost per gigabyte, making them suitable for applications that prioritize storage space over speed.

RAID Controller

The HPE Proliant DL360 G6 1u Rack Server is equipped with a P410i RAID controller featuring 256MB BBWC (Battery-Backed Write Cache). This powerful RAID controller enhances data protection, performance, and overall reliability of the server's storage system.

Data Protection

The P410i RAID controller with 256MB BBWC offers advanced data protection capabilities. The battery-backed write cache ensures that in the event of a power outage or unexpected shutdown, any data being written to the drives will be preserved. This reduces the risk of data corruption or loss, providing users with peace of mind that their critical data is protected.

Improved Performance

The RAID controller enhances the performance of the server's storage system. By utilizing various RAID levels such as RAID 0, 1, 5, and 10, users can configure their storage system to optimize performance for their specific needs. RAID striping and mirroring techniques improve read and write speeds, enabling faster data access and transfer rates. This is particularly beneficial for applications that require high-speed data processing and real-time access to information.

Reliability and Redundancy

The inclusion of a RAID controller with 256MB BBWC ensures the reliability and redundancy of the server's storage system. The RAID configurations provide fault tolerance, allowing for the continued operation of the server even in the event of a drive failure. This minimizes downtime and ensures that critical services remain available. The battery-backed write cache further enhances reliability by protecting data during power interruptions or system failures.

Power Supply

The HPE Proliant DL360 G6 1u Rack Server is equipped with a single 460W power supply unit (PS). This power supply unit delivers reliable and efficient power to ensure the smooth operation of the server.

Stable Power Delivery

The 460W power supply unit provides stable and consistent power delivery to all the components of the server. This is crucial for maintaining the stability and integrity of the system and preventing unexpected shutdowns or disruptions. The consistent power supply ensures that all critical processes and applications continue to run smoothly without any interruptions or downtime.

Energy Efficiency

The power supply unit is designed with energy efficiency in mind. It meets industry standards for energy efficiency, minimizing power wastage, and reducing operational costs. By utilizing an energy-efficient power supply unit, users can contribute to environmental sustainability while also enjoying cost savings on their energy bills.

Redundancy and Failover Protection

The HPE Proliant DL360 G6 1u Rack Server can also be configured with redundant power supply units for added protection against power failures. Redundant power supplies ensure that if one power supply unit fails, the other can seamlessly take over, preventing any disruptions to the server's operation. This failover protection is crucial for businesses and organizations that require continuous availability of their services and applications.

Number Of Processors

The HPE Proliant DL360 G6 1u Rack Server supports a 2-way processor configuration, allowing for enhanced performance and scalability.

Increased Processing Power

The 2-way processor configuration enables the server to harness the power of two processors working in tandem. This results in increased processing power, allowing for faster data processing and improved overall performance. Whether you are running multiple virtual machines, handling complex calculations, or running resource-intensive applications, the dual processors ensure that tasks are executed efficiently and quickly.

Scalability and Future-Proofing

The ability to support a 2-way processor configuration provides scalability for users. As business requirements grow and evolve, additional processors can be added to the server to meet increased computational needs. This scalability ensures that the server can adapt to changing demands without requiring a complete hardware replacement, saving both time and cost. By future-proofing your server with a 2-way processor configuration, you can ensure that your infrastructure remains capable of handling future workloads.

Optimized Workload Distribution

With a 2-way processor configuration, workload distribution becomes more efficient. The dual processors allow for workload balancing, ensuring that tasks are evenly distributed between the processors. This prevents bottlenecks and ensures that each processor operates at an optimal level, maximizing performance and minimizing processing time. The optimized workload distribution is particularly beneficial for applications that require high levels of parallel processing, such as virtualization or data analysis.

Part Number

The HPE Proliant DL360 G6 1u Rack Server has a part number of 504635-001. This unique identifier is essential for users when searching for or referencing the server model.

Identification and Compatibility

The part number serves as a unique identifier for the HPE Proliant DL360 G6 server model. When searching for replacement parts or accessories, having the correct part number ensures compatibility and avoids potential compatibility issues. It allows users to easily identify the specific model they own, ensuring that any upgrades or replacements are suitable for their server configuration.

Documentation and Support

The part number also plays a crucial role in accessing documentation and support resources related to the HPE Proliant DL360 G6 server. By providing the part number when seeking technical support or consulting documentation, users can ensure that they receive accurate information and guidance specific to their server model. This simplifies troubleshooting processes and ensures that users have access to the most relevant and up-to-date resources.

Product Lifecycle Management

The part number is valuable for product lifecycle management purposes. It allows users to track the lifecycle of their specific server model, including firmware updates, software patches, and end-of-life notifications. By staying informed about the lifecycle of their server, users can plan for future upgrades or replacements, ensuring that their infrastructure remains up-to-date and secure.
