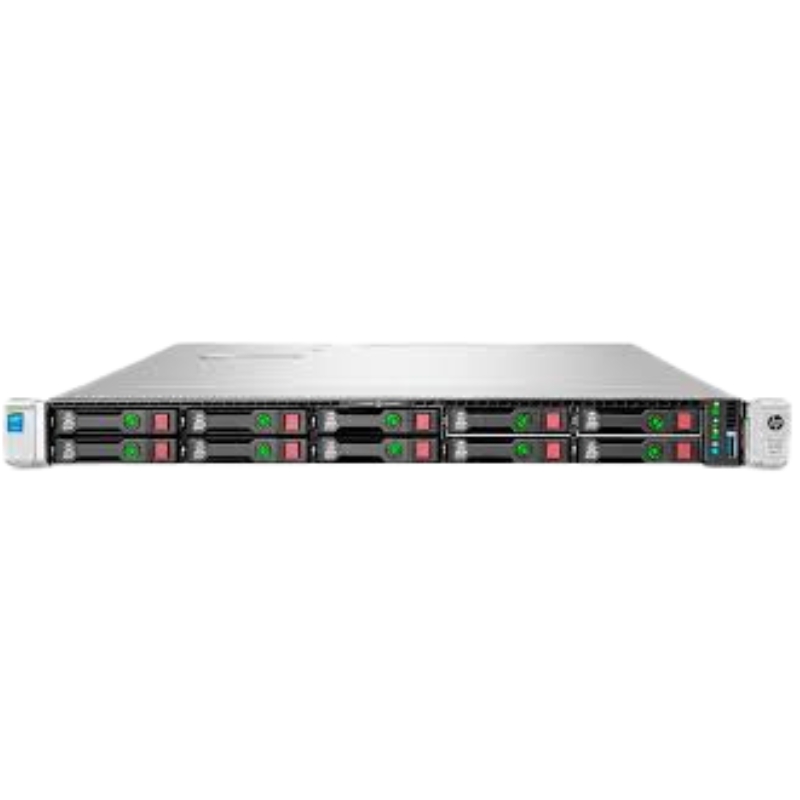

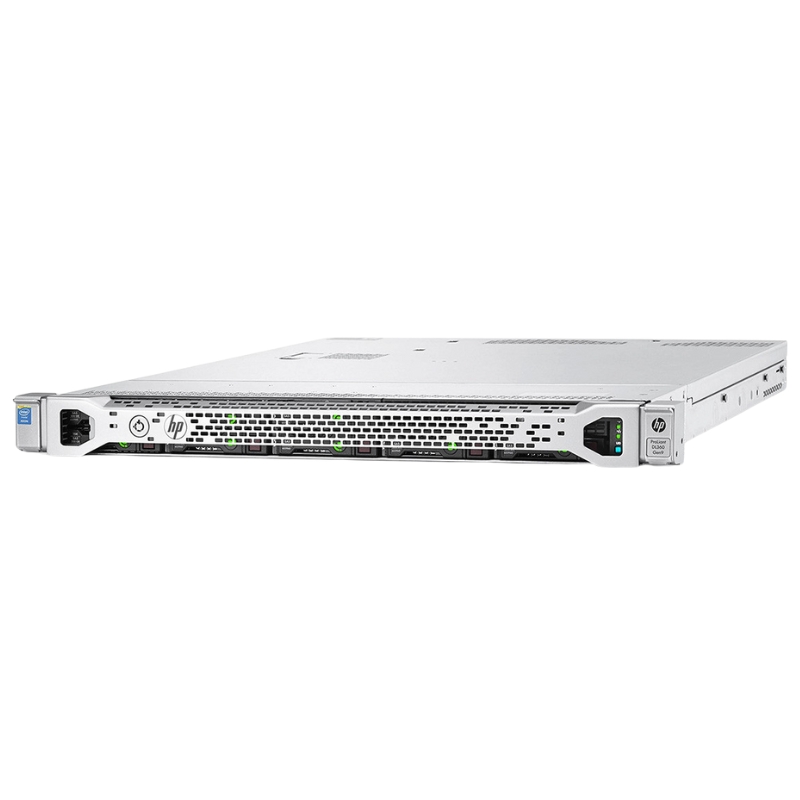

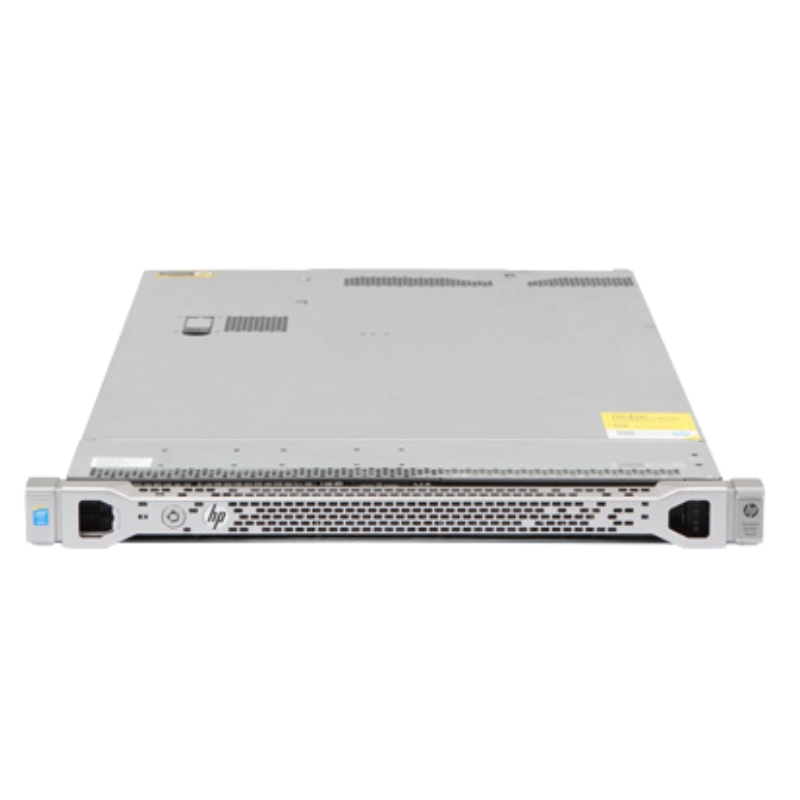

HPE Proliant DL360 G9 Entry 1X 500W FS PS 1U Rack Server 818207-B21.

Processor

The HPE Proliant DL360 G9 Entry Model 818207-B21 1U Rack Server is equipped with a powerful 1X Intel Xeon 6-Core E5-2603V4 processor running at a speed of 1.7GHz. This processor is designed to deliver exceptional performance and reliability, making it an ideal choice for businesses and organizations with demanding computing needs.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 818207-B21
•  Product Name: Proliant DL360 Gen9 - 1U Rack Mountable Server (Base Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon E5-2603v4
• Clock Speed: 1.7 GHz
• Number of Cores: 6-core
• Maximum CPUs: 2 (Upgradeable)
• CPU Socket: LGA2011-v3
• Features: Hyper-Threading, Intel Turbo Boost Technology 2

Cache Memory

• Installed Cache Size: 15 MB
• Cache Per Processor: 15 MB

Memory Specifications

Installed Memory

• Base Installed Size: 8 GB
• Maximum Supported Size: 768 GB

Memory Details

• Type: DDR4 SDRAM - Advanced ECC
• Memory Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare, Quad Channel Architecture, HP SmartMemory

Configuration and Support

• Standard Configuration: 1 x 8 GB
• Supported RAM: PC4-17000 - 768 GB Load-Reduced; PC4-17000 - 384 GB Registered

Storage Options

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Type: RAID - PCIe 3.0 x8
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HP Dynamic Smart Array B140i
• Supported RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Graphics and Display

• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

Expansion Bays

• External 5.25": 1 total / 0 free
• Hot-Swap 2.5" SFF: 8 total / 8 free

Expansion Slots

• DIMM 288-pin: 24 total / 23 free
• CPU: 2 total / 1 free
• PCIe 3.0 x16 (Three-Quarter-Length, Full-Height): 1 total / 1 free
• PCIe 3.0 x8 (Low-Profile): 1 total / 1 free
• FlexibleLOM: 1 total / 1 free
• MicroSD Card (Internal): 1 total / 1 free

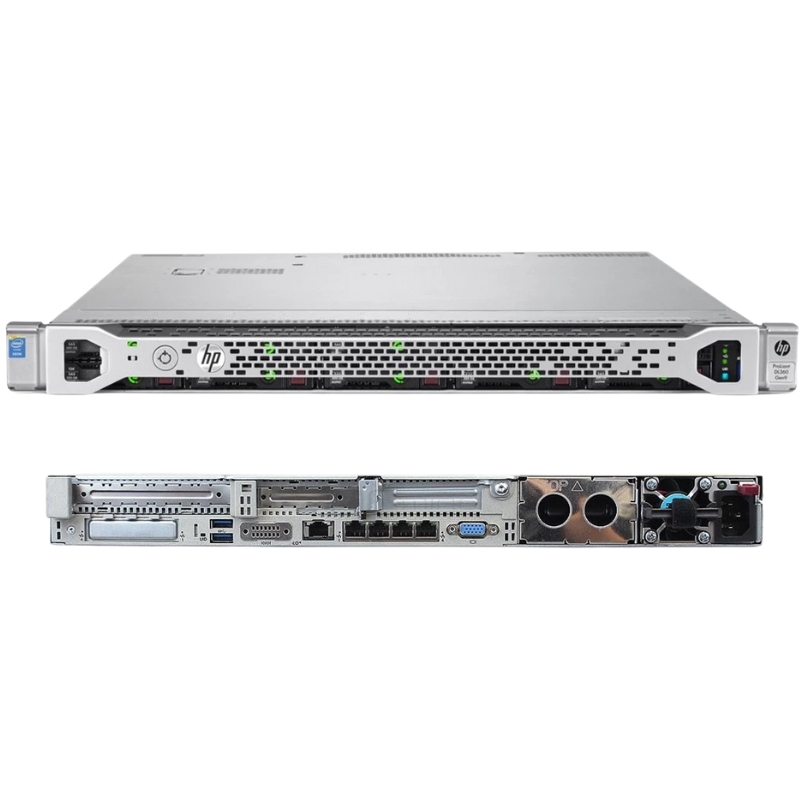

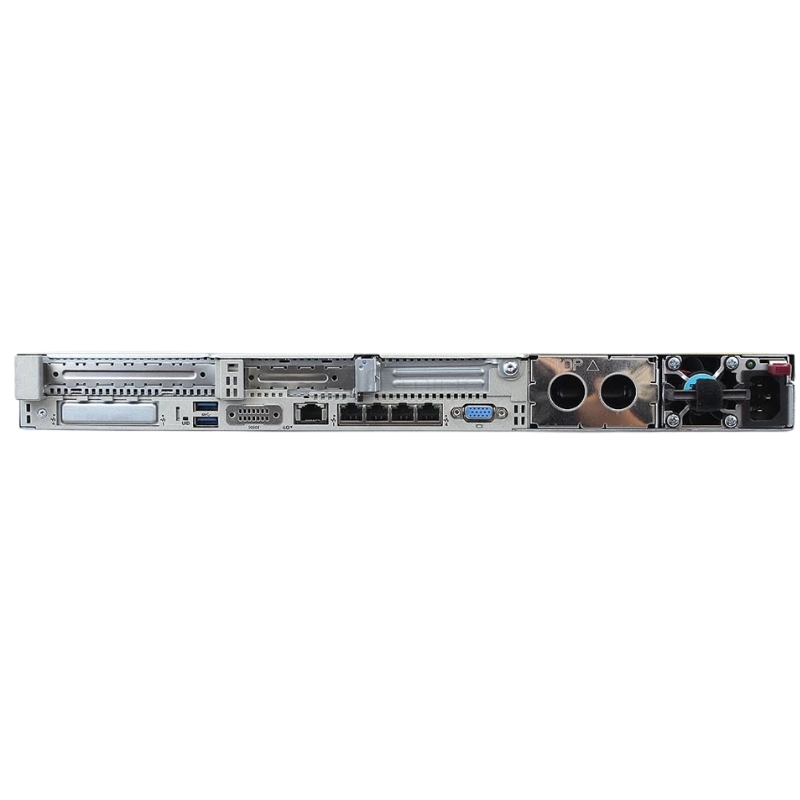

Interfaces & Ports

• VGA: 1
• Serial: 1
• LAN (Gigabit Ethernet): 4
• HP iLO: 1
• USB 3.0: 5 (1 Front, 2 Rear, 2 Internal)

Miscellaneous Information

• Compliant Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Power Specifications

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 27.01 lbs

Enhanced Performance

The Intel Xeon 6-Core E5-2603V4 processor offers enhanced performance capabilities that allow for faster data processing and improved overall system performance. With its six cores and twelve threads, this processor can handle multiple tasks simultaneously, providing a smooth and efficient computing experience.

Increased Efficiency

By utilizing advanced technology and intelligent processing capabilities, the Intel Xeon 6-Core E5-2603V4 processor maximizes efficiency while minimizing power consumption. This results in lower energy costs and reduced environmental impact, making it a cost-effective and eco-friendly option for businesses.

Optimized Virtualization

Virtualization has become an essential component of modern IT infrastructure, allowing businesses to consolidate their resources and improve scalability. The Intel Xeon 6-Core E5-2603V4 processor features advanced virtualization technologies that enable businesses to run multiple virtual machines efficiently, increasing productivity and reducing hardware costs.

Reliability and Scalability

With its robust architecture and advanced features, the Intel Xeon 6-Core E5-2603V4 processor ensures reliable performance even under heavy workloads. It supports advanced technologies like Turbo Boost and Hyper-Threading, which optimize performance based on workload demands, ensuring smooth operation even during peak usage.

Future-Proofing

Investing in a server with a powerful processor like the Intel Xeon 6-Core E5-2603V4 ensures future-proofing for your business. As technology advances and software requirements become more demanding, having a capable processor allows for easy upgrades and ensures that your server can handle future workloads without the need for complete hardware replacements.

Memory

The HPE Proliant DL360 G9 Entry Model 818207-B21 1U Rack Server is equipped with 8GB DDR4 SDRAM memory, providing fast and reliable data access for your computing needs. This memory configuration offers several benefits and is essential for ensuring optimal performance in various applications.

Improved Multitasking

With 8GB of DDR4 SDRAM memory, this server can handle multiple tasks simultaneously without experiencing performance bottlenecks. Whether you are running resource-intensive applications or virtual machines, the ample memory capacity ensures smooth operation and efficient multitasking capabilities.

Enhanced Data Processing

DDR4 SDRAM memory offers higher data transfer rates compared to previous generations, resulting in faster data processing and improved overall system performance. This increased bandwidth allows for quicker access to critical data, reducing latency and improving response times.

Scalability and Expandability

The 8GB DDR4 SDRAM memory configuration provides a solid foundation for your server's memory needs. It allows for future scalability and expandability, ensuring that your server can accommodate growing workloads and memory requirements. You can easily upgrade the memory capacity as your business needs evolve, without the need for a complete system overhaul.

Reliability and Error Correction

DDR4 SDRAM memory incorporates advanced error correction capabilities, ensuring data integrity and reliability. It features error-correcting code (ECC) technology that detects and corrects single-bit errors, preventing data corruption and minimizing the risk of system crashes or data loss.

Storage

The HPE Proliant DL360 G9 Entry Model 818207-B21 1U Rack Server comes equipped with the Smart Array H240AR storage controller, offering reliable and efficient storage capabilities for your business needs. This storage feature provides several benefits and plays a crucial role in ensuring data integrity and accessibility.

Enhanced Data Protection

The Smart Array H240AR storage controller offers advanced data protection features, including RAID options, that safeguard your critical data against hardware failures. By configuring the storage in a RAID array, you can achieve redundancy and fault tolerance, allowing for seamless operation even in the event of drive failures.

Improved Performance

The Smart Array H240AR storage controller utilizes advanced caching and acceleration technologies to optimize performance. It supports features such as read and write caching, which enhance data access speeds and reduce latency, resulting in improved overall system performance.

Flexible Storage Configuration

The Smart Array H240AR storage controller allows for flexible storage configuration options, enabling businesses to customize their storage setup according to their specific requirements. It supports multiple drive types and configurations, such as SAS, SATA, and SSDs, allowing you to choose the most suitable option for your needs.

Scalability and Expansion

The Smart Array H240AR storage controller offers scalability and expansion capabilities, allowing businesses to easily add more storage capacity as their needs grow. Whether you need additional drives or want to expand your existing array, this storage feature provides the flexibility to accommodate future requirements without disruption.

Networking

The HPE Proliant DL360 G9 Entry Model 818207-B21 1U Rack Server is equipped with a 1GB 4-PORT 331I Adapter, providing fast and reliable networking capabilities for your server infrastructure. This networking feature offers several benefits and is crucial for ensuring seamless connectivity and data transfer.

High-Speed Data Transfer

The 1GB 4-PORT 331I Adapter enables high-speed data transfer between your server and the network. With a bandwidth of 1 Gigabit per second, this adapter ensures quick and efficient data transmission, minimizing latency and improving overall network performance.

Improved Network Efficiency

The 1GB 4-PORT 331I Adapter supports advanced networking technologies such as TCP/IP offloading, which helps offload processing tasks from the server's CPU to the adapter. This offloading capability improves network efficiency by reducing CPU utilization and freeing up system resources for other critical tasks.

Enhanced Connectivity

With four ports, the 1GB 4-PORT 331I Adapter offers enhanced connectivity options, allowing businesses to connect to multiple networks or devices simultaneously. This feature is especially beneficial for organizations that require a high level of network flexibility or need to segregate their network traffic for security or performance purposes.

Reliability and Redundancy

The 1GB 4-PORT 331I Adapter provides built-in redundancy, ensuring reliable network connectivity even in the event of a single port failure. By utilizing multiple ports, businesses can achieve network resilience and minimize the impact of potential network disruptions on their operations.

Power Supply

The HPE Proliant DL360 G9 Entry Model 818207-B21 1U Rack Server is equipped with a single 500W FS PS power supply, providing reliable and efficient power delivery for your server infrastructure. The power supply feature is vital for ensuring uninterrupted operation and protecting your server from power-related issues.

Efficient Power Management

The 500W FS PS power supply incorporates advanced power management technologies that optimize energy efficiency and reduce power consumption. This not only helps businesses save on energy costs but also contributes to a greener and more sustainable IT infrastructure.

Redundancy and Failover Support

The HPE Proliant DL360 G9 Entry Model 818207-B21 server supports redundant power supply configurations, meaning you can add a second power supply for added resilience. Redundant power supplies protect against power supply failures, ensuring uninterrupted operation even if one power supply malfunctions or experiences issues.

Hot-Plug Capability

The 500W FS PS power supply features hot-plug capability, allowing for quick and easy replacement or addition of power supplies without the need to power down the server. This feature minimizes downtime and ensures continuous operation, making it suitable for businesses that require high availability and cannot afford interruptions.

Power Monitoring and Protection

The 500W FS PS power supply includes built-in monitoring and protection features that safeguard your server against power-related issues. It constantly monitors voltage levels, temperature, and other critical parameters to detect anomalies and ensure stable and reliable power delivery.

Drive Bays

The HPE Proliant DL360 G9 Entry Model 818207-B21 1U Rack Server features eight Small Form Factor (SFF) drive bays, providing ample storage capacity in a compact form factor. The drive bays feature is essential for businesses that require high storage density and efficient data management.

High Storage Density

The eight SFF drive bays offer high storage density, allowing businesses to maximize their storage capacity within a limited physical space. This feature is particularly beneficial for data-intensive applications or businesses that deal with large amounts of data and require efficient storage solutions.

Flexible Storage Configurations

The SFF drive bays support various drive types, including SAS, SATA, and SSDs, offering flexibility in configuring your storage setup. Whether you need high-performance drives for critical applications or cost-effective drives for bulk storage, the SFF drive bays allow you to choose the most suitable option for your specific needs.

Improved Data Management

The HPE Proliant DL360 G9 Entry Model 818207-B21 server's drive bays feature enables efficient data management and organization. With the ability to install multiple drives, businesses can implement RAID configurations, enabling data redundancy and fault tolerance, ensuring data integrity and protecting against potential drive failures.

Hot-Swap Capability

The SFF drive bays support hot-swapping, allowing for easy replacement or addition of drives without powering down the server. This feature simplifies maintenance tasks and reduces downtime, ensuring continuous operation and minimizing disruptions to your business operations.

In conclusion, the HPE Proliant DL360 G9 Entry Model 818207-B21 1U Rack Server offers a powerful processor, ample memory capacity, reliable storage options, efficient networking capabilities, a robust power supply, and flexible drive bays. These features contribute to enhanced performance, improved efficiency, scalability, reliability, and ease of management for businesses and organizations with demanding computing needs.
