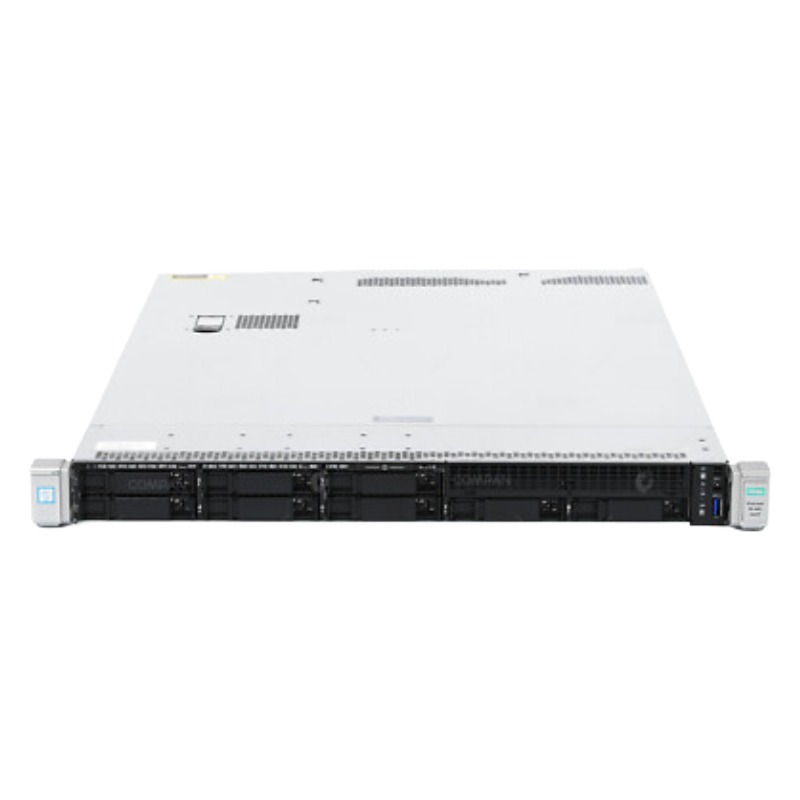

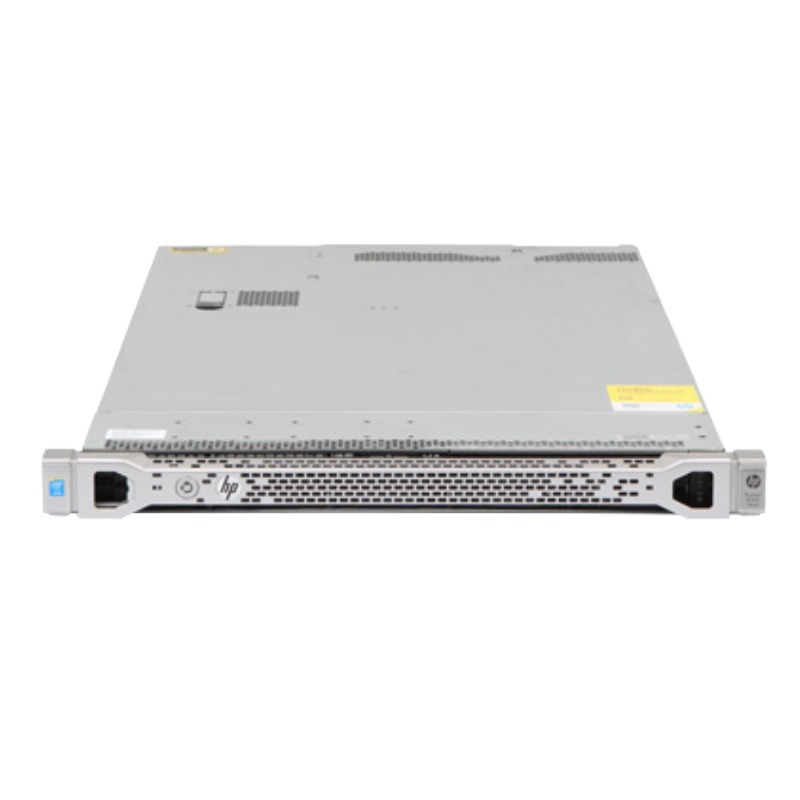

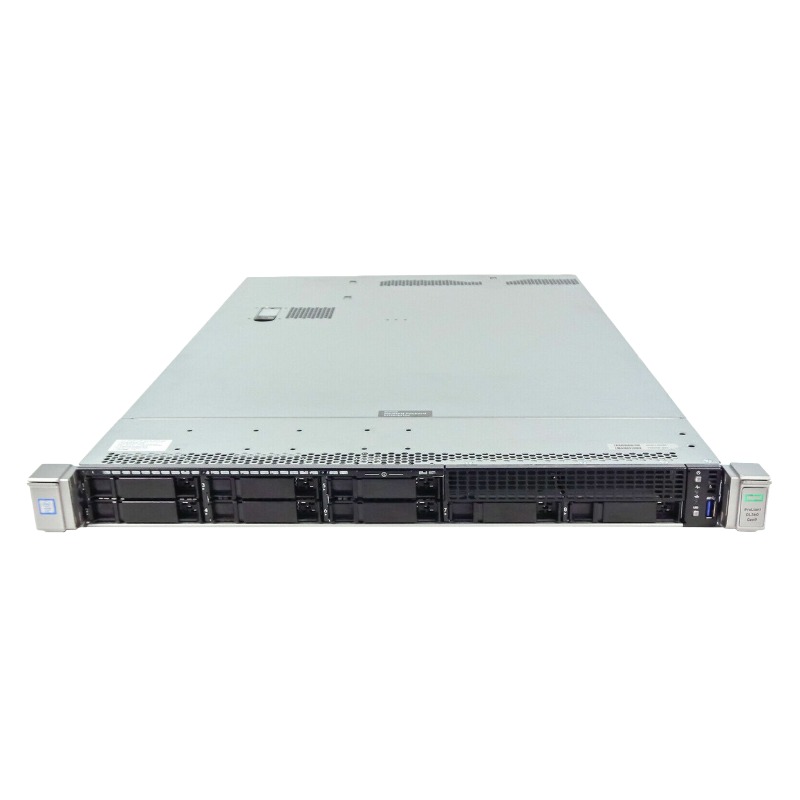

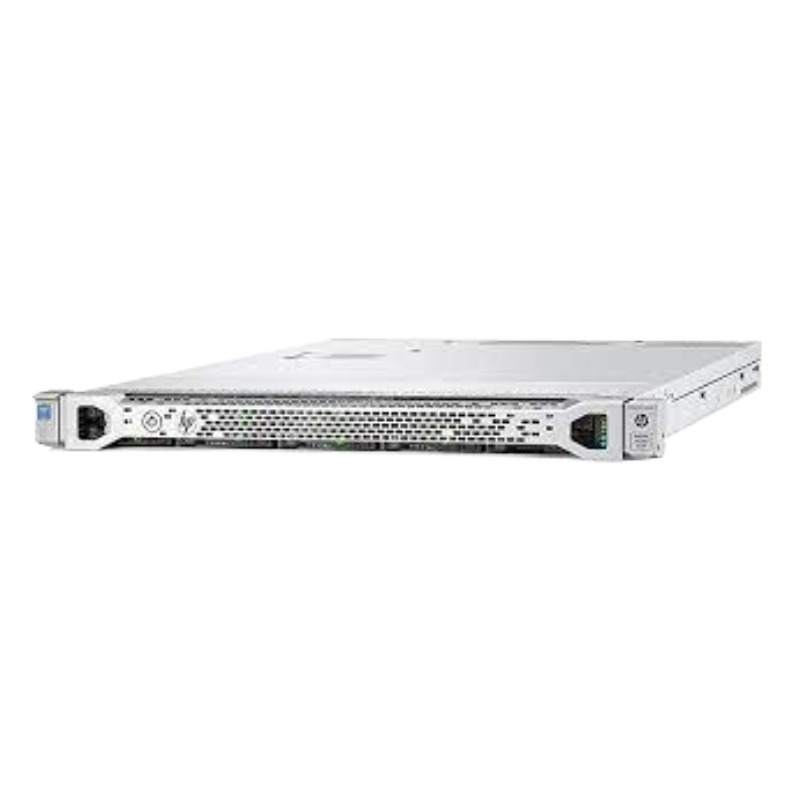

HPE ProLiant DL360 Gen9 E5-2620v4 16GB DDR4 Rack Server 849455-S01

Processor

The HPE ProLiant DL360 Gen9 Rack Server is equipped with the powerful Intel Xeon E5-2620v4 processor. This processor delivers outstanding performance and reliability, making it an ideal choice for businesses of all sizes.

General Overview

• Manufacturer: Hewlett Packard Enterprise
• Model Number: 849455-S01
• Product Title: ProLiant DL360 Gen9 - 1U Rack Mountable Server (Smart Buy)

Processor and Chipset

CPU Specifications

• Processor: Intel Xeon E5-2620v4, 2.1 GHz
• Max Turbo Speed: 3.0 GHz
• Core Count: 8 Cores
• Installed CPUs: 1
• Maximum CPUs: 2
• CPU Upgrade Capability: Yes

Key Processor Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2

Cache Memory

• Installed Cache Size: 20 MB
• Cache Per Processor: 20 MB

Memory Specifications

Installed Memory

• Base Memory Size: 16 GB
• Maximum Memory Capacity: 384 GB
• Memory Type: DDR4 SDRAM with Advanced ECC
• Memory Speed: 2133 MHz
• Memory Compliance: PC4-19200
• Form Factor: DIMM 288-pin

Memory Configuration

• Pre-installed Configuration: 2 x 8 GB
• Supported RAM Types: PC4-17000 - 768 GB (Load-reduced), PC4-17000 - 384 GB (Registered)

Storage Components

Hard Drive and Optical Drive

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Type: 1 x RAID - PCIe 3.0 x8
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HP H240ar Smart Host Bus Adapter
• Channel Quantity: 8
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Display and Graphics

• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Additional Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

Expansion Bays

• Total Bays: 1 External, 8 Hot-swap 2.5 SFF
• Free Bays: 1 External, 8 Hot-swap 2.5 SFF

Expansion Slots

• Total Slots: 24 DIMM 288-pin, 2 CPU, 1 PCIe 3.0 x16 (Three-quarter-length, Full-height), 1 PCIe 3.0 x8 (Low-profile), 1 FlexibleLOM, 1 MicroSD Card (Internal)
• Free Slots: 22 DIMM 288-pin, 1 CPU, 1 PCIe 3.0 x16, 0 PCIe 3.0 x8, 1 FlexibleLOM, 1 MicroSD Card (Internal)

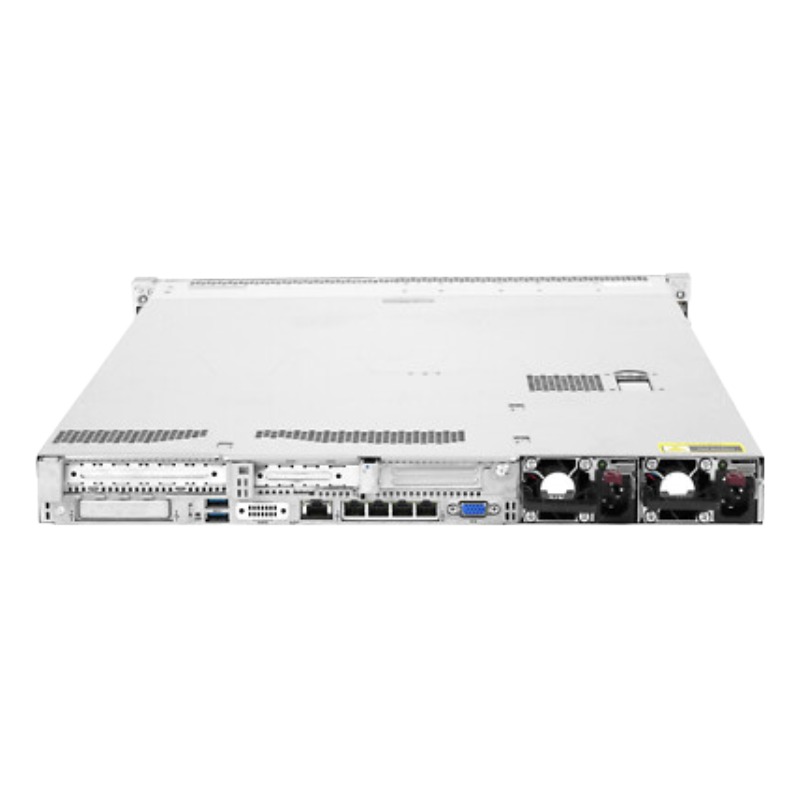

Interfaces and Ports

• Video Interface: 1 x VGA
• Serial Port: 1 x Serial
• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1 x HP iLO
• USB Ports: 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous

Included Accessories

• HP Easy Install Rails

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• CNS 13438

Manufacturer Selling Program

HPE Smart Buy

Power Specifications

• Power Supply Type: Hot-plug
• Redundant Power Supply: Yes (1+1 scheme)
• Installed Power Supply: 1
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 27.01 lbs

Enhanced Performance

The E5-2620v4 processor offers a total of 8 cores and 16 threads, allowing for efficient multitasking and increased productivity. With a base clock speed of 2.1GHz and a maximum turbo frequency of 3.0GHz, this processor can handle even the most demanding workloads with ease.

Improved Efficiency

One of the key benefits of the E5-2620v4 processor is its energy efficiency. With a TDP (Thermal Design Power) of just 85 watts, this processor consumes less power while still delivering exceptional performance. This not only helps reduce electricity costs but also contributes to a greener environment.

Optimized Virtualization

Virtualization is a crucial aspect of modern business operations, and the E5-2620v4 processor excels in this area. With support for Intel Virtualization Technology (VT-x), this processor enables efficient virtual machine management, allowing businesses to maximize their server resources and reduce hardware costs.

Reliable Workhorse

The E5-2620v4 processor is built to withstand heavy workloads and deliver consistent performance. With Intel Turbo Boost Technology 2.0, it can dynamically increase its clock speed when required, ensuring smooth operations even during peak usage periods. This reliability is essential for businesses that rely on their servers for critical tasks.

Scalability and Future-Proofing

The HPE ProLiant DL360 Gen9 Rack Server's E5-2620v4 processor offers scalability to meet evolving business needs. With support for up to two processors, businesses can easily expand their server capabilities as their requirements grow. This scalability ensures that the server can keep up with future demands, providing a long-term solution for businesses.

Memory

The HPE ProLiant DL360 Gen9 Rack Server comes equipped with 16GB of DDR4 memory. This high-performance memory module offers several benefits that enhance the server's overall performance and reliability.

Faster Data Access

DDR4 memory provides faster data transfer rates compared to its predecessors. With its improved clock speed and data transfer rates of up to 2133 MT/s, the DL360 Gen9 can quickly access and process large amounts of data. This is particularly important for businesses that rely on real-time analytics or data-intensive applications.

Increased Capacity

The 16GB capacity of the DDR4 memory module allows for efficient multitasking and the handling of memory-intensive applications. It provides ample space for running multiple virtual machines, databases, or other memory-hungry workloads simultaneously. This increased capacity ensures smooth operations without compromising performance.

Enhanced Reliability

DDR4 memory is designed to be more reliable compared to previous generations. It includes built-in error correction codes (ECC) that detect and correct data errors in real-time. This feature is crucial for businesses that handle sensitive data or require uninterrupted operations, as it helps prevent system crashes and data corruption.

Lower Power Consumption

DDR4 memory modules are more energy-efficient compared to their predecessors. They operate at lower voltages, reducing power consumption and generating less heat. This not only helps lower electricity costs but also contributes to a cooler server environment, ensuring optimal performance and extending the lifespan of server components.

Future-Proofing

The 16GB DDR4 memory included in the DL360 Gen9 Rack Server provides room for future expansion. With additional memory slots available, businesses can easily upgrade the server's memory capacity as their needs grow. This future-proofing capability ensures that the server can adapt to changing requirements and remain efficient in the long term.

Part Number

The HPE ProLiant DL360 Gen9 Rack Server has a unique part number, 849455-S01. This part number plays a crucial role in identifying and ordering the specific configuration of the server.

Easy Identification

The part number, 849455-S01, simplifies the process of identifying and locating the specific server model. It ensures that businesses can easily communicate their requirements to vendors or support personnel, streamlining the procurement and troubleshooting processes.

Accurate Configuration

The part number is essential for ensuring accurate configuration and compatibility. Each part number corresponds to a specific hardware configuration, including processors, memory modules, storage options, and other components. By using the correct part number, businesses can ensure that they receive the exact server configuration they need without any compatibility issues.

Efficient Ordering

When ordering additional servers or spare parts, having the correct part number is crucial for smooth transactions. Vendors can quickly identify and fulfill orders based on the provided part number, reducing the chances of errors or delays. This efficient ordering process helps businesses save time and ensures that they receive the required hardware promptly.

Warranty and Support

The part number is also important for warranty and support purposes. It helps vendors and support teams identify the specific server model and its associated warranty coverage. In case of any hardware issues or required repairs, having the correct part number makes it easier to access appropriate support services and ensure efficient resolution.

Documentation and Documentation

The part number, 849455-S01, is documented in various resources, including user manuals, technical specifications, and online documentation. These resources provide detailed information about the server's features, capabilities, and maintenance procedures. Accessing the correct documentation based on the part number ensures that businesses have the necessary information to manage and maintain their server effectively.
