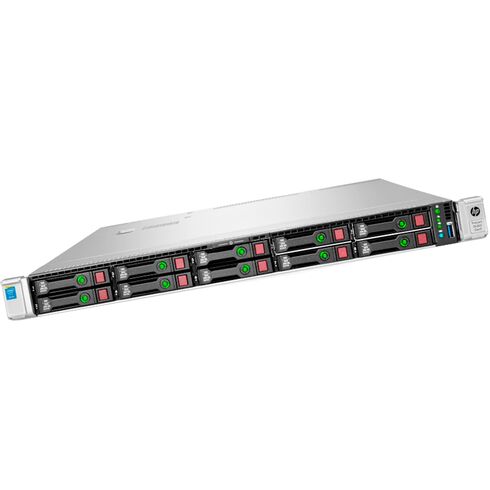

HPE ProLiant DL360 Gen9 E5-2667 v3 Server 800081-S01

Processor

The HPE ProLiant DL360 Gen9 Server is equipped with the powerful Intel Xeon E5-2667 v3 processor. This processor is part of the Intel Xeon E5 v3 family, which is designed to deliver exceptional performance and reliability for demanding workloads.

Processor & Chipset Specifications

• Processor Type: Intel Xeon E5-2643v3, 3.2 GHz
• Maximum Turbo Frequency: 3.6 GHz
• QuickPath Interconnect: 9.60 GT/s
• Core Count: 8 Cores
• 64-bit Architecture: Yes
• Socket Compatibility: FCLGA2011-3
• Installed Processors: 1
• Maximum Supported Processors: 2
• Chipset: Intel C610 Series

Cache Memory

• Type: Smart Cache
• Installed Size: 20 MB

Memory Configuration

• Installed Memory: 32 GB (expandable to 384 GB)
• Memory Type: DDR4 SDRAM with Advanced ECC
• Memory Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare, Quad Channel Architecture, HP SmartMemory
• Configuration: 2 x 16 GB
• Supported RAM: PC4-17000 (up to 768 GB Load-reduced, up to 384 GB Registered)

Storage Controllers

• Controller: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Interface: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives: Up to 26
• Logical Drives: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Graphics and Display

• Graphics Controller: Integrated Matrox G200

Networking and Communication

• Network Type: Integrated
• Ethernet Ports: 4 x Gigabit Ethernet
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN, PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

• Expansion Bays:
  • 1 External 5.25"
  • 8 x Hot-swap 2.5" SFF
• Expansion Slots:
  • 24 x DIMM 288-pin (22 free)
  • 2 x CPU (1 free)
  • 1 x PCIe 3.0 x16 (Full-height, Three-quarter-length; 1 free)
  • 1 x PCIe 3.0 x8 (Low-profile; 0 free)
  • 1 x FlexibleLOM (1 free)
  • 1 x Internal microSD Card (1 free)

Interfaces and Ports

• 1 x VGA
• 1 x Serial
• 4 x LAN (Gigabit Ethernet)
• 1 x HP iLO
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous Features

• Security:
  • Administrator Password
  • Power-on Password
  • Keyboard Password
  • Serial Port I/O Control
  • Quicklock
• BIOS: UEFI

Compliance and Certifications

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• ASHRAE
• CNS 13438

Power Specifications

• Power Supply Type: Hot-plug
• Redundancy: Yes (1+1 Scheme)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Depth: 27.5 inches
• Width: 17.1 inches
• Height: 1.69 inches
• Weight: 27 lbs

Exceptional Performance

The Intel Xeon E5-2667 v3 processor features 8 cores and 16 threads, providing excellent multitasking capabilities. With a base frequency of 3.2GHz and a maximum turbo frequency of 3.6GHz, it can handle even the most resource-intensive applications with ease. The high clock speeds ensure fast data processing, resulting in improved overall system performance.

Enhanced Virtualization

For businesses that heavily rely on virtualization, the Intel Xeon E5-2667 v3 processor offers advanced virtualization features. With Intel Virtualization Technology (VT-x), it provides hardware-assisted virtualization capabilities that enhance the performance and security of virtualized environments. This allows for better consolidation of workloads and increased efficiency.

Improved Energy Efficiency

Energy efficiency is a crucial factor for businesses looking to reduce their carbon footprint and lower operational costs. The Intel Xeon E5-2667 v3 processor incorporates advanced power-saving technologies, such as Intel Turbo Boost Technology and Enhanced Intel SpeedStep Technology. These features dynamically adjust the power consumption based on workload demands, optimizing energy efficiency without compromising performance.

Reliability and Scalability

The HPE ProLiant DL360 Gen9 Server's E5-2667 v3 processor ensures high reliability and scalability. With support for up to two processors in a single server, users can easily scale their computing power as their business needs grow. The processor also supports Error-Correcting Code (ECC) memory, which detects and corrects data errors, ensuring data integrity and system stability.

Accelerated Workloads

The Intel Xeon E5-2667 v3 processor features Intel Advanced Vector Extensions (AVX), which accelerates floating-point intensive applications. This is particularly beneficial for tasks such as scientific simulations, financial modeling, and media processing, where high-performance computing is essential.

Security Features

Security is a top concern for businesses, especially when handling sensitive data. The Intel Xeon E5-2667 v3 processor includes Intel Data Protection Technology, which offers a range of security features to safeguard data. These features include Intel Advanced Encryption Standard New Instructions (AES-NI), which accelerate encryption and decryption processes, and Intel Secure Key, which enhances cryptographic key generation.

Overall, the E5-2667 v3 processor in the HPE ProLiant DL360 Gen9 Server delivers exceptional performance, enhanced virtualization capabilities, improved energy efficiency, reliability, scalability, and advanced security features. Whether you're running resource-intensive applications or managing virtualized environments, this processor ensures smooth operation and optimal performance.
