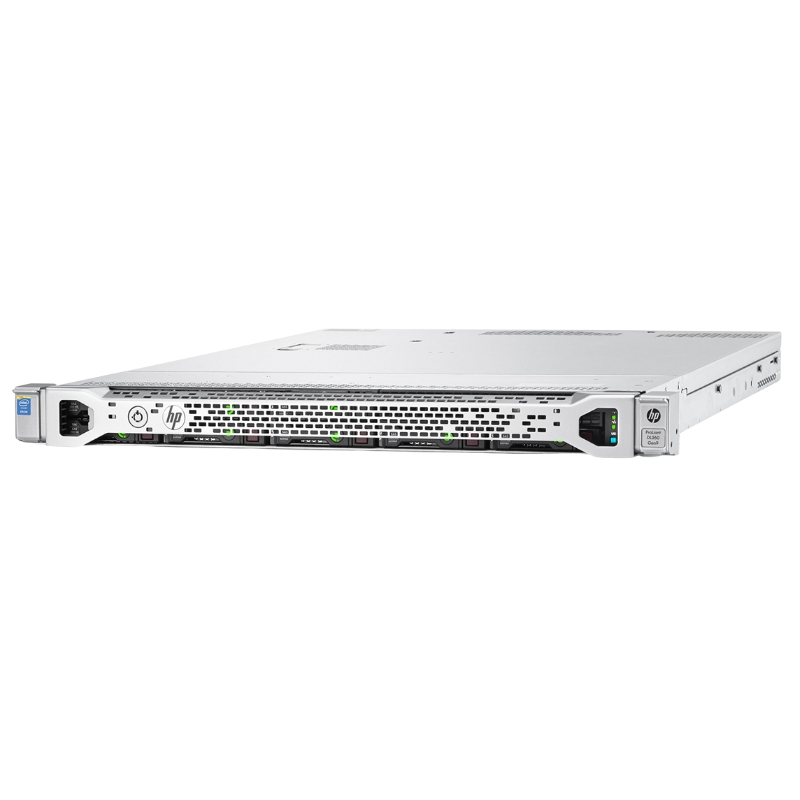

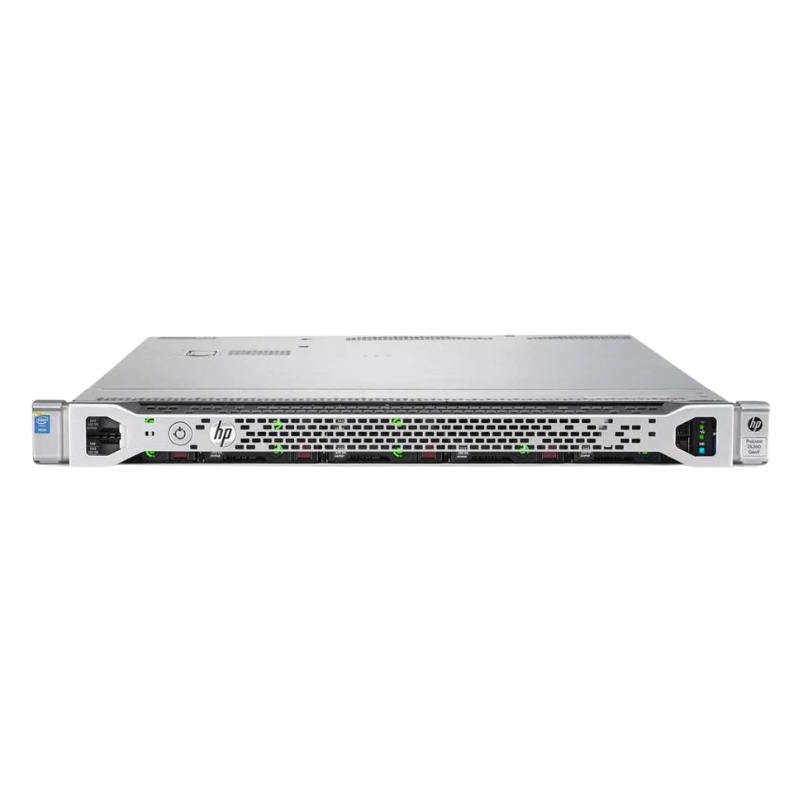

HPE Proliant DL360 Gen9 Xeon 6-Core 16GB 8 SFF DDR4 Rack Server 800079-S01

Processor

The HPE Proliant DL360 Gen9 Rack Server is equipped with a powerful Xeon 6-Core processor, making it an excellent choice for businesses and organizations that require high-performance computing. This processor is designed to deliver exceptional speed and efficiency, allowing users to handle demanding workloads with ease.

Product Overview

General Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 800079-S01
• Product Name: Proliant DL360 Gen9 - 1U Rack Server (Smart Buy)

Processor & Chipset

Processor Specifications

• Processor Type: Intel Xeon E5-2620v3, 2.4 GHz
• Max Turbo Speed: 3.2 GHz
• QuickPath Interconnect: 8 GT/s
• Number of Cores: 6-core
• 64-bit Computing: Supported
• Compatible Processor Socket: FCLGA2011-3
• Installed Quantity: 1
• Max Supported Quantity: 2
• Chipset Type: Intel C610 Series

Processor Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2
• Intel Smart Cache

Cache Memory

• Cache Memory Type: Smart Cache
• Installed Size: 15 MB
• Cache Per Processor: 15 MB

Memory Configuration

• Installed Size: 16 GB, expandable to 768 GB
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 1866 MHz
• Rated Memory Speed: 2133 MHz
• Memory Specification Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Memory Slots: 24 (total), 22 (available)

Memory Features

• Registered
• Online Spare Memory
• Quad Channel Memory Architecture
• HP SmartMemory

Supported RAM

• 3 TB Load-Reduced - Advanced ECC
• 768 GB Registered - Advanced ECC

Storage Details

• Hard Drive: Not Included
• Optical Drive: Not Included

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Support: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26 Drives
• Logical Drives Supported: Up to 64 Logical Drives
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Display & Graphics

• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

• Ethernet Controller: HP Ethernet 1GB 4-port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4
• Remote Management Controller: RJ-45 (2)
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• External: 1 x 5.25
• Hot-Swap: 8 x 2.5” SFF

Expansion Slots

• 24 x DIMM 288-pin (22 available)
• 2 x CPU (1 available)
• 1 x PCIe 3.0 x16 (Full-height, Three-quarter-length) (1 available)
• 1 x PCIe 3.0 x8 (Low-profile) (1 available)
• 1 x FlexibleLOM (1 available)
• 1 x MicroSD Card (internal) (1 available)

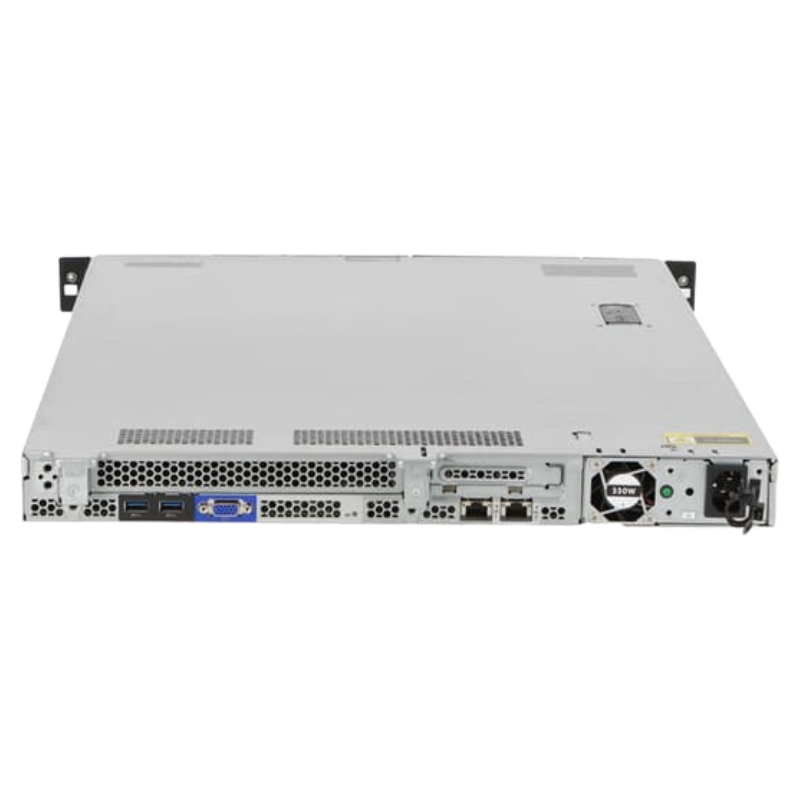

Interfaces & Ports

• 1 x VGA
• 1 x Serial
• 4 x LAN (Gigabit Ethernet)
• 1 x HP iLO
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous

Included Accessories

• HP Easy Install Rails

Features

• Administrator Password
• Power-on Password
• Keyboard Password
• Serial Port I/O Control
• QuickLock
• UEFI BIOS

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN 55022
• ICES-003
• EN 61000-3-3
• EN 55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• ASHRAE
• CNS 13438

Power Description

• Device Type: Hot-pl

  Improved Performance

  The Xeon 6-Core processor offers improved performance compared to previous generations. With its multiple cores and advanced architecture, it can handle multiple tasks simultaneously, resulting in faster data processing and reduced latency. This is particularly beneficial for businesses that rely on complex applications and require quick response times.

  Efficient Virtualization

  Virtualization has become an essential component of modern IT infrastructure. The Xeon 6-Core processor is specifically optimized for virtualization, enabling businesses to run multiple virtual machines efficiently. With its enhanced performance capabilities, users can maximize their server's resources and achieve better consolidation ratios, leading to cost savings and improved productivity.

  Enhanced Security

  Security is a top priority for any organization, and the Xeon 6-Core processor offers enhanced security features to protect sensitive data. It includes built-in encryption capabilities that safeguard data both at rest and in transit, reducing the risk of unauthorized access or data breaches. These security features are crucial for businesses that handle confidential information or operate in regulated industries.

  Memory

  The HPE Proliant DL360 Gen9 Rack Server is equipped with 16GB DDR4 memory, providing users with ample capacity for their computing needs. The inclusion of DDR4 memory technology offers several benefits over its predecessors.

  Improved Performance

  DDR4 memory delivers higher data transfer rates compared to DDR3, resulting in improved overall system performance. The increased bandwidth allows for faster data access and retrieval, reducing latency and enhancing the server's ability to handle demanding workloads. This is particularly advantageous for businesses that rely on memory-intensive applications or perform data-intensive tasks.

  Increased Efficiency

  DDR4 memory operates at lower voltage levels, consuming less power than previous generations. This not only reduces energy costs but also contributes to overall system efficiency. The HPE Proliant DL360 Gen9 Rack Server's 16GB DDR4 memory ensures efficient resource utilization, allowing businesses to optimize their server infrastructure and maximize their return on investment.

  Scalability and Future-Proofing

  The 16GB DDR4 memory provides a solid foundation for future scalability. Businesses can easily expand their server's memory capacity as their needs grow, ensuring that the server remains capable of handling evolving workloads. This scalability is essential for organizations that expect their computing requirements to increase over time and want to avoid costly hardware upgrades.

  Drive Bays

  The HPE Proliant DL360 Gen9 Rack Server features 8 SFF (Small Form Factor) drive bays, offering users a flexible and efficient storage solution.

  Increased Storage Capacity

  With 8 SFF drive bays, users can install a significant number of hard drives or solid-state drives (SSDs) to accommodate their storage needs. This allows businesses to store large amounts of data locally, eliminating the need for external storage devices and simplifying data management. The increased storage capacity is particularly valuable for organizations that deal with data-heavy applications or require extensive data storage.

  Improved Data Accessibility

  The 8 SFF drive bays enable users to configure their storage system in various ways, such as RAID configurations. RAID (Redundant Array of Independent Disks) provides data redundancy and improves data accessibility and reliability. By combining multiple drives into a single logical unit, RAID offers increased performance and protection against drive failures. This ensures that critical data remains accessible even in the event of a drive failure.

  Hot-Swappable Drives

  The HPE Proliant DL360 Gen9 Rack Server's drive bays are hot-swappable, meaning that drives can be replaced or added without shutting down the server. This feature minimizes downtime and allows for easy maintenance or expansion of storage capacity. Businesses can perform necessary drive replacements or upgrades without interrupting their operations, resulting in improved productivity and reduced potential revenue loss.

  Part Number

  The HPE Proliant DL360 Gen9 Rack Server is identified by the part number 800079-S01. This unique identifier is essential for users when making inquiries, ordering parts, or seeking technical support.

  Easy Identification

  The part number serves as a convenient way to identify and differentiate the HPE Proliant DL360 Gen9 Rack Server from other models or generations. Users can quickly reference the part number when communicating with suppliers or service providers, ensuring accurate product identification and minimizing any confusion.

  Compatibility Assurance

  The part number also helps ensure compatibility when ordering additional components or accessories for the server. By providing the specific part number, users can be confident that they are purchasing items that are designed to work seamlessly with their HPE Proliant DL360 Gen9 Rack Server. This eliminates potential compatibility issues and simplifies the procurement process.

  Technical Support and Documentation

  The part number is crucial when seeking technical support or accessing product documentation. Service providers and support teams rely on the part number to identify the exact model and provide accurate assistance. Additionally, users can easily locate relevant product documentation, such as user manuals or firmware updates, by referencing the part number. This ensures that users have access to the necessary resources to maintain and troubleshoot their server effectively.
