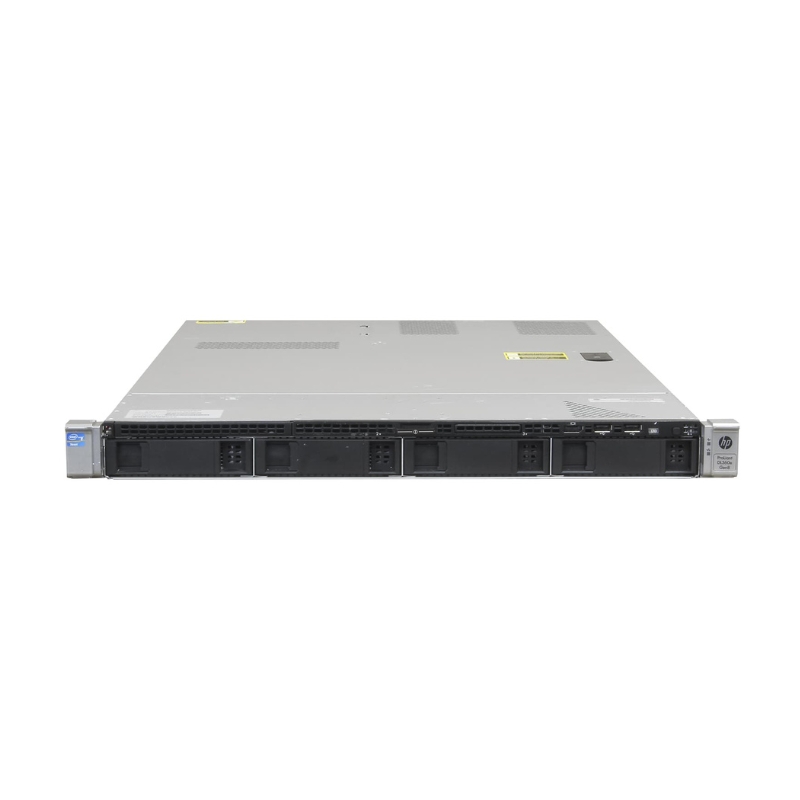

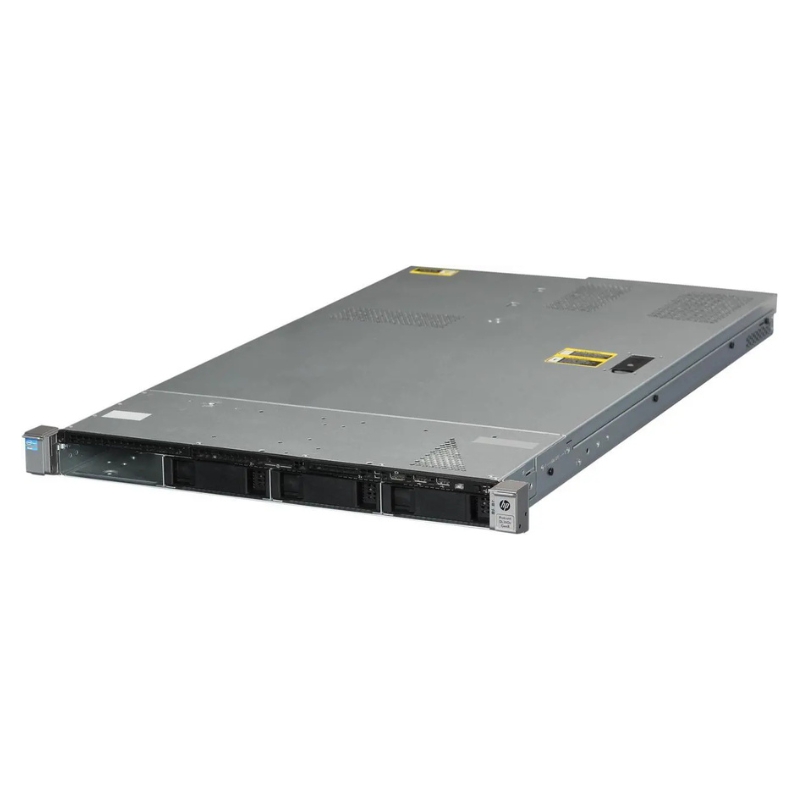

HPE Proliant DL360e G8 1U Rack Server 668812-001

Processor

The HPE DL360e G8 Rack Server is equipped with the powerful Intel Xeon E5-2403 processor, making it an excellent choice for businesses and organizations that require high-performance computing capabilities. The Intel Xeon E5-2403 is a quad-core processor that operates at a base frequency of 1.8GHz. It offers a number of benefits and features that are essential for users in various industries.

General Product Overview

• Manufacturer: HPE
• Part Number: 668812-001
• Product Name: Proliant DL360e G8 1U Rack Server

Processor and Chipset Details

Processor Specifications

• Type: Intel Xeon E5-2403
• Clock Speed: 1.8 GHz
• Cores: Quad-core
• 64-bit Computing: Supported
• Quantity Installed: 1
• Maximum CPUs: 2
• Upgrade Potential: Upgradable

Processor Features

• Hyper-threading Technology
• Intel QuickPath Interconnect
• Intel Turbo Boost Technology 2

Chipset

• Type: Intel C600

Cache Memory

• Total Installed Size: 10 MB L3 Cache
• Per Processor Cache: 10 MB

Memory Configuration

Installed and Maximum Capacity

• Installed Size: 4 GB
• Maximum Size: 192 GB

Memory Technology

• Type: DDR3 SDRAM
• Speed: 1333 MHz
• Compliance: PC3-10600
• Form Factor: LRDIMM 240-pin
• Features: Load-Reduced DIMM (LRDIMM)

Configuration

• 1 x 4 GB

Storage and Controller

Storage Configuration

• Hard Drive: No standard hard drive included, 4 LFF hard drive blanks included
• Internal Storage Bays: 4 LFF HDD bays

Storage Controller

• Type: RAID - Integrated - PCI Express 2.0 x4
• Controller Interface: SATA-600 / SAS 2.0
• Controller Name: HP Dynamic Smart Array B320i
• Channel Quantity: 8
• RAID Levels Supported: RAID 0, RAID 1, RAID 10

Display and Graphics

• Graphics Controller: Integrated
• Graphics Processor: Matrox G200

Networking and Communication

Network Interfaces

• Type: Integrated
• Bus Type: PCI Express 2.0 x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP Ethernet 1GB 4-Port 366i Adapter
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management

• Protocols: SNMP, IPMI 2.0, SMASH CLP
• Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion and Connectivity

Expansion Bays

• Total Bays: 1 External, 4 Hot-swap - 3.5in LFF

Expansion Slots

• Memory Slots: 12 total (11 free), LRDIMM 240-pin
• CPU Slots: 2 total (1 free)
• PCIe Slots: 1 x PCIe 3.0 x16 (Half-length, Full-height), 1 x PCIe 2.0 x8 (Low-profile, X4 Mode)
• SD Card Slot: 1 total (1 free)

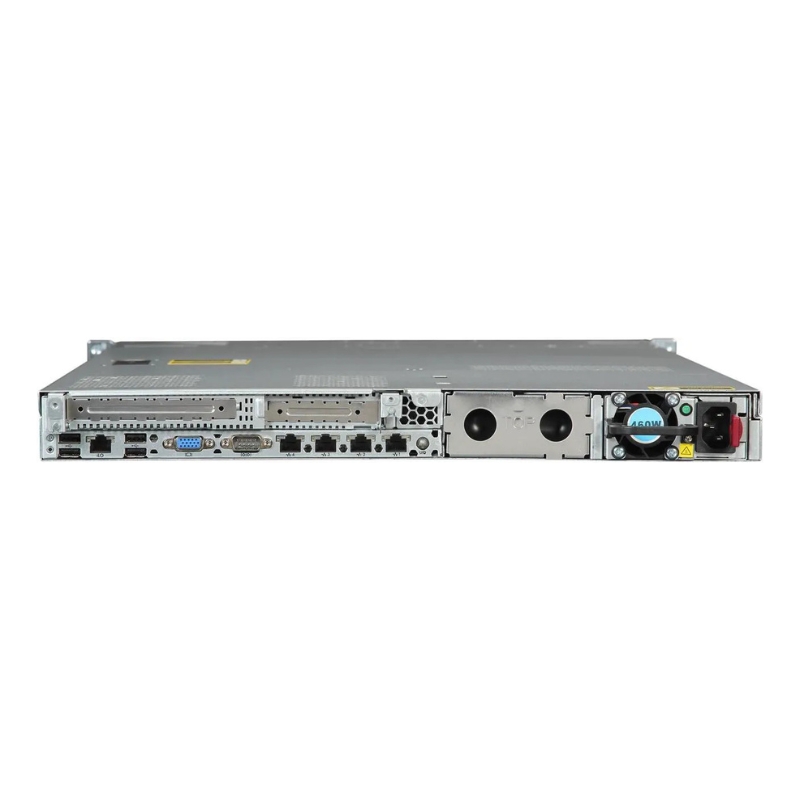

Interfaces and Ports

• 2 x Display/Video (1 Front, 1 Rear)
• 4 x LAN (Gigabit Ethernet)
• 6 x USB 2.0 (2 Front, 4 Rear)
• 1 x HP iLO
• 1 x Serial

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Yes (1+1 scheme)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Output: 460 Watts
• 80 Plus Certification: 80 Plus Gold

Physical Dimensions

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 29.1 lbs

Improved Performance

With the Intel Xeon E5-2403 processor, the HPE DL360e G8 Rack Server delivers exceptional performance in terms of processing power and overall system responsiveness. The quad-core architecture allows for efficient multitasking, enabling users to run multiple applications simultaneously without experiencing any significant slowdowns. This is particularly important for businesses that rely on resource-intensive applications or require substantial computing power to handle complex tasks.

Enhanced Efficiency

The Intel Xeon E5-2403 processor is designed to optimize power consumption while maintaining high levels of performance. This means that the HPE DL360e G8 Rack Server can operate efficiently without consuming excessive amounts of energy. By reducing power consumption, businesses can minimize their environmental footprint and lower utility costs without compromising on performance.

Advanced Virtualization Capabilities

Virtualization has become an integral part of modern IT infrastructures, allowing businesses to maximize resource utilization and streamline operations. The Intel Xeon E5-2403 processor supports advanced virtualization technologies such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These features enable businesses to create virtual environments with improved performance, security, and manageability.

Intel Virtualization Technology (VT-x)

Intel Virtualization Technology (VT-x) enhances virtual machine performance by allowing hardware-level virtualization support. This means that businesses can run multiple virtual machines simultaneously without experiencing significant performance degradation. With VT-x, users can enjoy seamless virtualization capabilities, making it easier to deploy, manage, and scale virtualized environments.

Intel Virtualization Technology for Directed I/O (VT-d)

Intel Virtualization Technology for Directed I/O (VT-d) enhances security and performance in virtualized environments by providing direct I/O device assignment to specific virtual machines. This allows users to allocate dedicated hardware resources to critical applications or workloads, ensuring optimal performance and reducing the risk of data breaches.

Scalability and Flexibility

The Intel Xeon E5-2403 processor offers excellent scalability, allowing businesses to easily expand their IT infrastructure as their needs grow. The HPE DL360e G8 Rack Server can accommodate additional processors, providing the ability to scale up processing power when necessary. This scalability ensures that the server can effectively handle future workloads without the need for a complete hardware overhaul.

Multi-Processor Support

The HPE DL360e G8 Rack Server supports multi-processor configurations, which means that businesses can add additional Intel Xeon E5-2403 processors to increase processing power. This is particularly beneficial for organizations that require high-performance computing or run resource-intensive applications.

Flexible Configuration Options

The HPE DL360e G8 Rack Server offers flexible configuration options, allowing businesses to customize the server to meet their specific requirements. Whether it's additional memory, storage capacity, or expansion slots, users can easily tailor the server to suit their needs. This flexibility ensures that businesses can optimize their IT infrastructure for maximum efficiency and productivity.

Processor Speed

The HPE DL360e G8 Rack Server boasts a processor speed of 1.8GHz, which plays a crucial role in determining the overall performance and responsiveness of the server. The processor speed refers to the frequency at which the processor executes instructions per second. A higher processor speed translates to faster data processing, enabling businesses to handle demanding workloads efficiently.

Improved Application Performance

The 1.8GHz processor speed of the HPE DL360e G8 Rack Server ensures smooth and efficient execution of applications. Tasks such as data analysis, virtualization, and database management require significant processing power, and a higher processor speed enables users to complete these tasks quickly and efficiently. This is particularly important for businesses that rely on time-sensitive operations or require real-time data processing capabilities.

Reduced Response Time

The faster the processor speed, the quicker the server can respond to user requests. With a processor speed of 1.8GHz, the HPE DL360e G8 Rack Server minimizes response times, allowing users to access applications, files, and databases without experiencing significant delays. Reduced response time improves productivity and user satisfaction as employees can complete their tasks more efficiently.

Smooth Multitasking

In today's fast-paced business environment, multitasking has become a necessity. The 1.8GHz processor speed of the HPE DL360e G8 Rack Server enables smooth multitasking by ensuring that multiple applications can run simultaneously without noticeable performance degradation. This is particularly important for businesses that rely on multitasking capabilities to handle complex workflows or run resource-intensive applications.

Efficient Resource Allocation

The 1.8GHz processor speed allows for efficient allocation of resources across multiple tasks or applications. By quickly processing instructions, the server can allocate computing power based on workload demands, ensuring optimal performance for each task. Efficient resource allocation minimizes bottlenecks and maximizes overall system performance.

Seamless Collaboration

Collaboration is essential for businesses to thrive and innovate. With a processor speed of 1.8GHz, the HPE DL360e G8 Rack Server enables seamless collaboration by ensuring that users can access shared files, collaborate on projects, and communicate in real-time without any significant lag. This promotes productivity and efficient teamwork, ultimately driving business success.

Form Factor

The HPE DL360e G8 Rack Server features a compact 1U form factor, making it an ideal choice for businesses and organizations with limited rack space. The form factor refers to the physical dimensions and shape of the server, and the 1U form factor offers several benefits and advantages for users.

Space Efficiency

The 1U form factor of the HPE DL360e G8 Rack Server is designed to maximize space efficiency in server racks. With its compact size, the server takes up minimal vertical space, allowing businesses to optimize their rack layouts and accommodate more servers or networking equipment in the same rack. This is particularly important for data centers or server rooms where space is often limited.

Improved Airflow and Cooling

The 1U form factor also promotes improved airflow and cooling within the server rack. The compact design allows for better air circulation, which helps dissipate heat generated by the server components more effectively. Improved cooling ensures that the server operates within optimal temperature ranges, reducing the risk of hardware failures due to overheating and prolonging the lifespan of the server.

Easy Maintenance and Accessibility

The 1U form factor makes it easier to access and maintain the HPE DL360e G8 Rack Server. With its shallow depth, users can conveniently reach all components of the server without having to remove it from the rack. This simplifies routine maintenance tasks such as replacing hard drives, adding memory modules, or troubleshooting issues, minimizing downtime and improving overall system reliability.

Hot-Swap Capabilities

The 1U form factor of the HPE DL360e G8 Rack Server often includes hot-swap capabilities, allowing users to replace or add components without powering down the server. This further reduces downtime and enhances system availability as businesses can perform maintenance or upgrades on the server without interrupting critical operations.

Modular Design

Many 1U servers, including the HPE DL360e G8 Rack Server, feature a modular design that allows for easy customization and expansion. Users can add or remove components such as storage drives, expansion cards, or networking modules without requiring significant reconfiguration. The modular design ensures scalability and flexibility, enabling businesses to adapt their server configurations based on changing needs.

Part Number

The HPE DL360e G8 Rack Server has a part number of 668812-001, which serves as a unique identifier for this specific server model. The part number carries essential information about the server's specifications, compatibility, and compatibility with other components.

Product Identification

The part number, 668812-001, allows users to easily identify and differentiate the HPE DL360e G8 Rack Server from other server models. This is particularly important when ordering or sourcing replacement parts or additional servers to ensure compatibility within the existing IT infrastructure. The part number serves as a reference point for users, IT administrators, and vendors to accurately identify the specific server model.

Compatibility Assurance

The part number also helps ensure compatibility between various components and accessories. It provides essential information about the server's specifications, such as processor type, memory capacity, storage options, and expansion slots. By referencing the part number, users can verify that the selected components are compatible with the HPE DL360e G8 Rack Server, preventing potential compatibility issues and ensuring seamless integration.

Service and Support

The part number is invaluable when seeking technical support or warranty services. By providing the part number, users can quickly communicate the specific server model to support representatives, streamlining the troubleshooting and resolution process. Additionally, it allows vendors to identify the server's warranty status and provide appropriate support or replacement options.

Efficient Inventory Management

For businesses that manage a large number of servers or maintain an inventory of spare parts, the part number facilitates efficient inventory management. By organizing servers and components based on their part numbers, businesses can easily track stock levels, perform audits, and ensure that the necessary parts are available when needed. This helps minimize downtime and ensures smooth operations.

Future Upgrades and Scalability

The part number plays a crucial role in future upgrades and scalability planning. By referencing the part number, users can identify the server model's specifications and determine its upgrade capabilities. This allows businesses to plan future expansions or upgrades with confidence, ensuring that the HPE DL360e G8 Rack Server can accommodate their evolving needs without compatibility issues.

In conclusion, the HPE DL360e G8 Rack Server's Intel Xeon E5-2403 processor, operating at 1.8GHz, delivers exceptional performance, efficiency, and scalability. The quad-core architecture enables efficient multitasking and advanced virtualization capabilities. The 1.8GHz processor speed ensures improved application performance, reduced response time, smooth multitasking, and efficient resource allocation. The 1U form factor promotes space efficiency, improved airflow and cooling, easy maintenance and accessibility, while the part number serves as a unique identifier for the specific server model, facilitating product identification, compatibility assurance, service and support, efficient inventory management, and future upgrades. Overall, these features make the HPE DL360e G8 Rack Server a reliable and powerful solution for businesses and organizations in need of high-performance computing capabilities.
