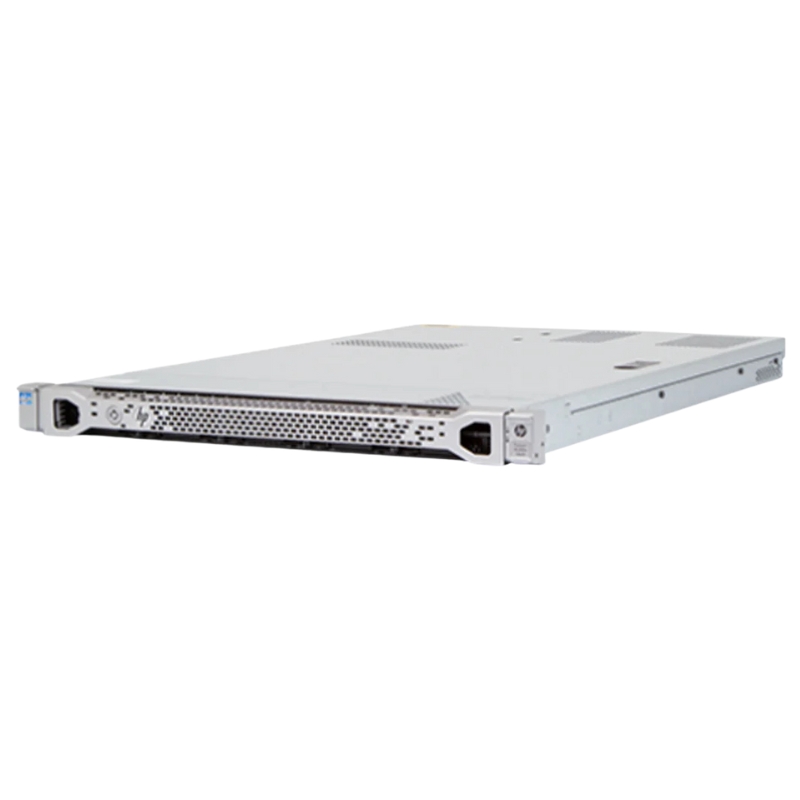

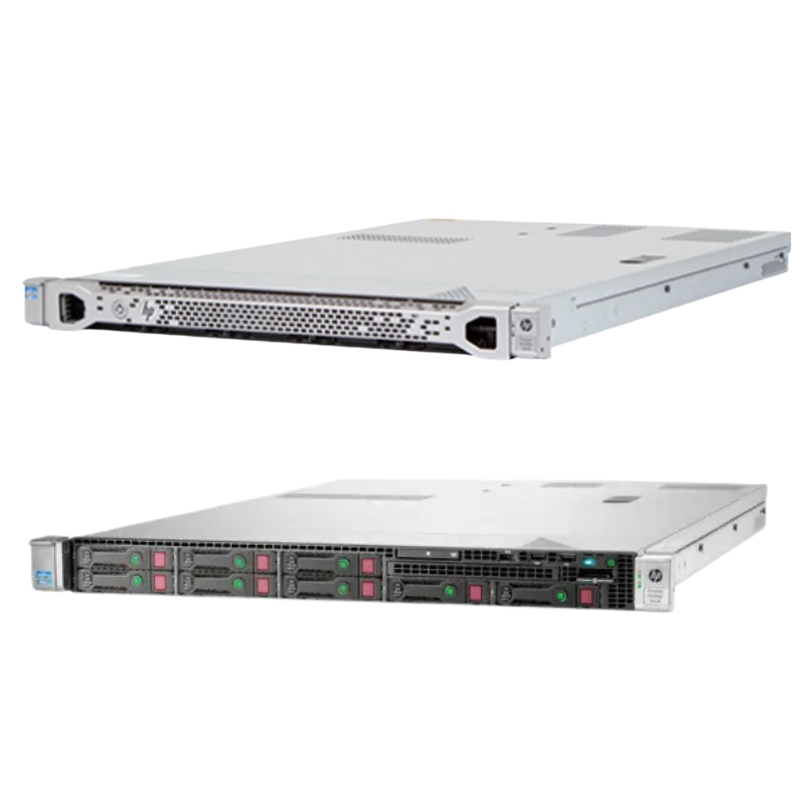

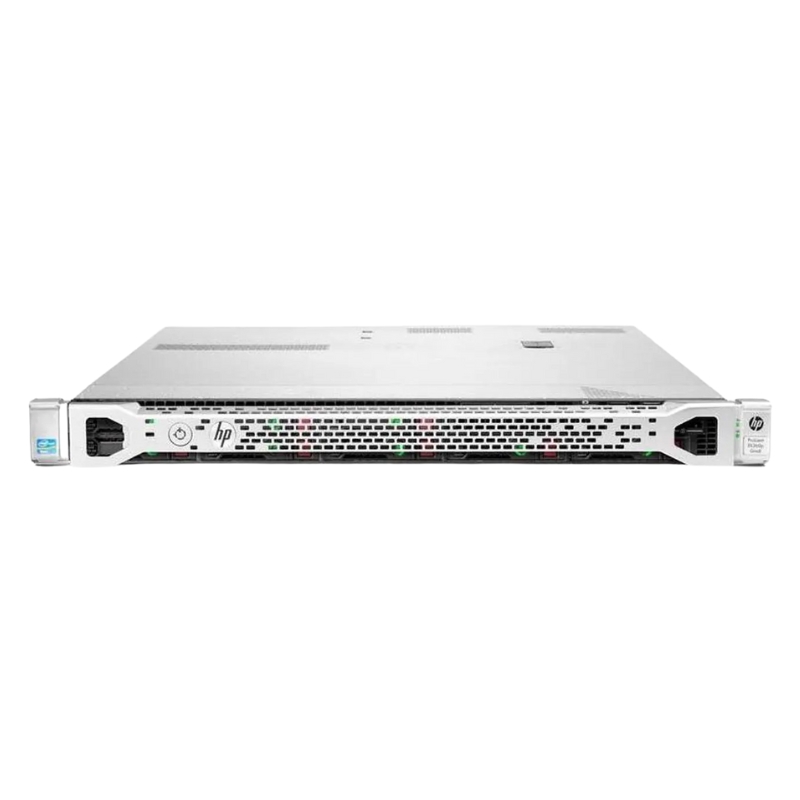

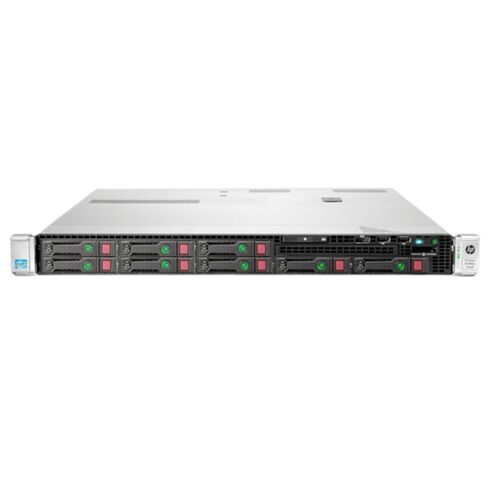

HPE Proliant Dl360p 748592-001 Xeon 2.7GHz 12 Core 32GB DDR3 Server

Processor

The HPE DL360p Server is equipped with a powerful Xeon 2.7GHz 12 Core processor, making it an exceptional choice for businesses and organizations seeking high-performance computing capabilities. With its impressive processing power, this server can handle complex tasks and demanding workloads with ease.

General Specification of Xeon 2.7GHz

Manufacturer: Hewlett Packard Enterprise
Part Number: 748592-001
Product Name: Proliant DL360p G8 1U-Rack Server

Processor & Chipset

• Type: Intel Xeon E5-2697v2
• Clock Speed: 2.7 GHz
• Technology: Multi-core (12-core)
• 64-bit Computing: Yes
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Upgradability: Upgradable

Chipset Information

• Model: Intel Xeon E5-2697v2

Cache Memory

• Type: L3 Cache
• Installed Size: 60 MB
• Cache Per Processor: 30 MB

Memory

• Size: 32 GB (expandable up to 384 GB)
• Technology: DDR3 SDRAM
• Speed: 1866 MHz
• Specifications Compliance: PC3-14900
• Form Factor: DIMM 240-pin
• Total Memory Slots: 24
• Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, Low-voltage, HP SmartMemory

Supported RAM Configurations

• PC3-14900 - 384 GB - Registered
• PC3-12800 - 384 GB - Low Voltage - Registered
• PC3-12800 - 768 GB - Low Voltage - Load-reduced
• PC3-14900 - 128 GB - Unbuffered - Advanced ECC
• PC3-12800 - 128 GB - Low Voltage - Unbuffered - Advanced ECC

Storage & Storage Controllers

None included

Storage Controller

• Type: RAID - Integrated - PCI Express 3.0 x8
• Interface Type: Serial ATA-600 / SAS 2.0
• Controller Name: Smart Array P420i with 1GB FBWC
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50
• Buffer Size: 1 GB

Card Reader

• Memory Card Reader: Yes
• Supported Flash Memory Cards: Secure Digital (SD) Card

Display & Graphics

• Graphics Controller Manufacturer: Matrox
• Model: G200
• Video Interfaces: VGA

Network & Communication

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express 2.0 x8
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller(s): HP 331FLR-T
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

• Total Bays: 1 x Front Accessible - 5.25in
• Free Bays: 8 x Hot-swap - 2.5in SFF

Expansion Slots

• Total: 24 (Memory - DIMM 240-pin), 2 (Processor)
• Free: 22 (Memory), 0 (Processor)
• PCI Express Slots: 1 x PCI Express 3.0 x16 (Half-length, Full-height), 1 x PCI Express 3.0 x8 (Low-profile)
• FlexibleLOM Slot: 1 (x4 Mode)

Interfaces & Ports

• Serial: 1 x RS-232 - 9 Pin D-sub (DB-9)
• Display / Video: 1 x VGA - 15 Pin HD D-sub (HD-15)
• USB: 7 x USB - 4 Pin USB Type A (2 Front, 4 Rear, 1 Internal)

Power Description

• Device Type: Power Supply - Hot-plug
• Redundancy: Yes (1+1 with Optional Power Supply)
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 750 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Height: 1.7 Inches
• Width: 17.1 Inches
• Depth: 27.5 Inches
• Weight: 32.0 lbs

Enhanced Performance

The Xeon 2.7GHz 12 Core processor offers enhanced performance compared to lower-end processors. Its higher clock speed allows for faster data processing, enabling users to complete tasks more efficiently. Whether you're running resource-intensive applications or handling large databases, this processor ensures smooth and responsive performance.

Multi-Threaded Performance

With 12 cores and support for hyper-threading, the Xeon processor enables simultaneous multi-threading, effectively doubling the number of available processing threads. This feature is particularly advantageous for applications that can take advantage of parallel processing, such as virtualization, data analysis, and content creation. The server can handle multiple tasks simultaneously without compromising performance.

Scalability

The HPE DL360p Server's Xeon 2.7GHz 12 Core processor provides scalability to meet the evolving needs of your business. Whether you're starting with basic computing requirements or planning to expand your operations in the future, this processor offers the flexibility to scale up or down as needed. You can easily upgrade to a higher core count or opt for faster clock speeds to keep up with increasing workloads.

Memory

The HPE DL360p Server boasts a generous 32GB DDR3 memory capacity, providing ample space to store and access critical data efficiently. The memory plays a crucial role in ensuring smooth and efficient operations for your server infrastructure.

Improved Performance

With 32GB of DDR3 memory, this server can handle multiple tasks and concurrent processes without experiencing performance bottlenecks. The increased memory capacity enables faster data retrieval and processing, resulting in improved overall performance. Whether you're running complex applications or handling numerous virtual machines, the server can handle the workload seamlessly.

Resource Allocation

The ample memory capacity allows for efficient resource allocation, ensuring that each application or process has sufficient memory to operate optimally. This prevents memory contention and ensures that critical tasks are not slowed down by resource limitations. Additionally, the server's advanced memory management capabilities enable intelligent caching and prefetching, further enhancing performance.

Future-Proofing

As technology continues to evolve, the demand for memory-intensive applications and workloads increases. The 32GB DDR3 memory capacity of the HPE DL360p Server provides room for growth and future-proofing your infrastructure. You can expand the memory capacity as your business requirements evolve, ensuring that your server remains capable of handling future challenges.

Part Number

The HPE DL360p Server's part number, 748592-001, is a unique identifier that allows you to easily identify and order replacement parts or upgrades for your server. It serves as a convenient reference when communicating with technical support or purchasing additional components.

Efficient Troubleshooting

Having a specific part number simplifies troubleshooting processes, especially when dealing with complex server configurations. In case of hardware failure or issues, knowing the part number allows you to quickly identify the faulty component and order a replacement. This minimizes downtime and ensures that your server is up and running smoothly.

Compatibility Assurance

Part number 748592-001 ensures compatibility with other components and accessories designed for the HPE DL360p Server. When expanding or upgrading your server infrastructure, it is crucial to ensure that new components are compatible with existing ones. By referencing the part number, you can be confident that the replacement parts or upgrades you purchase will seamlessly integrate with your server.

Streamlined Procurement

When ordering parts or upgrades for your HPE DL360p Server, providing the part number simplifies the procurement process. It ensures that you receive the correct components, reducing the risk of ordering errors and costly returns. Additionally, the part number helps streamline communication with suppliers, allowing for more efficient and accurate transactions.

In conclusion, the HPE DL360p Server's Xeon 2.7GHz 12 Core processor, 32GB DDR3 memory, and part number 748592-001 offer significant benefits and importance to users. The processor's enhanced performance, multi-threading capabilities, and scalability provide exceptional computing power for demanding workloads. The generous memory capacity improves overall performance and resource allocation while allowing for future expansion. The unique part number simplifies troubleshooting, ensures compatibility, and streamlines procurement processes. With these features, the HPE DL360p Server is a reliable and efficient choice for businesses and organizations requiring robust server capabilities.
