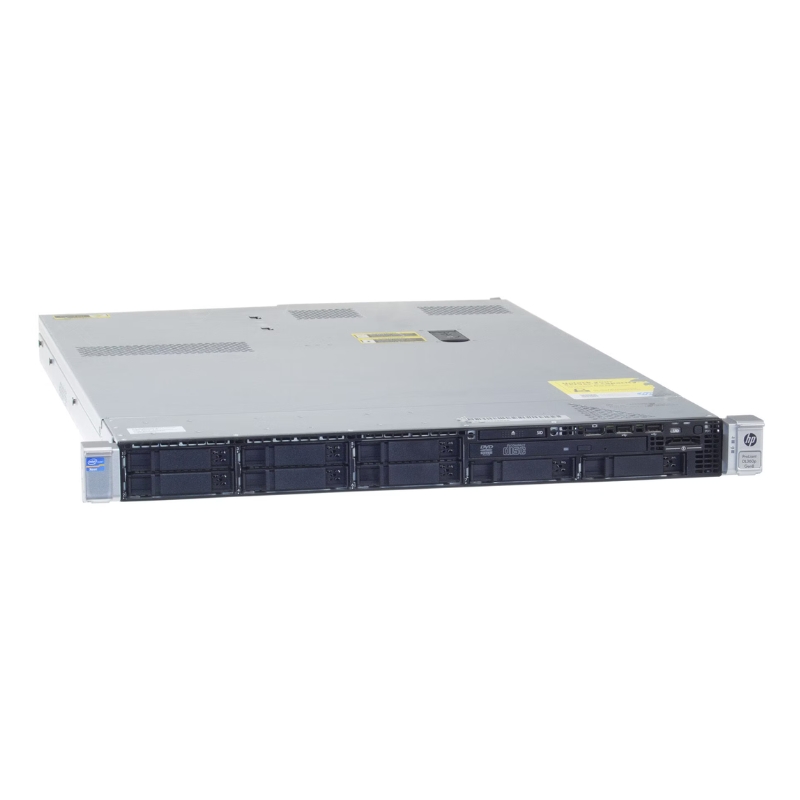

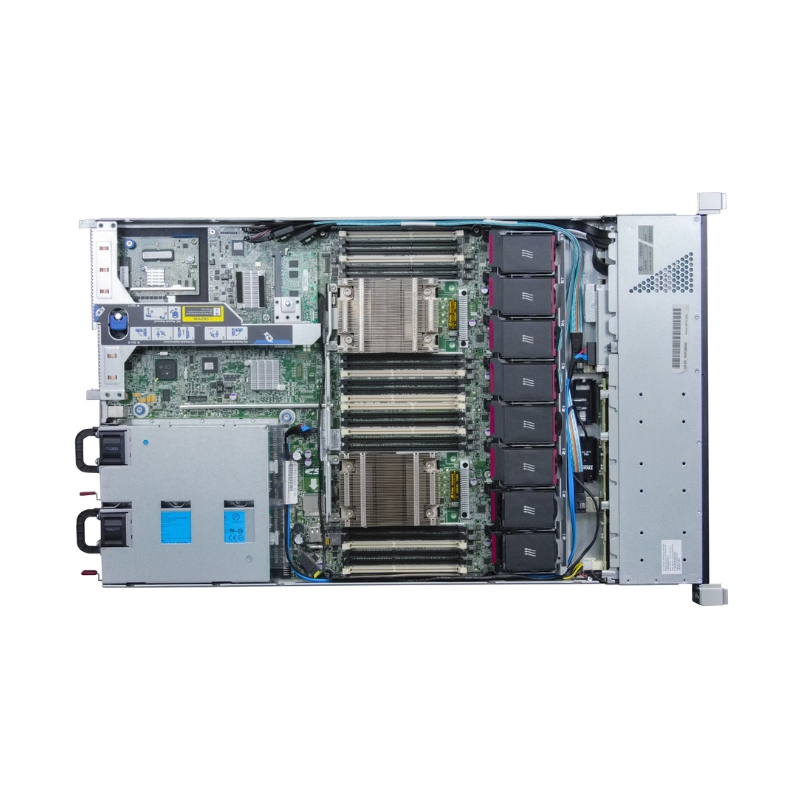

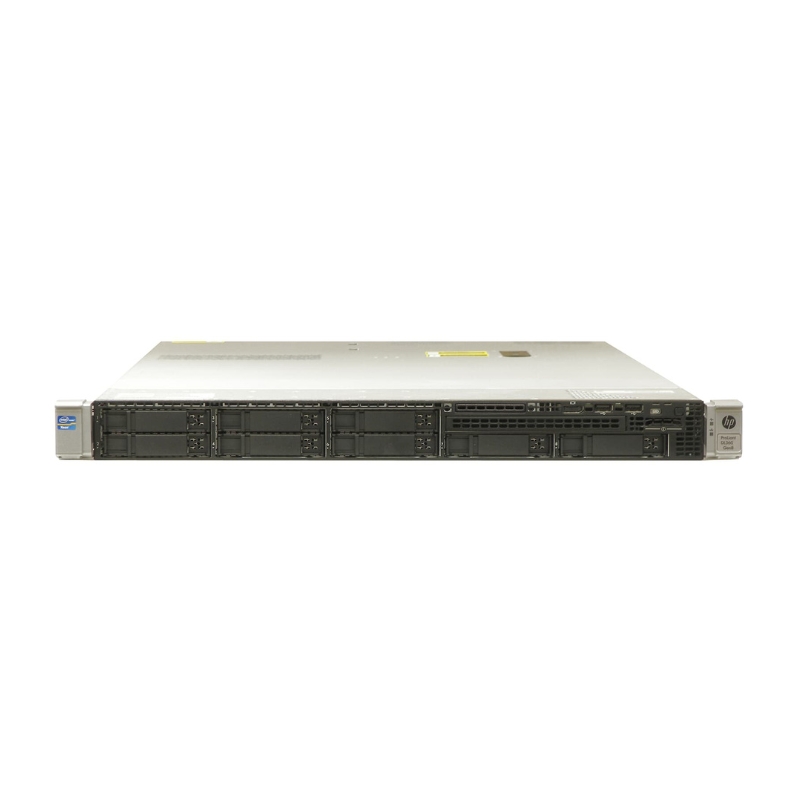

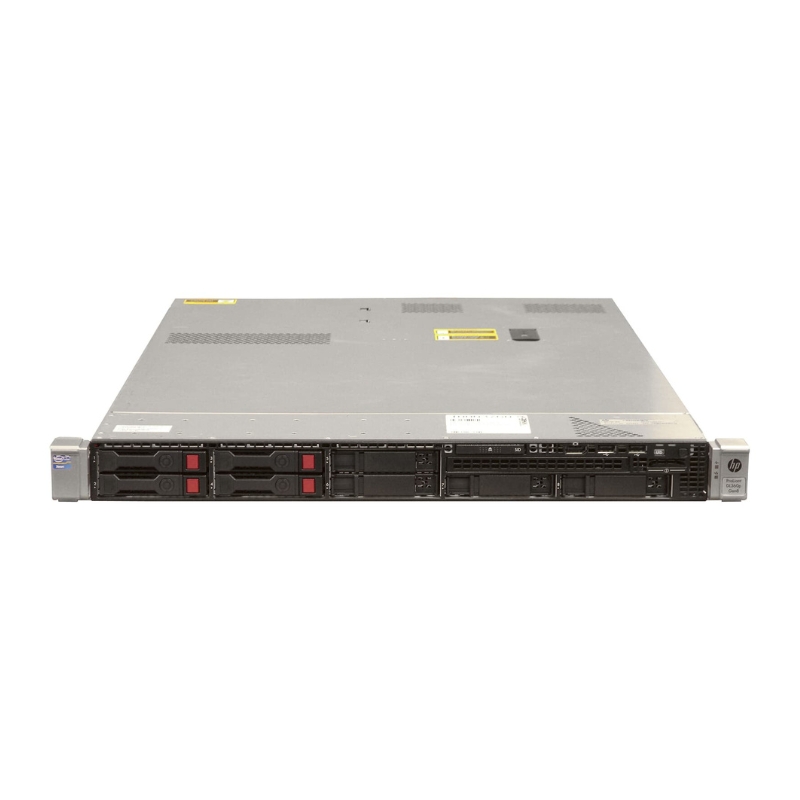

HPE Proliant DL360p G8 1U Rack Server 677199-001 2 X Xeon E5-2630 2.30 GHz

Processor

The HPE Proliant Dl360p G8 1U Rack Server is equipped with 2 X Xeon E5-2630 2.30 GHz processors, making it a powerful and efficient choice for various computing needs.

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Part Number: 677199-001
• Model: Proliant DL360p Gen8 (Energy Star Model)

Processor and Chipset

Processor Specifications

• Processor Type: Intel Xeon E5-2630 / 2.3 GHz
• Number of Cores: 6-core
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• 64-bit Computing: Yes
• Upgrade Capability: Upgradable
• Chipset: Intel C600

Cache Memory

Cache Details

• Cache Memory Type: L3 Cache
• Installed Size: 30 MB
• Cache Per Processor: 15 MB

Memory Specifications

Memory Configuration

• Installed Memory Size: 16 GB (up to 384 GB)
• Memory Technology: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Memory Speed Rating: 1333 MHz
• Memory Specification Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Memory Slots: 24 total, 20 empty
• Features: Registered, Quad Channel Memory Architecture, HP SmartMemory
• Configuration Example: 4 x 4 GB
• Supported RAM: PC3-12800 (up to 384 GB Registered), PC3-10600 (up to 768 GB Registered), PC3-10600 (up to 128 GB Unbuffered - Advanced ECC)

Storage and Optical Drives

Storage Details

• Hard Drive: None
• Optical Drive Type: None

Storage Controller

Controller Specifications

• Type: 1 x RAID - Integrated - PCIe 3.0 x8
• Controller Interface Type: SATA 6Gb/s / SAS 6Gb/s
• Controller Name: Smart Array P420i with 1GB FBWC
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
• Buffer Size: 1 GB

Graphics and Display

Graphics Specifications

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking and Communication

Network Interface

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion and Connectivity

Expansion Bays

• External 5.25-inch Bay: 1 total, 1 free
• Hot-Swap 2.5-inch SFF Bays: 8 total, 8 free

Expansion Slots

• DIMM 240-pin Slots: 24 total, 20 free
• CPU Slots: 2 total, 0 free
• PCIe 3.0 x16 Slot: 1 total, 1 free (Half-length, Full-height)
• PCIe 3.0 x8 Slot: 1 total, 1 free (Low-profile)
• FlexibleLOM Slot: 1 total, 0 free (X4 Mode)

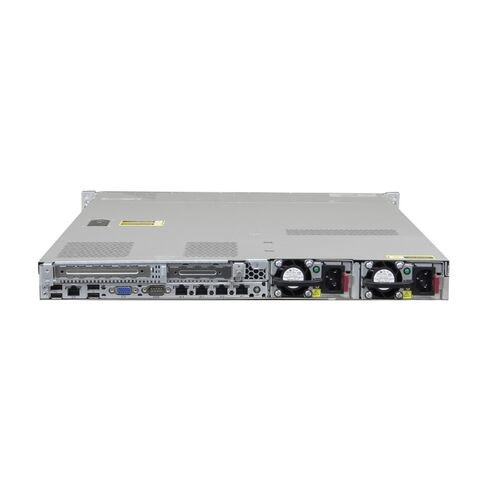

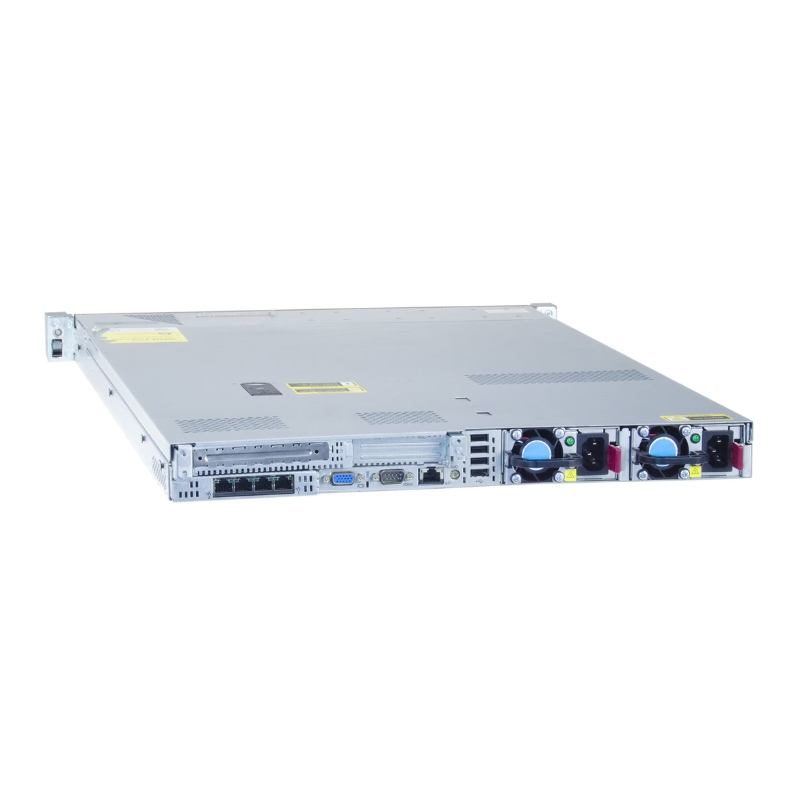

Interfaces and Ports

• Serial Port: 1
• VGA Port: 1
• LAN (Gigabit Ethernet) Ports: 4
• HP iLO Port: 1
• USB 2.0 Ports: 7 (2 Front, 4 Rear, 1 Internal)

Miscellaneous Features

Additional Features

• Administrator Password
• Power-on Password
• Serial Port I/O Control
• Redundant Fans

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• BSMI CNS 13438

Power Specifications

Power Supply Details

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional
• Power Redundancy

  Enhanced Performance

  The Xeon E5-2630 processor is designed to deliver exceptional performance and reliability. With a base clock speed of 2.30 GHz and the ability to turbo boost up to 2.80 GHz, this processor can handle demanding workloads with ease. Whether you need to run resource-intensive applications or perform complex calculations, the Xeon E5-2630 ensures smooth and efficient operation.

  Multi-Core Technology

  One of the key advantages of the Xeon E5-2630 processor is its multi-core technology. With 6 cores and 12 threads per processor, this server can handle multiple tasks simultaneously without sacrificing performance. This allows for efficient multitasking and improved overall system responsiveness.

  Increased Productivity

  The Xeon E5-2630 processor's advanced architecture and high clock speed enable faster data processing, resulting in increased productivity. Whether you're running virtual machines, hosting databases, or performing data analysis, this processor ensures that tasks are completed quickly and efficiently, allowing you to focus on your core business objectives.

  Energy Efficiency

  In addition to its impressive performance capabilities, the Xeon E5-2630 processor is also designed with energy efficiency in mind. It features Intel's Turbo Boost Technology, which dynamically adjusts the processor's power usage based on workload demands. This not only helps to reduce power consumption but also lowers operational costs and contributes to a greener IT infrastructure.

  Reliability and Scalability

  The Xeon E5-2630 processor is known for its reliability and scalability. It is built to withstand heavy workloads and offers support for advanced features such as virtualization and server consolidation. Whether you're a small business looking to expand or an enterprise-level organization in need of a robust server solution, the Xeon E5-2630 processor ensures that your system can grow with your business.

  Future-Proofing

  Investing in a server with the Xeon E5-2630 processor provides you with a future-proof solution. As technology continues to advance, having a powerful processor like the Xeon E5-2630 ensures that your server can handle upcoming software updates and emerging technologies. This helps to extend the lifespan of your server, reducing the need for frequent hardware upgrades.

  Overall, the Xeon E5-2630 2.30 GHz processor in the HPE Proliant Dl360p G8 1U Rack Server offers exceptional performance, energy efficiency, reliability, scalability, and future-proofing capabilities. Whether you're running resource-intensive applications, handling large datasets, or managing virtual environments, this processor ensures that your server can handle demanding workloads with ease.

  Memory

  The HPE Proliant Dl360p G8 1U Rack Server is equipped with 16 GB DDR3 SDRAM memory, providing fast and reliable data storage and retrieval capabilities.

  Improved Performance

  The 16 GB DDR3 SDRAM memory in this server significantly improves overall system performance. With ample memory capacity, the server can efficiently handle multiple tasks simultaneously without experiencing slowdowns or bottlenecks. This is particularly important for businesses that rely on data-intensive applications or virtualization technologies.

  Enhanced Multitasking

  With 16 GB of memory, users can seamlessly switch between applications and perform complex tasks without experiencing lag or delays. This allows for efficient multitasking and increased productivity, as users can work on multiple projects simultaneously without sacrificing performance.

  Optimized Workload Management

  The 16 GB DDR3 SDRAM memory ensures that the server can effectively manage and allocate resources to different applications and processes. This is particularly crucial in virtualized environments where multiple virtual machines are running concurrently. The ample memory capacity allows for smooth and efficient workload management, resulting in improved system responsiveness and reduced downtime.

  Faster Data Access

  The DDR3 SDRAM memory technology offers faster data access speeds compared to its predecessors. This means that data can be retrieved from memory more quickly, resulting in reduced latency and improved application performance. Whether you're accessing large databases or running complex queries, the 16 GB DDR3 SDRAM memory ensures that data is readily available, enabling faster decision-making and analysis.

  Scalability and Expandability

  The 16 GB memory capacity of the HPE Proliant Dl360p G8 1U Rack Server provides room for future expansion. As your business grows and demands increase, you can easily upgrade the memory to meet your evolving needs. This scalability allows you to optimize your server's performance without needing to invest in an entirely new system.

  In summary, the 16 GB DDR3 SDRAM memory in the HPE Proliant Dl360p G8 1U Rack Server offers improved performance, enhanced multitasking capabilities, optimized workload management, faster data access, and scalability. Whether you're a small business or an enterprise-level organization, this server's memory capacity ensures smooth operation and efficient resource allocation.

  Storage

  The HPE Proliant Dl360p G8 1U Rack Server comes with 0 HDD storage. While this may seem surprising at first, it provides users with the flexibility to choose their preferred storage solution based on their specific needs.

  Customizable Storage Options

  By not including HDD storage by default, HPE allows users to tailor the server's storage configuration to their individual requirements. This flexibility is particularly beneficial for businesses with unique storage needs or those looking to implement specific storage technologies such as solid-state drives (SSDs) or network-attached storage (NAS) solutions.

  Scalability and Capacity

  The absence of pre-installed HDDs does not limit the server's storage potential. Instead, it offers the opportunity to scale and expand the storage capacity according to your business's evolving needs. Whether you require a few terabytes or multiple petabytes of storage, the HPE Proliant Dl360p G8 1U Rack Server can accommodate your requirements.

  Cost Efficiency

  Not including HDDs by default allows businesses to optimize their storage investment. Instead of paying for pre-installed drives that may not align with their specific needs, users can invest in precisely the type and capacity of storage they require. This approach helps reduce unnecessary expenses and ensures that every dollar spent on storage delivers maximum value.

  Performance and Reliability

  The absence of pre-installed HDDs does not compromise the server's performance or reliability. In fact, it presents an opportunity to select high-performance drives that meet your business's performance requirements. Whether you choose SSDs for lightning-fast data access or enterprise-grade HDDs for robust reliability, the HPE Proliant Dl360p G8 1U Rack Server can deliver exceptional storage performance.

  Data Redundancy and Protection

  With customizable storage options, businesses can implement redundancy and data protection strategies that align with their specific needs. By choosing RAID configurations or implementing backup solutions, organizations can ensure that critical data is protected against drive failures or other unforeseen events. This flexibility is particularly important for businesses that handle sensitive or mission-critical data.

  In conclusion, the HPE Proliant Dl360p G8 1U Rack Server's 0 HDD storage offers users the opportunity to customize their storage configuration based on their unique needs. This flexibility allows for scalability, cost efficiency, optimized performance, and enhanced data protection, ensuring that your server's storage solution aligns perfectly with your business requirements.

  RAID

  The HPE Proliant Dl360p G8 1U Rack Server features the Smart P420i/1GB With Fbwc RAID controller, offering advanced data protection and performance optimization capabilities.

  Advanced Data Protection

  The Smart P420i/1GB With Fbwc RAID controller provides advanced data protection features such as RAID levels 0, 1, 5, 6, 10, 50, and 60. These RAID levels offer varying degrees of redundancy and fault tolerance, ensuring that your data remains safe even in the event of drive failures. With RAID technology, you can protect your critical data from loss or corruption, minimizing downtime and maintaining business continuity.

  Improved Performance

  The Smart P420i/1GB With Fbwc RAID controller enhances server performance through various optimization techniques. By distributing data across multiple drives in a RAID array, the controller enables parallel access to data, resulting in faster read and write speeds. This is particularly beneficial for applications that rely on intensive data processing or require high-speed access to large datasets.

  Data Integrity and Reliability

  With its built-in cache memory and battery-backed write cache (BBWC), the Smart P420i/1GB With Fbwc RAID controller ensures data integrity and reliability. The cache memory acts as a buffer between the server and the storage devices, optimizing data transfers and reducing latency. In the event of a power loss or system failure, the BBWC preserves data in the cache, preventing data loss or corruption.

  Flexibility and Scalability

  The Smart P420i/1GB With Fbwc RAID controller offers flexibility and scalability to accommodate various storage requirements. It supports a wide range of drive types, including SAS, SATA, and SSDs, allowing businesses to choose the most suitable drives for their needs. Additionally, the controller supports multiple RAID arrays, enabling organizations to create separate arrays for different applications or data types.

  Easy Management and Monitoring

  The Smart P420i/1GB With Fbwc RAID controller provides intuitive management and monitoring tools that simplify the administration of RAID configurations. These tools allow users to easily configure RAID arrays, monitor drive health and performance, and receive notifications about potential issues. With comprehensive monitoring capabilities, businesses can proactively address any storage-related concerns, ensuring optimal system performance and data availability.

  In summary, the Smart P420i/1GB With Fbwc RAID controller in the HPE Proliant Dl360p G8 1U Rack Server offers advanced data protection, improved performance, data integrity, reliability, flexibility, scalability, and easy management. By leveraging these features, businesses can ensure data availability, protect against data loss, enhance system performance, and optimize their storage infrastructure.

  Drive Bays

  The HPE Proliant Dl360p G8 1U Rack Server is equipped with 8 SFF (Small Form Factor) drive bays, providing ample storage capacity for various applications and workloads.

  High Storage Density

  The 8 SFF drive bays in this server offer high storage density in a compact form factor. This allows businesses to maximize their storage capacity while minimizing the physical footprint required. Whether you need to store large databases, multimedia files, or virtual machine images, the 8 SFF drive bays ensure that you have enough space to accommodate your data.

  Hot-Swap Capability

  The hot-swappable design of the 8 SFF drive bays allows for seamless maintenance and upgrades without interrupting server operation. This feature is particularly important for businesses that require high availability or continuous uptime. With hot-swappable drive bays, you can replace faulty drives or add additional storage capacity on the fly, minimizing downtime and ensuring uninterrupted business operations.

  Flexible Storage Configuration

  The 8 SFF drive bays provide flexibility in terms of storage configuration. You can choose to configure the server with a single RAID array spanning all the bays or create multiple arrays to separate different types of data or applications. This flexibility allows businesses to optimize their storage infrastructure based on their specific needs, enhancing performance and data management capabilities.

  Support for Various Drive Types

  The 8 SFF drive bays support a wide range of drive types, including SAS, SATA, and SSDs. This versatility allows businesses to choose the most suitable drives for their specific requirements. Whether you prioritize performance, capacity, or cost-effectiveness, the 8 SFF drive bays offer compatibility with various drive technologies, ensuring that you can tailor your storage solution to your unique needs.

  Improved Fault Tolerance

  By leveraging the 8 SFF drive bays, businesses can enhance fault tolerance and data protection capabilities. With more drive bays available, you have the option to implement RAID configurations that offer higher levels of redundancy and fault tolerance. This helps safeguard critical data against drive failures and ensures uninterrupted access to your valuable information.

  In conclusion, the 8 SFF drive bays in the HPE Proliant Dl360p G8 1U Rack Server offer high storage density, hot-swap capability, flexible storage configuration, support for various drive types, and improved fault tolerance. Whether you need to store large volumes of data or require high availability, these drive bays provide the necessary storage capacity and reliability to meet your business requirements.

  Networking

  The HPE Proliant Dl360p G8 1U Rack Server features a 1GB 4-Port 331flr Hot Plug networking solution, delivering high-speed connectivity and efficient data transfer capabilities.

  High-Speed Networking

  The 1GB 4-Port 331flr Hot Plug networking solution ensures fast and reliable connectivity for your server. With four Gigabit Ethernet ports, this server is capable of handling high network traffic and data transfers. Whether you're transferring large files, streaming multimedia content, or running bandwidth-intensive applications, the 1GB 4-Port 331flr Hot Plug networking solution ensures optimal network performance.

  Enhanced Data Transfer Efficiency

  The 1GB 4-Port 331flr Hot Plug networking solution supports advanced features such as TCP/IP Offload Engine (TOE) and Large Send Offload (LSO). These features offload certain network processing tasks from the CPU to the network interface card (NIC), improving overall system performance and reducing CPU utilization. This results in more efficient data transfers and increased throughput, allowing your server to handle demanding network workloads with ease.

  Flexible Network Configurations

  The four Gigabit Ethernet ports of the 1GB 4-Port 331flr Hot Plug networking solution enable flexible network configurations. You can choose to aggregate the ports for increased bandwidth or create separate network connections for different purposes, such as separating management traffic from user traffic. This flexibility allows businesses to optimize their network infrastructure based on their specific needs and ensure efficient data flow across their systems.

  Scalability and Compatibility

  The 1GB 4-Port 331flr Hot Plug networking solution supports industry-standard network protocols and is compatible with various operating systems and network management tools. This ensures seamless integration into existing network environments and simplifies the deployment and management processes. Additionally, the scalability of this networking solution allows businesses to expand their network capabilities as their needs grow, accommodating future network demands.

  Reliable Network Connectivity

  With redundant NICs and failover capabilities, the 1GB 4-Port 331flr Hot Plug networking solution provides reliable network connectivity. Redundant NICs ensure that your server remains connected even if one NIC fails, minimizing downtime and ensuring continuous access to network resources. This high level of reliability is particularly important for businesses that rely on constant network connectivity for mission-critical applications or services.

  In summary, the 1GB 4-Port 331flr Hot Plug networking solution in the HPE Proliant Dl360p G8 1U Rack Server offers high-speed networking, enhanced data transfer efficiency, flexible network configurations, scalability, and reliable network connectivity. Whether you need to transfer large amounts of data or require a resilient network infrastructure, this networking solution ensures optimal performance and seamless integration into your existing IT environment.

  Power Supply

  The HPE Proliant Dl360p G8 1U Rack Server is powered by a single 460w power supply unit (PSU), providing efficient and reliable power delivery to support the server's operation.

  Efficient Power Management

  The 460w power supply unit in this server is designed with efficiency in mind. It meets industry standards for energy efficiency, ensuring that power is delivered to the server with minimal waste. This not only reduces operational costs but also contributes to a greener IT infrastructure by minimizing the server's carbon footprint.

  Reliable Power Delivery
