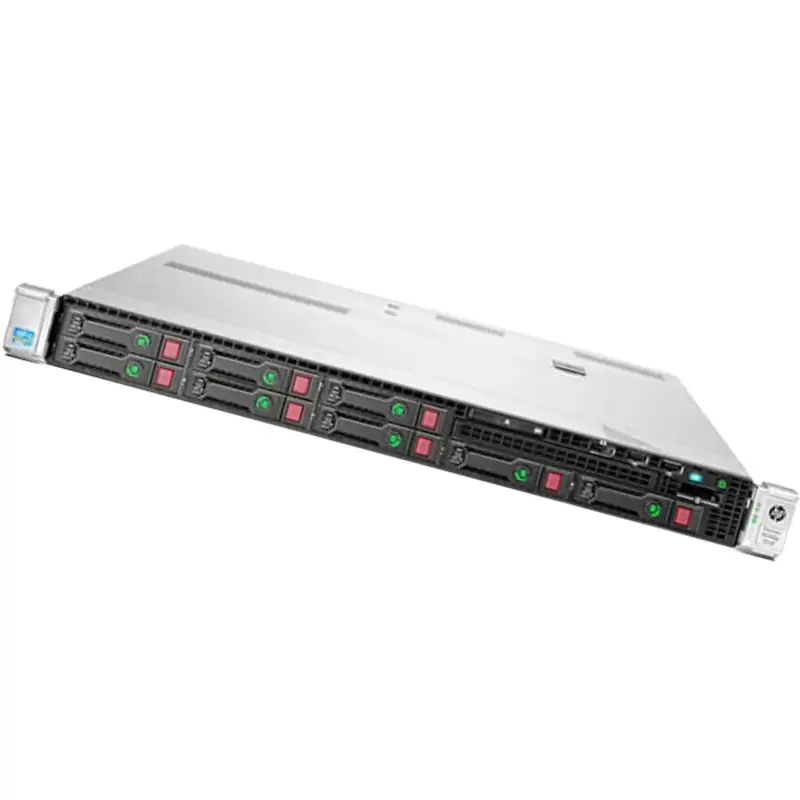

HPE Proliant DL360p G8 E5 2609v2 2.5GHz 8GB DDR3 Ram Rack Server - 737290-S01

Processor: E5 2609v2 2.5GHz

Improved Performance and Efficiency

The HPE DL360p G8 Rack Server is equipped with the powerful Intel E5 2609v2 2.5GHz processor, providing users with enhanced performance and efficiency. This processor is designed to handle demanding workloads with ease, making it an ideal choice for businesses that require high-performance computing solutions.

General Details

• Manufacturer: HPE
• Part Number: 737290-S01
• Product Name: Proliant DL360p G8 1U-Rack Server

Processor & Chipset

• Processor Type: Intel Xeon E5-2609v2 at 2.5 GHz
• Compatible Slots: FCLGA2011 Socket
• Multi-core Technology: Quad-core (4 cores)
• 64-bit Computing: Supported
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Chipset Model: Intel C600
• Upgrade Capability: Yes

Cache Memory

• Cache Memory Type: L3 Cache
• Installed Size: 10 MB
• Cache Per Processor: 10 MB

Memory Specifications

• Installed RAM: 8 GB (expandable up to 768 GB)
• Memory Technology: DDR3 SDRAM
• Memory Speed: 1333 MHz
• Compliance: PC-3 12800
• Form Factor: DIMM 240-pin
• Total Memory Slots: 24
• Features: Registered, Quad Channel Memory Architecture, HP SmartMemory

Supported RAM Configurations

• PC3-12800 - 384 GB - Registered
• PC3-10600 - 768 GB - Load-reduced
• PC3-10600 - 128 GB - Unbuffered - Advanced ECC
• PC3-10600 - 384 GB - Hypercloud

Storage & Storage Controllers

• Hard Drive: None
• Storage Controller Type: RAID - Plug-in Card - PCI Express 3.0 x8
• Controller Interface: SATA 6 Gb/s / SAS 6 Gb/s
• Storage Controller Name: Smart Array P420i/zm
• Supported RAID Levels: RAID 0, RAID 1, RAID 10

Card Reader

• Memory Card Reader: Yes
• Supported Flash Cards: Secure Digital (SD) Card

Display & Graphics

• Graphics Controller Manufacturer: Matrox
• Graphics Controller Model: G200

Network & Communication

• Networking: Integrated Network Adapter
• Interface Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

Expansion Bays

• Total Bays: 1 (Front Accessible - 5.25in Slim Line), 8 (Hot-swap - 2.5in SFF)

Expansion Slots

• Memory Slots: 24 (23 free)
• Processor Slots: 2 (1 free)
• PCI Express 3.0 x16: 1 (Half-length, Full-height) (1 free)
• PCI Express 3.0 x8: 1 (Low-profile) (1 free)
• FlexibleLOM (x4 Mode): 1 (0 free)

Interfaces & Ports

• Serial Port: 1 x RS-232 (9-pin D-sub)
• Display/Video: 1 x VGA (15-pin HD D-sub)
• USB Ports: 7 (4 front, 4 rear, 1 internal)
• Network Ports: 4 x Ethernet (RJ-45)
• Management Port: 1 x HP iLO (RJ-45)

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional (1+1 with optional power supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 460 Watts

Dimensions & Weight

• Height: 1.7 inches
• Width: 17.1 inches
• Depth: 27.5 inches
• Weight: 45.2 pounds

Increased Processing Power

With a base clock speed of 2.5GHz, the E5 2609v2 processor offers impressive processing power, enabling users to execute complex tasks quickly and efficiently. This increased processing power is particularly beneficial for resource-intensive applications such as virtualization, database management, and data analytics.

Multi-Core Technology

The E5 2609v2 processor features a quad-core architecture, allowing it to divide tasks among multiple cores for simultaneous execution. This multi-core technology enhances overall system performance by enabling parallel processing, resulting in faster task completion and improved user productivity.

Hyper-Threading Support

Another key feature of the E5 2609v2 processor is its support for hyper-threading technology. Hyper-threading allows each physical core to handle two threads simultaneously, effectively doubling the number of available processing threads. This feature is particularly beneficial for multitasking scenarios, where multiple applications can run concurrently without sacrificing performance.

Energy Efficiency

The E5 2609v2 processor is designed with energy efficiency in mind. It utilizes Intel's advanced power-saving technologies to optimize power consumption without compromising performance. This energy-efficient design not only reduces operational costs but also contributes to a greener IT infrastructure by minimizing carbon footprint.

Virtualization Capabilities

Virtualization has become an integral part of modern IT environments, enabling businesses to maximize resource utilization and reduce hardware costs. The E5 2609v2 processor is specifically optimized for virtualization workloads, offering features such as Intel Virtualization Technology (VT-x) and Extended Page Tables (EPT). These capabilities enhance virtual machine performance, enable live migration, and improve overall system efficiency in virtualized environments.

Reliability and Scalability

The E5 2609v2 processor is built on Intel's reliable and scalable architecture, ensuring long-term stability and compatibility. It supports advanced features such as Intel QuickPath Interconnect (QPI) and Intel Turbo Boost Technology, which enhance system responsiveness and enable dynamic adjustment of clock speeds based on workload demands. This scalability allows the processor to adapt to changing business needs, ensuring consistent performance as your requirements evolve.

Memory: 8GB DDR3 RAM

Enhanced System Responsiveness

The HPE DL360p G8 Rack Server is equipped with 8GB of DDR3 RAM, providing users with enhanced system responsiveness and multitasking capabilities. With ample memory capacity, this server can efficiently handle multiple applications and workloads simultaneously, ensuring smooth and uninterrupted operation.

Faster Data Access

DDR3 RAM offers significantly higher data transfer rates compared to its predecessors, resulting in faster data access and improved application performance. This increased speed allows the server to fetch data from memory more quickly, reducing latency and enabling faster execution of critical tasks.

Improved Workload Management

With 8GB of RAM, the DL360p G8 Rack Server can effectively manage demanding workloads without experiencing performance bottlenecks. This enhanced workload management capability is particularly beneficial for resource-intensive applications such as virtualization, database management, and content delivery networks. Users can expect smooth operation even under heavy load conditions.

Expandability and Flexibility

The 8GB DDR3 RAM configuration of the DL360p G8 Rack Server provides room for future expansion. As business requirements grow, additional memory modules can be easily installed to meet increasing demands. This expandability ensures that the server can adapt to evolving needs, eliminating the need for costly hardware replacements.

Reliable Data Storage

DDR3 RAM offers robust error correction capabilities, ensuring the integrity and reliability of stored data. The server's ECC (Error-Correcting Code) memory technology detects and corrects single-bit errors, preventing potential data corruption and system failures. This reliability is crucial for businesses that rely on continuous data availability and cannot afford downtime or data loss.

Optimized Virtualization Performance

Virtualization environments heavily rely on memory resources to ensure optimal performance. With 8GB of DDR3 RAM, the DL360p G8 Rack Server can effectively support multiple virtual machines, allocating sufficient memory to each instance. This optimized virtualization performance enables businesses to consolidate workloads, reduce hardware costs, and streamline IT management.

Efficient Data Processing

DDR3 RAM is designed to operate at lower voltages compared to its predecessors, resulting in reduced power consumption and heat generation. This energy-efficient design not only contributes to cost savings but also helps create a more environmentally friendly IT infrastructure. Additionally, the lower operating temperatures of DDR3 RAM modules contribute to enhanced system reliability and longevity.

Networking: Ethernet Adapter

Seamless Connectivity

The HPE DL360p G8 Rack Server features an integrated Ethernet adapter, providing users with seamless connectivity options. This adapter allows for high-speed data transfer and reliable network connectivity, ensuring smooth communication between the server and other network devices.

Fast Data Transfer Rates

The Ethernet adapter of the DL360p G8 Rack Server supports high-speed Gigabit Ethernet connectivity. With data transfer rates of up to 1 Gbps, users can expect fast and efficient data transmission, enabling quick access to network resources and reducing network latency.

Reliable Network Performance

The integrated Ethernet adapter is designed to deliver reliable network performance, even under heavy load conditions. Its advanced features such as TCP/IP offloading and checksum offloading optimize network traffic, reducing CPU utilization and improving overall system efficiency. This reliability ensures uninterrupted network connectivity and minimizes the risk of data loss or network downtime.

Flexible Network Configuration

The Ethernet adapter of the DL360p G8 Rack Server supports various network configurations, including support for multiple VLANs (Virtual Local Area Networks). This flexibility allows businesses to segregate their network traffic, ensuring secure communication between different departments or user groups. Additionally, the adapter supports advanced networking protocols such as TCP/IP, UDP/IP, and ICMP, enabling seamless integration with existing network infrastructures.

Remote Management Capabilities

The integrated Ethernet adapter enables remote management of the DL360p G8 Rack Server through technologies such as Intelligent Platform Management Interface (IPMI) and Integrated Lights-Out (iLO). These remote management capabilities allow administrators to monitor and control the server's hardware and operating system remotely, reducing the need for physical presence and facilitating efficient IT management.

Scalability and Compatibility

The Ethernet adapter of the DL360p G8 Rack Server is designed to be scalable and compatible with various networking technologies. It supports industry-standard protocols and interfaces such as TCP/IP, UDP/IP, IPv4, and IPv6, ensuring seamless integration with different network environments. This scalability allows businesses to expand their network infrastructure without requiring significant changes to their existing setup.

Enhanced Security

The integrated Ethernet adapter incorporates advanced security features to protect the server and network from potential threats. It supports features such as VLAN tagging, which allows for secure segregation of network traffic, preventing unauthorized access to sensitive data. Additionally, the adapter supports secure communication protocols such as SSL/TLS, ensuring the confidentiality and integrity of network transmissions.

Part Number: 737290-S01

Easy Identification and Ordering

The HPE DL360p G8 Rack Server is uniquely identified by its part number, 737290-S01. This alphanumeric code serves as a reference for easy identification and ordering purposes, ensuring that you receive the correct server model with all the desired specifications.

Accurate Configuration Management

By using the part number 737290-S01, businesses can accurately track and manage their server configurations. This is particularly important in large-scale IT environments where multiple servers are deployed. The part number serves as a reliable identifier for each server, allowing administrators to maintain an accurate inventory and easily identify any required upgrades or replacements.

Compatibility Assurance

When ordering additional components or accessories for the DL360p G8 Rack Server, using the correct part number ensures compatibility with the specific server model. Each component or accessory is designed to work seamlessly with a particular server configuration, and using the corresponding part number guarantees that the ordered parts will fit and function correctly.

Streamlined Technical Support

In case of any technical issues or inquiries, providing the part number 737290-S01 to technical support personnel enables them to quickly identify the exact server model in question. This streamlined identification process ensures efficient troubleshooting and reduces resolution times, minimizing any potential disruption to business operations.

Warranty Coverage

The part number 737290-S01 is directly linked to the warranty coverage provided by HPE for the DL360p G8 Rack Server. By providing the part number during warranty claims, businesses can ensure that their server is eligible for the associated warranty services, including repairs, replacements, and technical support. This helps protect the investment in the server and provides peace of mind knowing that any potential issues will be promptly addressed.

Firmware and Software Updates

The part number serves as a reference point for firmware and software updates released by HPE for the DL360p G8 Rack Server. By using the correct part number, businesses can easily identify and download the latest updates, ensuring that their server remains up to date with the latest security patches, bug fixes, and feature enhancements. These updates help maintain server stability, performance, and compatibility with evolving software requirements.
