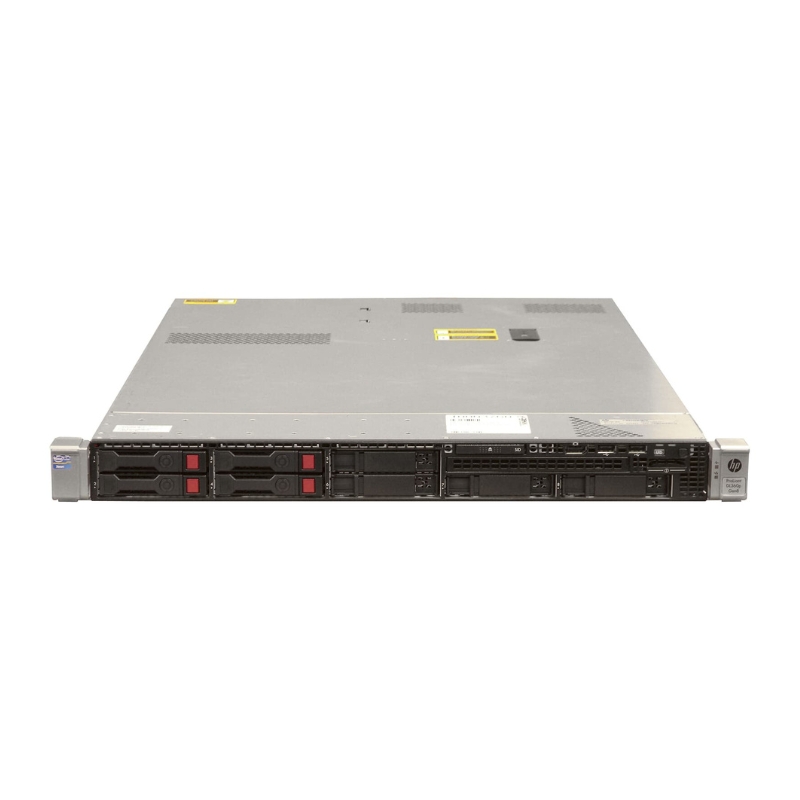

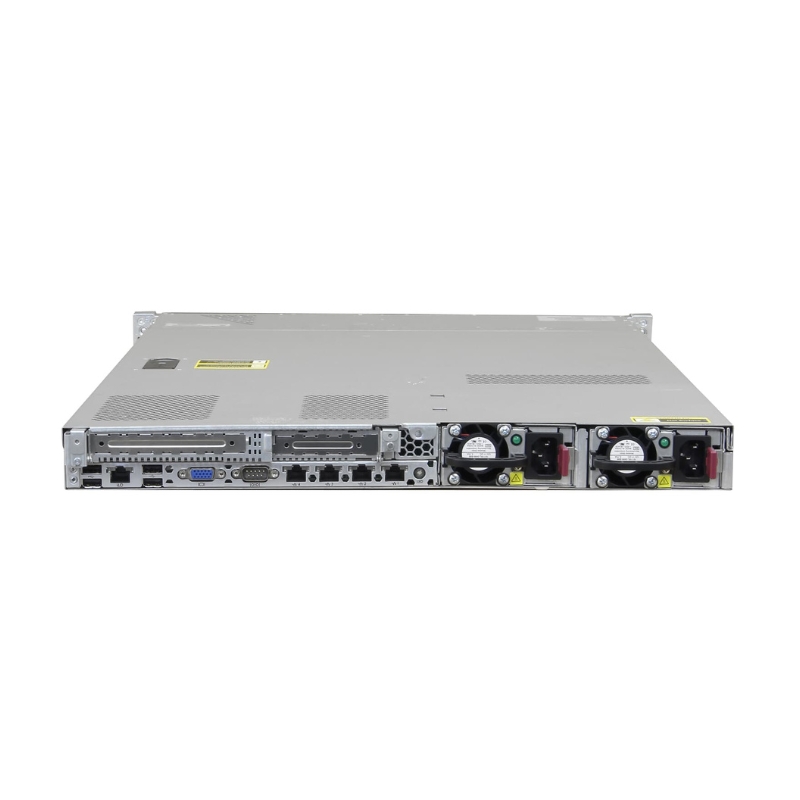

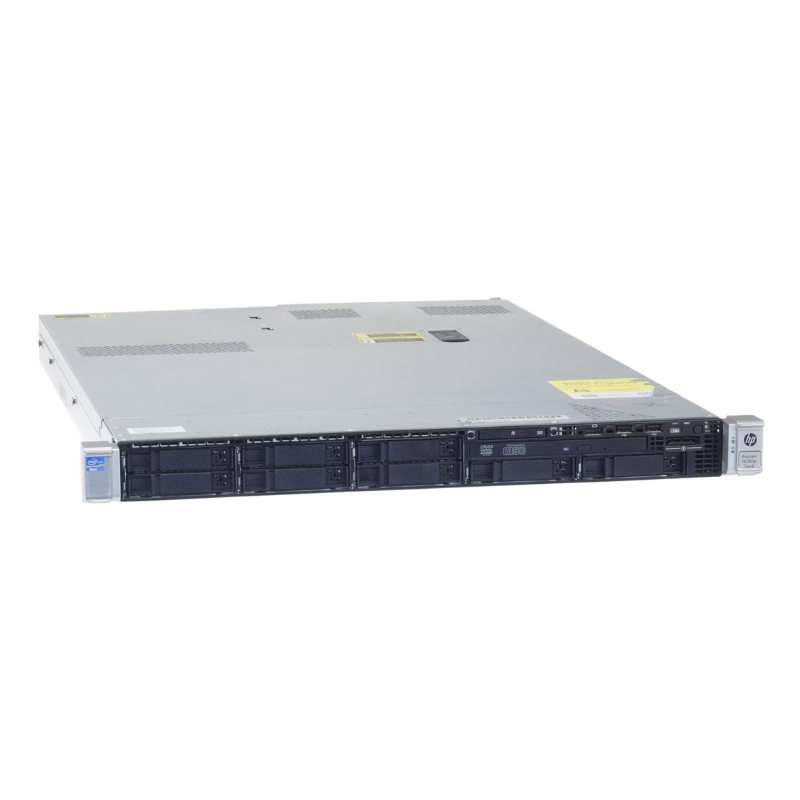

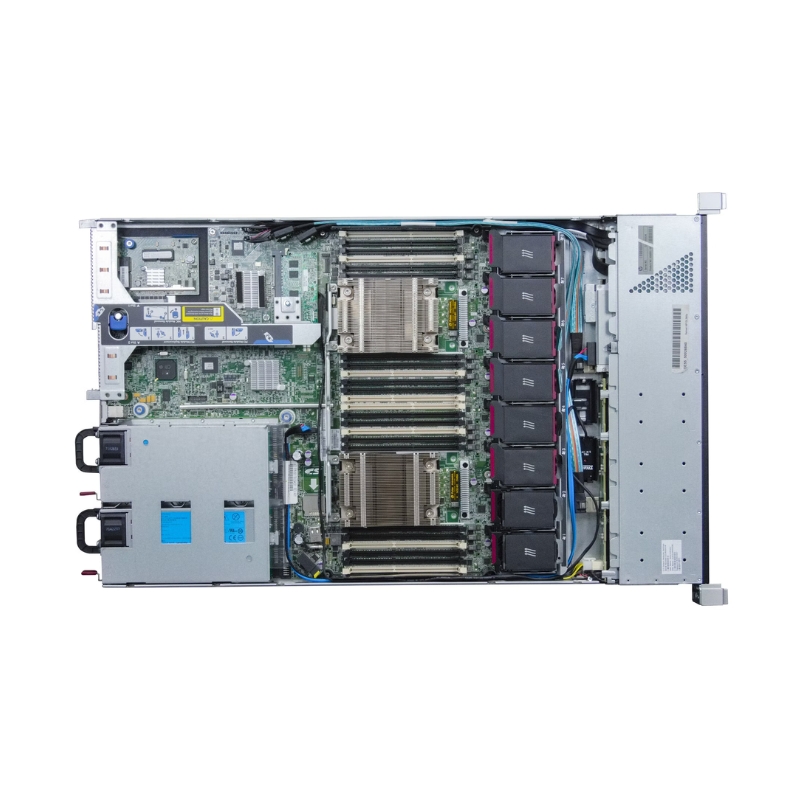

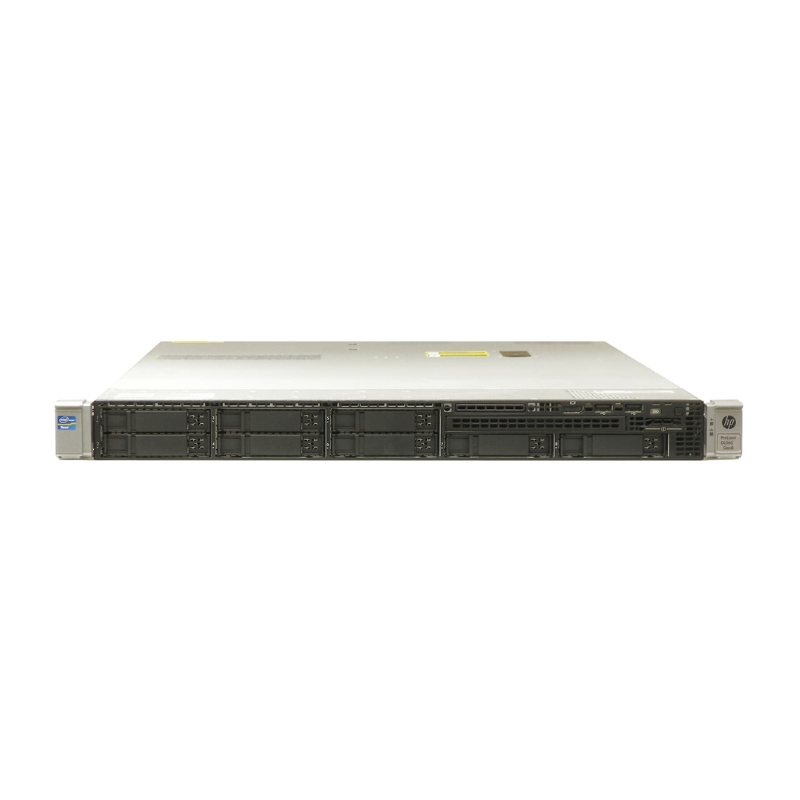

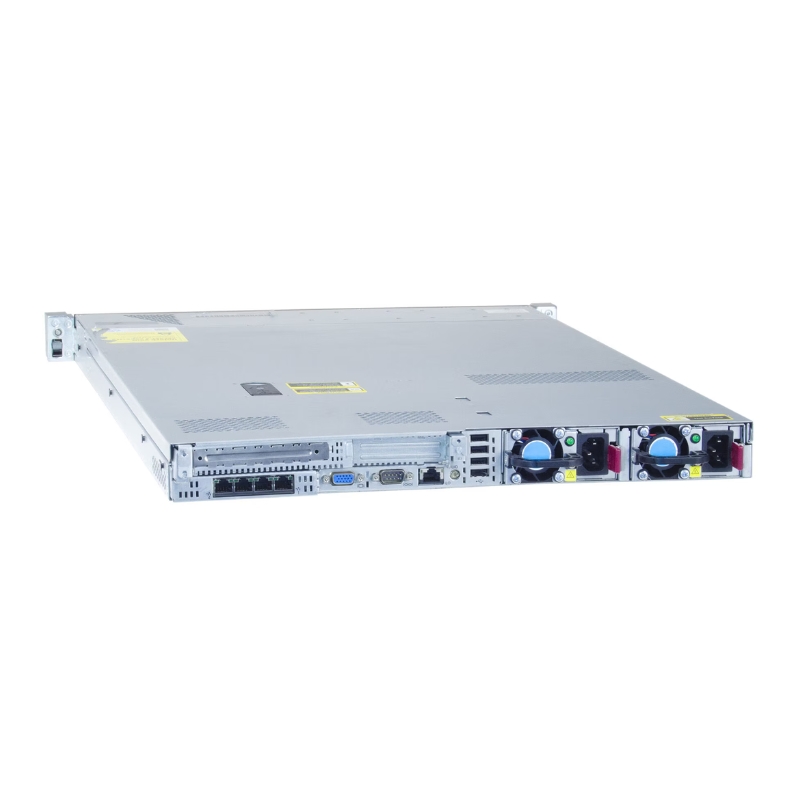

HPE ProLiant DL360P G8 E5 2640 2.5GHz Rack Server 670634-S01

Processor

The HPE ProLiant DL360P Rack Server is equipped with the powerful E5 2640 2.5GHz processor, which offers exceptional performance and efficiency for users. This processor is specifically designed to meet the demands of modern data centers and handle intensive workloads with ease.

Manufacturer Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 670634-S01
• Product Name: Proliant DL360p Gen8 - 2-way 1U Rack Server (Smart Buy Model)

Processor and Chipset

Processor Specifications

• Type: Intel Xeon E5-2640 / 2.5 GHz
• Turbo Boost Speed: Up to 3 GHz
• Cores: 6 Cores
• Installed Processors: 2
• Maximum Supported Processors: 2
• 64-bit Computing: Supported
• Chipset: Intel C600
• Features: Hyper-Threading, Intel QuickPath Interconnect, Intel Turbo Boost Technology

Cache Memory

• Cache Type: L3 Cache
• Installed Size: 30 MB
• Cache Per Processor: 15 MB

Memory

Memory Specifications

• Installed Size: 16 GB / 384 GB (maximum)
• Technology: DDR3 SDRAM
• Effective Speed: 1333 MHz
• Memory Form Factor: DIMM 240-pin
• Total Slots: 24 (22 available)

Supported Memory Configurations

• PC3-12800 - 384 GB Registered
• PC3-10600 - 768 GB Load-Reduced
• PC3-10600 - 128 GB Unbuffered
• Advanced ECC PC3-10600 - 384 GB
• Hypercloud - 384 GB

Storage and Optical Drives

• Hard Drive: Not included
• Optical Drive Type: None

Storage Controller

• Controller Type: Integrated RAID - PCIe 3.0 x8
• Interface: SATA 6 Gb/s / SAS 6 Gb/s
• Controller Name: Smart Array P420i with 1 GB FBWC
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 1 GB

Display and Graphics

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking and Communication

• Network Type: Plug-in Card
• Interface: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion and Connectivity

Expansion Bays

• Total Bays: 9
• External 5.25-inch: 1 (free)
• Hot-Swap 2.5-inch SFF: 8 (free)

Expansion Slots

• Total Slots: 28
• DIMM 240-pin: 24 (22 free)
• CPU: 2 (0 free)
• PCIe 3.0 x16 - Half-length, Full-height: 1 (free)
• PCIe 3.0 x8 - Low-profile: 1 (free)
• SD Card (Internal): 1 (free)

Interfaces and Ports

• Serial Port: 1
• VGA Port: 1
• LAN (Gigabit Ethernet): 4
• HP iLO Port: 1
• USB 2.0 Ports: 6 (2 front, 4 rear)

Miscellaneous Features

• Security Features: Administrator Password, Power-on Password, Keyboard Password, Serial Port I/O Control, QuickLock
• Compliance Standards: ACPI 2.0b, FCC Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438
• Manufacturer Selling Program: HP Smart Buy

Power Specifications

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Yes, 1+1 Scheme
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 460 Watts
• 80 Plus Certification: 80 Plus Gold
• Efficiency: 94%

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 31.99 lbs

General Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 670634-S01
• Product: Proliant DL360p Gen8 - 2-way 1U Rack Server (Smart Buy Model)

Processor & Chipset Information

• Processor Type: Intel Xeon E5-2640, 2.5 GHz
• Maximum Turbo Speed: 3.0 GHz
• Core Count: 6 Cores per Processor
• Installed Processors: 2
• Maximum Supported Processors: 2
• 64-bit Computing: Yes
• Chipset: Intel C600
• Features:
  • Hyper-threading Technology
  • Intel QuickPath Interconnect
  • Intel Turbo Boost Technology

Cache Memory

• Type: L3 Cache
• Installed Size: 30 MB
• Cache per Processor: 15 MB

Memory Specifications

• Installed Memory: 16 GB (expandable to 384 GB)
• Memory Technology: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Rated Memory Speed: 1333 MHz
• Memory Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Total Slots: 24
• Available Slots: 22
• Features: Registered, Quad Channel Memory Architecture, HP SmartMemory
• Configuration: 2 x 8 GB
• Supported RAM Types:
  • PC3-12800 (384 GB Registered)
  • PC3-10600 (768 GB Load-reduced)
  • PC3-10600 (128 GB Unbuffered - Advanced ECC)
  • PC3-10600 (384 GB HyperCloud)

Storage and Optical Drives

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controller

• Type: Integrated RAID Controller
• Interface: PCIe 3.0 x8
• Controller Interface: SATA 6 Gb/s / SAS 6 Gb/s
• Controller Model: Smart Array P420i with 1 GB FBWC
• RAID Levels Supported:
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  • RAID 50
  • RAID 60
• Buffer Size: 1 GB

Display & Graphics

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocols:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
• Remote Management Protocols:
  • IPMI 2.0
  • SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
• Additional Features:
  • Wake-on-LAN (WoL)
  • PXE Support
• Compliance Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1q
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3ad (LACP)

Expansion & Connectivity

• Expansion Bays:
  • 1 x External 5.25-inch (free)
  • 8 x Hot-swap 2.5-inch SFF (free)
• Expansion Slots:
  • 24 x DIMM 240-pin (22 free)
  • 2 x CPU (0 free)
  • 1 x PCIe 3.0 x16 - Half-length, Full-height (1 free)
  • 1 x PCIe 3.0 x8 - Low-profile (1 free)
  • 1 x SD Card (internal) (1 free)

Interfaces & Ports

• 1 x Serial
• 1 x VGA
• 4 x LAN (Gigabit Ethernet)
• 1 x HP iLO
• 6 x USB 2.0 (2 Front, 4 Rear)

Miscellaneous Features

• Security Features:
  • Administrator Password
  • Power-on Password
  • Keyboard Password
  • Serial Port I/O Control
  • QuickLock
• Compliance Standards:
  • ACPI 2.0b
  • FCC Class A Certified
  • EN 61000-3-2
  • EN55022
  • ICES-003
  • EN 61000-3-3
  • EN55024
  • CISPR 22
  • FCC CFR47 Part 15
  • IEC 60950-1
  • EN 60950-1
  • BSMI CNS 13438
• Manufacturer Selling Program: HP Smart Buy

Power Supply Details

Enhanced Performance

The E5 2640 2.5GHz processor delivers impressive performance thanks to its six cores and twelve threads. With a base clock speed of 2.5GHz and a maximum turbo frequency of 3.1GHz, it ensures smooth operation even when dealing with resource-intensive applications and multi-threaded workloads. Whether you are running virtualization software, database applications, or high-performance computing tasks, this processor can handle them efficiently.

Increased Efficiency

Efficiency is a crucial factor in any server environment. The E5 2640 2.5GHz processor strikes an excellent balance between performance and power consumption. It utilizes Intel's advanced power-saving technologies, including Intel Turbo Boost Technology and Intel Hyper-Threading Technology, to optimize performance while minimizing energy usage. This results in reduced operational costs and a greener IT infrastructure.

Reliable Performance

Reliability is paramount when it comes to business-critical applications. The E5 2640 2.5GHz processor is built using Intel's reliable architecture, ensuring stable performance under heavy workloads. Its robust design guarantees minimal downtime and maximum uptime for your server, providing a solid foundation for your business operations.

Improved Virtualization Capabilities

Virtualization has become an integral part of modern data centers, enabling efficient resource utilization and flexibility. The E5 2640 2.5GHz processor includes Intel Virtualization Technology (VT-x), which enhances virtualization performance by optimizing hardware support for virtualized workloads. This feature allows you to run multiple virtual machines simultaneously without compromising performance.

Scalability and Future-Proofing

The E5 2640 2.5GHz processor offers scalability and future-proofing for your server infrastructure. It supports Intel QuickPath Interconnect (QPI), which enables high-speed communication between the processor and other system components. This ensures smooth data transfer and reduces latency, providing a solid foundation for expanding your server capabilities as your business grows.

Security Features

In today's digital landscape, data security is of utmost importance. The E5 2640 2.5GHz processor includes Intel's security technologies, such as Intel Trusted Execution Technology (TXT) and Intel Advanced Encryption Standard New Instructions (AES-NI). These features enhance data protection by safeguarding against malicious attacks and enabling faster encryption and decryption processes.

Optimized for Cloud Computing

Cloud computing has revolutionized the way businesses operate, offering scalability, flexibility, and cost efficiency. The E5 2640 2.5GHz processor is optimized for cloud environments, providing the necessary performance and reliability to support cloud-based workloads. It enables smooth deployment and management of virtualized resources, ensuring a seamless experience for both users and administrators.

Efficient Big Data Processing

Big data analytics has become an integral part of decision-making processes in various industries. The E5 2640 2.5GHz processor excels in handling big data workloads efficiently. Its multi-core architecture and high clock speed enable faster data processing, allowing businesses to derive valuable insights from massive datasets in real-time.

Part Number

The HPE ProLiant DL360P Rack Server features the part number 670634-S01, which plays a crucial role in identifying the specific model and configuration of the server. It offers several benefits and importance for users in terms of compatibility, support, and procurement.

Model Identification

The part number 670634-S01 serves as a unique identifier for the HPE ProLiant DL360P Rack Server model. This helps users and IT administrators easily recognize and differentiate this specific server from other models within the HPE ProLiant DL360P series. It ensures accurate inventory management and simplifies troubleshooting or maintenance tasks.

Compatibility and Support

By referencing the part number 670634-S01, users can ensure compatibility with specific server components and accessories. This is particularly important when upgrading or expanding the server's capabilities. The part number helps identify compatible memory modules, storage drives, expansion cards, and other hardware components that seamlessly integrate with the server, ensuring optimal performance and reliability.

Additionally, the part number plays a vital role in accessing technical support from HPE. When contacting HPE support, providing the part number allows technicians to quickly understand the server's configuration and provide accurate assistance. This expedites troubleshooting processes, reduces downtime, and ensures efficient resolution of any technical issues.

Procurement Simplification

The part number 670634-S01 streamlines the procurement process for IT departments or organizations looking to purchase the HPE ProLiant DL360P Rack Server. It serves as a reference when requesting quotes or placing orders with vendors or resellers. By specifying the part number, users can ensure they receive the exact model they require, eliminating any confusion or potential errors during the procurement process.

Warranty Validation

Warranty coverage is a critical consideration when investing in server infrastructure. The part number 670634-S01 helps validate warranty entitlement for the HPE ProLiant DL360P Rack Server. By providing this information, users can easily determine whether their server is still covered under the manufacturer's warranty, simplifying any warranty claims or service requests.

Future Expansion and Scalability

The part number 670634-S01 also plays a role in future expansion and scalability. As businesses grow and their IT infrastructure needs evolve, the ability to expand and upgrade server configurations becomes essential. By referencing the part number, users can ensure compatibility with future hardware upgrades, allowing for seamless expansion and maximizing the lifespan of the server.

Identification of Revisions or Upgrades

Manufacturers sometimes release revisions or upgrades to their server models to incorporate new features, improve performance, or address known issues. The part number 670634-S01 helps users identify specific revisions or upgrades to the HPE ProLiant DL360P Rack Server. This information is crucial when planning for hardware refresh cycles or evaluating whether an upgrade is necessary to take advantage of the latest enhancements.

In conclusion, the E5 2640 2.5GHz processor and part number 670634-S01 are significant features of the HPE ProLiant DL360P Rack Server. The processor's enhanced performance, increased efficiency, and reliability make it an ideal choice for demanding workloads. On the other hand, the part number ensures easy identification, compatibility, and support for users, simplifying procurement and future scalability. Together, these features contribute to an exceptional server experience for businesses of all sizes.
