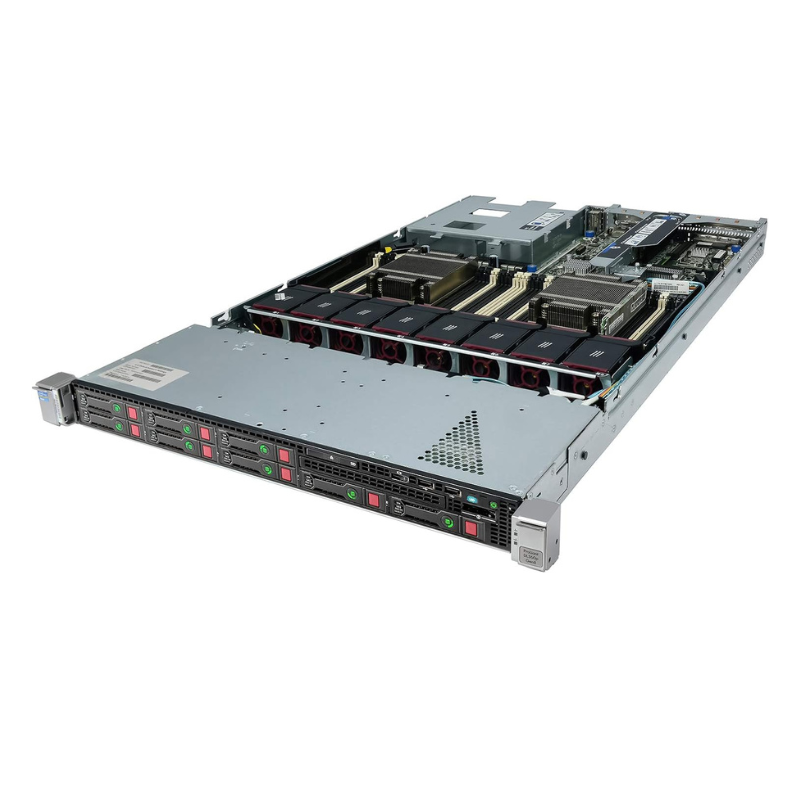

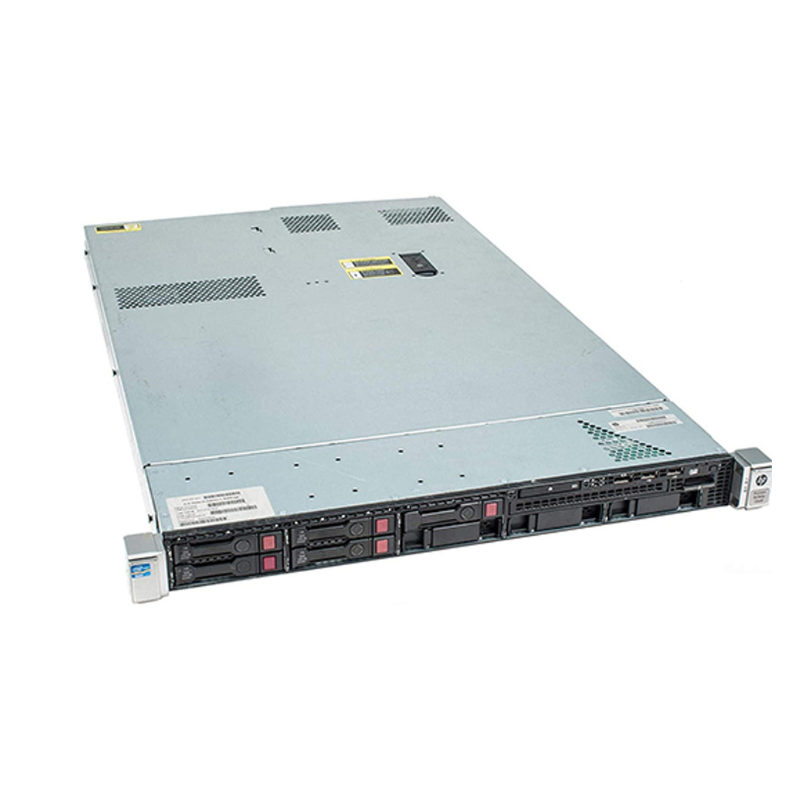

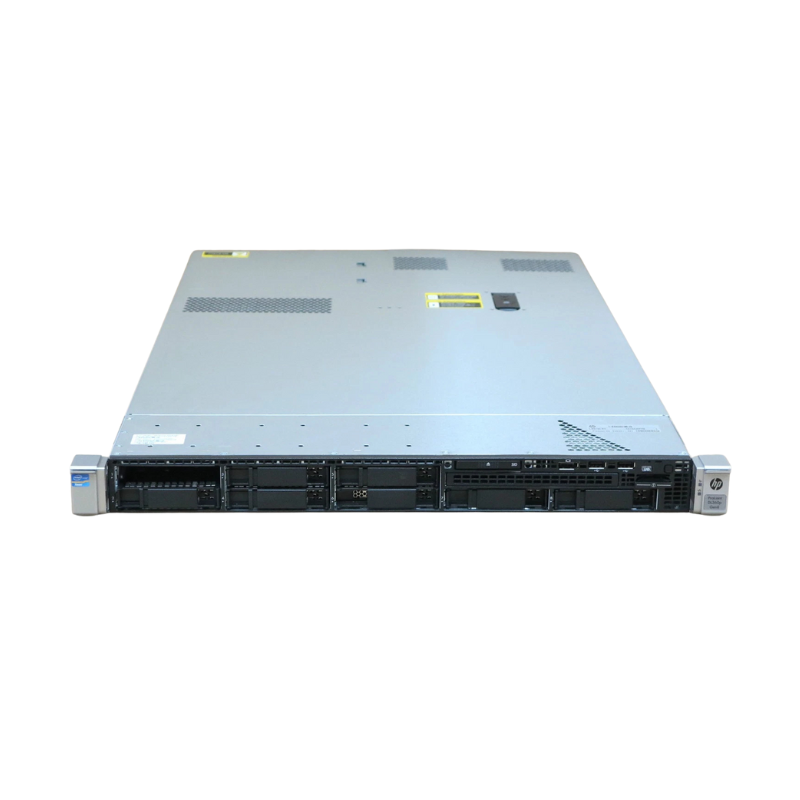

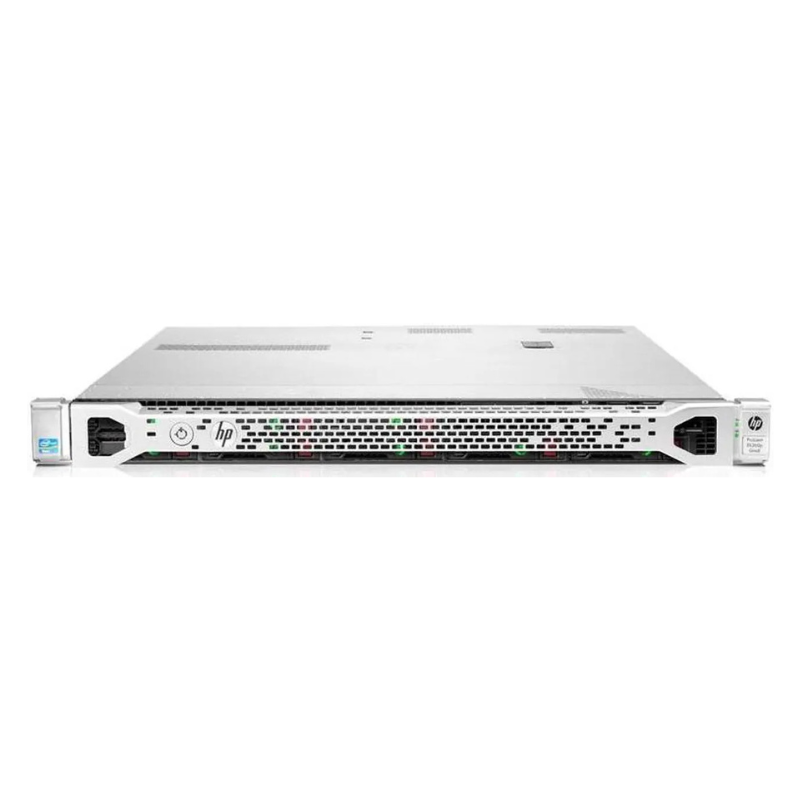

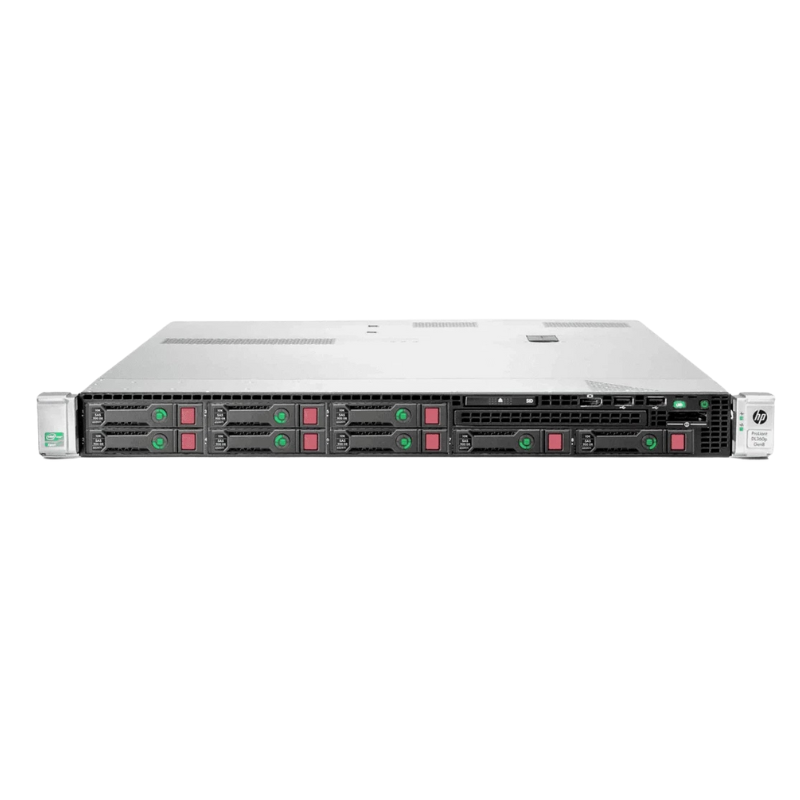

HPE DL360P Gen8 E5-2603 1P 4G 8SFF 1U Rack Server 646900-001.

Processor

The HPE Proliant DL360P G8 Entry Model - 646900-001 1U Rack Server is equipped with a powerful Xeon quad-core E5-2603 processor running at 1.80GHz. This processor is a significant feature of the server, providing users with enhanced performance, reliability, and scalability.

General Specifications

The Hewlett Packard Enterprise ProLiant DL360p Gen8 is an entry-level 1U rack server designed for high-performance computing. It integrates advanced features for optimized server management and reliability.

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Part Number: 646900-001
• Product Model: ProLiant DL360p Gen8

Processor and Chipset

Processor Features

• Processor Type: Intel Xeon E5-2603, 1.8 GHz
• Cores: Quad-core
• Installed Processors: 1 (upgradable to 2)
• 64-bit Computing Support: Yes

Chipset Details

• Chipset: Intel C600
• Main Features: Hyper-threading, Intel QuickPath Interconnect, Turbo Boost Technology 2

Cache Memory

• Type: L3 Cache
• Installed Size: 10 MB
• Cache per Processor: 10 MB

RAM Specifications

Memory Details

• Installed RAM: 4 GB (expandable up to 384 GB)
• Memory Technology: DDR3 SDRAM
• Effective Speed: 1333 MHz
• Form Factor: DIMM 240-pin
• Slots: 24 (23 available)
• Memory Configuration: 1 x 4 GB

Supported Memory

• PC3-12800: Up to 384 GB Registered
• PC3-10600: Up to 768 GB Load-reduced / 384 GB Advanced ECC
• Hypercloud: Up to 384 GB

Storage Options

Hard Drive and Optical Drive

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controller

• Type: RAID Integrated, PCIe 3.0 x8
• Controller: Smart Array P420i
• Interface: SATA 6 Gb/s / SAS 6 Gb/s
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60

Graphics and Display

• Graphics Controller: Integrated
• Graphics Processor: Matrox G200
• Video Interface: VGA

Networking and Communication

• Network Type: Plug-in Card
• Interface: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Controller: HP 331FLR
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake-on-LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion and Connectivity

Expansion Bays

• External: 1 x 5.25-inch (free)
• Hot-swap: 8 x 2.5-inch SFF (all available)

Expansion Slots

• DIMM: 24 slots (23 available)
• CPU: 2 slots (1 available)
• PCIe 3.0 x16: 1 slot (half-length, full-height, available)
• PCIe 3.0 x8: 1 slot (low-profile, available)
• FlexibleLOM: 1 slot (X4 mode, 0 available)

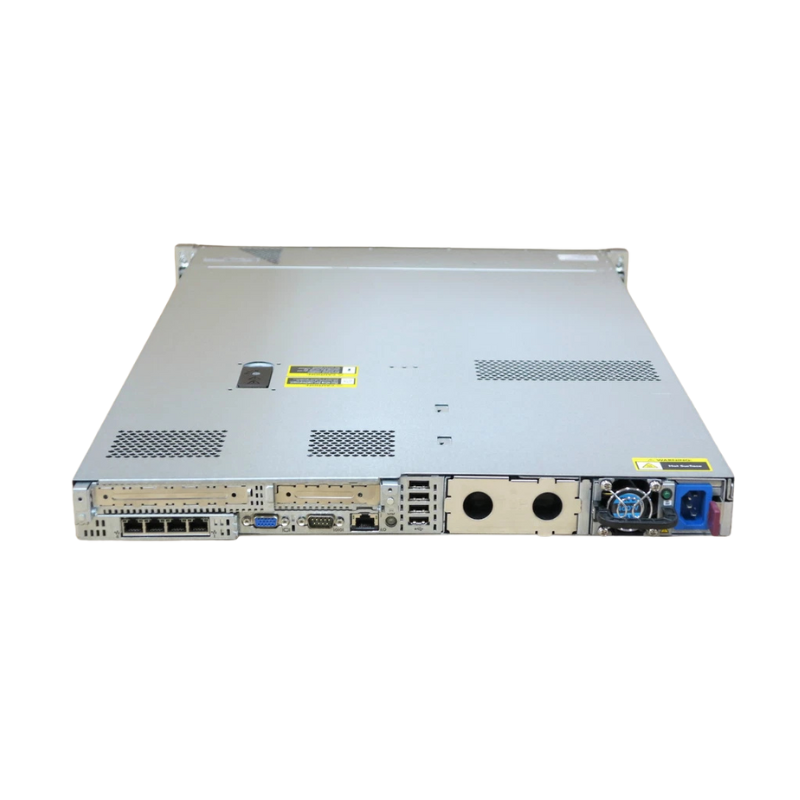

Interfaces and Ports

• Serial Port: 1
• VGA Port: 1
• Gigabit Ethernet Ports: 4
• HP iLO Port: 1
• USB Ports: 7 (2 front, 4 rear, 1 internal)

Miscellaneous Features

Included Accessories

• HP Easy Install Rail Kit

Security and Compliance

• Administrator Password Protection
• Power-on Password
• Serial Port I/O Control
• 80 Plus Platinum Certification

Regulatory Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2, EN55022
• ICES-003
• EN 61000-3-3, EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1, EN 60950-1
• WEEE
• GB 9254, CNS 13438

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Optional, 1+1 (with optional power supply)
• Installed Power Supply: 1
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 460 Watts
• 80 Plus Certification: Platinum
• Efficiency: 94%

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 31.99 lbs

Enhanced Performance

The Xeon quad-core E5-2603 processor offers exceptional performance capabilities, allowing the server to handle demanding workloads and applications efficiently. With its multiple cores, the processor can execute multiple tasks simultaneously, resulting in improved overall system performance. This ensures that users can experience smooth and lag-free operation even when running resource-intensive applications or performing complex calculations.

Reliability

Reliability is crucial when it comes to servers as they are responsible for managing critical business operations. The Xeon quad-core E5-2603 processor is designed with robust features and advanced technologies that enhance the server's reliability. Its error correction capabilities help to identify and correct any errors that may occur during processing, minimizing the chances of system crashes or data corruption. This ensures that users can rely on the server for uninterrupted operation, reducing downtime and increasing productivity.

Scalability

As businesses grow, their computing needs also increase. The Xeon quad-core E5-2603 processor provides users with scalability options, allowing them to expand their server's capabilities as their requirements evolve. With its advanced architecture and support for virtualization technologies, the processor enables users to add more virtual machines or scale up their existing ones without experiencing performance degradation. This flexibility ensures that the server can adapt to changing business demands, providing a future-proof solution.

Virtualization Support

The Xeon quad-core E5-2603 processor supports virtualization technologies such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These features allow users to create and manage multiple virtual machines on the server, optimizing resource utilization and reducing hardware costs. Virtualization also enhances security by isolating different applications and workloads, preventing any potential vulnerabilities from affecting the entire system.

Energy Efficiency

Energy efficiency is a crucial consideration for businesses looking to reduce their environmental footprint and lower operating costs. The Xeon quad-core E5-2603 processor incorporates Intel's power-saving technologies, such as Intel Intelligent Power Technology and Intel Turbo Boost Technology. These features dynamically adjust the processor's power consumption based on workload demands, resulting in optimized energy usage without compromising performance. By reducing power consumption, businesses can save on electricity bills and contribute to a sustainable environment.

Improved Data Processing

The Xeon quad-core E5-2603 processor's advanced architecture enables faster data processing, allowing businesses to handle large datasets and complex computations more efficiently. This is particularly beneficial for applications such as data analytics, scientific simulations, and financial modeling that require substantial computational power. With the processor's capabilities, users can analyze data faster, make quicker decisions, and gain a competitive edge in their respective industries.

Compatibility and Support

The Xeon quad-core E5-2603 processor is part of Intel's renowned Xeon family, known for its compatibility and extensive support ecosystem. This ensures that users can easily find compatible software, drivers, and firmware updates for their server system. Additionally, Intel provides excellent technical support, enabling businesses to resolve any issues promptly and minimize downtime.

In conclusion, the Xeon quad-core E5-2603 processor featured in the HPE Proliant DL360P G8 Entry Model - 646900-001 1U Rack Server delivers enhanced performance, reliability, and scalability. Its advanced capabilities, such as virtualization support and energy efficiency, further contribute to its importance for users. With this processor, businesses can experience improved productivity, seamless operation, and the flexibility to adapt to their evolving computing needs.
