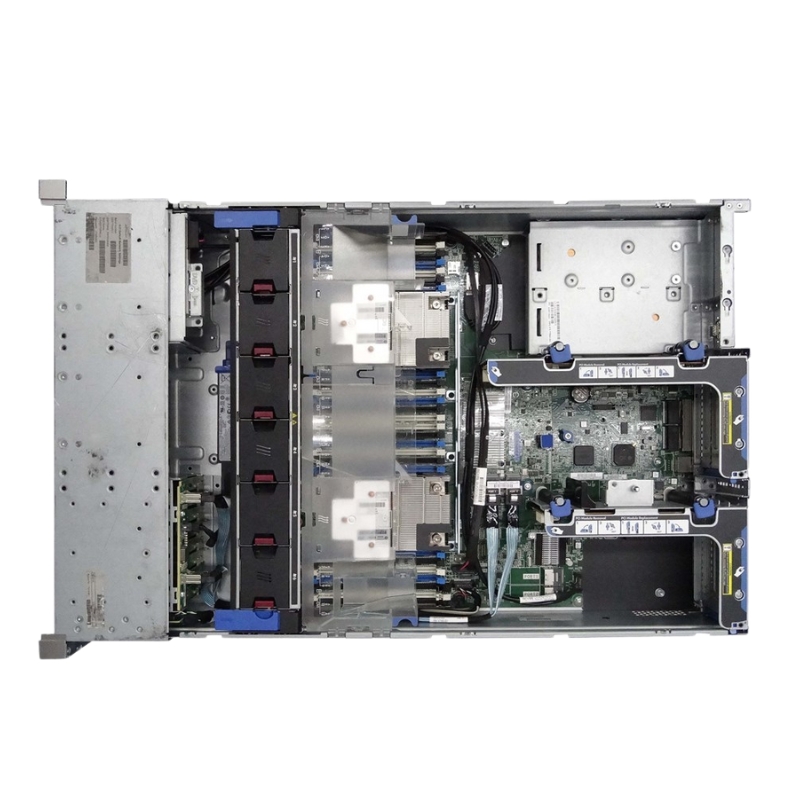

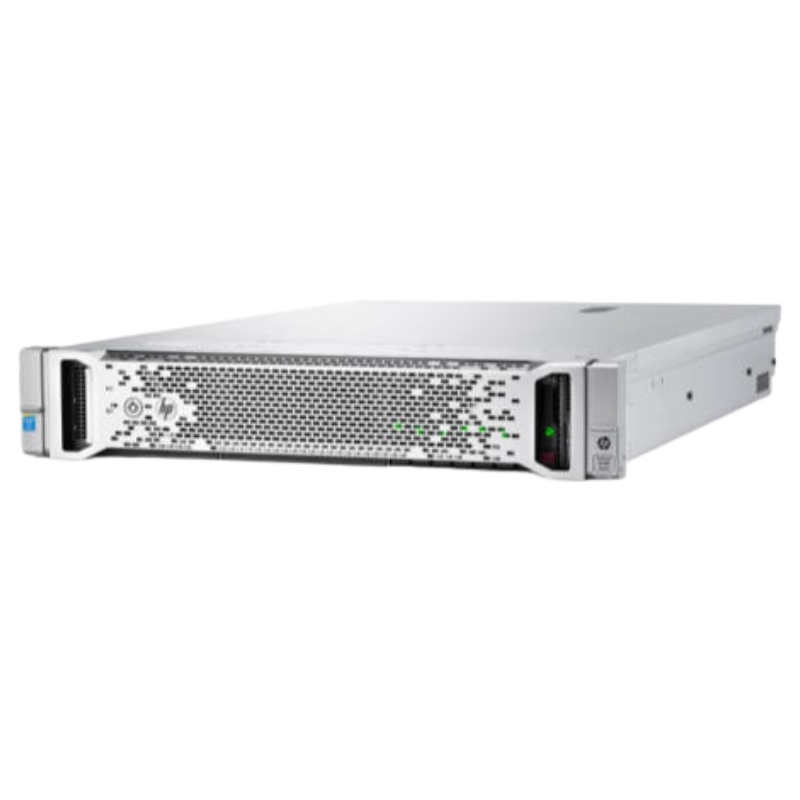

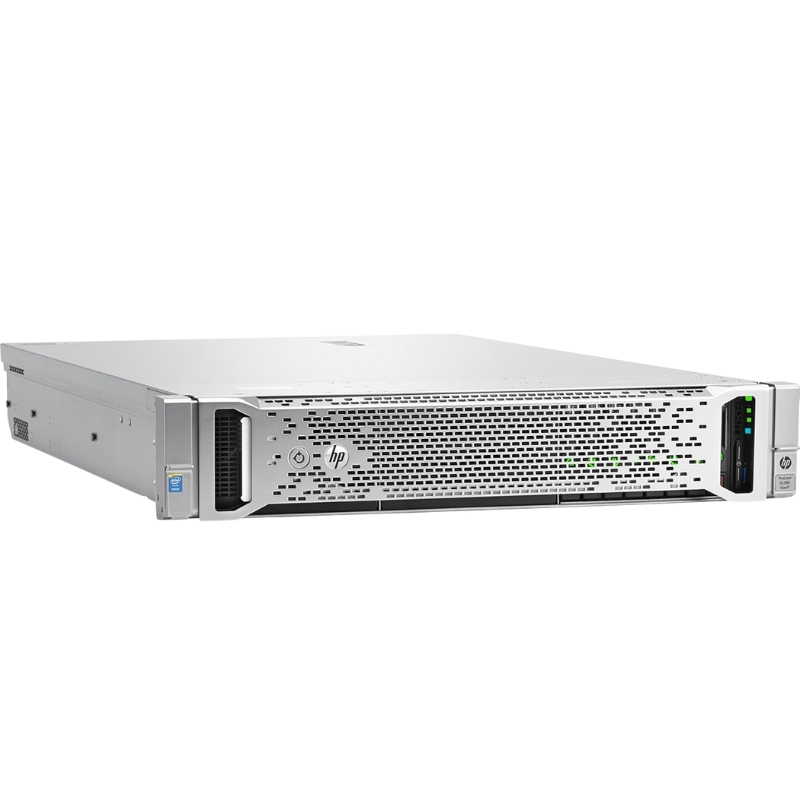

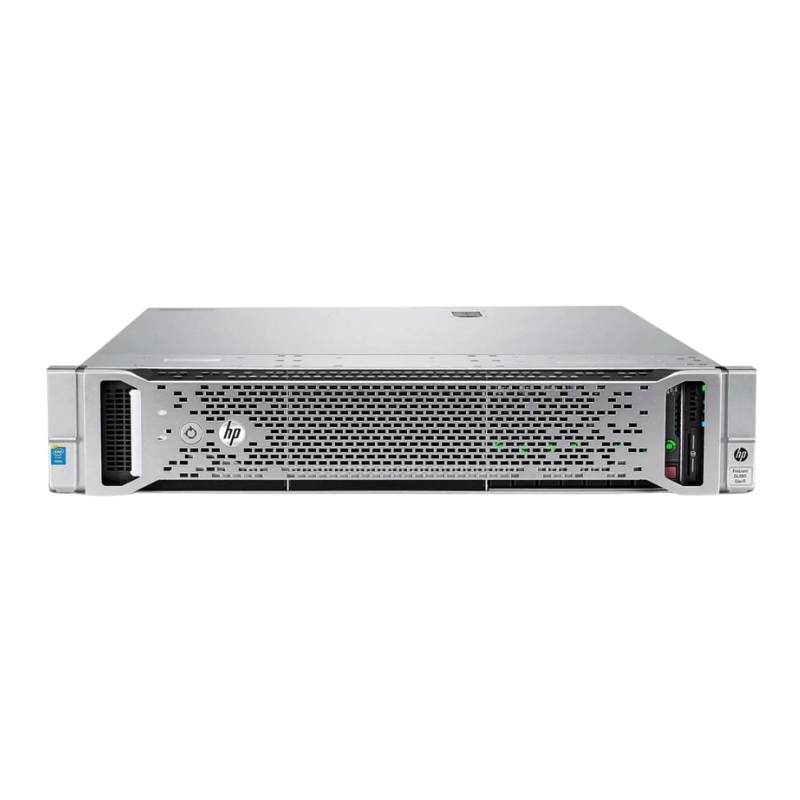

HPE Proliant DL380 G9 8-Core Server E5-2620V4 16GB Rack 826683-B21

Processor: E5-2620V4

The HPE Proliant DL380 G9 Server is equipped with an impressive processor, the E5-2620V4. This processor is a powerful and efficient solution that brings numerous benefits to users. In this section, we will explore the importance and advantages of the E5-2620V4 processor in detail.

Product Overview of G9 8-Core Server

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: 826683-B21
• Model: Proliant DL380 G9 2U Rack-Mountable Server (Base Configuration)

Processor and Chipset

• CPU Model: Intel Xeon E5-2620v4
• Base Frequency: 2.10 GHz
• Number of Cores: 8
• Max Turbo Frequency: 3.0 GHz
• Installed CPUs: 1 (upgradable to 2)
• Features: Hyper-threading Technology, Intel Turbo Boost Technology 2.0

Cache Memory

• Type: Smart Cache
• Installed Size: 20 MB
• Cache per Processor: 20 MB

Memory Specifications

• Installed Memory: 16 GB
• Maximum Supported Memory: 384 GB
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Memory Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare, Dual Rank, Quad Channel Architecture, HP SmartMemory
• Configuration Example: 1 x 16 GB
• Supported RAM Types: PC4-17000 up to 384 GB Registered, PC4-17000 up to 1.5 TB Load-Reduced

Storage Options

• Hard Drive Bays: 12 LFF (Large Form Factor) Hot-Swap Bays (No HDDs Included)
• Optical Drive: Not Included

Storage Controllers

• Controller: Smart Array P840ar/4G

Display and Graphics

• Type: Integrated Matrox G200eh2
• Video Memory: 16 MB

Networking and Communication

• Ethernet Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Power Specifications

• Type: Hot-Plug Power Supply
• Redundancy: Yes (1+1 Scheme)
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Output: 800 Watts
• Efficiency: 94%, 80 Plus Platinum Certified

Expansion and Connectivity

• Hot-Swap Bays: 12 x 3.5" LFF (All Free)
• CPU Slots: 2 (1 Free)
• DIMM Slots: 24 (23 Free)
• PCIe 3.0 x16 Slots: 2 (Both Free)
• PCIe 3.0 x8 Slots: 2 (Both Free)
• MicroSD Card Slot: 1 (Internal, Free)
• PCIe 3.0 x16 Full-Length Slots: 2 (Both Free)

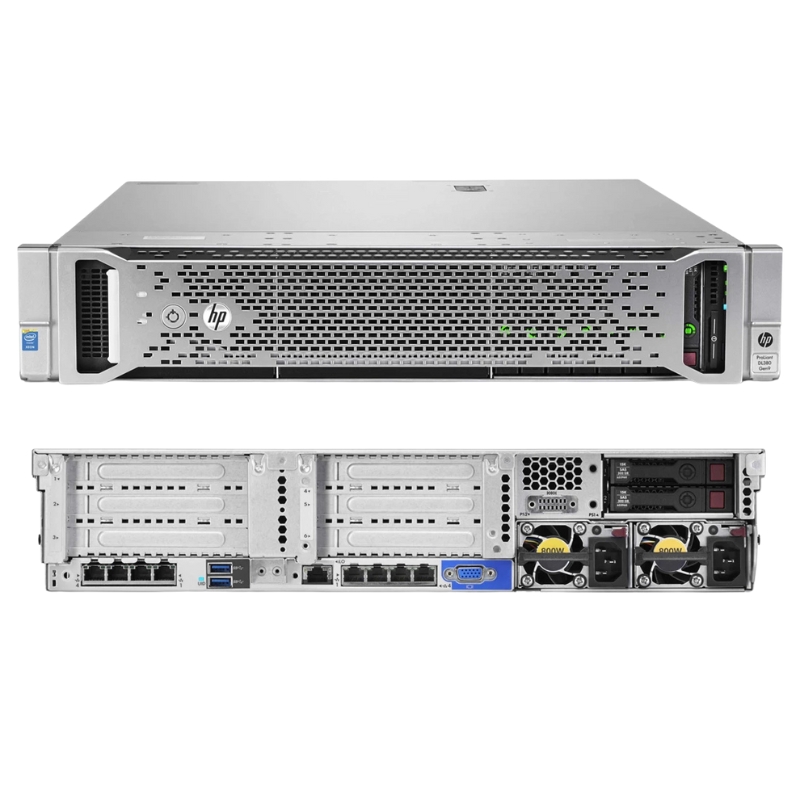

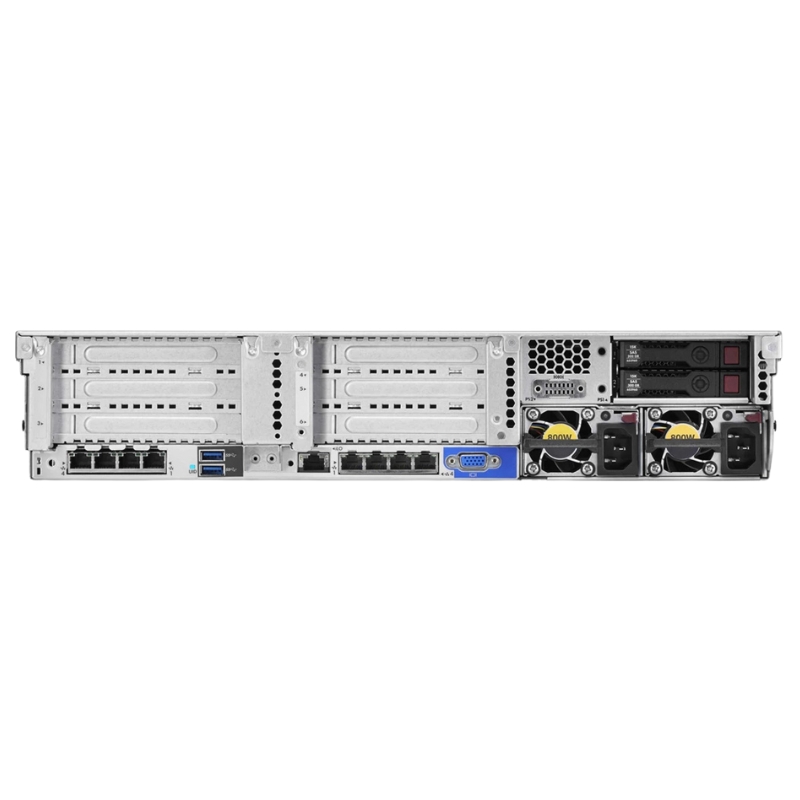

Interfaces and Ports

• LAN Ports (Gigabit Ethernet): 4
• HP iLO Ports: 1
• VGA Ports: 2 (1 Front, 1 Rear)
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)
• LAN Ports (10 Gigabit Ethernet): 2
• USB 2.0 Ports: 2 (Front)

Physical Dimensions

• Width: 17.5 Inches
• Depth: 26.7 Inches
• Height: 3.4 Inches
• Weight: 32.5 lbs

Enhanced Performance

The E5-2620V4 processor is designed to deliver exceptional performance. With its 8 cores and 16 threads, it offers a significant boost in processing power compared to previous generations. This means that users can expect faster and more efficient data processing, enabling them to handle demanding workloads with ease.

Improved Multitasking

Multitasking is a crucial aspect of modern computing, and the E5-2620V4 processor excels in this area. Its hyper-threading technology allows each core to handle multiple tasks simultaneously, resulting in improved multitasking capabilities. This is particularly beneficial for businesses and organizations that rely on running multiple applications or virtual machines concurrently.

Optimized Virtualization

Virtualization has become an integral part of many IT environments, and the E5-2620V4 processor is optimized for virtualization workloads. It supports advanced virtualization technologies such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These features enhance the server's ability to handle virtual machines efficiently, providing better performance and resource management.

Energy Efficiency

In addition to its impressive performance, the E5-2620V4 processor is also highly energy-efficient. It operates at a low power consumption level while delivering outstanding processing capabilities. This energy efficiency translates into cost savings for businesses as they can reduce their electricity bills and contribute to a greener environment by minimizing their carbon footprint.

Increased Scalability

Scalability is an essential factor for businesses that anticipate future growth or changing workloads. The E5-2620V4 processor offers excellent scalability options, allowing users to easily upgrade their server's processing power as their needs evolve. This ensures that the HPE Proliant DL380 G9 Server can adapt to changing demands without requiring a complete hardware replacement.

Reliability and Stability

The E5-2620V4 processor is renowned for its reliability and stability. It is built using high-quality components and undergoes rigorous testing to ensure maximum performance and longevity. This level of reliability is crucial for businesses that rely on their servers for mission-critical operations, as it minimizes the risk of downtime and data loss.

Processor Speed: 2.10GHz

The processor speed is a vital specification to consider when choosing a server, and the HPE Proliant DL380 G9 Server boasts an impressive speed of 2.10GHz. In this section, we will explore the benefits and importance of this feature in detail.

Faster Data Processing

The 2.10GHz processor speed enables faster data processing, allowing users to handle complex tasks more efficiently. With higher clock speeds, the server can execute instructions at a quicker rate, resulting in reduced processing times and improved overall performance. This is particularly beneficial for applications that require real-time data processing or large-scale data analysis.

Improved Responsiveness

Server responsiveness is crucial in today's fast-paced digital landscape. The 2.10GHz processor speed ensures that the HPE Proliant DL380 G9 Server can quickly respond to user requests, providing a smooth and seamless experience. Whether it's accessing files, running applications, or serving web pages, the server's high speed ensures minimal latency, enhancing user satisfaction.

Efficient Virtualization

Virtualization relies heavily on a server's processing speed to deliver optimal performance. The 2.10GHz processor speed of the HPE Proliant DL380 G9 Server enables efficient virtualization, allowing users to run multiple virtual machines simultaneously without sacrificing performance. This is particularly important for businesses that rely on virtualization for resource consolidation and cost savings.

Enhanced Workload Management

The high processor speed of 2.10GHz enables the HPE Proliant DL380 G9 Server to handle demanding workloads efficiently. Whether it's running complex database applications or hosting resource-intensive software, the server's fast processing speed ensures smooth and reliable performance. This allows businesses to maximize their productivity and avoid bottlenecks caused by slow processing speeds.

Seamless Data Transfers

Efficient data transfers are essential for businesses that rely on continuous data flow. The 2.10GHz processor speed facilitates seamless data transfers between different components of the server, such as storage devices and network interfaces. This results in faster data access times and improved overall system responsiveness, enabling businesses to streamline their operations and minimize data transfer delays.

Future-Proof Performance

Investing in a server with a high processor speed like 2.10GHz ensures future-proof performance. As technology advances and applications become more demanding, having a server with ample processing power becomes increasingly important. The HPE Proliant DL380 G9 Server's 2.10GHz processor speed provides the necessary headroom to accommodate future growth and evolving workload requirements.

Memory: 16GB

Memory is a crucial component in any server, and the HPE Proliant DL380 G9 Server offers a generous memory capacity of 16GB. In this section, we will explore the benefits and importance of this feature in detail.

Improved System Performance

The 16GB memory capacity of the HPE Proliant DL380 G9 Server plays a vital role in improving overall system performance. With a larger memory capacity, the server can store and access more data quickly, reducing the need for frequent disk access. This results in faster application response times and improved system responsiveness, allowing users to work more efficiently.

Efficient Multitasking

Multitasking is a common requirement for modern servers, and having ample memory is essential for efficient multitasking. The 16GB memory capacity enables the HPE Proliant DL380 G9 Server to handle multiple tasks simultaneously without experiencing performance degradation. This is particularly beneficial for businesses that rely on running multiple applications or virtual machines concurrently.

Optimized Virtualization

Virtualization relies heavily on memory capacity to provide optimal performance. The 16GB memory capacity of the HPE Proliant DL380 G9 Server allows for efficient virtual machine management, ensuring that each virtual machine has sufficient resources to operate smoothly. This enables businesses to maximize their virtualization investments and achieve better consolidation ratios.

Greater Data Accessibility

Having a larger memory capacity enhances data accessibility within the server. With 16GB of memory, the server can cache frequently accessed data, reducing the time required to retrieve information from slower storage devices. This results in faster data access times and improved overall system performance, particularly for applications that rely on quick data availability.

Scalability and Future Expansion

The 16GB memory capacity provides sufficient headroom for future scalability and expansion. As business needs grow or application requirements change, having room to increase memory capacity is essential. The HPE Proliant DL380 G9 Server's 16GB memory allows businesses to add more memory modules as needed, ensuring that the server can adapt to evolving demands without requiring a complete hardware replacement.

Reliability and Data Integrity

Memory reliability is crucial for ensuring data integrity and minimizing the risk of system failures. The HPE Proliant DL380 G9 Server's memory undergoes rigorous testing and features error-correcting code (ECC) technology. This enables the server to detect and correct memory errors, ensuring that data remains intact and reducing the likelihood of crashes or data corruption.

Form Factor: Rack

The form factor of a server is an important consideration when choosing the right solution for your needs. The HPE Proliant DL380 G9 Server features a rack form factor, which brings numerous benefits and advantages. In this section, we will explore the importance and advantages of the rack form factor in detail.

Space Efficiency

Rack servers are designed to maximize space efficiency, making them ideal for data centers or environments with limited space. The HPE Proliant DL380 G9 Server's rack form factor allows it to be easily mounted in standard server racks, optimizing vertical space utilization. This frees up valuable floor space and enables businesses to accommodate more servers within a compact footprint.

Easy Scalability

Rack servers offer excellent scalability options, allowing businesses to easily add or remove servers as their needs evolve. The HPE Proliant DL380 G9 Server's rack form factor ensures compatibility with industry-standard racks, making it simple to integrate additional servers into existing infrastructure. This scalability is particularly important for businesses that anticipate future growth or changing workloads.

Enhanced Cooling and Cable Management

Rack servers are designed with cooling and cable management in mind. The HPE Proliant DL380 G9 Server's rack form factor features efficient airflow designs and cable management solutions, ensuring optimal cooling and organization within the rack. This helps to prevent overheating and reduces the risk of cable tangling, simplifying maintenance and improving overall system reliability.

Centralized Management

The rack form factor allows for centralized management of multiple servers. By housing servers in a rack, businesses can easily access and manage all their servers from a single location. This simplifies administration tasks such as software updates, monitoring, and troubleshooting, saving time and reducing complexity.

Improved Physical Security

Rack servers offer enhanced physical security compared to other server form factors. The HPE Proliant DL380 G9 Server's rack form factor can be securely locked within the rack enclosure, preventing unauthorized access. Additionally, racks are often located in controlled-access areas, providing an extra layer of protection against theft or tampering.

Modular Design and Hot-Swap Capabilities

Rack servers are designed with modularity in mind, allowing for easy component replacement and upgrades. The HPE Proliant DL380 G9 Server's rack form factor enables hot-swapping of components such as hard drives or power supplies while the server remains operational. This minimizes downtime and ensures continuous service availability, making it an ideal choice for businesses that require high uptime.

Part Number: 826683-B21

The part number is a unique identifier that helps users identify and locate specific server models or components. The HPE Proliant DL380 G9 Server's part number is 826683-B21. In this section, we will explore the benefits and importance of this feature in detail.

Easy Identification

The part number serves as a quick and efficient way to identify the HPE Proliant DL380 G9 Server. By referencing the part number, users can ensure they are purchasing or working with the correct server model, avoiding any confusion or compatibility issues. This is particularly important for businesses that manage multiple servers or have specific hardware requirements.

Compatibility Assurance

The part number provides assurance of compatibility when sourcing additional components or accessories for the HPE Proliant DL380 G9 Server. By using the correct part number, users can ensure that any upgrades or replacements they make are compatible with their server model. This simplifies the procurement process and reduces the risk of purchasing incompatible components.

Manufacturer Support and Documentation

The part number plays a crucial role in accessing manufacturer support and documentation for the HPE Proliant DL380 G9 Server. By providing the part number, users can easily locate relevant resources such as user manuals, technical specifications, and firmware updates. This enables businesses to stay up to date with the latest information and ensures they can receive timely support when needed.

Warranty and Service Coverage

The part number is often tied to warranty and service coverage for the HPE Proliant DL380 G9 Server. By registering the server's part number with the manufacturer, users can ensure they receive the appropriate warranty and service benefits. This provides peace of mind and helps protect their investment in case of any hardware failures or issues.

Streamlined Inventory Management

The part number simplifies inventory management for businesses that own multiple servers. By keeping track of each server's unique part number, businesses can efficiently manage their inventory, ensuring they have the necessary spare parts or replacements readily available. This reduces downtime caused by component failures and improves overall system reliability.

Resale Value and Lifecycle Planning

The part number also plays a role in resale value and lifecycle planning for the HPE Proliant DL380 G9 Server. By knowing the specific part number, users can accurately assess the server's market value when planning for upgrades or replacements. This allows businesses to make informed decisions about their server infrastructure and optimize their IT budget allocation.
