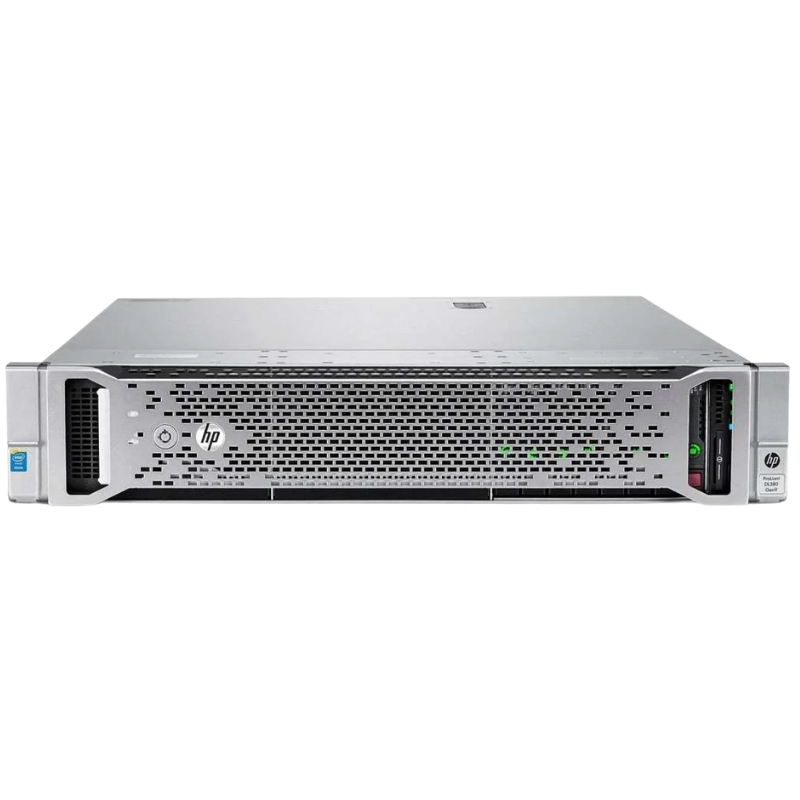

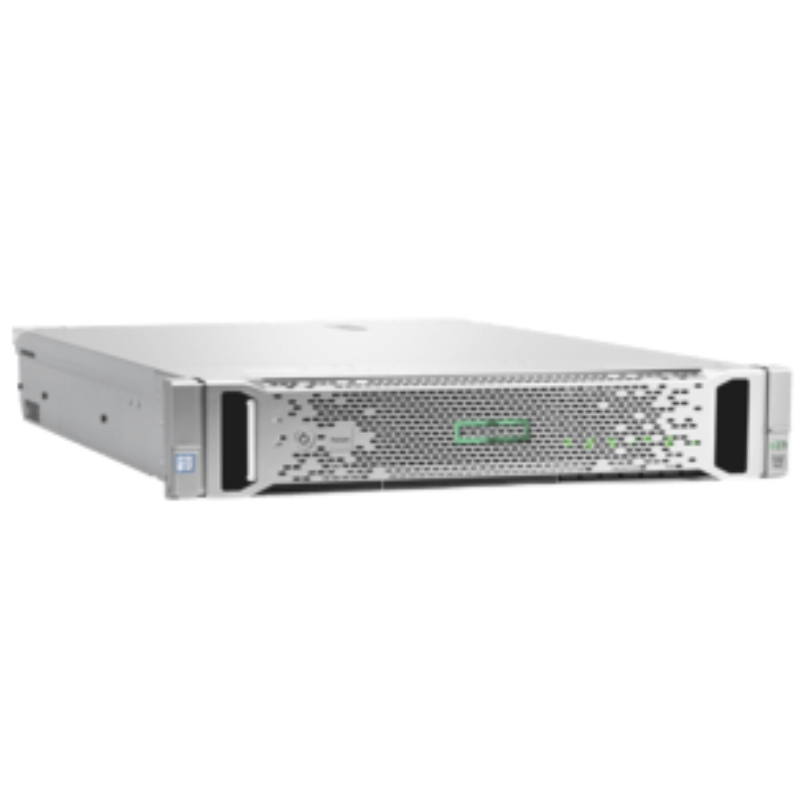

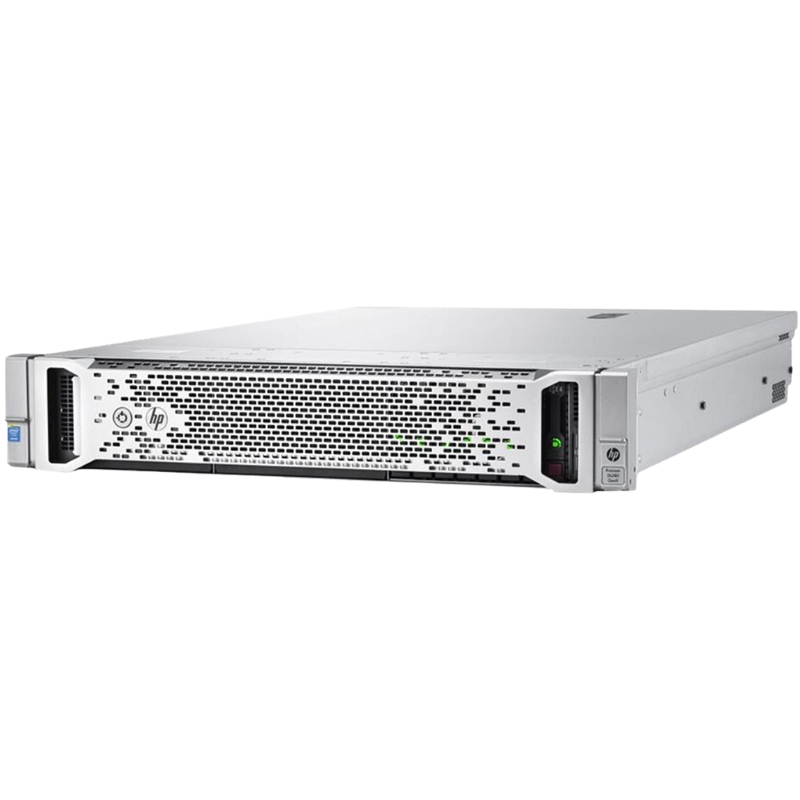

HPE Proliant DL380 G9 800073-S01 Rack Server E5-2620v3 2.4GHz 16GB DDR4 SDRAM

Processor

The HPE Proliant DL380 G9 800073-S01 2U Rack Server is equipped with a powerful E5-2620v3 2.4GHz processor, making it an exceptional choice for businesses that require high-performance computing capabilities. This processor is a significant feature of the server, providing numerous benefits and importance for users.

Product Overview

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 800073-S01

Product Name

• Proliant DL380 Gen9 - 2U Rack-Mountable Server (S-buy)

Processor and Chipset

Processor Specifications

• Processor Type: Intel Xeon E5-2620v3, 2.4 GHz
• Max Turbo Speed: 3.2 GHz
• QuickPath Interconnect: 8.0 GT/s
• Number of Cores: 6-core
• 64-bit Computing: Yes
• Compatible Processor Socket: FCLGA2011-3
• Installed Quantity: 1
• Max Supported Quantity: 2
• Chipset Type: Intel C610 Series

Cache Memory

Cache Details

• Type: Smart Cache
• Installed Size: 15 MB
• Cache Per Processor: 15 MB

Memory Configuration

Installed Memory

• Size: 16 GB / Up to 384 GB
• Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 1866 MHz
• Rated Memory Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Slots: 24 total / 23 empty
• Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP SmartMemory
• Configuration Features: 1 x 16 GB
• RAM Supported: PC4-17000 - 384 GB Registered, PC4-17000 - 1.5 TB Load-Reduced

Storage and Controllers

Drive Information

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Support: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per physical link supported
• PCIe Link Rate: PCI Express 3.0 x8 (PCIe3 x8)
• Physical Drives: Up to 26 Drives
• Logical Drives Supported: Up to 64 Logical Drives
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Display and Graphics

Graphics Specifications

• Graphics Processor: Matrox G200eh2
• Video Memory: 16 MB
• Video Interfaces: VGA

Network and Communication

Network Details

• Ethernet Controller: HP Ethernet 1GB 4-Port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4
• Remote Management Controller: RJ-45 (two)
• Features: Wake on LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

Expansion Bays

• Total Bays: 8 (all free)
• Hot-Swap Bays: 2.5" SFF

Expansion Slots

• Total DIMM Slots: 24 (23 free)
• CPU Slots: 2 (1 free)
• PCIe 3.0 x16 Slots: 2 (1 free, half-length, full-height, x8 mode)
• PCIe 3.0 x8 Slot: 1 (1 free, half-length, full-height)
• MicroSD Card Slot: 1 (1 free, internal)

Interfaces and Ports

• LAN Ports: 4 x Gigabit Ethernet (RJ-45)
• HP iLO Port: 1 x RJ-45
• VGA Port: 1
• USB Ports: 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Additional Features

Included Accessories

• HP Easy Install Rails

Security and Management Features

• Administrator Password
• Power-on Password
• Keyboard Password
• Serial Port I/O Control
• QuickLock
• UEFI BIOS

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• ASHRAE
• CNS 13438

Power Specifications

<

Enhanced Performance

The E5-2620v3 2.4GHz processor delivers exceptional performance, enabling the server to handle demanding workloads efficiently. With six cores and twelve threads, this processor offers excellent multitasking capabilities, allowing users to run multiple applications simultaneously without experiencing any lag or slowdowns. This enhanced performance ensures that businesses can complete their tasks quickly and efficiently, leading to increased productivity and improved overall operational efficiency.

Efficient Virtualization

Virtualization has become an integral part of modern IT infrastructure, and the E5-2620v3 2.4GHz processor excels in this area. It supports advanced virtualization technologies, such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d), which enhance the virtualization performance and security of the server. These technologies enable businesses to consolidate their physical infrastructure by running multiple virtual machines on a single server, resulting in cost savings and simplified management.

Optimized Power Consumption

Energy efficiency is a crucial consideration for businesses as it not only helps to reduce operating costs but also contributes to environmental sustainability. The E5-2620v3 2.4GHz processor is designed with power optimization features, such as Intel Turbo Boost Technology and Intel Intelligent Power Technology. These features dynamically adjust the processor frequency and power consumption based on workload demands, ensuring that power is utilized efficiently without compromising performance. By utilizing power resources effectively, businesses can save on energy costs and reduce their carbon footprint.

Reliability and Scalability

The E5-2620v3 2.4GHz processor is built with Intel's advanced technology and undergoes rigorous testing to ensure its reliability and durability. It is designed to handle heavy workloads and operate seamlessly under demanding conditions, making it suitable for mission-critical applications. Additionally, the processor supports Intel Hyper-Threading Technology, which allows each core to handle two threads simultaneously, effectively doubling the number of available processing threads. This scalability feature enables businesses to scale their computing power as their needs grow, ensuring that the server can keep up with their expanding requirements.

Accelerated Performance with Turbo Boost

The E5-2620v3 2.4GHz processor features Intel Turbo Boost Technology, which dynamically increases the clock speed of the processor when it detects a need for additional performance. This allows the server to deliver accelerated performance for tasks that require extra processing power, such as data-intensive applications or complex calculations. With Turbo Boost, businesses can rely on the server to deliver optimal performance when it matters most, ensuring that critical operations run smoothly and efficiently.

Conclusion

In summary, the HPE Proliant DL380 G9 800073-S01 2U Rack Server's E5-2620v3 2.4GHz processor offers enhanced performance, efficient virtualization capabilities, optimized power consumption, reliability, scalability, and accelerated performance with Turbo Boost. By incorporating this powerful processor into their IT infrastructure, businesses can enjoy improved productivity, cost savings, and future-proof scalability. Whether it's handling demanding workloads or running virtualized environments, this server ensures that businesses can achieve their goals effectively and efficiently.
