HPE Proliant DL380 Gen10 2.2 Ghz Smart Array Rack Server 875766-S01

Processor Speed

The HPE Proliant DL380 Gen10 Rack Server is equipped with a powerful processor speed of 2.2 GHz. This high clock speed allows for faster data processing and improved overall performance. Whether you are running complex calculations, handling large databases, or running resource-intensive applications, the 2.2 Ghz processor speed ensures that your server can handle the workload efficiently.

Product Overview of 875766-S01

Introducing the Hewlett Packard Enterprise Proliant DL380 Gen10, a high-performance 2U rack mountable server designed for advanced data management and enterprise-level applications.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 875766-S01
• Model Name: Proliant DL380 Gen10 - Smart Buy Model

Processor and Chipset

• CPU: Intel Xeon Silver 4114 with a base clock of 2.2 GHz
• Max Turbo Frequency: Up to 3 GHz
• Core Count: 10 cores per processor
• CPU Quantity: 1 installed (supports up to 2)
• CPU Features: Hyper-threading, Intel Turbo Boost Technology 2.0
• Socket Type: Socket P
• Chipset: Intel C621

Cache Memory

• Cache Size: 13.75 MB L3 cache per processor

Memory Specifications

• Installed Memory: 16 GB (expandable to 384 GB)
• Memory Technology: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Memory Features: Registered, Dual Rank, HP SmartMemory, 6-channel architecture
• Configuration: 1 x 16 GB DIMM
• Supported RAM: Up to 384 GB Registered or 768 GB Load-reduced

Storage Information

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controllers

• Type: RAID Controller
• Interface: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Cache Size: 2 GB

Display and Graphics

• Video Memory: 16 MB
• Video Interface: VGA

Network and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• Expansion Bays:
  • 1 External (free)
  • 24 Hot-swap 2.5 SFF (free)
• Expansion Slots:
  • 2 x CPU (1 free)
  • 12 x DIMM 288-pin (11 free)
  • 1 x FlexibleLOM (1 free)
  • 1 x PCIe 3.0 x16 Half-length, Full-height (1 free)
  • 2 x PCIe 3.0 x8 Half-length, Full-height (2 free)
  • 1 x microSD Card (internal, 1 free)

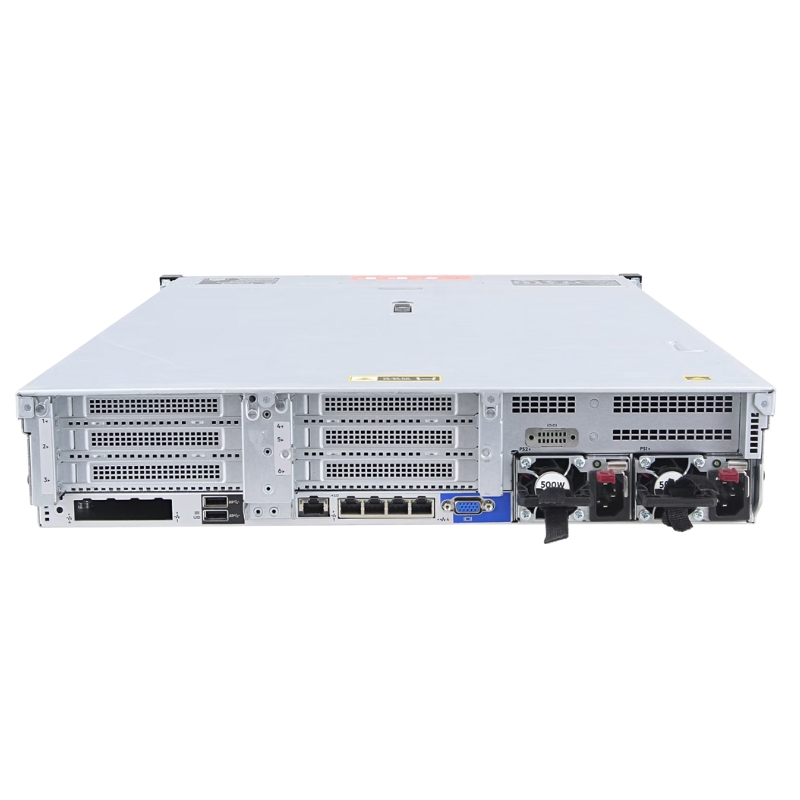

Interfaces and Ports

• 4 x LAN (Gigabit Ethernet) - RJ-45
• 1 x HP iLO - RJ-45 (rear)
• 1 x VGA (rear)
• 24 x SATA-600 / SAS 3.0
• 1 x HP iLO - Type A (front)
• 5 x USB 3.0 (1 front, 2 rear, 2 internal)
• 1 x DisplayPort (front)

Additional Information

• Included Accessories:
  • HP Easy Install Rail Kit
  • 6 Hot Plug High-Performance Fans
  • Standard CPU Heatsink
• Compliance Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
• Manufacturer Selling Program: HPE Smart Buy
• Power Description:
  • Device Type: Hot-plug / Redundant Power Supply
  • Power Redundancy: Yes (1+1 scheme)
  • Installed Quantity: 2
  • Max Supported Quantity: 2
  • Nominal Voltage: AC 120/230 V (50/60 Hz)
  • Power Provided: 800 Watts
  • 80 Plus Certification: Platinum
  • Efficiency: 94%
• Dimensions:
  • Width: 17.5 inches
  • Depth: 28.7 inches
  • Height: 3.4 inches
• Weight: 32.85 lbs

Seamless Multitasking

With a processor speed of 2.2 GHz, the HPE Proliant DL380 Gen10 Rack Server enables smooth multitasking capabilities. This means you can run multiple applications simultaneously without experiencing lag or performance issues. Whether you need to handle virtualization, database management, or high-end computing tasks, the server's processor speed ensures seamless operation and uninterrupted productivity.

Reduced Response Time

In today's fast-paced business environment, every second counts. The 2.2 Ghz processor speed of the HPE Proliant DL380 Gen10 Rack Server significantly reduces response time, allowing users to access and process data quickly. This feature is particularly beneficial for businesses that rely on real-time data analysis and decision-making processes. With reduced response time, you can make informed decisions faster and stay ahead of the competition.

Improved User Experience

The HPE Proliant DL380 Gen10 Rack Server's 2.2 Ghz processor speed enhances the overall user experience by providing a smooth and responsive computing environment. Users will experience faster application loading times, quicker data transfers, and seamless navigation through various tasks. This not only boosts productivity but also improves user satisfaction and reduces frustration caused by slow performance.

Why Processor Speed Matters

Efficient Workload Management

The processor speed of a server plays a crucial role in managing workloads efficiently. With a clock speed of 2.2 Ghz, the HPE Proliant DL380 Gen10 Rack Server can handle demanding tasks and process data at a rapid pace. This capability ensures that your server can handle heavy workloads without compromising on performance or stability.

Optimized Resource Allocation

A higher processor speed allows for better resource allocation within the server. The 2.2 GHz processor speed of the HPE Proliant DL380 Gen10 Rack Server ensures that resources are allocated efficiently, maximizing the server's capabilities. This means that each application and task receives the necessary processing power, resulting in optimized performance and improved overall system efficiency.

Future-Proofing Your Infrastructure

Investing in a server with a high processor speed like the HPE Proliant DL380 Gen10 Rack Server is essential for future-proofing your IT infrastructure. As technology advances and applications become more resource-intensive, having a server that can handle the growing demands becomes crucial. By opting for a server with a 2.2 Ghz processor speed, you ensure that your infrastructure can adapt and scale to meet future requirements.

Compatibility with Modern Software

Modern software applications often require substantial processing power to function optimally. The HPE Proliant DL380 Gen10 Rack Server's 2.2 Ghz processor speed guarantees compatibility with a wide range of software, including resource-intensive applications such as virtualization software, database management systems, and analytics tools. This compatibility ensures that your server can seamlessly run the latest software without any performance bottlenecks.

Smart Array

Enhanced Data Protection

The HPE Proliant DL380 Gen10 Rack Server features a Smart Array technology with a rating of 1. This advanced RAID solution offers enhanced data protection by implementing RAID 1, also known as mirroring. RAID 1 duplicates data across multiple drives, ensuring that even if one drive fails, the data remains intact on the mirrored drive. With Smart Array 1, you can rest assured that your critical business data is safe and protected.

Improved Fault Tolerance

Smart Array 1 provides improved fault tolerance by allowing for hot-swappable drives. In the event of a drive failure, the server automatically switches to a redundant drive without interrupting operations. This hot-swapping capability minimizes downtime and ensures continuous access to data, improving overall system reliability and fault tolerance.

Efficient Data Storage Management

The Smart Array technology in the HPE Proliant DL380 Gen10 Rack Server simplifies data storage management. With a rating of 1, this solution enables efficient disk utilization by mirroring data across drives. This redundancy not only protects against drive failures but also improves read and write performance, resulting in faster data access and retrieval.

Scalability and Flexibility

Smart Array 1 offers scalability and flexibility in terms of storage expansion. With this technology, you can easily add or replace drives as your storage needs grow. The HPE Proliant DL380 Gen10 Rack Server's Smart Array feature ensures that your server can adapt to evolving storage requirements without requiring significant hardware changes or disruptions to your operations.

Why Smart Array Matters

Data Resilience and Business Continuity

Data resilience is crucial for any business, as the loss or corruption of critical data can have severe consequences. The Smart Array technology with a rating of 1 in the HPE Proliant DL380 Gen10 Rack Server provides an added layer of data protection and ensures business continuity. By mirroring data across multiple drives, Smart Array protects against drive failures and minimizes the risk of data loss, allowing your business to operate without interruptions.

Improved System Reliability

System reliability is essential for maintaining productivity and avoiding costly downtime. The Smart Array feature in the HPE Proliant DL380 Gen10 Rack Server enhances system reliability by allowing for hot-swappable drives. This means that if a drive fails, it can be replaced without shutting down the server, minimizing downtime and ensuring continuous operations. The ability to replace drives on the fly significantly improves system reliability and reduces the impact of hardware failures.

Streamlined Storage Management

Managing storage resources efficiently is a critical aspect of IT infrastructure management. The Smart Array technology simplifies storage management by providing a centralized solution for data protection and expansion. With Smart Array 1, you can easily configure and monitor your storage environment, ensuring optimal resource allocation and streamlined storage management.

Future-Proof Storage Solution

Investing in a server with Smart Array technology, such as the HPE Proliant DL380 Gen10 Rack Server, offers a future-proof storage solution. As your business grows and data storage requirements increase, the ability to scale and expand your storage capacity becomes crucial. Smart Array's scalability and flexibility allow you to adapt to changing storage needs without significant investments in new hardware or complex migration processes.

Part Number

Identifying the Right Server

Part number 875766-S01 is the unique identifier for the HPE Proliant DL380 Gen10 Rack Server. This specific part number ensures that you are purchasing the exact model that meets your requirements. With various server configurations and models available, having the correct part number simplifies the process of selecting and ordering the right server for your specific needs.

Compatibility and Interchangeability

The part number 875766-S01 not only identifies the HPE Proliant DPart10 Rack Server model but also ensures compatibility and interchangeability with other components and accessories. Whether you need to upgrade or replace specific parts of the server, having the correct part number ensures that the components will fit seamlessly and work together without any compatibility issues.

Warranty and Support

The part number 875766-S01 is essential when it comes to warranty and support services. By providing the part number, you can easily register your server for warranty coverage and access manufacturer support services. Having the correct part number ensures that you receive the appropriate level of warranty coverage and support tailored specifically to the HPE Proliant DL380 Gen10 Rack Server model.

Inventory Management and Documentation

For businesses that manage a large number of servers, accurate inventory management is crucial. The part number 875766-S01 enables efficient inventory management with a unique identifier for each server. This allows IT teams to track, document, and manage servers more effectively, ensuring that all necessary information is readily available for maintenance, upgrades, or replacements.

Why Part Number Matters

Precision in Procurement

Procuring the right server is a critical decision for any business. The part number 875766-S01 ensures precision in procurement by eliminating any confusion or ambiguity regarding the exact model you require. With the correct part number, you can confidently place orders, knowing that you are receiving the specific server model that aligns with your IT infrastructure needs.

Simplified Maintenance and Upgrades

Maintaining and upgrading servers is an ongoing task for IT teams. Part number 875766-S01 simplifies maintenance and upgrades by ensuring that the correct components and accessories are readily available. Whether you need to replace a failed component or upgrade the server's capabilities, having the correct part number allows for seamless procurement and installation, minimizing downtime and streamlining the maintenance process.

Efficient Inventory and Documentation Management

Proper inventory and documentation management are essential for efficient IT operations. The part number 875766-S01 plays a vital role in inventory management, providing a unique identifier for each server. This enables IT teams to accurately track and document servers, ensuring that all necessary information is readily available when needed. Efficient inventory and documentation management contribute to streamlined operations and improved overall productivity.

Manufacturer Warranty Coverage

Part number 875766-S01 is necessary for registering your server with the manufacturer for warranty coverage. By providing the correct part number, you can ensure that your server is eligible for warranty services. This coverage offers peace of mind, protecting your investment in the HPE Proliant DL380 Gen10 Rack Server and providing access to manufacturer support services when needed.

In conclusion, the HPE Proliant DL380 Gen10 Rack Server's processor speed of 2.2 Ghz provides enhanced performance, seamless multitasking, reduced response time, and improved user experience. This feature enables efficient workload management, optimized resource allocation, future-proofing of infrastructure, and compatibility with modern software. Similarly, the Smart Array technology with a rating of 1 offers enhanced data protection, improved fault tolerance, efficient data storage management, scalability, and flexibility. It ensures data resilience, improved system reliability, streamlined storage management, and future-proof storage solutions. Furthermore, the part number 875766-S01 plays a crucial role in identifying the server, ensuring compatibility and interchangeability, accessing warranty and support services, and enabling efficient inventory and documentation management. The correct part number ensures precision in procurement, simplifies maintenance and upgrades, enables efficient inventory management, and provides access to manufacturer warranty coverage.
