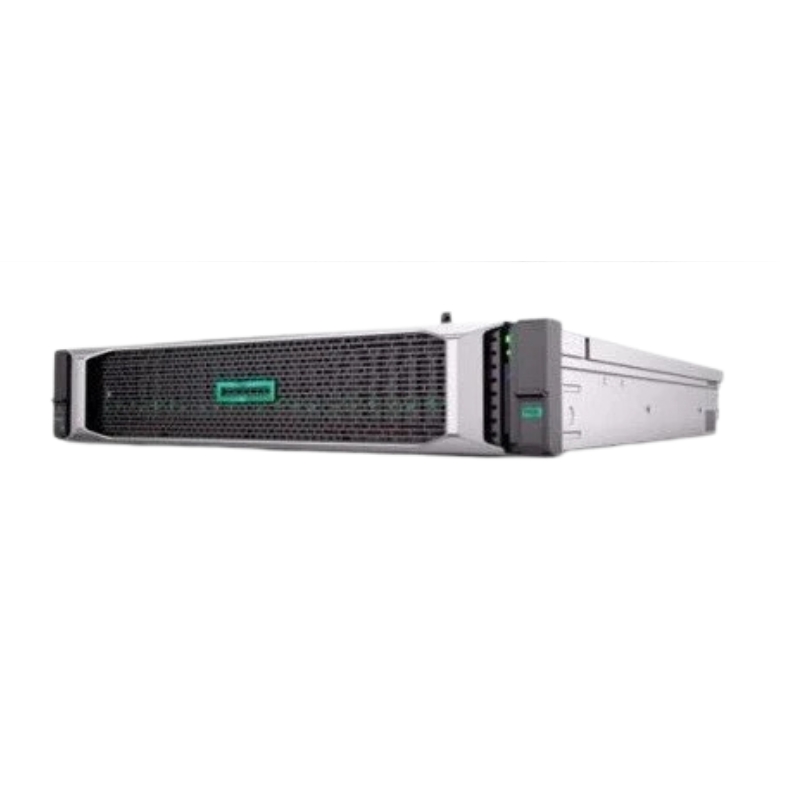

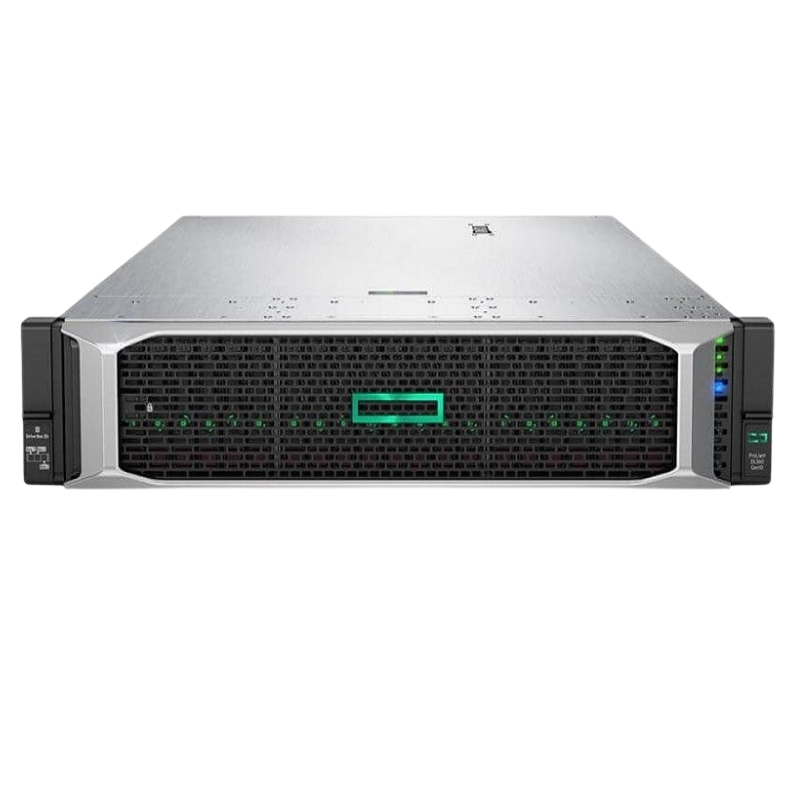

HPE Proliant DL380 Gen10 P06420-B21 Server 4110 16GB-R 8SFF 500W PS

Processor

The HPE Proliant DL380 Server Gen10 P06420-B21 is equipped with a powerful Intel Xeon 4110 processor. This processor is a key component that greatly contributes to the overall performance and capabilities of the server.

General Overview

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P06420-B21
• Product Name: Proliant DL380 Gen10 - 2U Rack-Mountable Performance Server

Processor & Chipset

Central Processing Unit (CPU)

• Processor: Intel Xeon Silver 4110 / 2.1 GHz
• Maximum Turbo Speed: 3.0 GHz
• Cores: 8-Core
• CPU Quantity: 1
• Maximum CPUs: 2
• Upgradability: Yes
• Key Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2.0
• Chipset Type: Intel C621

Cache Memory

• Installed Cache: L3 Cache - 11 MB
• Cache Per Processor: 11 MB

Memory Specifications

Installed and Supported Memory

• Installed Size: 16 GB / Up to 3 TB (Maximum)
• Memory Type: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Memory Slots: 12 (Total) / 11 (Available)
• Features: Registered, Dual Rank, HPE SmartMemory
• Configuration Example: 1 x 16 GB
• Supported RAM: PC4-20800 - 3.072 TB Load-Reduced, PC4-20800 - 768 GB Registered

Storage Controllers

Primary Storage Controller

• Type: RAID - PCIe 3.0 x8
• Interface Type: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 2 GB

Secondary Storage Controller

• Type: SATA
• Interface Type: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software
• Channels: 14

Graphics and Network Capabilities

Graphics Controller

• Video Memory: 16 MB
• Video Interface: VGA

Network Connectivity

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WoL), PXE Support

Expansion and Connectivity

Bays

• External Bays: 8 x Hot-Swap 2.5 SFF (All Free)

Slots

• FlexibleLOM Slot: 1 (Available)
• PCIe 3.0 x16 Slot: 1 (Available)
• PCIe 3.0 x8 Slots: 2 (Both Available)
• MicroSD Card Slot: 1 (Internal, Available)

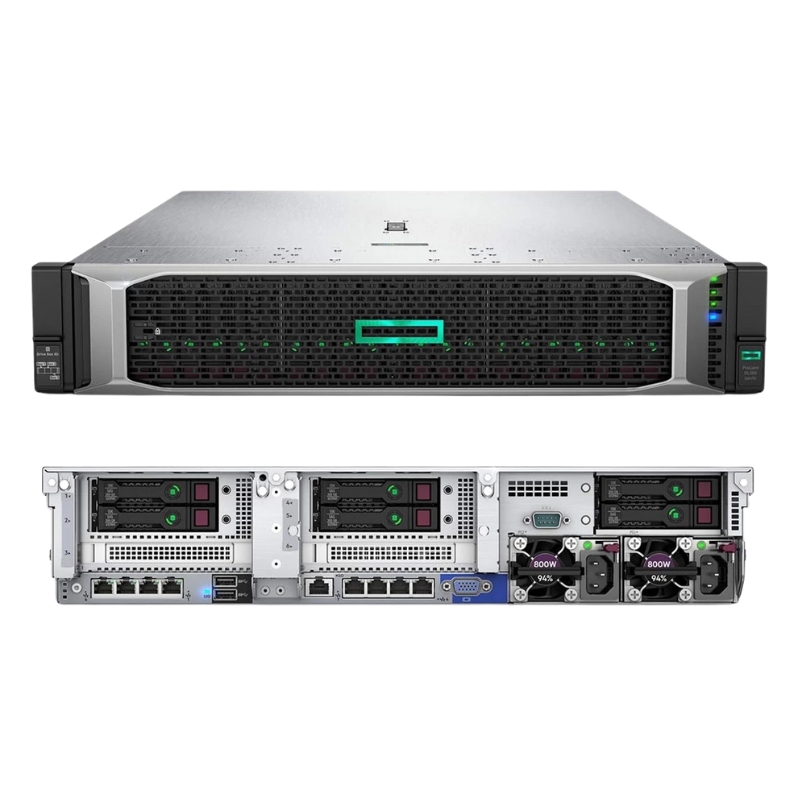

Interfaces

• HP iLO Type A: 1 (Front)
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)
• LAN (Gigabit Ethernet) RJ-45: 4 (Rear)
• HP iLO RJ-45: 1 (Rear)
• VGA Port: 1 (Rear)

Miscellaneous

• HP Easy Install Rail Kit
• 4 Standard Fans
• Standard CPU Heatsink

Compliance and Standards

• AES
• FIPS 140-2
• IPv6 Ready
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer's Program

• Program: HPE Smart Buy

Power Specifications

• Power Supply Type: Hot-Plug
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watts

Dimensions & Weight

• Width: 17.5 inches
• Depth: 28.8 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Enhanced Performance

The Intel Xeon 4110 processor is built on a 14nm architecture and features 8 cores and 16 threads. With a base clock speed of 2.1GHz, this processor can deliver exceptional performance for demanding workloads.

Efficient Multitasking

The 8 cores and 16 threads of the Intel Xeon 4110 processor allow for efficient multitasking. This means that the server can handle multiple tasks simultaneously without sacrificing performance. Whether you're running virtual machines, handling large databases, or performing complex computations, the processor can handle the workload with ease.

Improved Responsiveness

The Intel Xeon 4110 processor also includes Intel Turbo Boost Technology, which dynamically increases the clock speed of individual cores when needed. This feature provides a significant boost in performance for single-threaded applications, improving responsiveness and reducing latency.

Scalability

Another advantage of the Intel Xeon 4110 processor is its scalability. The server supports dual processors, which means you have the option to upgrade to a second processor for even higher performance and capacity in the future as your business needs grow.

Memory

The HPE Proliant DL380 Server Gen10 P06420-B21 comes with 16GB-R memory, providing ample capacity for various workloads and applications.

Faster Data Access

With 16GB-R memory, the server can store and retrieve data more quickly, resulting in faster access times. This is particularly important for tasks that involve large datasets or require frequent data retrieval, such as database operations or virtual machine management.

Improved Performance

The ample memory capacity allows the server to handle more concurrent processes and applications without running out of memory. This results in improved overall performance and ensures that the server can handle demanding workloads efficiently.

Flexibility

The 16GB-R memory configuration provides flexibility for future upgrades. If your business requirements change and you need more memory to support additional workloads or applications, you can easily upgrade the server's memory capacity by adding more modules.

Storage

The HPE Proliant DL380 Server Gen10 P06420-B21 is equipped with the HPE Smart Array P408I-A controller, offering reliable and efficient storage capabilities.

Enhanced Data Protection

The HPE Smart Array P408I-A controller supports various RAID configurations, allowing you to choose the level of data protection that best suits your needs. Whether you require RAID 0 for maximum performance, RAID 1 for data mirroring, or RAID 5 for a balance between performance and data redundancy, the controller has you covered.

Improved Storage Performance

The HPE Smart Array P408I-A controller features advanced caching and data acceleration technologies. With its built-in cache memory and support for SSDs, it can significantly improve storage performance by accelerating data access and reducing latency.

Scalability and Flexibility

The P408I-A controller supports up to 8 internal drive bays, allowing for a scalable storage solution. You can start with a smaller number of drives and expand as your storage needs grow. This flexibility ensures that you can adapt the server's storage capacity to match your evolving business requirements.

Drive Bays

The HPE Proliant DL380 Server Gen10 P06420-B21 features 8SFF (Small Form Factor) drive bays, providing a compact and efficient storage solution.

Space Optimization

The 8SFF drive bays allow you to maximize the storage capacity within a limited physical space. This is particularly beneficial for environments where space is at a premium, such as small offices or data centers with limited rack space.

Easy Drive Installation and Maintenance

The design of the 8SFF drive bays simplifies the installation and maintenance of drives. The server's hot-plug capability allows you to add or replace drives without powering down the system. This minimizes downtime and ensures continuous operation.

Support for Various Drive Types

The 8SFF drive bays support a wide range of drive types, including SAS, SATA, and SSDs. This versatility allows you to choose the drives that best suit your storage requirements, whether you prioritize performance, capacity, or a combination of both.

Power Supply

The HPE Proliant DL380 Server Gen10 P06420-B21 is equipped with a 500W PS (Power Supply), ensuring reliable and efficient power delivery to the server components.

Stable and Reliable Power

The 500W PS provides a stable and reliable power source for the server. This is crucial for maintaining the server's uptime and ensuring uninterrupted operation. The power supply's high efficiency rating also helps to reduce energy consumption, resulting in cost savings over time.

Redundancy and Failover Protection

The server features redundant power supply options, allowing you to connect multiple power supplies for failover protection. In the event of a power supply failure, the backup power supply will seamlessly take over, preventing downtime and data loss.

Smart Power Management

The HPE Proliant DL380 Server Gen10 P06420-B21 is equipped with intelligent power management features. These features monitor and optimize power usage, dynamically adjusting power allocation to different components based on their workload. This helps to minimize wasted energy and ensures that power is allocated efficiently.

Performance

The HPE Proliant DL380 Server Gen10 P06420-B21 is designed to deliver exceptional performance for a wide range of applications and workloads.

Highly Scalable

The server's architecture allows for easy scalability, accommodating the growing needs of your business. With the ability to support dual processors, expandable memory slots, and a flexible storage configuration, you can easily scale up the server's performance and capacity as your requirements evolve.

Reliable and Resilient

The HPE Proliant DL380 Server Gen10 P06420-B21 incorporates various reliability and resilience features to ensure continuous operation. These include redundant power supplies, hot-plug drive bays, and advanced error checking and correction technologies. These features minimize the risk of hardware failures and help to maintain the server's uptime.

Optimized for Virtualization

With its powerful processor, ample memory capacity, and flexible storage options, the server is well-suited for virtualization environments. It can efficiently handle multiple virtual machines, providing excellent performance and responsiveness. This allows you to consolidate your infrastructure, reduce hardware costs, and simplify management.

In conclusion, the HPE Proliant DL380 Server Gen10 P06420-B21 offers a powerful combination of performance, scalability, and reliability. With its Intel Xeon 4110 processor, 16GB-R memory, HPE Smart Array P408I-A controller, 8SFF drive bays, 500W PS power supply, and optimized performance, it is an ideal choice for businesses that require a robust and efficient server solution. Whether you need to run demanding applications, handle large datasets, or support virtualized environments, this server has the features and capabilities to meet your needs.
