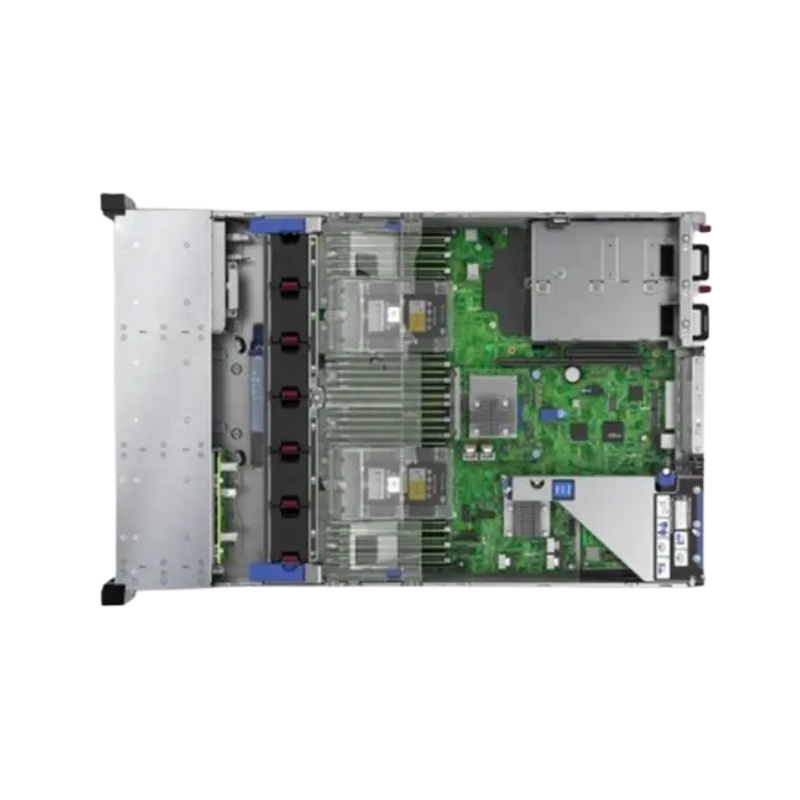

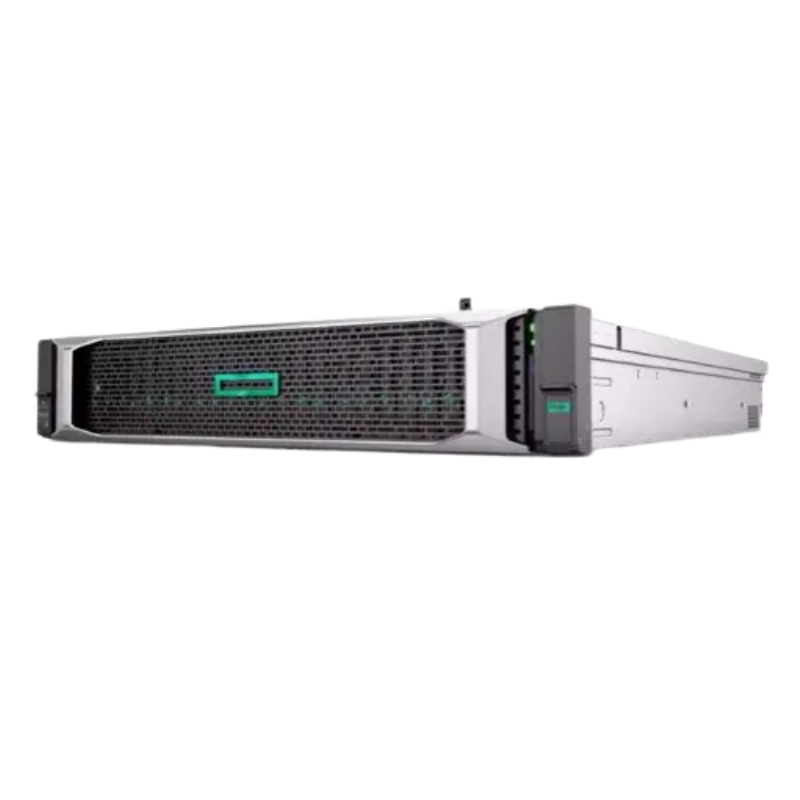

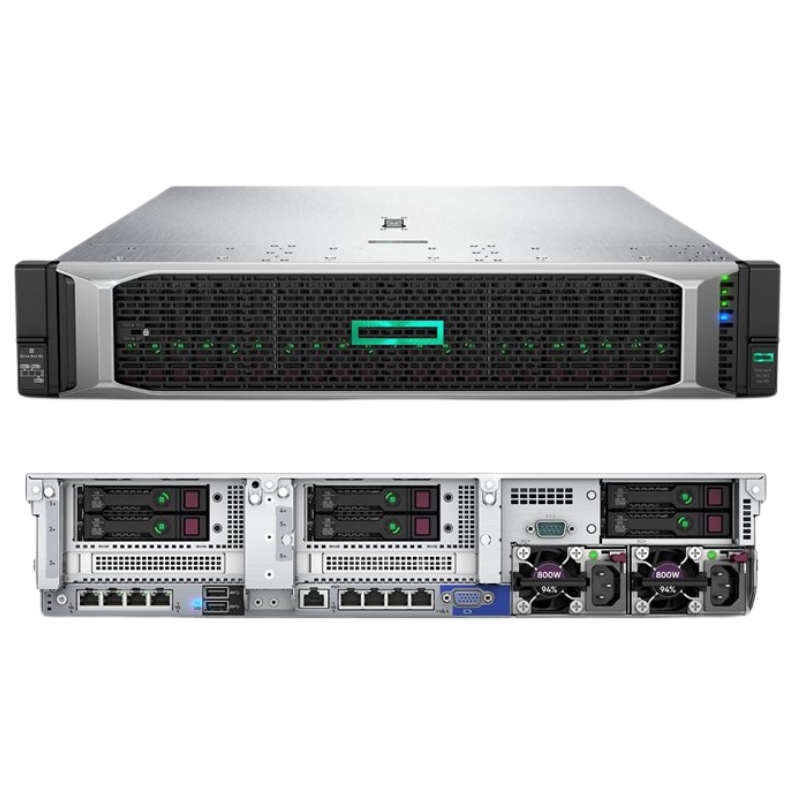

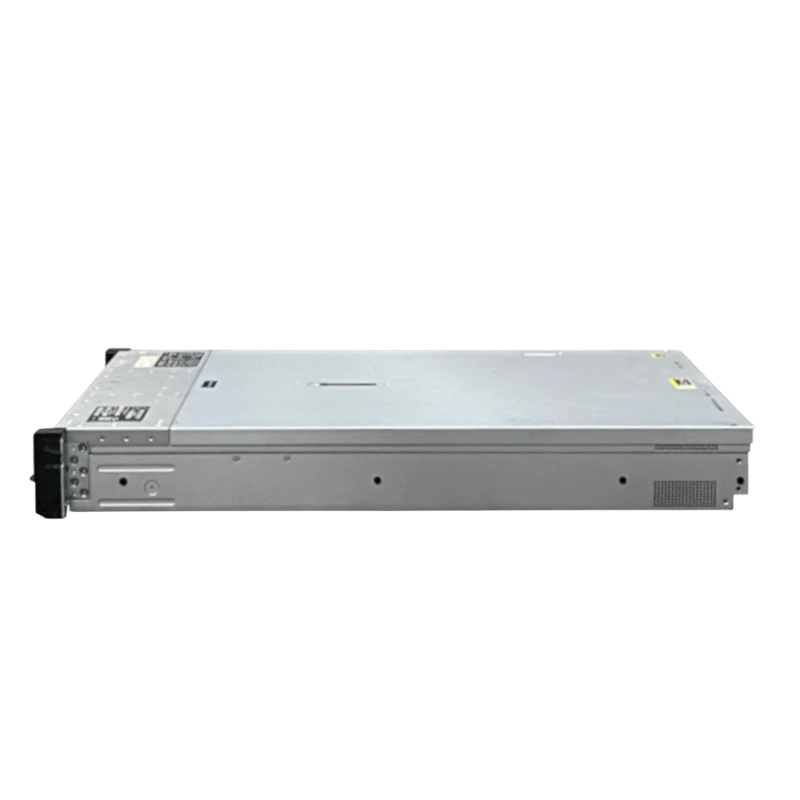

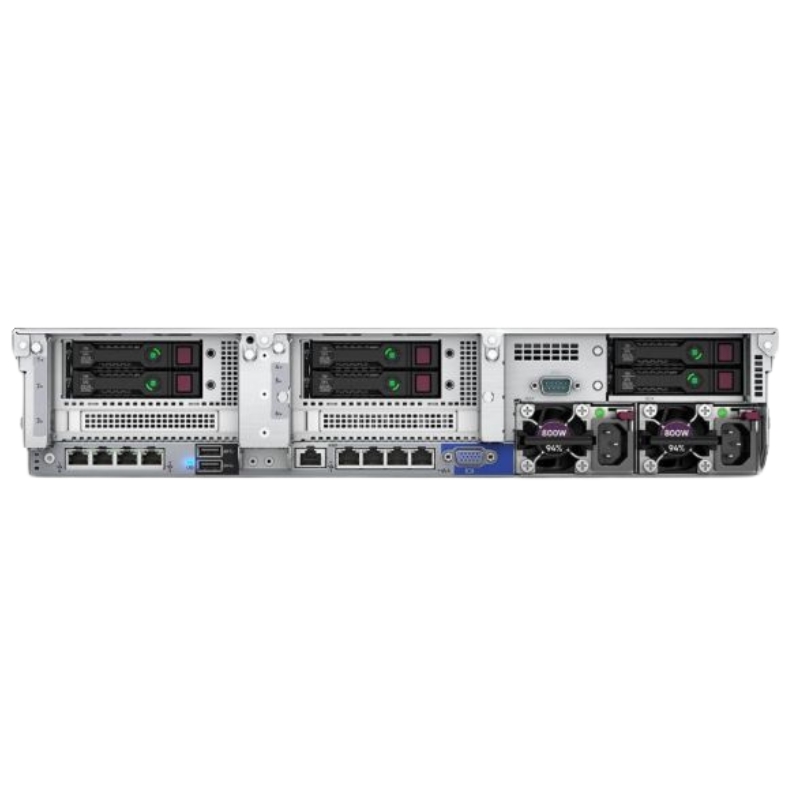

HPE Proliant DL380 Gen10 Xeon 10 Core 2.2 GHz 32GB DDR4 Server 826565-B21

Processor:

The HPE Proliant DL380 Gen10 Server is equipped with a powerful Xeon 10 Core 2.2 GHz processor, making it an exceptional choice for businesses and organizations that require high-performance computing capabilities. This feature sets the server apart from its competitors, providing users with numerous benefits and ensuring smooth and efficient operations.

General Overview

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Part Number: 826565-B21
• Product Name: ProLiant DL380 Gen10 - 2U Rack Mountable Server (Base SFF Model)

Processor & Chipset Specifications

• CPU: Intel Xeon Silver 4114, 2.2 GHz
• Max Turbo Speed: 3.0 GHz
• Core Count: 10-core
• Processor Quantity: 1
• Maximum CPUs: 2
• Upgradability: Yes
• Processor Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
• Socket Type: Socket P
• Chipset: Intel C621

Cache Memory Details

• Installed L3 Cache: 13.75 MB
• Cache Per Processor: 13.75 MB

Memory Configuration

• Installed Memory: 32 GB, expandable up to 384 GB
• Memory Technology: DDR4 SDRAM
• Effective Memory Speed: 2600 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Features: Registered, Dual Rank, HP SmartMemory, 6-channel Memory Architecture
• Configuration: 2 x 16 GB
• Supported RAM: Up to 384 GB Registered PC4-20800 or 768 GB Load-reduced

Storage Information

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controllers

• Controller Type: RAID
• Interface Type: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channel Quantity: 8
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Display & Graphics

• Video Memory: 16 MB
• Video Interface: VGA

Networking & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

Expansion Bays

• External Bays: 1 (total), 1 (free)
• Hot-swap 2.5 SFF Bays: 8 (total), 8 (free)

Expansion Slots

• CPU Slots: 2 (total), 1 (free)
• DIMM Slots: 12 (total), 10 (free)
• PCIe 3.0 Slots:
  • 1 x X16 (Full-length, Full-height)
  • 2 x X8 (Half-length, Full-height)
• MicroSD Card Slot: 1 (internal)

Interfaces & Ports

• LAN Ports: 4 x RJ-45 (Gigabit Ethernet)
• HP iLO Port: 1 x RJ-45 (rear)
• VGA Port: 1 x VGA (rear)
• SATA/SAS Ports: 16 x SATA-600 / SAS 3.0
• HP iLO Front Port: 1 x Type A
• USB Ports:
  • 5 x USB 3.0 (1 front, 2 rear, 2 internal)
  • 1 x USB 2.0 (front)
• DisplayPort: 1 x DisplayPort (front)

Additional Information

Included Accessories

• 6 Hot Plug High Performance Fans

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• TLS V1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Power Specifications

• Device Type: Hot-plug / Redundant Power Supply
• Redundancy: Yes, 1+1
• Installed Power Supplies: 1
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watt
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 28.7 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Unparalleled Performance:

With a Xeon 10 Core 2.2 GHz processor, the HPE Proliant DL380 Gen10 Server delivers unparalleled performance that can handle even the most demanding workloads. The ten cores provide substantial processing power, allowing for faster data processing, improved multitasking capabilities, and enhanced overall performance. This processor is designed to handle complex tasks effortlessly, making it an ideal choice for businesses that rely on resource-intensive applications or databases.

Efficient Virtualization:

Virtualization has become an essential aspect of modern data centers, enabling businesses to maximize their server resources while reducing costs. The Xeon 10 Core 2.2 GHz processor in the HPE Proliant DL380 Gen10 Server excels in virtualized environments, offering excellent performance and efficiency for running multiple virtual machines simultaneously. This feature enables businesses to consolidate their server infrastructure while maintaining optimal performance levels.

Improved Scalability:

Scalability is crucial for businesses as they grow and their computing needs expand. The Xeon 10 Core 2.2 GHz processor provides excellent scalability options, allowing organizations to easily upgrade their server's processing power as required. With the ability to handle more demanding workloads, the HPE Proliant DL380 Gen10 Server ensures that businesses can meet their future computational needs without having to invest in a completely new server infrastructure.

Enhanced Security:

In today's digital landscape, security is of utmost importance. The Xeon 10 Core 2.2 GHz processor incorporates advanced security features, such as Intel's Trusted Execution Technology (TXT) and Intel Software Guard Extensions (SGX). These features help protect sensitive data and ensure the integrity of the server's operations, providing users with peace of mind and reducing the risk of unauthorized access or data breaches.

Ram:

The HPE Proliant DL380 Gen10 Server boasts an impressive 32GB DDR4 RAM, which significantly contributes to its exceptional performance and reliability. This feature is highly valuable for businesses and organizations that require extensive memory capabilities to handle complex applications, databases, virtualization, and more.

Improved Workload Management:

With 32GB of DDR4 RAM, the HPE Proliant DL380 Gen10 Server can efficiently manage heavy workloads without compromising performance. The generous amount of memory allows for smoother multitasking, faster data access, and reduced latency. This feature is particularly beneficial for businesses that rely on resource-intensive applications or databases, enabling them to handle concurrent tasks seamlessly.

Enhanced Virtualization:

Virtualization requires a significant amount of memory to allocate resources to multiple virtual machines effectively. The 32GB DDR4 RAM in the HPE Proliant DL380 Gen10 Server ensures that businesses can run numerous virtual machines simultaneously without experiencing any performance degradation. This capability is essential for organizations looking to maximize their server resources and improve operational efficiency.

Future-Proofing:

As technology continues to evolve rapidly, it is crucial for businesses to invest in hardware that can accommodate future requirements. The 32GB DDR4 RAM provides ample room for scalability and future upgrades. Businesses can easily expand their server's memory capacity as their needs grow without replacing the entire server infrastructure. This feature saves both time and money while ensuring that the server remains at peak performance throughout its lifespan.

Reliability and Redundancy:

Reliability is a critical factor when it comes to server memory. The HPE Proliant DL380 Gen10 Server's 32GB DDR4 RAM offers excellent reliability, minimizing the risk of data corruption or loss. Additionally, the server features redundant memory modules, ensuring that even in the event of a single module failure, the system can continue to operate without interruption. This redundancy adds an extra layer of protection and ensures uninterrupted access to critical data and applications.

Part Number:

The HPE Proliant DL380 Gen10 Server's part number, 826565-B21, is an essential feature that helps users identify and procure the specific model they require. This alphanumeric code provides several benefits and plays a crucial role in streamlining the procurement process.

Easy Identification:

With numerous server models available, it can be challenging to identify the right server for a specific use case. The part number, 826565-B21, simplifies this process by providing a unique identifier that distinguishes the HPE Proliant DL380 Gen10 Server from other models within the HPE product lineup. Users can quickly reference the part number when requesting quotes or making inquiries, ensuring that they receive accurate information and avoid any confusion.

Compatibility Assurance:

The part number, 826565-B21, also acts as a compatibility assurance tool. It ensures that users select the correct components or accessories that are designed specifically for the HPE Proliant DL380 Gen10 Server. By referencing the part number when ordering additional equipment or spare parts, users can be confident that they are purchasing items that are guaranteed to work seamlessly with their server. This compatibility provides peace of mind and reduces the risk of compatibility issues or system failures.

Simplified Procurement:

Efficient procurement is crucial for businesses, as it directly impacts project timelines and budgets. The part number, 826565-B21, simplifies the procurement process by enabling users to quickly and accurately communicate their server requirements to vendors or resellers. This feature saves time and ensures that the correct server model is procured without any confusion or delays.

Standardization and Documentation:

In large organizations or data centers that manage multiple servers, standardization plays a vital role in maintaining consistency and ease of management. The part number, 826565-B21, helps standardize server procurement and documentation processes. By utilizing the part number as a reference, organizations can easily track and document their server inventory, making it simpler to manage maintenance schedules, warranty information, and system configurations.

In conclusion, the HPE Proliant DL380 Gen10 Server's Xeon 10 Core 2.2 GHz processor, 32GB DDR4 RAM, and part number 826565-B21 are all significant features that contribute to its exceptional performance, reliability, and ease of use. These features ensure optimal performance for resource-intensive applications, efficient virtualization capabilities, simplified procurement processes, and future-proofing options. Whether it's handling complex workloads, running multiple virtual machines, or streamlining server identification and procurement, the HPE Proliant DL380 Gen10 Server delivers the reliability and performance that businesses require.
