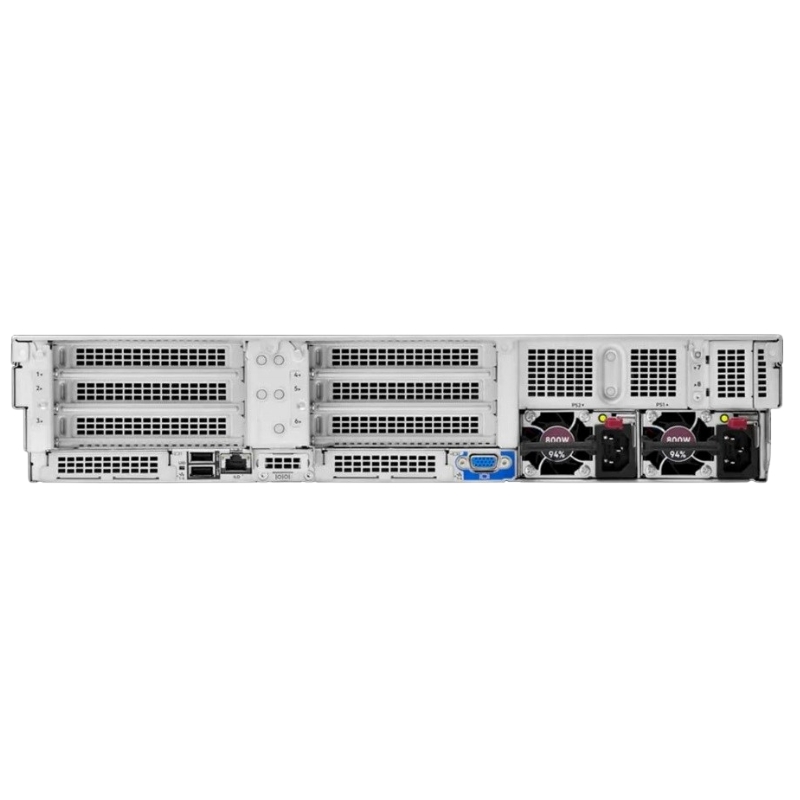

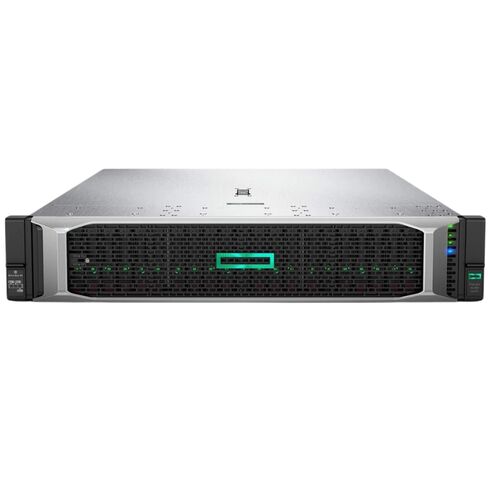

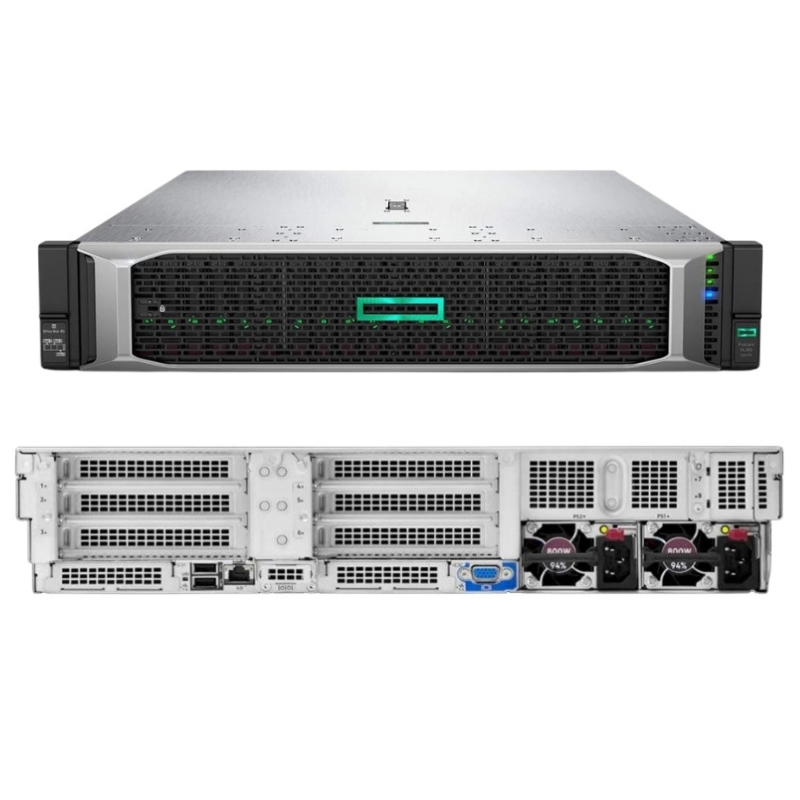

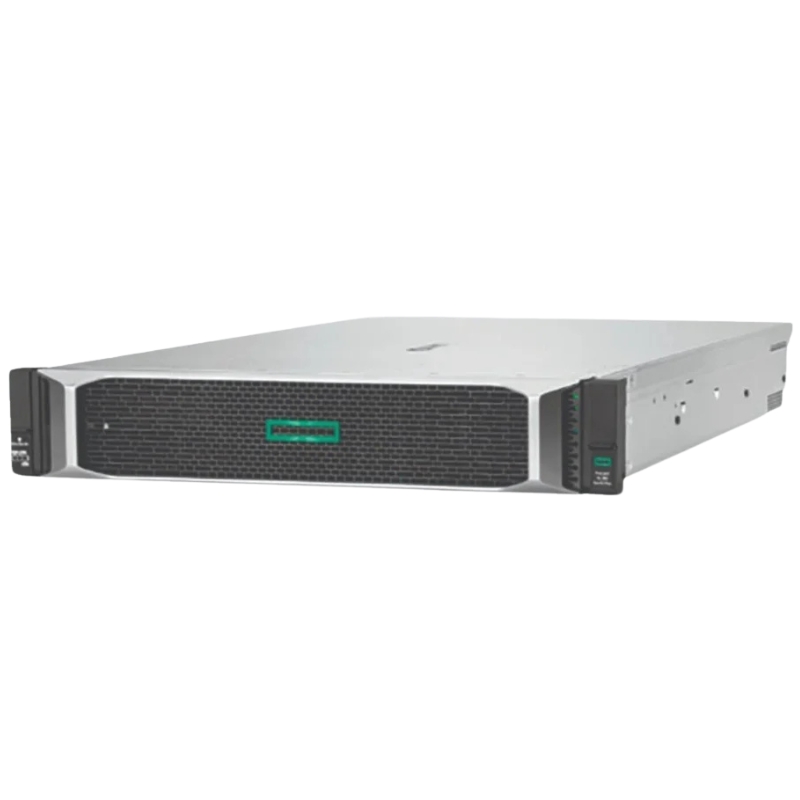

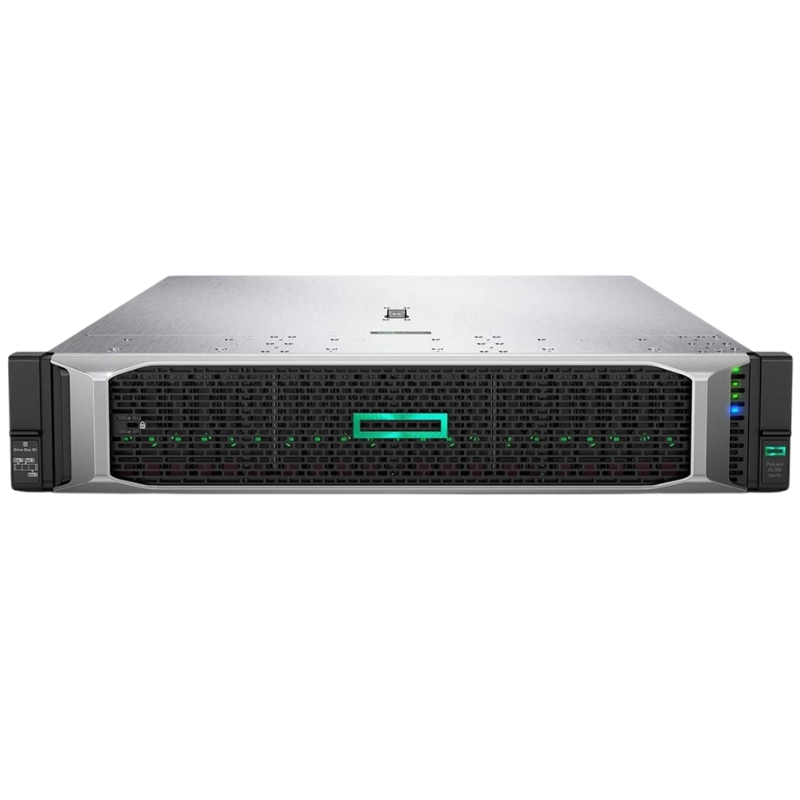

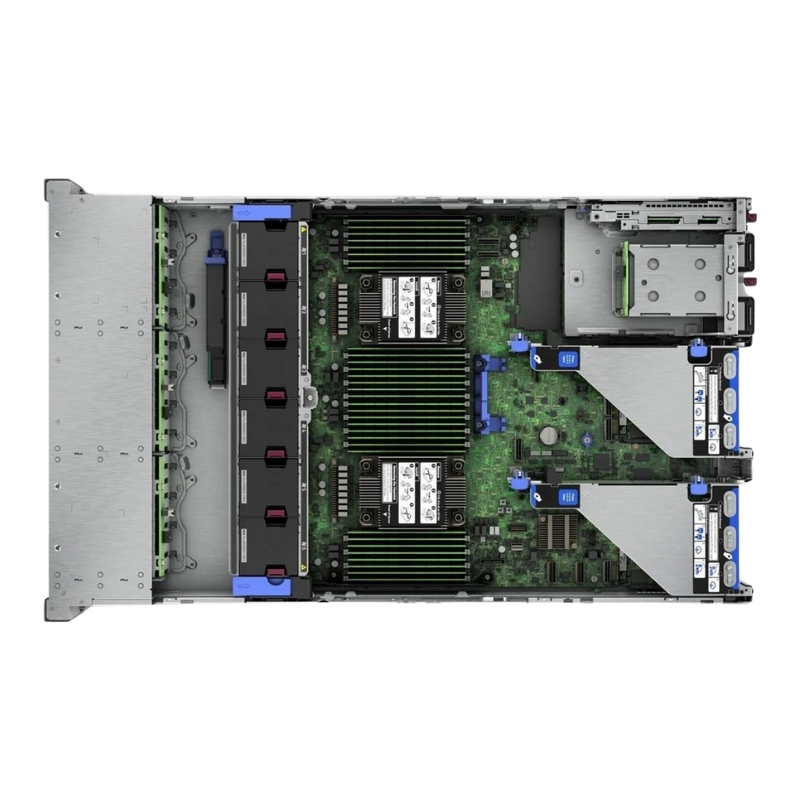

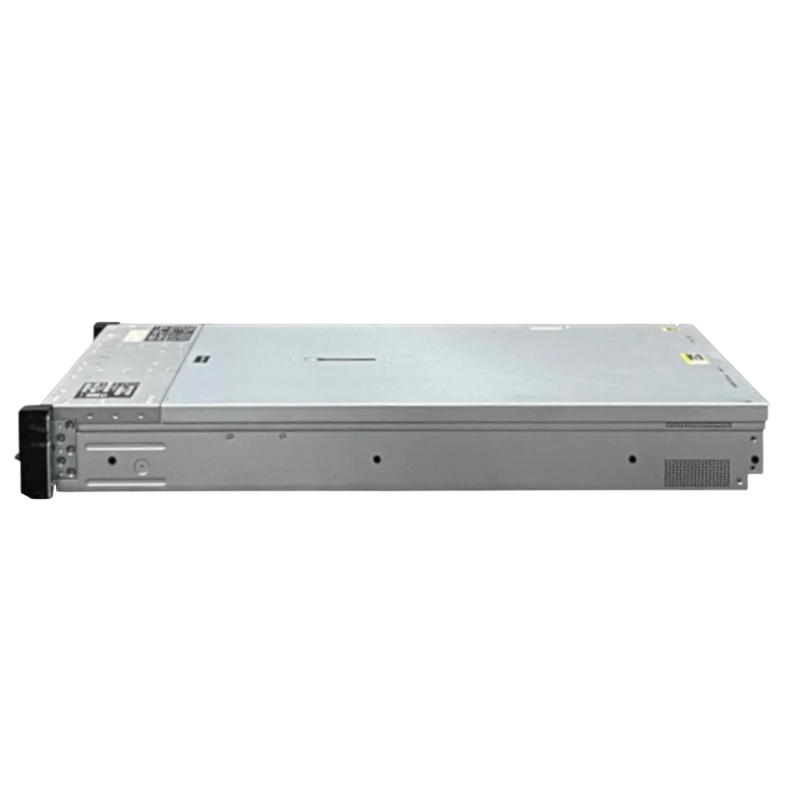

HPE Proliant DL380 Gen10 Xeon 8-core Silver 4110 Server, 16GB DR4 SDRAM P05524-B21

Processor

The HPE Proliant DL380 Server Gen10 Server has an impressive Xeon 8-core Silver 4110 processor, clocked at 2.1 GHz. This powerful processor is designed to deliver exceptional performance, making it an ideal choice for a wide range of computing needs.

General Product Overview of P05524-B21

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P05524-B21
• Product Name: Proliant DL380 Gen10 - 2U Rack-Mount Server

CPU Specifications

• Processor: Intel Xeon Silver 4110
• Base Clock Speed: 2.1 GHz
• Max Turbo Frequency: 3.0 GHz
• Number of Cores: 8-core
• Installed CPUs: 1
• Maximum CPUs: 2
• CPU Upgradability: Yes, upgradeable
• Core Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Chipset: Intel C621

Cache Memory

• Cache Size: L3 Cache - 11 MB
• Cache per Processor: 11 MB

Memory Specifications

• Installed Memory: 16 GB
• Maximum Supported Memory: 3 TB

Memory Technology and Speed

• Type: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Compliance: PC4-20800
• Form Factor: DIMM 288-pin

Memory Configuration and Support

• Installed Configuration: 1 x 16 GB
• Supported RAM Types: PC4-20800, Load-Reduced PC4-20800, Registered
• Maximum Registered RAM: 768 GB
• Maximum Load-Reduced RAM: 3.072 TB

Storage Controllers

• Controller Type: RAID
• Interface Type: PCIe 3.0 x8
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Secondary Storage Controller

• Controller Type: SATA
• Interface Type: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software
• Channels: 14

Graphics and Network Connectivity

• Video Memory: 16 MB
• Video Interface: VGA

Network Interfaces

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• External Bays: 8 x Hot-Swap 2.5” SFF

Expansion Slots

• FlexibleLOM Slot: 1 (free)
• PCIe 3.0 x16 Slot: 1 (free)
• PCIe 3.0 x8 Slots: 2 (free)
• MicroSD Card Slot: 1 (internal)

Interfaces

• HP iLO Type A: 1 (front)
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• LAN (Gigabit Ethernet) RJ-45: 4 (rear)
• HP iLO RJ-45: 1 (rear)
• VGA Port: 1 (rear)

Miscellaneous Information

• RAID Battery Backup Unit
• HP Easy Install Rail Kit
• 4 Standard Fans
• CPU Standard Heatsink

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power and Dimensions

• Device Type: Hot-Plug Power Supply
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watts

Dimensions and Weight

• Width: 17.5 inches
• Depth: 28.8 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Enhanced Performance

The Xeon 8-core Silver 4110 processor offers enhanced performance capabilities, allowing users to handle demanding workloads with ease. With its high clock speed and multiple cores, this processor can efficiently execute tasks and handle complex calculations. Whether you are running resource-intensive applications or performing data analysis, the Xeon 8-core Silver 4110 processor ensures smooth and efficient performance.

Improved Multitasking

One of the key benefits of the Xeon 8-core Silver 4110 processor is its ability to handle multitasking seamlessly. The multiple cores enable simultaneous execution of multiple tasks, reducing the processing time and improving overall system responsiveness. Users can run multiple applications concurrently without experiencing any lag or slowdowns, resulting in increased productivity and efficiency.

Optimized for Virtualization

Virtualization has become an essential component of modern computing environments, and the Xeon 8-core Silver 4110 processor is designed to excel in virtualized environments. With its robust performance capabilities and support for advanced virtualization technologies, this processor ensures efficient utilization of resources and enables the creation of multiple virtual machines without compromising performance.

Energy Efficiency

In addition to its impressive performance capabilities, the Xeon 8-core Silver 4110 processor is also energy-efficient. It incorporates advanced power management features that optimize power consumption based on workload requirements. This not only helps reduce energy costs but also contributes to a greener and more sustainable computing environment.

Reliability and Scalability

The Xeon 8-core Silver 4110 processor is built to deliver reliability and scalability, making it suitable for businesses of all sizes. Its robust architecture ensures stability and minimizes the risk of system failures, providing users with a dependable computing platform. Furthermore, the processor's scalability allows for future expansion and growth, ensuring that it can meet evolving business needs.

Memory

The HPE Proliant DL380 Server Gen10 Server comes equipped with 16GB DR4 SDRAM, offering ample memory capacity for various applications and workloads. The memory plays a crucial role in the overall performance and efficiency of the server.

Enhanced System Responsiveness

The 16GB DR4 SDRAM significantly enhances system responsiveness by providing fast access to frequently used data and instructions. With a larger memory capacity, the server can store more data in memory, reducing the need for frequent disk access. This results in faster application response times, smoother multitasking, and improved overall user experience.

Efficient Data Processing

With its substantial memory capacity, the server can efficiently process large datasets and handle memory-intensive applications. This is particularly beneficial for tasks such as data analysis, virtualization, and database management, where quick access to vast amounts of data is crucial. The 16GB DR4 SDRAM ensures that the server can handle these tasks efficiently without experiencing bottlenecks or performance degradation.

Optimized Virtualization Performance

Virtualization environments heavily rely on memory capacity to create and manage virtual machines effectively. The 16GB DR4 SDRAM provides ample memory resources for running multiple virtual machines simultaneously, ensuring optimal performance and minimizing resource contention. This enables businesses to consolidate their infrastructure, reduce hardware costs, and improve overall efficiency.

Future-Proofing

Investing in a server with ample memory capacity, such as the HPE Proliant DL380 Server Gen10 Server with 16GB DR4 SDRAM, offers future-proofing benefits. As applications and workloads continue to grow in complexity and demand more memory, having a sufficient memory capacity ensures that the server can handle future requirements without the need for immediate upgrades.

Reliability and Error Correction

The 16GB DR4 SDRAM incorporates advanced error correction mechanisms to ensure data integrity and reliability. It detects and corrects errors in real time, minimizing the risk of data corruption or system crashes. This feature is particularly crucial for mission-critical applications and data-sensitive environments, where data integrity is of utmost importance.

Part Number

The HPE Proliant DL380 Server Gen10 Server features a unique part number, P05524-B21, which serves as an identifier for this specific model. The part number holds importance for users in various aspects, including compatibility, documentation, and warranty support.

Compatibility Assurance

The part number, P05524-B21, ensures compatibility with specific hardware components and accessories designed for the HPE Proliant DL380 Server Gen10 Server. When purchasing additional components or upgrades, users can refer to the part number to ensure that the selected products are compatible with their server model. This eliminates any confusion or potential compatibility issues, streamlining the procurement process.

Easy Documentation Retrieval

The part number serves as a reference point for documentation related to the HPE Proliant DL380 Server Gen10 Server. Users can easily locate product manuals, technical specifications, user guides, and other relevant documentation by referencing the part number. This simplifies troubleshooting processes, facilitates system administration tasks, and assists in optimizing server performance.

Warranty Support

The part number plays a crucial role in warranty support for the HPE Proliant DL380 Server Gen10 Server. Users can provide the part number when seeking warranty assistance or service, ensuring that they receive the appropriate support for their specific server model. This helps expedite the resolution of any issues and ensures that users can leverage the full benefits of the warranty coverage.

Identification and Tracking

The part number, P05524-B21, serves as a unique identifier for the HPE Proliant DL380 Server Gen10 Server. It allows users to easily track and manage their server inventory, simplifying asset management processes. This is particularly beneficial for organizations with multiple servers, as it enables efficient tracking of hardware assets and streamlines maintenance and replacement activities.

Streamlined Upgrades and Replacements

When planning server upgrades or replacements, the part number facilitates a streamlined process. Users can reference the part number to ensure that the new components or replacement server aligns with their existing infrastructure. This saves time, reduces potential compatibility issues, and allows for seamless integration of new hardware into the existing environment.

In conclusion, the HPE Proliant DL380 Server Gen10 Server's Xeon 8-core Silver 4110 processor, 16GB DR4 SDRAM, and unique part number (P05524-B21) offer significant benefits to users. The powerful processor ensures enhanced performance, improved multitasking, optimized virtualization, energy efficiency, reliability, and scalability. The ample memory capacity enhances system responsiveness, efficient data processing, optimized virtualization performance, future-proofing capabilities, and reliability with error correction mechanisms. The part number provides compatibility assurance, easy documentation retrieval, warranty support, identification, and tracking benefits, as well as streamlined upgrades and replacements. These features collectively make the HPE Proliant DL380 Server Gen10 Server a reliable and high-performing solution for various computing needs.
