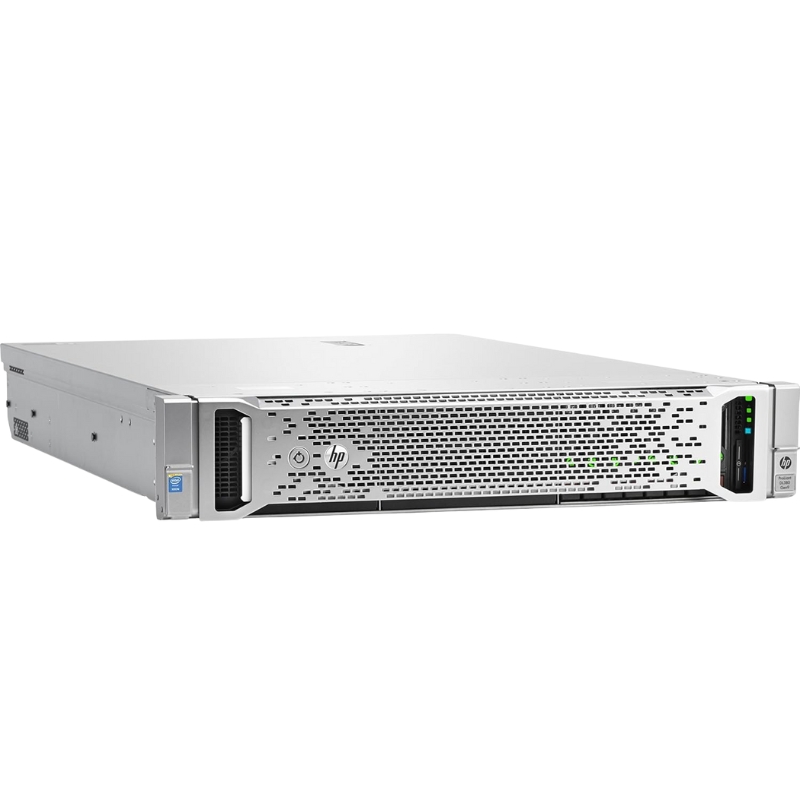

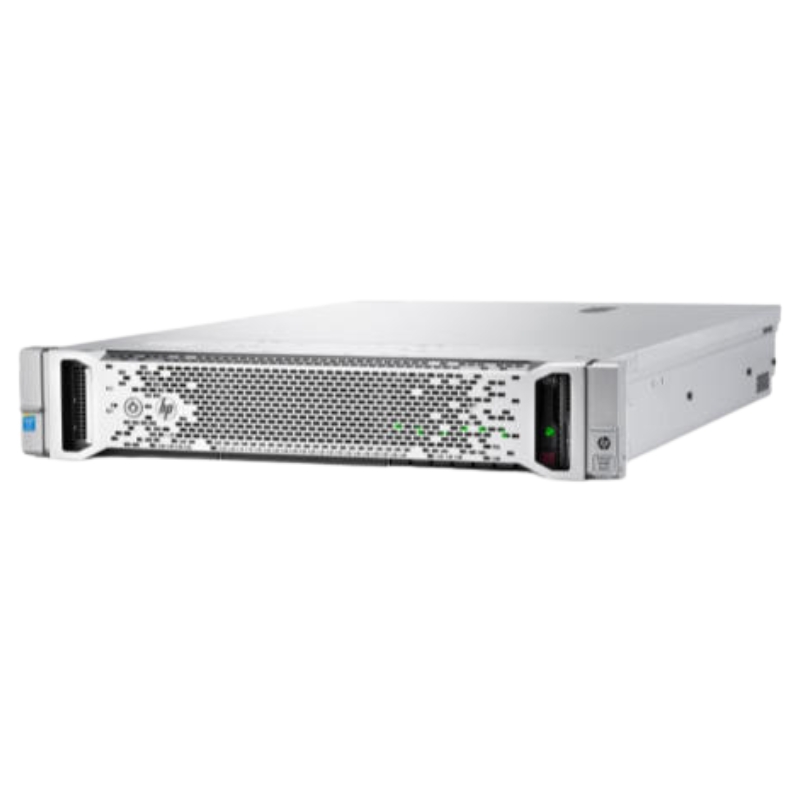

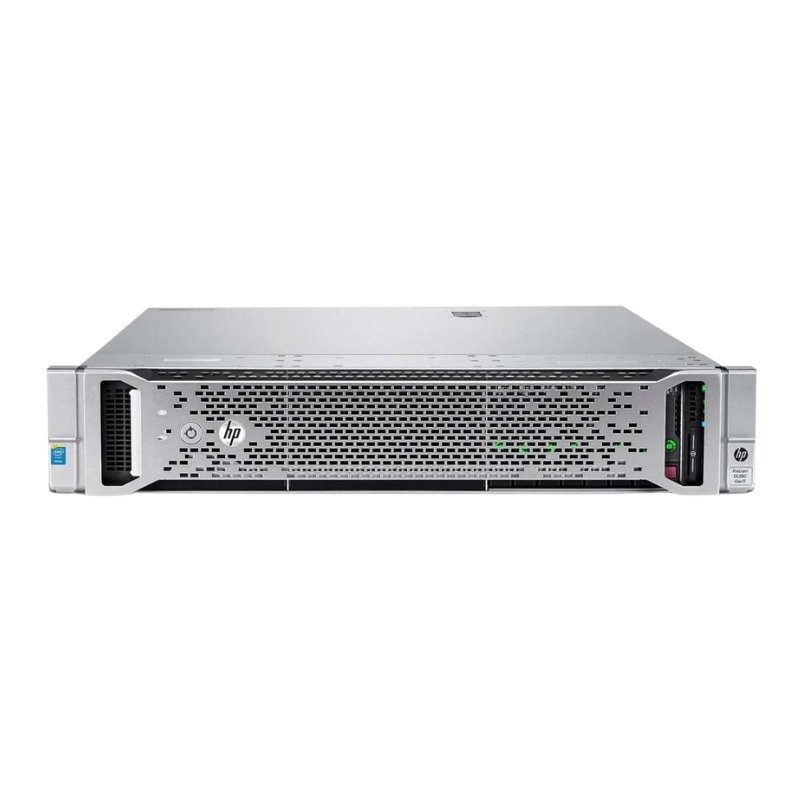

HPE Proliant DL380 Gen9 2.2GHz Server 826684-B21 E5-2650V4 32GB DDR4 SDRAM

Sku: 826684-B21

The HPE Proliant DL380 Gen9 Server is a powerful and reliable server designed to meet the needs of modern businesses. One of its standout features is the Sku number, specifically the 826684-B21 model. This Sku number represents a specific configuration of the server that comes with a range of benefits and advantages for users.

General Overview

Manufacturer Information

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 826684-B21
• Product Name: Proliant DL380 G9 - 2U Rack Mountable Server (Performance Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon E5-2650v4, 2.2 GHz
• Maximum Turbo Speed: 2.9 GHz
• Cores: 12-core
• Number of CPUs: 2
• CPU Upgradability: Upgradable
• Main Processor Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2

Cache Memory

Cache Details

• Cache Type: Smart Cache
• Installed Size: 60 MB
• Cache Per Processor: 30 MB

Memory

Memory Specifications

• Installed Memory: 32 GB, expandable up to 384 GB
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Memory Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare Memory, Dual Rank, Quad Channel Memory Architecture, HP SmartMemory
• Configuration: 2 x 16 GB
• Supported RAM Types: PC4-17000 - 384 GB - Registered, PC4-17000 - 1.5 TB - Load-reduced

Storage & Storage Controller

Storage Details

• Hard Drive: None
• Optical Drive: DVD-RW - SATA

Storage Controller Features

• Controller: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Support: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives: Up to 26
• Logical Drives: Up to 64
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Display & Graphics

Graphics Specifications

• Graphics Controller: Integrated Matrox G200eh2
• Video Memory: 16 MB

Network & Communication

Network Interfaces

• Ethernet Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN (WoL), PXE Support
• Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

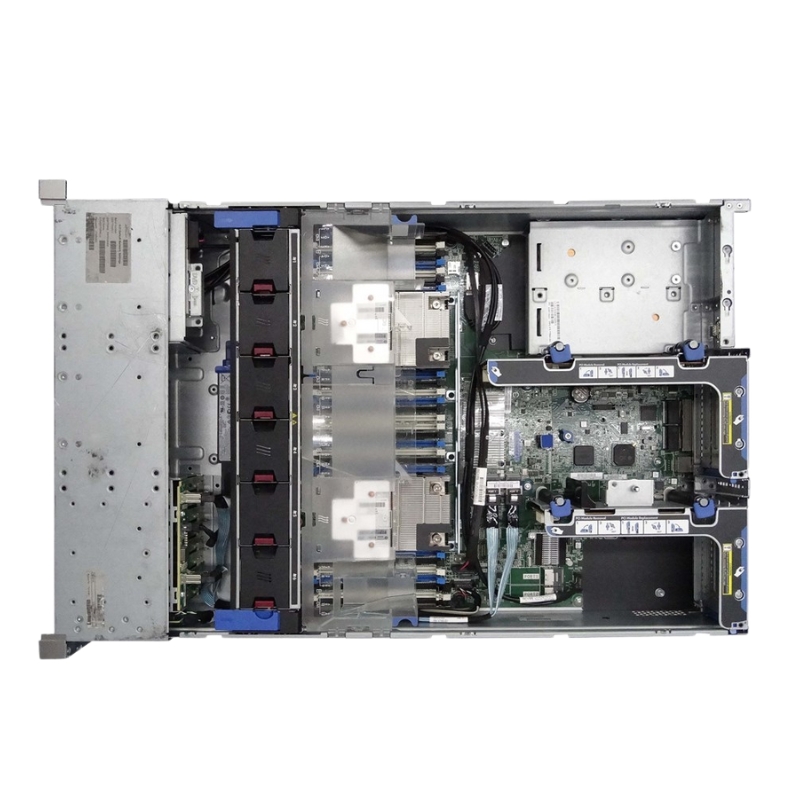

Expansion & Connectivity

Expansion Bays

• Hot-Swap Bays: 8 x 2.5" SFF (total and free)
• External Bays: 1 x 5.25" (total, none free)

Expansion Slots

• CPU Slots: 2 (total, none free)
• DIMM Slots: 24 (22 free)
• PCIe 3.0 x16 Slots: 2 (free)
• PCIe 3.0 x8 Slots: 2 (free)
• MicroSD Card Slot: 1 (internal)
• PCIe 3.0 x16 Slots (Full-length, Full-height): 2 (free)

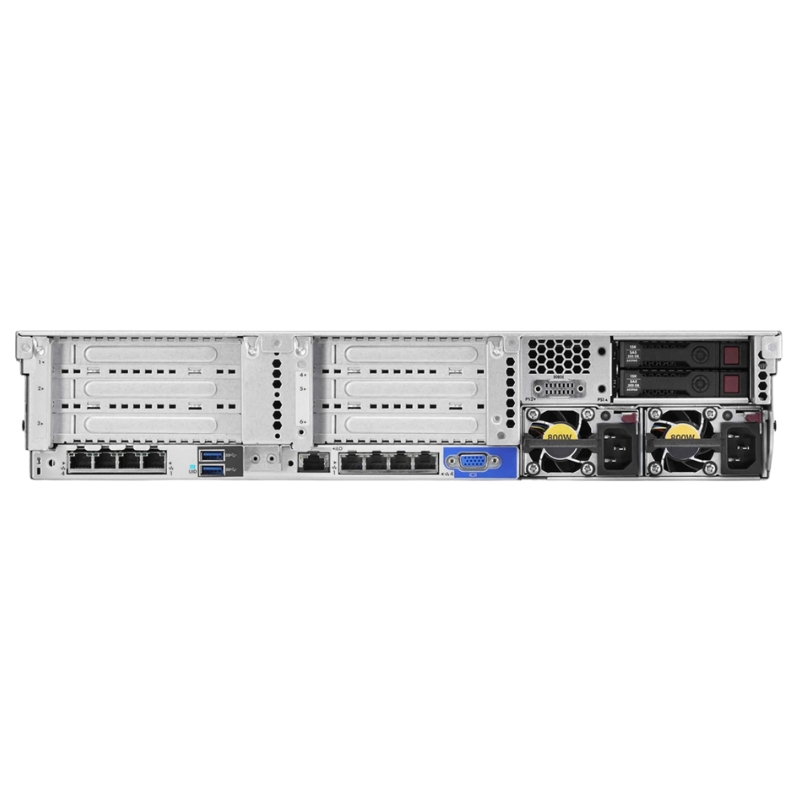

Interfaces & Ports

Port Configuration

• LAN Ports: 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet
• HP iLO: 1
• VGA Ports: 2 (1 front, 1 rear)
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• USB 2.0 Ports: 2 (front)

Miscellaneous

Included Accessories

• Cable Management Arm
• HP Easy Install Rails

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• CNS 13438

Power Description

Power Specifications

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Yes, 1+1 Scheme
• Installed Qty: 2
• Max Supported Qty: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 800 Watts
• 80 Plus Certification: Platinum
• Efficiency: 94%

Dimensions & Weight

Physical Characteristics

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Enhanced Performance

The 826684-B21 Sku of the HPE Proliant DL380 Gen9 Server is equipped with top-of-the-line components and technologies that ensure enhanced performance. With a high-performance processor, ample memory, and advanced drive bays, this server is capable of handling demanding workloads and delivering exceptional performance for various applications.

Powerful Processor

At the heart of this server is the 2.2GHz 12 E5-2650V4 processor. This processor boasts 12 cores and a base clock speed of 2.2GHz, making it ideal for multitasking and running resource-intensive applications. The high core count and clock speed allow for efficient processing of complex tasks, resulting in improved productivity and reduced processing times.

Benefits:

- Faster data processing: The powerful processor ensures that data is processed quickly, reducing waiting times and improving overall system performance.
- Seamless multitasking: With 12 cores, users can run multiple applications simultaneously without experiencing a significant drop in performance.
- Increased efficiency: The efficient processing capabilities of the processor help maximize the utilization of system resources, resulting in improved efficiency and cost savings.

Ample Memory

To complement the powerful processor, the 826684-B21 Sku comes with 32GB DDR4 SDRAM. This generous amount of memory allows for smooth multitasking and efficient data handling. It ensures that applications can access data quickly, resulting in faster response times and an overall improved user experience.

Benefits:

- Improved application performance: Ample memory enables applications to load and run faster, improving overall performance and user satisfaction.
- Enhanced virtualization capabilities: With sufficient memory, users can run multiple virtual machines simultaneously without experiencing performance degradation.
- Efficient data handling: The large memory capacity allows for faster data retrieval, processing, and storage, enabling businesses to handle large datasets and complex workloads effectively.

Flexible Storage Options

The 826684-B21 Sku of the HPE Proliant DL380 Gen9 Server features 8SFF drive bays. These drive bays offer flexible storage options, allowing users to configure the server according to their specific storage requirements. Whether it's high-capacity hard drives or speedy solid-state drives, the 8SFF drive bays provide the necessary flexibility to accommodate various storage needs.

Scalable Storage Capacity

With 8SFF drive bays, users can easily expand the storage capacity of the server as their business grows. The server supports a wide range of storage options, including SAS, SATA, and SSDs. This scalability ensures that businesses can adapt to changing storage requirements without the need for significant hardware upgrades or replacements.

Benefits:

- Future-proof storage: The flexible drive bays allow for easy expansion of storage capacity, ensuring that businesses can scale their data storage as needed.
- Optimal performance: Users can choose from a variety of storage options based on their specific needs, whether it's high-capacity storage for bulk data or SSDs for faster access.
- Redundancy and data protection: The 8SFF drive bays enable businesses to implement RAID configurations and redundant storage setups, ensuring data protection and minimizing the risk of data loss.

Rack Form Factor for Space Efficiency

The 826684-B21 Sku of the HPE Proliant DL380 Gen9 Server features a rack form factor. Rack servers are designed to be mounted on standard server racks, allowing for efficient use of space in data centers or server rooms. The rack form factor provides several benefits for users, including optimized space utilization, easy installation, and improved cable management.

Space Optimization

Rack servers are compact and stackable, allowing businesses to maximize the use of their available floor space. By mounting multiple servers in a rack, users can efficiently utilize vertical space and reduce the overall footprint required for housing their IT infrastructure. This space efficiency is particularly valuable in data centers and environments where space is limited.

Benefits:

- Increased scalability: Rack servers can be easily added or removed from a rack as business needs change, providing scalability without compromising space efficiency.
- Improved airflow and cooling: The design of rack servers allows for better airflow management, ensuring efficient cooling and reducing the risk of hardware overheating.
- Simplified cable management: The rack form factor facilitates organized cable routing, minimizing clutter and making maintenance and troubleshooting easier.

In conclusion, the 826684-B21 Sku of the HPE Proliant DL380 Gen9 Server offers numerous benefits for users. With its powerful processor, ample memory, flexible storage options, and space-efficient rack form factor, this server delivers exceptional performance, scalability, and efficiency. Whether it's handling complex workloads, expanding storage capacity, or optimizing space utilization, the 826684-B21 Sku is an excellent choice for businesses seeking a reliable and high-performing server solution.
