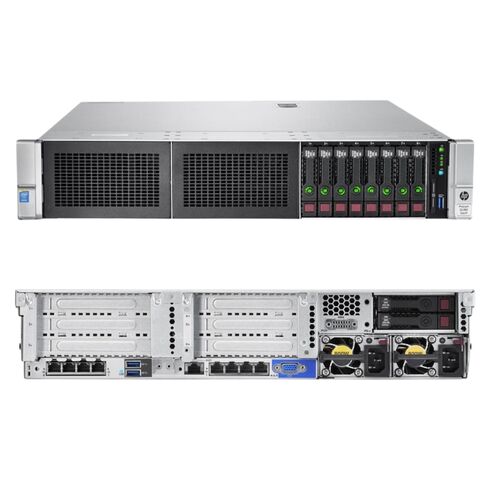

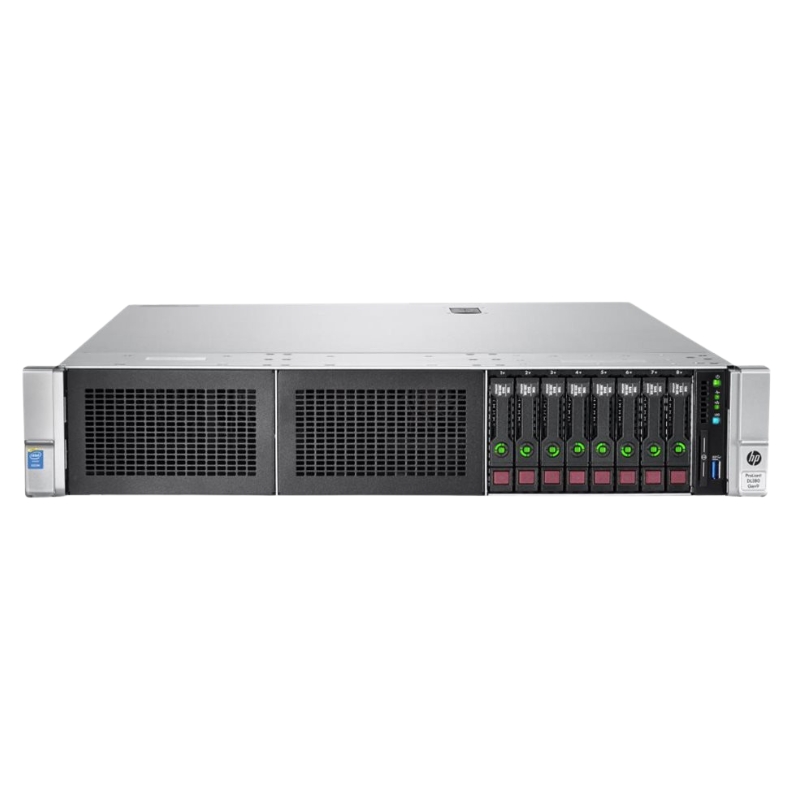

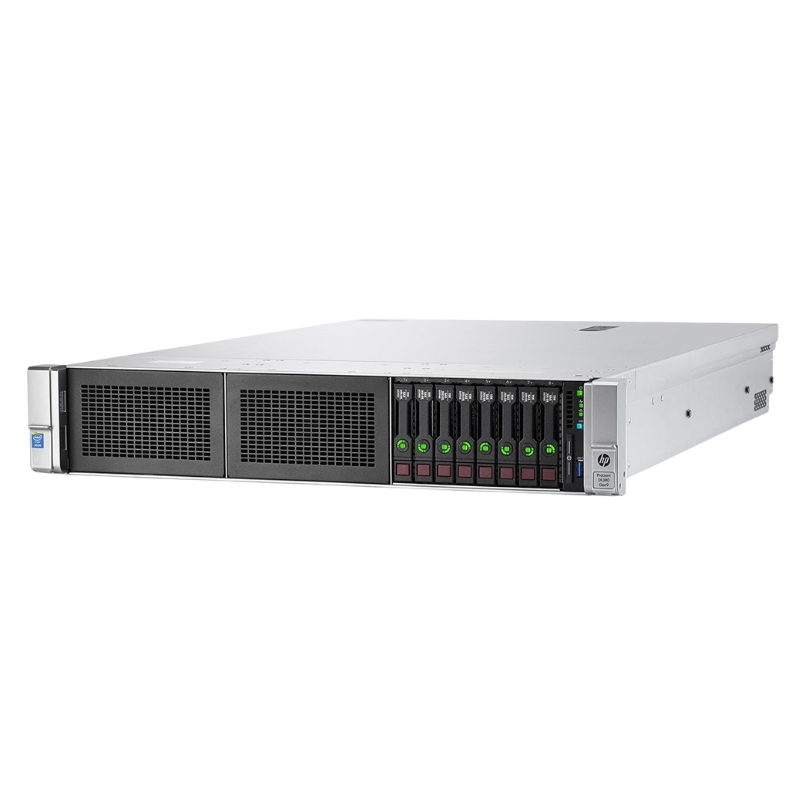

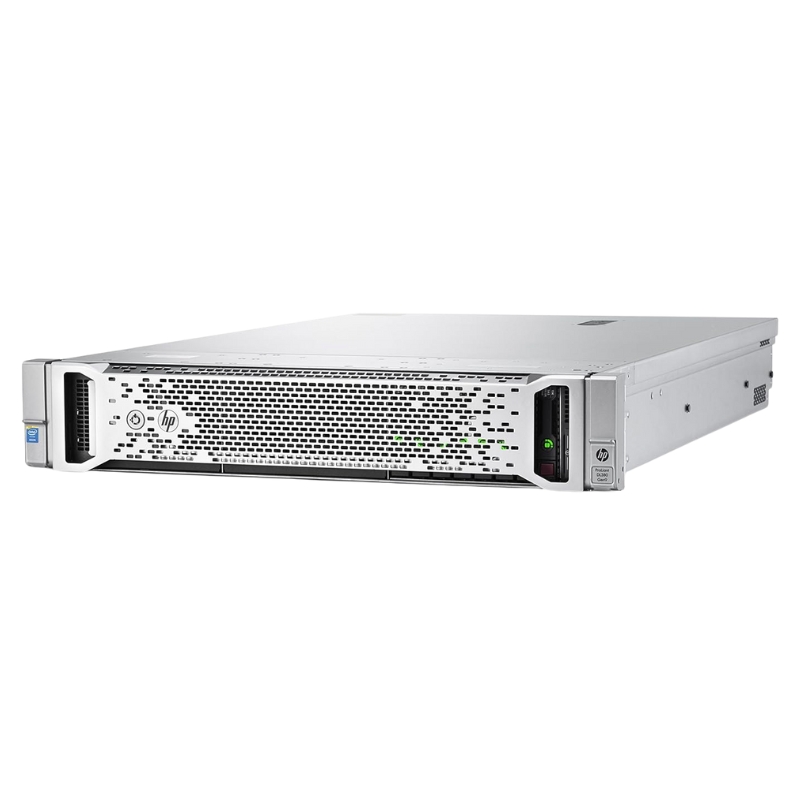

HPE Proliant DL380 Gen9 E5-2650V3 2.3GHz DDR4 SDRAM 8SFF 800w Rack Mountable Server 752689-B21

Processor

The HPE Proliant DL380 Rack Mountable Server is equipped with a powerful 2.3GHz DDR4 Gen9 E5-2650V3 processor, which plays a crucial role in delivering exceptional performance and ensuring smooth operations for users. Let's take a closer look at the benefits and importance of this feature.

Main Information of Proliant DL380

The Hewlett Packard Enterprise Proliant DL380 Gen9 is a high-performance 2U rack-mountable server, optimized for demanding applications and scalable storage needs. Key details include:

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 752689-B21
• Product Name: Proliant DL380 Gen9 - 2U Rack-Mountable Server (Performance Model)

Processor & Chipset

• Processor Type: Intel Xeon E5-2650v3, 2.3GHz
• Max Turbo Speed: 3.0GHz
• QuickPath Interconnect: 9.60 GT/s
• Number of Cores: 10-core
• 64-bit Computing: Yes
• Compatible Processor Socket: FCLGA2011-3
• Installed Quantity: 2
• Max Supported Quantity: 2
• Chipset Type: Intel C610 Series

Cache Memory

• Cache Memory Type: Smart Cache
• Installed Size: 50MB
• Cache Per Processor: 25MB

Memory

• Installed Size: 32GB / 384GB (maximum)
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2133MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 24 total / 22 empty
• Features: Registered, HP SmartMemory
• Configuration: 2 x 16GB
• Supported RAM Types: PC4-17000 - 384GB Registered, PC4-17000 - 1.5TB Load-Reduced

Storage & Storage Controller

• Hard Drive: None
• Optical Drive: DVD-RW / DVD-Writer
• Storage Controller Name: Smart Array P440ar
• Buffer Size: 2GB
• Disk Drive: 12GB/s SAS / 6GB/s SATA
• SAS Port Link Rate: 12GB/s per Physical Link Supported
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26 Drives
• Logical Drives Supported: Up to 64 Logical Drives
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Display & Graphics Controllers

• Type: Integrated
• Graphics Processor: Matrox G200eh2
• Video Memory: 16MB
• Video Interfaces: VGA

Network & Communication

• Ethernet Controller: HP Ethernet 1GB 4-Port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4
• Remote Management Controller: RJ-45 (two)
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• Expansion Bays (Total / Free): 8 x Hot-Swap 2.5 SFF
• Expansion Slots (Total / Free): 24 x DIMM 288-pin, 2 x CPU, 2 x PCIe 3.0 x16, 2 x PCIe 3.0 x8, 2 x PCIe 3.0 x16 Full-Length, 1 x MicroSD Card (Internal)

Interfaces & Ports

• LAN (Gigabit Ethernet): 4 x RJ-45
• HP iLO: 1 x RJ-45
• VGA: 2 (1 Front, 1 Rear)
• USB 3.0: 5 (1 Front, 2 Rear, 2 Internal)
• LAN (10 Gigabit Ethernet): 2
• USB 2.0: 2 (Front)

Miscellaneous

• Included Accessories: Cable Management Arm, HP Easy Install Rails
• Features: Administrator Password, Power-On Password, Serial Port I/O Control, UEFI BIOS
• Compliant Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438

Power Description

• Device Type: Power Supply - Hot-Plug
• Power Redundancy: Yes (1+1 Scheme)
• Installed Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Enhanced Performance

The 2.3GHz DDR4 Gen9 E5-2650V3 processor is designed to handle demanding workloads and deliver outstanding performance. With its 10 cores and 20 threads, this processor provides the necessary power to tackle resource-intensive tasks effortlessly. Whether you're running complex applications, virtualizing servers, or handling heavy data processing, the high clock speed and multiple cores ensure smooth multitasking and reduced processing times.

Improved Efficiency

Efficiency is a key factor for any server, and the 2.3GHz DDR4 Gen9 E5-2650V3 processor excels in this aspect. It utilizes advanced power management technologies to optimize energy consumption without compromising performance. This not only helps in reducing your overall energy costs but also contributes to a greener and more sustainable IT infrastructure.

Scalability and Flexibility

The HPE Proliant DL380 Rack Mountable Server featuring the 2.3GHz DDR4 Gen9 E5-2650V3 processor offers scalability and flexibility to meet the evolving needs of your business. With support for up to two processors, you have the ability to scale up your computing power as your workload grows. This ensures that your server can keep up with increasing demands and future-proof your investment.

Reliability and Redundancy

Reliability is crucial for any server, especially in mission-critical environments. The 2.3GHz DDR4 Gen9 E5-2650V3 processor, known for its reliability, offers advanced error-correcting code (ECC) memory support. ECC memory helps in detecting and correcting errors that may occur during data processing, ensuring data integrity and minimizing the risk of system crashes or data loss.

Virtualization Capabilities

Virtualization has become a cornerstone of modern IT infrastructure, enabling businesses to optimize resources and streamline operations. The 2.3GHz DDR4 Gen9 E5-2650V3 processor provides excellent virtualization capabilities, allowing you to run multiple virtual machines simultaneously without compromising performance. This enables you to consolidate your servers, reduce hardware costs, and simplify management.

Memory

The memory capacity of a server is crucial for its overall performance and ability to handle data-intensive tasks effectively. The HPE Proliant DL380 Rack Mountable Server is equipped with SDRAM, providing numerous benefits and ensuring optimal performance.

Increased Speed and Efficiency

SDRAM (Synchronous Dynamic Random-Access Memory) is a type of memory that synchronizes with the system bus speed, resulting in faster data transfer rates compared to traditional memory technologies. This increased speed allows the server to retrieve and process data more quickly, improving overall system responsiveness and reducing latency.

Enhanced Multitasking

The HPE Proliant DL380 Rack Mountable Server's SDRAM offers high-capacity memory modules, allowing for efficient multitasking. With a larger memory capacity, the server can store more data in RAM, reducing the need for frequent data retrieval from slower storage devices. This enables users to run multiple applications simultaneously without experiencing significant performance degradation.

Better Performance for Data-Intensive Applications

In today's data-driven world, businesses rely on servers to process and analyze large volumes of data quickly. The SDRAM in the HPE Proliant DL380 Rack Mountable Server ensures optimal performance for data-intensive applications such as databases, virtualization, and big data analytics. By providing ample memory capacity, the server can handle complex queries and data manipulations efficiently, resulting in faster processing times and improved productivity.

Improved Reliability with Error Correction

Data integrity is of utmost importance, especially in critical business operations. The SDRAM on the HPE Proliant DL380 Rack Mountable Server incorporates error correction code (ECC) technology. ECC memory can detect and correct single-bit errors and detect multi-bit errors, ensuring that data remains accurate and free from corruption. This feature is particularly crucial in environments where data accuracy is paramount, such as financial institutions or healthcare facilities.

Scalability and Future-Proofing

The HPE Proliant DL380 Rack Mountable Server's SDRAM offers scalability and future-proofing for your business. With support for multiple memory slots, you have the flexibility to upgrade the server's memory capacity as your needs evolve. This scalability ensures that your server can keep up with growing workloads and allows you to maximize your investment by extending the server's lifespan.

Drive Bays

The drive bays of a server play a vital role in storage capacity, data accessibility, and overall system flexibility. The HPE Proliant DL380 Rack Mountable Server features 8SFF (Small Form Factor) drive bays, offering several benefits that are essential for users' storage requirements.

Increased Storage Capacity

The 8SFF drive bays provide ample space to accommodate a significant amount of storage devices within a compact form factor. This allows users to install multiple hard drives or solid-state drives (SSDs) to meet their growing storage demands. With greater storage capacity, businesses can store and access vast amounts of data without the need for external storage solutions, simplifying management and reducing costs.

Improved Data Accessibility

The HPE Proliant DL380 Rack Mountable Server's 8SFF drive bays offer hot-swappable functionality, allowing for easy replacement or addition of drives without shutting down the server. This hot-plug capability ensures uninterrupted operations, as failed drives can be replaced on the fly while the server continues to run. This feature is particularly beneficial in environments where downtime is costly and needs to be minimized.

Flexibility for Different Storage Configurations

The 8SFF drive bays provide flexibility for various storage configurations, catering to different user requirements. Users can choose between hard disk drives (HDDs) or solid-state drives (SSDs), depending on their performance and capacity needs. Additionally, the server supports various RAID configurations, enabling users to implement redundancy and data protection measures to safeguard critical information.

Efficient Cooling and Space Optimization

The HPE Proliant DL380 Rack Mountable Server's 8SFF drive bays are designed with efficient cooling mechanisms in mind. The server utilizes strategically placed fans and airflow channels to ensure optimal cooling for the installed drives, preventing overheating and prolonging their lifespan. Additionally, the compact form factor of the drive bays allows for better space utilization within the server chassis, enabling businesses to maximize their rack space.

Easy Maintenance and Upgrades

The 8SFF drive bays facilitate easy maintenance and upgrades for users. The hot-swappable design means that drives can be replaced or upgraded without disrupting server operations, minimizing downtime and ensuring continuous availability of data. This ease of maintenance simplifies IT management and reduces the time required for hardware maintenance tasks.

Power Supply

The power supply is a critical component of any server, ensuring stable and reliable power delivery to all the system's components. The HPE Proliant DL380 Rack Mountable Server features an 800w power supply that offers several benefits and importance for users.

Stable and Reliable Power Distribution

The 800w power supply of the HPE Proliant DL380 Rack Mountable Server ensures stable and reliable power distribution to all the server components. This consistent power flow is crucial for maintaining system stability and preventing unexpected shutdowns or data loss. By providing a robust power supply, the server can handle demanding workloads without experiencing power-related issues.

Redundancy and Fault Tolerance

The HPE Proliant DL380 Rack Mountable Server's 800w power supply supports redundant configurations, offering increased fault tolerance. Redundant power supplies ensure that if one power supply fails, the other can seamlessly take over, preventing downtime and ensuring continuous operations. This redundancy feature is particularly important in critical environments where uninterrupted uptime is essential.

Energy Efficiency and Cost Savings

Efficiency and sustainability are crucial considerations in today's IT infrastructure. The 800w power supply of the HPE Proliant DL380 Rack Mountable Server is designed with energy efficiency in mind. It utilizes advanced power management technologies to optimize energy consumption, reducing overall power requirements and carbon footprint. By minimizing energy usage, businesses can lower their electricity bills and contribute to a greener environment.

Quiet Operation and Thermal Management

The HPE Proliant DL380 Rack Mountable Server's 800w power supply incorporates quiet operation features and advanced thermal management mechanisms. The power supply is designed to operate silently, minimizing noise levels in the server room or data center. Additionally, the power supply works in tandem with the server's cooling system to efficiently dissipate heat, ensuring optimal operating temperatures and prolonging the lifespan of server components.

Compatibility and Interchangeability

The 800w power supply of the HPE Proliant DL380 Rack Mountable Server is designed to be compatible with a wide range of server configurations. This compatibility allows users to interchange power supplies between servers, simplifying maintenance and reducing the need to keep multiple spare power supplies on hand. By standardizing the power supply, businesses can streamline their IT operations and reduce costs.

Part Number

The part number of a server provides a unique identification code that helps users and IT professionals identify and procure the specific model they require. The HPE Proliant DL380 Rack Mountable Server features a part number of 752689-B21, which holds several benefits and importance for users.

Accurate Identification

The part number, 752689-B21, serves as a precise identifier for the HPE Proliant DL380 Rack Mountable Server model. This unique code ensures that users can accurately identify and request the specific server they need, avoiding potential confusion or compatibility issues. Additionally, IT professionals can use the part number to quickly locate relevant documentation, drivers, or firmware updates specific to the server model.

Easy Procurement

The part number simplifies the procurement process for businesses by providing a standardized reference. When ordering servers or spare parts, users can simply specify the part number, ensuring that the correct item is purchased. This streamlines procurement procedures and reduces the risk of ordering incorrect components, saving time and preventing unnecessary delays.

Compatibility Assurance

The part number, 752689-B21, guarantees compatibility with other HPE Proliant DL380 Rack Mountable Server components or accessories. This compatibility assurance is crucial when expanding or upgrading your server infrastructure. By using components with matching part numbers, users can ensure seamless integration, optimal performance, and avoid potential compatibility issues that may arise from using incompatible parts.

Technical Support and Documentation

The part number serves as a reference for technical support and documentation related to the HPE Proliant DL380 Rack Mountable Server model. When seeking assistance or troubleshooting, users can provide the part number to support personnel, enabling them to quickly identify the specific server model and provide accurate guidance. Additionally, documentation such as user manuals, specifications, or firmware updates are often organized based on part numbers, making them easily accessible for users.

Warranty and Service Coverage

The part number is essential for warranty and service coverage purposes. Manufacturers often associate warranties or service agreements with specific part numbers, ensuring that users receive the appropriate level of support for their server model. By providing the part number when requesting warranty services or repairs, users can ensure that their server is covered under the correct terms and conditions.

In conclusion, the HPE Proliant DL380 Rack Mountable Server's 2.3GHz DDR4 Gen9 E5-2650V3 processor offers enhanced performance, improved efficiency, scalability, and virtualization capabilities. The SDRAM memory ensures increased speed, multitasking capabilities, data-intensive application performance, and reliability with error correction. The 8SFF drive bays provide increased storage capacity, data accessibility, flexibility for storage configurations, efficient cooling, and easy maintenance and upgrades. The 800w power supply ensures stable power distribution, redundancy, energy efficiency, quiet operation, and compatibility. Lastly, the part number guarantees accurate identification, easy procurement, compatibility assurance, access to technical support and documentation, as well as warranty and service coverage.
