HPE Proliant DL380 Gen9 Server 826681-B21 Xeon 8 Core 1.7GHz 8GB RAM

Processor

The HPE Proliant DL380 Server Gen9 Server is equipped with a powerful Xeon 8 Core 1.7GHz processor, which offers exceptional performance and efficiency for users. This feature is crucial for businesses that require high-speed processing and multitasking capabilities.

Overview of the Proliant DL380 Gen9

General Specifications

• Manufacturer: Hewlett Packard Enterprise
• Model Number: 826681-B21
• Product Type: Proliant DL380 Gen9 - 2U Rack Mountable Server (Entry Model)

Processor & Chipset

Central Processing Unit (CPU)

• CPU Model: Intel Xeon E5-2609v4
• Clock Speed: 1.7 GHz
• Cores: 8-core
• Intel QPI Speed: 8 GT/s
• Number of CPUs: 1 (expandable to 2)
• Features: Hyper-threading, Intel Turbo Boost Technology 2

Cache Memory

• Type: Smart Cache
• Total Installed Size: 20 MB
• Cache Per Processor: 20 MB

Memory Specifications

Installed Memory

• Base Size: 8 GB
• Maximum Capacity: 384 GB
• Technology: DDR4 SDRAM
• Speed: 1866 MHz
• Form Factor: DIMM 288-pin
• Features: Registered, HP SmartMemory
• Configuration: 1 x 8 GB
• Supported RAM: Up to 384 GB (Registered), 768 GB (Load-reduced)

Storage & Controller

Hard Drive

• Included Drives: None

Storage Controllers

• Type: RAID Controller
• Interface: SATA 6 Gb/s
• Controller Model: HP Dynamic Smart Array B140i
• Channels: 10
• RAID Levels Supported: 0, 1, 5, 10

Display & Graphics

• Graphics Controller: Integrated Matrox G200eh2
• Video Memory: 16 MB

Network & Communication

Networking

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 331i
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN (WoL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Hot-swap Bays: 8 (total), 8 (available)
• Size: 2.5" SFF

Expansion Slots

• CPU Slot: 1 (occupied)
• DIMM Slots: 24 (23 available)
• PCIe 3.0 x16 Slots: 2 (available in x8 mode)
• PCIe 3.0 x8 Slot: 1 (available)
• MicroSD Card Slot: 1 (available)

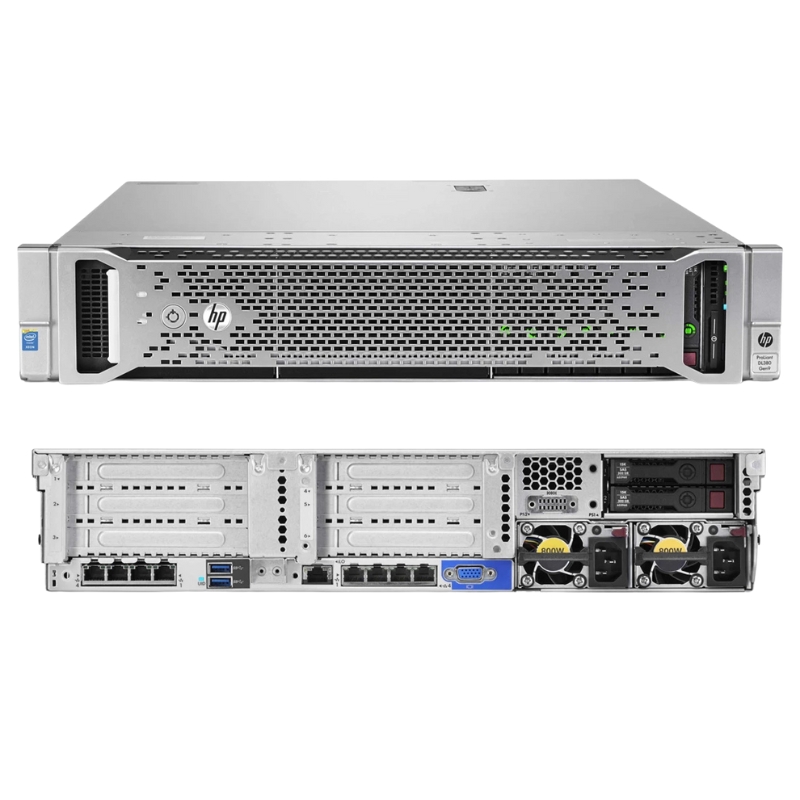

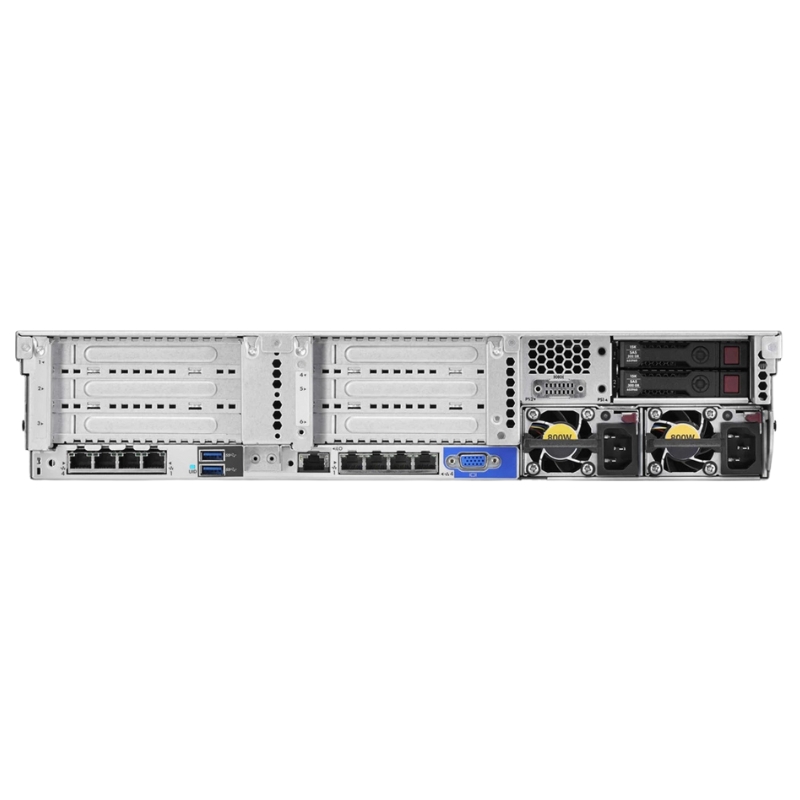

Interfaces & Ports

• LAN Ports: 4 x Gigabit Ethernet (RJ-45)
• HP iLO Port: 1 x RJ-45
• VGA Port: 1
• USB Ports: 5 x USB 3.0 (1 front, 2 rear, 2 internal)

Miscellaneous

Included Accessories

• Rails: HP Easy Install Rails

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 4943
• GB 9254
• ASHRAE
• CNS 13438
• BSMI CNS 14336-1

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Yes, 1+1 scheme
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 500 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Unmatched Performance

The Xeon 8 Core 1.7GHz processor delivers unmatched performance with its eight cores. Each core can handle multiple tasks simultaneously, allowing for faster data processing and improved overall performance. This means that users can run resource-intensive applications smoothly without experiencing any lag or slowdown.

Whether you are running complex databases, virtualization platforms, or demanding applications, the Xeon processor ensures that your server can handle the workload efficiently. Its exceptional performance enables businesses to maximize productivity and streamline their operations.

Enhanced Efficiency

In addition to its impressive performance, the Xeon 8 Core 1.7GHz processor also offers enhanced efficiency. It utilizes advanced power management technologies that optimize power consumption without compromising performance.

This feature is particularly important for businesses concerned about energy efficiency and reducing their carbon footprint. By utilizing the Xeon processor, companies can significantly reduce their electricity bills while maintaining exceptional computing power.

Improved Scalability

The Xeon 8 Core 1.7GHz processor provides improved scalability, allowing businesses to accommodate growing workloads and expanding data requirements. With its multi-core architecture, the server can easily handle increased demands without sacrificing performance.

As your business grows, you can rely on the scalability of this processor to ensure that your server can keep up with the increasing demands of your operations. This scalability feature saves businesses from the hassle of replacing their servers frequently, resulting in cost savings in the long run.

Advanced Security

Security is a critical concern for businesses, especially when dealing with sensitive data. The Xeon 8 Core 1.7GHz processor incorporates advanced security features that protect your data and ensure the integrity of your server.

Intel, the manufacturer of Xeon processors, integrates security technologies such as Intel® Trusted Execution Technology (TXT) and Intel® Platform Protection Technology (PPT) into their processors. These features help safeguard your server from malicious attacks and unauthorized access, providing peace of mind to business owners.

Intel® Trusted Execution Technology (TXT)

Intel® TXT allows for the creation of a secure foundation within the server hardware, ensuring that only trusted software is executed. It verifies the integrity of each component during startup, protecting against firmware-based attacks and unauthorized modifications.

Intel® Platform Protection Technology (PPT)

Intel® PPT provides an additional layer of security by safeguarding the confidentiality and integrity of sensitive data. It includes features such as Intel® Identity Protection Technology (IPT) and Intel® Software Guard Extensions (SGX), which help protect against identity theft and secure critical applications.

Reliability and Stability

The Xeon 8 Core 1.7GHz processor is known for its exceptional reliability and stability. It undergoes rigorous testing to ensure that it can withstand demanding workloads, temperature variations, and other environmental factors.

This reliability is crucial for businesses that rely on their servers to operate 24/7 without any downtime. The Xeon processor's stability ensures that your server can handle continuous operations without experiencing crashes or failures, minimizing disruptions to your business activities.

Memory

The HPE Proliant DL380 Server Gen9 Server is equipped with 8GB of DDR4 SDRAM memory, which offers significant benefits and importance for users. The memory plays a critical role in the server's performance, enabling efficient data storage and retrieval processes.

Improved Data Processing

The 8GB DDR4 SDRAM memory significantly improves data processing capabilities. It allows for faster data access and retrieval, reducing latency and improving overall system responsiveness. This means that applications and databases can run smoothly, enhancing user experience and productivity.

With the increasing complexity of modern applications and the growing amount of data that businesses need to handle, having sufficient memory is essential. The 8GB DDR4 SDRAM memory ensures that your server can efficiently handle data-intensive tasks without any bottlenecks or slowdowns.

Enhanced Multitasking

The 8GB DDR4 SDRAM memory enables enhanced multitasking capabilities. It allows users to run multiple applications simultaneously without experiencing performance degradation. This feature is particularly beneficial for businesses that rely on running several resource-intensive applications simultaneously.

Whether you need to run virtual machines, perform complex data analysis, or manage large databases, the 8GB DDR4 SDRAM memory ensures that your server can handle these tasks efficiently. It eliminates the need to prioritize applications or worry about system slowdowns, enabling seamless multitasking.

Future-Proofing

The 8GB DDR4 SDRAM memory provides future-proofing capabilities for your server. As technology continues to advance, software and applications may require more memory to operate optimally. By investing in a server with ample memory capacity, you can ensure that your infrastructure can support future software requirements.

Upgrading memory in the future can be a cumbersome and costly process. By opting for a server with sufficient memory from the beginning, you save yourself from the hassle and expenses associated with memory upgrades down the line.

Expandability Options

The HPE Proliant DL380 Server Gen9 Server offers expandability options for memory upgrades. If your business requirements change or you need to accommodate more data-intensive applications, you can easily upgrade the memory capacity of your server.

With its flexible architecture, the server supports a maximum memory capacity of up to 768GB. This expandability ensures that your server can adapt to your changing needs, allowing for seamless growth and scalability.

Reliability and Redundancy

The 8GB DDR4 SDRAM memory is renowned for its reliability and redundancy features. It undergoes rigorous testing to ensure that it can withstand demanding workloads and operate consistently without failures.

Businesses rely on their servers to operate continuously without any downtime. The reliability of the 8GB DDR4 SDRAM memory ensures that your server can handle continuous operations without experiencing crashes or data loss, minimizing disruptions to your business activities.

Error Correction Code (ECC)

The 8GB DDR4 SDRAM memory includes Error Correction Code (ECC) functionality, which detects and corrects errors in real-time. ECC ensures data integrity by identifying and fixing single-bit errors, preventing potential system crashes or data corruption.

This feature is particularly important for businesses that deal with critical data or operate in industries where data accuracy is paramount, such as finance or healthcare. The ECC functionality provides an additional layer of protection against data loss and system instability.

In conclusion, the HPE Proliant DL380 Server Gen9 Server's Xeon 8 Core 1.7GHz processor and 8GB DDR4 SDRAM memory are key features that ensure exceptional performance, efficiency, scalability, security, and reliability. These features are crucial for businesses that require powerful computing capabilities, multitasking capabilities, and the ability to handle growing workloads. By investing in this server, businesses can streamline their operations, improve productivity, and future-proof their infrastructure.
