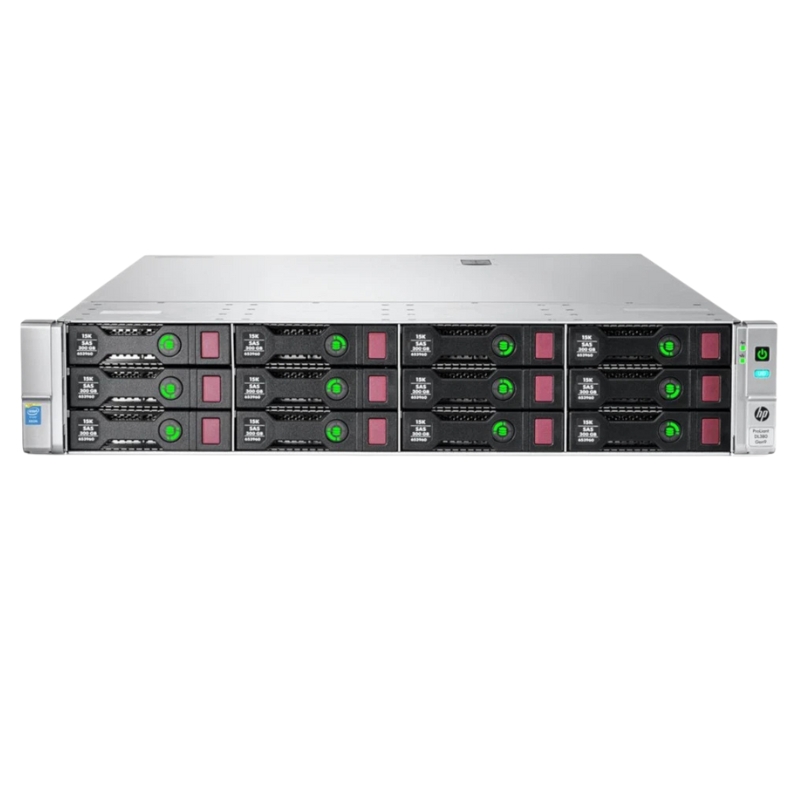

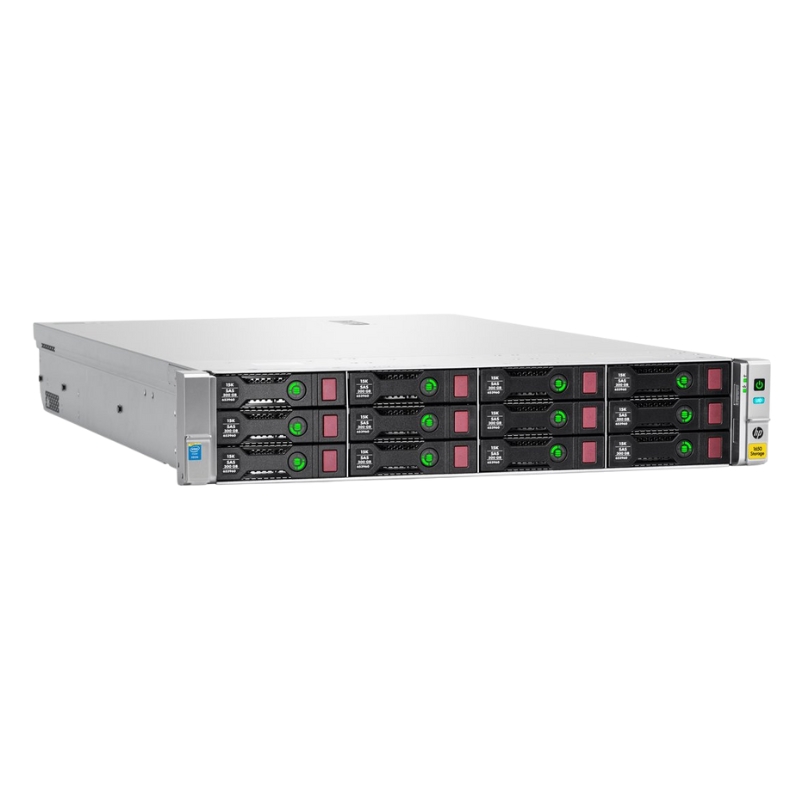

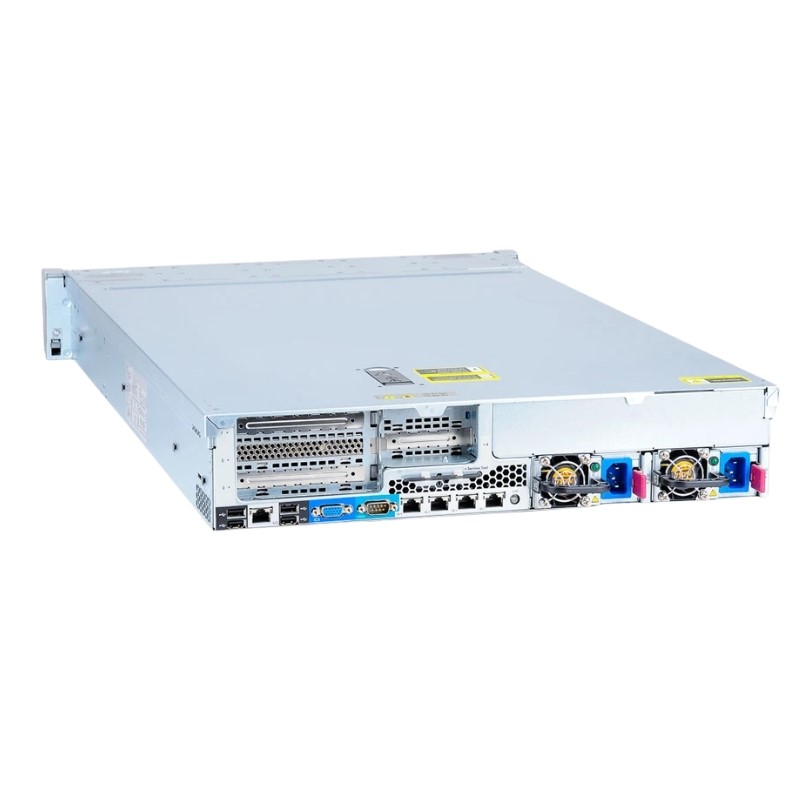

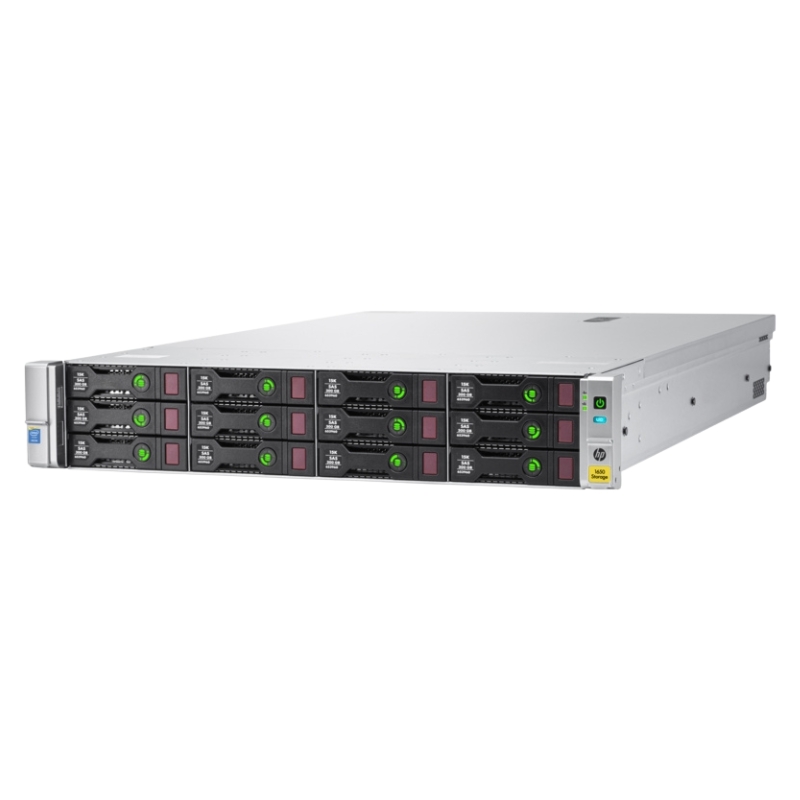

HPE Proliant DL380 Gen9 Xeon 2.4GHz 16GB DDR4 Server 779559-S01

Processor

The HPE Proliant DL380 Gen9 Server is equipped with a powerful Xeon 2.4GHz processor, making it an ideal choice for businesses and individuals requiring high-performance computing. With its exceptional processing power, this server can handle demanding workloads and deliver outstanding performance.

General Product Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 779559-S01
• Product Name: Proliant DL380 G9 2U Rack Server (S-Buy)

Processor and Chipset

Processor Details

• Type: Intel Xeon E5-2620v3
• Clock Speed: 2.4 GHz
• Core Count: Hexa-core
• Installed Quantity: 1
• Maximum Quantity: 2
• 64-bit Computing: Supported

Chipset Information

• Chipset Model: Intel C610

Cache Memory

Cache Specifications

• Installed Size: 15 MB L3 Cache
• Cache per Processor: 15 MB

RAM Specifications

Installed Memory

• Size: 16 GB
• Maximum Supported Size: 384 GB
• Technology: DDR4 SDRAM
• Speed: 1866 MHz
• Form Factor: DIMM 288-pin
• Features: Registered, HP SmartMemory

Supported RAM Configurations

• PC4-17000 - 384 GB - Registered
• PC4-17000 - 768 GB - Load-reduced

Storage and Storage Controller

Storage Details

• Hard Drive: Not Included
• Storage Controller: HP Smart Array P840 with 4 GB FBWC
• Controller Interface: SATA 6 GB/s, SAS 3.0
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Channel Quantity: 16
• Buffer Size: 4 GB

Display and Graphics

• Graphics Controller: Integrated
• Graphics Processor: Matrox G200eh2
• Video Interfaces: VGA

Networking

• Ethernet Ports: 4x Gigabit Ethernet
• Ethernet Controller: HP 331flr
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-out 4
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

Expansion Bays

• Total Free Bays: 12x Hot-swap 3.5-inch LFF

Expansion Slots

• 2x Processor Slots
• 24x DIMM 288-pin Slots
• 2x PCIe 3.0 x16 (Half-length, Full-height, x8 Mode)
• 1x PCIe 3.0 x8 (Half-length, Full-height)
• 1x MicroSD Card Slot (Internal)

Interfaces

• 4x LAN (Gigabit Ethernet) - RJ-45
• 1x HP iLO - RJ-45
• 1x VGA
• 5x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Power Specifications

• Power Device Type: Hot-plug Power Supply
• Power Redundancy: Yes, 1+1
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V
• Power Provided: 800 Watt Hot Plug Power Supplies
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Height: 3.4 inches
• Width: 17.5 inches
• Depth: 28.7 inches
• Weight: 32.5 lbs

Fast and Efficient Processing

The Xeon 2.4GHz processor featured in the HPE Proliant DL380 Gen9 Server is designed to provide fast and efficient processing capabilities. With its multi-core architecture and advanced technologies, it can handle complex tasks and data-intensive applications with ease. This ensures smooth operation and reduces the time required for resource-intensive tasks.

Increased Productivity

The powerful processor enables users to complete tasks quickly, leading to increased productivity. Whether you are running virtual machines, performing data analysis, or managing a database, the HPE Proliant DL380 Gen9 Server with its Xeon 2.4GHz processor ensures that you can work efficiently without experiencing slowdowns or bottlenecks.

Enhanced Performance for Demanding Applications

Businesses often rely on resource-intensive applications that require substantial processing power. The Xeon 2.4GHz processor in the HPE Proliant DL380 Gen9 Server provides the necessary horsepower to handle these applications effortlessly. From scientific simulations to financial modeling, this server can handle the most demanding workloads, allowing you to run your applications smoothly.

Improved Responsiveness

With a fast processor like the Xeon 2.4GHz, the HPE Proliant DL380 Gen9 Server ensures improved responsiveness for users. Whether you are accessing files, running software applications, or managing network resources, this server delivers quick response times. This means reduced wait times and increased efficiency in completing your tasks.

Ram

The HPE Proliant DL380 Gen9 Server comes equipped with 16GB DDR4 RAM, providing a significant boost in performance and responsiveness. The ample amount of RAM enables the server to efficiently handle multiple tasks simultaneously, making it an excellent choice for businesses and individuals with diverse computing needs.

Improved Multitasking

With 16GB DDR4 RAM, the HPE Proliant DL380 Gen9 Server can handle multiple tasks concurrently without experiencing performance degradation. Whether you are running virtual machines, hosting websites, or managing databases, this server ensures smooth multitasking capabilities. You can seamlessly switch between applications and work on different projects simultaneously, enhancing your productivity.

Efficient Resource Management

The substantial amount of RAM allows the server to efficiently allocate resources to different processes and applications. This ensures that each task receives the necessary memory to perform optimally, preventing bottlenecks and slowdowns. With efficient resource management, the HPE Proliant DL380 Gen9 Server maximizes its performance potential and delivers a smooth computing experience.

Faster Data Access

The high-speed DDR4 RAM in the HPE Proliant DL380 Gen9 Server enables faster data access. Whether you are retrieving files from storage or accessing database records, the server can quickly retrieve the required data from memory. This results in improved response times and reduced latency, allowing you to work more efficiently and complete tasks in less time.

Scalability and Future-Proofing

The 16GB DDR4 RAM provides ample room for scalability and future-proofing your infrastructure. As your business grows and your computing needs increase, you can easily upgrade the server's RAM capacity to accommodate higher workloads. This ensures that your investment in the HPE Proliant DL380 Gen9 Server remains relevant and capable of meeting your evolving requirements.

Sku

The HPE Proliant DL380 Gen9 Server is identified by its unique SKU, 779559-S01. This SKU plays a crucial role in accurately identifying and differentiating the server model, making it easier for users to procure, manage, and support their IT infrastructure.

Easy Identification and Procurement

The SKU, 779559-S01, provides a simple and straightforward way to identify the HPE Proliant DL380 Gen9 Server when procuring new hardware or searching for specific models. By referencing the SKU, users can ensure they are purchasing the correct server model with the desired specifications, saving time and eliminating confusion during the procurement process.

Efficient Inventory Management

For businesses with a large number of servers and IT equipment, efficient inventory management is crucial. The SKU allows IT administrators to easily track and manage their server assets, ensuring they have accurate records of each server's specifications and location. This simplifies troubleshooting, maintenance, and upgrades, minimizing downtime and enhancing overall operational efficiency.

Warranty and Support

The SKU plays an essential role in warranty and support processes. By referring to the SKU, users can quickly communicate their server model to support teams, simplifying troubleshooting and resolving issues promptly. Additionally, the SKU ensures that warranty coverage and service agreements are accurately associated with the HPE Proliant DL380 Gen9 Server, providing users with peace of mind and comprehensive support.

Compatibility and Documentation

The SKU serves as a reference point for compatibility checks and accessing documentation related to the HPE Proliant DL380 Gen9 Server. Whether you need to verify compatibility with specific software or consult user manuals for setup instructions, the SKU helps you locate relevant information efficiently. This promotes a seamless integration of the server into your existing infrastructure and simplifies the deployment process.

In conclusion, the HPE Proliant DL380 Gen9 Server offers a powerful Xeon 2.4GHz processor, 16GB DDR4 RAM, and a unique SKU (779559-S01), all of which contribute to its exceptional performance and usability. Whether you require fast and efficient processing, improved multitasking capabilities, or easy identification and management, this server delivers the features and benefits necessary to support your computing needs.
