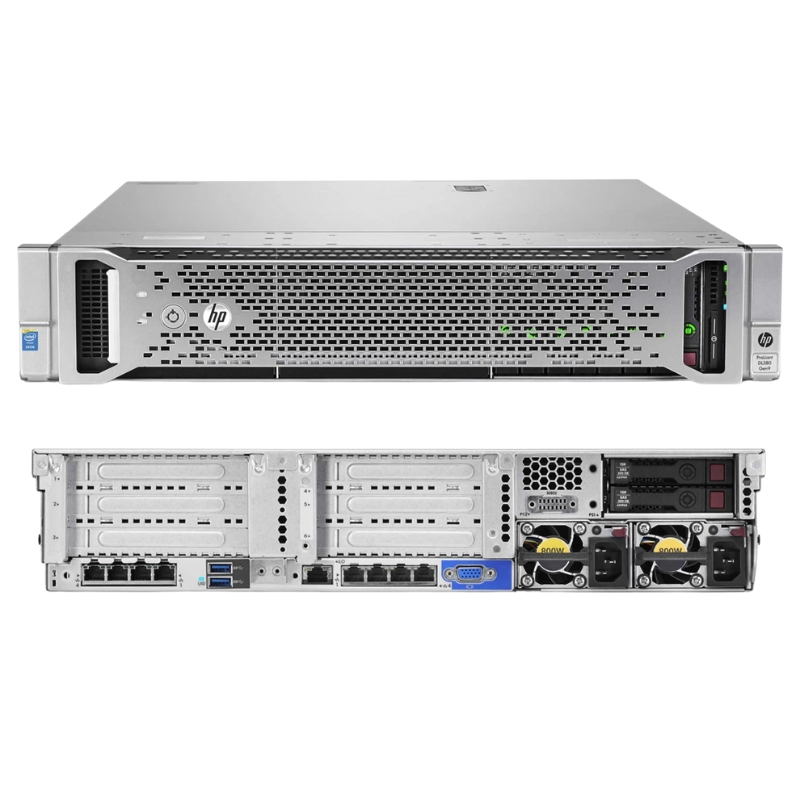

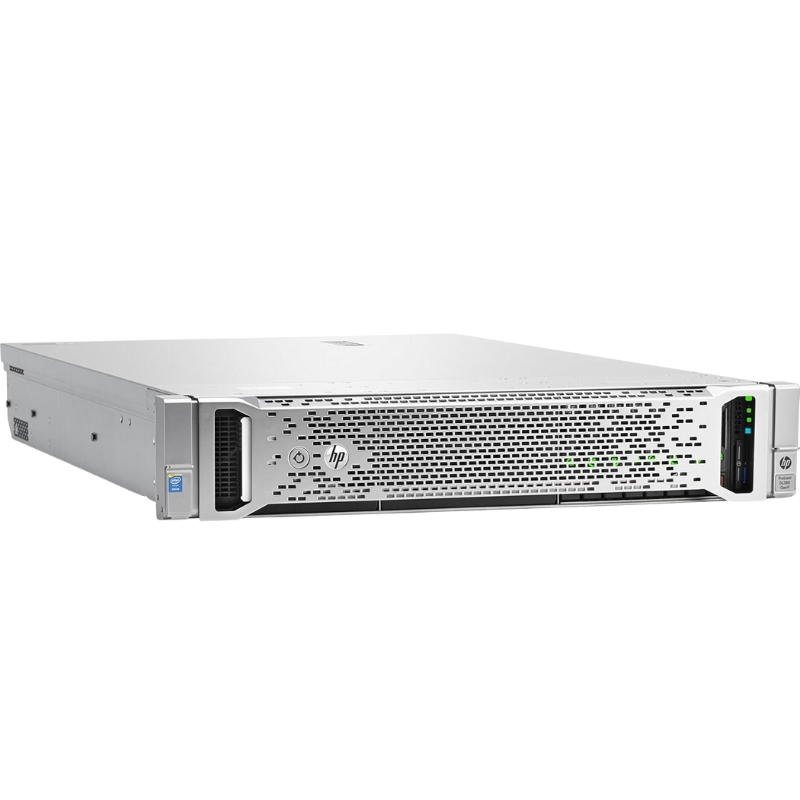

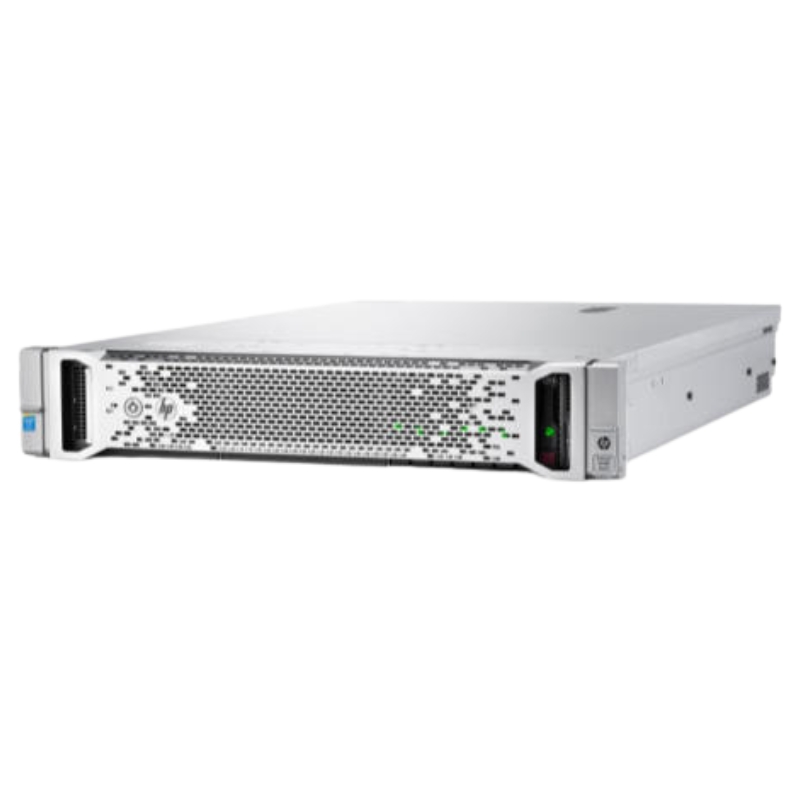

HPE Proliant DL380 Rack Server 826682-B21 8-Core 2.10GHz DDR4 SDRAM

Sku: 826682-B21

The HPE Proliant DL380 Rack Server is a powerful and versatile server designed to meet the needs of modern businesses. One of its standout features is its Sku, specifically the 826682-B21. In this section, we will explore the benefits and importance of this feature for users.

General Information

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 826682-B21
• Product Name: Proliant DL380 Gen9 - 2U Rack Mountable Server (Base Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon E5-2620v4, 2.1 GHz
• Max Turbo Frequency: 3.0 GHz
• Core Count: 8-core
• Intel QPI Speed: 8 GT/s
• Quantity: 1 (Upgradable to 2)
• Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2

Cache Memory

Cache Details

• Type: Smart Cache
• Installed Size: 40 MB
• Cache Per Processor: 20 MB

Memory

Installed and Supported Memory

• Installed Size: 16 GB, expandable to 384 GB
• Type: DDR4 SDRAM - Advanced ECC
• Speed: 2133 MHz
• Specification Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare Memory, Dual Rank, Quad Channel Architecture, HP SmartMemory
• Configuration: 1 x 16 GB
• Supported RAM: Up to 384 GB (Registered), Up to 1.5 TB (Load-reduced)

Storage & Storage Controller

Hard Drive and Optical Drive

• Hard Drive: Not included
• Optical Drive Type: DVD-RW - SATA

Storage Controller Specifications

• Controller: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per Physical Link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26
• Logical Drives Supported: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Display & Graphics Controllers

Graphics Specifications

• Graphics Controller Type: Integrated Matrox G200eh2
• Video Memory: 16 MB

Network & Communication

Networking Features

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management Controller: Integrated Lights-out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays and Slots

• Expansion Bays: 8 x Hot-swap 2.5" SFF, 1 x External 5.25"
• Expansion Slots:
  • 2 x CPU
  • 24 x DIMM 288-pin
  • 2 x PCIe 3.0 x16 (Half-length, Full-height) - X8 Mode
  • 2 x PCIe 3.0 x8 (Half-length, Full-height)
  • 1 x MicroSD Card (Internal)
  • 2 x PCIe 3.0 x16 (Full-length, Full-height)

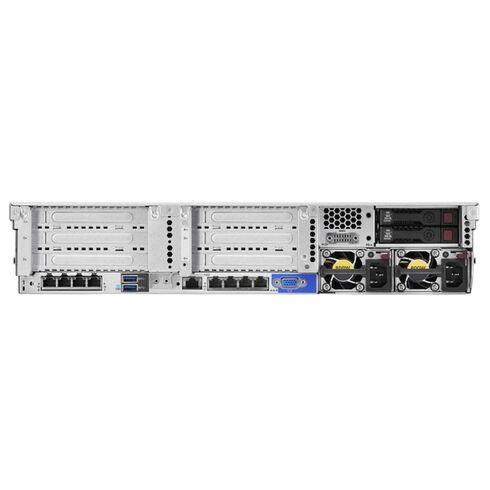

Interfaces & Ports

• 4 x LAN (Gigabit Ethernet)
• 1 x HP iLO
• 2 x VGA (1 Front, 1 Rear)
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)
• 2 x LAN (10 Gigabit Ethernet)
• 2 x USB 2.0 (Front)
• Miscellaneous

Included Accessories

• HP Easy Install Rails

Compliant Standards

• ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, ASHRAE, CNS 13438, BSMI CNS 14336-1

Power Description

Power Specifications

• Device Type: Power Supply - Hot-plug
• Power Redundancy: Yes (1+1 Scheme)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 500 Watt
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

Physical Dimensions

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Enhanced Performance and Scalability

The 826682-B21 Sku of the HPE Proliant DL380 Rack Server offers enhanced performance and scalability, making it an ideal choice for businesses of all sizes. With this Sku, users can expect improved processing power and faster data transfer rates, allowing for seamless multitasking and efficient resource allocation. Whether you are running resource-intensive applications or handling large datasets, the 826682-B21 Sku ensures that your server can handle the workload with ease.

Increased Storage Capacity

Storage is a critical aspect of any server, and the 826682-B21 Sku delivers in this area as well. With this Sku, users can enjoy increased storage capacity, providing ample space for storing important data, applications, and files. Whether you need to store large databases or multimedia content, the 826682-B21 Sku ensures that you have enough storage to meet your needs.

Improved Reliability and Redundancy

Businesses rely heavily on their servers to ensure uninterrupted operations. The 826682-B21 Sku of the HPE Proliant DL380 Rack Server offers improved reliability and redundancy features to minimize downtime and enhance system availability. With redundant power supplies and hot-swappable components, users can perform maintenance or replace faulty parts without interrupting critical operations. This Sku also provides advanced error handling capabilities, ensuring that potential issues are detected and resolved before they impact the system's performance.

Redundant Power Supplies

The 826682-B21 Sku includes redundant power supplies, which is crucial for ensuring continuous operation. In the event of a power supply failure, the server automatically switches to the redundant power supply, preventing any disruptions. This feature is particularly important for businesses that cannot afford downtime and need their servers to be up and running at all times.

Hot-Swappable Components

One of the key advantages of the 826682-B21 Sku is its hot-swappable components. With this feature, users can replace components such as hard drives, fans, and power supplies without shutting down the server. This not only saves valuable time but also eliminates the risk of downtime associated with traditional component replacement methods. Hot-swappable components ensure that the server remains operational even during maintenance or upgrades.

Advanced Error Handling

The 826682-B21 Sku incorporates advanced error handling capabilities that help detect and resolve potential issues before they impact system performance. The server continuously monitors various components and sensors to identify any anomalies or errors. By proactively addressing these issues, users can prevent system failures and maintain optimal performance.

Automated Monitoring

The 826682-B21 Sku's advanced error handling features include automated monitoring tools that constantly track server health and performance metrics. These tools provide real-time alerts and notifications in case of any abnormalities, allowing users to take immediate action before problems escalate. With automated monitoring, businesses can ensure that their servers are operating at peak efficiency and avoid unexpected downtime.

Efficient Troubleshooting

In the event of an error or failure, efficient troubleshooting is crucial to minimize downtime. The 826682-B21 Sku includes diagnostic tools and error logging capabilities that help identify the root cause of issues quickly. By pinpointing the problem accurately, IT teams can troubleshoot more efficiently, reducing downtime and minimizing the impact on business operations.

Proactive Maintenance

Regular maintenance is essential for server longevity and optimal performance. The 826682-B21 Sku simplifies maintenance tasks by providing detailed information about the server's health and performance. This data enables IT teams to schedule proactive maintenance activities, such as firmware updates and component replacements, before potential issues arise. By staying ahead of maintenance requirements, businesses can avoid unexpected failures and ensure the server's reliability.

Processor: 8-Core 2.10GHz

The processor is the heart of any server, and the HPE Proliant DL380 Rack Server with its 8-Core 2.10GHz processor offers exceptional performance and capabilities. In this section, we will delve into the benefits and importance of this feature for users.

Powerful Processing Capabilities

The 8-Core 2.10GHz processor in the HPE Proliant DL380 Rack Server delivers powerful processing capabilities, enabling users to handle demanding workloads with ease. Whether you are running complex applications, virtualizing multiple servers, or performing data-intensive tasks, this processor ensures smooth operation and efficient resource utilization. With multiple cores and high clock speeds, it can handle multitasking and deliver fast response times, boosting overall productivity.

Enhanced Performance and Efficiency

The 8-Core 2.10GHz processor not only offers raw processing power but also enhances overall system performance and efficiency. With advanced architectural features and optimizations, it can execute instructions faster, improving application performance and reducing response times. The higher core count allows for better parallel processing, enabling more tasks to be executed simultaneously. This results in increased throughput and improved overall efficiency for users.

Optimized Virtualization Capabilities

Virtualization has become a fundamental technology in modern server environments, and the 8-Core 2.10GHz processor is optimized to handle virtualization workloads effectively. With support for hardware-assisted virtualization technologies, such as Intel Virtualization Technology (VT-x for Intel CPUs), this processor ensures efficient and secure virtual machine execution. It enables businesses to consolidate their server infrastructure, reduce hardware costs, and enhance flexibility in managing resources.

Improved Resource Allocation

Virtualization relies on effective resource allocation to ensure optimal performance and utilization. The 8-Core 2.10GHz processor's advanced features, such as Intel Virtualization Technology, enable efficient resource allocation across virtual machines. It allows administrators to allocate CPU resources dynamically based on workload demands, ensuring that each virtual machine receives the necessary processing power. This flexibility improves overall system performance and maximizes resource utilization.

Isolation and Security

Virtualization introduces the need for secure isolation between virtual machines to prevent unauthorized access or interference. The 8-Core 2.10GHz processor incorporates hardware-level security features that enhance virtual machine isolation. By providing separate execution environments for each virtual machine, it reduces the risk of data leakage or cross-VM attacks. This ensures that critical workloads remain secure and isolated from potential threats, providing peace of mind for businesses.

Efficient Workload Migration

The 8-Core 2.10GHz processor's optimized virtualization capabilities facilitate seamless workload migration between physical servers. With live migration technologies, such as VMware vMotion or Microsoft Live Migration, businesses can move running virtual machines from one physical server to another without interruption. This enables organizations to perform maintenance tasks, balance workloads, or respond to changing demands without impacting user experience or causing downtime.

Memory Type: DDR4 SDRAM

The HPE Proliant DL380 Rack Server offers high-performance memory options, with its DDR4 SDRAM being a standout feature. In this section, we will explore the benefits and importance of this memory type for users.

Enhanced Performance and Bandwidth

DDR4 SDRAM is the latest generation of memory technology, offering significant improvements over its predecessors. The HPE Proliant DL380 Rack Server's DDR4 SDRAM provides enhanced performance and increased bandwidth, allowing for faster data access and transfer rates. This results in reduced latency and improved overall system responsiveness, enabling businesses to handle demanding workloads efficiently.

Higher Memory Capacity

Memory capacity plays a crucial role in server performance, especially when dealing with memory-intensive applications or virtualization workloads. The DDR4 SDRAM in the HPE Proliant DL380 Rack Server supports higher memory capacities compared to older memory types. With larger memory modules and increased overall capacity, users can run more applications concurrently, handle larger datasets, and achieve better overall performance.

Energy Efficiency

In addition to performance benefits, DDR4 SDRAM offers improved energy efficiency compared to previous memory technologies. With lower operating voltages and advanced power management features, this memory type reduces power consumption without sacrificing performance. Energy-efficient memory not only helps businesses reduce their carbon footprint but also lowers operational costs by decreasing electricity usage.

Lower Operating Voltages

DDR4 SDRAM operates at lower voltages compared to previous generations, resulting in reduced power consumption. This is particularly important for large-scale server deployments where power savings can have a significant impact on operational costs. Lower operating voltages also contribute to improved system reliability by reducing heat generation, minimizing the risk of overheating and component failures.

Advanced Power Management

DDR4 SDRAM incorporates advanced power management features that allow for fine-grained control over power usage. These features include power-down modes, which reduce power consumption during idle periods or low utilization, and automatic power adjustment based on workload demands. By optimizing power usage, businesses can achieve a balance between performance and energy efficiency, leading to cost savings and environmentally friendly operations.

Future-Proofing

Investing in the latest memory technology, such as DDR4 SDRAM, ensures future-proofing for businesses. As software and applications become more demanding, having a server with DDR4 SDRAM provides the necessary performance headroom to handle future workloads efficiently. By choosing a server with DDR4 SDRAM, businesses can stay ahead of the technology curve and avoid the need for premature hardware upgrades.

Compatibility and Scalability

DDR4 SDRAM offers backward compatibility with older memory types, allowing businesses to upgrade their servers without replacing existing components. This compatibility ensures that businesses can leverage the benefits of DDR4 SDRAM while maximizing their existing infrastructure investments. Furthermore, DDR4 SDRAM supports higher memory densities and speeds, providing scalability for future growth or increased workload demands.
