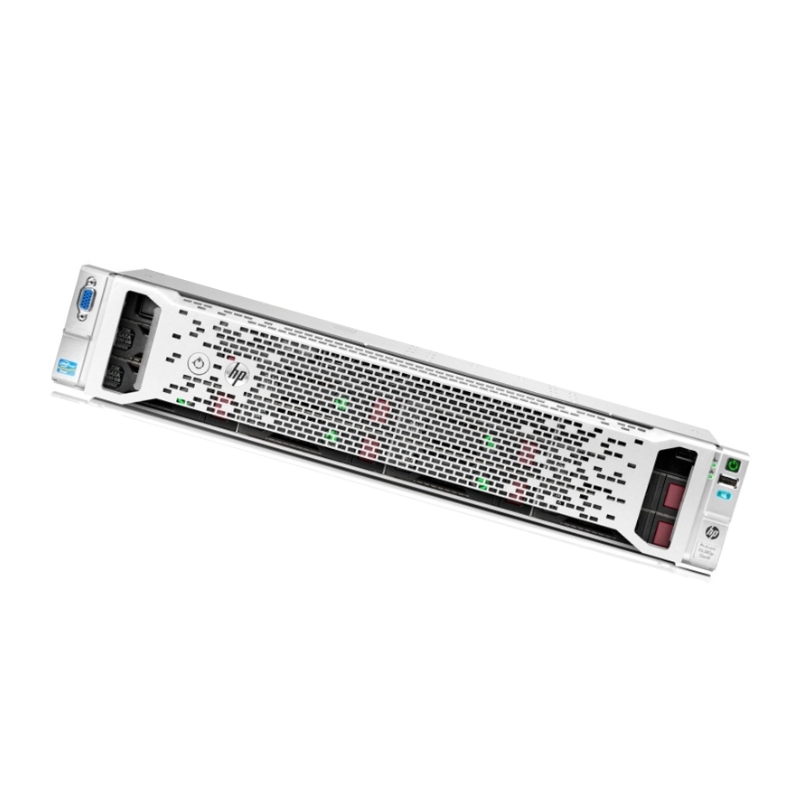

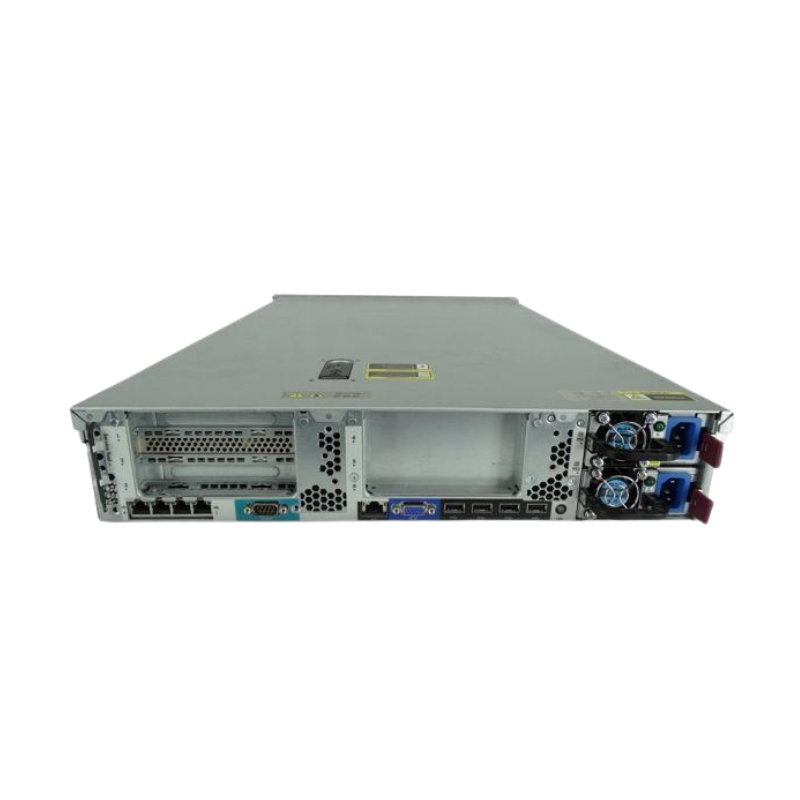

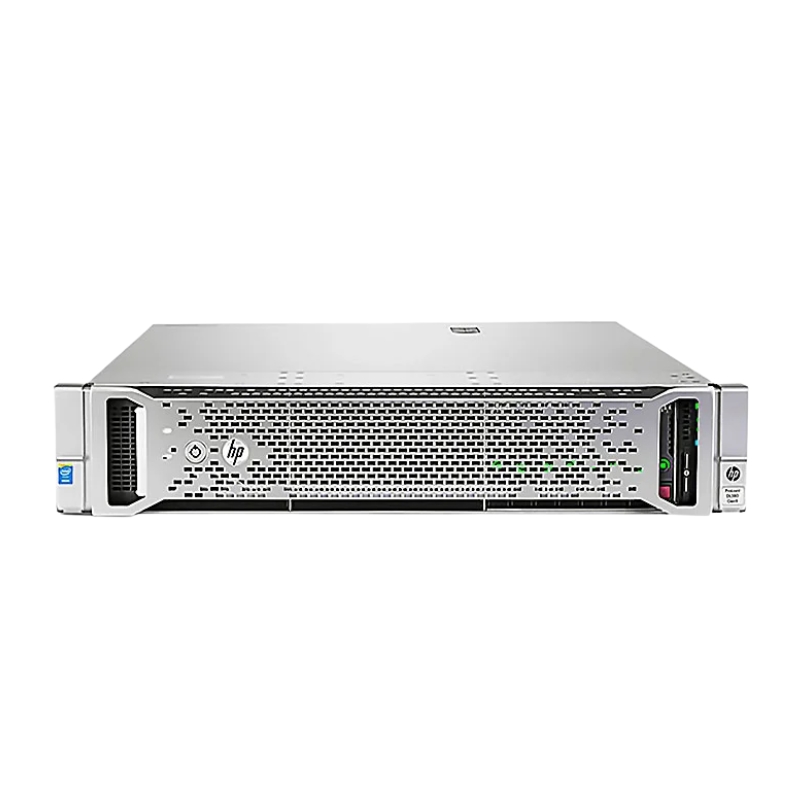

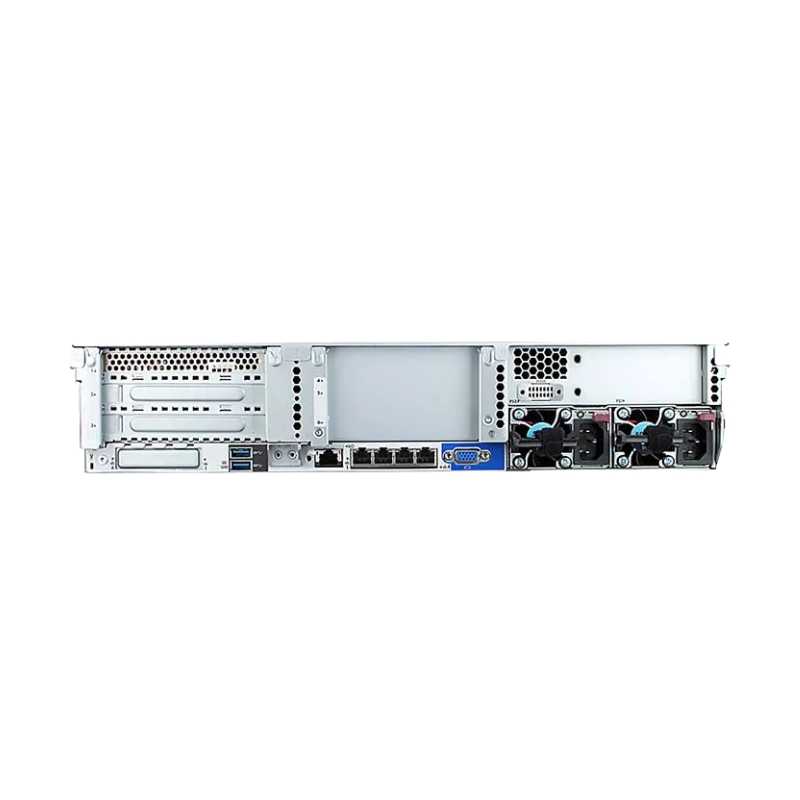

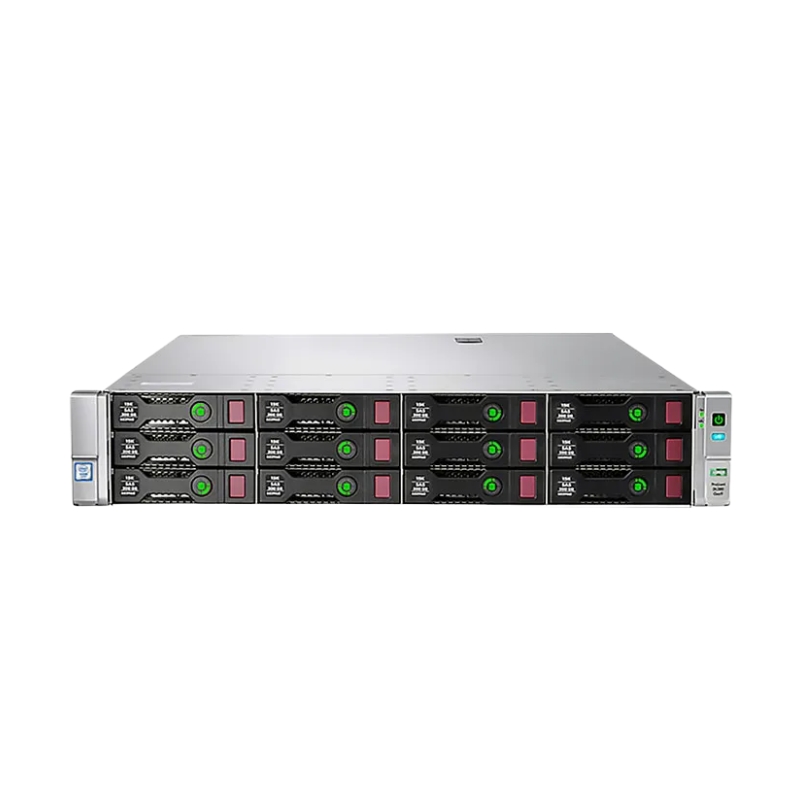

HPE Proliant DL380P 2.5GHz 16GB DDR3 SDRAM Smart Array Rack Server - 642107-001

Processor

The HPE Proliant DL380P Rack Server boasts a powerful processor, running at an impressive 2.5GHz. This feature sets it apart from other servers in its class and offers a multitude of benefits and advantages for users.

General Specification of SDRAM

Discover the Hewlett Packard Enterprise ProLiant DL380p Gen8 server, a robust 2U rack-mountable solution designed for demanding environments. This base model is engineered for exceptional performance and reliability.

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 642107-001
• Product Name: ProLiant DL380p Gen8 - 2-way 2U Rack-Mountable Server (Base Model)

Processor & Chipset

The server is equipped with high-performance processing capabilities, featuring:

• Processor Type: Intel Xeon E5-2640, 2.5 GHz
• Max Turbo Speed: 3 GHz
• Cores: 6-core
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• 64-bit Computing: Yes
• Chipset: Intel C600
• Features: Hyper-Threading Technology, Intel QuickPath Interconnect, Intel Turbo Boost Technology

Cache Memory

Enhanced caching for efficient data access with:

• Type: L3 Cache
• Installed Size: 15 MB
• Cache Per Processor: 15 MB

RAM

Robust memory options to support demanding applications:

• Installed Size: 16 GB, expandable up to 384 GB
• Memory Type: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Rated Memory Speed: 1333 MHz
• Specification Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Slots: 24 (total), 20 (empty)
• Configuration: 4 x 4 GB
• Supported RAM: Various configurations including PC3-12800 and low voltage options

Storage

Current storage configuration includes:

• Hard Drive: None
• Optical Drive: None

Storage Controller

Integrated RAID controller for reliable storage management:

• Type: RAID - Integrated - PCIe 3.0 x8
• Interface Type: SATA 6 Gb/s / SAS 6 Gb/s
• Controller Name: Smart Array P420i with 1 GB FBWC
• Channels: 8
• RAID Levels: RAID 0, RAID 1, RAID 10
• Buffer Size: 1 GB

Display & Graphics Controllers

Integrated graphics options include:

• Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

Network connectivity features:

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake-on-LAN (WOL), PXE Support
• Standards Compliant: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansions & Connectivity

Expandability options include:

• Expansion Bays: 8 x Hot-swap 2.5 SFF (total and free)
• Expansion Slots:
  • 24 x DIMM 240-pin (20 free)
  • 2 x CPU (1 free)
  • 1 x PCIe 3.0 x16 - Full-length, Full-height (1 free)
  • 1 x PCIe 3.0 x8 - Half-length, Full-height (1 free)
  • 1 x PCIe 2.0 x8 - Half-length, Full-height (x4 Mode) (1 free)
  • 1 x FlexibleLOM (x4 Mode) (1 free)
  • 1 x SD Card (internal) (1 free)

Interfaces & Ports

Connectivity options include:

• 1 x Serial
• 2 x VGA (1 Front, 1 Rear)
• 4 x LAN (Gigabit Ethernet)
• 1 x HP iLO
• 7 x USB 2.0 (2 Front, 4 Rear, 1 Internal)

Miscellaneous

Included accessories and features:

• Included Accessories: HP Friction Rail Kit, Cable Management Arm
• Features: Administrator Password, Power-on Password, Serial Port I/O Control, Redundant Fans
• Standards Compliant: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438

Power Device

Power supply features include:

• Type: Hot-plug Power Supply
• Redundancy: Optional (1+1 with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 460 Watt
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

Physical specifications:

• Width: 17.5 in
• Depth: 27.5 in
• Height: 3.4 in
• Weight: 40.98 lbs

Enhanced Performance

With a processor speed of 2.5GHz, the HPE Proliant DL380P Rack Server delivers exceptional performance and processing power. This allows for faster data processing, quicker response times, and improved overall server performance. Whether you are running resource-intensive applications or handling large data sets, this server can handle the workload with ease.

Increased Efficiency

The high clock speed of 2.5GHz ensures that tasks are executed swiftly and efficiently. This reduces the time taken for computations, resulting in increased productivity and reduced downtime. With faster processing capabilities, users can expect improved efficiency in their operations, enabling them to accomplish more in less time.

Smooth Multitasking

The HPE Proliant DL380P Rack Server's 2.5GHz processor enables seamless multitasking capabilities. It can handle multiple tasks simultaneously without compromising performance or causing system slowdowns. This is particularly beneficial for businesses that require their servers to handle various workloads simultaneously, such as running multiple virtual machines or handling complex databases.

Optimized Workloads

The server's powerful processor ensures that workloads are optimized and executed efficiently. It allows for quick data retrieval and processing, ensuring that critical tasks are completed promptly. This is especially crucial for businesses that rely on real-time data analysis or time-sensitive operations, as it helps them make informed decisions faster.

Scalability and Future-Proofing

In addition to its impressive clock speed, the HPE Proliant DL380P Rack Server's processor offers scalability and future-proofing. It is designed to handle increasing workloads and can be easily upgraded or replaced if needed. This ensures that the server can adapt to the evolving needs of your business, providing longevity and cost-effectiveness.

Reliability and Durability

The processor's 2.5GHz speed is not only responsible for enhanced performance but also contributes to the server's reliability and durability. It is built to handle demanding tasks and prolonged usage, making it suitable for mission-critical applications. Users can rely on the server's processing capabilities for uninterrupted operation and reduced system failures.

Memory

The HPE Proliant DL380P Rack Server comes equipped with 16GB DDR3 SDRAM memory, offering substantial benefits and importance for users.

Improved System Responsiveness

The 16GB DDR3 SDRAM memory ensures improved system responsiveness, allowing for quicker data access and retrieval. This translates into faster application loading times, reduced latency, and improved overall user experience. Users can expect a seamless computing experience with minimal lag or delays when utilizing this server.

Efficient Virtualization

Virtualization has become an essential aspect of modern IT infrastructure. The HPE Proliant DL380P Rack Server's 16GB DDR3 SDRAM memory provides sufficient capacity to support multiple virtual machines concurrently. This enables businesses to consolidate their hardware resources, reduce costs, and improve efficiency by running various operating systems and applications on a single server.

Enhanced Data Processing

The ample memory capacity of 16GB DDR3 SDRAM allows for efficient handling of large datasets and complex calculations. Businesses dealing with data-intensive tasks, such as analytics or scientific simulations, can leverage this server's memory to process information quickly and accurately. This results in faster data analysis, leading to valuable insights and improved decision-making capabilities.

Scalability and Expandability

The 16GB DDR3 SDRAM memory provides scalability and expandability options for the HPE Proliant DL380P Rack Server. It allows users to increase the memory capacity as their needs grow, ensuring that the server can adapt to changing requirements without the need for a complete hardware replacement. This flexibility provides a cost-effective solution for businesses, allowing them to scale up their operations without significant downtime or disruption.

Reliability and Data Integrity

The server's 16GB DDR3 SDRAM memory contributes to its reliability and data integrity. With ample memory capacity, it can efficiently handle data storage and retrieval, reducing the risk of data corruption or loss. This is particularly crucial for businesses that deal with sensitive information, as it ensures that critical data remains intact and accessible at all times.

Future-Proofing

Investing in a server with 16GB DDR3 SDRAM memory ensures future-proofing to some extent. While technology continues to advance, this memory capacity provides a suitable foundation for handling current and upcoming workloads. It allows businesses to stay ahead of the curve without immediately requiring additional hardware upgrades, saving both time and money.

Storage

One of the standout features of the HPE Proliant DL380P Rack Server is its Smart Array storage capability, offering numerous benefits and importance for users.

Data Redundancy and Protection

The Smart Array storage feature ensures data redundancy and protection by implementing RAID (Redundant Array of Independent Disks) technology. This technology combines multiple physical drives into logical units, providing fault tolerance and safeguarding against data loss in case of drive failures. By distributing data across multiple drives, it not only enhances performance but also ensures data integrity.

Improved Performance

The Smart Array storage feature optimizes disk performance by implementing various techniques such as striping, mirroring, and parity. This enhances data access speeds, accelerates read and write operations, and reduces latency. Users can experience improved application performance, faster database queries, and reduced data retrieval times, resulting in increased productivity.

Scalability and Flexibility

The HPE Proliant DL380P Rack Server's Smart Array storage feature offers scalability and flexibility. It allows users to add or replace drives as their storage requirements evolve. This ensures that the server can accommodate growing data volumes without significant hardware investments or disruptions to operations. The ability to scale storage capacity seamlessly provides organizations with a cost-effective solution and future-proofing capabilities.

Streamlined Management

The Smart Array storage feature simplifies storage management through intuitive interfaces and tools. Administrators can monitor drive health, configure RAID levels, and perform maintenance tasks conveniently. This streamlined management process reduces the complexity associated with storage management, saving time and effort for IT personnel.

Data Availability and Accessibility

By implementing RAID technology, the Smart Array storage feature ensures that data remains available and accessible even in the event of drive failures. This high level of data availability is crucial for businesses that rely on continuous access to critical information. It minimizes downtime, reduces the risk of data loss, and promotes uninterrupted operations.

Data Protection and Security

The Smart Array storage feature offers data protection and security through various RAID levels, including mirroring (RAID 1) and parity (RAID 5). Mirroring duplicates data across multiple drives, providing an exact copy in case of drive failure. Parity calculates and stores additional data that enables reconstruction of lost information. These RAID levels not only protect against data loss but also enhance data security by preventing unauthorized access to sensitive information.

Part Number

The HPE Proliant DL380P Rack Server is identified by its unique part number: 642107-001. This feature holds significance for users and offers several benefits.

Easy Identification and Ordering

The part number, 642107-001, serves as a unique identifier for the HPE Proliant DL380P Rack Server. It simplifies the process of identifying and ordering the specific server model, ensuring accuracy and reducing the chances of errors. The part number can be used by users or IT personnel to quickly locate and procure the required server without confusion or ambiguity.

Compatibility Assurance

The part number, 642107-001, also guarantees compatibility with specific server components and accessories. It ensures that any replacement parts or upgrades purchased for the HPE Proliant DL380P Rack Server are fully compatible and function seamlessly within the system. This eliminates the risk of compatibility issues and prevents potential damage to the server due to incompatible components.

Documentation and Support

The part number, 642107-001, serves as a reference point for documentation and support resources provided by HPE (Hewlett Packard Enterprise). Users can easily access manuals, user guides, firmware updates, and technical support related to the specific server model using this part number. This simplifies troubleshooting, maintenance, and overall management of the server.

Warranty and Service Coverage

The part number, 642107-001, is essential when it comes to warranty and service coverage for the HPE Proliant DL380P Rack Server. It helps users determine whether their server is still under warranty or whether their service agreement covers specific issues or repairs. This information is vital for businesses to ensure uninterrupted operations and cost-effective maintenance of their server infrastructure.

Inventory Management

For organizations managing multiple servers, the part number, 642107-001, aids in efficient inventory management. It allows IT departments to track and manage server assets accurately, ensuring that the right server is deployed in the right location. This facilitates streamlined asset management and simplifies auditing processes.

Long-Term Support and Availability

The part number, 642107-001, also ensures long-term support and availability of the HPE Proliant DL380P Rack Server. By referencing this part number, users can verify the server's continued availability and support from HPE. This provides peace of mind for organizations that rely on stable and supported server infrastructure for their business operations.
