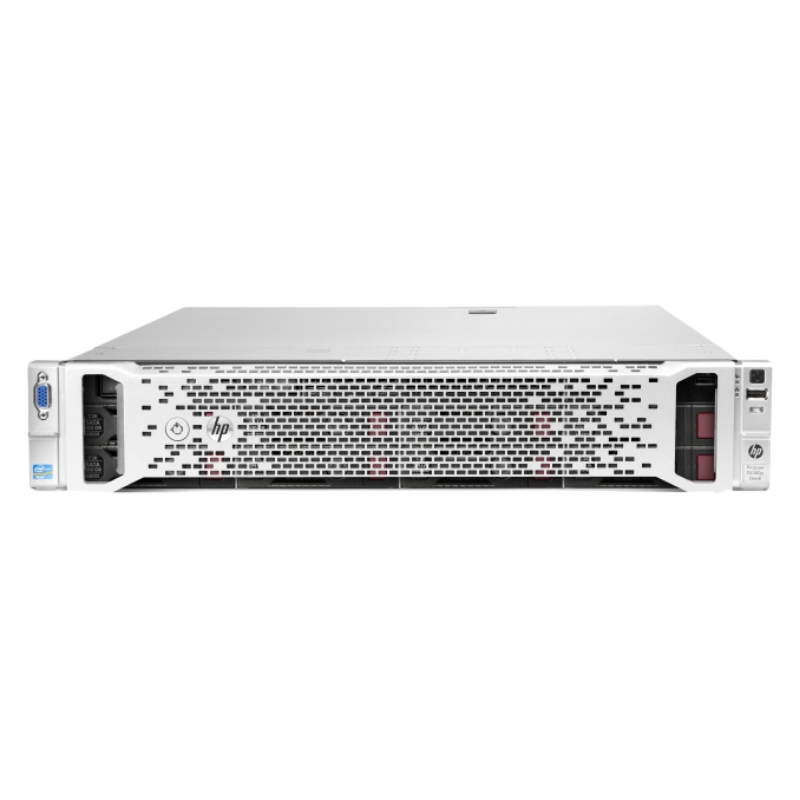

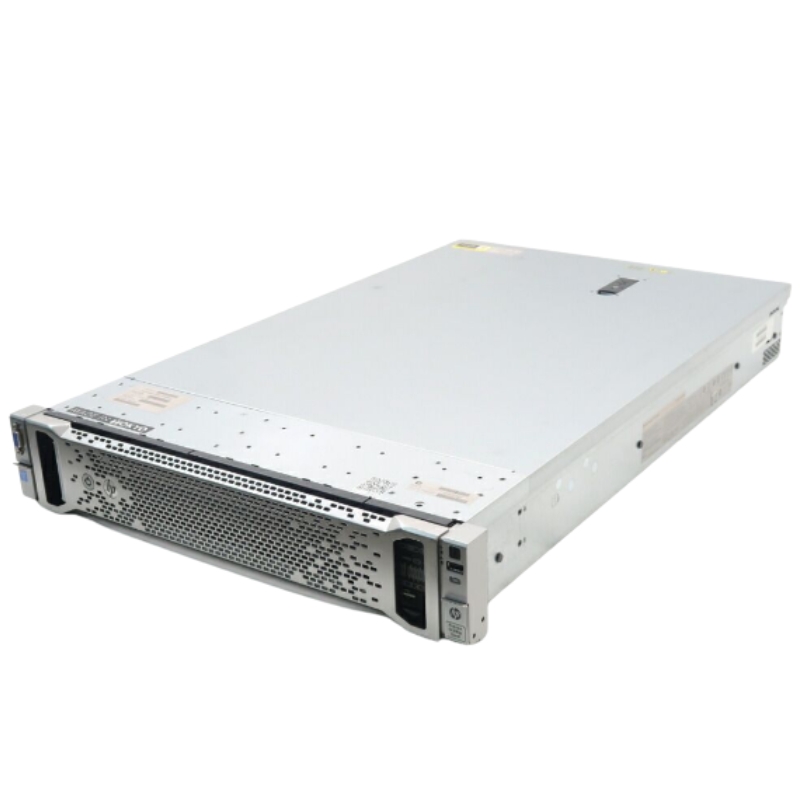

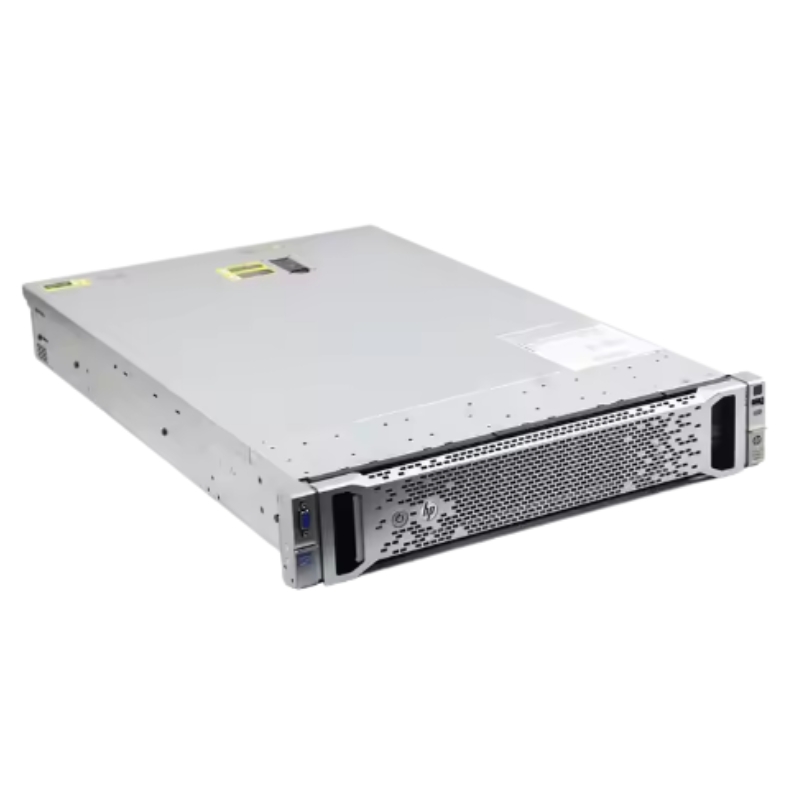

HPE Proliant DL380p 6Core 2.6GHz 16GB DDR3 Server 704559-001

Processor

The HPE Proliant DL380p Server is equipped with a powerful 6Core 2.6GHz processor, making it an ideal choice for businesses that require high performance and reliability. This processor delivers exceptional speed, allowing for faster data processing and improved overall system performance.

General Details

Manufacturer Information

• Brand: Hewlett Packard Enterprise
• Part Number: 704559-001
• Product: Proliant DL380p Gen8 - 2U Rack Server (Base Model)

Processor and Chipset

Processor Specifications

• Type: Intel Xeon E5-2630v2
• Clock Speed: 2.6 GHz
• Turbo Speed: 3.1 GHz
• Core Count: 6
• Installed Quantity: 1
• Maximum Supported: 2
• 64-bit Support: Yes
• Upgrade Capable: Yes
• Chipset: Intel C600
• Main Features: Hyper-Threading, Intel QuickPath Interconnect, Intel Turbo Boost Technology 2

Cache Memory

• Type: L3 Cache
• Size: 30 MB
• Cache Per Processor: 15 MB

Memory

Specifications

• Installed RAM: 16 GB
• Maximum RAM: 384 GB
• Memory Technology: DDR3 SDRAM
• Effective Speed: 1600 MHz
• Memory Speed Rating: 1600 MHz
• Compliance: PC3-12800
• Form Factor: DIMM 240-pin
• Total Slots: 24
• Available Slots: 23

Configuration and Support

• Current Configuration: 1 x 16 GB
• Supported Memory Types: PC3-14900 (Registered and Unbuffered), Advanced ECC, Hypercloud
• Maximum Configurations: Up to 768 GB Low Voltage, 384 GB Hypercloud

Storage and Optical Drive

• Hard Drive: None Installed
• Optical Drive: DVD-RW / DVD-Writer (SATA)

Storage Controller

• Type: RAID Controller (Integrated)
• Interface: PCIe 3.0 x8
• Controller Name: Smart Array P420i with 1GB FBWC
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 1 GB

Graphics and Display

• Graphics Controller: Integrated
• Processor: Matrox G200
• Video Interface: VGA

Networking and Communication

• Network Interface: Plug-in Card
• Bus Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Controller: HP 331FLR
• Data Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.3ad (LACP)

Expansion and Connectivity

Expansion Bays and Slots

• Expansion Bays: 8 Hot-Swap 2.5-inch SFF (all available)
• Memory Slots: 24 DIMM 240-pin (23 available)
• CPU Slots: 2 (1 available)
• PCIe Slots:
  • 1 x PCIe 3.0 x16 (Full-length, Full-height) - 1 available
  • 1 x PCIe 3.0 x8 (Half-length, Full-height) - 1 available
  • 1 x PCIe 2.0 x8 (Half-length, Full-height) (X4 Mode) - 1 available
  • 1 x FlexibleLOM - 0 available

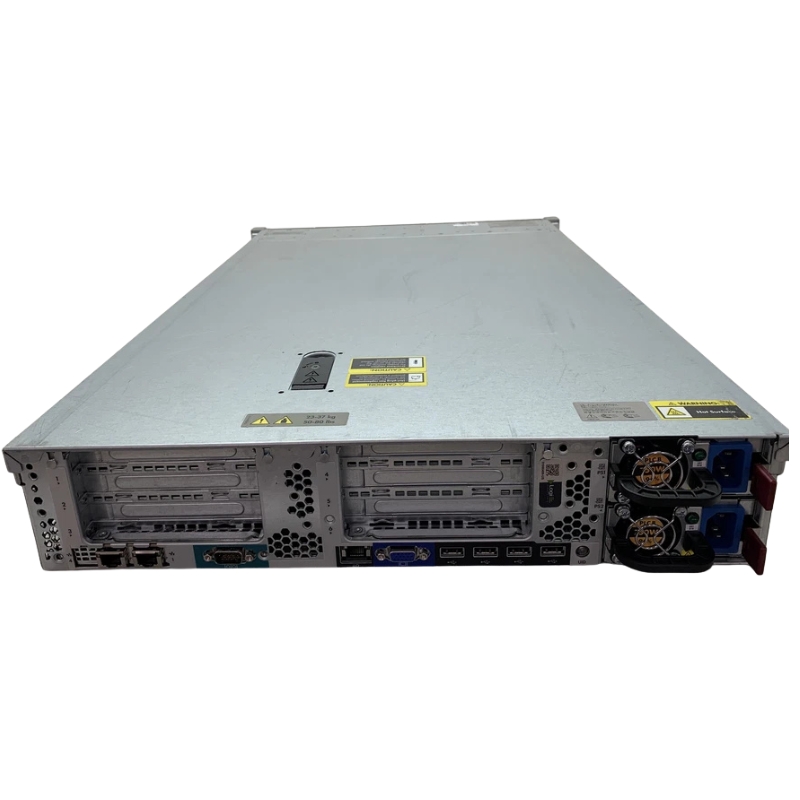

Interfaces and Ports

• Serial Ports: 1
• VGA Ports: 2 (1 Front, 1 Rear)
• LAN Ports: 4 Gigabit Ethernet
• HP iLO Port: 1
• USB Ports: 7 x USB 2.0 (2 Front, 4 Rear, 1 Internal)

Miscellaneous Features

• Included Accessories: HP Ball Bearing Rail Kit
• Security Features: Administrator Password, Power-on Password, Serial Port I/O Control
• Certification: 80 Plus Platinum
• Compliance: ACPI 2.0b, FCC Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438, GB 9254

Power Specifications

• Power Supply: Hot-Plug
• Redundancy: Optional (1+1 with additional power supply)
• Installed Power Supply: 1
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 460 Watts
• Efficiency Rating: 80 Plus Platinum (94%)

Dimensions and Weight

• Width: 17.5 inches
• Depth: 27.5 inches
• Height: 3.4 inches
• Weight: 40.98 lbs

Improved Performance

The 6Core 2.6GHz processor ensures that the server can handle demanding workloads with ease. It is designed to deliver faster processing speeds, enabling businesses to run resource-intensive applications and perform complex tasks efficiently. With this powerful processor, users can experience improved productivity as they can complete tasks more quickly and efficiently.

Enhanced Multitasking

The HPE Proliant DL380p Server's 6Core 2.6GHz processor offers enhanced multitasking capabilities. It allows users to run multiple applications simultaneously without experiencing a significant drop in performance. This feature is particularly beneficial for businesses that require their servers to handle multiple tasks and processes simultaneously, ensuring smooth operations and minimizing downtime.

Smooth Virtualization

In addition to improved performance and multitasking capabilities, the 6Core 2.6GHz processor also enhances virtualization capabilities. Virtualization is becoming increasingly important for businesses as it allows them to maximize their server resources by running multiple virtual machines on a single physical server. The powerful processor ensures smooth virtualization performance, enabling businesses to consolidate their infrastructure and reduce costs.

RAM

The HPE Proliant DL380p Server comes with 16GB DDR3 RAM, providing ample memory for efficient data processing and smooth system operations. The significant amount of RAM offers several benefits for users, making this server an excellent choice for businesses with demanding workloads.

Improved System Responsiveness

With 16GB DDR3 RAM, the HPE Proliant DL380p Server can handle large amounts of data and applications without experiencing a slowdown in performance. The ample memory ensures that the server can quickly access and process data, resulting in improved system responsiveness. Users can expect faster response times when running applications or performing tasks, enhancing overall productivity.

Efficient Data Processing

The generous amount of RAM enables the server to efficiently process data, particularly when dealing with complex operations or large datasets. This is especially crucial for businesses that rely on data analysis or perform resource-intensive tasks. The 16GB DDR3 RAM allows for smooth and efficient data processing, ensuring that businesses can make informed decisions based on accurate and timely information.

Scalability and Future-Proofing

Another advantage of having 16GB DDR3 RAM is the scalability it offers. As business needs grow and evolve, the server's memory can be expanded to accommodate increased workloads. This scalability ensures that the HPE Proliant DL380p Server can adapt to changing demands, providing businesses with a future-proof solution. It allows for easy upgrades without the need for significant hardware replacements, saving both time and money.

Part Number

The HPE Proliant DL380p Server has a part number of 704559-001, which is an essential identifier for businesses looking to purchase or replace specific server components. Understanding the importance and benefits of this part number ensures that users can make informed decisions when it comes to managing their server infrastructure.

Accurate Component Identification

The part number 704559-001 allows users to accurately identify and locate the specific server component they require. Servers consist of various interchangeable parts and components, and having a unique part number ensures that users can easily find the exact component they need for maintenance, repair, or upgrade purposes. This eliminates the risk of purchasing the wrong part and simplifies the entire process.

Compatibility and Interchangeability

Each part number corresponds to a specific server component, ensuring compatibility and interchangeability. When replacing or upgrading server components, such as hard drives or power supplies, having the correct part number guarantees that the new component will seamlessly integrate into the existing infrastructure. This compatibility ensures smooth operations and prevents any compatibility issues that may arise from using incompatible components.

Easier Inventory Management

The part number 704559-001 also plays a crucial role in inventory management. It allows businesses to keep track of their server components accurately. By associating each component with its respective part number, businesses can easily monitor their inventory levels, identify any shortages or excesses, and plan future purchases accordingly. This streamlined inventory management process helps optimize resources and reduces unnecessary expenses.
