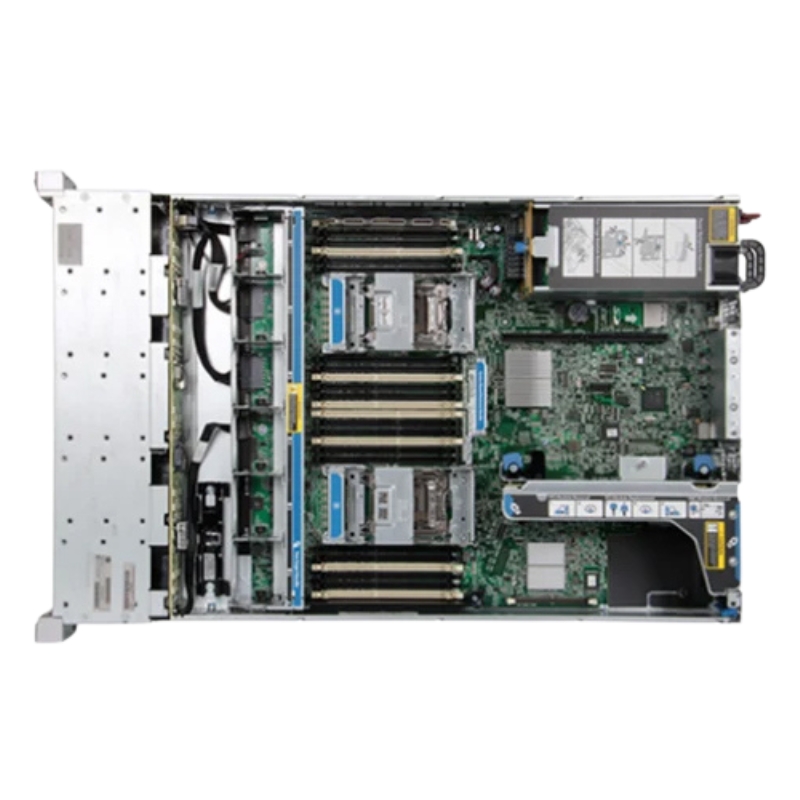

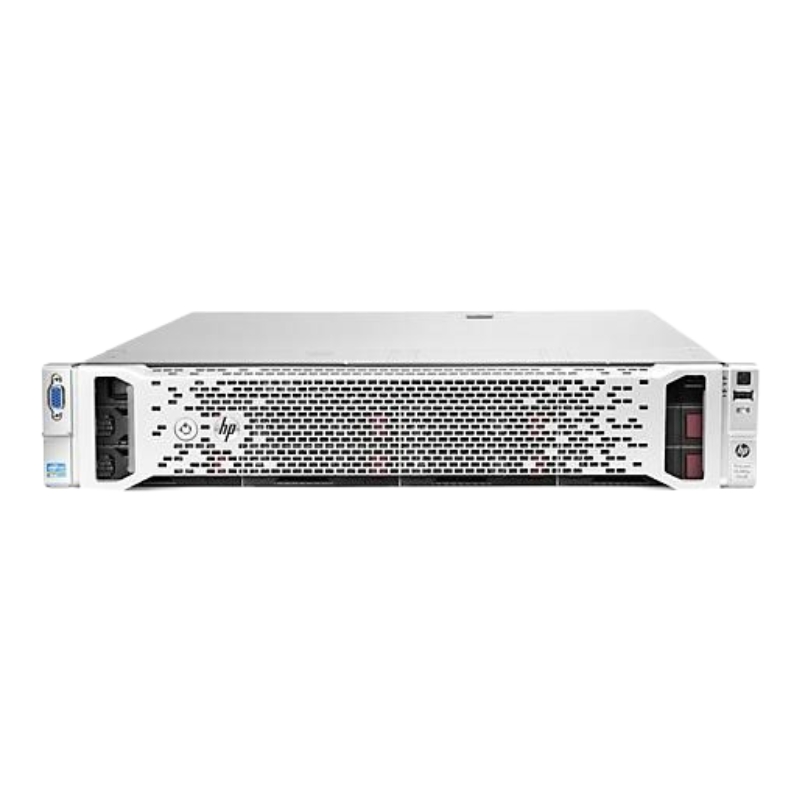

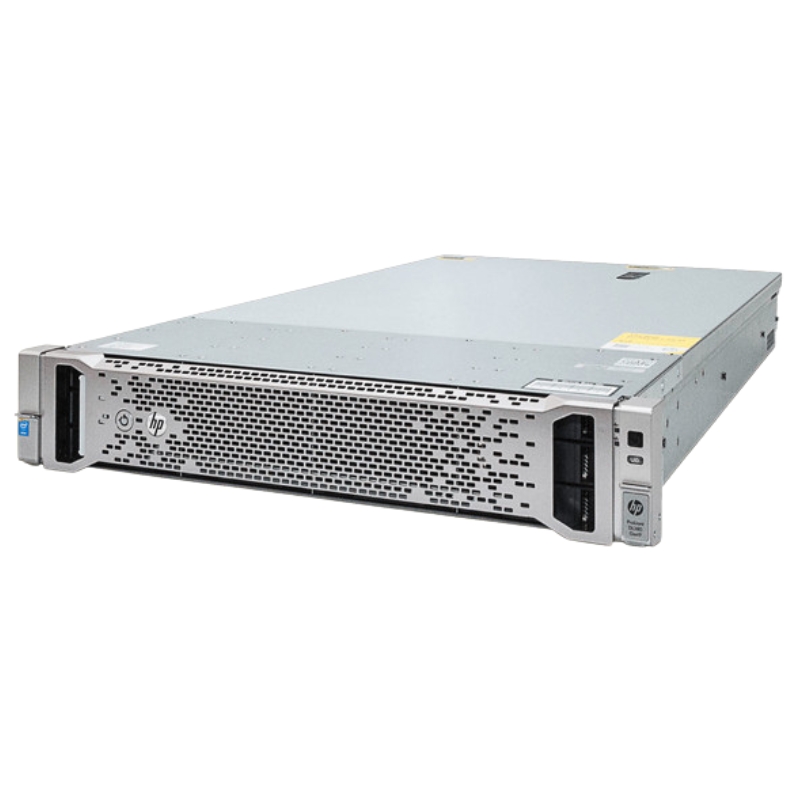

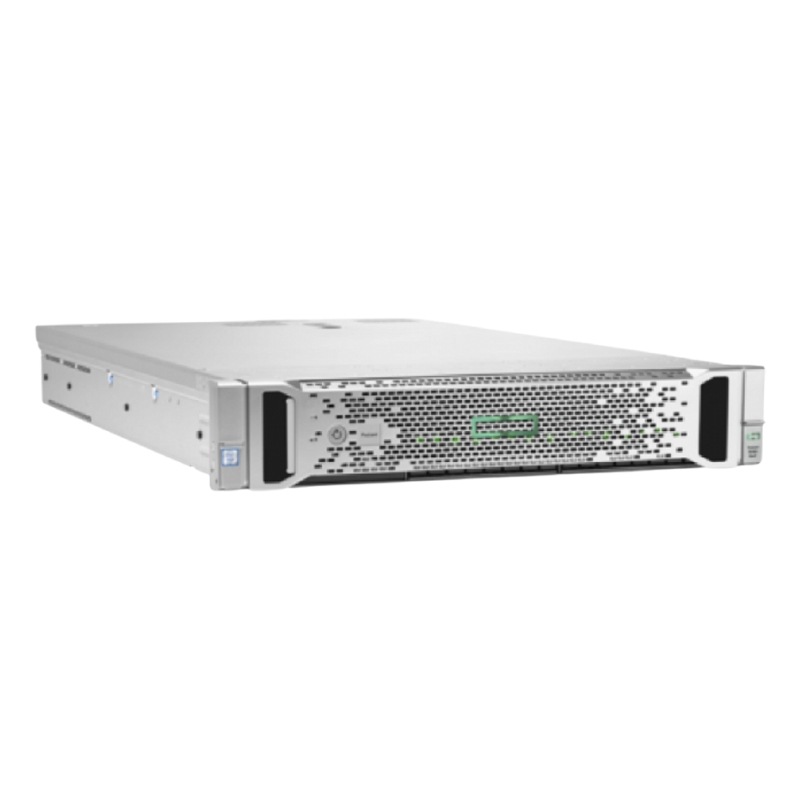

HPE Proliant DL380p 704560-001 Quad Core Xeon 2.5GHz 4GB DDR3 Server

Processor

The HPE Proliant DL380p Server is equipped with a powerful Quad Core Xeon 2.5GHz processor. This high-performance processor is designed to handle demanding workloads and deliver exceptional performance for businesses of all sizes. Let's explore the benefits and importance of this feature in more detail.

General Overview

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 704560-001
• Product Name: Proliant DL380p Gen8 - 2-way 2U Rack-Mountable Server (Entry Model)

Processor and Chipset

• Processor Type: Intel Xeon E5-2609v2, 2.5 GHz
• Core Count: Quad-core
• Installed Processors: 1 (supports up to 2)
• 64-bit Computing: Yes
• Chipset: Intel C600
• Upgrade Capability: Upgradable

Cache Memory

• Cache Type: L3 Cache
• Installed Size: 10 MB
• Cache Per Processor: 10 MB

Memory Specifications

• Installed Memory Size: 4 GB (expandable up to 384 GB)
• Memory Type: DDR3 SDRAM
• Memory Speed: 1600 MHz
• Memory Compliance: PC3-12800
• Form Factor: DIMM 240-pin
• Slots Available: 24 (1 occupied)
• Memory Features: Registered, Dual Rank, Quad Channel, HP SmartMemory

Supported Memory Configurations

• PC3-14900 - Up to 384 GB Registered
• PC3-14900 - Up to 768 GB Load-Reduced
• PC3-14900 - Up to 128 GB Unbuffered (Advanced ECC)
• PC3-10600 - Up to 384 GB Hypercloud

Storage Capabilities

• Hard Drive: None
• Optical Drive: None

Storage Controller

• Type: Integrated RAID Controller
• Interface: PCIe 3.0 x8
• Controller Name: Smart Array P420i/zm
• Channels: 8
• RAID Levels Supported: RAID 0, RAID 1, RAID 10
• Buffer Size: ZM

Display and Graphics

• Type: Integrated Graphics
• Graphics Processor: Matrox G200
• Video Interface: VGA

Networking and Communication

• Network Interface: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion and Connectivity

Expansion Bays

• Total Bays: 8 (all free)
• Type: Hot-swap 2.5-inch SFF

Expansion Slots

• Total DIMM Slots: 24 (1 used)
• Total CPU Slots: 2 (1 free)
• Total PCIe Slots:
  • 1 x PCIe 3.0 x16 (Full-length, Full-height)
  • 1 x PCIe 3.0 x8 (Half-length, Full-height)
  • 1 x PCIe 2.0 x8 (Half-length, Full-height, x4 Mode)
  • 1 x FlexibleLOM (x4 Mode)
  • 1 x Internal SD Card Slot

Interfaces and Ports

• 1 x Serial Port
• 2 x VGA Ports (1 Front, 1 Rear)
• 4 x LAN Ports (Gigabit Ethernet)
• 1 x HP iLO Port
• 7 x USB 2.0 Ports (2 Front, 4 Rear, 1 Internal)

Miscellaneous

Included Accessories

• HP Friction Rail Kit

Additional Features

• Administrator Password
• Power-on Password
• Serial Port I/O Control
• Redundant Fans

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN 55022
• ICES-003
• EN 61000-3-3
• EN 55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• BSMI CNS 13438

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional (1+1 with additional power supply)
• Installed Power Supply: 1
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 460 Watt
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 92%

Physical Dimensions

• Width: 17.5 inches
• Depth: 27.5 inches
• Height: 3.4 inches
• Weight: 40.98 lbs

Enhanced Performance

The Quad Core Xeon 2.5GHz processor is specifically engineered to provide enhanced performance for server applications. With four cores, each capable of running multiple threads simultaneously, this processor can efficiently handle complex tasks and ensure smooth operation even under heavy workloads. Whether you're running resource-intensive applications or virtualized environments, the processor's exceptional speed and performance will help you meet your business needs.

Improved Productivity

By harnessing the power of the Quad Core Xeon 2.5GHz processor, users can experience improved productivity and efficiency in their daily tasks. The processor's advanced architecture enables faster data processing and execution, allowing users to complete their work more quickly. This means reduced wait times and increased productivity for businesses, leading to enhanced overall operational efficiency.

Seamless Multitasking

In today's fast-paced business environment, multitasking has become a necessity. The Quad Core Xeon 2.5GHz processor enables seamless multitasking by efficiently allocating resources across multiple applications and processes. Users can run several applications simultaneously without experiencing any significant performance degradation. This feature is particularly beneficial for businesses that rely on running multiple software applications concurrently.

Scalability and Future-Proofing

The HPE Proliant DL380p Server's Quad Core Xeon 2.5GHz processor offers scalability and future-proofing capabilities, allowing businesses to adapt and grow without the need for significant hardware upgrades. As workloads increase, the processor's multi-core architecture ensures that the server can handle the additional demands. This scalability not only saves businesses from unnecessary expenses but also ensures that their server infrastructure remains capable of meeting future requirements.

Energy Efficiency

Energy efficiency is a critical consideration for modern businesses. The Quad Core Xeon 2.5GHz processor is designed to maximize performance while minimizing power consumption. This energy-efficient design translates to lower operating costs and reduced environmental impact. By choosing a server with an energy-efficient processor, businesses can contribute to their sustainability goals while enjoying cost savings in the long run.

Memory

Another essential feature of the HPE Proliant DL380p Server is its 4GB DDR3 memory. Memory plays a crucial role in determining a server's performance and responsiveness. Let's delve into the benefits and importance of this feature.

Improved System Responsiveness

The 4GB DDR3 memory provides ample capacity for storing and accessing data quickly, resulting in improved system responsiveness. With larger memory capacity, the server can efficiently handle multiple concurrent requests, ensuring smooth operation even during peak usage periods. This enhanced responsiveness contributes to better user experience and customer satisfaction.

Efficient Data Processing

Adequate memory capacity is vital for efficient data processing. The 4GB DDR3 memory enables faster data retrieval and storage, reducing latency and bottlenecks in data-intensive applications. Whether you're running databases, virtual machines, or other memory-intensive applications, this feature ensures that your server can handle the workload without performance degradation.

Enhanced Virtualization Performance

Virtualization has become an integral part of modern IT infrastructure. The 4GB DDR3 memory allows for efficient virtual machine (VM) deployment and management. With more memory available, businesses can allocate sufficient resources to each VM, preventing resource contention and enabling optimal performance. This feature is particularly beneficial for businesses that heavily rely on virtualization to streamline their operations.

Future Expansion

The 4GB DDR3 memory provides a solid foundation for future expansion and growth. As business requirements evolve, the server's memory capacity can be easily upgraded to meet increased demands. This scalability ensures that your server investment remains relevant and capable of accommodating future needs without requiring a complete hardware overhaul.

Reliability and Redundancy

Memory redundancy is crucial for maintaining system reliability. The HPE Proliant DL380p Server's 4GB DDR3 memory offers error correction capabilities, which detect and correct memory errors in real-time. This feature helps prevent data corruption and system crashes, ensuring uninterrupted operation and minimizing downtime.

Part Number

The HPE Proliant DL380p Server boasts the part number 704560-001, which holds significance in terms of product identification and compatibility. Let's explore the benefits and importance of this feature in more detail.

Product Identification

The part number 704560-001 serves as a unique identifier for the HPE Proliant DL380p Server. It distinguishes this server model from others in the HPE Proliant series, allowing users to easily identify and differentiate it when purchasing or managing their IT infrastructure. This simplifies the procurement process and ensures that the correct product is obtained, avoiding any potential confusion or compatibility issues.

Compatibility Assurance

The part number 704560-001 also plays a crucial role in ensuring compatibility with other hardware components and accessories. By referencing this part number, businesses can verify that the server is compatible with their existing infrastructure or any additional components they plan to integrate. This compatibility assurance saves time and effort by eliminating the need for manual compatibility checks or potential trial-and-error scenarios.

Streamlined Maintenance and Support

Having a specific part number like 704560-001 simplifies the maintenance and support processes for the HPE Proliant DL380p Server. When seeking assistance from HPE or authorized service providers, referencing the part number allows technicians to quickly identify the server model and its associated components. This expedites troubleshooting, replacement part identification, and resolution, minimizing downtime and ensuring prompt support.

Accurate Documentation and Documentation Retrieval

The part number 704560-001 ensures accurate documentation for the HPE Proliant DL380p Server. Manufacturers typically provide detailed documentation specific to each product model and its associated part number. This documentation includes user manuals, technical specifications, driver downloads, and firmware updates. By referencing the correct part number, users can easily access the relevant documentation, ensuring that they have the necessary information to maximize their server's capabilities.

Inventory Management

For businesses that manage a large inventory of IT equipment, the part number 704560-001 is invaluable for efficient inventory management. By accurately tracking and cataloging servers based on their unique part numbers, businesses can effectively monitor their stock levels, plan for replacements or upgrades, and streamline asset management processes. This feature helps prevent inventory errors, reduces procurement delays, and ensures optimal resource allocation.

In conclusion, the HPE Proliant DL380p Server's Quad Core Xeon 2.5GHz processor, 4GB DDR3 memory, and part number 704560-001 are essential features that contribute to its overall performance, scalability, compatibility, and ease of use. Whether you're seeking enhanced processing power, improved system responsiveness, or efficient inventory management, these features empower businesses to meet their IT requirements with confidence.
