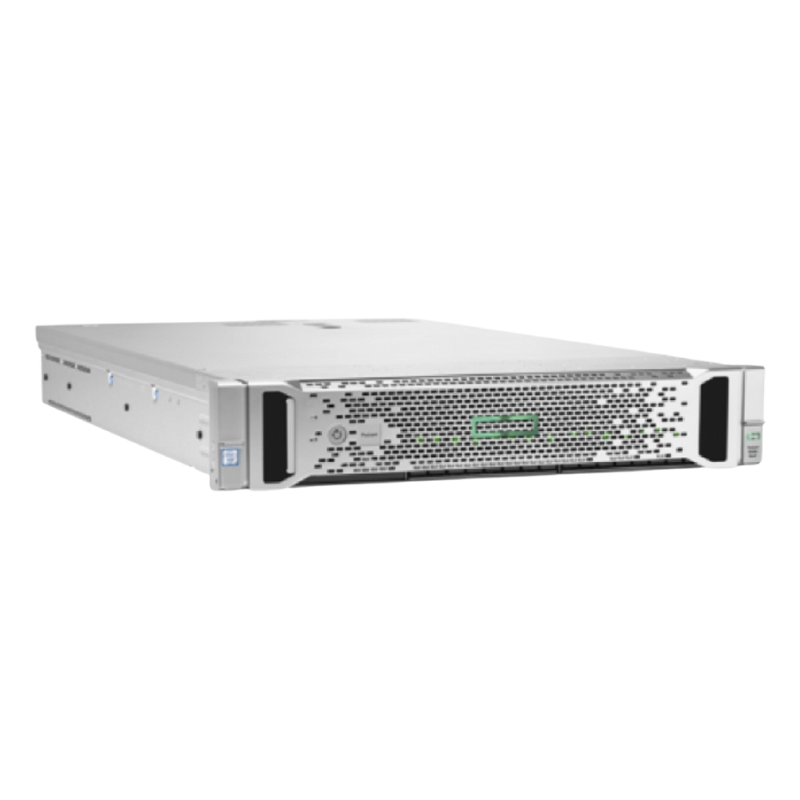

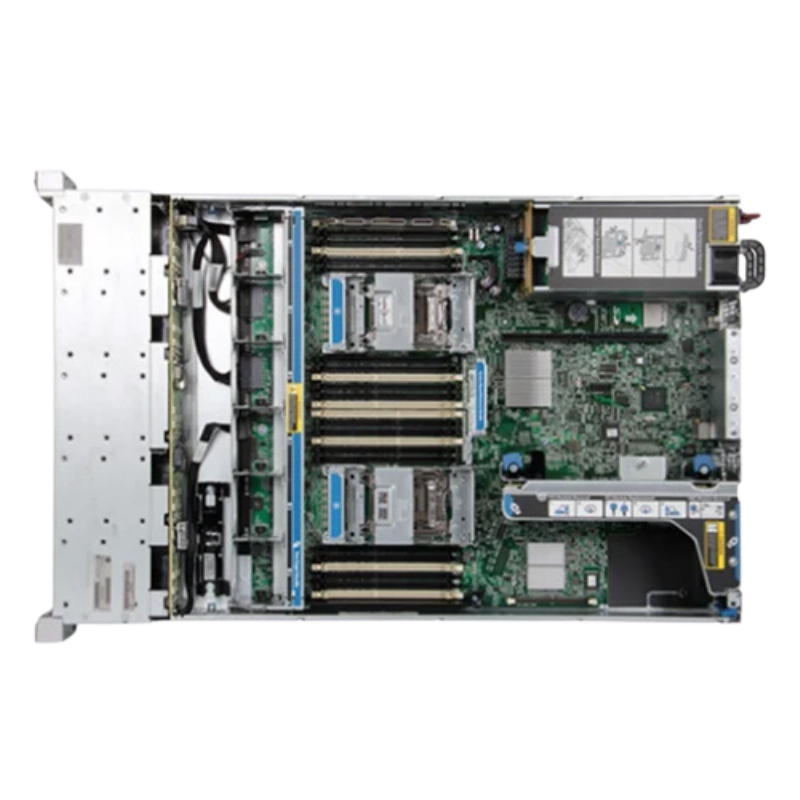

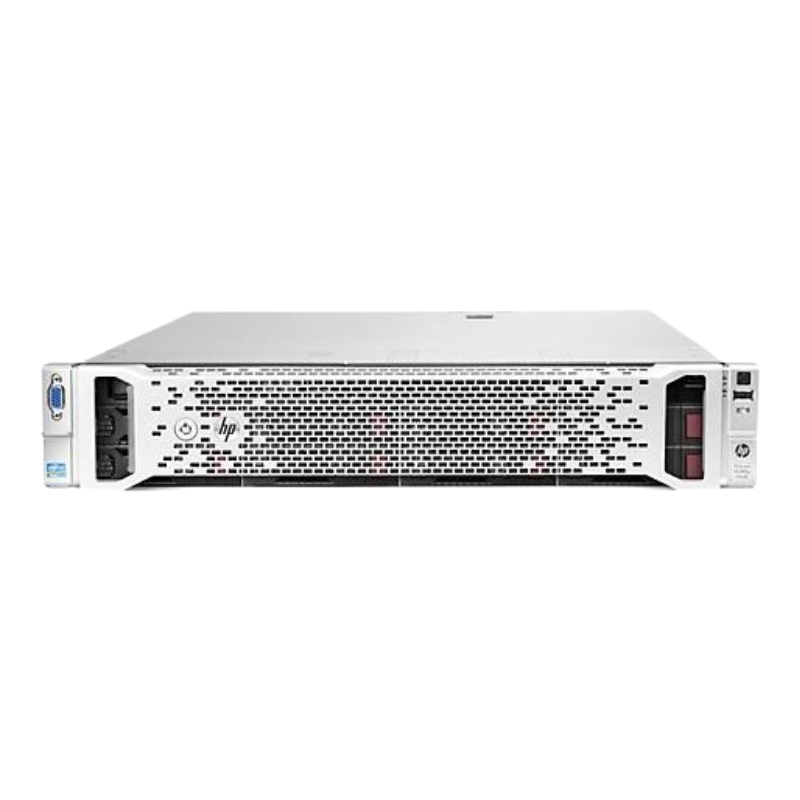

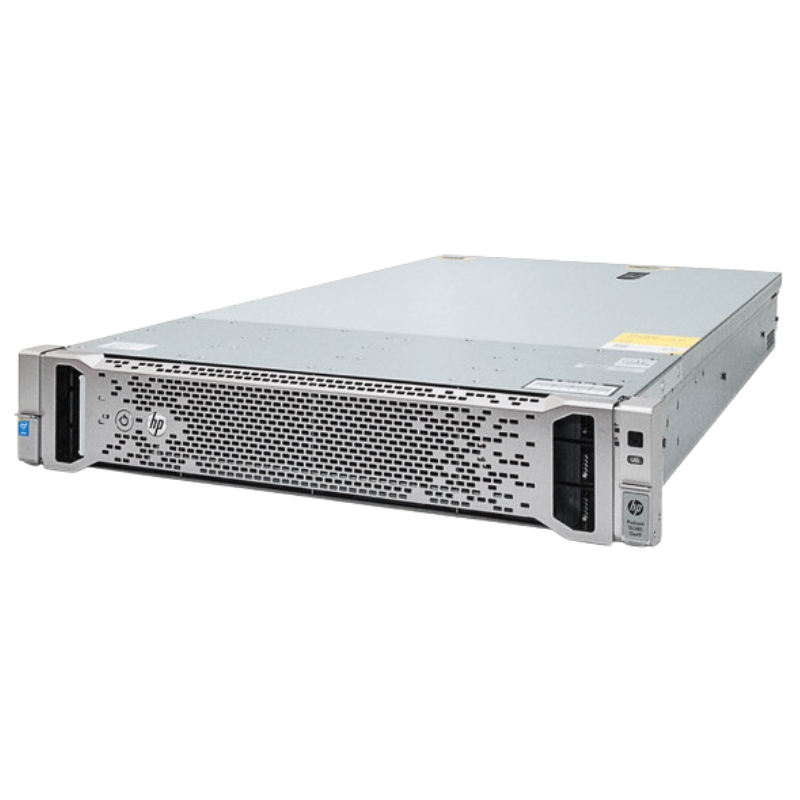

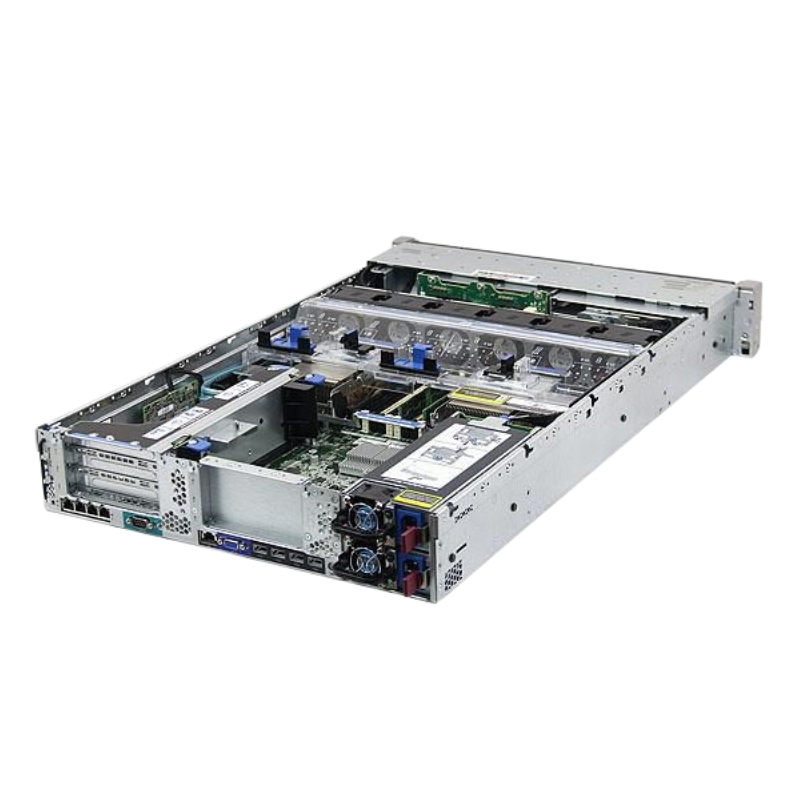

HPE Proliant DL380p E5 2630v2 Server - 709942-001

Processor: Xeon Hexa Core E5 2630v2

Superior Performance

The HPE DL380p Server is equipped with the powerful Xeon Hexa Core E5 2630v2 processor, providing users with exceptional performance capabilities. With a base clock speed of 2.6GHz and a maximum turbo frequency of 3.1GHz, this processor delivers incredible processing power for demanding workloads. Whether you are running intensive applications, virtualization environments, or handling complex data analysis tasks, the Xeon Hexa Core E5 2630v2 ensures smooth and efficient performance, enabling you to accomplish tasks quickly and effortlessly.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 709942-001
• Product Name: Proliant DL380p Gen8 - 2-Way 2U Rack Server (Energy Star Model)

Processor & Chipset

Processor Details

• Processor Type: Intel Xeon E5-2630v2 / 2.6 GHz
• Maximum Turbo Speed: 3.1 GHz
• Number of Cores: 6-core
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• 64-bit Computing: Supported
• Upgradability: Upgradable

Chipset

• Chipset Type: Intel C600
• Main Features: Hyper-threading, Intel QuickPath Interconnect, Intel Turbo Boost Technology 2

Cache Memory

• Type: L3 Cache
• Installed Size: 30 MB
• Cache Per Processor: 15 MB

RAM Specifications

Memory Capacity

• Installed Size: 32 GB, expandable to 384 GB
• Technology: DDR3 SDRAM
• Effective Memory Speed: 1600 MHz
• Memory Speed: 1600 MHz
• Memory Compliance: PC3-12800
• Form Factor: DIMM 240-pin

Memory Configuration

• Total Slots: 24 (22 available)
• Features: Registered, Dual Rank, Quad Channel Memory Architecture, HP SmartMemory
• Supported Configurations:
  • 2 x 16 GB
  • PC3-14900 - 384 GB Registered
  • PC3-14900 - 768 GB Low Voltage Load-reduced
  • PC3-14900 - 128 GB Unbuffered Advanced ECC
  • PC3-10600 - 384 GB Hypercloud

Storage & Optical Drives

• Hard Drive: None
• Optical Drive: DVD-RW/DVD-Writer - SATA

Storage Controller

• Type: RAID - Integrated - PCIe 3.0 x8
• Interface Type: SATA 6 Gb/s / SAS 6 Gb/s
• Controller Name: Smart Array P420i with 2 GB FBWC
• Channel Quantity: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
• Buffer Size: 2 GB

Display & Graphics

• Graphics Controller: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express 2.0 x8
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 533FLR-T
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance:
  • IEEE 802.3
  • IEEE 802.3x
  • IEEE 802.3ad (LACP)
  • IEEE 802.1ax
  • IEEE 802.1qbb
  • IEEE 802.1qaz
  • IEEE 802.1qau
  • IEEE 802.1qbg
  • IEEE 802.2x

Expansion & Connectivity

Expansion Bays

• Total Bays: 8 (all available)
• Type: Hot-swap 2.5-inch SFF

Expansion Slots

• Total Slots: 24 (22 available for DIMM 240-pin)
• CPU Slots: 2 (all used)
• PCIe 3.0 x16 Slots: 2 (both available)
• PCIe 3.0 x8 Slots: 3 (all available)
• PCIe 2.0 x8 Slot: 1 (available)
• FlexibleLOM Slot: 1 (available)

Interfaces & Ports

• Serial Port: 1
• VGA Ports: 2 (1 front, 1 rear)
• Gigabit Ethernet Ports: 4
• HP iLO Port: 1
• USB Ports: 7 (2 front, 4 rear, 1 internal)

Miscellaneous

• Included Accessories: HP Ball Bearing Rail Kit
• Features: Administrator Password, Power-on Password, Serial Port I/O Control
• Compliance Standards:
  • ACPI 2.0b
  • FCC Class A Certified
  • EN 61000-3-2
  • EN55022
  • ICES-003
  • EN 61000-3-3
  • EN55024
  • CISPR 22
  • FCC CFR47 Part 15
  • IEC 60950-1
  • EN 60950-1
  • WEEE
  • BSMI CNS 13438
  • GB 9254

Power Specifications

• Device Type: Power Supply - Hot-plug
• Power Redund

  Efficient Multitasking

  With six cores and twelve threads, the Xeon Hexa Core E5 2630v2 processor allows for efficient multitasking. This means that you can run multiple applications simultaneously without experiencing any lag or slowdown. The processor's ability to handle multiple threads efficiently ensures that all tasks receive the necessary resources, resulting in improved productivity and reduced waiting times. Whether you are running resource-intensive software or handling multiple virtual machines, the Xeon Hexa Core E5 2630v2 can effortlessly handle the workload.

  Enhanced Virtualization

  Virtualization has become an integral part of modern server environments, allowing businesses to maximize their hardware resources and streamline operations. The Xeon Hexa Core E5 2630v2 processor features Intel Virtualization Technology (VT-x), which enhances virtualization performance by optimizing hardware-assisted virtualization capabilities. This technology enables faster and more efficient virtual machine creation, migration, and management, empowering businesses to create robust virtualized environments that deliver high performance and availability.

  Improved Energy Efficiency

  Energy efficiency is a key consideration for businesses aiming to reduce operational costs and environmental impact. The Xeon Hexa Core E5 2630v2 processor boasts Intel's advanced power-saving technologies, including Intel Intelligent Power Technology and Intel Turbo Boost Technology. These technologies optimize power usage by dynamically adjusting the processor's voltage and frequency based on the workload, ensuring that power is allocated efficiently. By utilizing the Xeon Hexa Core E5 2630v2 processor, you can enjoy significant energy savings without compromising on performance.

  Reliable Security Features

  Security is a top priority for any server environment, and the Xeon Hexa Core E5 2630v2 processor incorporates several advanced security features to safeguard your data and infrastructure. The processor supports Intel Trusted Execution Technology (TXT), which provides a hardware-based foundation for trusted computing. This technology helps protect against various attacks, such as malware injections and BIOS tampering, ensuring the integrity and confidentiality of your critical business data. Additionally, the processor features Intel AES New Instructions (AES-NI), accelerating encryption and decryption tasks for enhanced data security.

  Conclusion

  In conclusion, the Xeon Hexa Core E5 2630v2 processor is a highly capable component of the HPE DL380p Server, offering superior performance, efficient multitasking, enhanced virtualization capabilities, improved energy efficiency, and reliable security features. Whether you are running resource-intensive applications or managing virtualized environments, this processor delivers the power and efficiency required to meet your business needs.

  Part Number: 709942-001

  Easy Identification and Compatibility

  The HPE DL380p Server features the part number 709942-001, which serves as a unique identifier for this specific server model. The part number allows easy identification of the server when ordering replacement parts or seeking technical support. By referencing the part number, you can ensure that you receive the correct components and accessories specifically designed for the DL380p Server. This simplifies maintenance and troubleshooting processes, saving valuable time and effort.

  Ensured Compatibility

  The part number 709942-001 also ensures compatibility with the corresponding DL380p Server model. Each server model may have different configurations and specifications, and using the correct part number guarantees that the components are designed to work seamlessly with your specific server model. This eliminates compatibility issues and potential performance bottlenecks that could arise from using incompatible parts. By relying on the part number 709942-001, you can have peace of mind knowing that your server is equipped with components that are fully compatible and optimized for optimal performance.

  Simplified Maintenance and Upgrades

  When it comes to maintaining or upgrading your server, having a specific part number like 709942-001 simplifies the process. Instead of searching through a wide range of parts and accessories, you can directly refer to the part number to identify the exact components required for your server model. This streamlines the procurement process, ensuring that you acquire the necessary parts promptly. Additionally, the part number allows for easy tracking of spare parts inventory, enabling efficient management of maintenance and upgrade activities.

  Conclusion

  The part number 709942-001 plays a crucial role in ensuring easy identification, compatibility, and simplified maintenance and upgrades for the HPE DL380p Server. By relying on this unique identifier, you can effortlessly find the correct components and accessories specific to your server model, guaranteeing compatibility and optimal performance. Whether you require technical support or need to procure replacement parts, having the part number readily available simplifies these processes and ensures smooth operations for your server infrastructure.
