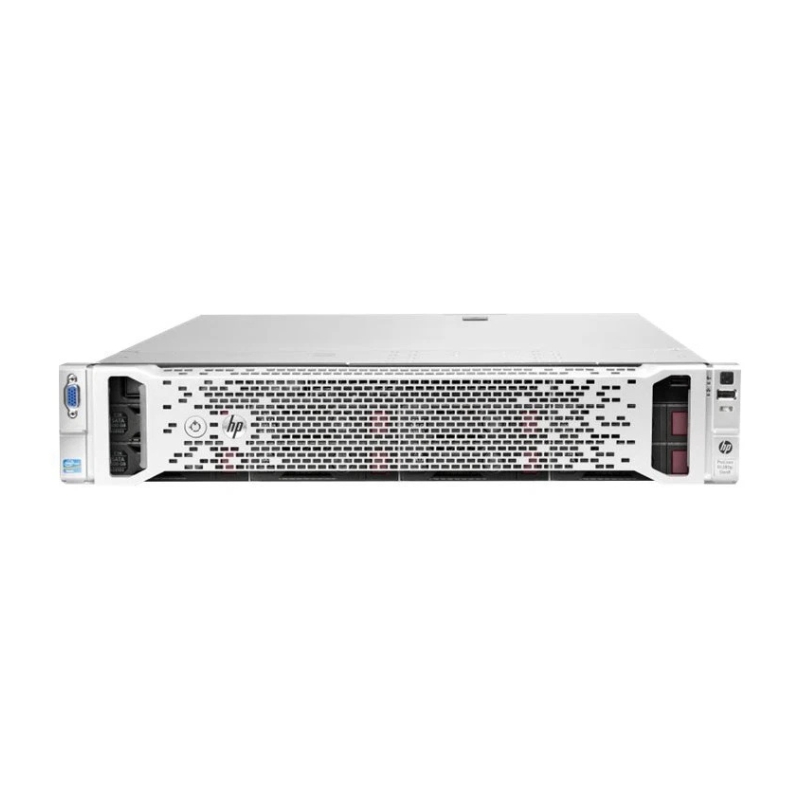

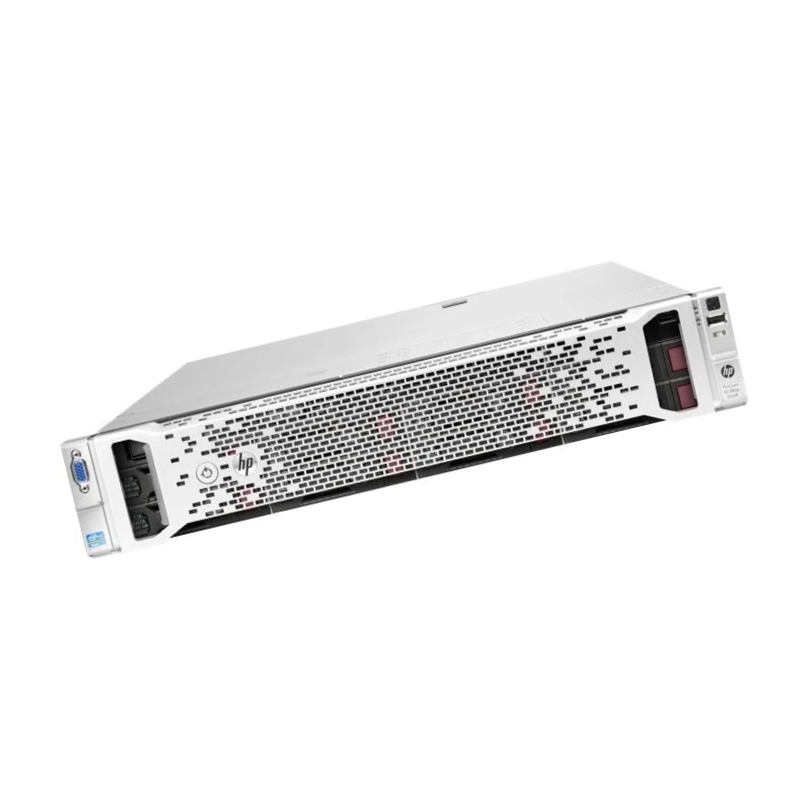

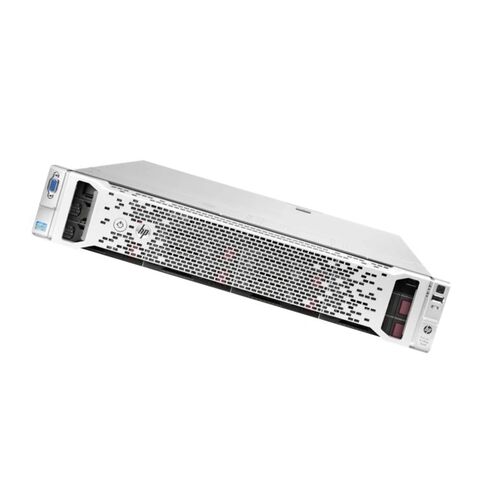

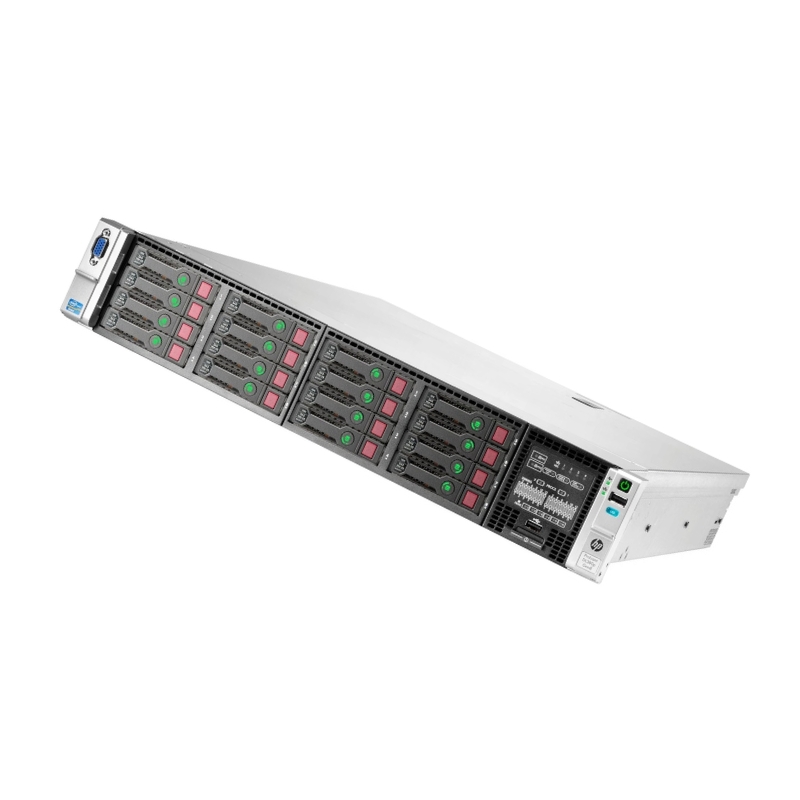

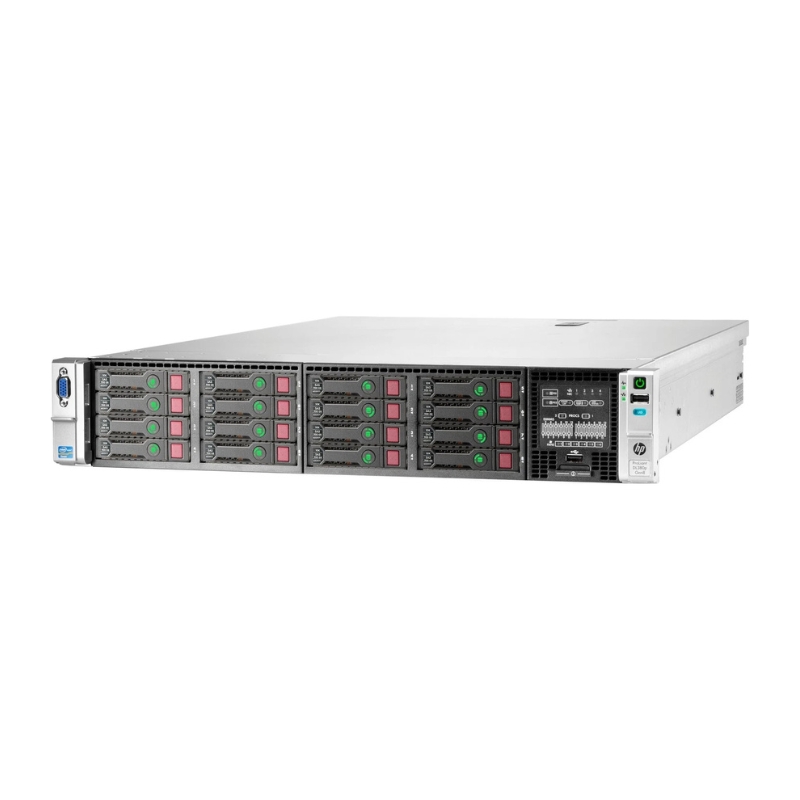

HPE ProLiant DL380p G8 2U Intel Xeon E5 2670 Rack Server 670852-S01

Main Information of Rack Server 670852-S01 Xeon

• Manufacturer: Hewlett Packard Enterprise
• Model: Proliant DL380p Gen8 - 2U Rack Server (Smart Buy)
• Manufacturer Part Number: 670852-S01

Processor & Chipset

• Processor Type: Intel Xeon E5-2670, 2.6 GHz
• Max Turbo Speed: 3.3 GHz
• Number of Cores: 8 Cores
• Installed Quantity: 2
• Max Supported Quantity: 2
• 64-bit Computing: Yes
• Chipset: Intel C600
• Main Features: Hyper-Threading, Intel QuickPath Interconnect, Intel Turbo Boost Technology

Cache Memory

• Type: L3 Cache
• Installed Size: 40 MB
• Cache Per Processor: 20 MB

RAM

• Installed Size: 32 GB / 384 GB (maximum)
• Technology: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Rated Memory Speed: 1333 MHz
• Memory Specification Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Slots: 24 total, 20 empty
• Features: Registered, Dual Rank, Quad Channel Memory Architecture, HP SmartMemory
• Configuration Features: 4 x 8 GB
• Supported RAM: PC3-12800 - 384 GB Registered, PC3-10600 - 768 GB Load-Reduced, PC3-12800 - 128 GB Unbuffered, Advanced ECC, PC3-10600 - 384 GB Hypercloud

Storage & Optical Drives

• Hard Drive: None
• Optical Drive: None

Storage Controller

• Type: 1 x RAID - Integrated - PCIe 3.0 x8
• Controller Interface: SATA 6Gb/s / SAS 6Gb/s
• Controller Name: Smart Array P420i with 1GB FBWC
• Channels: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Buffer Size: 1 GB

Display & Graphics

• Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

• Type: Plug-in Card
• Interface (bus) Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake on LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.3ad (LACP)

Expansion & Connectivity

Expansion Bays

• External: 1 x 5.25 Slim Line (free)
• Hot-swap: 8 x 2.5-inch SFF (free)

Expansion Slots

• DIMM: 24 total, 20 free
• CPU: 2 total, 0 free
• PCIe 3.0 x16: 1 total, 1 free (Full-length, Full-height)
• PCIe 3.0 x8: 1 total, 1 free (Half-length, Full-height)
• PCIe 2.0 x8: 1 total, 1 free (Half-length, Full-height, x4 Mode)
• SD Card: 1 total, 1 free (internal)

Interfaces & Ports

• Serial: 1
• VGA: 2 (1 Front, 1 Rear)
• LAN (Gigabit Ethernet): 4
• HP iLO: 1
• USB 2.0: 7 (2 Front, 4 Rear, 1 Internal)

Miscellaneous

• Included Accessories: HP Ball Bearing Rail Kit, Cable Management Arm
• Features: Administrator Password, Power-on Password, Serial Port I/O Control
• Compliant Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438, GB 9254
• Manufacturer Selling Program: HP Smart Buy

Power Specifications

• Device Type: Power Supply - Hot-plug
• Power Redundancy: Yes
• Redundancy Scheme: 1+1
• Installed Quantity: 2
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 750 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 27.5 inches
• Height: 3.4 inches
• Weight: 40.98 lbs

Processor

The HPE ProLiant DL380p G8 Rack Server is equipped with an Intel Xeon E5 2670 processor, which is a powerful and high-performance option for users. The processor is one of the most crucial components of a server, as it determines the overall speed and capabilities of the system.

Enhanced Performance

The Intel Xeon E5 2670 processor offers exceptional performance capabilities, making it an ideal choice for demanding workloads. With its 8 cores and 16 threads, this processor can handle multiple tasks simultaneously, allowing for efficient multitasking and improved overall system performance. It operates at a base frequency of 2.6GHz, ensuring speedy and responsive performance.

Increased Productivity

With the Intel Xeon E5 2670 processor, users can experience increased productivity in their daily tasks. The processor's high clock speed and multiple cores enable faster data processing, resulting in reduced waiting times and improved efficiency. Whether you are running complex applications or handling large data sets, this processor can handle the workload without slowing down.

Optimized Virtualization

Virtualization has become an essential aspect of modern server environments. The Intel Xeon E5 2670 processor is designed to excel in virtualized environments by providing advanced features such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These technologies enhance the server's ability to run multiple virtual machines efficiently and securely, ensuring smooth operation and optimal resource allocation.

Furthermore, the processor supports Intel Turbo Boost Technology, which dynamically increases the clock speed when needed. This feature allows the server to automatically adjust its performance based on workload demands, providing an extra boost when necessary without compromising energy efficiency.

Overall, the Intel Xeon E5 2670 processor offers exceptional performance, increased productivity, and optimized virtualization capabilities, making it a valuable component of the HPE ProLiant DL380p G8 Rack Server.

Processor Speed

The HPE ProLiant DL380p G8 Rack Server features a processor speed of 2.60GHz, which plays a crucial role in determining the overall performance and responsiveness of the system. The processor speed refers to the clock speed at which the CPU operates, measured in GHz.

Fast and Responsive Performance

With a processor speed of 2.60GHz, this server delivers fast and responsive performance, ensuring that your applications and tasks are processed quickly and efficiently. The high clock speed allows for rapid data processing, reducing waiting times and improving overall system performance.

Smooth Multitasking

The fast processor speed enables smooth multitasking capabilities, allowing you to run multiple applications simultaneously without experiencing significant slowdowns. Whether you are running resource-intensive applications or handling multiple tasks at once, the server's processor speed ensures that everything runs smoothly and efficiently.

Real-Time Data Processing

In today's fast-paced business environment, real-time data processing is crucial for making informed decisions. The high processor speed of 2.60GHz enables the server to quickly process incoming data, ensuring that you have up-to-date information at your fingertips. This is particularly beneficial for industries that require real-time analytics or deal with large volumes of data.

Furthermore, the HPE ProLiant DL380p G8 Rack Server's processor speed is complemented by other advanced features such as a large cache size and optimized memory architecture. These enhancements further improve data processing speed and overall system performance.

In summary, the 2.60GHz processor speed of the HPE ProLiant DL380p G8 Rack Server allows for fast and responsive performance, smooth multitasking capabilities, and efficient real-time data processing, making it an ideal choice for users who require high-speed computing power.

Product Number

The HPE ProLiant DL380p G8 Rack Server is identified by its unique product number, which in this case is 670852-S01. The product number is an essential identifier that helps users and IT professionals accurately identify and differentiate between different server models.

Accurate Identification

The product number, 670852-S01, ensures accurate identification of the HPE ProLiant DL380p G8 Rack Server model. This is especially important in large-scale IT environments where multiple servers are deployed. Having a unique product number allows IT professionals to easily identify and manage specific servers, ensuring proper configuration, maintenance, and troubleshooting.

Compatibility and Upgrades

The product number also plays a crucial role in ensuring compatibility and ease of upgrades. By referring to the product number, users can verify if a particular hardware or software component is compatible with their specific server model. This simplifies the process of expanding or upgrading the server's capabilities, as it provides a reliable reference point for selecting compatible components.

Warranty and Support

The product number is often associated with warranty and support services provided by the manufacturer. By referencing the product number, users can easily access information regarding warranty coverage, support options, and available service agreements. This ensures that users can make informed decisions when it comes to maintaining and protecting their server investment.

In conclusion, the product number 670852-S01 allows for accurate identification of the HPE ProLiant DL380p G8 Rack Server model, simplifies compatibility verification, facilitates upgrades, and provides access to warranty and support services. It is an essential feature that ensures proper management and support for the server throughout its lifespan.

Form Factor

The HPE ProLiant DL380p G8 Rack Server has a form factor of 2U, which refers to the physical size and shape of the server chassis. The form factor is an important consideration when selecting a server, as it determines the server's compatibility with rack enclosures and the amount of space it occupies in a data center or server room.

Space Efficiency

The 2U form factor of the HPE ProLiant DL380p G8 Rack Server offers excellent space efficiency. The server's compact design allows it to fit into standard rack enclosures, minimizing the physical footprint required for installation. This is particularly advantageous in environments with limited space, as it allows for increased rack density and efficient utilization of available resources.

Scalability and Flexibility

Despite its small size, the 2U form factor of the server does not compromise its scalability and flexibility. The DL380p G8 Rack Server supports multiple expansion slots, drive bays, and memory modules, allowing for easy expansion and customization based on specific business requirements. The form factor provides sufficient room for adding additional components and upgrading existing ones without any constraints.

Improved Cooling and Airflow

The 2U form factor also enhances cooling and airflow within the server chassis. The design allows for efficient heat dissipation, ensuring that the internal components remain within their optimal operating temperature range. By maintaining proper cooling, the server can operate reliably and efficiently, reducing the risk of hardware failures due to overheating.

Furthermore, the improved airflow helps in managing cable organization within the server chassis. With ample space available, cables can be neatly routed and managed, minimizing clutter and enhancing accessibility during maintenance and troubleshooting activities.

In summary, the 2U form factor of the HPE ProLiant DL380p G8 Rack Server offers space efficiency, scalability, flexibility, improved cooling, and enhanced cable management. It is an ideal choice for users who require a compact yet powerful server solution that can be seamlessly integrated into their existing infrastructure.
