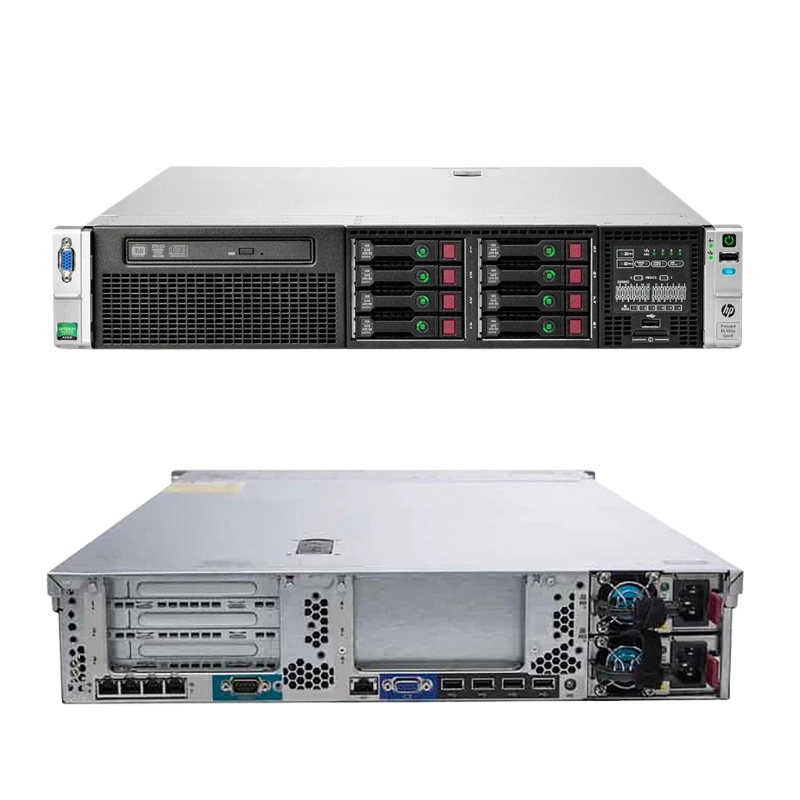

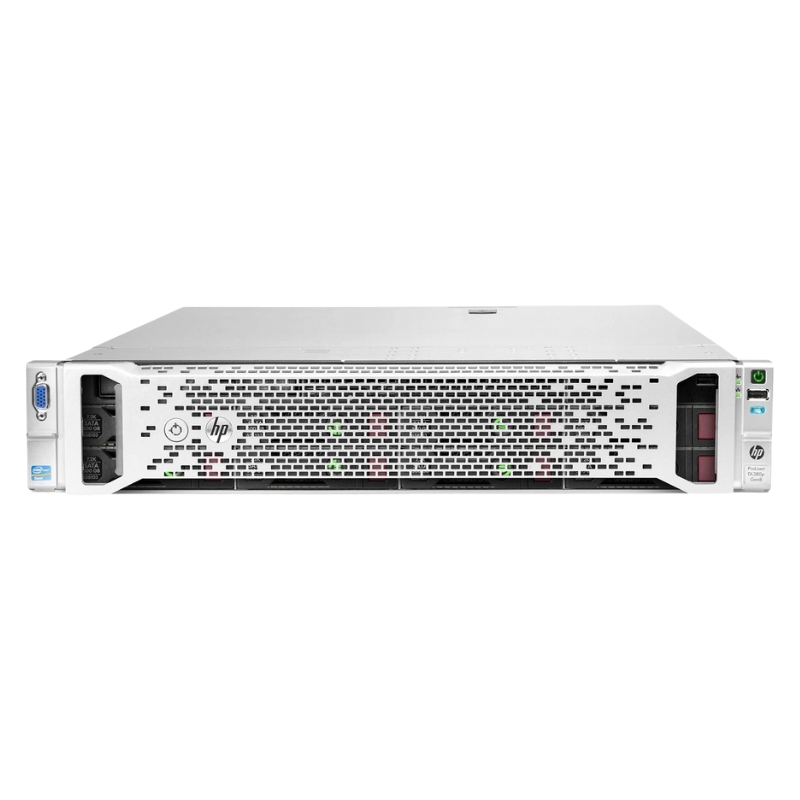

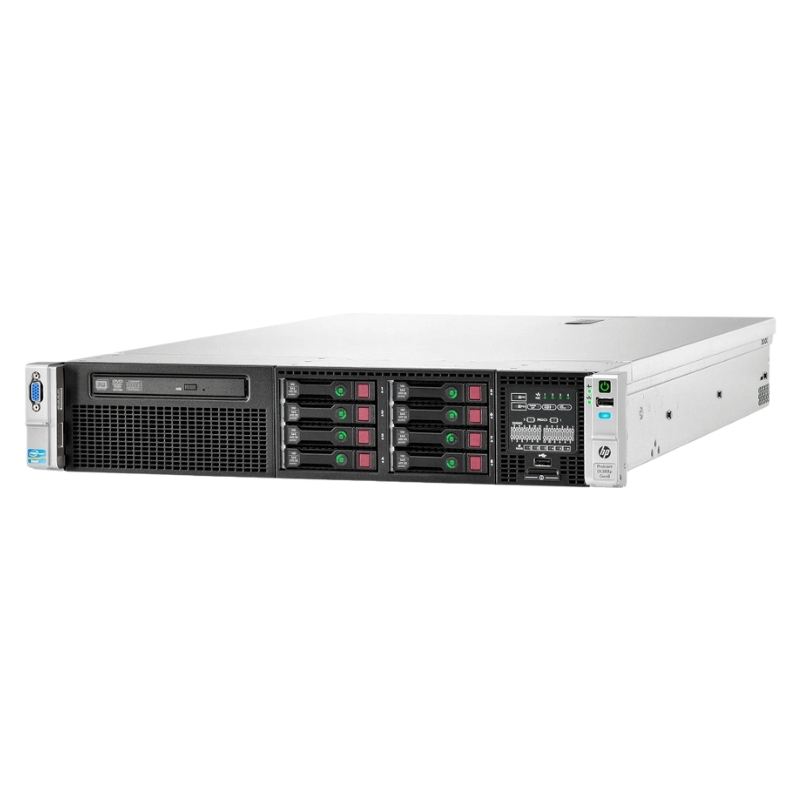

HPE Proliant DL380p Server 2.7GHz 32GB DDR3 8SFF - 748304-S01

Processor

The HPE Proliant Dl380p Server is equipped with a powerful processor that boasts a clock speed of 2.7GHz. This processor is an essential component of the server, playing a crucial role in its performance and capabilities.

General Specifications of HPE Proliant

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: 748304-S01
• Product Name: Proliant DL380p Gen8 2U Rack Server Smart Buy

Processor & Chipset Details

• Processor Type: Intel Xeon E5-2697 V2, 2.7 GHz
• Socket Compatibility: LGA2011
• Core Count: 12-core
• 64-bit Computing: Supported
• Installed Processors: 2
• Maximum Supported Processors: 2
• Chipset Model: Intel C600

Cache Memory Specifications

• Cache Type: L3 Cache
• Installed Cache Size: 60 MB
• Cache Per Processor: 30 MB

Memory Configuration

• Installed Memory Size: 32 GB, Expandable up to 768 GB
• Memory Technology: DDR3 SDRAM
• Memory Speed: 1866 MHz
• Compliance: PC3-14900R
• Form Factor: DIMM 240-pin
• Total Memory Slots: 24

Memory Features

• Registered, Dual Rank, Quad Channel Architecture
• HP Smart Memory Support

Supported RAM Configurations

• PC3-14900: 384 GB (Registered), 128 GB (Unbuffered - Advanced ECC)
• PC3-12800: 384 GB (Low Voltage - Registered), 128 GB (Low Voltage - Unbuffered - Advanced ECC)
• PC3-10600: 768 GB (Low Voltage - Load-reduced), 384 GB (Hypercloud)

Storage Capabilities

• Standard Hard Drive: None
• Internal Storage Bays: 8 x SFF SAS/SATA HDD Bays
• Optical Drive: None included
• Optional Optical Drive Bay: Slim Optical Bay (SATA DVD-RW/ROM)

Storage Controllers

• Controller Type: RAID - Plug-in Card, PCI Express 3.0 x8
• Interface: SATA 6 Gb/s, SAS 6 Gb/s
• Controller Name: Smart Array P420i with 1 GB FBWC
• RAID Levels Supported: 0, 1, 5, 10, 50, 60
• Buffer Size: 1 GB

Display & Graphics

• Graphics Type: Integrated
• Video Interfaces: VGA

Networking & Communication

• Networking Type: Plug-in Card
• Interface Type: PCI Express 2.0 x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 533FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Additional Features: Wake On LAN (WOL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

• Front Accessible: 1 x 5.25in Slim Line
• Hot-swap Bays: 8 x 2.5in SFF

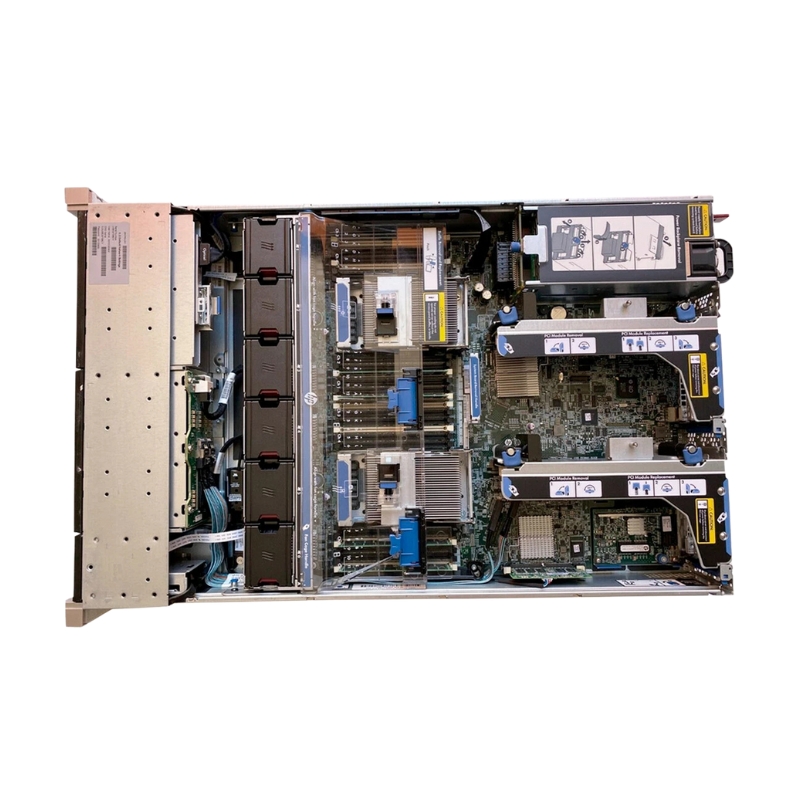

Expansion Slots

• Memory Slots: 24 total / 22 free (DIMM 240-pin)
• Processor Slots: 2 total / 0 free
• PCI Express 3.0 x16 Slots: 2 total / 2 free (Full-length, Full-height)
• PCI Express 3.0 x8 Slots: 3 total / 3 free (Half-length, Full-height)
• PCI Express 2.0 x8 Slot: 1 total / 1 free (Half-length, Full-height, X4 Mode)
• FlexibleLOM Slot: 1 total / 0 free (X4 Mode)

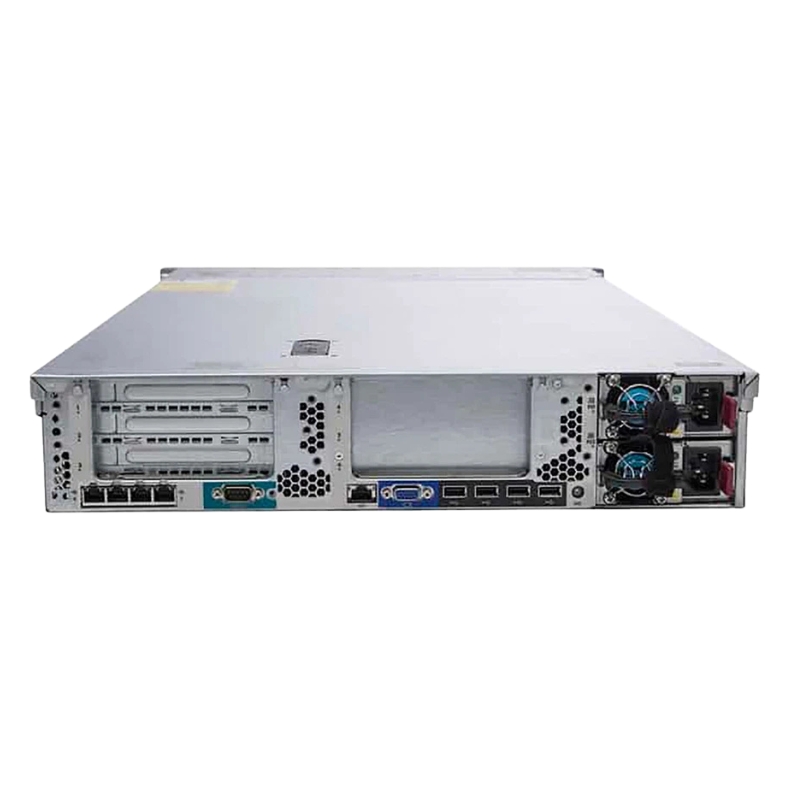

Interfaces & Ports

• Serial Port: 1 x RS-232 - 9-pin D-sub (DB-9)
• Display Ports: 2 x VGA - 15-pin HD D-sub (HD-15)
• USB Ports: 7 x USB Type A (2 Front, 4 Rear, 1 Internal)
• LAN Ports: 4 x 10 Gigabit Ethernet
• Management Port: 1 x HP iLO - RJ-45

Power Specifications

• Power Supply Type: Hot Plug
• Power Redundancy: Yes (1+1 Scheme)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Voltage Required: AC 120/220 V
• Power Output: 750 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 17.5 inches
• Depth: 27.5 inches
• Height: 3.4 inches
• Weight: 41 lbs

High Performance

The 2.7GHz clock speed of the processor ensures that the server can handle demanding tasks and applications with ease. It provides the necessary processing power to handle multiple simultaneous processes, making it ideal for businesses that require high-performance computing.

Increased Efficiency

With a higher clock speed, the processor can execute instructions more quickly, resulting in improved overall efficiency. This means that tasks can be completed faster, leading to increased productivity and reduced waiting times for users.

Smooth Multitasking

The powerful 2.7GHz processor enables the server to handle multitasking effortlessly. It can efficiently manage multiple processes simultaneously, ensuring smooth performance even when running resource-intensive applications.

Memory

The HPE Proliant Dl380p Server comes equipped with an impressive 32GB of DDR3 memory. The memory capacity is a crucial aspect of any server, as it directly impacts its ability to handle data and perform tasks efficiently.

Enhanced Performance

With 32GB of DDR3 memory, the server can store and access large amounts of data swiftly. This increased memory capacity allows for faster data retrieval and processing, resulting in enhanced overall performance.

Improved Workload Handling

The ample memory capacity ensures that the server can handle heavy workloads and complex applications without experiencing performance bottlenecks. It allows for seamless multitasking, enabling users to run multiple applications simultaneously without compromising on performance.

Efficient Virtualization

Virtualization is a key feature of modern servers, allowing for the creation of virtual machines to optimize resource utilization. The 32GB DDR3 memory enables efficient virtualization, as it can accommodate multiple virtual machines without sacrificing performance.

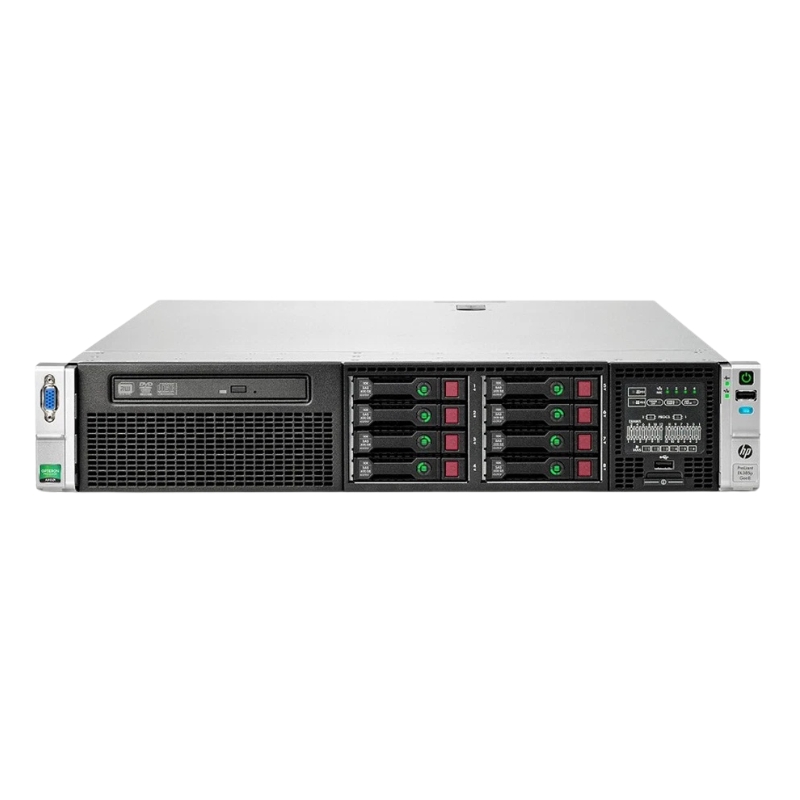

Drive Bays

The HPE Proliant Dl380p Server is equipped with 8SFF (Small Form Factor) drive bays. The drive bays are an integral part of the server's storage system, providing users with flexibility and scalability options.

Increased Storage Capacity

The 8SFF drive bays allow for the installation of up to eight small form factor drives, enabling users to expand their storage capacity as needed. This is particularly beneficial for businesses dealing with large amounts of data or those requiring extensive storage for applications and databases.

Flexible Storage Configuration

The 8SFF drive bays offer flexibility in terms of storage configuration. Users can choose to install a combination of hard disk drives (HDDs) or solid-state drives (SSDs) based on their specific requirements. This flexibility allows for customization and optimization of the server's storage system.

Hot-Swap Capability

The drive bays feature hot-swap capability, which means that drives can be replaced or added without powering down the server. This feature ensures minimal downtime during maintenance or upgrades, enhancing overall system availability and reducing disruptions to business operations.

Part Number

The HPE Proliant Dl380p Server has a unique part number: 748304-S01. This alphanumeric identifier is essential for identifying and ordering the specific server model, ensuring accuracy in procurement and maintenance processes.

Identification and Compatibility

The part number serves as a unique identifier for the HPE Proliant Dl380p Server model. It facilitates easy identification and differentiation from other server models, ensuring compatibility with specific hardware and software configurations.

Efficient Procurement

Knowing the part number simplifies the procurement process, as it allows users to easily communicate their requirements to suppliers or vendors. This ensures that the correct server model is obtained, minimizing the chances of incorrect product delivery and subsequent delays.

Accurate Maintenance

During server maintenance or repairs, the part number is crucial for sourcing the correct replacement parts. It ensures that the right components are utilized, guaranteeing compatibility and optimal performance of the server after maintenance activities.
