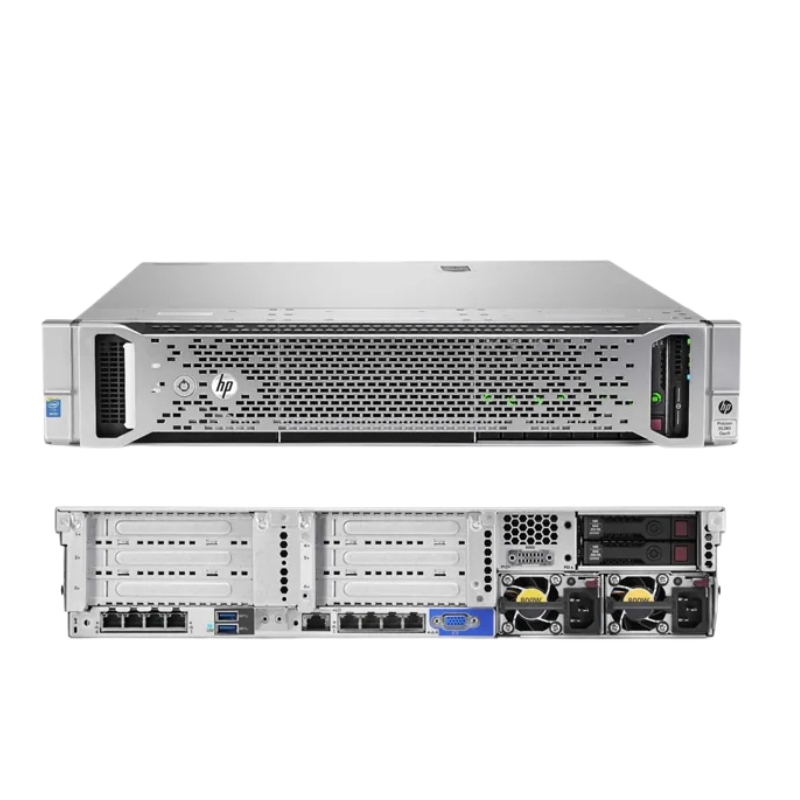

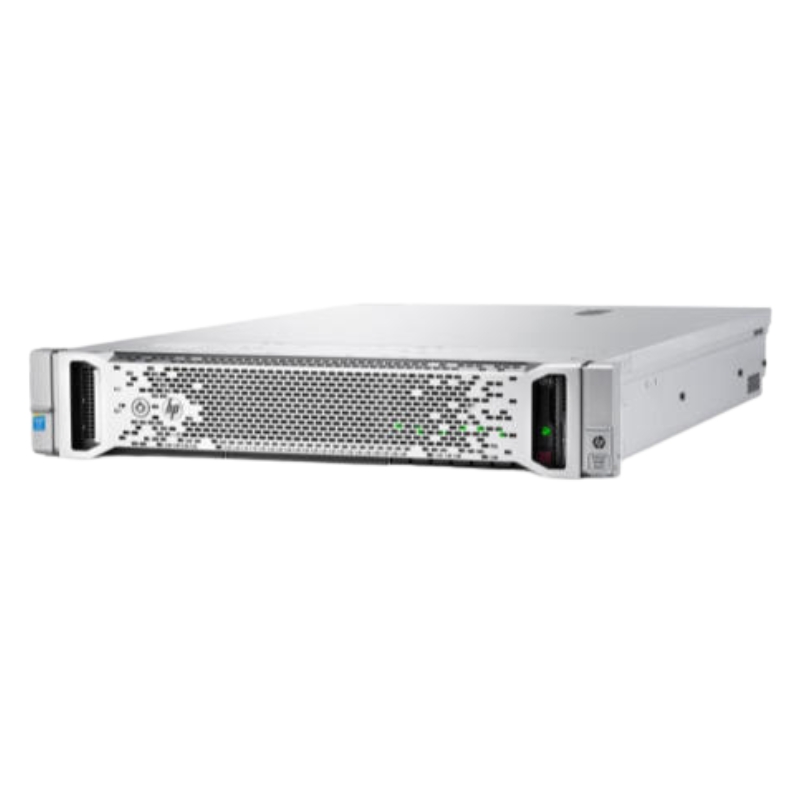

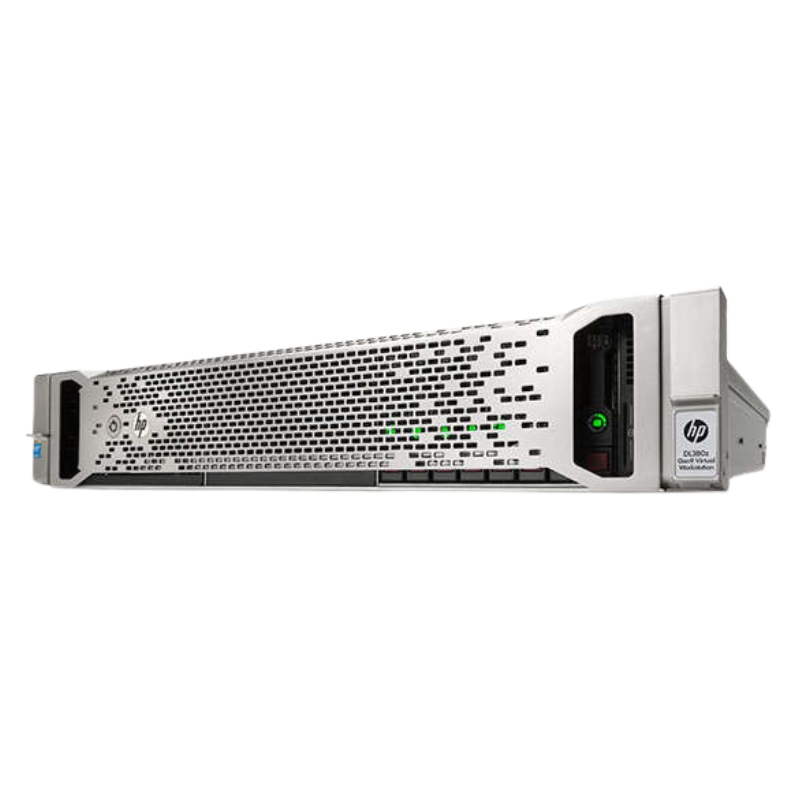

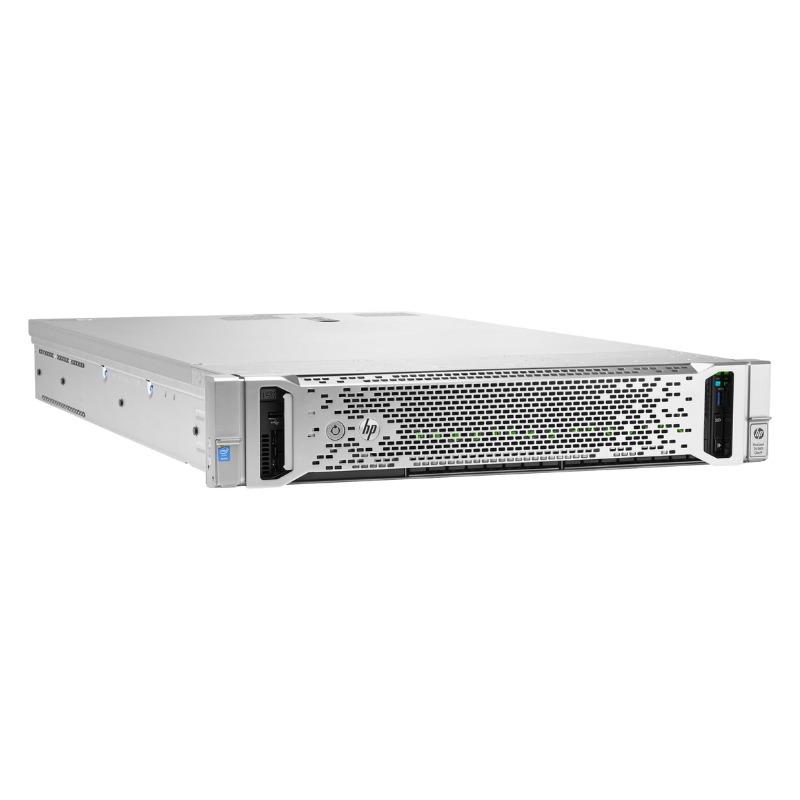

HPE Proliant DL560 Gen9 Rack Server Xeon E5-4620V3 10-Core 2.0GHz, 64GB DDR4 741065-B21
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Processor
The HPE Proliant DL560 Rack Server is equipped with the powerful Xeon 10-Core E5-4620V3/ 2.0GHz processor. This processor is designed to deliver exceptional performance and reliability, making it the ideal choice for businesses and organizations that require high computing power.
Main Information of HPE Proliant
Manufacturer: Hewlett Packard Enterprise
Part Number: 741065-B21
Product Information
Product Name: HPE ProLiant DL560 Gen9
Form Factor: Rack-mountable - 2U
Server Scalability: 4-way
Processor and Chipset
Processor Type: Intel Xeon E5-4620v3
Base Speed: 2.0 GHz
Max Turbo Speed: 2.6 GHz
QuickPath Interconnect: 8 GT/s
Number of Cores: 10-core
Installed Quantity: 2
Max Supported Quantity: 4
Chipset Type: Intel C610 Series
Socket Compatibility: FCLGA2011
Processor Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory
Cache Type: Smart Cache
Installed Cache Size: 50 MB
Cache Per Processor: 25 MB
Memory Specifications
Installed Size: 64 GB, expandable to 1.5 TB
Memory Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2133 MHz
Rated Memory Speed: 2133 MHz
Memory Specification Compliance: PC4-17000
Form Factor: DIMM 288-pin
Total Memory Slots: 24 (20 available)
Memory Features
- Registered Memory
- Memory Mirroring
- Online Spare Memory
- Quad Channel Memory Architecture
- HP SmartMemory
Storage Capabilities
Hard Drive: None
Optical Drive: None
Storage Controllers
Controller Type: RAID - PCI Express 3.0 x8
Controller Interface: SATA 6 GB/s / SAS 12 GB/s
Controller Name: Smart Array P440ar with 2GB FBWC
Channels: 26
RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
Buffer Size: 2 GB
Display and Graphics
Graphics Processor: Matrox G200
Video Interfaces: VGA
Networking and Communication
Interface Type: PCI Express 2.0 x8
Ethernet Ports: 2 x 10 Gigabit Ethernet
Ethernet Controller: HP 533FLR-T
Data Link Protocol: 10 Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
Networking Features
- Wake On LAN (WOL)
- PXE Support
- Compliant with IEEE standards including 802.3, 802.3x, 802.3ad (LACP), and more
Expansion and Connectivity
Total Bays: 8 (all free)
Hot-Swap Bays: 2.5" SFF
Expansion Slots
- 4 x CPU slots (2 free)
- 24 x DIMM 288-pin slots (20 free)
- 1 x FlexibleLOM slot (none free)
- 2 x PCIe 3.0 x16 (half-length, full-height, x8 mode) (2 free)
- 1 x PCIe 3.0 x8 (half-length, full-height) (none free)
- 2 x PCIe 3.0 x16 (half-length, full-height, x8 mode, requires 2 processors) (2 free)
- 2 x MicroSD card slots (2 free)
Interfaces and Ports
- 1 x Serial
- 1 x VGA
- 1 x HP iLO
- 3 x USB 2.0 (2 rear, 1 internal)
- 4 x USB 3.0 (1 front, 2 rear, 1 internal)
- 2 x LAN (10 Gigabit Ethernet)
Power Specifications
Device Type: Hot-plug Power Supply
Redundancy: Yes, 1+1 scheme
Installed Quantity: 2
Nominal Voltage: AC 120/230 V (50/60 Hz)
Power Provided: 1200 Watts
80 Plus Certification: 80 Plus Platinum
Dimensions and Weight
Width: 17.5 inches
Depth: 29.5 inches
Height: 3.4 inches
Weight: 39 lbs
Unmatched Processing Power
One of the key benefits of the Xeon 10-Core E5-4620V3/ 2.0GHz processor is its unmatched processing power. With ten cores and a base clock speed of 2.0GHz, this processor can handle demanding workloads and perform complex calculations with ease. Whether you're running resource-intensive applications, virtualization, or data analysis, this processor ensures smooth and efficient operation.
Improved Multi-Thread Performance
Thanks to its ten cores, the Xeon 10-Core E5-4620V3/ 2.0GHz processor excels in multi-threaded tasks. It can execute multiple threads simultaneously, allowing for faster processing and improved overall system performance. This is particularly beneficial for applications that can take advantage of parallel processing, such as video rendering or scientific simulations.
Enhanced Energy Efficiency
Energy efficiency is an important consideration for any business or organization. The Xeon 10-Core E5-4620V3/ 2.0GHz processor features advanced power management technologies that optimize energy consumption without sacrificing performance. This means you can enjoy high computing power while keeping your energy bills under control.
Increased Reliability and Scalability
Reliability is crucial in server environments where downtime can result in significant losses. The Xeon 10-Core E5-4620V3/ 2.0GHz processor incorporates advanced reliability features, including error-correcting code (ECC) memory support, which helps to detect and correct memory errors. Additionally, this processor supports scalability, allowing you to easily expand your server's capabilities as your business grows.
Virtualization Capabilities
Virtualization has become an integral part of modern IT infrastructures, enabling businesses to maximize server resources and streamline operations. The Xeon 10-Core E5-4620V3/ 2.0GHz processor includes hardware-assisted virtualization technologies that optimize performance and security in virtualized environments. This allows for efficient utilization of server resources and enables seamless migration of virtual machines.
Optimized for Demanding Workloads
Whether you're running databases, enterprise applications, or high-performance computing workloads, the Xeon 10-Core E5-4620V3/ 2.0GHz processor is designed to handle it all. Its powerful architecture and advanced features ensure that your server can handle even the most demanding tasks, providing the performance and reliability you need for your critical business operations.
RAM
The HPE Proliant DL560 Rack Server is equipped with an impressive 64GB DDR4 RAM configuration. RAM, or Random Access Memory, plays a crucial role in a server's performance by providing fast and temporary storage for data and instructions. The generous amount of RAM in this server offers numerous benefits for users.
Enhanced System Responsiveness
With 64GB of DDR4 RAM, the Proliant DL560 can effectively handle multiple tasks simultaneously without experiencing significant slowdowns. This high capacity allows for improved system responsiveness, reducing latency and ensuring smooth operation even under heavy workloads. Whether you're running multiple virtual machines or resource-intensive applications, the ample RAM capacity ensures that your server can keep up with your demands.
Improved Data Processing Speed
RAM plays a crucial role in data processing speed. The larger the RAM capacity, the more data can be stored and accessed quickly by the processor. This is particularly important for applications that require frequent data retrieval or manipulation, such as databases or analytics software. The 64GB DDR4 RAM configuration in the Proliant DL560 enables faster data processing, resulting in reduced wait times and improved overall performance.
Efficient Virtualization
Virtualization relies heavily on RAM capacity to create and manage virtual machines effectively. With 64GB of DDR4 RAM, you can allocate sufficient resources to each virtual machine, ensuring optimal performance and preventing resource contention. This allows for efficient consolidation of servers and maximizes the utilization of your server infrastructure.
Future-Proofing
Investing in a server with ample RAM capacity like the Proliant DL560 ensures future-proofing. As applications and workloads become more demanding, having sufficient RAM becomes increasingly important. By choosing a server with 64GB DDR4 RAM, you can accommodate future growth and expansion without worrying about running out of memory resources.
Part Number
The HPE Proliant DL560 Rack Server is identified by its unique part number, 741065-B21. This part number serves as a reference for users and IT professionals when ordering, identifying, or troubleshooting the server. Understanding the importance and benefits of the part number can help streamline operations and ensure compatibility within your IT infrastructure.
Easy Identification
With a specific part number, such as 741065-B21, it becomes effortless to identify the exact server model you are working with. When ordering additional components or contacting technical support, providing the part number ensures that you receive the correct items or assistance promptly. This eliminates any confusion or potential delays that may arise from incomplete or inaccurate identification.
Compatibility Assurance
The part number, 741065-B21, ensures compatibility with specific components and accessories designed for the HPE Proliant DL560 Rack Server. When expanding or upgrading your server, knowing the part number guarantees that the new components are compatible and will work seamlessly with your existing setup. This saves time and minimizes the risk of incompatibility issues that could potentially disrupt your operations.
Efficient Troubleshooting
In the event of a technical issue or error, knowing the part number simplifies troubleshooting procedures. Technical support teams can quickly identify the relevant documentation, firmware updates, or known issues associated with the specific server model. This streamlines the troubleshooting process and reduces downtime, ensuring that your server is up and running smoothly as soon as possible.
Accurate Documentation and Knowledge Base
The part number serves as a key reference point for accessing accurate documentation and knowledge base articles related to the HPE Proliant DL560 Rack Server. Whether you're seeking detailed specifications, configuration guides, or best practices, referencing the part number ensures that you find the precise information you need. This promotes efficient decision-making and enables you to maximize the benefits of your server.
Simplified Asset Management
Tracking and managing server assets can be a complex task, particularly in large-scale IT environments. The unique part number makes asset management more efficient and accurate. By associating the part number with specific servers in your inventory, you can easily track their location, configuration, and lifecycle. This simplifies inventory management, facilitates maintenance planning, and optimizes resource allocation within your organization.
In conclusion, the HPE Proliant DL560 Rack Server's Xeon 10-Core E5-4620V3/ 2.0GHz processor delivers exceptional processing power, enhanced multi-thread performance, improved energy efficiency, increased reliability and scalability, and optimized virtualization capabilities. The 64GB DDR4 RAM configuration offers enhanced system responsiveness, improved data processing speed, efficient virtualization, and future-proofing. The part number, 741065-B21, ensures easy identification, compatibility assurance, efficient troubleshooting, accurate documentation and knowledge base access, and simplified asset management. With these powerful features and benefits, the HPE Proliant DL560 Rack Server is an excellent choice for businesses and organizations that require high-performance computing power and reliability.
