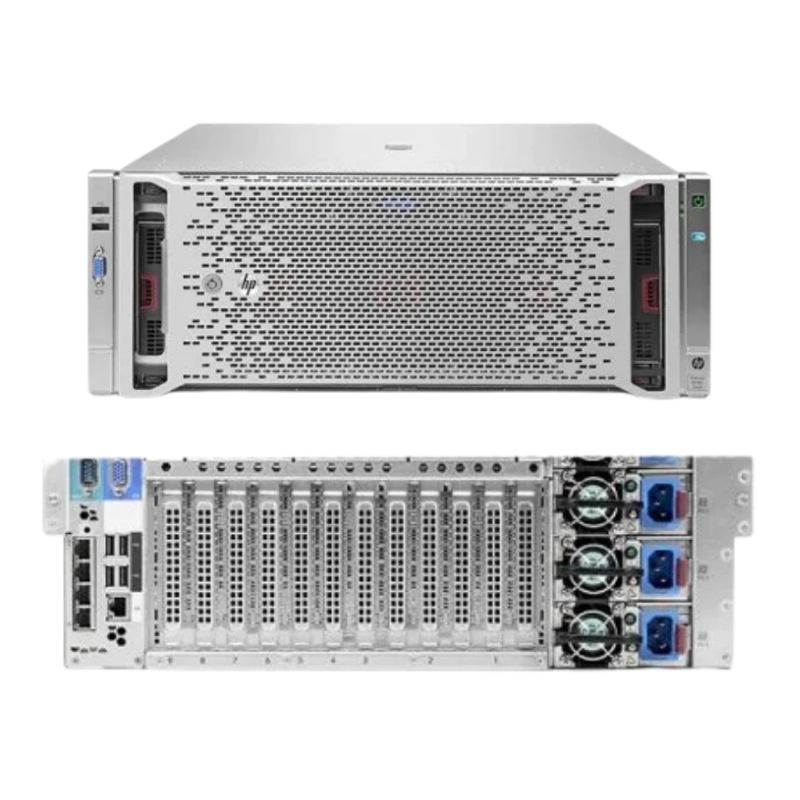

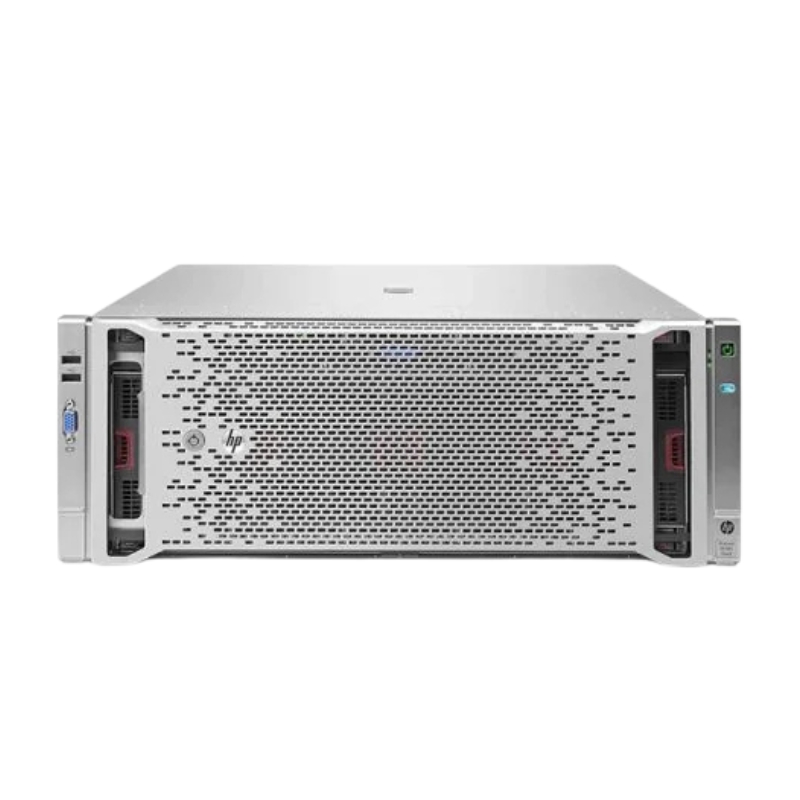

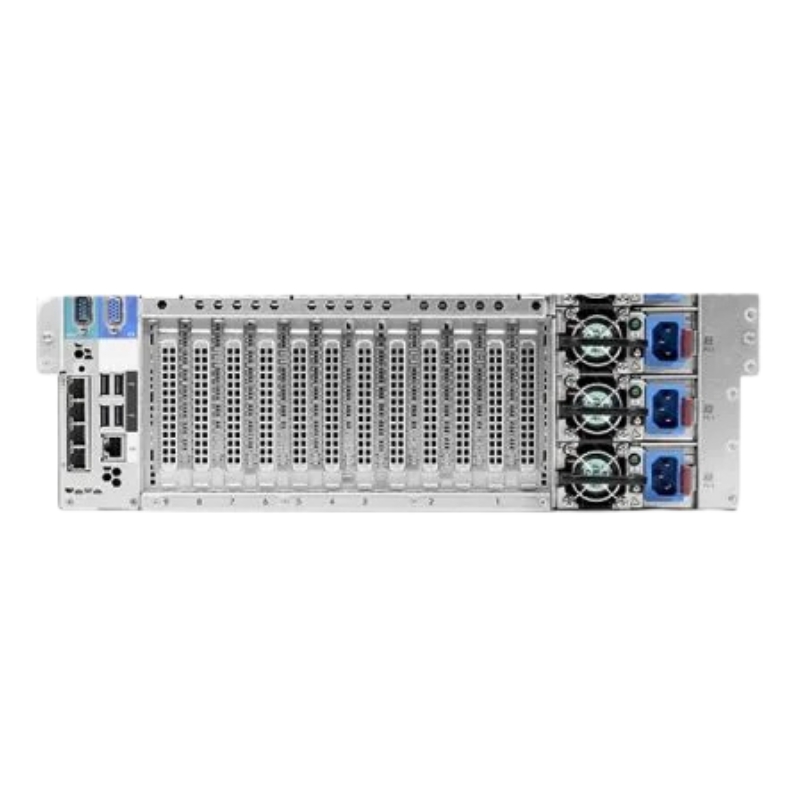

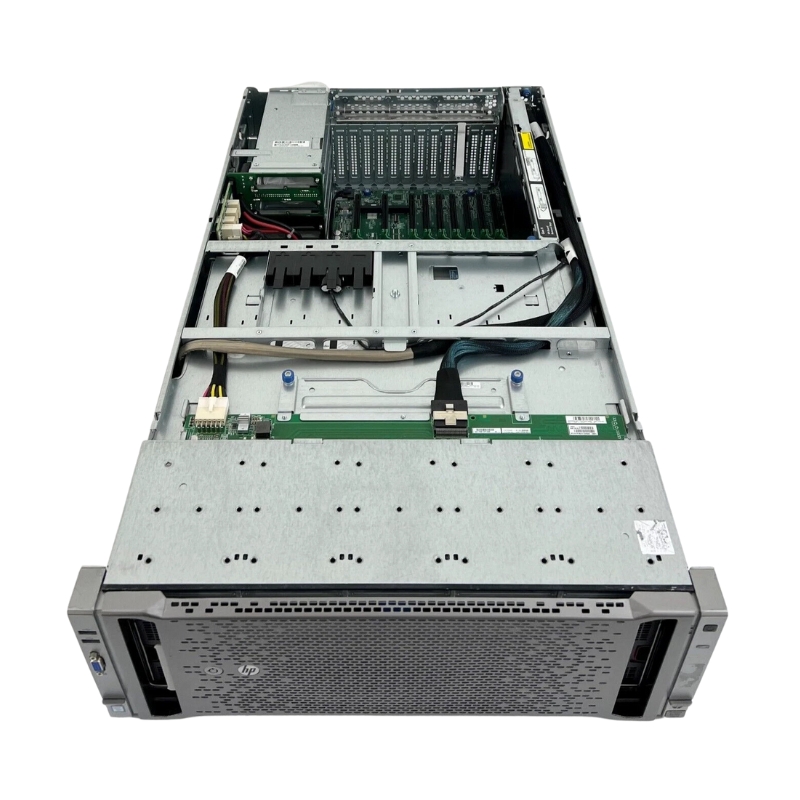

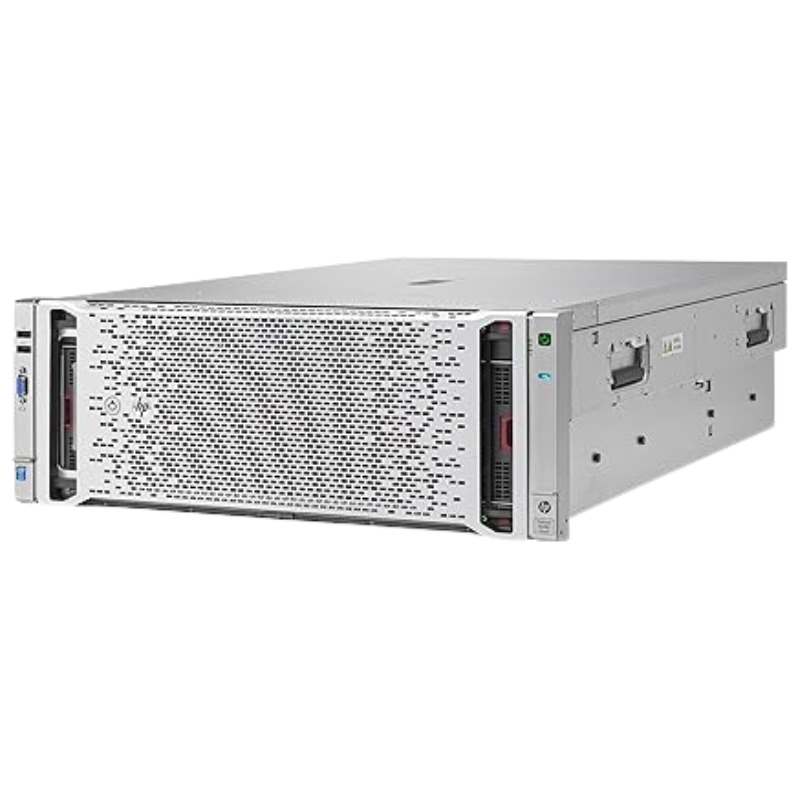

HPE Proliant DL580 G9 793308-B21 2.0GHz 64GB DDR4 SDRAM Rack Server

Processor

The HPE Proliant DL580 G9 Rack Server is equipped with a powerful 2.0GHz processor, which is a key feature that sets it apart from other servers in its class. This processor delivers exceptional performance and efficiency, making it an ideal choice for businesses and organizations that require reliable and high-performing server capabilities.

General Overview

Manufacturer Details

• Company: Hewlett Packard Enterprise
• Part Number: 793308-B21

Product Specifications

• Model: Proliant DL580 Gen9 - 4U Rack Mountable Server (Base Model)

Processor & Chipset

Processor Details

• Type: Intel Xeon E5-4809v3, 2.0 GHz
• Quickpath Interconnect: 6.4 GT/s
• Core Count: 8-core
• 64-bit Computing: Supported
• Socket Compatibility: FCLGA2011
• Installed Processors: 2
• Maximum Supported Processors: 4
• Chipset: Intel C602J Series

Cache Memory

• Type: Smart Cache
• Installed Size: 20 MB
• Per Processor Cache: 20 MB

Memory Specifications

Memory Details

• Installed Memory Size: 64 GB (up to 6 TB maximum)
• Technology: DDR4 SDRAM
• Form Factor: DIMM 288-pin
• Total Slots: 96 (92 available)
• Configuration: 4 x 16 GB

Storage Capabilities

Hard Drive and Optical Drive

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Name: Smart Array P830i
• Buffer Size: 2 GB
• Supported Drives: 12 Gb/s SAS, 6 Gb/s SAS & SATA
• SAS Connectors: 2 Internal X8 Mini-SAS Double-Wide
• Cache Memory Speed: DDR2-1866 MHz, 72-bit Wide Bus at 14.9 GB/s
• SAS Speed: 12 Gb/s Per Physical Link
• Cache Requirements: 2 GB FBWC cache included; 4 GB optional for CTO models
• Logical Drives Supported: Up to 64 logical volumes
• Host Memory Addressing: 64-bit, supporting over 4 GiB of server memory space
• RAID Support: RAID 6, 60 (Advanced Data Guarding), RAID 5, 50 (Distributed Data Guarding), RAID 1, 10 (Drive Mirroring), RAID 1 ADM, 10 ADM (Advanced Data Mirroring), RAID 0 (Striping)

Network & Communication

Network Interfaces

• Bus Type: PCI Express 2.0 x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocol: Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), ACPI Support, PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1qbb, IEEE 802.1qaz, IEEE 802.1qau, IEEE 802.1qbg, IEEE 802.2x

Expansion & Connectivity

Expansion Bays and Slots

• Expansion Bays: 5 total, all free for hot-swap 2.5" SFF drives
• Expansion Slots:
  • 96 DIMM 240-pin slots (92 free)
  • 4 CPU slots (2 free)
  • 5 PCIe 3.0 x16 Full-Length, Full-Height slots (all free)
  • 4 PCIe 3.0 x16 Half-Length, Full-Height slots (X8 Mode) (all free)
  • 1 FlexibleLOM slot (0 free)
  • 1 MicroSD Card slot (1 free)

Interfaces & Ports

• 1 Serial Port
• 2 VGA Ports (1 Front, 1 Rear)
• 1 HP iLO Port
• 8 USB 2.0 Ports (2 Front, 4 Rear, 2 Internal)
• 2 LAN Ports (10 Gigabit Ethernet - SFP+)

Additional Features

Security and Compliance

• Features: Administrator Password, Power-on Password, Keyboard Password, Serial Port I/O Control, USB Port Control
• Standards Compliance: ACPI 2.0, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438

Power Description

• Power Supply Type: Flex Slot Platinum Plus Hot-Plug
• Installed Power Supplies: 1
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 100-230V (50/60 Hz)
• Power Provided: 1200 Watts

Dimensions & Weight

• Depth: 29 inches
• Width: 17.48 inches
• Height: 6.88 inches
• Weight: 70.94 lbs

Unmatched Performance

The 2.0GHz processor found in the HPE Proliant DL580 G9 Rack Server offers unmatched performance that can handle demanding workloads with ease. Whether you are running resource-intensive applications, virtualization, or handling large databases, this processor ensures smooth and uninterrupted operation.

Efficient Multitasking

With the power of the 2.0GHz processor, the HPE Proliant DL580 G9 Rack Server allows for efficient multitasking. Users can run multiple applications simultaneously without experiencing any lag or slowdowns. This capability enhances productivity and enables businesses to accomplish more in less time.

Improved Responsiveness

The 2.0GHz processor enhances the overall responsiveness of the server, ensuring that tasks are completed quickly and efficiently. This is particularly important in scenarios where users require real-time data processing or need immediate access to resources. The server's quick response time helps businesses make informed decisions promptly.

Reduced Downtime

The reliability of the 2.0GHz processor in the HPE Proliant DL580 G9 Rack Server plays a significant role in reducing downtime. By ensuring that the server functions optimally, there is minimal risk of unexpected crashes or system failures. This feature is particularly crucial for businesses that rely heavily on their servers for critical operations.

Energy Efficiency

In addition to its impressive performance capabilities, the 2.0GHz processor also offers energy efficiency. It is designed to deliver high performance while consuming minimal power, resulting in reduced energy costs for businesses. This not only helps organizations save money but also contributes to a greener and more sustainable IT infrastructure.

Memory

The HPE Proliant DL580 G9 Rack Server is equipped with 64GB DDR4 SDRAM memory, providing a substantial amount of memory capacity that is essential for modern computing needs. This feature ensures smooth and efficient operation, even when handling memory-intensive applications and workloads.

Enhanced Performance

The 64GB DDR4 SDRAM memory in the HPE Proliant DL580 G9 Rack Server significantly enhances its performance capabilities. It allows for faster data access and retrieval, ensuring that applications and processes run smoothly and without any noticeable delays. This feature is particularly crucial for businesses that rely on their servers to handle large datasets or complex computations.

Seamless Multitasking

With 64GB of DDR4 SDRAM memory, the HPE Proliant DL580 G9 Rack Server can handle multiple tasks simultaneously without compromising performance. Users can run multiple applications, virtual machines, or databases concurrently, allowing for seamless multitasking. This capability boosts productivity and enables businesses to efficiently utilize their server resources.

Improved Scalability

The 64GB DDR4 SDRAM memory provides ample room for future scalability and expansion. As businesses grow and their computing needs increase, having a sufficient amount of memory becomes crucial. The HPE Proliant DL580 G9 Rack Server's memory capacity allows organizations to scale up their operations without worrying about memory constraints.

Reliable Data Storage

The high memory capacity of the HPE Proliant DL580 G9 Rack Server ensures reliable data storage and retrieval. With 64GB of DDR4 SDRAM memory, businesses can store and access large amounts of critical data without experiencing performance bottlenecks. This feature is particularly important for organizations that deal with data-intensive applications or require fast access to their stored information.

Optimized Virtualization

Virtualization has become a standard practice in modern IT infrastructure, and the 64GB DDR4 SDRAM memory in the HPE Proliant DL580 G9 Rack Server is well-suited for virtualized environments. It allows for efficient allocation of memory resources to virtual machines, ensuring optimal performance and responsiveness. This feature is beneficial for businesses that heavily rely on virtualization technology.

Part Number

The HPE Proliant DL580 G9 Rack Server features the part number 793308-B21, which is essential for identifying and distinguishing this specific server model from others in the HPE Proliant series. The part number plays a crucial role in procurement, maintenance, and support of the server.

Easy Identification

The part number 793308-B21 makes it easy to identify and differentiate the HPE Proliant DL580 G9 Rack Server from other server models. This is particularly important when ordering or procuring servers, as it ensures that the correct model is obtained. It eliminates any confusion or ambiguity during the purchasing process.

Avoid Compatibility Issues

By utilizing the specific part number 793308-B21, businesses can ensure compatibility between different components and accessories of the HPE Proliant DL580 G9 Rack Server. This helps avoid any potential issues that may arise when using mismatched or incompatible parts. It guarantees seamless integration and operation of all server components.

Efficient Maintenance

The part number provides a reference point for maintenance and support purposes. When troubleshooting or performing routine maintenance tasks on the HPE Proliant DL580 G9 Rack Server, having the correct part number ensures that the right documentation and resources are readily available. This facilitates efficient and timely maintenance, minimizing downtime and disruptions to business operations.

Warranty and Support

The part number 793308-B21 is closely associated with warranty and support services provided by HPE. By referencing the specific part number, businesses can easily access the warranty terms and conditions, as well as contact support teams for assistance. This ensures that businesses receive the necessary support when encountering any issues with their server.

Future Expansion

The use of a specific part number allows for easy identification of the server model when considering future expansion or upgrades. By knowing the part number, businesses can ensure that any additional servers or components they purchase are compatible with their existing infrastructure. This enables seamless expansion without the risk of compatibility issues.
