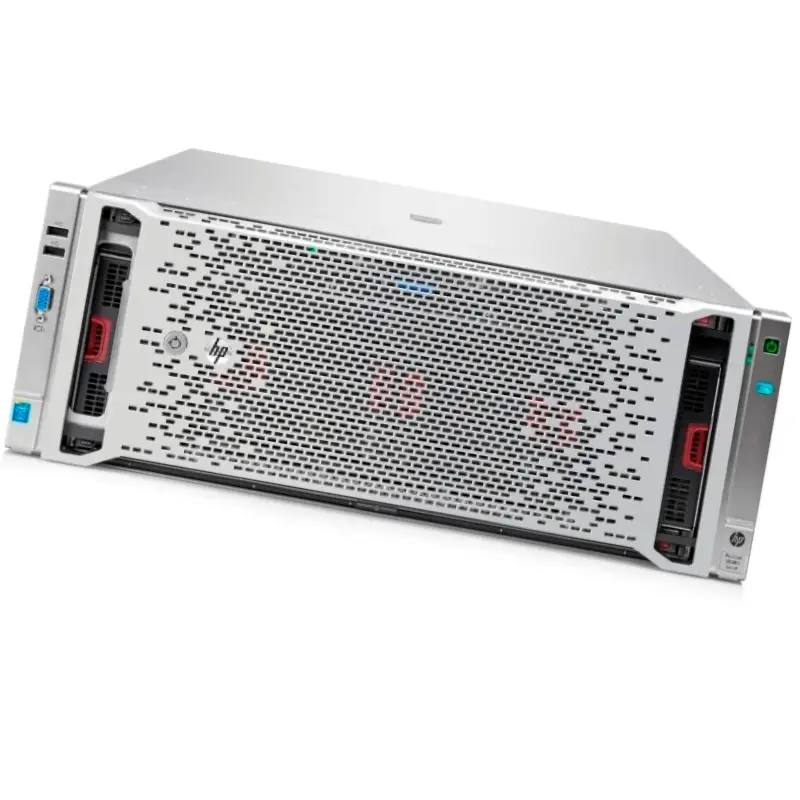

HPE Proliant DL580 G9 793310-B21 128GB DDR4 SDRAM 534FLR-SFP+ Rack Server

Memory

Unparalleled Performance

The HPE Proliant DL580 G9 Rack Server is equipped with an astounding 128GB DDR4 SDRAM, making it an exceptional choice for businesses and organizations that require outstanding performance for their demanding workloads. This high-capacity memory module ensures that your server can handle intensive tasks without any compromise in speed or efficiency.

Overview

• Manufacturer: Hewlett Packard Enterprise
• Product Model: Proliant DL580 Gen9
• Part Number: 793310-B21
• Product Type: 4U Rack Mountable Server
• Key Feature: High Performance

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon E7-4850v3
• Clock Speed: 2.2 GHz
• Max Turbo Speed: 2.8 GHz
• Cores: 14-core
• Quantity: 4 CPUs
• Max CPUs: 4
• Upgradability: Yes

Chipset Details

• Chipset Type: Intel C602J
• Main Feature: Intel Turbo Boost Technology 2

Cache Memory

• Installed Cache Size: 140 MB L3 Cache
• Cache Per Processor: 35 MB

Memory

Installed Memory

• Size: 128 GB (expandable to 6 TB)
• Type: DDR4 SDRAM
• Form Factor: DIMM 288-pin
• Slots: 96 total (88 empty)
• Configuration: 8 x 16 GB

Storage

Drive Specifications

• Hard Drive: Not Included
• Optical Drive: None

Storage Controllers

• Type: RAID Controller (PCIe 2.0 x4)
• Interface Type: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Model: Smart Array P830i with 4 GB FBWC
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 4 GB

Networking & Communication

Network Interfaces

• Bus Type: PCI Express 2.0 x8
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP FlexFabric 534FLR-SFP+
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN (WoL), ACPI Support, PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1qbb, IEEE 802.1qaz, IEEE 802.1qau, IEEE 802.1qbg, IEEE 802.2x

Expansion & Connectivity

Expansion Bays

• Total Bays: 5 (all free)
• Type: Hot-swap 2.5" SFF

Expansion Slots

• Total DIMM Slots: 96 (88 free)
• Total CPU Slots: 4 (none free)
• Total PCIe 3.0 x16 Slots (Full-length, Full-height): 5 (all free)
• Total PCIe 3.0 x16 Slots (Half-length, Full-height, x8 Mode): 4 (all free)
• FlexibleLOM Slot: 1 (1 free)
• MicroSD Card Slot: 1 (1 free)

Interfaces & Ports

• Serial Port: 1
• VGA Ports: 2 (1 front, 1 rear)
• HP iLO Port: 1
• USB 2.0 Ports: 8 (2 front, 4 rear, 2 internal)
• LAN Ports (10 Gigabit Ethernet - SFP+): 2

Additional Features

• Password Protection: Administrator Password, Power-on Password, Keyboard Password
• Port Control: Serial Port I/O Control, USB Port Control
• Compliant Standards: ACPI 2.0, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Yes
• Installed Power Supplies: 4
• Maximum Supported Power Supplies: 4
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 1200 Watts

Dimensions & Weight

• Depth: 29 inches
• Width: 17.48 inches
• Height: 6.88 inches
• Weight: 70.94 lbs

Enhanced Multitasking

With 128GB DDR4 SDRAM, the HPE Proliant DL580 G9 Rack Server enables seamless multitasking capabilities. Users can run multiple applications simultaneously without experiencing any lag or slowdowns. This feature is particularly beneficial for businesses that rely on running numerous software programs concurrently, such as virtualization or database management systems.

Improved Data Processing

The massive memory capacity of the HPE Proliant DL580 G9 Rack Server allows for faster data processing and retrieval. It ensures that large datasets can be stored and accessed efficiently, resulting in reduced latency and improved overall system performance. This is advantageous for businesses dealing with mission-critical applications that rely heavily on quick data processing, such as financial institutions or scientific research organizations.

Future-Proof Investment

Investing in a server with 128GB DDR4 SDRAM is a future-proof decision. As technology advances and software becomes more resource-intensive, having ample memory capacity becomes increasingly essential. By opting for the HPE Proliant DL580 G9 Rack Server, users can be confident that their system will be able to handle future upgrades and expansions seamlessly without the need for additional hardware investments.

Efficient Virtualization

Virtualization technology has become a fundamental aspect of modern IT infrastructure. The HPE Proliant DL580 G9 Rack Server's 128GB DDR4 SDRAM provides excellent support for virtualized environments. With this memory capacity, businesses can create and run multiple virtual machines concurrently, optimizing resource allocation and improving overall system efficiency.

Reliable Performance for Critical Applications

For businesses that rely on critical applications that demand high memory requirements, the HPE Proliant DL580 G9 Rack Server's 128GB DDR4 SDRAM is a game-changer. Whether it's running complex simulations, handling large databases, or processing massive amounts of data, this memory capacity ensures smooth and reliable performance. It eliminates the risk of bottlenecks and guarantees uninterrupted operation for mission-critical tasks.

Adapter

Advanced Networking Capabilities

The HPE Proliant DL580 G9 Rack Server comes equipped with the 534FLR-SFP+ adapter, offering advanced networking capabilities that are vital for modern businesses. This adapter provides high-speed data transfer rates and supports various network protocols, allowing for efficient communication between servers and external devices.

Faster Data Transfer

The 534FLR-SFP+ adapter enables lightning-fast data transfer rates, ensuring swift communication between servers and network devices. With this feature, businesses can experience reduced latency and improved overall system performance. It is particularly beneficial for environments where large amounts of data need to be transferred quickly, such as high-volume transactional systems or data-intensive applications.

Flexible Connectivity Options

The HPE Proliant DL580 G9 Rack Server's 534FLR-SFP+ adapter offers flexible connectivity options, supporting a wide range of network protocols. Whether you require Ethernet or Fibre Channel connectivity, this adapter has got you covered. Its versatility allows businesses to easily integrate the server into their existing network infrastructure without any compatibility issues.

Enhanced Scalability

Scalability is crucial for businesses that anticipate growth or expansion. The 534FLR-SFP+ adapter ensures that the HPE Proliant DL580 G9 Rack Server can accommodate increased network demands seamlessly. As your business evolves, this adapter can support additional network devices, ensuring that your server remains capable of handling the growing workload without any performance degradation.

Optimized Workload Distribution

The 534FLR-SFP+ adapter enables workload distribution across multiple servers, resulting in improved system efficiency and resource utilization. By offloading network traffic from the main server, it helps distribute the load evenly, preventing bottlenecks and ensuring that each server operates at its full potential. This is particularly advantageous for businesses running virtualized environments or utilizing clustering technologies.

Reliable and Secure Network Connectivity

In today's interconnected world, reliable and secure network connectivity is of utmost importance. The 534FLR-SFP+ adapter delivers outstanding reliability and security features, guaranteeing uninterrupted communication between servers and external devices. It supports advanced encryption protocols, ensuring that sensitive data remains secure during transmission. This feature is essential for businesses dealing with confidential information or operating in regulated industries.

In conclusion, the HPE Proliant DL580 G9 Rack Server's Memory feature, with its impressive 128GB DDR4 SDRAM capacity, provides unmatched performance, enhanced multitasking capabilities, improved data processing, future-proof investment, efficient virtualization support, and reliable performance for critical applications. Additionally, the Adapter feature's 534FLR-SFP+ adapter offers advanced networking capabilities, faster data transfer rates, flexible connectivity options, enhanced scalability, optimized workload distribution, and reliable and secure network connectivity. These features make the HPE Proliant DL580 G9 Rack Server a powerful and versatile choice for businesses seeking exceptional performance, reliability, and scalability in their IT infrastructure.
