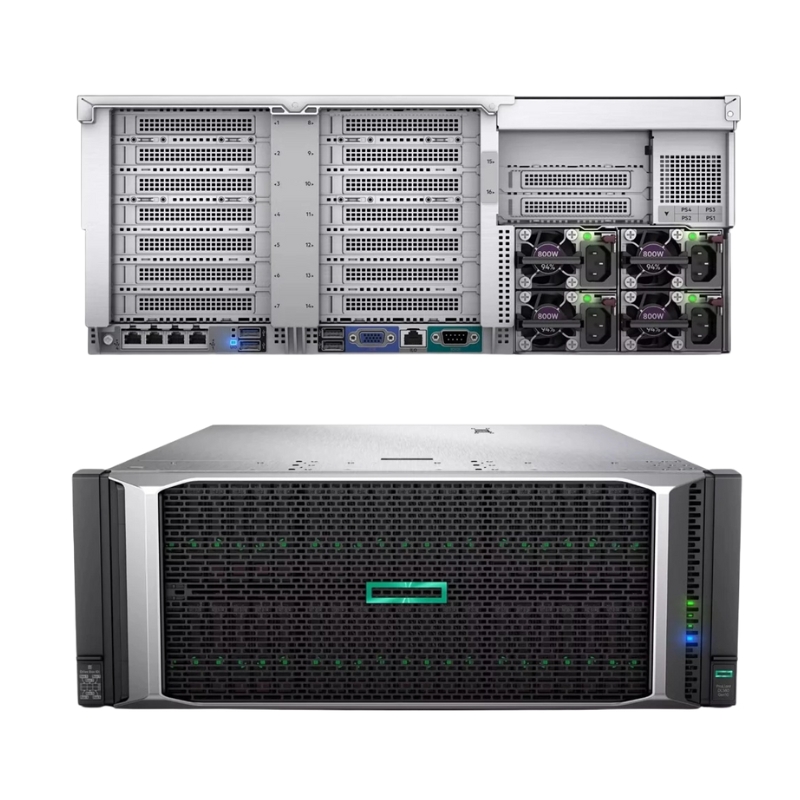

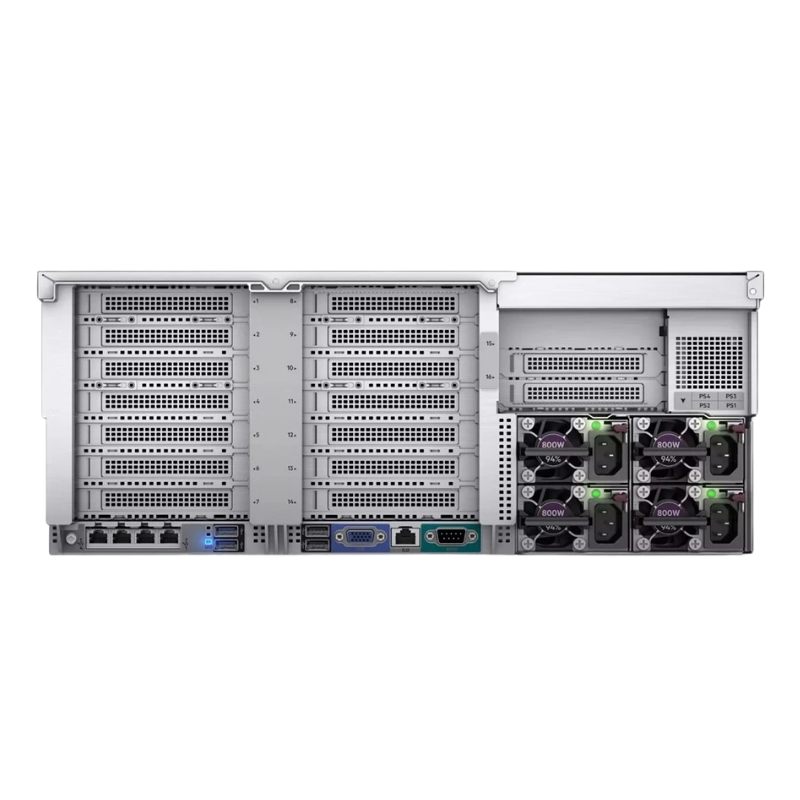

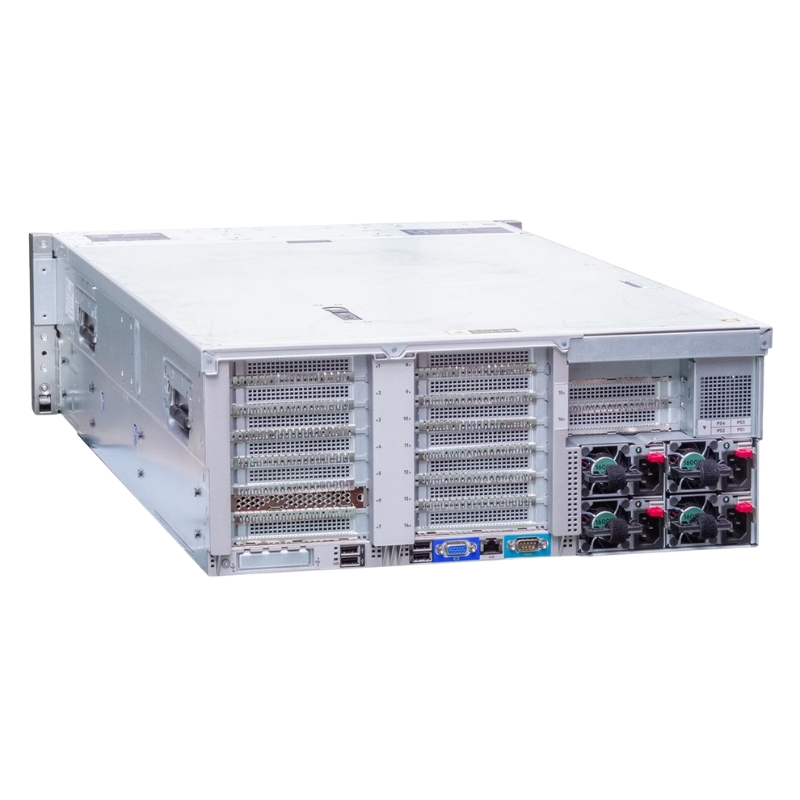

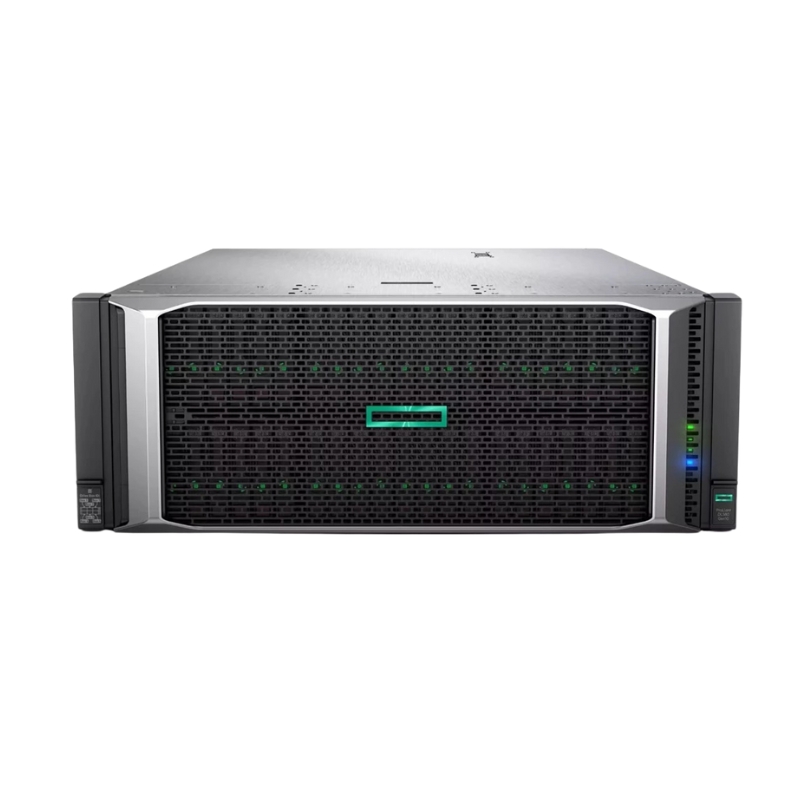

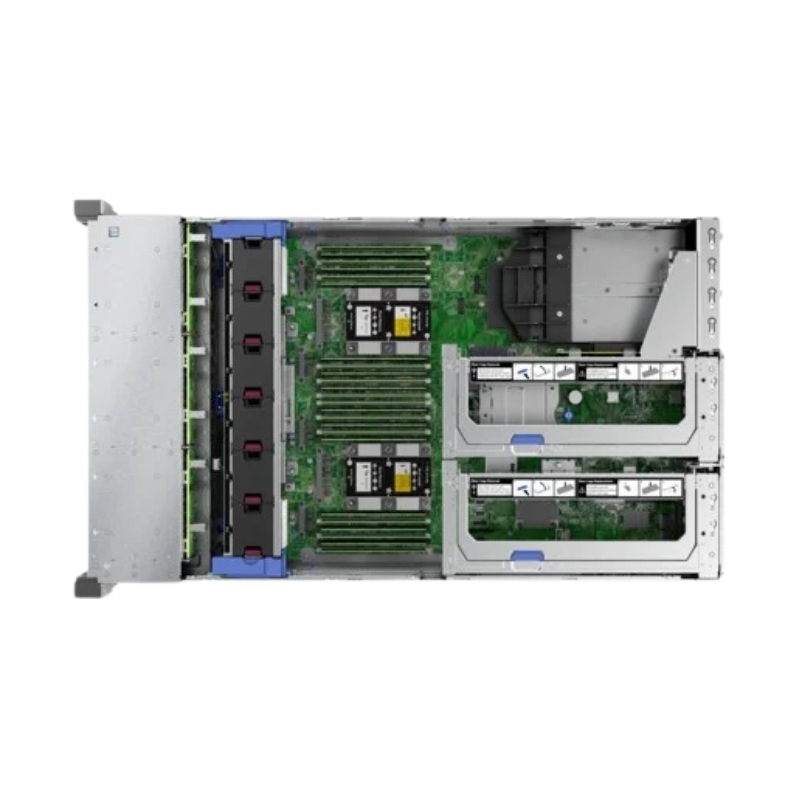

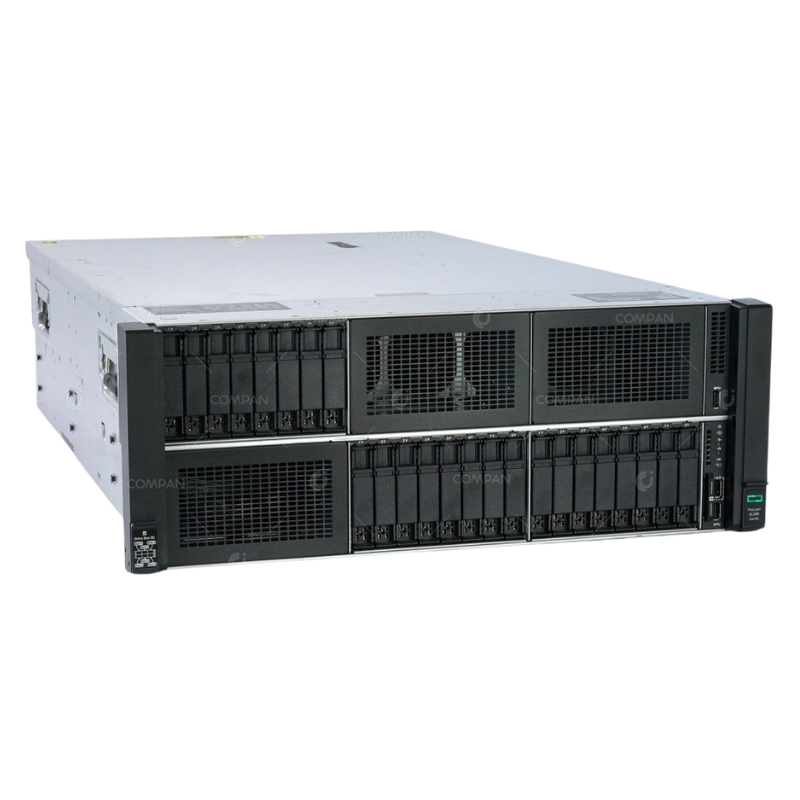

HPE Proliant DL580 Gen10 P05671-B21 2.4GHz 24-core 4P 512G 8SFF

Processor

The HPE Proliant DL580 Gen10 Rack Server boasts a powerful Xeon 2.4 Ghz 24-core processor. This feature is designed to provide users with exceptional performance and reliability, making it an ideal choice for businesses and organizations that require high computing power.

General Overview of P05671-B21

• Company: Hewlett Packard Enterprise
• Part Number: P05671-B21

Product Information

• Model: ProLiant DL580 Gen10 - 4U Rack-Mountable Server (Pre-configured)
• Scalability: 4-Way

Processor & Chipset Specifications

• Processor: Intel Xeon Platinum 8260, 2.4 GHz
• Turbo Speed: Up to 3.9 GHz
• Cores: 24 per CPU
• Total CPUs: 4
• CPU Socket: FCLGA3647

Processor Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2.0
• Chipset: Intel C621

Cache Memory

• Installed Cache Size: 143 MB L3
• Cache per Processor: 35.75 MB

Memory (RAM)

• Installed Memory: 512 GB (expandable to 1.5 TB)
• Memory Type: DDR4 SDRAM - ECC
• Effective Speed: 2933 MHz
• Rated Speed: 2933 MHz
• Memory Compliance: PC4-23466
• Form Factor: DIMM 288-pin
• Total Slots: 48 (32 available)

Memory Configuration

• Configuration: 16 x 32 GB
• Supported Memory: Up to 1.5 TB Registered ECC, 6 TB Load-reduced ECC

Storage Configuration

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controllers

• Controller Type: RAID (PCIe 3.0 x8)
• Interface Types: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Name: Smart Array P408i-p with 2 GB FBWC
• Channel Quantity: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1ADM, 10ADM
• Buffer Size: 2 GB

Display & Graphics

• Video Memory: 16 MB
• Video Interface: VGA

Network & Communication

• Interface Type: PCIe Express 3.0 x8
• Ethernet Ports: 2 x 10/25 Gigabit Ethernet SFP28
• Ethernet Controller: HP 640FLR
• Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 5
• Supported Features: Wake On LAN (WOL), ACPI Support, PXE Support

Standards Compliance

• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.3ae
• IEEE 802.1ab (LLDP)
• IEEE 802.3az
• IEEE 802.1qbb
• IEEE 802.1qaz
• IEEE 802.1qau
• IEEE 802.1qbg
• IEEE 1588v2
• IEEE 802.3as

Expansion & Connectivity

• Hot-Swap Bays: 8 (total and free) for 2.5" SFF
• PCIe 3.0 Slots:
  • 4 x 16 (full-length, full-height) - all available
  • 1 x FlexibleLOM - 1 available
  • 1 x MicroSD Card - 1 available
  • 4 x x8 (full-length, full-height) - all available
  • 2 x x16 (three-quarter-length, full-height) - all available
  • 6 x x8 (three-quarter-length, full-height) - all available

Interfaces

• Serial Port: 1
• VGA Port: 1
• HP iLO: 1 RJ-45
• USB 2.0 Ports: 2
• LAN Ports (25 Gigabit Ethernet): 2 (SFP28)
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• HP iLO Port (Front): 1

Miscellaneous

• Rack Rail Kit
• Cable Management Arm

Compliance Standards

• AES
• FIPS 140-2
• WEEE
• ACPI 6.1

Power Specifications

• TyWEBHot-Plug Power Supply
• Redundancy: Yes
• Installed Quantity: 4
• Maximum Supported Quantity: 4
• Nominal Voltage: AC 200/240 V (50/60 Hz)
• Power Output: 1600 Watts
• 80 Plus Certification: Platinum
• Efficiency: 94%

Physical Dimensions & Weight

• Width: 17.5 inches
• Depth: 29.6 inches
• Height: 6.9 inches
• Weight: 61.99 lbs

Enhanced Performance

The Xeon 2.4 Ghz 24-core processor offers enhanced performance, allowing users to handle demanding workloads and complex tasks with ease. Whether you are running resource-intensive applications, virtualization environments, or handling big data analytics, this processor ensures that your server can handle the load without any bottlenecks.

Increased Efficiency

With its 24 cores, the processor enables efficient multitasking and parallel processing. This means that you can run multiple applications simultaneously without experiencing a slowdown in performance. This feature is especially beneficial for businesses that require their servers to handle a large number of concurrent requests or execute multiple tasks at once.

Improved Scalability

The Xeon 2.4 Ghz 24-core processor also supports advanced scalability features, allowing users to expand their server capabilities as their business grows. With this processor, you can easily add more resources and scale up your server's performance without the need for a complete hardware overhaul. This flexibility ensures that your investment in the HPE Proliant DL580 Gen10 Rack Server will continue to meet your evolving needs.

Reliable Performance

Reliability is crucial when it comes to server operations, and the Xeon 2.4 Ghz 24-core processor delivers just that. Built with robust architecture and advanced technologies, this processor ensures consistent performance even under heavy workloads. It minimizes the risk of system crashes or slowdowns, allowing your business to operate smoothly without any interruptions.

Future-Proofing

Investing in a server with a powerful processor like the Xeon 2.4 Ghz 24-core ensures future-proofing your infrastructure. As technology advances and software becomes more demanding, having a server with a capable processor becomes increasingly important. By choosing the HPE Proliant DL580 Gen10 Rack Server, you can rest assured that your server will remain relevant and capable of handling future computing requirements.

Memory

The HPE Proliant DL580 Gen10 Rack Server comes equipped with an impressive 512G of memory. This feature is designed to provide users with ample memory capacity, enabling smooth and efficient operations for various workloads.

Enhanced Performance

With a generous 512G of memory, this server ensures that your applications and processes have sufficient space to operate efficiently. Whether you are running memory-intensive applications, virtual machines, or databases, the ample memory capacity allows for smooth and responsive operations without any performance bottlenecks.

Improved Workload Management

The large memory capacity of 512G enables efficient workload management. You can allocate more resources to critical applications or processes, ensuring that they have the necessary memory to operate optimally. This feature is especially beneficial for businesses that require concurrent execution of multiple resource-intensive tasks or virtual machines.

Seamless Virtualization

Virtualization has become a crucial aspect of modern IT infrastructures, and the HPE Proliant DL580 Gen10 Rack Server excels in this area with its 512G of memory. The ample memory capacity allows for smooth and seamless virtualization operations, enabling businesses to create multiple virtual machines without compromising performance. This feature is particularly advantageous for businesses that rely heavily on virtualization for their operations.

Improved Data Analysis

For organizations dealing with big data analytics or data-intensive workloads, the 512G of memory in this server is a significant advantage. The large memory capacity enables faster data processing and analysis, allowing businesses to gain valuable insights quickly. With this server, you can efficiently handle large datasets and perform complex data analytics tasks without experiencing memory constraints.

Future Scalability

The 512G of memory in the HPE Proliant DL580 Gen10 Rack Server provides future scalability for your growing business needs. As your workload requirements increase, you can easily expand your server's memory capacity to accommodate the growing demands. This scalability ensures that your server can adapt to evolving business requirements without the need for a complete infrastructure overhaul.

Drive Bays

The HPE Proliant DL580 Gen10 Rack Server features 8SFF (Small Form Factor) drive bays. This feature offers users flexibility and versatility when it comes to storage options, making it an excellent choice for businesses that require ample storage capacity.

Increased Storage Capacity

With 8SFF drive bays, this server provides ample storage capacity for businesses dealing with large amounts of data. Whether you need to store multimedia files, databases, or backups, the 8SFF drive bays offer sufficient space to accommodate your storage requirements. This feature is particularly beneficial for businesses that rely on data-intensive applications or run extensive databases.

Optimized Storage Configuration

The 8SFF drive bays allow for flexible storage configuration options. You can choose to install high-capacity hard drives or solid-state drives (SSDs) based on your specific needs. This flexibility ensures that you can optimize your storage configuration to meet the performance and capacity requirements of your applications or workloads.

Hot-Swappable Drives

One of the key advantages of the 8SFF drive bays is their hot-swappable design. This means that you can replace or add drives without shutting down the server, minimizing downtime and ensuring continuous operations. Hot-swappable drives are particularly valuable for businesses that require high availability and cannot afford interruptions in their operations.

RAID Support

The 8SFF drive bays in the HPE Proliant DL580 Gen10 Rack Server also support RAID (Redundant Array of Independent Disks) configurations. RAID offers data redundancy and improved data protection by distributing data across multiple drives. This feature enhances data availability and safeguards against potential drive failures. By utilizing RAID configurations, businesses can ensure the integrity and availability of their critical data.

Easy Maintenance

The 8SFF drive bays make maintenance tasks such as drive replacement or upgrades straightforward. The hot-swappable design, combined with easy access to the drive bays, simplifies maintenance procedures, reducing the time and effort required to perform these tasks. This feature is especially advantageous for businesses that need to perform regular maintenance or upgrade their storage infrastructure.

Part Number

The HPE Proliant DL580 Gen10 Rack Server has the part number P05671-B21. This unique identifier is important for users as it allows them to accurately identify and procure the specific server model they require.

Product Identification

The part number P05671-B21 serves as a specific identifier for the HPE Proliant DL580 Gen10 Rack Server model. With this part number, users can easily communicate their requirements to suppliers or support personnel, ensuring that they receive the correct server model without any confusion or errors.

Precision Ordering

By using the part number P05671-B21, businesses can precisely order the HPE Proliant DL580 Gen10 Rack Server they need. This eliminates any chances of ordering the wrong server model or encountering compatibility issues. The accuracy provided by the part number ensures that businesses receive the exact server model they require, saving time and preventing costly mistakes.

Support and Documentation

The part number P05671-B21 is also essential for accessing support and documentation related to the HPE Proliant DL580 Gen10 Rack Server. Users can easily refer to this part number when seeking technical assistance or accessing product-specific documentation. This simplifies the troubleshooting process and ensures that users can quickly find the relevant resources to resolve any issues they may encounter.

Compatibility Verification

The part number P05671-B21 allows users to verify the compatibility of their server with other hardware components or software applications. By cross-referencing the part number with compatibility lists or specifications, users can ensure that their chosen server model will seamlessly integrate with their existing infrastructure. This verification step helps prevent compatibility issues and ensures a smooth deployment process.

Warranty and Service Coverage

The part number P05671-B21 is also crucial when it comes to warranty and service coverage. By providing the correct part number, users can ensure that their server receives the appropriate warranty coverage and support services. This ensures that businesses have access to timely assistance in case of any hardware or software issues, minimizing downtime and ensuring uninterrupted operations.

In conclusion, the HPE Proliant DL580 Gen10 Rack Server offers exceptional performance, reliability, and scalability. With its Xeon 2.4 Ghz 24-core processor, 512G of memory, 8SFF drive bays, and unique part number P05671-B21, this server is a powerful solution for businesses and organizations that require high computing power, ample storage capacity, and precise identification for procurement and support purposes.
