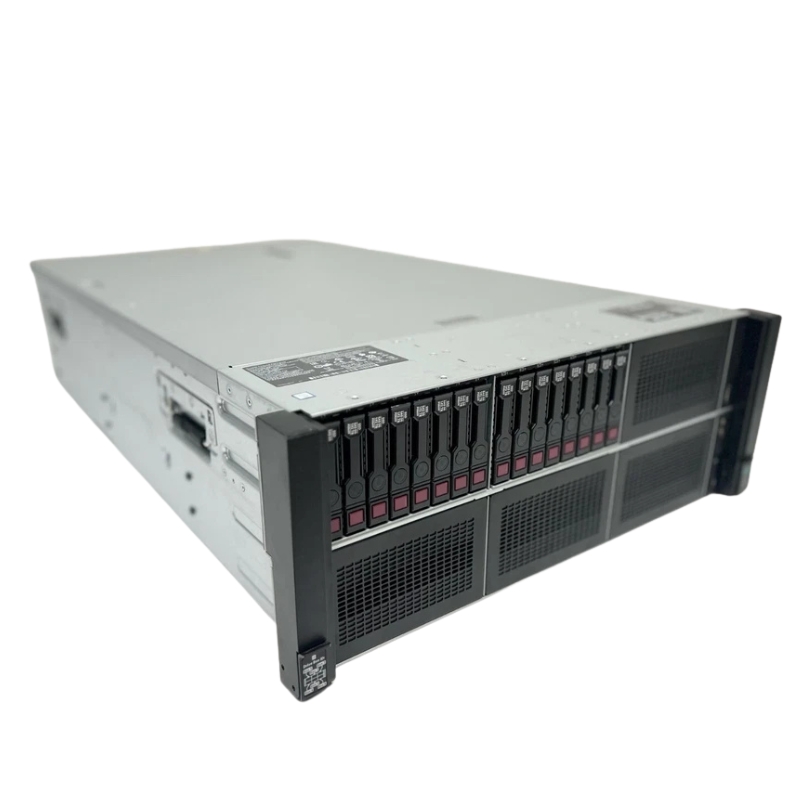

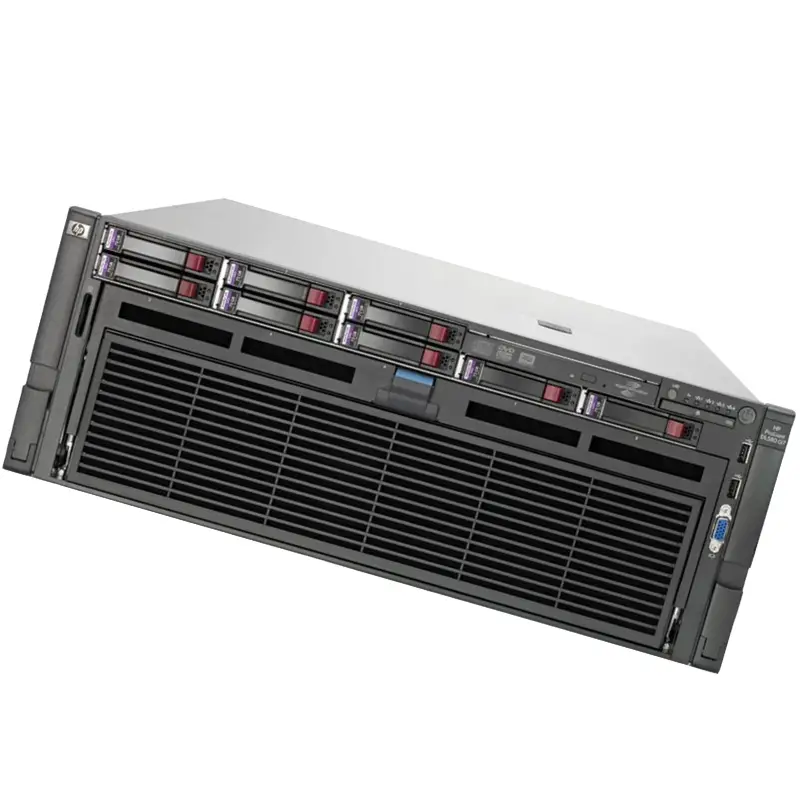

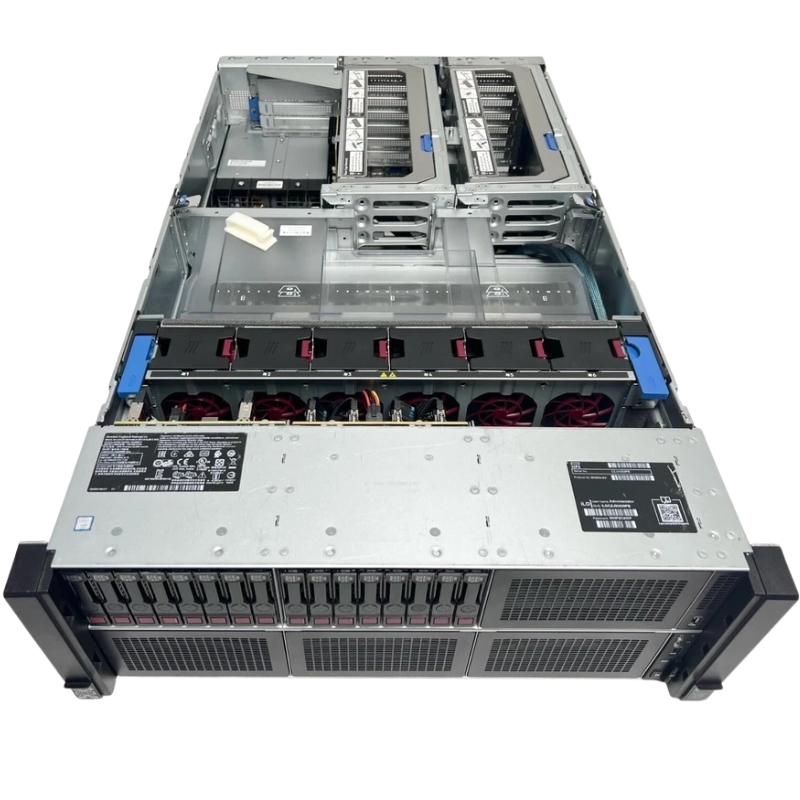

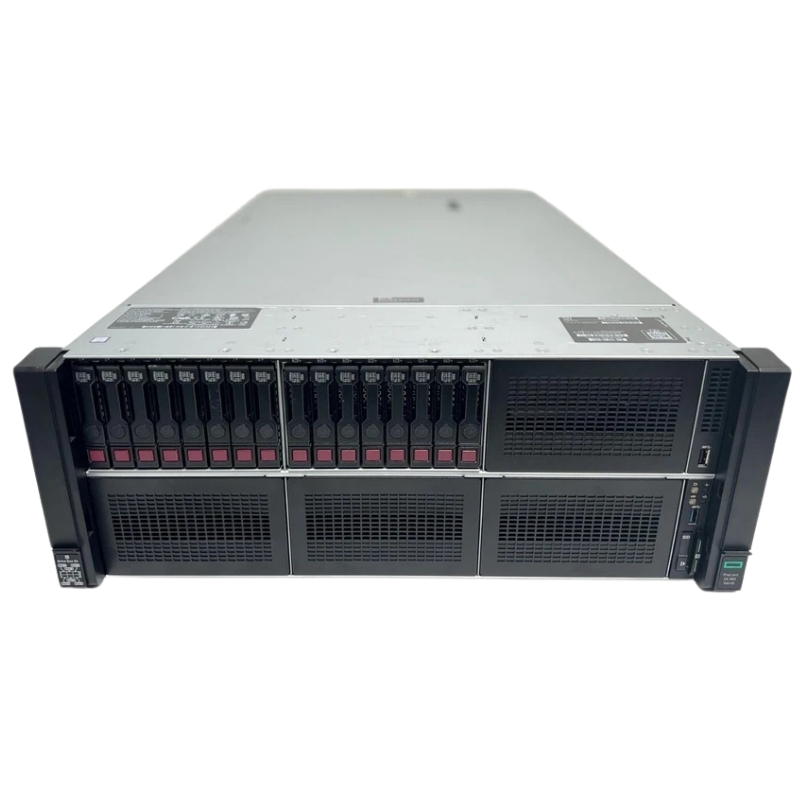

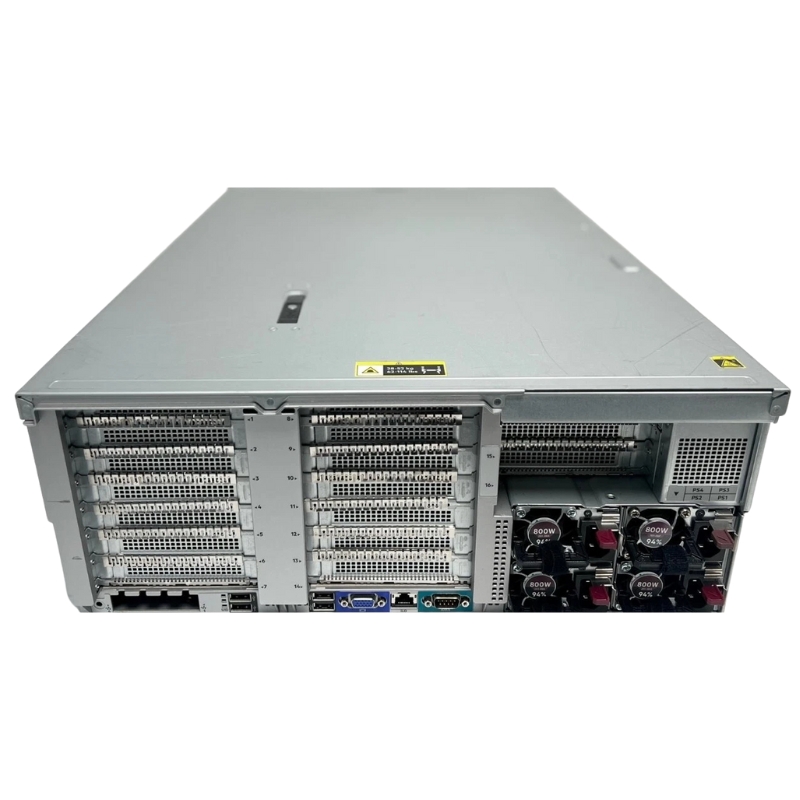

HPE Proliant DL580 Gen7 Server Xeon 10 Core 2.0GHz 128GB DDR3 696730-001

Processor

The HPE Proliant DL580 Gen7 Server is equipped with a powerful Xeon 10 Core 2.0GHz processor. This feature sets it apart from other servers in its class, providing users with immense processing power and superior performance.

General Information

Manufacturer Details

• Brand: HPE
• Part Number: 696730-001

Product Overview

Introducing the Proliant DL580 G7, a 4U-rack server engineered for high performance. This model integrates advanced technology to deliver exceptional computing capabilities.

Processor & Chipset

Processor Specifications

• Type: Intel Xeon E7-4850
• Clock Speed: 2.0 GHz
• Cores: 10-core
• 64-bit Computing: Yes
• Installed Quantity: 4
• Maximum Supported: 4
• Chipset: Intel 7500

Cache Memory

Cache Details

• Type: L3 Cache
• Installed Size: 120 MB
• Cache Per Processor: 30 MB

Memory Configuration

Installed and Maximum Capacity

• Installed RAM: 128 GB
• Maximum RAM: 2 TB
• Memory Technology: DDR3 SDRAM - Advanced ECC
• Speed: 1333 MHz
• Specification Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Features: Registered, Memory Mirroring, Online Spare
• Configuration: 16 x 8 GB

Storage Capabilities

Hard Drives and Storage Options

• Standard Hard Drives: None
• Internal Storage Capacity: Up to 8.0 TB (SFF SAS)
• Optical Drive: HP Slim SATA DVD ROM

Storage Controllers

Controller Specifications

• Type: RAID - Integrated - PCI Express 2.0 x4
• Interface: Serial ATA-300 / SAS 2.0
• Controller Name: Embedded HP Smart Array P410i/1G FBWC
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 1 GB

Display & Graphics

Graphics Controller

• Type: Integrated
• Processor: ATI ES1000
• Video Memory: 64 MB

Network & Communication

Network Specifications

• Networking Adapter: PCI Express 2.0 x8 - Integrated
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP NC375i Integrated Quad Port Gigabit Server Adapter
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 3
• Features: Wake On LAN (WOL), ACPI Support, PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

Expansion Bays

• Front Accessible: 1 x 5.25in Slim Line
• Hot-swap Bays: 8 x 2.5in SFF

Expansion Slots

• Memory Slots: 64 (total) / 48 (free) DIMM 240-pin
• Processor Slots: 4 (total) / 0 (free)
• PCI Express 2.0 x16 (x8 mode): 2 (total) / 2 (free)
• PCI Express 2.0 x8 (x4 mode): 3 (total) / 3 (free)

Interfaces & Ports

Available Ports

• Serial Port: 1 x RS-232 - 9 Pin D-Sub (DB-9)
• Keyboard Port: 1 x Generic - 6 Pin Mini-DIN (PS/2 Style)
• Mouse Port: 1 x Generic - 6 Pin Mini-DIN (PS/2 Style)
• USB Ports: 4 x Hi-Speed USB - 4 Pin USB Type A (2 Front, 2 Rear)
• Network Ports: 4 x Ethernet 10BASE-T/100BASE-TX/1000BASE-T - RJ-45
• Management Port: 1 x HP iLO - RJ-45
• Display Ports: 2 x VGA - 15 Pin HD D-Sub (HD-15) (1 Front)

Power Description

Power Supply Details

• Type: Hot-plug Power Supply
• Redundancy: Yes
• Installed Quantity: 4
• Maximum Supported Quantity: 4
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 1200 Watt

Dimensions & Weight

Physical Specifications

• Width: 19 inches
• Depth: 27.6 inches
• Height: 6.9 inches
• Weight: 66.1 lbs

Unmatched Processing Power

The Xeon 10 Core 2.0GHz processor is designed to handle the most demanding workloads and applications. With its ten cores and a clock speed of 2.0GHz, it offers unparalleled processing power that can handle heavy computational tasks with ease. This means that users can run multiple applications simultaneously without experiencing any lag or slowdowns.

Efficient Multitasking

The multitasking capabilities of the Xeon 10 Core 2.0GHz processor are truly impressive. It allows users to efficiently run multiple virtual machines, databases, and other resource-intensive applications concurrently. This not only improves productivity but also ensures smooth operation even during peak usage periods.

Enhanced Performance for Complex Workloads

Complex workloads such as data analytics, scientific simulations, and financial modeling require substantial processing power. The Xeon 10 Core 2.0GHz processor excels in these scenarios, delivering exceptional performance and reducing the time required for computations. This enables businesses to accelerate their decision-making processes and gain a competitive edge.

Highly Scalable Architecture

The Xeon 10 Core 2.0GHz processor is based on a highly scalable architecture that allows for future expansion and growth. It supports advanced technologies such as Intel Hyper-Threading, which enables each core to handle two threads simultaneously. This results in improved efficiency and increased throughput, making it an ideal choice for businesses looking to scale their operations without compromising on performance.

Reduced Energy Consumption

In addition to its outstanding performance, the Xeon 10 Core 2.0GHz processor is also energy-efficient. It incorporates advanced power management features that optimize energy consumption without sacrificing performance. This not only reduces operating costs but also contributes to a greener and more sustainable IT infrastructure.

Memory

The HPE Proliant DL580 Gen7 Server comes equipped with a staggering 128GB DDR3 memory. This substantial memory capacity ensures that the server can handle even the most memory-intensive applications and workloads without any bottlenecks or performance issues.

Enhanced Application Performance

The abundance of 128GB DDR3 memory allows the server to store and access large amounts of data quickly. This results in improved application performance, as data retrieval times are significantly reduced. Users can expect faster response times and seamless operation, even when dealing with resource-hungry applications.

Efficient Virtualization

Virtualization has become an integral part of modern IT infrastructure, enabling businesses to consolidate their servers and maximize resource utilization. The 128GB DDR3 memory capacity of the HPE Proliant DL580 Gen7 Server is well-suited for virtualization environments, as it provides ample space to run multiple virtual machines simultaneously. This allows businesses to optimize their hardware resources and reduce costs while maintaining excellent performance.

Scalability for Future Growth

The 128GB DDR3 memory capacity of this server ensures that it can easily accommodate future growth and expanding workloads. As businesses evolve and their data requirements increase, having sufficient memory becomes crucial for maintaining optimal performance. With the HPE Proliant DL580 Gen7 Server, users can rest assured that their memory needs are well catered for, both in the present and in the future.

Reliable Data Handling

The large memory capacity of this server enables efficient data handling, which is essential for businesses dealing with critical data and applications. The 128GB DDR3 memory ensures that data can be written, retrieved, and manipulated quickly and reliably. This reduces the risk of data corruption or loss, providing users with peace of mind and a reliable infrastructure.

Improved Productivity

The ample memory capacity of the HPE Proliant DL580 Gen7 Server allows users to run memory-intensive applications without any performance degradation. This translates into increased productivity as users can work seamlessly with resource-demanding software, such as video editing suites or complex database systems. With faster data access and improved application performance, businesses can achieve more in less time.

Part Number

The HPE Proliant DL580 Gen7 Server is identified by its unique part number: 696730-001. This part number plays a crucial role in identifying and ordering the specific server model, ensuring accuracy and compatibility.

Easy Identification

The part number 696730-001 serves as a unique identifier for the HPE Proliant DL580 Gen7 Server. It simplifies the process of identifying the correct server model when purchasing or requesting technical support. By using the part number, users can ensure that they are dealing with the right product variant, avoiding any potential confusion or compatibility issues.

Compatibility Assurance

The part number 696730-001 is essential for verifying compatibility with other server components and accessories. It ensures that users select the appropriate spare parts, expansion cards, storage devices, and other peripherals that are compatible with their specific server model. This compatibility assurance prevents potential issues such as hardware conflicts or performance degradation caused by mismatched components.

Efficient Ordering Process

When it comes to ordering a server or replacement parts, accuracy and efficiency are paramount. The part number 696730-001 streamlines the ordering process, as it allows users to quickly and accurately specify the exact server model they require. This reduces the risk of ordering errors and ensures that the correct products are delivered promptly, minimizing downtime and preventing delays in business operations.

Seamless Upgrades and Expansions

The part number 696730-001 also facilitates server upgrades and expansions. By referencing the part number, users can identify the exact server model they currently have and determine the compatible upgrade options available. This enables businesses to seamlessly expand their server capacity or upgrade their hardware without any compatibility issues or disruptions to their operations.

Technical Support and Documentation

The part number 696730-001 is invaluable when seeking technical support or referring to documentation related to the HPE Proliant DL580 Gen7 Server. By providing this part number, users can ensure that they receive accurate guidance and assistance tailored to their specific server model. It simplifies communication with technical support teams and ensures that users can access the relevant documentation for their server effortlessly.

In conclusion, the HPE Proliant DL580 Gen7 Server's features, including its Xeon 10 Core 2.0GHz processor, 128GB DDR3 memory, and unique part number 696730-001, contribute to its exceptional performance, scalability, and compatibility. These features empower businesses with unmatched processing power, efficient multitasking capabilities, enhanced application performance, seamless upgrades, and reliable identification. Whether it's handling complex workloads, running memory-intensive applications, or ensuring accurate compatibility, this server delivers on all fronts.
