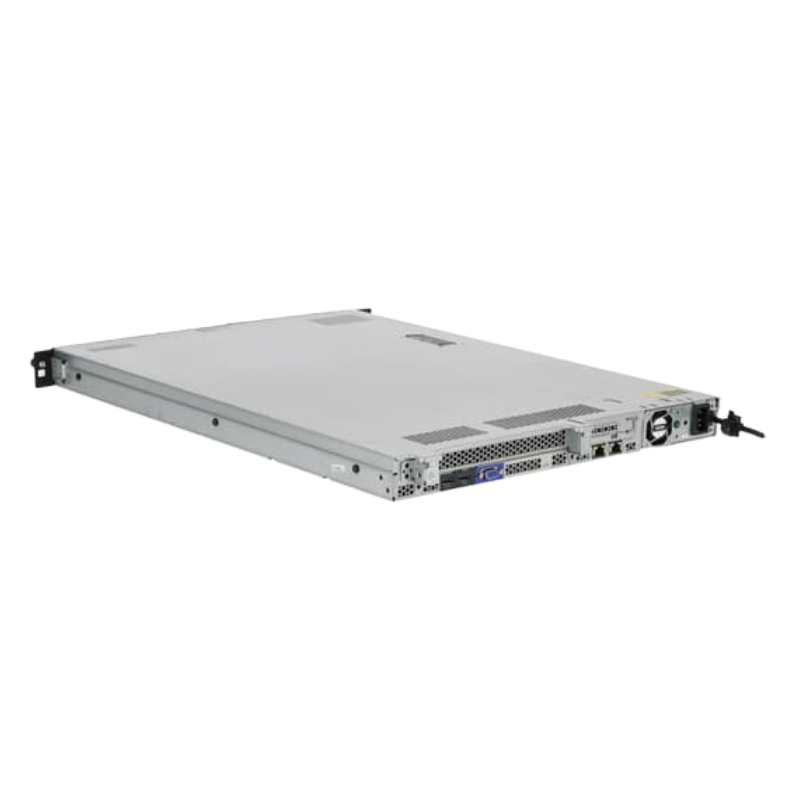

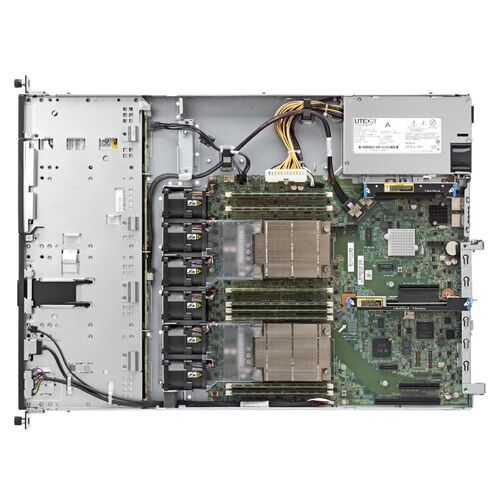

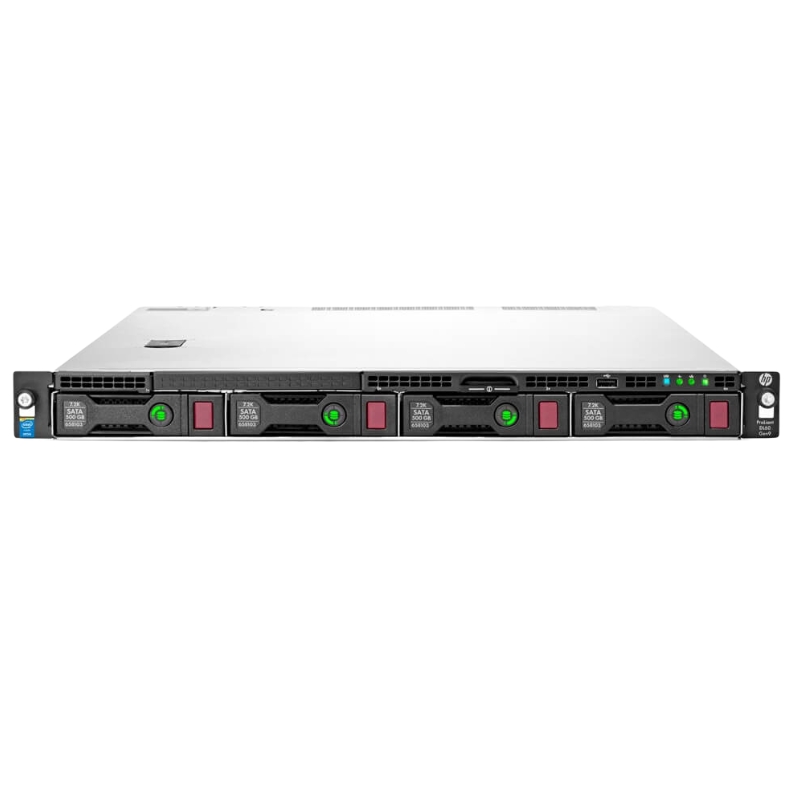

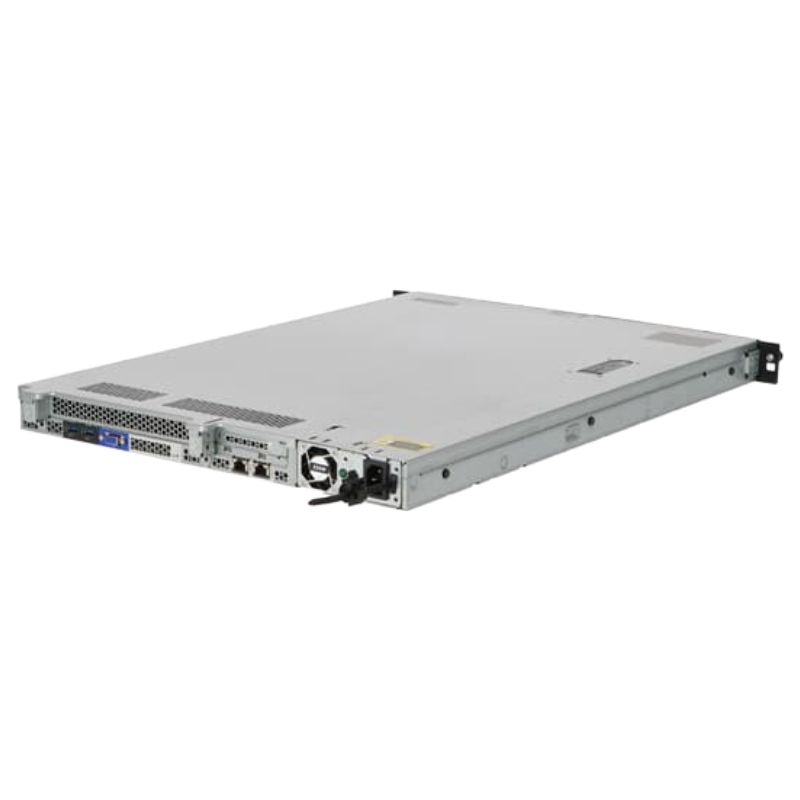

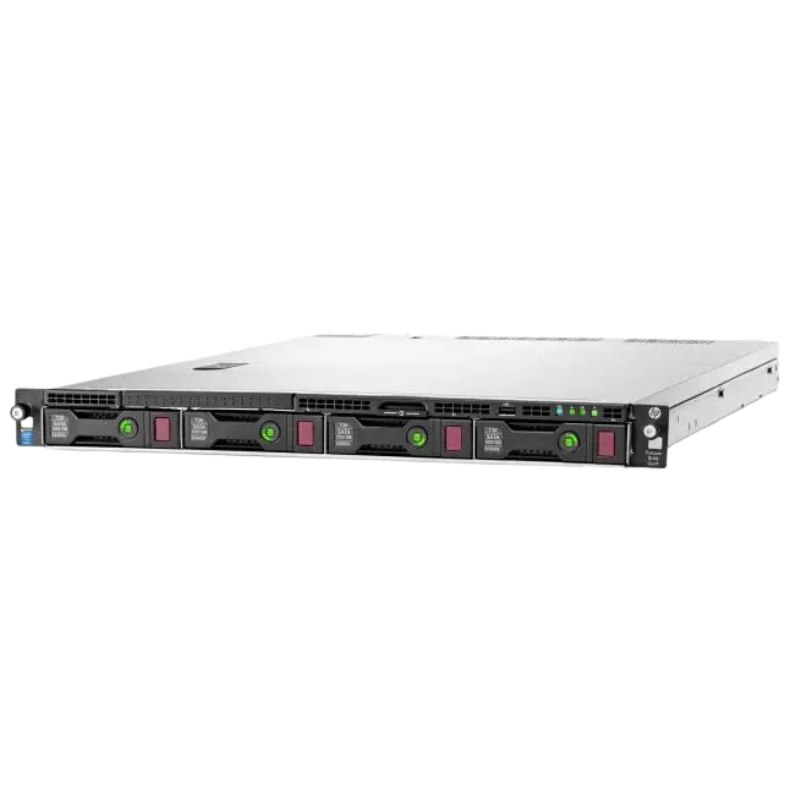

HPE Proliant DL60 785836-B21 XEON E5-2609V3 8GB DDR4 Server

Processor

The HPE Proliant DL60 Server is equipped with a powerful XEON 6-Core E5-2609V3/1.9GHz processor, which offers exceptional performance and reliability for users. This advanced processor is designed to handle demanding workloads efficiently and effectively. Let's explore the benefits and importance of this feature in more detail.

General Information

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Part Number: 785836-B21
• Product Name: Proliant DL60 G9 - 1U Rack Server (Base Model)

Processor & Chipset

Processor Specifications

• Type: Intel Xeon E5-2609v3, 1.9GHz
• QuickPath Interconnect Speed: 6.4 GT/s
• Core Count: 6-core
• 64-bit Computing: Supported
• Socket Compatibility: FCLGA2011-3
• Installed Processors: 1
• Maximum Processors Supported: 2
• Chipset: Intel C610 Series

Cache Memory

Cache Details

• Type: Smart Cache
• Installed Size: 15MB
• Cache per Processor: 15MB

Memory

Memory Specifications

• Installed Size: 8GB (1x8GB), up to 128GB supported
• Memory Technology: DDR4 SDRAM PC4-17000R (DDR4-1600)
• Form Factor: DIMM 288-pin
• Total Memory Slots: 8
• Supported RAM Types: 128GB Registered, 256GB Load-Reduced

Storage

Drive Options

• Hard Drive: None
• Optical Drive: None

Storage Controllers

Controller Features

• Controller Name: Smart Array B140i
• Buffer Size: Not applicable
• Disk Drive Speed: Up to 6Gb/s SATA (Serial ATA)
• Internal SATA Connectors: 10
• Server Interface: X4 PCIe 2.0
• SATA Speed: 6Gb/s SATA Links
• Logical Drives Supported: Up to 8 logical volumes (6 physical drives)
• Host Memory Addressing: 64-bit, supports greater than 4GB server memory space
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Graphics Controller

Graphics Specifications

• Type: Integrated
• Graphics Processor: Matrox G200eh2
• Video Interfaces: VGA

Network & Communication

Network Features

• Ethernet Controller: HP Ethernet 1GB 2-port 361i Adapter
• Network Interface: 10Base-T/100Base-TX/1000Base-TX
• Ethernet Controller Model: I350 Powerville
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Connectors: RJ-45 (two ports)
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Power Description

Power Supply Details

• Device Type: Flex Slot Platinum Plus Power Supply
• Installed Quantity: 1
• Nominal Voltage: AC 120/230V (50/60 Hz)
• Power Output: 550 Watts

Expansion & Connectivity

Expansion Bays and Slots

• Expansion Bays (Free): 4 (total) / 4 (free), Hot-swap 3.5" LFF
• Expansion Slots (Free):
  • 2 x CPU (1 free)
  • 8 x DIMM 288-pin (7 free)
  • 1 x PCIe 3.0 x16 - Low-profile (1 free)
  • 1 x PCIe 3.0 x8 - Low-profile (1 free)
  • 1 x PCIe 3.0 x8 - Half-length, Full-height (1 free)
  • 1 x MicroSD Card (internal, 1 free)

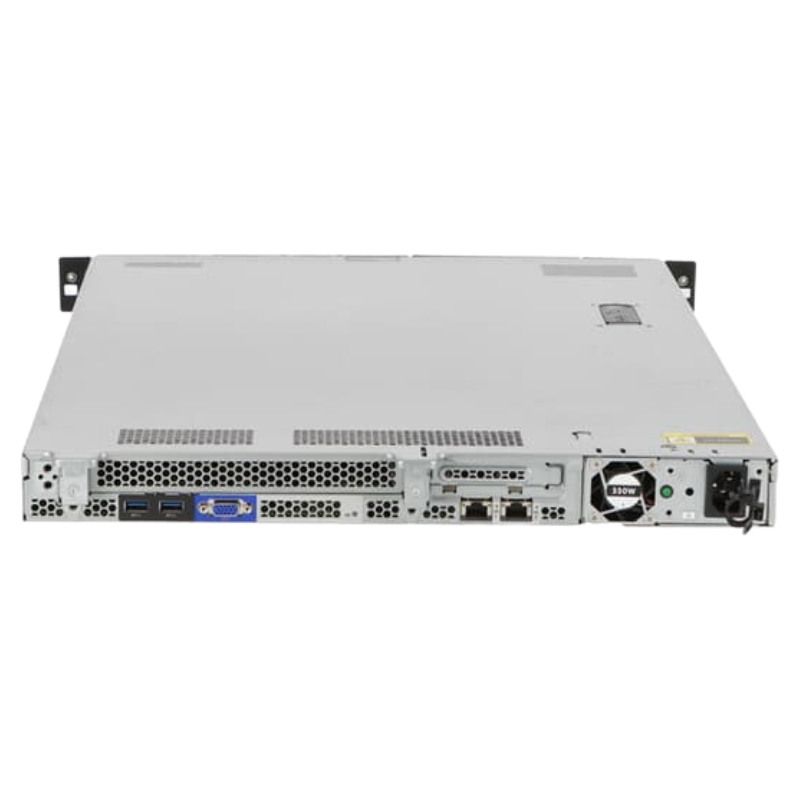

Interfaces & Ports

Connectivity Options

• LAN Ports: 2 x Gigabit Ethernet
• VGA Port: 1
• USB Ports:
  • 1 x USB 2.0 (Front)
  • 3 x USB 3.0 (2 Rear, 1 Internal)

Dimensions & Weight

Physical Specifications

• Depth: 23.9 inches
• Width: 17.1 inches
• Height: 1.7 inches
• Weight: 19.8 lbs

Enhanced Performance

The XEON 6-Core E5-2609V3/1.9GHz processor is specifically engineered to deliver outstanding performance. With six cores and a clock speed of 1.9GHz, it offers ample processing power to handle complex tasks and applications seamlessly. Whether you are running resource-intensive applications or multitasking, this processor ensures smooth performance without any lag or delays.

Efficient Multithreading

One of the key advantages of this processor is its ability to support multithreading. Hyper-Threading technology allows each physical core to handle two threads simultaneously, effectively doubling the number of processing threads available. This feature is particularly beneficial for multitasking scenarios, as it enables faster completion of tasks and enhances overall system responsiveness.

Improved Energy Efficiency

Energy efficiency is an important consideration for any server. The XEON 6-Core E5-2609V3/1.9GHz processor excels in this aspect by utilizing advanced power management features. With intelligent power control mechanisms, it optimizes power consumption based on workload demands, reducing energy usage without compromising performance. This not only helps in reducing operational costs but also contributes to a greener and more sustainable IT infrastructure.

Reliability and Scalability

Reliability is crucial for servers, especially in business-critical environments where downtime can have severe consequences. The XEON 6-Core E5-2609V3/1.9GHz processor is built with robust architecture and cutting-edge technologies to ensure high reliability. It is designed to handle heavy workloads, providing stability and consistent performance even under demanding conditions. Additionally, the processor's scalability allows for future expansion and growth, accommodating the evolving needs of your business.

Advanced Security Features

In today's digital landscape, data security is of utmost importance. The XEON 6-Core E5-2609V3/1.9GHz processor incorporates advanced security features to protect your valuable data. It supports Intel Secure Key technology, which enhances encryption capabilities and helps safeguard sensitive information. Additionally, it provides hardware-level protection against various cyber threats, ensuring a secure computing environment for your critical applications.

Memory

The HPE Proliant DL60 Server is equipped with 8GB DDR4 memory, offering superior performance and scalability. Let's delve into the benefits and importance of this feature.

Enhanced Performance and Responsiveness

The 8GB DDR4 memory module significantly enhances the server's overall performance and responsiveness. With its high-speed data transfer capabilities, it allows for quick retrieval and processing of information. This ensures smooth multitasking, faster application loading times, and seamless data access, enhancing productivity and user experience.

Efficient Workload Management

Memory plays a crucial role in workload management, especially in server environments that handle multiple applications simultaneously. The 8GB DDR4 memory provides ample capacity to efficiently manage concurrent tasks without compromising system performance. It enables smooth operation even during peak usage periods, preventing bottlenecks and ensuring consistent performance across various workloads.

Scalability and Future-Proofing

As businesses grow and their requirements evolve, scalability becomes a critical factor in IT infrastructure planning. The 8GB DDR4 memory module offers excellent scalability, allowing for easy expansion as your needs increase. With multiple memory slots available, you can easily upgrade or add more memory modules to accommodate growing demands, ensuring your server remains capable and future-proof.

Reliability and Error Correction

Reliability is paramount in server environments, where even minor errors or failures can have significant consequences. The 8GB DDR4 memory module incorporates advanced error correction mechanisms to ensure data integrity and system stability. Error Correcting Code (ECC) technology detects and corrects memory errors in real-time, minimizing the risk of data corruption and system crashes. This reliability feature provides peace of mind and uninterrupted operation, even during critical tasks.

Optimized Power Consumption

Power efficiency is a key consideration for any server deployment. The 8GB DDR4 memory module is designed to deliver high performance while minimizing power consumption. It operates at lower voltage levels compared to previous generation memory technologies, reducing energy usage and lowering operational costs. This efficiency feature not only contributes to a greener environment but also helps in optimizing your IT infrastructure's total cost of ownership.

Part Number

The part number of the HPE Proliant DL60 Server is 785836-B21, which serves as a unique identifier for this specific model. Let's explore the benefits and importance of this feature.

Accurate Identification and Ordering

The part number 785836-B21 is crucial for accurately identifying and ordering the HPE Proliant DL60 Server model. With numerous server models available in the market, using the correct part number ensures that you receive the exact product you need without any confusion or discrepancies. This eliminates the risk of ordering the wrong server variant or encountering compatibility issues with other components.

Simplified Maintenance and Support

In case of maintenance or support requirements, having the accurate part number simplifies the process. When contacting technical support or ordering replacement parts, providing the part number expedites the resolution, ensuring faster response times and minimizing downtime. It enables support personnel to quickly identify the specific server model and offer appropriate assistance, streamlining the overall maintenance and support experience.

Compatibility Assurance

The part number 785836-B21 also helps ensure compatibility with other server components and accessories. HPE designs and tests its products to work seamlessly together, and using the correct part number ensures that all components are compatible and optimized for each other. This reassurance eliminates any potential compatibility issues, allowing for a smooth integration of the HPE Proliant DL60 Server into your existing IT infrastructure.

Product Documentation and Resources

Using the correct part number facilitates easy access to product documentation, manuals, and other resources specific to the HPE Proliant DL60 Server model. Online databases and support portals are often organized based on part numbers, making it effortless to find relevant information and resources related to your server model. This empowers users with valuable knowledge and helps in maximizing the server's potential.

Warranty and Service Coverage

The part number is essential for warranty registration and service coverage. By registering your HPE Proliant DL60 Server with the correct part number, you ensure that it is covered under the manufacturer's warranty terms and conditions. This warranty coverage provides peace of mind, protecting your investment and ensuring prompt service in case of any hardware failures or issues during the specified warranty period.
