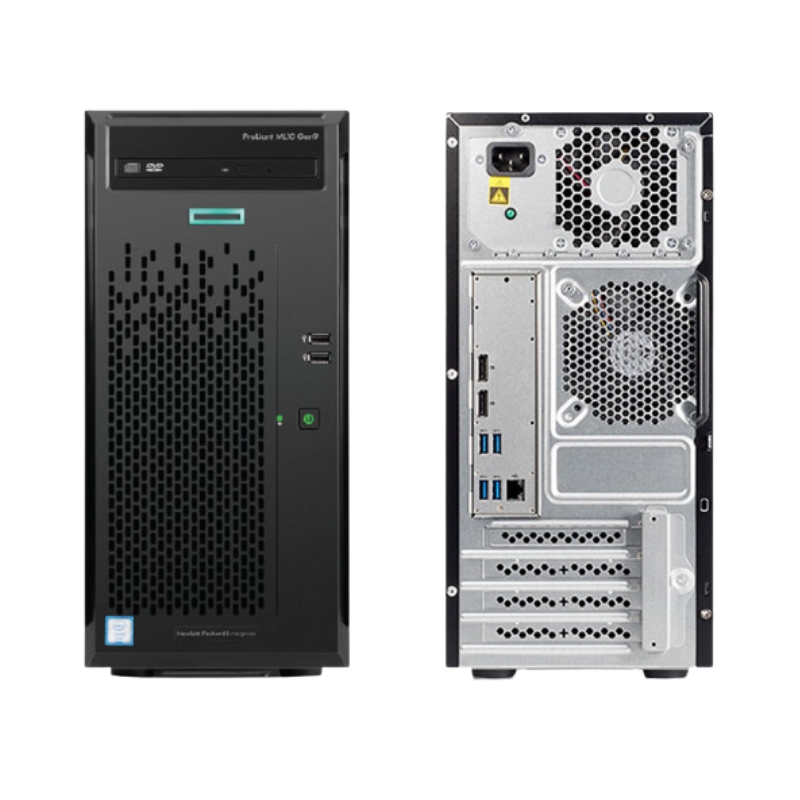

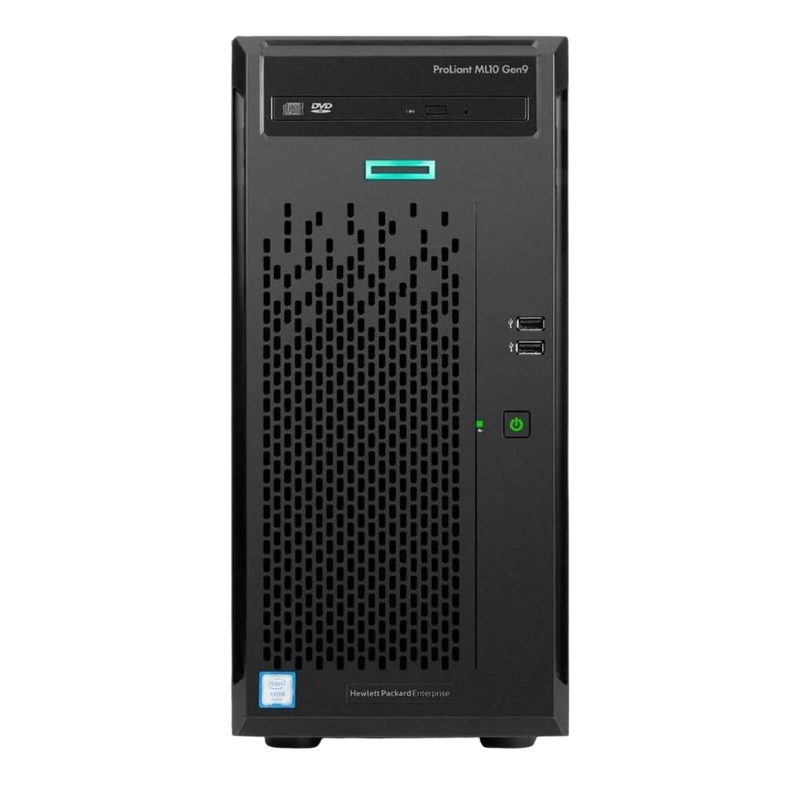

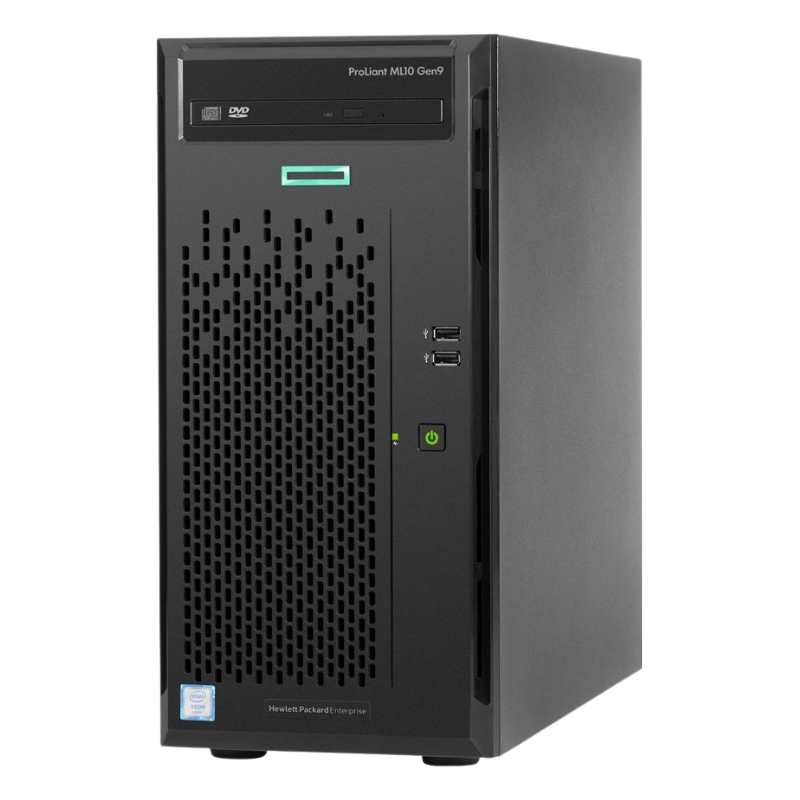

HPE Proliant ML10 Gen9 Smart Buy 838122-S01 Rack Server.

Processor

The HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server is equipped with a powerful Intel Xeon 4-Core E3-1225V5 processor, clocked at 3.3GHz. This processor is specifically designed for server applications, providing exceptional performance and reliability.

Product Overview

Manufacturer Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 838122-S01
• Model Name: Proliant ML10 Gen9 - 4U Tower Server (Smart Buy Model)

Processor Specifications

• CPU: Intel Xeon E3-1225v5, 3.3 GHz
• Max Turbo Speed: 3.7 GHz
• Core Count: Quad-core
• Number of CPUs: 1 (Upgradeable)
• CPU Socket: LGA1151
• Chipset: Intel C236
• Processor Features: Intel Turbo Boost Technology 2

Cache Memory

• Cache Type: Smart Cache
• Installed Cache: 8 MB
• Cache Per Processor: 8 MB

Memory Details

• Installed Memory: 4 GB (expandable to 64 GB)
• Memory Technology: DDR4 SDRAM - ECC
• Memory Speed: 2133 MHz
• Memory Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Configuration: 1 x 4 GB

Storage & Storage Controller

Hard Drive Specifications

• Type: HDD
• Capacity: 1 TB
• Interface: SATA 6 Gb/s
• Spindle Speed: 7200 RPM
• Optical Drive: DVD-Writer

Storage Controllers

• Type: RAID
• Interface: SATA 6 Gb/s
• Channel Count: 6
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Display & Graphics

• Graphics Processor: Intel HD Graphics P530
• Video Interface: DisplayPort

Network & Communication

• Interface Type: PCI Express x2
• Ethernet Controller: Intel I219LM
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Features: PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

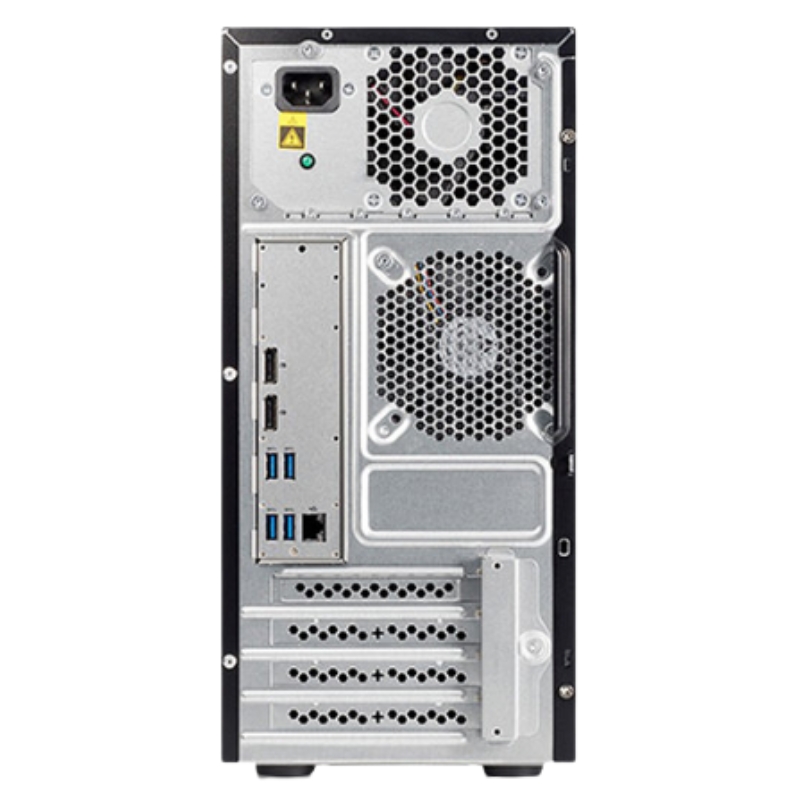

Expansion & Connectivity

Expansion Bays

• Total Bays: 4 (3 available internal 3.5 LFF, 1 external 5.25)

Expansion Slots

• DIMM Slots: 4 (3 available)
• CPU Slot: 1 (occupied)
• PCIe 3.0 x4 Slots: 2 (1 available, half-length/full-height)
• PCIe 3.0 x16 Slot: 1 (available, half-length/full-height, x8 mode)
• PCIe 3.0 x8 Slot: 1 (available, half-length/full-height)

Interfaces & Ports

• DisplayPort Ports: 2
• LAN Port: 1 (Gigabit Ethernet)
• USB 3.0 Ports: 4
• USB 2.0 Ports: 3 (2 front, 1 internal)

Miscellaneous

Theft/Intrusion Protection

• Security Lock Slot: (Cable lock sold separately)

Standards Compliance

• ACPI 2.0b, FCC Class A Certified
• EN 61000-3-2, EN 55022, ICES-003
• EN 61000-3-3, EN 55024, CISPR 22
• FCC CFR47 Part 15, IEC 60950-1, EN 60950-1
• WEEE, GB 9254, CNS 13438

Power Description

• Device Type: Power Supply
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 300 Watt

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Unmatched Performance

The Intel Xeon 4-Core E3-1225V5 processor offers exceptional performance capabilities, making it ideal for demanding server workloads. With four cores and a base clock speed of 3.3GHz, the processor can handle multiple tasks simultaneously, ensuring smooth and efficient operation of your server.

Enhanced Multitasking

Thanks to its multi-threading capabilities, the Intel Xeon 4-Core E3-1225V5 processor can handle up to eight threads simultaneously. This allows for efficient multitasking, enabling your server to handle complex applications and processes without any slowdowns or bottlenecks.

Improved Energy Efficiency

The Intel Xeon 4-Core E3-1225V5 processor is built using advanced energy-efficient technologies, ensuring optimal power consumption without compromising performance. This not only helps to reduce your server's energy costs but also minimizes its environmental footprint.

With its powerful capabilities and energy-efficient design, the Intel Xeon 4-Core E3-1225V5 processor is an excellent choice for the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server. It provides the necessary processing power to handle demanding workloads while maintaining efficiency and reliability.

Memory

The HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server comes with 4GB(1X4) DDR4 SDRAM, offering ample memory capacity for your server needs. This memory configuration ensures smooth and efficient operation, allowing your server to handle multiple tasks simultaneously.

Optimal Performance

The 4GB DDR4 SDRAM provides fast and reliable memory access, ensuring optimal performance for your server applications. With its high bandwidth and low latency, this memory configuration allows for seamless data retrieval and processing, minimizing any delays or bottlenecks.

Scalability and Expansion

The HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server supports expandable memory capabilities, allowing you to upgrade the memory as your business needs grow. This flexibility ensures that your server can adapt to increasing workloads and handle future demands without any performance limitations.

Reliable Data Storage

The 4GB DDR4 SDRAM not only provides fast and efficient memory access but also helps ensure the integrity of your data. With error-correcting code (ECC) technology, this memory configuration can detect and correct single-bit memory errors, minimizing the risk of data corruption or loss.

The 4GB(1X4) DDR4 SDRAM in the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server offers optimal performance, scalability, and reliability. It ensures that your server can handle demanding workloads efficiently while providing room for growth and protecting your valuable data.

Storage

The storage capabilities of the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server are powered by Intel RST SATA Raid technology and include a 24SFF configuration with a 1TB capacity. This storage solution offers reliability, flexibility, and ample space for your data storage needs.

Enhanced Data Protection

The Intel RST SATA Raid technology provides enhanced data protection by offering RAID functionality. RAID (Redundant Array of Independent Disks) allows for data redundancy, ensuring that your data remains intact even in the event of a disk failure. This helps to minimize the risk of data loss and improve overall system reliability.

Flexible Configuration

The 24SFF configuration of the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server provides ample storage space for your business needs. With 24 small form factor (SFF) drive bays, you have the flexibility to configure your storage solution according to your specific requirements. Whether you need high-capacity storage or a combination of different drives, this server can accommodate your needs.

Improved Performance

The 1TB capacity of the storage solution ensures that you have enough space to store your data without compromising performance. With fast data access and transfer speeds, you can retrieve and store your data quickly and efficiently, allowing for smooth operation and optimal productivity.

The Intel RST SATA Raid technology and the 24SFF configuration with 1TB capacity in the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server offer enhanced data protection, flexibility, and performance. This storage solution is designed to meet your business storage needs while ensuring the reliability and integrity of your valuable data.

Networking

The HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server is equipped with an Intel I219LM networking interface. This networking feature provides reliable and efficient connectivity for your server, ensuring seamless communication with other devices and networks.

High-Speed Connectivity

The Intel I219LM networking interface offers high-speed connectivity, allowing for fast and reliable data transfer between your server and other devices or networks. Whether you need to transfer large files, stream media, or access remote resources, this networking feature enables smooth and efficient communication.

Enhanced Network Security

The Intel I219LM networking interface includes advanced security features to protect your server and data from unauthorized access or malicious threats. With built-in encryption and authentication capabilities, this networking feature helps ensure the integrity and confidentiality of your network communications.

Flexible Network Configuration

The Intel I219LM networking interface supports various network configurations, including Ethernet and virtual LAN (VLAN). This flexibility allows you to set up your server's network according to your specific requirements, ensuring compatibility with your existing infrastructure and facilitating easy integration.

The Intel I219LM networking interface in the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server provides high-speed connectivity, enhanced network security, and flexible configuration options. It ensures that your server can effectively communicate with other devices and networks while maintaining the integrity and confidentiality of your data.

Power Supply

The HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server is powered by a single 300W power supply unit (PS). This power supply feature provides reliable and efficient power delivery to ensure the smooth and uninterrupted operation of your server.

Stable Power Delivery

The 300W power supply unit in the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server delivers stable power to all the components of your server. This ensures that each component receives the necessary power without any fluctuations or surges, minimizing the risk of hardware failures or system crashes.

Energy Efficiency

The 300W power supply unit is designed to be energy-efficient, reducing power consumption and operating costs. By optimizing power delivery and minimizing energy wastage, this power supply feature helps to lower your server's overall energy footprint, making it more environmentally friendly.

Redundancy and Reliability

The HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server supports redundant power supply configurations, allowing you to add a second power supply unit for increased reliability. Redundant power supplies provide a fail-safe mechanism, ensuring uninterrupted operation even if one power supply fails. This feature is crucial for businesses that require continuous server availability.

The single 300W power supply unit in the HPE Proliant ML10 Gen9 Smart Buy Model 838122-S01 4U Rack Server offers stable power delivery, energy efficiency, and the option for redundant configurations. It ensures that your server operates reliably and efficiently while minimizing energy costs and providing the necessary power for uninterrupted performance.
