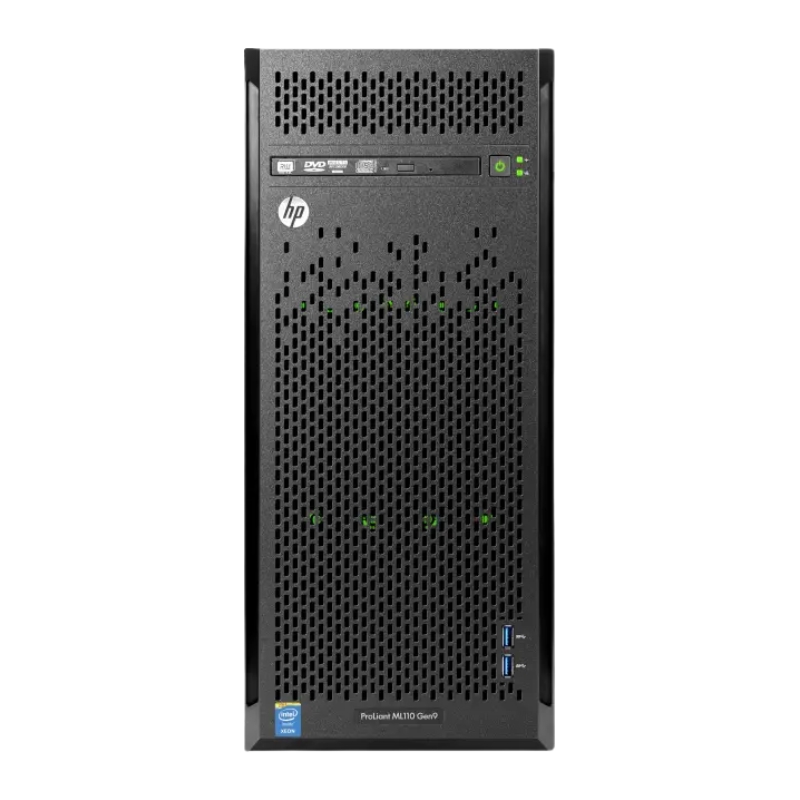

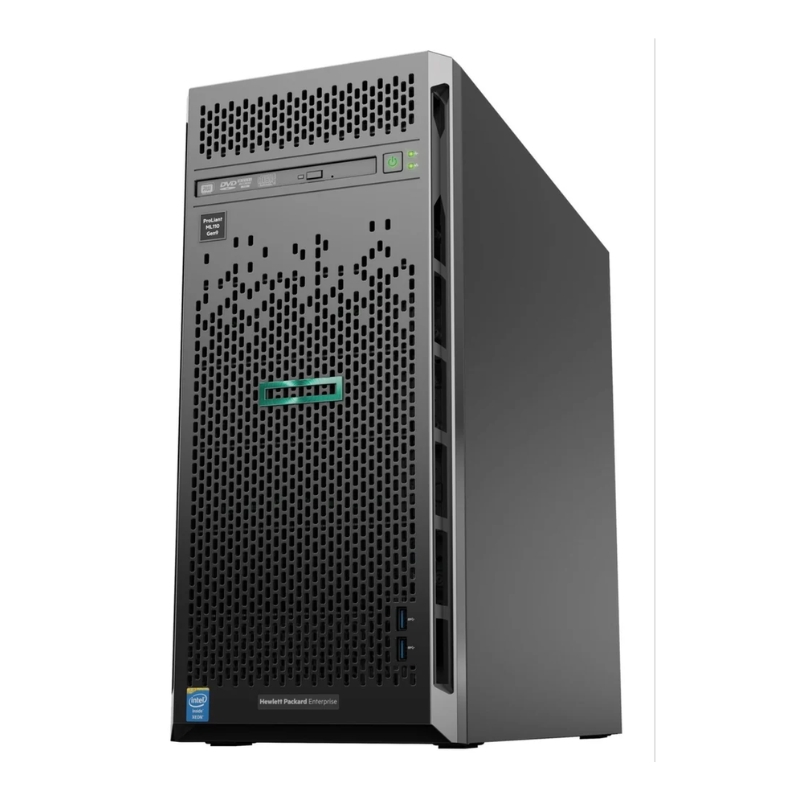

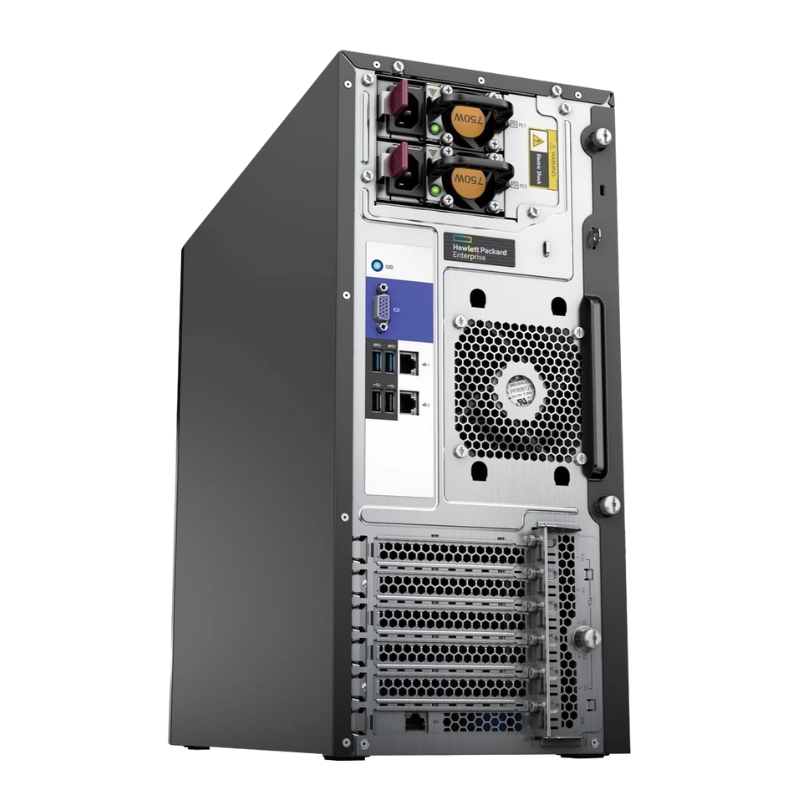

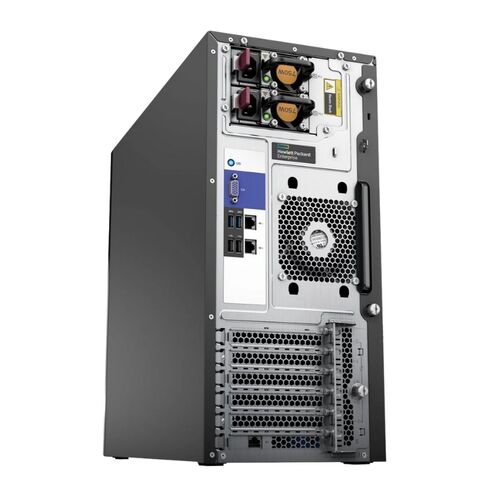

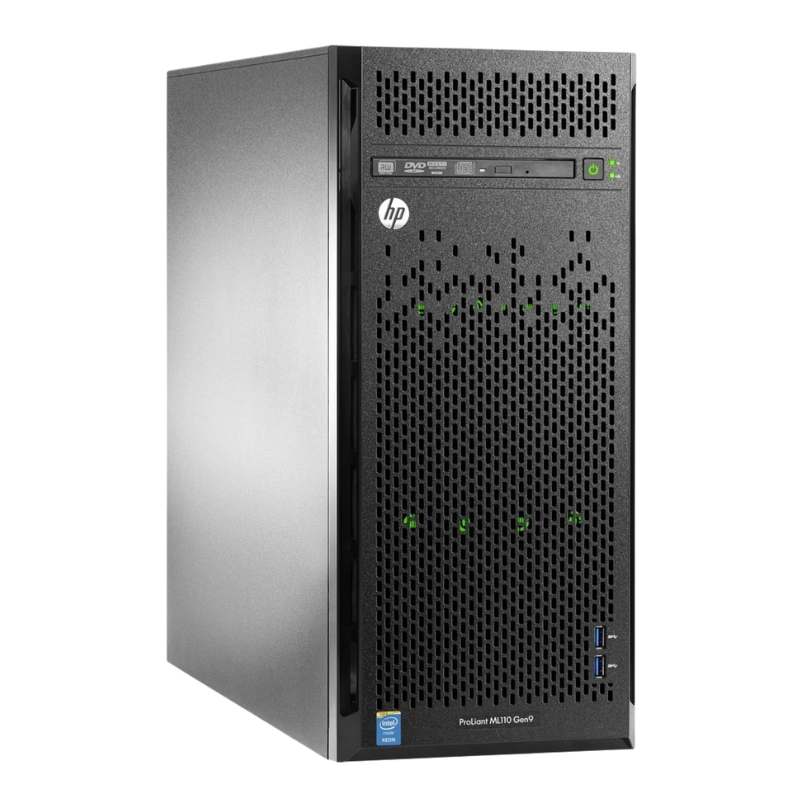

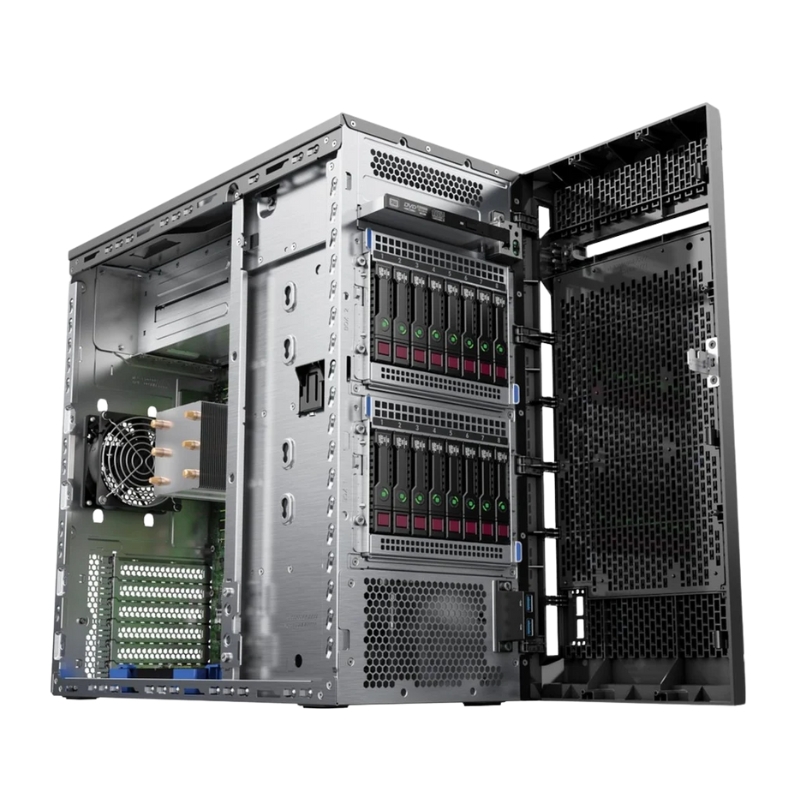

HPE Proliant ML110 Gen9 8SFF Cto Tower Server 776935-B21.

CPU

The HPE ML110 G9 Tower Server is equipped with a powerful CPU that delivers exceptional performance and reliability. With its advanced technology, this server ensures seamless operation and efficient processing of complex tasks.

General Specification of ML110 G9

Manufacturer: Hewlett Packard Enterprise

Part Number: 776935-B21

Product Name: Proliant ML110 Gen9 - 4.5U Tower Server (CTO Model-8SFF HP)

Processor & Chipset

• Processor Type: No CPU Installed
• 64-bit Computing: Supported
• Compatible Processor Socket: FCLGA2011-3
• Installed Quantity: 0
• Maximum Supported Quantity: 1

Chipset Details

• Chipset Type: Intel C610 Series

Cache Memory

• Cache Memory Type: Smart Cache
• Installed Size: 0 MB

Memory Specifications

• Installed Size: 0 GB / Up to 256 GB
• Technology: DDR4 SDRAM - Advanced ECC
• Memory Specification Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Slots: 8 (total) / 8 (empty)

Supported RAM Configurations

• PC4-17000: Up to 128 GB Load-reduced
• PC4-17000 Registered: Up to 256 GB

Storage Configuration

• Hard Drive: Not Included
• Optical Drive: None

Storage Controllers

• Controller Name: Smart Array B140i
• Buffer Size: None
• Disk Drive Interface: Up to 6 Gb/s SATA
• Internal Connectors: 10 SATA
• Server Interface: PCIe 2.0 x4
• SATA Speed: 6 Gb/s
• Logical Drives Supported: Up to 8 Logical Volumes (6 Physical Drives)
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Display & Graphics Controllers

• Graphics Processor: Matrox G200EH
• Video Memory: 16 MB

Network & Communication

• Type: Integrated
• Bus Type: PCI Express x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP 330i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management

• Protocol: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• Total (Free): 1 x External 5.25
• Hot-Swap Bays: 8 x 2.5 SFF

Expansion Slots

• Total (Free): 8 x DIMM 288-pin
• CPU Slot: 1
• PCIe 3.0 Slots:
  • 2 x x8 - Half-length, Full-height
  • 2 x x4 - Half-length, Full-height
  • 1 x x16 - Three-quarter-length, Full-height
• MicroSD Card Slot: 1 (internal)

Interfaces & Ports

• VGA Port: 1 (Rear)
• LAN Ports: 2 x Gigabit Ethernet
• HP iLO Port: 1
• USB Ports:
  • 5 x USB 3.0 (2 Front, 2 Rear, 1 Internal)
  • 3 x USB 2.0 (2 Rear, 1 Internal)

Miscellaneous Features

• Security Features: Administrator Password, Power-on Password, Serial Port I/O Control, Setup Password
• BIOS: UEFI

Compliant Standards

• ACPI 2.0b
• FCC Class B Certified
• CISPR 24
• ICES-003
• EN 61000-3-3
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• GB 9254
• CNS 13438

Manufacturer Selling Program

Factory Integrated, CTO (Configure-to-Order)

Power Description

• Device Type: Power Supply
• Installed Quantity: 0
• Maximum Supported Quantity: 2

Dimensions & Weight

• Depth: 18.9 inches
• Width: 7.7 inches
• Height: 17.3 inches
• Weight: 27.6 lbs

No Compromises in Performance

One of the key highlights of the HPE ML110 G9 Tower Server is its CPU, which leaves no room for compromise when it comes to performance. This server is powered by a high-performance processor that offers incredible speed and processing power. Whether you are running resource-intensive applications or handling heavy workloads, this CPU can handle it all with ease.

Improved Productivity

By choosing a server with a robust CPU like the one in the HPE ML110 G9, you can significantly enhance your productivity. The powerful processing capabilities of this CPU allow for faster data analysis, quicker response times, and improved overall efficiency. You can run multiple applications simultaneously without experiencing any lag or slowdowns, ensuring smooth and uninterrupted operations.

Seamless Virtualization

If you are planning to implement virtualization technology in your business, the CPU in the HPE ML110 G9 Tower Server is ready to support your needs. Its advanced architecture enables efficient virtual machine deployment and management. You can create multiple virtual environments without compromising performance, allowing you to maximize resource utilization and streamline your operations.

Future-Proofing

The HPE ML110 G9 Tower Server's CPU is designed with future-proofing in mind. With its cutting-edge technology and high-performance capabilities, this server can meet the demands of evolving business requirements. Whether you need to scale up your operations or adapt to new technologies, the powerful CPU ensures that your server can handle any challenges that come your way.

Memory

The HPE ML110 G9 Tower Server is equipped with ample memory capacity, allowing you to handle demanding workloads and run memory-intensive applications with ease.

No Memory Constraints

When it comes to memory, the HPE ML110 G9 Tower Server ensures that you have no constraints. With its generous memory capacity, you can handle large data sets, complex calculations, and memory-intensive applications without any limitations. This server is designed to support the most demanding workloads, providing you with the necessary resources to achieve optimal performance.

Enhanced Application Performance

The abundant memory capacity of the HPE ML110 G9 Tower Server translates into improved application performance. With more memory available, your server can store and access data faster, resulting in reduced latency and improved response times. This means that your applications can run smoothly and efficiently, providing a seamless user experience for your customers or employees.

Efficient Virtualization

In a virtualized environment, memory plays a crucial role in ensuring smooth operations. The HPE ML110 G9 Tower Server's generous memory capacity allows for efficient virtual machine deployment and management. You can allocate sufficient memory to each virtual machine, preventing resource contention and ensuring optimal performance for all applications running on the server.

Scalability for Future Growth

The HPE ML110 G9 Tower Server's memory capacity is not only sufficient for current needs but also allows for future growth. As your business expands and demands increase, this server can accommodate additional memory modules to meet your evolving requirements. You can easily scale up your server's memory capacity without worrying about compatibility or performance issues.

HDD

The HPE ML110 G9 Tower Server offers a flexible storage solution with its support for various HDD configurations. This server ensures that you have ample storage capacity to store and manage your data effectively.

No Storage Limitations

When it comes to storage, the HPE ML110 G9 Tower Server removes any limitations. This server supports a wide range of HDD configurations, allowing you to choose the storage capacity that suits your needs. Whether you require a small amount of storage for basic applications or a massive amount of storage for data-intensive workloads, this server can accommodate your requirements.

Efficient Data Management

The flexible HDD options in the HPE ML110 G9 Tower Server enable efficient data management. You can organize and store your data in a way that aligns with your business needs. Whether you prefer RAID configurations for data redundancy and performance or require multiple independent volumes for different purposes, this server can handle it all.

Improved Performance

The right HDD configuration can significantly impact the performance of your server. The HPE ML110 G9 Tower Server's support for various HDD options allows you to optimize performance based on your specific requirements. You can choose high-performance HDDs for applications that demand fast access to data or opt for large-capacity HDDs for data storage and archiving purposes.

Scalable Storage Capacity

The HPE ML110 G9 Tower Server provides the flexibility to scale your storage capacity as your needs evolve. You can easily add or replace HDDs to increase your server's storage capacity without disrupting operations. This scalability ensures that you have enough storage space to accommodate future data growth and changing business requirements.

RAID Controller

The HPE ML110 G9 Tower Server features a Smart Array B140I RAID Controller without FBWC, offering enhanced data protection, improved performance, and simplified management.

Advanced-Data Protection

The Smart Array B140I RAID Controller in the HPE ML110 G9 Tower Server provides advanced data protection features. With RAID configurations, you can ensure that your data remains safe even in the event of a disk failure. By distributing data across multiple drives and creating redundant copies, RAID protects against data loss and minimizes downtime.

Improved Performance

In addition to data protection, the Smart Array B140I RAID Controller enhances server performance. By using multiple drives in a RAID configuration, you can achieve higher read and write speeds compared to a single drive setup. This improved performance translates into faster data access and reduced latency, allowing for more efficient operations and improved user experience.

Simplified Management

The Smart Array B140I RAID Controller simplifies storage management by providing centralized control over your RAID configurations. You can easily monitor the status of your drives, perform maintenance tasks, and configure RAID settings through a user-friendly interface. This simplification saves time and effort, ensuring that your server's storage is always optimized for performance and reliability.

Flexibility for Different Workloads

The HPE ML110 G9 Tower Server's Smart Array B140I RAID Controller offers flexibility to accommodate different workloads. Whether you need high-performance storage for demanding applications or redundancy for critical data, this controller allows you to configure RAID levels that match your specific needs. You can customize your storage setup to achieve the right balance between performance, capacity, and data protection.

Network Adapter

The HPE ML110 G9 Tower Server features a 1GB 2-Port 330I Network Adapter, delivering fast and reliable network connectivity for your business needs.

Faster Data Transfer

The 1GB 2-Port 330I Network Adapter in the HPE ML110 G9 Tower Server enables faster data transfer rates, ensuring efficient communication between your server and other devices on the network. Whether you are accessing files, sharing data, or running network-intensive applications, this network adapter ensures smooth and speedy data transmission.

Reliable Connectivity

Reliable network connectivity is crucial for uninterrupted operations. The 1GB 2-Port 330I Network Adapter provides a stable and dependable connection, minimizing the risk of network disruptions and downtime. This adapter is designed to handle high data volumes and maintain consistent performance even during peak usage periods, ensuring that your business can operate without interruptions.

Improved Network Performance

The 1GB 2-Port 330I Network Adapter enhances overall network performance by reducing latency and improving response times. With faster data transfer rates, your server can communicate with other devices on the network more efficiently, resulting in improved application performance and a better user experience. Whether you are accessing cloud services, collaborating with remote teams, or running real-time applications, this network adapter ensures optimal performance.

Scalable Network Capacity

The HPE ML110 G9 Tower Server's 1GB 2-Port 330I Network Adapter offers scalability to accommodate your growing network needs. You can easily expand your network capacity by adding more ports or upgrading to higher-speed adapters as your business grows. This scalability ensures that your server can support increasing network demands without compromising performance or reliability.

Form Factor

The HPE ML110 G9 Tower Server's 4.5u form factor makes it an ideal choice for businesses that require a compact yet powerful server solution.

Space-Saving Design

The 4.5u form factor of the HPE ML110 G9 Tower Server allows you to save valuable office space. This compact design is ideal for small businesses or environments with limited space. You can easily fit this server in a small office, a crowded server room, or even under a desk, maximizing the use of available space without compromising performance or expandability.

Easy Installation and Maintenance

The compact form factor of the HPE ML110 G9 Tower Server simplifies installation and maintenance. With its smaller footprint, this server is easier to handle and maneuver compared to larger servers. You can quickly set up this server in your desired location without the need for specialized equipment or extensive cabling. Additionally, maintaining and accessing components for upgrades or repairs is more convenient with its compact size.

Expandability Options

Despite its compact form factor, the HPE ML110 G9 Tower Server offers expandability options to meet your future needs. This server is designed to accommodate additional storage drives, memory modules, and expansion cards, allowing you to scale your server's capabilities as your business grows. The 4.5u form factor ensures that you can continue to leverage the compact size while expanding your server's capabilities.
