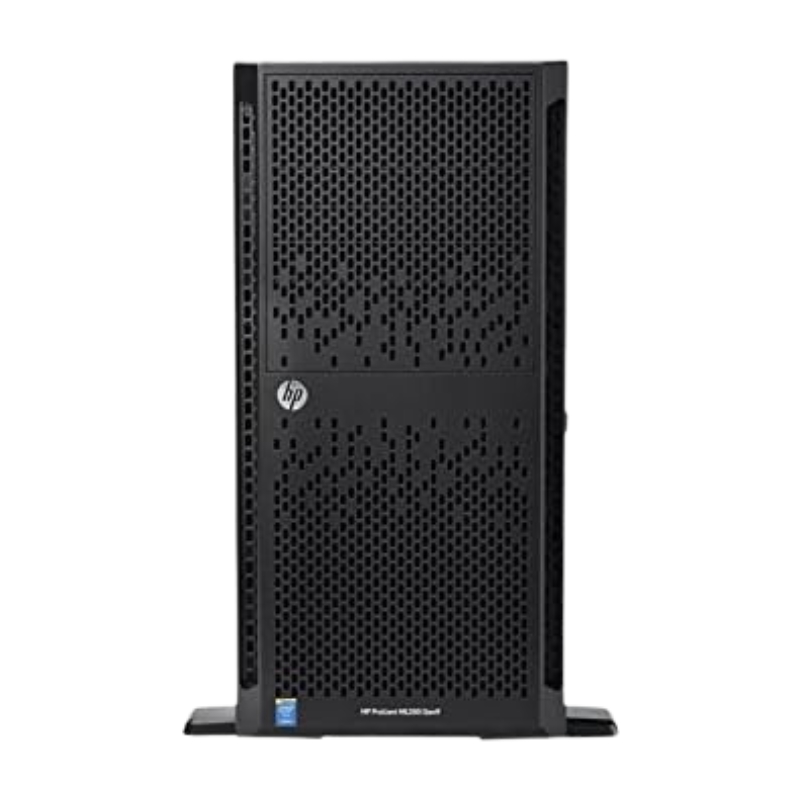

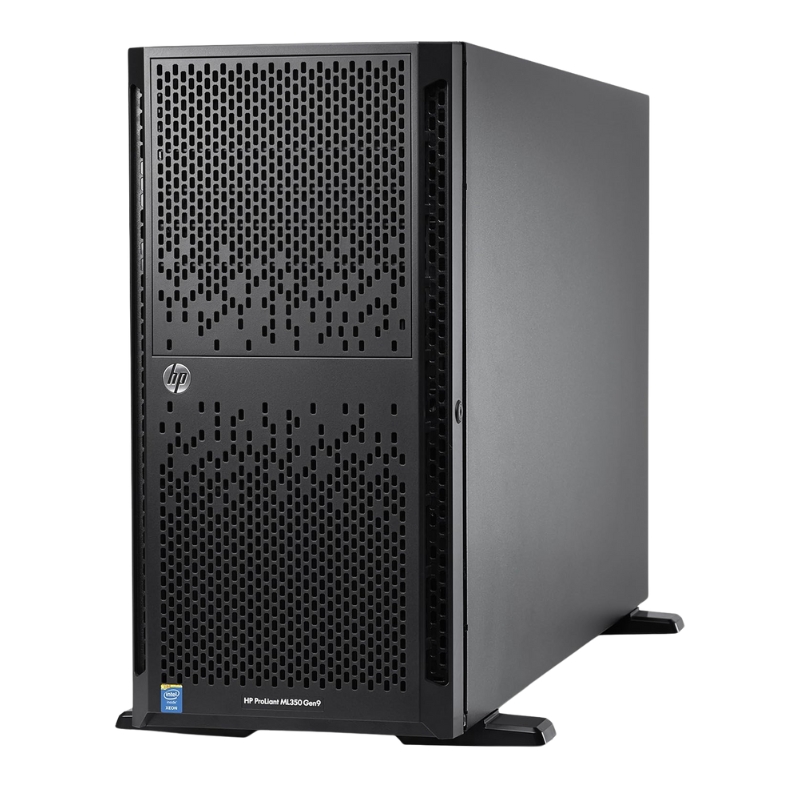

HPE Proliant ML150 G9 CTO Chassis Intel C610 Chipset Tower Server - 767063-B21

Chipset: Intel C610

The HPE Proliant ML150 G9 Tower Server is equipped with the Intel C610 chipset, which plays a crucial role in enhancing the server's performance and reliability. The chipset acts as the central nervous system of the server, facilitating communication between different components and ensuring smooth operation.

Main Information of ML150 G9

Manufacturer: HPE
Part Number: 767063-B21
Product Name: Proliant ML150 G9 - 5U Tower Server (CTO Model - 4LFF Hot Plug)

Processor & Chipset

Intel E5-v3 Series

CPU

No CPU Installed

Maximum Supported Processors

2

Compatible Processor Socket

FCLGA2011-3

Chipset

Intel C612 Series

Cache Memory

Smart Cache

Memory Specifications

0 GB (upgradable to 256 GB)

Memory Technology

DDR4 SDRAM

Memory Form Factor

DIMM 288-pin

Memory Slots

16 slots (all empty)

Supported RAM Types

• PC4-17000 - 256 GB Load-reduced
• PC4-17000 - 256 GB Registered

Storage Information

None

Optical Drive

None

Storage Controllers

Smart Array B140i

Buffer Size

None

Disk Drive Interface

Up to 6 Gb/s SATA (Serial ATA)

Connectors

10 Internal SATA Connectors

Server Interface

X4 PCIe 2.0

SATA Speed

6 Gb/s SATA Links

Logical Drives Supported

Up to 8 Logical Volumes (with 6 Physical Drives)

Host Memory Addressing

64-bit, supporting greater than 4 GB server memory space

RAID Support

• RAID 0
• RAID 1
• RAID 5
• RAID 10
• RAID 50

Network & Communication

Integrated

Interface Type

PCI Express x2

Ethernet Ports

2 x Gigabit Ethernet

Ethernet Controller

HP 331i

Data Link Protocols

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

Remote Management Protocols

• IPMI 2.0
• SMASH CLP

Remote Management Controller

Integrated Lights-Out 4 (iLO 4)

Features

• Wake On LAN (WOL)
• PXE Support

Compliant Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab

Expansion & Connectivity

• 1 x External 5.25" (free)
• 4 x Internal 3.5" LFF (free)

Expansion Slots

• 16 x DIMM 288-pin (all free)
• 2 x CPU
• 3 x PCIe 3.0 x8 - Half-length, Full-height
• 1 x PCIe 3.0 x16 - Full-length, Full-height (2 Processors Required)
• 1 x PCIe 3.0 x8 - Half-length, Full-height (2 Processors Required)
• 1 x MicroSD Card (internal)

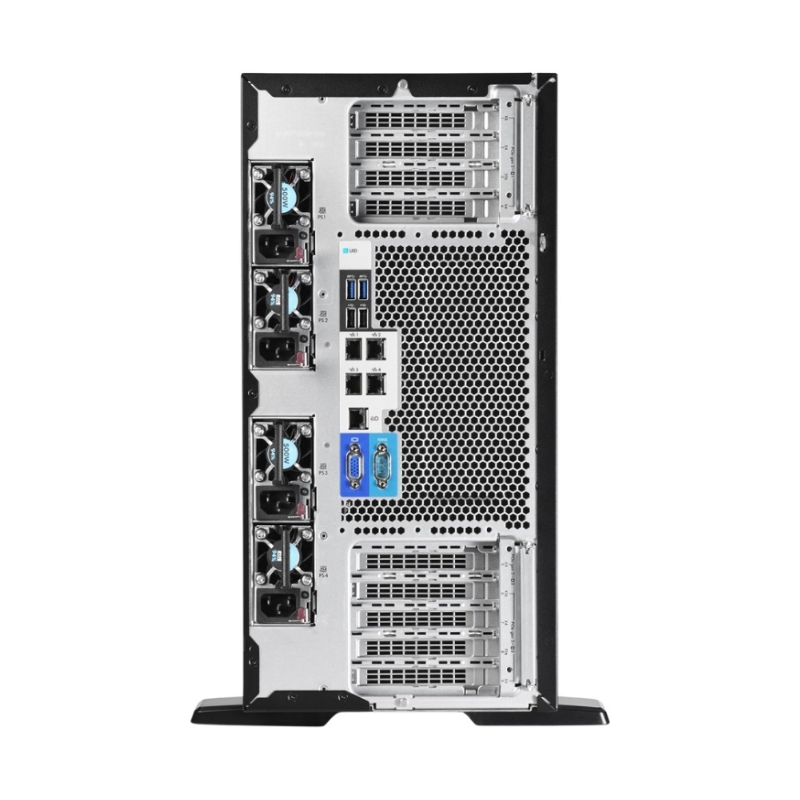

Interfaces & Ports

• 1 x VGA
• 2 x LAN (Gigabit Ethernet)
• 1 x HP iLO
• 5 x USB 3.0 (2 Front, 2 Rear, 1 Internal)
• 3 x USB 2.0 (2 Rear, 1 Internal)

Miscellaneous

• Administrator Password
• Power-on Password
• Serial Port I/O Control
• Setup Password
• UEFI BIOS

Compliant Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEB
• GB 9254
• ASHRAE
• CNS 13438

Manufacturer Selling Program

CTO (Configure to Order)

Dimensions & Weight

• Depth: 24.4 inches
• Width: 7.9 inches
• Height: 17 inches
• Weight: 37.3 lbs

Optimized Data Processing

The Intel C610 chipset is specifically designed to handle demanding workloads efficiently. It supports advanced technologies like Intel QuickPath Interconnect, which enables high-speed data transfers between the processor and other components. This results in optimized data processing capabilities, allowing for faster response times and improved overall performance.

Scalability and Expansion Options

One of the key benefits of the Intel C610 chipset is its support for multiple processors. This means that the HPE Proliant ML150 G9 Tower Server can be easily upgraded to accommodate growing business needs. With the ability to add additional processors, users can scale their server's performance as their workload demands increase without the need for a complete hardware replacement.

Reliable System Stability

The Intel C610 chipset also provides essential features for maintaining system stability and preventing data loss. It incorporates advanced error-correcting code (ECC) memory support, ensuring accurate data storage and retrieval. ECC technology detects and corrects single-bit errors in memory, minimizing the risk of system crashes or data corruption.

Improved Security Measures

Security is a top concern for businesses, especially when it comes to their valuable data. The Intel C610 chipset includes robust security features such as Intel Trusted Execution Technology (TXT) and Intel Secure Key. These technologies help safeguard sensitive information by providing enhanced protection against unauthorized access and data breaches.

CPU: Not Included

The HPE Proliant ML150 G9 Tower Server offers users the flexibility to choose their desired CPU separately. This allows businesses to tailor the server's processing power to meet their specific requirements and budget constraints.

Customizable Performance

By offering a "CPU not included" option, HPE enables users to select a processor that aligns with their workload demands. This customization ensures that businesses can optimize their server's performance for specific applications or tasks. Whether it's running resource-intensive databases or handling virtualization workloads, users can choose the right CPU for their needs.

Future-Proofing Investment

The absence of a pre-installed CPU also future-proofs the investment in the HPE Proliant ML150 G9 Tower Server. As technology advances and new CPUs are released, businesses can easily upgrade their server by simply replacing the existing CPU with a more powerful and efficient one. This flexibility helps extend the server's lifespan and adaptability to evolving business needs.

Cost-Effective Solution

By not including a CPU, HPE provides a cost-effective solution for businesses. Users have the freedom to select a processor that fits within their budget constraints without compromising on performance. This allows businesses to allocate their resources efficiently and invest in other critical areas of their IT infrastructure.

Ease of Troubleshooting and Maintenance

The modular nature of the HPE Proliant ML150 G9 Tower Server makes troubleshooting and maintenance easier when it comes to the CPU. If any issues arise with the processor, it can be easily replaced without affecting other components or disrupting the entire system. This reduces downtime and ensures uninterrupted operation.

RAM: Not Included

The HPE Proliant ML150 G9 Tower Server does not include pre-installed RAM, allowing users to tailor their memory configuration to their specific needs. This flexibility ensures that businesses can optimize their server's performance for different workloads and applications.

Scalable Memory Capacity

By not including RAM, HPE provides users with the opportunity to choose the memory capacity that best suits their requirements. Whether it's a small business needing a modest amount of RAM or an enterprise with demanding workloads, users can scale the server's memory capacity accordingly. This scalability allows businesses to adapt their server to changing needs without investing in unnecessary resources.

Cost-Efficient Solution

The absence of pre-installed RAM in the HPE Proliant ML150 G9 Tower Server offers a cost-efficient solution for businesses. Users can select the amount and type of memory that aligns with their budget constraints without compromising on performance. This flexibility in memory configuration helps optimize resource allocation and ensures maximum return on investment.

Enhanced Application Performance

By allowing users to choose their own RAM, HPE enables businesses to enhance the performance of specific applications or workloads. Different applications have varying memory requirements, and by selecting the appropriate RAM, users can ensure optimal performance and responsiveness. This is particularly crucial for memory-intensive tasks such as virtualization or running databases.

Ease of Upgrading and Maintenance

The modular design of the HPE Proliant ML150 G9 Tower Server makes upgrading or replacing RAM a straightforward process. If additional memory is needed in the future or if existing modules need to be replaced, it can be done easily without disrupting other components or the entire system. This ease of maintenance helps minimize downtime and ensures smooth operation.

RAID Controller: Smart Array

Data Protection and Redundancy

The HPE Proliant ML150 G9 Tower Server features the Smart Array B140I Without FBWC RAID controller, which offers essential data protection and redundancy capabilities. RAID (Redundant Array of Independent Disks) technology helps prevent data loss and ensures data availability in case of disk failures.

Improved Performance and Reliability

The Smart Array B140I Without FBWC RAID controller enhances the server's performance and reliability by allowing multiple disks to work together in various configurations. This results in improved read and write speeds, as well as increased fault tolerance. By distributing data across multiple drives, the server can handle higher workloads and continue operating seamlessly even if one or more drives fail.

Flexible Storage Options

The RAID controller provides users with flexible storage options, allowing them to choose the configuration that best suits their needs. The Smart Array B140I supports different RAID levels, including RAID 0, RAID 1, and RAID 5. This flexibility enables businesses to balance performance, capacity, and redundancy based on their specific requirements.

Data Integrity and Security

The Smart Array B140I Without FBWC RAID controller ensures data integrity and security through features like data striping and mirroring. Data striping distributes data across multiple drives for improved performance, while mirroring creates redundant copies of data on separate drives for enhanced reliability. These features help safeguard critical information and minimize the risk of data loss due to disk failures.

Ease of Management

Managing the RAID configuration is made easy with the Smart Array B140I Without FBWC RAID controller. It includes intuitive management tools that allow users to monitor the status of their storage arrays, configure RAID levels, and perform maintenance tasks. This simplifies storage management and ensures that businesses can efficiently maintain their server's storage infrastructure.

Network Adapter: 1GB 4-Port 331

The HPE Proliant ML150 G9 Tower Server is equipped with the 1GB 4-Port 331I Ethernet Adapter, providing users with high-speed and reliable networking capabilities. This network adapter ensures seamless communication between the server and other devices on the network.

Increased Bandwidth and Throughput

The 1GB 4-Port 331I Ethernet Adapter supports Gigabit Ethernet, allowing for significantly higher bandwidth compared to traditional Fast Ethernet. This increased bandwidth enables faster data transfers, reduces network congestion, and improves overall network performance. Whether it's transferring large files or running bandwidth-intensive applications, users can experience smooth and efficient network operations.

Enhanced Network Security

Security is a top priority in today's digital landscape. The 1GB 4-Port 331I Ethernet Adapter includes features like VLAN tagging and TCP/IP Offload Engine (TOE), which help enhance network security. VLAN tagging allows for the segmentation of network traffic, providing an additional layer of protection against unauthorized access. TOE offloads processing tasks from the server's CPU to the network adapter, improving overall system performance while maintaining security.

Reliable Connectivity

The 1GB 4-Port 331I Ethernet Adapter ensures reliable connectivity by offering multiple ports for network connections. Having four ports allows for increased redundancy and load balancing, ensuring continuous network availability even if one port or cable fails. This redundancy helps minimize downtime and ensures uninterrupted access to critical resources.

Ease of Management

Managing the network adapter is made easy with the included management tools and drivers. Users can monitor the status of their network connections, configure settings, and troubleshoot any issues that may arise. This ease of management simplifies network administration and helps businesses maintain a stable and reliable network infrastructure.

Drive Bays: 4LFF

The HPE Proliant ML150 G9 Tower Server features 4LFF (Large Form Factor) drive bays, providing users with flexible storage options. These drive bays allow businesses to configure their server with the right combination of storage drives to meet their specific needs.

Increased Storage Capacity

The 4LFF drive bays offer ample space for installing large-capacity hard disk drives (HDDs) or solid-state drives (SSDs). This increased storage capacity allows businesses to store and manage large amounts of data, whether it's for file sharing, database storage, or running applications that require significant storage resources.

Improved Data Accessibility and Performance

With multiple drive bays, users can implement various storage configurations to optimize data accessibility and performance. For example, they can set up RAID arrays to enhance data protection and increase read/write speeds. The 4LFF drive bays support different RAID levels, allowing users to choose the configuration that best suits their needs.

Scalability and Future Expansion

The 4LFF drive bays provide scalability and future expansion options for businesses. As data storage requirements grow, additional drives can be easily added to accommodate the increasing demand. This scalability allows businesses to scale their storage infrastructure without investing in a completely new server or storage solution.

Data Redundancy and Fault Tolerance

With multiple drive bays, businesses can implement RAID configurations that provide data redundancy and fault tolerance. RAID levels such as RAID 1 or RAID 5 distribute data across multiple drives, ensuring that if one drive fails, the data remains accessible from other drives. This redundancy minimizes the risk of data loss and ensures continuous availability of critical information.

Form Factor: 5U

Space-Saving Design

The HPE Proliant ML150 G9 Tower Server features a 5U form factor, offering a space-saving design without compromising on performance or expandability. This compact size allows businesses to maximize their server's capabilities while minimizing the physical footprint in their IT environment.

Flexible Deployment Options

The 5U form factor provides flexibility in deployment options. The server can be easily accommodated in various environments, including small server rooms, offices, or rack cabinets. This versatility allows businesses to optimize their space allocation and choose the most suitable location for their server.

Efficient Cooling and Airflow

The compact size of the 5U form factor enables efficient cooling and airflow management within the server. With proper cooling mechanisms in place, businesses can ensure that the server operates within optimal temperature ranges, minimizing the risk of overheating and hardware failures. Efficient airflow management also helps prolong the lifespan of components and ensures reliable performance.

Scalability and Expandability

Despite its compact size, the HPE Proliant ML150 G9 Tower Server offers scalability and expandability options. It provides adequate space for adding additional components or upgrading existing ones as business needs evolve. The server's modular design makes it easy to install new hardware or replace existing components without disruption.

Easy Maintenance and Accessibility

The 5U form factor enhances ease of maintenance and accessibility. With a slightly larger chassis compared to smaller form factors, businesses have more room to access internal components for troubleshooting, upgrades, or maintenance tasks. This accessibility helps minimize downtime and ensures efficient management of the server's hardware infrastructure.
